Offer Profile
The success story of
Gebr. Schumacher Company,
starting from a custom farming operation to a now world wide operating
Schumacher Group,
is based on a few principles for which we, as crop cutting specialist, like
to be known, namely:
Innovation, Quality and Service.
Close co-operation with our customers and end users, our own extensive field
testing, our
identification with our products and end users, help, and also motivate us,
to solve their problems
and to face new challenges now, and in the future.
|
|
|
|
Product Line Up
|
Crop lifters
Croplifters are the foundation of our company and our
core business.
To adapt to the ever changing harvest conditions, to extend wear life and
ease of handling, the standard series of croplifters have been improved over
the past years.
|
|
|
|
ASK Crop lifter
|
 |
ASM Crop lifter
|
|
ASX Crop lifter
|
|
|
|
Easy Cut II
The Schumacher cutting system features low
maintenance, superior strength, high cutting performance, easy way of
shipping and assembly.
The combination of high quality components like the guard, the PRO CUT
section, sectionalized knife assemblies and guiding roll/spacerbars make this
possible.
|
|
|
|
Schumacher double guard S4
|
|
Schumacher triple guard S4
|
|
Schumacher first guard
|
|
ProCut
|
|
|
|
Sectionalized knife
The sectionalized knife assemblies are made up of
individual sections. The longest single section is a little less than 9 feet
long
|
|
SCH Rollerguide
The SCH Rollerguide replaces the current spacerbars.
The knifeback moves now against the hardened rollers. The rollers turn on a
sealed ball bearing. This virtually eliminates all the frictional forces of
the knife assembly.
|
|
|
|
|
|
|
|
Pro Drive knife drive
The PRO DRIVE knife drives feature a planetary gear
system. Epicyclic drive. This design results in an absolute linear movement
of the knifehead and knife.
The full stroke length is always fully transferred to the knife. The design
of horizontal or vertical input drive versions allows use in many
applications.
|
|
|
|
|
 |
|
|

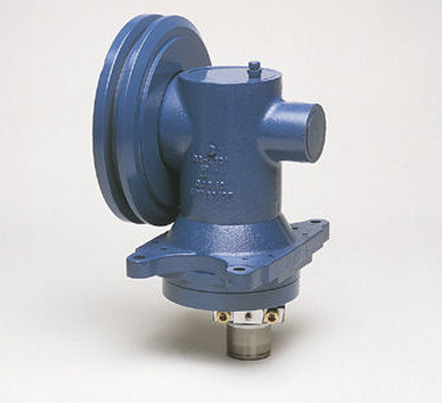

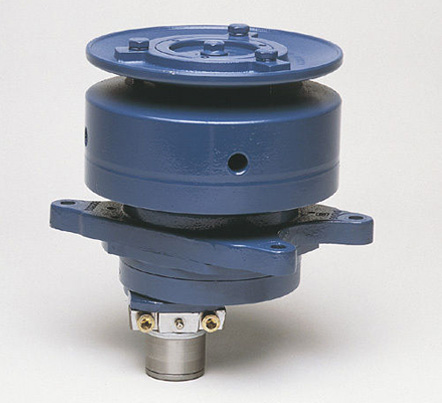

ProDrive Knife Drive
Designed as a planetary drive, we donīt need drive arms
and reversing levers.
At the same time the mounting of the drive guarantees all lateral forces are
transferred directly to the knife assembly.
The ProDrive is grease lubricated, not oil bathed. This makes for minimal
maintenance and is environmentally friendly.
ProDrives are available in a horizontal or vertical power input version.
This allows for a maximum of input power variations.
To retrofit your current platform with a ProDrive, we recommend having our
customer service people do this.
They are also available to advise you on all matters regarding our cutting
system.
The ProDrive advantages:
- Absolutely linear output movement
- High output forces using lower torque
- Minimal maintenance, environmentally friendly (grease, no oil) |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
