YASKAWA MOTOMAN
Videos
Loading the player ...
  • Offer Profile
  • YASKAWA Electric is one of the world’s leading manufacturers in the fields of drive technology, industrial automation and robotics based in Kitakyushu, Japan. Founded in 1915, we see ourselves as a pioneer in these sectors, always striving to optimise the productivity and efficiency of machines and industrial systems with our innovations.
    For over 100 years now, our products and solutions have been supporting automation in a wide variety of industrial processes including mining, mechanical engineering and toolmaking, as well as the automotive, packaging, wood processing, lift, textile and semiconductor industries.
Product Portfolio
  • MOTOMAN robots

      • Handling/Mounting

          • ES-Series

          • The flexible 6-axis MOTOMAN ES robot offers superior performance for material handling, machine tending, spot welding and press brake automation.

            The models feature working envelopes ranging from 2,446 mm to 4,004 mm and a high moment of inertia.

            Increased axis speeds and acceleration reduce cycle times considerably. The compact, slim design allows for close positioning to the work piece, which improves productivity.

            Model Payload

            Max Working Range

            ES165D-100 165 kg 3010 mm
            ES165RDII 200 kg 3140 mm
            ES200RDII 200 kg 3140 mm
            ES200RD-120 120 kg 4004 mm
          • SIA-Series

          • The slim and powerful MOTOMAN SIA 7-axis single-arm robot is perfect for automated processes such as assembly, inspection, machine tending and material handling.

            The SIA models have payloads ranging from 5 kg to 50 kg and working envelopes ranging from 845 mm to 1,323 mm.

            The revolutionary design with high wrist performance and internal supply cables make it possible to use it in confined spaces while providing unrivalled maneuvering flexibility. It is even able to easily move around corners or reach into the machine.

            Model Payload Max Working Range
            SIA5F 5 kg 559 mm
            SIA10F 10 kg 720mm
            SIA20F 20 kg 910 mm
          • SDA-Series

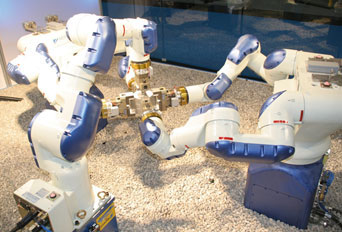

          • The MOTOMAN SDA models are slim and agile 15-axis dual-arm robots with "human-like" flexibility of movement and fast acceleration.

            This makes it the ideal solution for a variety of operations such as assembly, part transfer, machine tending, packaging and other handling tasks. The CSDA10F model is designed for clean room use.

            The SDA models have payloads ranging from 5 kg to 40 kg and working envelopes ranging from 845 mm to 1,323 mm. Both robot arms can work together synchronously or perform different tasks simultaneously. Due to its small footprint it can operate in confined spaces, saving valuable floor space.

            Model Payload Max Working Range
            CSDA10F 20 kg 720 mm
            SDA5F 10 kg 845 mm
            SDA10F 20 kg 720 mm
            SDA20F 40 kg 1323mm
          • HP-Series

          • The high-speed, 6-axis MOTOMAN HP robot offers superior performance in a variety of applications, such as material handling, machine tending, packaging, cutting and assembly of small to medium size components.

            The models feature working envelopes ranging from 1,717 mm to 1,915 mm and payloads ranging from 6 kg to 20 kg.

            Due to its compact design, the HP robot requires minimal installation space and offers improved part accessibility, making it the most versatile robot in its class.

            Model Payload Max Working Range
            HP20F 20 kg 1717 mm
            HP20F-CR7 20 kg 1717 mm
          • MH-Series

          • The MOTOMAN MH is a flexible, 6-axis high-speed robot used for a variety of applications such as material handling, machine tending, material processing and distribution.

            The MH models have payloads ranging from 3 kg to 250 kg and working envelopes ranging from 532 mm to 3,106 mm.

            The compact design allows for positioning close to the work piece, thus reducing cycle times.

            Model Payload Max Working Range
            MH600 600 kg 2942 mm
            MH3F 3 kg 532 mm
            MH3BM 3 kg 532 mm
            MH5LSII/MH5LF/MH5LF-CR7  5 kg 895 mm
            MH50-20II 20 kg 3106 mm
            MH110 110 kg 2236 mm
            MH400II 400 kg 2942 mm
        • Welding / Cutting

            • MS-Series

            • The MOTOMAN MS-series robots are especially used in spot welding applications. The MS models have a payload ranging from 80 kg to 120 kg and a working envelope ranging from 1,623 mm to 2,236 mm.

              The 6-axis robots have an advantage over conventional heavy duty robots thanks to their streamlined design and ability to use smaller spot welding guns, and the ability to position the robots closer to the workpiece shortens the welding lines, reduces the cycle times and as a result provides for flexible adjustment of the welding lines. The internally routed cables extend from the L-axis to the robot socket and through the centre of the S-axis.

              Model Payload Max Working Range
              MS80WII 80 kg 2236 mm
              MS100II 100 kg 2236 mm
              MS165 165 kg 2702 mm
              MS210 210 kg 2702 mm
            • MC-Series

            • The MOTOMAN MC is specifically designed for high-precision tasks. This robot is especially important for laser applications such as laser cutting, welding or cladding.

              The MC model has a payload of 50 kg and a working envelope of up to 2,038 mm.

              Due to the high payload, even large laser heads, for instance, move with precision in different tracks above the workpiece. This feature makes it possible for the robot to move along circles, curves and straight tracks.

              Model Payload Max Working Range
              MC2000II 50 kg 2038  mm
            • MA-Series

            • The MOTOMAN MA 6-axis robot is designed especially for the high demands of arc welding applications.

              With its superior wire feed system, internally routed cables and working envelopes ranging from 1,434 mm to 1,904 mm, the MA-series robot significantly improves welding quality. Its payloads range from 3 kg to 15 kg.

              The high-precision tracking and integrated supply lines prevent collisions with workpieces and other robots in the room and minimise wear to the torch hose package. Fast motion sequences reduce welding cycle times.

              Model Payload Max Working Range
              MA1440 6 kg 1440 mm
              MA2010 10 kg 2010 mm
          • Packaging / Palletising

              • MPK-Series

              • The MOTOMAN MPK high-speed robot provides superior performance for food handling, order picking, packaging and other high-speed handling applications—especially in environments where cleanliness and hygiene are extremely important.

                The MPK models have payloads ranging from 2 kg to 50 kg and working envelopes from 900 mm to 1,893 mm.

                Some models feature the IP67 code and are also wash-down ready.

                Model Payload Max Working Range
                MPK2F 2 kg 900 mm
                MPK2F-5 5 kg 900 mm
              • MPL-Series

              • The innovative MPL palletising robots are true masters of movement and are attractive due to their superior acceleration and exceptional axis speeds, while requiring very little space for installation.

                The MPL models have payloads ranging from 80 kg to 800 kg and working envelopes ranging from 2,061 mm to 3,159 mm.

                The internally routed supply lines (four air lines and 22 electrical cables) extending up to the head joint provide for the highest possible hose package service life.

                Model Payload Max Working Range
                MPL80II 80 kg 2061 mm
                MPL100II 115 kg 2150 mm
                MPL160II 160 kg 3159 mm
                MPL300II 300 kg 3159 mm
                MPL500 500 kg 3159 mm
                MPL800 II 800 kg 3159 mm
              • MPP-Series

              • The MOTOMAN MPP 4-axis high-speed robot with a parallel kinematic system combines the speed of the Delta design with a high payload capacity and a large working envelope. This robot was developed for order picking, high-speed picking and other handling applications and is primarily used in the food and solar industries.

                The MPP models feature a maximum payload of 3 kg and a working envelope of 1,300 mm

                Due to the high torque of the fourth axis, known as the wrist axis, the MOTOMAN MPP models are impressive because of their ability to move at unprecedented speeds.

                Model Payload Max Working Range
                MPP3H 0 kg 860 mm
                MPP3S 3 kg 800 mm
              • MYS-Series

              • The MOTOMAN MYS is a high-speed 4-axis Scara robot. This high-performance robot is primarily used in applications such as assembly, small parts handling, case packing and lab automation, thus providing the ideal solution for large, multi-process systems requiring pick & place capability.

                The MYS models have a payload ranging from 6 kg to 20 kg and a working envelope ranging from 450 mm to 1,000 mm.

                The MYS models in particular easily integrate with existing robot applications.

                Model Payload Max Working Range
                MYS450F 6 kg 450 mm
                MYS650LF 6 kg 650 mm
                MYS850LF 10 kg 850 mm
            • Painting

                  • MPX-Series

                  • 6- axis painting robot with high performance in painting automobile bodies, bumpers, construction equipment and further more.

                    A high-density layout saves space by reducing the size of the painting booth. The L axis is designed with no offset to enabled installation of the manipulator closer to a work piece, which saves space.

                    The MPX model has a payload up to 15 kg and working envelope of 3,500 mm.

                    The time required for teaching large cells can be shortened by converting the data created for the robot on one side for the robot on the opposite side.

                    Model Payload Max Working Range
                    MPX3500 15 kg 3500 mm
              • Controller

                  • DX200

                  • Main features:
                    • Consistent improvement in DX generation controllers
                    • Patented multi-robot control of up to 72 axes or 8 robots
                    • Application-specific function packages and more than 120 functions
                    • Integrated ladder logic incl. 4,096 I/O addresses
                    • "Individual Servo Off" energy saving function for breaks in production
                    • Integrated safety controller for the set-up of up to 32 safety zones and 16 tools (cat.X/PLX as per EN ISO 13849-1, SILX as per EN62061/IEC61508)
                    • Communication via digital/analogue I/Os, Ethernet, Web (FTP, OPC) server options and support for popular fieldbus interfaces
                    • Very lightweight, Windows-based CE teach pendant (PHG) with touchscreen and multi-window colour display
                    • System programming via PHG as well as externally via PC-based systems (API), offline simulation systems such as MotoVRC, Robcad, Labview and user-specific HMI
                    • IP54 compliant control housing
                  • YRC1000

                  • Main features:
                    • Compact, fast and flexible
                    • Global standardization (no transformer required)
                    • High path accuracy
                    • High efficiency
                  • FS100

                  • Main features:
                    • Designed as an open controller
                    • Development of customized user applications
                    • High flexibility for variable packaging solutions
                    • Safe and fast
                    • Space-saving, streamlined and compact
                    • Energy-saving
                • Software

                    • Interfaces

                        • MotoLogix

                        • Controlling software for MOTOMAN robots

                          MotoLogix is a revolutionary software interface for controlling YASKAWA robots by PLC.

                          Main features:
                          • Easy programming, commissioning, teaching and operating of robots in a machine
                          • Controlling of all YASKAWA DX200 robots
                          • Data stored in PLC, not in robot controller
                          • Assurance of YASKAWA path quality and a smooth motion
                        • MotoModbus

                        • With MotoModbus, YASKAWA provides a standard interface to almost any HMI (human machine interface).

                          The configurable interface can transmit variables and information about inputs/outputs. This allows basic, direct communication between the DX100 or FS100 robot controller and any HMI with a compatible Modbus TCP client interface. Additional fieldbus hardware is not required.

                          Main features:
                          • Direct communication
                          • Configurable
                          • Universal for almost all HMIs
                          • No indirect transmission through fieldbus
                        • MotoOPC server

                        • The purpose of MotoOPC is to simplify the connection between applications in manufacturing and processing and business/office applications.

                          OLE for Process Control (OPC) basiert auf der COM/DCOM-Technologie. It is therefore not dependent on the different standards developed by hardware and software suppliers.

                          The software supports the NX100 robot controller with software version 3.30 and higher as well as the DX100 and FS100 controllers.

                          Main features:
                          • Not dependent on hardware and software suppliers
                          • Plug & Play data exchange configuration
                          • Multi-client access to data distribution
                          • Networking capability and Internet/intranet access
                        • FTP function

                        • NX100/DX100/FS100 control function for file access via FTP.

                          FTP (File Transfer Protocol) is a standard protocol for transferring files over Ethernet. The FTP function provides the ability for NX100, DX100 or FS100 controllers to exchange specific files with other devices via FTP. The controller can then be configured either as an FTP client or as an FTP server.

                          Main features:
                          • FTP client
                            • Stores files on the FTP server
                            • Loads the files from the FTP server onto the robot
                          • FTP server
                            • Uploads files to the robot controller
                            • Backs up files via the FTP client
                            • Clears jobs
                      • Communication/backup tools

                          • Software Pendant

                          • Virtual teach pendant

                            Software Pendant is a Windows-based solution which displays the teach pendant on the PC, thus eliminating the need for a robot system to use a physical teach pendant. The robot is programmed using the usual "teach-in" process the same way it would be using a teach pendant.

                            This especially reduces the number of components in systems in which a Windows PC is already operating. Programming is easy, particularly when using a PC with a touchscreen. This gives the system manufacturer the option to display operation of the process machine and the robot on a station.

                            Main features:
                            • "Teach-in" process on PC
                            • Fewer components
                            • Homogeneous system
                            • Capability for multiple robots on an HMI
                          • FDDWin32

                          • The FDDWIN32 communications software is used to store and manage the robot program and system data (robot, I/O, controller) on a PC.

                            The software eliminates the need to use the controller's floppy disk drive and instead uses the computer for manual backup, download and storage of files, etc. This is an economical solution for increased storage capacity and for retrieval of data and, if necessary, provides the option for fast and easy backup.

                            Main features:
                            • Loading/saving robot data
                            • Robot jobs
                            • Configuration files
                            • Application data
                            • System data
                            • Tool data, etc.
                            • Displays
                            • Display file contents
                          • MotoAdmin

                          • MotoAdmin is a cost-effective software solution that allows you to control the robot remotely from a PC in order to carry out tasks such as diagnosing faults.

                            Data can also be managed from a remote site using MotoAdmin. The connection to the robot controller can be serial or over TCP/IP Ethernet.

                            Main features:
                            • File access, i.e. loading, saving and deleting job files
                            • Ability to define backup profiles for one-button backup
                            • Display and editing of global variables
                            • Display of I/O signals (only indirect setting of outputs possible)
                            • Control of the robot job execution (servo, start/interrupt jobs, etc.)
                            • Display and limited reset of alarms and faults
                            • Retrieval of alarm history
                            • Retrieval of system information such as software version, installed functions, robot type, stations, axes, positions
                            • Job editing (without syntax control)
                          • JobExchanger32

                          • JobExchanger32 is a user-friendly communication software for storing and managing robot controller files on a PC using drag-and-drop functionality.

                            This eliminates the need to use the controller's floppy disk drive and instead uses the computer for manual storage and retrieval of files, etc.

                            Main features:
                            • Robot data storage
                              • Robot jobs
                              • Configuration files
                              • Application data
                              • System data
                              • Tool data, etc.
                            • Robot data retrieval
                              • Robot jobs
                              • Configuration files cannot be loaded
                              • Only some system data can be loaded
                            • Displays
                              • Display file contents
                          • MotoDCI32/MotoJob32

                          • Software for external storage of robot jobs.

                            The MotoDCI32/MotoJob32 software tools are used to store robot jobs externally on a PC. This expands the available storage space. The jobs stored on the PC are loaded into the robot controller when requested (Data Communication by Instruction, abbreviated as DCI) and can then be executed.

                            Using MotoDCI32, the request is made by entering the job name. When using MotoJob32, the request is made by providing an access number, which makes it necessary to pre-register jobs.

                            Main features:
                            • External storage of robot jobs
                            • Control via RS-232 or Ethernet
                            • Logging
                        • Development tools

                            • MotoGSI SDK

                            • Interface programming

                              MotoGSI SDK is a software development kit for developing communication interfaces at the job level. The main component of MotoGSI is an INFORM instruction set extension that facilitates the establishment of communication links (socket connections) to external devices. Ethernet/TCP (for client), Ethernet/UDP and RS-232 based interface connections are currently supported.

                              Main features:
                              • Enables the connection of all devices and cameras via TCP/IP or RS-232
                              • Implements specific protocols
                              • Standard protocols are already included (FTP, SMTP, Telnet)
                            • MotoCom32 SDK

                            • MotoCom32SDK is a software development kit for communication applications.

                              It is based on DLL (Dynamic Link Library) technology, which makes it easy to use when creating new software applications or integrating third-party HMIs. It also provides the ability to access the robot from different clients (simultaneously with the DX100) without changing the configuration.

                              Main features:
                              • File transfer
                              • Robot control functions
                              • Status information
                              • System monitoring
                              • Setting or reading of I/O signals
                              • Communication control
                              • DCI functions for job-initiated PC communication (LOADV, SAVEV etc.)
                            • Advanced PP Customization SDK

                            • Development kit for creating application-specific user interfaces.

                              The Advanced PP Customization SDK provides a collection of modules for quick and easy creation of application-specific user interfaces for the teach pendant (PP). Adapted user interfaces make it possible to centralize important information and control elements for easy access. Operation can be standardized for all devices.

                              Contents:
                              • API module
                              • Logging module
                              • GUI module
                              • Language module
                              • User level module
                              • Input module
                            • MotoPlus SDK

                            • Development tool for MotoPlus apps.

                              MotoPlus SDK is a software development kit for creating expansion modules (MotoPlus apps) for MOTOMAN controllers. User-defined modules expand on the functionality of the robot controllers to include functions not available with the standard INFORM instruction set/ladder. Relevant modules provide, for instance, communication protocols for other devices, complex mathematical calculations, etc. The expansion modules are created externally on a PC using the common C programming language and are integrated once compiled.

                              Main features:
                              • Integrated development environment
                              • MotoPlus library
                              • Collection of examples
                          • Offline Tools

                              • JobEditor

                              • Editing robot programs on the PC.

                                JobEditor is a software program used to edit robot programs (INFORM jobs). JobEditor makes it possible to create or modify jobs without removing the robot from the production process. The internal syntax checker guarantees the integrity of the created robot programs.

                                Main features:
                                • Job creation and editing with syntax check
                                  • Insert/delete command lines
                                  • Edit command line
                                  • Cut/copy/paste
                                • Display/edit job header
                                • Edit names of variables and I/Os
                                • Print job
                                • Rename job
                                • Search for job contents
                                • The command set (instruction list) largely corresponds to that of the real controller
                                • Editing of taught position data is only possible via the PGH teach pendant, however
                              • LadderEditor

                              • Editor for the ladder program.

                                LadderEditor enables the creation and editing of the corresponding PLC program in ladder diagram format (Ladder Logic). Das Editieren erfolgt über einfache „Drag and Drop“-Funktion. An automatic syntax check is carried out when the ladder program is compiled. Extensive search functions are also available.

                                Main features:
                                • Simple editing of the ladder mnemonic code
                                • Supported graphical representation
                                • Preview function for displaying the complete line of the ladder program
                                • Simple drag-and-drop function for editing links
                                • Copy and paste between different ladder programs possible
                                • Extensive cross-reference functions
                                • Recording of jump operations
                                • Access protection by means of password
                                • Extensive range of print functions
                              • RobCAD RCS module

                              • Enables the use of MOTOMAN robots in RobCAD.

                                The RobCAD offline programming and robot simulation software by Siemens (previously UGS and Tecnomatix) enables the creation of robot programs without direct contact with the robot. Motion simulations can be carried out to determine accessibility and possible collisions.

                                Main features:
                                • Robot program creation
                                • Most accurate simulation of motion sequences
                                • Compilation of programs into the relevant programming language
                              • MotoVRC

                              • Offline programming and simulation.

                                MotoVRC is a comprehensive software kit for the virtualisation of NX100, DX100 and FS100 based robot systems. MotoVRC facilitates graphical virtualisation of the robot cell as well as of the robot system.

                                Main features:
                                • Virtual robot control
                                • Graphical simulation
                                • Offline programming
                                • Reach and accessibility analyses
                              • MotoSim

                              • MotoSim is an offline programming system with 3D simulation.

                                It reduces the teach-in time required for the robot, increases productivity and ensures operator safety by enabling robot programming on a PC.

                                MotoSim uses the same kinematic model as the robot controller and INFORM language, making it possible to create robot jobs offline.

                                Main features:
                                • Reach and accessibility analyses
                                • Cycle time analysis
                                • Offline programming
                                • Model library
                                • Example cells
                                • Job transfer module
                                • Remote Monitoring function
                                • MotoSim Viewer function



                            • Application software

                                • PalletSolver

                                • Palletising software for MOTOMAN robots.

                                  PalletSolver is a revolutionary robot palletising software package for Motoman® robots. The software offers a host of features and was designed to deliver uniform palletising performance.

                                  Main features:
                                  • Virtually unlimited product variety
                                  • Supports all conventional gripper types
                                  • Dynamic gripper zone configuration, can be modified for each individual cycle
                                  • Export/import of cell and gripper databases that can be accessed from all projects
                                • MotoSight2D

                                • Control and operation of camera applications.

                                  The MotoSight2D interface is a software extension for the DX100 and FS100 controllers for operating and controlling Cognex Insight EasyBuilder-based camera applications.

                                  Main features:
                                  • Display of camera image on robot teach pendant
                                  • Simple assignment of vision system results to robot variables
                                  • Macros for triggering and transferring results
                                  • Display and editing of threshold values
                                  • Good/poor display
                                  • Display of graphical results
                                • MotoPick

                                • Order picking software for controlling picking processes.

                                  MotoPick coordinates and simplifies complex packaging processes and is distinguished by its simple handling. The combination of product recognition by a camera and conveyor tracking and correct setdown of the product at the desired position in the correct tray is controlled using MotoPick.

                                  Main features:
                                  • Start-up management
                                  • Mixed order picking capability
                                  • Optimized load distribution among the robots
                                  • Multi-gripper operation capability
                              • Calibration tools

                                    • MotoCalvEG

                                    • Robot and tool calibration software.

                                      MotoCalvEG is a PC software package for improving the absolute accuracy of MOTOMAN robots.

                                      Main features:
                                      • Robot calibration
                                      • Improvement of the absolute positioning accuracy
                                      • Tool calibration
                                      • Tool angle calibration
                                      • Workpiece calibration
                                      • Layout calibration
                                    • MotoFit

                                    • Force Control Assembly Tool

                                      MotoFit alters the robot´s position based on the force encountered to align or assemble parts.

                                      Main features:
                                      • Ability to enable or disable each translation force or axial moment
                                      • Useful graphics for troubleshooting and setup
                                      • Step-by-step instructions
                                      • Ideal for precision part assembly applications
                                • Peripherals

                                    • Positioners - Multi Station Turntables

                                    • YASKAWA positioners deliver unrivalled performance—especially when it comes to robotic welding applications. They are ultra fast, accurate and easy to program.
                                        • RWV2 Compact

                                        • The RWV2 compact positioner, with its fixed welding robots, saves valuable space and reduces welding cell cycle time requirements.

                                          Due to its design, it can utilise and generate the station changer rotation process for welding, thus markedly improving the cycle time rate.
                                        • RM2 (S3D)

                                        • The RM2 (S3D) is a 2-station positioner for workpieces that require rotation about one axis.

                                          The positioner has a maximum payload of 1,000 kg per station and is available with a distance between face plates of 2,000 mm to 6,500 mm (in 500 mm increments).

                                          The RM2 (S3D) features three servo motors that maintain the ideal position of the workpiece during rotation.
                                        • RWV2

                                        • The RWV2 is a 2-station positioner, each with a horizontal rotary axis for the station changer. Each station has an endlessly rotating axis.

                                          The positioners have a payload of up to 2,500 kg and are available as standard with distances between the face plates of 2,000, 2,500, 3,000 or 3,500 mm.

                                          Additional sizes are available. As an option, one or two robots can be placed in the centre of the table.
                                        • RWV3

                                        • The RWV3 is a 3-station positioner with an endlessly rotating horizontal axis and a station changer. The station changer includes reverse and endlessly rotating operation functions.

                                          The RWV3 can handle workpieces up to a length of 5,200 mm and a maximum weight of 2,000 kg.

                                          Its precise servo technology provides high repeat accuracy and processing time due to very quick positioning.
                                        • RWV4

                                        • The RWV4 is a 4-station positioner with an endlessly rotating, horizontal axis and a station changer. The station changer includes reverse and endlessly rotating operation functions.

                                          The RWV4 can handle workpieces up to a length of 3,600 mm and a maximum weight of 1,500 kg.

                                          Its precise servo technology provides high repeat accuracy and processing time due to very quick positioning.
                                        • VMH-CDD

                                        • The VMH-CDD is a 2-station positioner for workpieces that require rotation about one axis.

                                          The VMH-CDD has a maximum payload of 500 kg per station, a maximum fixture diameter of 1,300 mm and a distance between face plates of either 2,000 mm or 2,636 mm.

                                          Its direct drive and high-speed indexing reduce cycle times.
                                      • Positioners - Headstock

                                      • YASKAWA positioners deliver unrivalled performance—especially when it comes to robotic welding applications. They are ultra fast, accurate and easy to program.
                                          • G-Series

                                          • The G-series tailstock is used to support positioners with horizontal axes.

                                            It is available in different sizes and designs, and the supply lines can be fed though it.

                                            The tailstock is usually used with WD- or WH-series positioners, but is also compatible with other YASKAWA positioners.
                                          • HSB-Series

                                          • The HSB is a 1-station positioner for workpieces that require rotation about one axis.

                                            The positioner can handle workpieces with a maximum weight of up to 20,000 kg.

                                            Since the supply lines are fed through the centre of the face plates, the fixtures can be adapted to customer requirements (e.g. hydraulics, water, etc.).

                                            The positioner can be fitted with a tailstock, such as with a standalone SPB tailstock, to facilitate welding of longer workpieces.
                                          • HTC

                                          • The HTC is equipped with a tailstock, which is mounted on a track in a fixed position from the headstock. Several fixture distances are available in this series.
                                          • T

                                          • The T-Positionier is a one station positioner for work pieces that require rotation about one axis. The free standing tailstock can be mounted directly on the floor at an appropriate distance from the headstock H. Head- and tailstock must always be used together.
                                          • SPB-Series

                                          • The SPB is a tailstock capable of handling a high payload.

                                            The SPB-2000 model is also available with twin fixtures, providing for compact welding cells. The optional track for the SPB-2000 makes it possible to move the tailstock by hand, providing the ability to weld parts of different sizes.

                                            The SPB tailstock can be used together with the HSB positioner, making installation and integration easy.
                                          • H

                                          • The H-Positioners are one station positioners for work pieces that requires rotation about one axis. The free standing headstock can be mounted directly on the floor at an appropriate distance from the tailstock T. Head- and tailstock types must always be used together.
                                          • WD-Series

                                          • The WD is a compact 1-station positioner with a horizontal rotary axis controlled by a direct drive.

                                            The positioners feature a maximum payload of 1,500 kg.

                                            The standalone positioner can be used with or without a tailstock (G-series).
                                          • WG-Series

                                          • The WG model is a 1-station positioner with a horizontal rotary axis.

                                            The WG positioner can handle components with a diameter of up to 3,000 mm and a maximum weight of 4,500 kg.

                                            This model comprises the WD and G modules or the WH and G modules. The modules are separators (WD / WH) with a tailstock (G), where the media can be fed through the separator or tailstock as required.
                                          • WH-Series

                                          • The WH series positioners are 1-station positioners with a horizontal rotary axis that can be controlled by a hollow-shaft drive.

                                            The positioners feature a maximum payload of 1,500 kg.

                                            WH is a standalone positioner that can be used with or without a tailstock (G-series). An optional slip ring device can be used for media feed-through.
                                        • Positioners - C Type / L Type

                                        • YASKAWA positioners deliver unrivalled performance—especially when it comes to robotic welding applications. They are ultra fast, accurate and easy to program.
                                            • B2L/B2C

                                            • The B2L/B2C-series are 2-station positioners with a horizontal rotary axis and an endlessly rotating axis.

                                              The positioners have a maximum payload of 1,000 kg and can handle workpieces with a diameter of up to 1,200 mm.

                                              They have an integrated robot socket and four robot-controlled axes. Their compact design saves on installation space.
                                            • MT1

                                            • The MT1 is a 1-station tilt/rotate positioner and was designed for workpieces that require rotation about two axes.

                                              The MT1 positioner has a maximum payload of 5,000 kg.

                                              The smallest MT1 positioner features a compact, space-saving design, making it suitable for integration in compact welding stations. The larger MT1 positioners are designed to handle heavy payloads.
                                            • R2L/R2C

                                            • The R2L/R2C series are 2-station positioners with one horizontal axis and one rotary axis per station.

                                              The R2L positioner can be used up to a payload of 1,000 kg. The R2C positioner has a maximum payload of 1,500 kg.

                                              An additional axis handles the positioner station change.
                                            • B1L/B1C

                                            • The B1C series positioners are 1-station positioners with a horizontal rotary axis and one additional axis.

                                              The B1L/B1C positioners have a maximum payload of 1,000 kg.

                                              This positioners ensure that the robots working envelope remains practically identical when rotating on the tilt axis.
                                          • Positioners - Tilt Rotation

                                          • YASKAWA positioners deliver unrivalled performance—especially when it comes to robotic welding applications. They are ultra fast, accurate and easy to program.
                                              • TR-1000

                                              • The TR-1000 positioner provides one tilting axis and one rotational axis. Despite the compact design, it is one of the most powerful positioners for welding applications.

                                                The ergonomic loading height, which is determined by the corresponding base, enables the implementation of flexible system concepts.

                                                This positioner can handle work pieces with a maximum diameter of 1200 mm and weighing up to 1000 kg. The distance between the centre of gravity of the welding structure and the faceplate can be up to 400 mm.

                                                This enables realistic loading with the maximum permitted weight. Due to two infinitely rotating welding mass transformers (2 x 360A), two robots can weld simultaneously in the system.
                                              • DK

                                              • The DK-series are 1-station positioners with a rotary and a tilt axis. The rotary axis is endlessly rotating. The tilt axis range is +/- 90°.

                                                The positioner has a maximum payload of 2,500 kg and can handle workpieces with a diameter of up to 1,200 mm.

                                                Two DK-series models are available. The DK-250 and DK-500 models are single-sided positioners. The DK-1000, DK-1500 and DK-2500 positioners have an additional tailstock for the tilt axis.
                                            • Postioners - Base Drives/Turntables

                                            • YASKAWA positioners deliver unrivalled performance—especially when it comes to robotic welding applications. They are ultra fast, accurate and easy to program.
                                                  • R-Series

                                                  • The R-series is a 1-station positioner with a vertical rotary axis. It can be used as a basic modular drive for applications in multiple station operation or as a complete module with fitted face plates.

                                                    The R-series has a payload of up to 6,000 kg.

                                                    The precise servo technology provides high repeat accuracy and high processing time due to very quick positioning.
                                              • Tracks

                                              • Developed to extend the robot working envelope and integrated in the robot controller.
                                                  • TSL

                                                  • The TSL is a high-performance servo powered floor mounted track with one or two robot sockets.

                                                    The track has a maximum payload of 4,000 kg, a travel length of up to 24 metres and a maximum speed of 1.8 m/s.

                                                    It can be used to transport a robot from one station to another or to increase the robot's working envelope, such as when welding large components. The TSL-1000 model is available with a variety of options and accessories and can be adapted easily to your requirements. The TSL-2000 and 4000 models are ideal for high payloads and high-speed applications.
                                                  • VST rotating base

                                                  • The VST is a servo powered rotating base.

                                                    The rotating base has a maximum payload of 2,500 kg and can extend the robots reach by 1,000 mm or 1,100 mm, depending on the robot model.

                                                    It is available in three sizes, covering the entire MOTOMAN robot product line with a handling capacity ranging from 6 kg to 500 kg. The VST is synchronised with the robot. This simplifies the programming, and the robust design makes it an economical and maintenance-free solution.
                                                • Gantries

                                                • Extending the robot’s working envelope with excellent accuracy and fully integrated with the robot’s control system.
                                                    • HD

                                                    • The HD gantry is designed to provide reliable and accurate welding solutions for the production of very large components such as excavators, containers and earth moving equipment.

                                                      The robot has a huge working area, since the Z and Y beam travel paths (horizontal and vertical lift) are up to 2.5 metres and 3 metres long and the support pillars are more than 5 metres high.

                                                      The HD gantry is servo powered and fully synchronised with the robot controller to facilitate positioning of the robot for improved welding accuracy and easier programming. In twin and triple systems where multiple robots run on the X beam, the robots can work together or independent of each other.
                                                    • TSG

                                                    • The TSG gantry is designed to provide reliable, accurate and economical welding solutions for the production of very large components such as excavators, containers and earth moving equipment.

                                                      The TSG is servo powered and fully synchronised with the robot controller. The gantry's Y beam structure is built using two and four metre modules to the required length with a suitable number of supporting pillars.

                                                      In twin systems where multiple robots run on the Y beam, the robots can work together or independent of each other.
                                                  • Closing-units

                                                  • Precise and powerful
                                                      • Hydraulic Closing Unit

                                                      • SH1-10-1000 DK2500

                                                        • Mounted on DK-2500
                                                        • Tilt axis +/- 90°
                                                        • Rotation axis endless operation
                                                        • Workpiece length up to 1000mm
                                                        • Closing force max. 100kN
                                                        • Closing speed max. 90mm/s


                                                        WGSH-20

                                                        • High weld seam quality
                                                        • Closing force and speed programmable directly in robot controller
                                                        • Various design possible
                                                        • Jig length max. 1700 mm
                                                        • Closing force max. 200 kN
                                                        • Closing speed max. 150 mm/s
                                                      • Servohydraulic Closing Unit

                                                      • SH-20-1750 WG3000

                                                        • Mounted on WH-3000
                                                        • Tilt axis +/- 90°
                                                        • Rotation axis endless operation
                                                        • Jig diameter up to 1200mm
                                                        • Closing force up to 100kN
                                                        • Closing speed max. 90mm/s
                                                      • Servoelectric Closing Unit

                                                      • SE1-10-1200

                                                        • Mounted on WH-3000
                                                        • Tilt axis +/- 90°
                                                        • Rotation axis endless operation
                                                        • Jig diameter up to 1200mm
                                                        • Closing force up to 70 or 100kN
                                                        • Closing speed max. 150 or 95mm/s

                                                        WSSE-7

                                                        • High weld seam quality
                                                        • Closing force and speed programmable directly in the robot controller
                                                        • Various designs possible
                                                        • Jig diameter up to 1200 mm
                                                        • Closing force up to 70 kN
                                                        • Closing speed max. 150 or 95 mm/s
                                                      • Special Closing Units

                                                    • System Engineering

                                                        • Welding Standard Systems

                                                            • MOTOMAN ArcWorld V2

                                                            • MOTOMAN ArcWorld is a compact standard welding cell with two stations, designed for small to midsize objects and with one part positioner in each station.

                                                              These could be one of the same, or two different positioners. Another important feature is that the robot cell is easy to move into position, and can be installed within four hours. This makes it ideal to relocate if the needs of your production changes.
                                                            • Welding cell MOTO-Compact RVE

                                                            • The compact robot welding cell for small assemblies.

                                                              This is a complete robot welding cell including a MOTOMAN robot, two station electrically operated turntable and guarding, all mounted on a fabricated pallet base so that it only requires a single fork-truck lift from the delivery vehicle for placement in position in the plant.
                                                            • ArcSystem 2x HSD-500SD

                                                            • Designed for the arc welding with separate work flows, for example assemblies that require different fixtures.

                                                              This system comprises two single axis positioners configured in an opposing layout with a handling capacity of 500 kg.
                                                            • ArcSystem 2x MT1-250S2D

                                                            • Designed for the arc welding with separate work flows, for example assemblies that require different fixtures.

                                                              This system comprises two twin axes positioners configured in an opposing layout with a handling capacity of 250 kg. Manipulation around two axes provides increased flexibility for welding more complex assemblies.
                                                            • ArcSystem RM2-500 S3D

                                                            • Designed for high performance arc welding of medium sized parts with relatively short welding cycles.

                                                              This system comprises a twin station single axis positioner with a handling capacity of 500 kg at each station.
                                                            • ArcSystem RM2-500STN

                                                            • Designed for high performance arc welding of medium sized parts with relatively short welding cycles.

                                                              This system comprises a twin station single axis positioner with a handling capacity of 500 kg at each station.
                                                            • ArcSystem VMF-500 S5D

                                                            • Designed for arc welding work pieces where a high level of flexible positioning is required.

                                                              This system comprises a twin station twin axes positioner with a handling capacity of 500 kg at each station.
                                                            • ArcSystem VMH-500CDD

                                                            • Designed for high performance arc welding of small to medium sized parts with relatively short welding cycles.

                                                              This system comprises a twin station single axis positioner with a handling capacity of 500 kg at each station.
                                                            • ArcSystem VMH-500S2DM

                                                            • Designed for high performance arc welding of small to medium sized parts with relatively short welding cycles.

                                                              This system comprises a twin station single axis positioner with a handling capacity of 500 kg at each station.
                                                            • ArcSystem VMI-500NM

                                                            • Designed for arc welding of small to medium sized parts that do not require manipulation.

                                                              This system comprises an electrically driven rotary twin station rotary table with a handling capacity of 500 kg at each station.
                                                          • Welding Customized Systems

                                                          • Welding equipment and systems

                                                            Customers who choose YASKAWA get much more than just an extensive range of products. With over 30 years of experience in plant development and engineering as well as a wide range of knowledge and expertise in robot technology, YASKAWA provides a complete package fully tailored to your requirements.

                                                            System components all from a single source

                                                            • Exemplary individual robots due to their quality and reliability
                                                            • System peripherals such as positioners, tracks and gantries
                                                            • High-tech jigs
                                                            • Welding and safety accessories
                                                            • Functions (software, control and sensor technology)

                                                            Our systems stand for:

                                                            • Efficiency
                                                              Maximum processing speeds, fast product conversion,jigless, robot-assisted welding
                                                            • Process reliability
                                                              Low break-down susceptibility, consistent processing results, reduced welding distortion,
                                                            • Synchronisation
                                                              Full synchronisation through joint control of robots and positioners, multi-robot technology, optimised welding sequence, cycle time optimisation
                                                              • System Example

                                                              • System examples

                                                              • System examples

                                                            • Spot welding  sytsems

                                                                  • Spot welding systems

                                                                  • The core of this system are the MOTOMAN robots specialised on spot welding applications (MOTOMAN VS100, MS80 II, MS165, MS210), with servo motors built in-house.

                                                                    Mounted on a new positioner, they are saving space up to 40 % and provide better accessibility and high cycle times.

                                                                    Key benefits:
                                                                    • Compact solution, save space up to 40 %
                                                                    • Improved accessibility to the parts to be welded
                                                                    • Easy to move, consists of a single block
                                                                    • Easy to install, no re-teach on site
                                                                    • Reduced set-up by the customer, no re-teach on site
                                                                    • Easy to program, ergonomic position for the operator
                                                                    • Flexible concept – high versatility from one product to another
                                                                    • “Robot on board” in frontal position, easily unloading of the item without interference
                                                                    • Faster than ever, save cycle time
                                                              • Pressbrake systems

                                                                  • Press-brake MH180

                                                                  • For production that mainly consists of large and heavy parts, MOTOMAN offers a standard press-brake system with robots of up to 180 kg payload.

                                                                    The robot picks up the sheets from an inpallet table and the finished products are placed on a pallet or roller conveyor. The roller conveyor can have a pallet magazine for empty pallets.

                                                                    MOTOMAN standard press-brake systems include; orientation table, regrip station, media supply and manual tool changer. The safety fencing can be modified to suit the size of the workpiece.
                                                                  • Press-brake MH50

                                                                  • This press-brake system with a MOTOMAN industrial robot with 50 kg handling capacity is ideal for a mixed production with both small and larger parts in the same robot cell.

                                                                    Incoming workpieces are picked up from a pallet or sheet magazine. Finished products can be placed on a pallet on the floor, or on a roller conveyor.

                                                                    MOTOMAN standard press-brake systems include orientation table, regrip station, media supply and manual tool changer. The safety fencing can be modified to suit the size of the workpiece.
                                                                • Pallet repair systems

                                                                • Pallet dismantling system

                                                                  Start of pallet repair is always dismantling of damaged parts. YASKAWA offers a system for automated hydraulic removal of blocks, stringers or leading boards from Euro pallets with MOTOMAN industrial robot.
                                                                  The operator chooses on a touch screen the damaged parts, and the machine dismantles them automatically. Our turn key systems can work stand alone, combined with sorting systems or be integrated in your existing conveyor network.

                                                                  These systems reduce manual work, mainly lifting pallets and using the tiger saw.
                                                                    • Drives & Motion

                                                                        • AC Inverter Drives

                                                                            • A1000

                                                                            • The A1000 is the premium inverter from YASKAWA. It provides great operation reliability, environmental benefits and energy savings as well as many other user oriented operational features that make it a first class choice.
                                                                            • V1000

                                                                            • YASKAWA V1000 is a general purpose inverter drive covering the demands of a wide field of applications including Open-Loop-Vector functionality and the usage of PM motor without feedback.
                                                                            • J1000

                                                                            • The J1000 meets all automation requirements for compact applications with variable speed operation and energy saving characteristics. A wide range of useful functions upgrade your machine and offer great potentials.
                                                                            • GA700

                                                                            • GA700 is the new versatile YASKAWA inverter drive for industrial applications. Great flexibility, small dimensions and built-in features allow an effortless integration into nearly any application. Smart tools like the Startup Wizard, data logging, the DriveWizard Mobile app and many more assist during setup and troubleshooting to save valuable time.
                                                                            • R1000

                                                                            • The R1000 regenerative braking unit is a smart and efficient alternative to dynamic braking for single or multi-axis drive installations with a high amount regenerative motor operation. Suitable for both regenerative individual drives and systems of inverter drives, servo axis or robots, the R1000 feeds excess braking energy back into the power grid instead of dissipating it as heat.
                                                                            • U1000

                                                                            • U1000 is the perfect match for single motor drive applications with requirements to power regeneration and low harmonics such as lifts, escalators, HVAC machinery, hoists, centrifuges and many others.
                                                                            • D1000

                                                                            • The D1000 regenerative converter unit from YASKAWA saves energy and space. Suitable for both regenerative individual drives and systems of inverter drives, servo axes or robots, the D1000 feeds excess braking energy back into the grid instead of converting it into heat. This not only reduces energy consumption and cost but also contributes to the protection of our environment.
                                                                            • Motor mounted drives

                                                                            • IE4MD Motor mounted drive
                                                                              Energy Saving Drive Package for Decentralized Use

                                                                              The IE4MD Drive Package consists of a V1000 inverter drive for motor mount and a PM motor. Mounting the inverter drive directly onto the motor makes a cabinet and shielded motor cables unnecessary. Additionally, the motor significantly exceeds energy efficiency of the IE4 grade. This makes the IE4MD Drive Package the easiest solution for saving space, reduce energy consumption and cut down costs.

                                                                              • No need for a cabinet. The IE4MD therefore is an economical alternative for new machines. It also performs well for retrofi tting or upgrading of existing machines.
                                                                              • The motors are up to 40% smaller than comparable IE4 motors. The compact design and the low weight allow more lightweight and smaller machines.
                                                                              • Expensive, shielded cables are not necessary. So new machines can be built economically, existing ones can be upgraded without big effort.
                                                                              • Built-in functional safety (STO) replaces motor protection for emergency stop.
                                                                              • Perfectly matching components simplify commissioning and ensure best reliability.
                                                                              • IE4+ efficiency saves energy, protects the environment and supports machine builders in easily fulfilling the ERP directive.
                                                                              • Built-in speed search function for smooth start-up of freely spinning drives and reduces machanical wear; perfect for i.e. fans.
                                                                              • Strong torque, also on small speeds.
                                                                            • ie4+ Drive Packages

                                                                            • SPRiPM Package - The Solution

                                                                              The SPRiPM package is a plug-and-play combination of an inverter drive teamed up with a permanent magnet motor that exceeds IE4 efficiency requirements and provides premium efficiency even in partial load conditions. Thus SPRiPM opens new potentials for saving energy in pump, fan, or other variable torque applications that still commonly use IE1 and IE2 motors.

                                                                              The A1000 covers the full range up to 45 kW. With zero speed operation, impressive starting torque, and advanced functionality such as sensor less positioning, it provides everything needed to satisfy even highly demanding applications.
                                                                          • AC Servo Drives

                                                                              • Sigma-7 400 V

                                                                              • The New Sigma-7 Series
                                                                                Quick – Fast – Reliable

                                                                                The development of the new Sigma-7 series focused on three main goals: consistently fast commissioning, high production output and maximum operational reliability. The series offers a powerful response to today‘s market requirements for both machine constructors and final customers in the production industry. Sigma-7 offers particularly great potential for packaging plants, semiconductor manufacturing, wood processing and digital printing machines.

                                                                                Amplifier

                                                                                • Three-phase input
                                                                                • Embedded fieldbus
                                                                                  • EtherCAT
                                                                                  • MECHATROLINK-III
                                                                                • Single & dual axis amplifier
                                                                                • Daisy-Chain-Connection

                                                                                Motors

                                                                                • Plug-and-Turn connectors according to european standards(M12, M17, M23 and M40)
                                                                                • Available from 200 W to 3 kW
                                                                              • Sigma-7 200 V

                                                                              • The New Sigma-7 Series
                                                                                Quick – Fast – Reliable

                                                                                The development of the new Sigma-7 series focused on three main goals: consistently fast commissioning, high production output and maximum operational reliability. The series offers a powerful response to today‘s market requirements for both machine constructors and final customers in the production industry. Sigma-7 offers particularly great potential for packaging plants, semiconductor manufacturing, wood processing and digital printing machines.

                                                                                Amplifier

                                                                                • Single & three-phase input
                                                                                • Embedded fieldbus
                                                                                  • Pulse train/analog input
                                                                                  • MECHATROLINK-II
                                                                                  • MECHATROLINK-III
                                                                                  • EtherCAT

                                                                                Motors

                                                                                • Very compact design
                                                                                • Available from 50 W to 15 kW
                                                                              • Sigma-5

                                                                              • The YASKAWA Sigma-5 Servo Drive series offers a wide range of well matched components with excellent performance and outstanding efficiency.

                                                                                • Comprehensive Motor and Amplifier Power Range
                                                                                • Savings through Performance. Lower production costs, energy savings and higher productivity, no additional cooling necessary, higher performance
                                                                                • Safety Features. Smooth integration of mandatory legal safety standards
                                                                                • Quality and Reliability in your Production. Excellent production quality, more than 8 million servo systems in the field
                                                                                • Fast and simple set-up. Advanced autotuning, one parameter tuning

                                                                                The YASKAWA Sigma-5 Servo Drive series offers standard rotary motors as well as linear and rotary direct drives and linear sliders. This broad variety of drive systems covers all market demands with regard to compact size, high dynamics, high efficiency, low maintenance and outstanding reliability.

                                                                                The most impressive feature of the Sigma-5 series is a positioning accuracy of up to 10 nm with standard products, while offering shortest positioning times. The well known YASKAWA auto-tuning functions enable a complete servo axis set-up in a high dynamic performance machine in less than two hours – compared to more than eight hours needed by other solutions currently available in the market.

                                                                                In short, Sigma-5 offers precise positioning at high speed, smooth, vibration-free operation and easy start-up. Result: Reduced cycle time – maximum throughput, improved product quality, enhanced machine wear resistance, shortened initial set-up time, lower life cycle cost.
                                                                              • Sigma-5 Mini

                                                                              • Super compact, super low capacity Sigma-5 models

                                                                                The Sigma-5 Series lineup introduces the super compact AC servomotor SGMMV (with models ranging from 3.3 W to 30 W) and the corresponding DC power input SGDV SERVOPACKs. These products use limited space effectively and help reduce device footprints.

                                                                                As small, high performance servo drives that can be powered by batteries, they can be used in clean room robots, automated guided vehicles (AGV) and other battery driven transportation systems.
                                                                                They also comply with various standards (including CE Marking, UL and RoHS Directive) for use in European, North American and Asian nations.

                                                                                The Sigma-5 servo system fits in motion applications demanding ultra small motors, high accuracy, fast positioning and perfect multiaxis synchronisation.
                                                                              • Sigma-5 Large Capacity

                                                                              • The Sigma-5 Large Capacity Motors and SERVOPACKs extend the power range to up to 55 kW for large-scale equipment

                                                                                Servo presses
                                                                                Clean and efficient operation by converting hydraulic drives to electric drives. The use of power regenerative converters saves energy.

                                                                                Rotary cutters
                                                                                Outstanding acceleration/deceleration torque forhigh speed tracking.

                                                                                Injection moulding machines
                                                                                The use of a high resolution encoder provides high precision injection control to increase forming quality.

                                                                                Metal processing machines
                                                                                YASKAWA can help you increase the precision of equipment that requires high torque, e.g. for bending and stretching metal.

                                                                                Machine tools
                                                                                Satisfies speed and capacity demands of feed and spindle motors in high speed, heavy duty machining applications.

                                                                                Wire saws
                                                                                With a higher cutting force due to the high torque, saws for hard materials can be realized. Combined with YASKAWA Motion Controller it is possible to synchronize roller shafts, wind-up shafts with a high level of precision.
                                                                              • Sigma-5 Direct Drives and Sliders

                                                                              • With a full product lineup, YASKAWA has the answer that can meet your needs for compact drive systems with high torque and high accuracy.

                                                                                High torque and High speed
                                                                                High-torque operations are realized without gears with an instantaneous peak torque of 6 Nm to 600 Nm. High-speed operations reduce the cycle time. (Maximum motor speed : 250 / min to 500 / min)

                                                                                High precision
                                                                                High-precision indexing of 1,000,000 pulses per rotation (P/R) is available. High-resolution encoder(20-bit):1,048,576P/R
                                                                                No backlash results in high-precision, high-speed operation with short settling times.
                                                                                High accuracy in torque control is enabled by current control algorithms with conversions for the d-q axis.

                                                                                Compact
                                                                                The size of the drive section in the machine is reduced because of the motor design.
                                                                                Less space is required for installation because hollow space in the motor can be used for wiring and piping.

                                                                                Easy
                                                                                Smooth and noiseless drive
                                                                                Use of a serial encoder reduces the amount of wiring.
                                                                                The gearless drive requires no maintenance for lubrication or any inspections for wear and tear.
                                                                                Speed, torque or positioning control is enabled via parameters changes.
                                                                              • Sigma-5 Linear Motors

                                                                              • SGLGW/SGLGM
                                                                                Type: Linear Servomotor
                                                                                Rated Force: 12.5 N - 750 N

                                                                                SGLFW/SGLFM
                                                                                Type: Linear Servomotor
                                                                                Rated Force: 25 N - 2,250 N

                                                                                SGLTW/SGLTM
                                                                                Type: Linear Servomotor
                                                                                Rated Force: 300 N - 2000 N
                                                                              • Motion Control

                                                                              • Small size and powerful controller option for Sigma-5 SERVOPACKs.

                                                                                Features:
                                                                                • 1,5 axis control
                                                                                • Open standards EtherNet/IP and Modbus/TCP
                                                                                • IEC61131-3 programming standard for efficient software handling
                                                                                • PLCopen Function Blocks
                                                                                • Reusable Code – Libraries enable importation of previously developed logic
                                                                              • Fieldbus Options for Servo Drives

                                                                              • We connect to your Solution

                                                                                The Sigma-5 series is designed to comply with common standards. It is as easy as plug and play to use the communication module together with servopacks and motors. Either in existing plants and machines or in newly designed ones.
                                                                                A broad support of communication standards provides even more flexibility.
                                                                              • Safety

                                                                              • Machine movements represent a major source of hazard for operators and staff members carrying out maintenance tasks. Typical situations requiring safe machine states occur during commissioning, in setup mode, troubleshooting and when operating or maintenance personnel are required to approach the machine.
                                                                                The safety module SGDV-OSA01A for the Sigma-5 series servo drives enables you to realise safe and cost-effective automated motion applications.
                                                                              • Feedback Options for Servo Drives

                                                                              • The Universal Feedback Option Module for Sigma-5 servoamplifiers (SGDV-OFB01A) enables third party vendor encoders to close the control loop.
                                                                                The Universal Feedback Option Module supports encoders with SERIAL and SIN/COS interfaces.
                                                                                Moreover, it operates as a second feedback for the speed and position loops when information is required from the mechanical system (fully closed loop functionality).
                                                                            • Machine controller

                                                                                • MP2100

                                                                                • Motion programs can be easily made on your personal computer with 51 motion application program interfaces (APIs)
                                                                                  Motion APIs are available to realize motion control using your industrial personal computer (IPC)
                                                                                  Motion network MECHATROLINK (10 Mbps) as a standard feature.
                                                                                • MP2200

                                                                                • Optimal system can be created with a variety of optional modules for motion control, communications and I/O
                                                                                  Expanded capability with 4 additional racks with 9 slots per rack
                                                                                  Motion control up to 256 axes
                                                                                  CPU module (CPU-01/CPU-02) for the MP2200 can be used to realize a high-speed motion control cycle of 0.5 ms
                                                                                  1 to 256 axis
                                                                                • MP2400

                                                                                • MECHATROLINK and Ethernet (100 Mbps) communications are available
                                                                                  Sequence and motion control with easy programming (no ladder program)
                                                                                  Tool designed for use with the MP2400 (MPE720 Ver. 6 Lite) is provided at no charge
                                                                                  Motion control of 16 axes
                                                                                • MP2000iec

                                                                                • Governed by internationally standardized functions, the MP2300Siec and the MP2310iec are machine controllers with a potent motion engine at its core. A built-in web server is included and the machine controller is compatible with international network protocols.

                                                                                  • Communication Protocols – Open standards EtherNet/IP and Modbus/TCP to connect to many HMI and PLC in the market.
                                                                                  • Standard Programming Languages – IEC61131-3 standard for efficient software programming and handling
                                                                                  • PLCopen Function Blocks – YASKAWA developed the Motion Control interface MotionWorks IEC to comply with PLCopen "standard"
                                                                                  • Programmable Amplifier Outputs – The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
                                                                                  • Reusable Code – Libraries enable importation of previously developed logic.
                                                                                  • Controller-Centric Commissioning – The MECHATROLINK motion network enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
                                                                                  • A Multitude of Options – Choose from ten option cards offered for the expansion slot to accommodate most machine requirements
                                                                                • MP3000iec

                                                                                • For a wide Range of Applications

                                                                                  Using the MP3000iec Series of machine controllers improves handling and performance in a broad range of applications. With up to 52 MB of memory for user-data and up to 1 GHz CPU speed, even very complex applications with up to 62 axes can be controlled.
                                                                              • Control Technology

                                                                                  • Control Systems

                                                                                      • SLIO

                                                                                      • Presenting the completely new developed I/O system SLIO®, VIPA once again sets new standards in the automation industry. By means of the modular and extremely compact SLIO the realization of almost every automated solution will from now on be simpler and especially more economical.

                                                                                        SLIO can be combined and applied with each of the established VIPA systems 100V, 200V, 300S, 500S.

                                                                                        It´s one of the most effective and modern decentralized I/O systems available on the market. It combines high functionality with a clever mechanic concept in an extremely compact design.
                                                                                      • 100V - The compact control system

                                                                                      • 100V with its compact micro design is programmable with WinPLC7 and/or STEP7 from Siemens. Its high performance is based on the S7 300 instruction set.

                                                                                        100V offers in addition to its tremendous versatility in use, a nearly unlimited flexibility and high efficiency.

                                                                                        Our Micro PLCs are especially suitable for use in smaller and cost-conscious applications, as the CPUs and fieldbus modules are efficiently expandable up to 160 I/O points by plugging in expansion modules.
                                                                                      • 200V - The modular control system

                                                                                      • 200V is a modular control system for centralized and decentralized applications, programmable with WinPLC7 and/or STEP7 from Siemens. Its compactness in combination with the instruction set of the 300S make it a very efficient system. With a variety of communication and fieldbus modules available, it can be used also for complex system topologies and is in use in thousands of applications worldwide.

                                                                                        The sophisticated module concept enables the customized deployment in nearly every application up to the middle power range.
                                                                                      • 300S - The high-speed control system

                                                                                      • 300S, powered by SPEED7 makes this system one of the fastest and most efficient, µC based systems worldwide, programmable with WinPLC7 and/or STEP7 from Siemens.

                                                                                        The CPUs with SPEED7 technology convince our customers not only with their outstanding speed. Reaction and signal processing time can be increased if necessary with the ideal SPEEDbus from VIPA.

                                                                                        The unique MemoryManagement (memory expansion concept) from VIPA enables the memory adaption by simple change of the MicroMemoryCard without replacing the CPU. Our worldwide recognized AdvancedKnowHow-Protect is available to protect your know how. The attractive range of integrated communication interfaces like Ethernet ensures you comfort and flexibility.

                                                                                        Especially advantageous: The operation of our 300S CPUs is possible without an additional memory card. If required the integrated work memory can be expanded individually up to 8MByte with the VIPA MCC – MemoryConfigurationCard – depending on the CPU type. The 300S-CPU grows with your programming. All 300S CPUs are standardly equipped with Ethernet for PG/OP communication.

                                                                                        Our 300S COMPACT CPUs with integrated SPEED7 technology and I/O periphery are especially suitable for cost sensitive applications. Our 300S is suitable for nearly every demanding applications with its high-speed performance, the scalable memory and the outstanding communication possibilities.
                                                                                      • 500S - The PC control system

                                                                                      • 500S, powered by "SPEED7, is one of the fastest control systems worldwide programmable with STEP7 from Siemens. The integrated work memory of our 500S CPU with its outstanding MemoryManagement (memory expansion concept) can be expanded up to 8MByte if required.

                                                                                        Our 500S CPU has been designed for operation in a PC slot with PCI interface. An OPC server for communication between CPU and PC is included in the scope of delivery. Peripherals are connected by the integrated Profibus-DP master interface.

                                                                                        The 500S CPU is equipped with an Ethernet interface for PG/OP communication. The CPU 517S/NET was extended by a very fast Ethernet CP for communication via network. Our SPEED7 High-speed performance and the scalable memory makes this system ideal for complex control tasks.
                                                                                    • I/O Systems

                                                                                        • SLIO

                                                                                        • Presenting the completely new developed I/O system SLIO®, VIPA once again sets new standards in the automation industry. By means of the modular and extremely compact SLIO the realization of almost every automated solution will from now on be simpler and especially more economical.

                                                                                          SLIO can be combined and applied with each of the established VIPA systems 100V, 200V, 300S, 500S.

                                                                                          It´s one of the most effective and modern decentralized I/O systems available on the market. It combines high functionality with a clever mechanic concept in an extremely compact design.
                                                                                        • SLIO

                                                                                        • 200V is a modular I/O-system for decentralized applications, programmable with WinPLC7 and/or STEP7 from Siemens. With a variety of communication and fieldbus modules available, it can be used also for complex system topologies and is in use in thousands of applications worldwide.

                                                                                          The sophisticated module concept enables the customized deployment in nearly every application up to the middle power range.
                                                                                      • HMIs

                                                                                          • Professional Panels

                                                                                          • The VIPA Touch Panel family is suited for all applications in the factory, process and building automation. Due to the aluminum die-cast housing the VIPA Touch Panels are mechanically particularly robust. With the front-side IP65 protection, these devices also survive in harsh industrial environments.

                                                                                            The portfolio ranges from 5.7" TFT up to 12.1" TFT color display. The compact design allows the use of VIPA Touch Panels also in confined spaces. The panels can be operated either horizontally or vertically.
                                                                                          • eco Panels

                                                                                          • The new ecoPanels enable completely new and attractive possibilities for mechanical and system engineers: efficient visualization at attractive prices: Manifold application possibilities. The ecoPanel series are not only distinguished by uncompromising reliability and performance, but impressive by an unsurpassed price-performance ratio. Of course, we also paid attention to durability and quality of the products. This is achieved amongst others by a special construction, which enables a fanless and disc free operation. This means there are no moving parts inside the unit.

                                                                                            The VIPA ecoPanels in combination with Movicon Basic (full-valued + unlimited Basic license) offers incomparable advantages. The software concentrates the powerful Movicon technology in a simplified form into an extremely user friendly editing environment. This enables a high scalability and a considerable increase in performance for every project.
                                                                                          • Panel PCs

                                                                                          • The combination of industrial PC with state of the art performance features and a Touch Panel with ideal display capabilities enables the user to concentrate high performance into the smallest space. The latest Intel Atom processor technology, large integrated work memory and display resolutions of up to Full HD with the 21.5” panel PC are state of the art. The panels have also numerous useful interfaces just like other VIPA Touch Panels. The pre-installed operating systems Windows Embedded Compact 7 or Windows Embedded Standard 7 are state of the art in the PC world. For visualization your own programs or optionally the latest pre-installed Movicon visualization can be chosen.
                                                                                          • Line displays

                                                                                          • Line displays are used for the operation and monitoring of process parameters in machinery, plant and buildings.
                                                                                            TD 03 – Text Display

                                                                                            The compact VIPA Text Display TD 03 shows via a backlit LCD display defined message texts. Inputs and outputs, and process parameters can be set through the membrane keys and changed. The configuration of the messages and the parameter block is performed using the TD-Wizard from VIPA. The menu can be selected in English and German. The text display is designed for use in combination with VIPA CPUs 11x, 21x, 31x, 51x and the S7-300/400 CPUs designed by Siemens.
                                                                                            OP 03 – Operator Panel

                                                                                            The VIPA Operator Panel OP 03 is particularly suitable for operating and monitoring of small applications in conjunction with VIPA CPUs 11x, 21x, 31x, 51x and Siemens S7-300/400 CPUs. Up to seven OPs can be connected to a CPU and up 2 CPUs to an OP 03 via the MPI interface. For managing and processing operating notifications and data, 256 kByte user memory is available. Project planning is carried out with VIPA OP-Manager or Siemens ProTool.
                                                                                            CC 03 – Commander Compact

                                                                                            In the VIPA Commander Compact CC 03 a PLC CPU, programmable with Siemens STEP7, is integrated. Besides the 128 kByte user memory, the CPU has 16/24/32 kByte program and 24/32/40 kByte load memory (depending on version) . In addition, 16 digital inputs and outputs each are integrated. The CC 03 is expandable with up to four 100V or 200V modules (160 digital inputs/outputs, or up to 32 analog inputs/outputs respectively are supported).
                                                                                        • Teleservice

                                                                                              • VIPA Teleservice

                                                                                              • As demonstrated by numerous studies, up to 70% of the maintenance costs can be saved by preventive maintenance. A useful tool for this is the teleservice that enables a continuous monitoring and maintenance of the systems. For this reason with the VIPA teleservice modules we offer a modern and intelligent kind of teleservice for the different types of transmission. Whether on the conventional way via analog or ISDN line or via broadband connections as ADSL and HSUPA (mobile communications) VIPA offers here the complete product range on teleservice modules too. The communication to your automatization modules is established by MPI or PROFIBUS or via the Ethernet interface, which belongs to each of our devices as standard. The configuration of the VIPA teleservice modules is performed via a web browser. Additional software or the like is not required.

                                                                                                Beside the robust hardware, which shines with the usual VIPA interface variety, VIPA offers also a free service called Talk2M. Via this service you are able to establish a save connection to your construction within seconds, regardless of whether they are communicating via mobile phone or a line.

                                                                                                Teleservice of controllers, HMIs, frequency converters, roboters, IPCs etc. are not an impossible challenge for us. With the VIPA Teleservice modules, you have a perfectly balanced combination of hardware and software.
                                                                                          • Control Software

                                                                                          • Engineering Software Speed7 Studio

                                                                                            The new intelligence of the hardware configuration, the intuitive user interface and the system openness makes SPEED7 Studio a powerful and easy to handle tool. We want to optimize automation tasks, reduce the development effort to a minimum, and avoid time and cost intensive software training. This allows the user to concentrate on his own engineering tasks. SPEED7 Studio consistently puts the emphasis on user friendliness. The new concept includes Hardware configuration, Programming and networking, Parametrization of frequency converters and drives and Visualization.

                                                                                            In the SPEED7 Studio editor design all functions, features and libraries are prepared and monitored automatically. Unique SPEED7 tools make the soft- ware attractive and efficient. High-Speed applications are compiled more ergonomically in the SPEED-Bus functions. EtherCAT and other fieldbusses are fully integrated. Applications are projected quickly and safely, loaded automatically and named with common symbolism in the EtherCAT configurator. Integrated SLIO functionalities, such as automatic current consumption calculation and integrated process image calculation makes SPEED7 Studio a highly efficient tool that holistically integrates the products of the SPEED7 world.

                                                                                            Analyse Tools - WinPLC-Analyzer & SPS Analyzer

                                                                                            Features:

                                                                                            • Data registration via MPI-/Profibus-DP or AS511-interface
                                                                                            • Recording of PLC signals (E, A, M, T, Z, D)
                                                                                            • Cycle-specific recording without changes in the PLC programme
                                                                                            • Display of bit, byte, word and double word, display of byte operands in hexadecimals and display of double words in floating point format
                                                                                            • Convenient comparison functions of signals
                                                                                            • Clear time-measuring functions
                                                                                            • Marking possibilities within the signal

                                                                                            Programming Software - WinPLC7

                                                                                            Features:

                                                                                            • Programming in AWL, FUP and KOP
                                                                                            • Integrated PLC program analyzer
                                                                                            • Integrated software PLC for offline simulations
                                                                                            • Graphics hardware illustration and simulation
                                                                                            • Import and export of S7® programmes from Siemens
                                                                                            • Online connections via MPI-adapter, Ethernet, TCP/IP and VIPA "Green Cable"
                                                                                            • Display of face plan, programme structure and cross-reference list
                                                                                            • Automatic insertion of symbols, parameters and DB-variables for programming
                                                                                            • Profibus-DP configuration for Siemens and VIPA controllers
                                                                                            • Configuration of TCP connections for VIPA controllers with Ethernet function

                                                                                            Communication Software - OPC Server

                                                                                            The OPC-Server provides the standard interface for accessing data from OPC clients to PLC systems from different manufacturers. The OPC-Server supports TCP/IP networks via standard network cards as well as MPI networks that have one or more COM ports, an MPI-serial converter and/or are connected via VIPA MPI-USB adapter.
                                                                                              • Application

                                                                                                  • Handling / Assembly

                                                                                                  • Material handling

                                                                                                    Material handling robots are used to move, feed or disengage parts or tools to or from a specific location, or to transfer parts from one machine to another. Manufacturing companies all over the world integrate material handling robots into their systems due to their speed, precision and cost-effectiveness. Compared to manual material handling, they also provide a consistent standard of quality and a high level of repeat accuracy.

                                                                                                    Industrial robots, many of which feature vision technology or other equipment, relieve factory personnel from tedious and dull production line tasks, resulting in increased productivity and product quality.

                                                                                                    The robots eliminate downtime, reduce labour costs and provide a high return on investment. They can also operate 24 hours a day all year round. 18 Motoman robots make it possible for IKEA to produce an assembled, flat-packed "Billy" bookcase kit every 6 seconds! That is 40,000 units per week.

                                                                                                    The robotic solution also helps save 20% in production costs. This video illustrates various handling and palletising applications.

                                                                                                    Press brake tending

                                                                                                    Thanks to the modular program design and the gripper changeover system, the plant system implementation is very flexible and can be adapted to rapidly changing production requirements.

                                                                                                    A sensor system ensures high quality and the required protection against machine failure, processing errors, waste etc., enabling identical handling for every workpiece. The plant variant is subject to the size and weight of the component. Robots from the complete MOTOMAN ES and MOTOMAN HP series are selected accordingly.

                                                                                                    In this video two Motoman robots are used to deliver seamless automation for an Amada EMZ 3610 PDC punching machine and an Amada HFE 100.25 press brake.

                                                                                                    Benefits:
                                                                                                    • Improved efficiency
                                                                                                    • Suitable for small batch quantities due to MOTOMAN MotoBend offline programming software
                                                                                                    • Reduced dependence on manual labour

                                                                                                    Assembly

                                                                                                    Industrial robots may feature vision technology or other equipment, relieving factory personnel from tedious and dull production line tasks and resulting in increased productivity and product quality. The robots eliminate downtime and provide a high return on investment. They can also operate 24 hours a day all year round.

                                                                                                    This video shows different types of Motoman robots, such as the traditional 6-axis articulated arm robot, the SCARA robot and a dual-arm robot working on a number of electronic component assembly applications, including:
                                                                                                    • Circuit board assembly
                                                                                                    • Soldering
                                                                                                    • Cable assembly
                                                                                                      • Painting

                                                                                                      • Painting or coating production tasks are exactly what robots are designed for. Robots also spray on solvent-based paints with or without high voltage, always achieving the same results. In the automated cell it is easier to maintain a consistent temperature and humidity, resulting in reproducible quality.

                                                                                                        Although a Motoman robotic system is extremely fast, its high precision and well coordinated movements along the path save a considerable amount of time and reduce waste. The paint coating is applied consistently at maximum speed, with guaranteed perfect results.

                                                                                                        The MOTOMAN EPX series offers a range of painting robots that are perfectly tailored to customer requirements and provide top quality results. This Motoman painting robot is painting half a bumper; in the next station another robot is painting the other half.

                                                                                                        Benefits:
                                                                                                        • Improved and consistent quality
                                                                                                        • Cost saving by using less paint
                                                                                                        • Reduced dependence on manual labour
                                                                                                        • Improved working environment
                                                                                                          • Welding / Cutting

                                                                                                          • Arc welding

                                                                                                            Motoman features special welding robots, high quality positioners and gantry systems as well as state-of-the-art customer-specific solutions. The unparalleled multi-robot technology by Motoman, which fully synchronises up to 8 robots (or up to 72 axes) via a controller, provides many benefits to users:

                                                                                                            Reduced weld distortion, shorter cycle time and programming time and the option for jigless welding, higher efficiency and a very flexible welding system.  The industrial robots are equipped with an integrated hose package routed through the upper arm and head axes. This not only ensures better access to fixtures but also extends the life of the hose packages considerably.

                                                                                                            Two MOTOMAN robots work together with a servo controlled twin station rotary positioner in the production of wood burning stoves. Two stoves are loaded into fixtures, whilst at the other side of the positioner the two robots are each welding a stove. The robots and positioner are part of a single robot control system.

                                                                                                            Benefits:
                                                                                                            • Massive increase in productivity due to the twin robot, twin station positioner cell concept
                                                                                                            • Improved and consistent quality
                                                                                                            • Reduced dependence on manual labour

                                                                                                            Spot welding

                                                                                                            When spot welding requires a welding gun with a power pack, which can weigh over 100 kg, it's time to call in the industrial robots that excel particularly well at this task.

                                                                                                            For high volume manufacturers who need to perform thousands of spot welds per shift, welding cycle time is critical. A Motoman spot welding robot can position the welding gun with extreme accuracy and speed, shaving off critical seconds in the welding cycle time and thus increasing productivity.

                                                                                                            The ES series Motoman robots are specifically designed to deliver unmatched performance and reliability in complex spot welding applications. A 165 kg YASKAWA MOTOMAN robot with an integrated wiring harness is welding an automotive assembly.

                                                                                                            Benefits:
                                                                                                            • Increased productivity
                                                                                                            • Improved quality
                                                                                                            • Reduced dependence on manual labour

                                                                                                            Cutting

                                                                                                            Robots are the perfect choice for many cutting applications. Whether laser, plasma or water jet cutting, these processes make it possible to cut the complex contours of a wide variety of parts, providing a highly flexible operation.

                                                                                                            The robot system's excellent accuracy and path following capabilities provides consistently accurate results in 3D, with greater flexibility than found in many other cutting machines. A single MOTOMAN robot system can also be used for several tasks such as cutting, welding and post-processing, which reduces the overall cycle time and quickly increases productivity.

                                                                                                            This MOTOMAN robot is feeding timber planks through a band saw during the guitar body manufacturing process.

                                                                                                            Benefits:
                                                                                                            • Improved productivity
                                                                                                            • Improved quality
                                                                                                            • Reduced scrap
                                                                                                            • Reduced dependence on manual labour
                                                                                                            • Creates a safer working environment
                                                                                                              • Packaging / Palletising

                                                                                                              • Custom solutions for packaging technology

                                                                                                                From motion controllers to robotics

                                                                                                                Packaging technology relies on powerful and reliable automation components. For plant operators, unplanned downtime is not acceptable – particularly at the end of the production chain. This applies to bagging and blister pack machines as well as for cartoners or any type of form, fill and seal machines. In order for such automated processes to run with precision, all of the individual components – from the controller to the robotics – must work together seamlessly. For mechanical engineers, it is easier, more effective and more cost-efficient to relay on the products and expertise of a single manufacturer.

                                                                                                                YASKAWA has long established itself as a reliable automation partner in the world of modern packaging technology, with today’s powerful motion controllers and drive systems combined with a wide range of robot solutions designed specifically for packaging systems to enable quick and convenient machine solutions.
                                                                                                                  • Industry

                                                                                                                      • Agriculture

                                                                                                                      • Agricultural devices and machines are subjected to high loads and therefore quality is crucial. Well-known manufacturers rely on welding systems that utilise MOTOMAN robots in their production processes.
                                                                                                                      • Automotive

                                                                                                                      • Automotive OEMs and suppliers alike rely on MOTOMAN robots in all phases of the production process.
                                                                                                                      • Chemistry / Plastic

                                                                                                                      • Years of working with mechanical engineers on the production of chemical and plastic products has led to industry-oriented development of drive components, MOTOMAN robots and software solutions. The results never ceases to impress many of our customers.
                                                                                                                      • Crane / Hoist

                                                                                                                      • YASKAWA A1000 Inverter for Crane and Hoist provide an easy solution to the special demands of crane applications, for hoisting but also traveling movements. It’s proven motor control secures enough torque at any condition while numerous valuable features like the built in brake control, over load detection and others make sure the load is safely moved.
                                                                                                                        Benefits:
                                                                                                                        • 200% Starting Torque and 150% Overload for 1 min. secures reliable movement also under heavy load conditions
                                                                                                                        • Full torque at zero speed* for brake operation during stand still increases brake life time and softens the movement (*requires speed sensor)
                                                                                                                        • Smooth motor operation reduces wear and tear of machines while transported goods are treated more gently
                                                                                                                        • Built In brake control for safe brake operation
                                                                                                                          • Independent Open/Close settings for optimal timing
                                                                                                                          • Motor circuit check before brake lifting
                                                                                                                          • Brake feedback signal monitoring
                                                                                                                        • Automatic over load tripping prevention by lengthening acceleration and limiting speed at heavy load condition
                                                                                                                        • Ultra Lift Function shortens cycle times and increases productivity by speeding up the hoist at light load conditions
                                                                                                                        • Built in over load / over weight detection and over travel limit prevent dangerous operation states
                                                                                                                        • Automatic load sharing between multiple drives for long and cross travel without tilting
                                                                                                                        • Built in functional safety (STO, Safe Torque Off) does away with motor contactors reducing cost while improving machine reliability
                                                                                                                      • Electrics / Electronics

                                                                                                                      • The advantages of our products particularly come to light when small parts and high throughput are critical to production. YASKAWA is known for high precision and provides a wide range of compact, high-speed robots that are perfect for use in the electronics industry.
                                                                                                                      • Wood

                                                                                                                      • Maximum performance for every process
                                                                                                                        No matter how large a woodworking machine is designed, everything is about the quality and throughput of the final product. With Best in Class Components and an open and connectable architecture, YASKAWA provides an important contribution to performance. And has done so for decades.

                                                                                                                        Discover the limitless possibilities of YASKAWA.
                                                                                                                      • Lab automation

                                                                                                                      • Lab automation is rapidly on the rise, and even in this area MOTOMAN robots are the perfect solution.
                                                                                                                      • Food

                                                                                                                      • Robots guarantee speed and efficiency particularly in the food industry.
                                                                                                                      • Lift

                                                                                                                      • A Partner for the Lift Industry

                                                                                                                        YASKAWA has an impressive customer base and a wealth of experience in the field of lift applications. Countless systems move using core components produced by YASKAWA. You may not notice them at ’first glance. As an OEM, we offer our partners the option of models without YASKAWA branding. We provide numerous options to meet your requirements:
                                                                                                                        • Drive packages consisting of synchronous motors and L1000A lift inverter drives
                                                                                                                        • L1000V and L1000A inverter drives for modernising lift systems
                                                                                                                        • L1000H and Blain Hydraulics valves for hydraulic lifts
                                                                                                                        • J1000 inverter for moving doors

                                                                                                                        Five YASKAWA solutions

                                                                                                                        YASKAWA offers solutions for numerous applications in the lift industry, fromindividual components for modernisations and new installations to ready-to-use package solutions.

                                                                                                                        1. Drive packages with the L1000A inverter and a lift motor:

                                                                                                                        Coordinated package consisting of an inverter drive and a 16 or 20-pole lift motor for cable lifts designed for loads of 400 to 2500 kg.

                                                                                                                        2. L1000A universal inverter drive

                                                                                                                        The ideal inverter drive for precisely and effi ciently controlling synchronous or induction motors inlift systems with or without gears.

                                                                                                                        3. Modernisation kit with the L1000V

                                                                                                                        Its output range and functionality make the L1000V an affordable choice for modernising lifts with machines that do not have speed feedback. In addition, it reduces the operating costs of lift systems while providing a smoother ride.

                                                                                                                        4. Package for hydraulic applications with the L1000H

                                                                                                                        An innovative new solution for demanding hydraulic lift applications. The combination of an L1000H inverter drive and an EV4 valve from Blain Hydraulics ensures a smooth ride and extraordinary energy efficiency.

                                                                                                                        5. Inverter drives for doors

                                                                                                                        In addition to simple vertical motion, YASKAWA inverter drives also effi ciently and cost-effectively control a wide variety of motions.
                                                                                                                      • Marine & Offshore

                                                                                                                      • Frequency Inverter for Marine Applications

                                                                                                                        What makes the YASKAWA A1000 first choice for offshore and ship usage?

                                                                                                                        The A1000 Series frequency inverters from YASKAWA are suitable for drive solutions in marine applications. Vibrations, heat and humidity which are common conditions on board of ships coupled with the necessity of ultimate reliability are demanding technical requirements. Here, the A1000 inverter is in it's element. Robust design and many clever functionalities make this inverter to the means of choice for drives in marine.
                                                                                                                        • Standard devices are certified for marine applications (Germanischer Lloyd, more possible)
                                                                                                                        • Substantial energy savings and thereby fuel savings compared to unregulated drives
                                                                                                                        • High flexibility in drive dimensioning
                                                                                                                        • High efficiency
                                                                                                                        • Easy adaption to any motor and application
                                                                                                                        • Proven YASKAWA reliability and durability Worldwide availability and service
                                                                                                                      • Metal

                                                                                                                      • From welding to casting: robots are gaining a solid foothold in the metal industry.
                                                                                                                      • Textile

                                                                                                                      • Drives and Controller for Textile Machinery

                                                                                                                        Reliability & Competence

                                                                                                                        All over the world YASKAWA drive solutions power textile machinery and keep it running 24 hours per day, 365 days per year.

                                                                                                                        Textile machinery disruptions quickly result in enormous production outage losses. Because of this down-times need to be eliminated by means of careful engineering and a selection of reliable drive components and systems. YASKAWA is the partner who can provide competent engineering teams and high quality products specific to the textile industry.

                                                                                                                        Expertise & Experience

                                                                                                                        YASKAWA provides great experience in the textile industry derived from long term partnerships. Application-specific solutions ensure high efficiency and profitability for its customers. From bale opening to the weaving machine, from extruders to winders – Yaskawa knows the specific application requirements.

                                                                                                                        YASKAWA offers dedicated Drive Systems for the Textile Industry.

                                                                                                                        A complete power range from 0.1 kW to 185 kW is available with standard and specific functionality to cover the application requirements of the textile machine industry. The T1000 Inverter Series and the Sigma-5 Servo Series from YASKAWA have been developed with a focus on reliable operation, easy handling and overall cost saving aspects. Controllers complete our portfolio.
