The up-to-date development, research and
production facilities of JVL employ only the latest technology for the
development and production of electronic controls for step- and servo motors.
More than 50% of the staff are engineers with a very high degree of experience
and competence in the field of motion control. They are all highly motivated and
innovative, and we can therefore offer a product program today that includes all
the necessary units and components to build up complete motor control systems.
Product Abstract
The MAC motors.
AC-servo motors with integrated controller and driver.
Now up to 750W.
Includes controller/driver, Hall sensor and encoder, all in one compact unit.
Unique adaptation to any application with wide range of plug-in expansion
modules.
CANbus, CANopen, DeviceNet, Profibus, HighSpeed, Bluetooth wireless and Nano-PLC
modules available.
MAC motor MAC50 to MAC141- 50 to 134 Watt
The complete motion solution for low power ratings
- Power: 46 to 134 W
- 0.11 to 0.48 Nm
- Velocity: 0-4000 RPM
- 24 to 48 VDC supply
MAC800 - 750 Watt
The complete motion solution for high power ratings
- Power: 750 W
- 2.4 Nm
- Velocity: 0-3000 RPM
- 230 or 115 VAC supply
QuickStep, Integrated
Step Motors

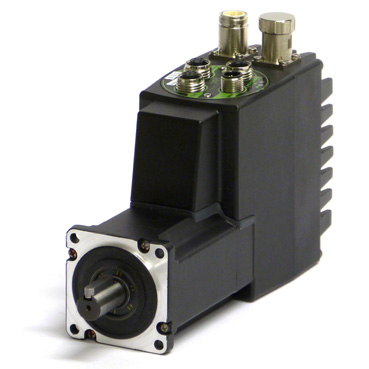

The QuickStep
series of Stepper motors with integrated electronics represents a major step
forward. All the necessary electronics in a stepper system are integrated in the
motor itself.
The stepper motor, encoder and electronics are specially developed by JVL so
that together they form a closed unit in which the power driver and controller
are mounted inside the motor in a closed section.
RS485 communication and
programmable via 8 I/O.
MIS231 and MIS232
- Rated Torque: 1.1 to 1.6 Nm
- Rated Torque: 0.55 to 0.6 Nm at 500 RPM
- Velocity: 0-1000 RPM
