All data centers have similar needs, regardless of the enterprise size and scope. Belden understands that you require secure, uninterrupted availability and high-quality performance of computing, storage, networking and communications resources, while meeting the following criteria:

• Uncompromised performance
• Dynamic density
• Optimal manageability

To meet these needs, Belden has designed structured cabling systems that provide the durability to ensure superior networking performance, reliability and availability, the stability to outlast two to three generations of active equipment; innovative, high-density technologies that make the most of your real estate; and component features that allow for highly-flexible, highly-manageable systems.




Belden Total Enterprise Networks deliver the signal transmission solutions that provide the advanced performance and reliability needed to support mission-critical information systems, advanced communications networks, premise security systems and building automation and control systems.

From the data center and LAN to building management, A/V applications and security and alarm systems, Belden Total Enterprise Networks provide effective, reliable performance while supporting the complex and unique requirements of users, devices, servers and processors in both local and remote Enterprise topologies. Based on a philosophy of providing integrated systems rather than just products, and quality solutions and support rather than just warranties, Belden Total Enterprise Networks are specifically designed and delivered to provide:

• Unparalleled performance and reliability
• Simplified building operations
• Complete peace of mind



Entertainment Market – Professional Broadcast, Audio/Video Production and Broadband
Perhaps no other market segment values cable performance as highly as this one - and we're sure that it's because a cable's performance and reliability have immediate and far-reaching implications. That's why the broadcast industry strongly prefers Belden® over any other cable brand. From special network events such as the Olympics, to everyday audio and video applications, Belden is the local, regional, and national choice.

In broadcast, top performance and reliability means a high quality product, absolute signal integrity and no system downtime. Belden provides performance for both critical field applications (where cable is dragged, crunched and tread upon) and permanent studio installations (where the long run is all important). These products are also an important link in major network and cable TV broadcasts, film studios and corporate broadcasting. Watch television last night or listen to the radio this morning? Chances are the link was made with Belden.

Brilliance® Cable: Committed to Cable Innovation and Technical Excellence
Belden's commitment to product innovation and technical excellence in the broadcast industry has resulted in a line of extremely dependable audio and video cabling products called Brilliance®. Named for the sound and picture brilliance obtainable, Brilliance encompasses all Belden Audio/Video products. The line includes:

• Microphone and musical instrument cable
• Line level analog audio cable
• Analog multi-pair snake cable
• AES/EBU digital audio cable
• Audio wire and cable
• Special audio, communication and instrumentation cable
• 75-ohm standard analog video coax
• Precision video coax for analog and digital>
• Video triax cable
• A/V and composite camera cable
• RGB and SVHS cable
• Broadband
• Fiber optic cable

Fiber Optic Cables for All Markets
Belden’s reputation as the leading producer of high-quality copper cable all too frequently eclipses the fact that our fiber line is just as impressive and comprehensive. And Fiber Optic cables are used in all markets that we serve.

The Fiber Optic line includes indoor and outdoor cable products in tight buffered and loose tube constructions. Belden® offers Enhanced Single-mode and Grade 2-6 Multimode cables (Grade 1 fibers are available upon request).

Fiber size for Grades 1-3 is 62.5/125µ; 50/125µ for Grades 4-6.

These cables are categorized as follows:

• Interconnect cable – Simplex and Duplex; Tight Buffer, riser and plenum
• Distribution cable – Tight Buffer, indoor riser, plenum and LSZH
• Breakout Style cable – Tight Buffer, indoor riser, plenum and LSZH
• Industrial Armored cable – Tight Buffer, riser and plenum
• Tactical cable – Tight Buffer, outdoor
• Ribbon cable – riser and plenum
• Single Jacket, All Dielectric cable – Loose Tube, outdoor and indoor/outdoor riser and indoor/outdoor plenum
• Double Jacket, Armored cable – Loose Tube, outdoor and indoor/outdoor riser
• Double Jacket, Heavy-Duty cable – Loose Tube, outdoor
• Central Tube cable – Loose Tube – Loose Tube, outdoor and outdoor armored
• Micro Loose Tube Breakout Style cable – Loose Tube, outdoor, indoor/outdoor
• OFN and indoor/outdoor riser
• TrayOptic® Heavy-Duty, All Dielectric cable – Loose Tube, indoor/outdoor riser

IndustrialTuff® Cables: Tough Cables for Tough Environments

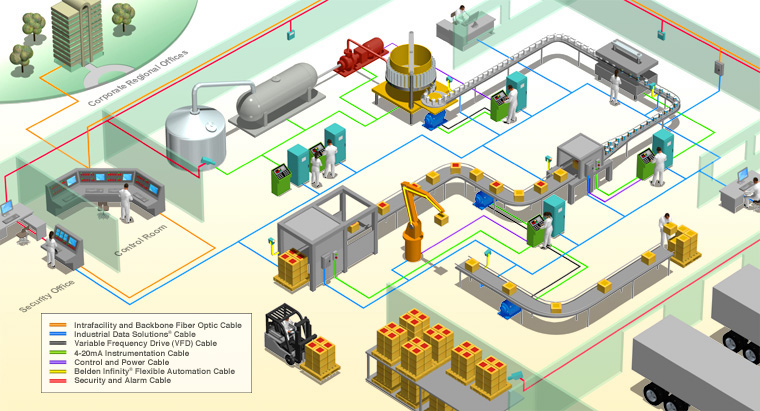

Today, more than ever, manufacturing productivity depends upon seamless data communication and automation systems. And both depend upon high-performance cabling solutions. To meet this need, Belden® has developed the IndustrialTuff product line, the world’s most comprehensive line of industrial cabling solutions. So, whether you are networking your factory floor, or your process equipment and devices to their controllers (and on to the control room), or relaying data between the control room, the engineering department, and remote manufacturing sites – Belden has the cable you need.

To ensure that Belden IndustrialTuff cables meet your long-term requirements, they are manufactured in ISO 9001:2000 certified facilities to the industry’s highest standards of quality, utilizing the most advanced equipment, systems, controls and processes available. To meet the particularly harsh conditions found in such industries as petrochemical, pharmaceutical, mining, power generation, wastewater treatment, pulp and paper, food processing and transportation, these cables are available with multiple armoring and jacketing options.





























We Have You Covered

The IndustrialTuff line includes the following cable types:

• DataBus®, DeviceBus® and ControlBus® for fieldbus networks
• Blue Hose® and other twinaxial cables for PLC/DCS
  EIA RS-485
• Interconnect cables
• Variable-frequency drive
• Belden Infinity® flexible automation cables for robotic, constant motion applications
• 300V power-limited tray cables for instrumentation
• Thermocouple extension
• 600V tray cables for instrumentation
• 600V type TC, MC and Teck-Style® control cables

A sub-set of the line, Industrial Data Solutions® cables, is a comprehensive range of cables that were built-tough for Industrial Ethernet application. They include:

• Copper (DataTuff®) twisted pairs
• TrayOptic® fiber optic

Belden is also a long-standing partner in the Rockwell Automation Encompass program – offering a wealth of communication and variable-frequency drive cables that are a perfect complement to Rockwell Automation products.

Innovative Technology
When shielding is required, our innovative technology delivers maximum effectiveness. In fact, Belden’s exclusive patented Beldfoil® design, with its aluminum/polyester foil, was the first shield to offer 100 percent cable protection against radiated emissions and ingress at audio and radio frequencies.

Belden also formulates many of its own insulation and jacket compounds. As a result, IndustrialTuff cables provide superior performance under a variety of hostile environmental conditions. Insulations include: PVC, polyethylene, FEP, polyolefin, foam HDPE, polypropylene, Datalene® and various compound combinations. Belden’s innovative armoring technology delivers maximum physical protection – protecting data, electronic, instrumentation and control cables with interlocking steel or aluminum armor. Smooth or corrugated protective metal tapes are also available.

Residential Cables: The Smart Choice for the Home
Belden manufactures all of the cables in the Residential line so you can be sure that each cable product is the result of the most rigorous quality processes in the industry. And, because we’ve been creating the industry’s most sophisticated and innovative cables for demanding applications at broadcast facilities, post-production facilities, state-of-the-art office buildings, businesses, college campuses and industrial facilities around the globe, you know that Residential voice, video, security and data communications cables are second to none.


Belden® offers the Residential line of individual, dual component and composite cables – in all, over 50 different cables for a full range of applications that includes:

• High-speed Internet access
• Networked computers and peripherals, such as printers and scanners, with high-speed Ethernet capabilities
• Distributed video and shared access to home entertainment components such as DVDs, VCRs and CD players
• Distributed audio for stereos and home theater systems
• Cable modems
• Multiple telephone lines
• Video monitors and security systems
• Light and energy management systems
• Home office systems

Individual, or single application cables, are available for any data, video, audio or security need, including:

• Category 5e, Category 6 UTP and fiber data cables for multimedia, voice, video and data use
• Series 6 and Series 59 video coax cables for HDTV, DBS, CATV, SVHS, CCTV and cable modem applications
• Speaker cables for audio distribution
• Paired, unshielded cables for security and alarm applications

The Residential line also includes over 20 different composite cables. Composite cables simplify a multiple use installation by combining Belden data cables, coaxial cables, paired and multi-conductor cables and fiber optic cables in a single-pull product.

A Real Innovation: Residential Banana Peel® Composite Cables Belden
Residential Banana Peel composite cables feature a patent-pending design that eliminates the need for an overall jacket, making these cables easy to handle, easy to identify, easy to pull and easy to terminate. Just peel the cables off the center spline, and you’re in business.

And since the overall jacket has been eliminated, the outer diameter is smaller than other composite cables, improving the overall bend radius for easier installation.




Belden’s Patented Data Cable Technology: Bonded-Pairs
To ensure top performance, Belden uses a unique manufacturing process that affixes the individual insulated conductors of the pairs along their longitudinal axes. This cable construction feature prevents gaps from occurring between the conductor pairs: a critical factor in the electrical performance of the cable. These cables are also able to withstand the rigors of a typical installation without any degradation in performance. This means that the Cat 5e cable that you purchase from Belden to meet Cat 5e specifications will meet these specifications before installation and, more importantly, after installation.

Coax Cables With Belden’s Exclusive Duobond Plus® Shielding
Duobond Plus is comprised of a Duobond® II (bonded foil tape) surrounded by an 80% braid and an outer layer of foil that includes a unique shorting fold. This unique construction provides optimum shielding effectiveness.

New Generation® Sound, Security and Alarm Cables
Market needs are continually challenging the limits of cable technology. And nowhere is the demand for uncompromising quality and leading-edge technology more critical than in sound and security applications.

Belden’s answer to this challenge is a line of low voltage, electronic cables that provide the selection, imagination, technical expertise and quality required to meet the demands of increasingly complex sound and security systems. We call this line New Generation.

Unmatched Selection, Quality and Service
Our New Generation line is representative of the largest, most economical, and up-to-date selections of reliable multi-conductor and coaxial products on the market today — a full complement of cables for sound, control, computer interconnect, alarm, security, CCTV, Circuit Integrity and other security applications. And behind each cable is years of research and development and Belden’s unequaled reputation for quality and service.

Easy-to-Install Cables
With Belden® New Generation cable products, you can be assured that you’re getting the most innovative and advanced cables available today – plus, our cables not only work better, but they are better to work with. Installer-friendly features include:

• Sequential footage markings on the cable jacket quickly eliminate guesswork and waste.
• The cables are predominantly NEC Riser-rated (CMR and FPLR) or above to meet even unusually stringent application conditions. All Belden CM, CMR and CMP types are both UL and C9UL) approved.
• A rip cord underneath the jacket provides for easy removal at installation.
• Easy set-up and easy-pulling, space-saving, tangle-free coil packages available for many codes. These revolutionary coil packages vastly reduce job clean-up and waste removal as well.
• Water-blocked options for multi-conductor cables and for coax – where security, surveillance and fire alarm cables are installed in intermittently wet environments.
