• Offer Profile
  • JUNG - Precision and surface quality After selling more than 19,000 JUNG machines worldwide, Blohm Jung GmbH is committed to preserving and developing its leading position in relation to precision, quality and surface quality.

    Special highlights are:
    • Cutting-edge technology for tool and die making, the semiconductor industry and medical technology
    • Extensive dressing and grinding technology for machining high-precision small components
    • Technology and demonstration centres (Hamburg and Göppingen) make extensive know-how available to customers
    • Worldwide sales and service network for consultation and customer service directly on the spot
    • HelpLine, remote service and field service for maintenance with system
Product Portfolio
  • JUNG Grinding Machines

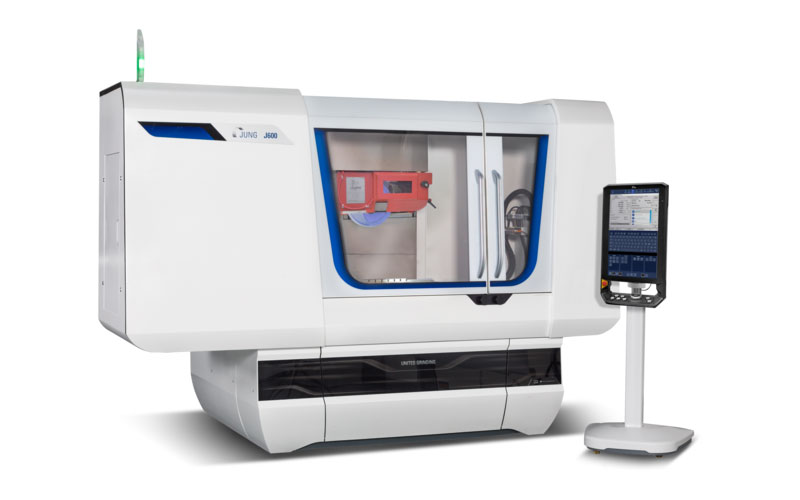

      • J600

      • The highest level of profile accuracy

        With the new J600, JUNG presents a modern surface and profile grinding machine for the highest precision and surface quality. This machine offers a host of potential applications - from individual component production through to small batch production in all industries. With its grinding range of 300 x 600 mm the J600 realizes its full potential particularly when grinding demanding applications in tool and die making.

        The in Germany produced J600 offers unique ease of use. The double sliding door to the work area and additional maintenance doors guarantee optimal handling and cleaning of the machine.

        In conjunction with the handwheel for the X-, Y- and Z-axis, an additional highlight – EasyMode – enables semi-automatic, manual grinding. This function enables increased utilization.

        Grinding range: 300 x 600 mm

        Travel:

        • X-Axis: 700 mm
        • Y-Axis: max. 450 mm
        • Z-Axis: max. 345 mm

        Grinding spindle drive power: 8.5 kW at 1,500 1/min

        Grinding wheel: 150...300 x 14...50 x 76.2

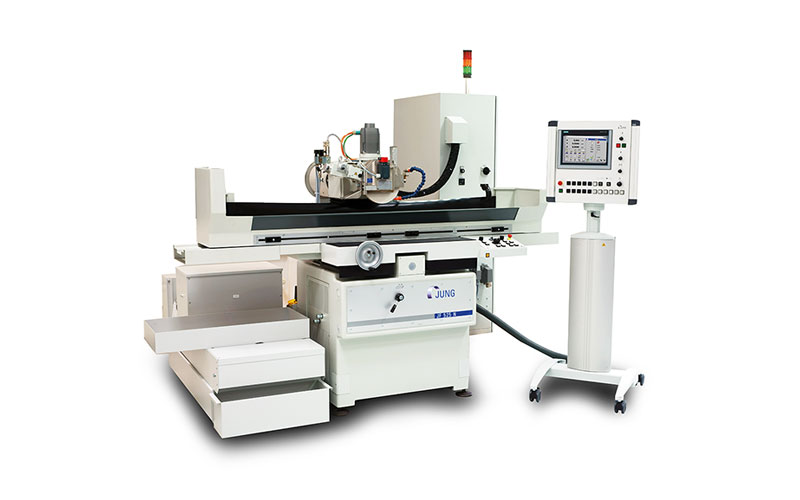

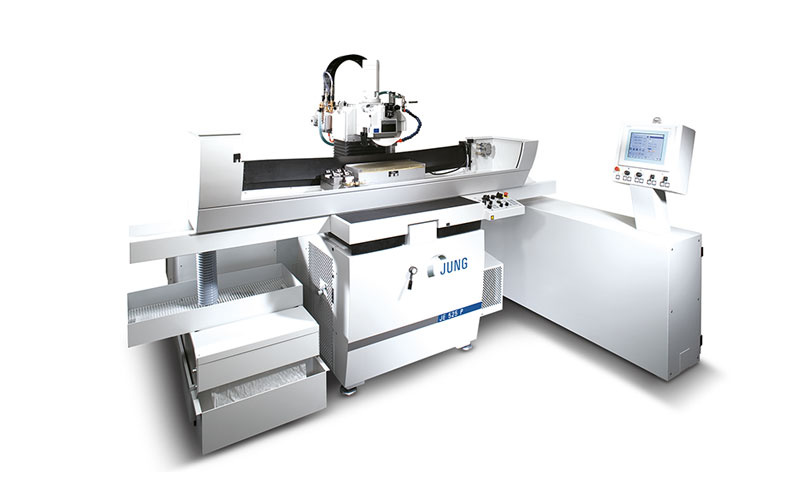

      • JE600/JE800

      • The guarantee of flexibility and versatility in your production

        With the new JE-series, JUNG presents modern surface and profile grinding machines for the highest precision and surface quality. Even the basic machine version covers a wide variety of potential applications. From simple, conventional surface grinding with handwheel, through to automatic profile grinding - all requirements can be met with the EasyProfile control system.

        Key data
        • Grinding range: 300 x 600 mm und 400 x 800 mm
        • X-axis with hydrodynamic EasySlide guideway
        • EasyProfile control system for intuitive operation without NC knowledge
        • Fixed programs for workshop-compliant handling, combined with a quick adaptation of dressing and grinding cycles through parameters

        JE600

        Grinding range: 300 x 600 mm

        Travel:

        • X-Axis: max. 700 mm
        • Y-Axis: max. 450 mm
        • Z-Axis: max. 345 mm

        Grinding spindle drive power: 8,5 kW at 1.500 1/min

        Grinding wheel: 180...400 x 22...60 x 127



        JE800

        Grinding range: 400 x 800 mm

        Travel:

        • X-Achse: 900 mm
        • Y-Achse: max. 450 mm
        • Z-Achse: max. 465 mm

        Grinding spindle drive power: 8,5 kW at 1.500 1/min

        Grinding wheel: 180...400 x 22...60 x 127
