| Control Technology -
Open and Closed Loop Drive Control for Dynamic Applications |
|
|
|
 |
 |
 |
| KEB Open Operator - Single Drive Control |
Design of motion-control functions in single axes
using the C programmable operator.
Factory made for the applications:
- lift drives
- crane drives
- storage and retrieval systems
The KEB Open Operator can also be programmed by the customer for
applications like adaptation to special field-bus systems, display and
scaling of units or additional controlling of process parameters in process
engineering. | |
|
| KEB COMBICONTROL C5 - Multi Drive Control |
IEC 61131-3 programmable control unit for dynamic
motion-control, cam profiles and motion applications with KEB inverters and
servo systems.
Open programming standard CoDeSys in the programming languages: ST, AWL, AS,
KOP and FUP/CFG, integrated visualization, simulation, debugging and file
management.
Integration of master control via Ethernet, Profibus or CAN. | |
|
|
| Frequency inverters -
Digital Motion Control with KEB COMBIVERT |
| KEB COMBIVERT
provides a complete product offering for synchronous and asynchronous motors for
demanding applications up to 900 kW. |
|
|
|
 |
|
 |
| Frequency Inverter KEB COMBIVERT F5 |
KEB COMBIVERT F5 provides different levels of power
ranges that can be precisely tailored for the application. Identical
operation, handling and tools optimize the installation, start-up and
service. The drive generation KEB COMBIVERT F5 offers the following
features:
- Standard inverters for open-loop applications with rated power of
0.37 … 15 kW
- Universal line with extended software and I/O functionality up to 90
kW.
- Open-loop and closed-loop line of inverters for applications
currently up to 900 kW.
- The software version A.S.C.L. (Asynchron Sensorless Closed-Loop) is
top-of-the-line technology to operate asynchronous motors to achieve
excellent speed and torque accuracy open-loop.
| |
|
| KEB COMBIVERT B6 Frequency Inverter |
Check out the next generation!
KEB COMBIVERT B6 - the new entry-level inverter at KEB.
This new inverter is available as of April 2007 starting in the power range
up to 0.75 kW - 230 V class and shortly thereafter in the power range up to
1.5 kW - 460 V class.
KEB COMBIVERT B6 encompasses simple, efficient, capable and economical
functionality. The B6 is the compact drive generation up to 4 kW. | |
|
|
| Servo Technology -
Servo Drives KEB COMBIVERT |
| Closed-loop drive
systems are increasingly utilized in high-tech applications and machinery.
Dependent on application requirements robust, low-maintenance, brushless
synchronous or asynchronous motors are used. |
|
|
|
 |
|
 |
| Servo Drive KEB COMBIVERT F5-A-Servo |
- The compact servo drive in applications with master positioning
control integrated speed and torque control.
- The dynamic drive for start-stop applications and for analog,
digital and serial control.
- Drive for speed or angular master/slave application with electronic
gearing and adjustable ratios.
- Internal one-axis positioning control with 16 positions, and up to 8
positioning profiles with indexing.
- Basic automation device with internal PID process control, extensive
I/O functionality, individually used in 8 parameter sets.
- Scaling of physical units and programmable user interface with 36
addresses.
| |
|
| Servo Drive KEB COMBIVERT F5 Multi |
| Closed-loop drive for synchronous and asynchronous
motors up to 900 kW with pluggable feedback systems. (Resolver, Incremental
encoder, Sin / Co-sine encoder, Absolute encoder, Hiperface, EnDat)
Decentralized automation in the drive with internal functionality:
- Speed and torque regulation
- Positioning control
- Synchronizing, electronic gearing
- Customer-specific solutions take the load off master controls and
create simple, compact programs, single axis positioning, index table
positioning, register functions.
- All drives support the serial interfaces Profibus, CAN, Sercos,
InterBus, DeviceNet, Modbus, Ethernet, Ethercat, Powerlink, Profinet and
KEB-HSP5 / DIN 66019-II.
| |
|
|
| Cooling concepts
electronics - The Modular Cooling Concept |
| The frequency
inverter and servo drive KEB COMBIVERT offer a modular heat sink concept to
adapt to mechanical and thermal conditions in different applications. |
|
|
|
 |
|
 |
| Convection Heat Sink |
| This is the compact standard design including
additional ventilation. The drive is designed in IP 20 and is mounted inside
the panel. | |
|
| Push Through Heat Sink |
| This heat sink concept reduces heat in the panel by up
to 80%. This means smaller cabinets can be used. With the thermal separation
of the heatsink and the installation of the drives in the enclosure the heat
remains outside. That results in better ambient conditions for the
electronic components and thus improves reliability. | |
|
|
 |
|
 |
| Flat Rear Heat Sink |
| This cooling concept utilizes the thermal capacity of
the machine itself or master heat sink to dissipate the heat. | |
|
| Liquid Cooled Heat Sink |
| This is a closed cooling system for the design of
hermetically sealed enclosures for challenging ambient conditions. Liquid
cooled heat sinks guarantee the cooling of large power stages also in
conjunction with liquid cooled motors. | |
|
|
| Supply and
Regenerative Units - KEB COMBIVERT Power Supply and Regenerative Systems |
All moving systems
have kinetic energy when in operation. When the motor slows down it acts as a
generator and converts the mechanical energy back into electrical energy, which
then is shunted into a braking resistor that results in heat.
The power supply and line regeneration control R6 provides a solution to balance
energy or return energy to the utility grid. |
|
|
|
 |
|
 |
| KEB COMBIVERT R6 Power Supply and Regenerative System |
The kinetic energy of AC motor drives is often an
unutilized energy source.
The compact new product KEB COMBIVERT R6 is designed for power supply and
regenerative operation for inverters and servo systems.
KEB COMBIVERT R6 can be operated at line voltage from 200 - 500 VAC. The
design is modular with a compact commutation choke and EMI filter. In
conjunction with the KEB COMBILINE harmonic filter solutions a sinusoidal
regeneration to the utility grid is achieved.
KEB COMBIVERT R6 has a display to show the energy savings while regenerating
to the grid.
Saves energy through regeneration...friendly for the environment! | |
|
| KEB COMBIVERT R5 Power Supply Unit |
The connection of electrical drives makes it possible
to internally balance kinetic energy.
KEB COMBIVERT R5 is a centralized supply module for DC-bus coupled frequency
inverters and servo drives. The integrated braking transistor and the
central DC fuse reduce the complexity of the system installation.
The centrally supplied machine has a smaller power consumption and a higher
resistance in case of line-voltage drops. | |
|
|
| Communication - KEB
COMBICOM Serial Networking |
We connect drives
to controls.
Modularity is achieved with pluggable field bus operators. The whole family of
KEB COMBIVERT drives can be connected to all commonly used serial fieldbus
systems.
You choose the right field bus connection for your application! |
|
|
|
 |
|
 |

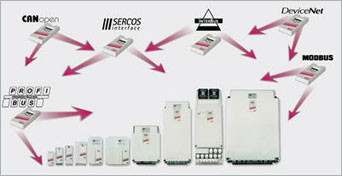

| Profibus, CAN, Sercos, InterBus, DeviceNet, Modbus |
Established Fieldbus Connections...
are the "motor" for advanced concepts of systems and machines in conjunction
with sensors and actuators in the process chain.
With the modular operator system KEB supports all fieldbus standards for the
entire range of inverters and servo systems. | |
|

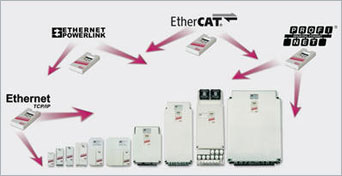

| Ethernet, Ethercat, Powerlink, Profinet |
Ethernet-based solutions…
use the worldwide expansion of the IT network technology for industrial
applications.
Ethernet TCP/IP connects the actuator level cost effectively to the IT
level. This results in an easy start-up and diagnostics.
Ethernet and Powerlink provide real-time features to the drives so they can
be used for high dynamic applications and motion control.
Profinet RT and Profinet IRT are further solutions which KEB will integrate
in 2007. Sercos III and Ethernet IP will also be realized in 2007. | |
|
|
| EMC Technique |
EMC is an
important factor for the operational reliability in machinery and plants and
ensured the compliance with valid norms and standards. European norms and
standards require manufacturers and users to comply with a set of EMC
limitations.
KEB designs, manufactures and supplies a comprehensive range of input/output
filters and chokes to comply with all international standards as well as to
improve operating conditions. KEB experts in the field of EMC offer advice and
support during the selection process of suitable products. For on-site testing a
mobile EMC service is available. Competent consultation and mobile EMC-measuring
means provide the options and optimisation on location - in short - they save in
different uses the dependable compliance of the monetary requirements. |
|
|
|
 |
|
 |
| KEB COMBILINE HF Filter |
Variable speed drives with uncontrolled rectifier
input can cause low or high frequency interferences on the line that are
limited by the EMC regulations.
Adherance to the standards are ensured with the use of a universal EMC
filter. The EMC filters can be used to work with a single drive or as
central filters used for several components in one system.
KEB COMBILINE EMC filters are designed for industrial or residential areas
and can be supplied up to 1,000 A rated current.
Product offering: single filter IT line filter, filter for small leakage
currents, 3-phase central filter, central filter with neutral (4-phase
system), combined input/output filters. | |
|
| |
KEB COMBILINE Harmonic Filter
Achieving sinusoidal harmonic current from standard 6 pulse rectifier load
has always been a challenge. Historically this could only be accomplished
through the use of costly components and more complicated rectification
schemes.
The KEB COMBILINE harmonic filter is an innovative solution for equipping
machines or retrofitting production systems. The compact design of the
filter (patent pending) is available in two types:
- standard series with THD (total harmonic distortion) smaller than or
equal to 8%, PWHD smaller or equal to 15% in power settings 4 - 460 A.
- economy series with THD smaller than or equal to 15%, PWHD smaller
or equal to 38%. According to standard EN 12015 (european
elevator/escalator norm) in power settings 2 - 63 A.
Larger power settings can be covered with connecting filters in parallel. | |
|
|
| Electronic assembly |
There are
extensive accessories available for each application requirement .
You will receive the PC tool KEB COMBIVIS at no charge. This software enables
you to easily operate, diagnose and optimize all KEB inverters. |
|
|
|
 |
|
 |

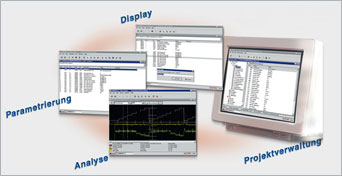

| KEB COMBIVIS PC-Software |
KEB COMBIVIS is an universal and effective tool for
KEB drives.
Drive configurations are easy to administer:
- display and adjustment of all parameters up to 8 parameter sets
- display of units and monitoring of operating data
- configuration of customer-specific parameters in the "CP level"
- analysis of communication between drive and control
KEB COMBIVIS can be run on all PC's with serial interface and the
operating system Windows 95, 98, NT and 2000, XP. | |
|
| KEB COMBILINE Mains Input and Motor Chokes |
The B6 rectifier input circuit in the input of
variable speed drives causes current ripples that strain the DC-bus
capacitors in the inverter and generate harmonic distortions in the utility
grid. The mains choke (50/60 Hz) flatten the charging current and reduce
harmonics. Both are important factors for the reliability and lifetime of
the machine.
The modulated output voltage of the inverter stresses the isolation. This
can result in problems in applications with long motor leads.
KEB COMBILINE motor chokes flatten the output currents, reduce the strain on
the isolation and are available for the output frequencies...50 Hz, ...100
Hz and ...200 Hz. | |
|
|
| Magnet Technology |
For over 35 years
we have used electro-magnetic forces for starting, stopping, holding and
positioning motion axes in machines and applications.
In the present and in the future electromagnetic clutches create torque
transmissions. A wide variety of electromagnetic brakes bring dynamic motion
axes into a secure holding position. |
|
|
|
 |
|
 |
| Spring applied brake KEB COMBISTOP |
The KEB COMBISTOP is a power off spring-set brake for
dry operations. The brake force is applied by springs and activated by
electromagnetic forces. The proven spring applied brake is used in
applications to slow down turning loads or shafts that need to be held in
position.
Our standard program consists of:
- Minibrake KEB COMBISTOP M
- Holding brakes for dynamic applications KEB COMBISTOP N
- Holding brakes for static applications KEB COMBISTOP H
- Holding brakes for protection class IP 66 KEB COMBISTOP P
- Holding brakes for mounting of tachometers KEB COMBISTOP T
- Double brakes for theaters, lifts and elevators KEB COMBISTOP D
- Elevator brakes D8 KEB COMBISTOP L
Additionally we offer special designs for your specific application needs
| |
|
| KEB COMBIPERM Permanent Magnet Brakes and Clutches |
KEB COMBIPERM are clutches and brakes that operate
according to the following principles: in currentless state a frictionally
engaged connection of shafts is created through permanent magnet brakes.
When current is applied the magnetic field of the permanent magnet is
neutralized by the counteracting magnetic field of the coil.
Rare earth magnet materials guarantee a high temperature resistance (ISO
class F) and a wide operating temperature range (20 - 100° C) for safe
operation.
KEB COMBIPERM P1 permanent magnet brakes can be offered with a round or
square flange to apply in servo motors or as a back-side mounted version.
Nine different sizes are available.
KEB COMBIVERT P22 permanent magnet clutches are flange or shaft mountable.
Different armatures are available for both versions. | |
|
|
 |
|
 |
| Clutches and brakes - KEB COMBINORM |
KEB COMBINORM offers a complete program of brakes,
clutches and combinations for applications in machines and systems. The
torque range is 0.5 up to 500 Nm.
Electromagnetic Actuated Brake KEB COMBINORM B
The KEB COMBINORM brake is the most economical solution to brake and hold
loads in machines and systems. The brake is available as shaft-mounted and
flange-mounted versions.
Electromagnetic Actuated Clutch KEB COMBINORM C
The KEB COMBINORM clutch uses the force of a magnetic field concentrated on
two pole faces to frictionally connect shafts with loads. | |
|
| KEB COMBIBOX Clutch/Brake Modules |
| KEB COMBIBOX is an integral clutch-brake module for
start – stop applications. The patented external readjusting of the air gap
provides wear adjustment without disassembly of the unit. | |
|
|
| Motors and gears -
KEB - The Specialists in Motion Control |
Optimal
interaction between motor and electronic drive is the foundation of excellent
machine functionality.
The servo inverter series KEB COMBIVERT F5 Multi offers these features for the
control of synchronous and asynchronous motors.
Synchronous motors are perfect for high dynamic applications when low inertias
and high peak torques are required.
Asynchronous motors are preferred in applications with high external load
inertias reflected back to the motor shaft.
In addition to the right feedback system, various styles of gear boxes adapt
output speeds and -torque to the application. Brakes can be added to the motor /
geared motor.
The result is a complete solution for your application requirements. |
|
|
|
 |
|
 |
| AC Motors -KEB TORQUE LINE Asynchronous Motors |
TORQUE LINE asynchronous motors are specially designed
for closed-loop operation with the servo inverter series KEB COMBIVERT F5 –
Multi. These systems offer an economical alternative for demanding
applications with speeds as low as 0 rpm.
Features:
- B3 foot mount or IEC B5 flange mount
- Forced ventilation cooling fans IP 55 (optional)
- Overload temperature switches or thermistors in each winding
- Incremental encoder 2500 ppr / RS 422, 5V DC, 12 pole connector
- Spring applied brake KEB COMBISTOP (optional)
| |
|

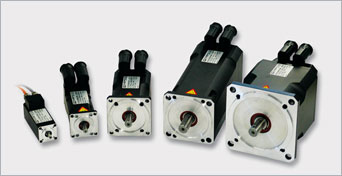

| Servo motors |
KEB BASE LINE Synchronous Servo Motors
BASE LINE SM.200 synchronous servo motors are brushless AC motors with
reslover feedback for standard application in machines and systems.
KEB DYNAMIC LINE Synchronous Motors
DYNAMIC LINE SM.000 synchronous servo motors are electronically commutated
permanent magnet synchronous motors for applications requiring exact
positioning and small footprint and weight. | |
|
|
 |
|
 |
Inline helical gears
KEB COMBIGEAR G and ZG Helical Geared Motors |
The KEB helical geared motors are available in two
types in the power range 0.12…45kW with output torques up to 10,000Nm. With
a minimum output speed of 1.2 rpm and many ratios to choose from the KEB
geared motors covers a wide variety of application requirements.
All KEB COMBIGEAR are available with spring-applied brakes, tachometer – and
feedback systems and forced ventilation cooling fans to adapt the geared
motors to demanding applications. | |
|
Helical bevel gears
KEB COMBIGEAR K Helical Bevel Geared Motors |
The KEB helical bevel geared motors are available in
the power range 0.12…30kW and are the powerful solution that demands the
highest efficiency of right angle drives.
Compact dimensions with output torques up to 4,200 Nm are available.
High radial and axial forces can be withstood even in repetitive or
forward/reverse applications due to optimum dimensioning of the bearing
arrangement. | |
|
|
 |
|
 |
Flat gears
KEB COMBIGEAR F Shaft Mounted Helical Geared Motors |
The KEB shaft mounted helical geared motors are
available in 4 housing sizes in the power range 0.12…30kW and provide a sure
fit due to their space-saving construction and simple slide-on mounting.
With available output torque up to 3,000 Nm and a minimum output speed of
1.3 rpm, this geared motor can cover a wide range of application
requirements. | |
|
Worm gears
KEB COMBIGEAR S Helical Worm Geared Motors |
The KEB helical worm geared motors are available in
the power range 0.12…12kW representing the “standard gear" in machines and
systems due to their superior economic efficiency.
Lifetime lubrication, universal mounting construction and varied output
options (solid shaft, hollow shaft) make this geared motor extremely
adaptable | |
|
|
 |
|
|
Planetary gears
KEB SERVOGEAR AL Planetary Gear |
The KEB planetary gears are available in four sizes
with output torques in the range of 5 … 2,000 Nm offering low backlash
operation.
With the advantages of planetary gears like high torsional/axial stiffness,
low backlash, efficiency greater than 95%, thermal length compensation and
compact design the gearbox is well suited for dynamic servomotor
application.
The mechanical connection to the motor is an “assembly and service friendly"
clamping hub designed for the KEB servo motors BASE LINE and DYNAMIC LINE. | |
|
|
E
