NETZSCH Pumps
Videos
Loading the player ...
  • Offer Profile
  • For over six decades, we have served markets worldwide with our NEMO® Progressing Cavity Pumps, TORNADO® Rotary Lobe Pumps, screw pumps, grinding machines, dosing technology and accessories, providing customized, sophisticated solutions for a great variety of applications.

    At NETZSCH we strive to use our expanding global technological and market leadership for our customers' benefit. We see ourselves as far more than just a developer and producer; it is our aim to be your partner for everything from project planning to process consulting to integral service.

Product Portfolio
  • Pumps & Systems

  • We set industry standards. Our innovative, premium quality products are known and valued the world over.
      • Branches / Industries

          • Environmental & Energy

          • NETZSCH is known the world over as a specialist in the areas of wastewater treatment and biogas technology. Rotating positive-displacement pumps have been used for decades in these areas, and NETZSCH offers a great variety of applicable pump systems.
          • Chemical, Pulp & Paper

          • Substances hazardous to health or the environment, or products that are highly viscous, sensitive, or contain solids, require pumps capable of uncompromising performance in conveying even the most demanding of media in air-tight systems.
          • Food & Pharmaceutical

          • Foods and beverages are best when they taste fresh, smell good and look appetizing. On the other hand, consumer demand is also pushing for longer and longer shelf lives.
          • Oil & Gas

          • Our world’s demand for energy is continually growing. This is due in part to the strong drive of developing nations toward industrialization. The extraction of crude oil, however, is becoming more and more complex as a result of its increasing scarcity.
          • Dosing Technology

          • NETZSCH has been developing, producing and marketing NEMO® progressing cavity pumps for over 50 years and is one of the world’s most trend-setting problem solvers in some of the most difficult of applications – particularly in the area of dosing technology.
          • Mining

          • Positive-displacement pumps by NETZSCH Pumps & Systems GmbH have been used for decades to guarantee process reliability in the demanding field of mining.
        • NEMO® Progressing Cavity Pumps

        • NEMO® progressing cavity pumps are utilized in various industries to convey many types of fluids in a continuous, low pulsating manner, while maintaining an accurate flow.

          Wide Range of Applications

          The pumps are specifically designed for products with the following characteristics:
          • High solids content (maximum particle size up to 6”/150 mm) and free of solids
          • Low to high viscosity (1 mPas - 3 million mPas)
          • Thixotropic and dilatant
          • Shear-sensitive
          • Abrasive
          • Lubricating and non-lubricating
          • Aggressive (pH 0 - 14)
          • Adhesive
            • NEMO® BY Pump in Industrial Design

            • In block construction design

              Performance
              Capacities up to 400 m3/h (1,800 gpm). Pressures up to 24 bar (340 psi).
              Range of Applications
              Industrial applications in environmental, food, oil and chemical industries for low and highly viscous fluids with or without solids.
              Description
              Compact design with flanged drive; low investment and operating and maintenance costs. Four rotor/stator geometries for optimised performance.
            • NEMO® Progressing Cavity Pump in FSIP® design

            • NEMO® Progressing Cavity Pumps in FSIP® design can be used in any area of industry where a great variety of different substances must be pumped or very precisely dosed. The FSIP® concept of the NEMO® Progressing Cavity Pump is especially interesting where pumps are installed in wear intensive applications requiring more service and maintenance work. Every time the installer' s workload is eased, additional work steps are avoided and maintenance time is reduced, this enables savings in terms of capacities and costs.
            • NEMO® SY Industrial Construction in Bearing Block Design with Free Shaft Extension

            • With bearing housing and drive shaft

              Performance
              Capacities up to 500 m3/h (2,200 gpm). Pressures up to 48 bar (680 psi) as standard, up to 240 bar (3,400 psi) as high pressure.
              Range of Applications
              Industrial applications in environmental, food, oil and chemical industries for low and highly viscous fluids with or without solids.
              Description
              Design with bearing housing and drive shaft allows for universal use of all types of drives. Four rotor/stator geometries for optimised performance.
            • NEMO® C.Pro® Universal Dosing Pump

            • Plastic dosing pump

              Performance
              Capacities from 0.5 up to 1,000 l/h (0.13 up to 260 gph). Pressures up to 20 bar
              (280 psi).
              Range of Applications
              Industrial applications in environmental and chemical industries for conveying and dosing of fl uids of low or medium viscosity with or without solids. Description
              High dosing accuracy (deviation < 1 %). Compact design with directly flanged drive.
            • NEMO® BH Hygienic Pump

            • Performance
              Capacities up to 200 m3/h (880 gpm). Pressures up to 24 bar (340 psi).
              Description
              Compact design with directly flanged drive resulting in low initial investment and economical operation and maintenance.
            • NEMO® Mini BH Hygienic Pump

            • Performance
              Capacities of 0.1 up to 500 l/h (0.025 up to 130 gph). Pressures up to 36 bar (510 psi).
              Description
              The smooth crevice-free flexible rod requires no maintenance and is not subject
              to wear, thus enabling the conveyance of highly sensitive and abrasive products.
              Compact design with directly flanged drive resulting in low initial investment and
              economical operation and maintenance. High dosing accuracy (deviation < 1 %).
            • NEMO® SA Aseptic Pump

            • Aseptic pump

              Performance
              Capacities up to 140 m3/h (620 gpm). Pressures up to 24 bar (340 psi).
              Description
              The smooth crevice-free flexible rod requires no maintenance and is not subject to wear, thus enabling the conveyance of highly sensitive and abrasive products. The pump housing has a reduced diameter as well as a product entry moved towards the shaft seal (discharge in vertical position). This creates an absolutely crevice-free pump body generating an optimised flow of the product through the pump. For complete self-emptying, flushing ports are arranged tangentially and pressure ports are arranged eccentrically. To avoid contamination from the atmosphere, all seals are equipped with connections for flushing with sterile fluids, vapour or condensate and fitted with optional tubing. For changing product temperatures a standard stator with reduced wall thickness and a stator protector for dry running and overheating protection is available. Design with bearing housing and drive shaft allows for the use of all types of drives.
            • NEMO® SH Plus Hygienic Pump

            • The NEMO® SH Plus Hygienic Pump is employed for hygienic applications in the foodstuff, pharmaceutical, cosmetic and chemical/biochemical industries in order to provide continuous, pressure-stable, gentle and low-pulsation conveyance with optimal cleaning and dosing in proportion to speed.

              The design with bearing block and free shaft ends enables the universal employment of any drive type.
              Many different regulatory bodies have set specifications for a hygienically correct configuration of components and machines, as well as for component cleanability. NEMO PUMPS® are designed, produced and inspected in accordance with the regulations of the EHEDG (European Hygienic Equipment Design Group) and the QHD (Qualified Hygienic Design). The materials used are approved by the FDA (Food and Drug Administration) and the BfR (German Federal Institute for Risk Assessment). In addition, NEMO® Hygienic and Aseptic Eccentric Screw Pumps meet the specifications of the United States’ 3-A Sanitary Standards and are GOST-R certified (a Russian certificate of conformity).
            • NEMO® BO/BS Pump with Hopper in Block Construction and Flanged Drive

            • In block construction design with directly flanged drive or as NEMO® SO/SS with bearing housing and drive shaft

              Performance
              Capacities up to 200 m3/h (880 gpm). Pressures up to 18 bar (255 psi).
              Range of Applications
              Industrial applications in environmental, food and chemical industries for highly
              viscous and non free-fl owing fluids with or without solids.
              Description
              Housing with removable rectangular/square hopper and coupling rod with feeding
              screw with or without force feed chamber for easier entry of the fluid into the rotor
              and stator.
            • NEMO® BF Progressing Cavity Pump with Hopper and Feeding Screw

            • In block construction design with directly flanged drive or as NEMO® SF optional with aBP-Module® with bearing housing and drive shaft

              Performance
              Capacities up to 200 m3/h (880 gpm). Pressures up to 48 bar (680 psi).
              NEMO® BF/SF with aBP-Module® available from size NM045 up to NM090.
              Range of Applications
              Industrial applications in environmental and chemical industries for highly viscous, compact and crumbly media that does not have a tendency to bridge. For media which tend to build bridges the pump is available with aBP-Module®.
              Description
              Housing with removable, enlarged rectangular hopper and tapered force feed
              chamber as well as coupling rod with patented, positioned feeding screw for optimal transfer of the medium to the rotor and stator.
            • NEMO® BP Hopper Pump with Feeding Screw and Bridge Breaking Paddle or aBP-Module

            • In block construction design with directly fl anged drive or as NEMO® SP with bearing housing and drive shaft

              Performance
              Capacities up to 200 m3/h (880 gpm). Pressures up to 48 bar (680 psi). NEMO® BP/SP available from size NM090.
              Range of Applications
              Industrial applications in environmental and chemical industries for compact and
              crumbly media that may have a tendency to bridge.
              Description
              Housing with integrated bridge breaker, mixing additions, enlarged rectangular
              hopper and tapered force feed chamber as well as coupling rod with patented,
              positioned feeding screw for optimal transfer of the medium to the rotor and
              stator.
            • NEMO® B.Max® Mixing Pump

            • In block construction design with directly flanged drive or with bearing housing and drive shaft

              Performance
              Capacities up to 70 m3/h (308 gpm). Pressures up to 48 bar (680 psi).
              Range of Applications
              Industrial applications in the biogas technology in environmental industries for  highly viscous and non free-fl owing fluids with or without solids.
              Description
              Housing with large, rectangular/square hopper and tapered force feed chamber, as well as coupling rod with patented, positioned feeding screw for optimal transfer of the medium to the rotor and stator. The ideally placed flushing stud at the hopper housing sees to the best (possible) blending of the substrates.
            • Mobile NEMO® Beverage Pumps

            • The pumps are specifically used for products with the following characteristics:
              • Low to high viscosity
              • Shear-sensitive
              • High solids content (such as fruit pulp and stone fruit)
              • Free of solid

              The strength of the mobile NEMO® beverage pump is the universal use in wine-growing, wine production, sweet must production, breweries, distilleries and in beverage and juice production.

            • NEMO® BT Immersible Pumps - special design for the petroleum industry

            • In some cases the viscosity of the crude oil is so high, that it cannot be conveyed by a horizontally installed pump. Here the vertically designed NETZSCH progressing cavity pump offers an ideal solution. This design is also available as a Caisson pump and is characterized by extremely low NPSH values.
            • Dependable conveyance with no overflow

            • NEMO® Immersible Pumps – special design for the petroleum industry

              NEMO® Immersible Pumps are used for emptying barrels, tanks, and pits. They are also used where space is limited and the danger of cavitation may be present. In addition, these pumps are suitable for emptying barrels containing materials hazardous to water and the environment.
          • Downstream – NEMO®

              • Downstream – NEMO® Multiphase Pumps

              • Even if the oil sometimes stops coming – NEMO® Multiphase Pumps keep going.
                Only very seldom does crude oil arrive at the surface in pure form. Usually it is mixed with water, sand and gas. Conventional pumps require that the gas first be separated from the crude oil. With NETZSCH NEMO® Multiphase Pumps, this is not an issue.
                NEMO® Multiphase Pumps can be used for crude oil with a gas content of up to 100%.
              • Downstream – NEMO® Transfer Pumps

              • No matter what the distance – NEMO® Transfer Pumps can handle it
                Great distances must often be covered in order to reach ports or refineries. Pump systems that can maintain a high conveying pressure at the lowest possible pulsation are required for such applications. The optimal solution is a NETZSCH Progressing Cavity Pump. NEMO® Pumps are produced in accordance with API 676 and shaft seals in accordance with API 682.
              • Downstream – NEMO® Water-Injection Pump

              • NEMO® Water-Injection Pumps ensure that your oil is flowing in the right direction!
                Crude oil deposits are often discovered in spongy rock. To extract it, fluids must be pumped into the earth under high pressures. NEMO® Water-Injection Pumps are particularly well-suited for this task, since their capacity can be changed in accordance with rotation speed.

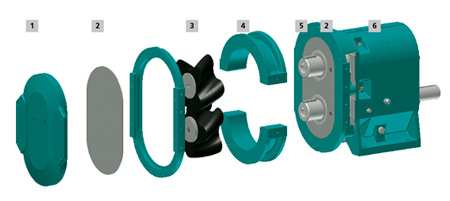

            • TORNADO® Industrial Rotary Lobe Pump

            • NETZSCH TORNADO® industrial rotary lobe pumps are very versatile stand-alone equipment. They are used primarily in environmental technology and the chemical industry for continuous and gentle conveyance of almost any substance while dosing in proportion to rotation speed. Their low space requirements and high power density are some of their most important advantages. The NETZSCH TORNADO® Mobile, a TORNADO® rotary lobe pump mounted onto a trailer, is ideal for use in any disaster situation.
                • TORNADO® Rotary Lobe Pump


                • High Performance Rotary Lobe Pump with maximum operational reliability
                  NETZSCH TORNADO® industrial rotary lobe pumps are versatile stand-alone equipment. Used primarily in environmental technology and the chemical industry, these pumps handle almost any substance continuously and gently while metering in proportion to rotation speed. Their small space requirements and high power density are some of their most important advantages.

                  Features of the NETZSCH TORNADO® Industrial Rotary Lobe Pumps:
                  • tolerance of dry running
                  • self priming
                  • conveyance of media with low or high viscosity
                  • large ball passage
                  • space-saving, compact but highly efficient construction

                  NETZSCH TORNADO® Industrial Rotary Lobe Pumps offer you:
                  • flow rate in proportion to rotational speed
                  • high dosing precision
                  • constant, low-pulsation conveyance
                  • smooth conveyance of shear sensitive media
                  • low life cycle costs and easy servicing (FSIP)
                  • pump design and accessories in accordance with national and
                  • international standards, as well as customized models

                • The NETZSCH TORNADO® Mobile


                • TORNADO® rotary lobe pump on wheels for use at the most unusual of locations.
                  A TORNADO® rotary lobe pump fastened onto a mobile base – this is the NETZSCH TORNADO® Mobile. The concept of mounting the equipment onto a car or truck trailer makes it possible to pump large quantities of fluids with solid content, wastewater and slurries at the most unusual of sites. Based on the given application, a TORNADO® rotary lobe pump is selected in the appropriate size and then simply installed onto a trailer. High capacity and low space requirements make the TORNADO® Mobile ideal for use in any disaster situation.

                  Pump type XLB-8/2
                  Bi-directional, self-priming rotary lobe pump, with pulsation-free helical lobes made from GG25 cast iron with NBR rubber coating, supported by two bearings. Adjustable housing half-shells and replaceable frontal wear plates.

                  Diesel
                  Drive
                  Powerful Deutz 112 kW / 149 PS 4-cylinder diesel drive, 4-stroke direct injection engine, water cooler, fuel filter, air filter, injection pump, lubricating oil filter, oil pan, oil level dipstick, thermostat, cooling fan. 12 V starter. Soundproof hood ensures quiet operation. Suction filter, exhaust assembly with silencer.

                  Connections
                  Suction: 3 x DN 159 Perrot V Type; discharge: 3 x DN 159 V Type (Storz A or other types of connections also possible). Discharge ports on side of unit, each fitted with a blind cover; all pipes and flanges hot-dip galvanized.

                  Trailer
                  Completely hot-dip galvanized; made from stable, torsionally rigid structural steel with drive consoles and vibration dampers. Stable, hinged front support wheel; 4 supports with hand crank. Overrun brake with auto-reverse, fitted with with DIN towing eye for truck hitching; tarp and bows. Total weight 3400 kg.

                • TORNADO® Rotary Lobe Pump – special design for the petroleum industry

                • The NETZSCH TORNADO® conveys your oil as well
                  An ideal solution to transferring the media is the NETZSCH TORNADO® rotary lobe pump which offers high capacity with a small space requirement. Especially for installation in containers the small foot print gives highest flexibility in arranging the equipment.

                  Features of the NETZSCH TORNADO® Industry lobe pump:
                  • tolerant to sand content in the medium
                  • low pulsation
                  • high suction capability

                  The NETZSCH TORNADO®Industry lobe pump offers you:
                  • low life cycle costs
                  • high pressure stability
                  • high flow rate but small foot print

                  Advantages of the NETZSCH TORNADO®Industry lobe pump:
                  • Operation possible even with high water content
                    Reliable operation with highly viscous oils


              • NOTOS Multi Screw Pump

              • Another NETZSCH pump - three series - more applications
                The family of NOTOS Multi Screw Pump (MSP) has a superior quality to meet the demands of high standards of our customers.
                Having the NETZSCH High Efficiency Unique Design (HEUD), the multiple screw pump covers a wide range of applications.

                Working Principal
                The pumps are designed to work with low to high lubricant fluids, low to high viscosity, shear sensitive and/or chemically agressive media.
                The markets covered by the MSP are:
                • Oil & Gas
                • Marine
                • Power
                • General Industry
                  • 2 NS - Two Screw Pump

                  • Suitable for light or heavy lubricating products with medium to high viscosity
                    This pump operates with a drive screw intermeshing with a driven screw transferring torque from one to the other. The screws are surrounded by the pump housing made of ferrous material. The screw geometry and the housing form the pumping chamber. Rotation, screw diameter, and screw pitch define the pump‘s flow rate. The product lubricates the internals. Four special bushings keep the screws aligned. The axial force resulting from the pumping motion is practically nil due to the pump’s hydraulic balancing.

                    The NETZSCH Two Screw Pumps have a drive screw intermeshing with a driven screw, transfering torque from one screw to the other.
                    • Flow up to 320 m/h³ (1410 gpm)
                    • Pressure up to 16 bar (230 psi)
                    • Temperature up to 300°C (570°F)
                    • Viscosity up to 10.000 cSt
                  • 3 NS - Three Screw Pump

                  • Suitable for clean products, high lubricity and medium to high viscosities
                    This pump operates with a drive screw intermeshing with two driven screws transferring torque from one to the other. The screws are surrounded by the pump housing made of ferrous material. The screw geometry and the housing form the pumping chamber. Rotation, screw diameter, and screw pitch define the pump‘s flow rate. The product lubricates the internals. Four special bushings keep the screws aligned. The axial force resulting from the pumping motion is practically nil due to the pump’s hydraulic balancing.

                    The NETZSCH Three Screw Pumps have one drive screw intermeshing with two driven screws, transfering torque from one screw to the others.
                    • Flow up to 100 m/h³ (440 gpm)
                    • Pressure up to 80 bar (1160 psi)
                    • Temperature up to 300°C (570°F)
                    • Viscosity up to 5.000 cSt

                  • 4 NS - Four Screw Pump (geared twin)

                  • Suitable for low to high lubricity, low to high viscosities and able to pump light abrasive products
                    Two shafts with four screws rotate inside a cartridge. The screws do not touch each other, and do not touch the cartridge. Therefore there is no metal-to-metal contact in this pump type. Synchronization of the two shafts is effected by a pair of timing gears remote from the pump chamber. The fluid is pumped from the extremities towards the center. The pumping chamber is formed by the four screws and the cartridge.

                    The NETZSCH Four Screw Pumps (Geared Twin Screw Pumps) have two shafts with four screws rotating inside a cartridge with timing gears. No contact metal against metal.
                    • Flow up to 620 m/h³ (2700 gpm)
                    • Pressure up to 25 bar (360 psi)
                    • Temperature up to 300°C (570°F)
                    • Viscosity up to 50.000 cSt

                • Grinders and Macerators

                • Macerator solutions for demanding applications
                  NETZSCH grinding systems can be used wherever it is essential that solid matter in fluids be broken down reliably to ensure the prevention of pipe clogging and damage to downstream equipment. The NETZSCH M-Ovas® and the NETZSCH Twin Shaft Macerator enable optimal and efficient grinding of solids in the most varied of applications.
                    • M-Ovas® Grinding System

                    • Your dependable friend in grinding things down.
                      Universal Use

                      NETZSCH M-Ovas® grinding systems can be used wherever it is essential that solid matter in fluids be broken down reliably to ensure the prevention of pipe clogging and damage to downstream equipment.
                      The special design of the M-Ovas® housing carries the solids in the wastewater flow to the cutting plate, where they are held and chopped by rotating blades. This low-maintenance assembly is designed for sludges with a maximum flow of 300 m3/h and a dry matter content of up to 7%.

                      Advantages of the NETZSCH M-Ovas®:
                      • high operating safety due to robust construction
                      • ease of operation and simple maintenance
                      • low operating costs through high operating efficiency
                      • optimal price/performance ratio

                    • 3 NS - Three Screw Pump

                    • Ideal when very big things need be made very small!
                      For applications with particularly large solid objects in the wastewater flow, the NETZSCH Twin Shaft Macerator is your ideal partner. Various tooth and spacer width plate combinations are available for different degrees of grinding. Depending on the application, five NETZSCH Twin Shaft Macerators are available in various designs, with flow rates from 1 m3/h to 270 m3/h at a dry matter content of up to 10%. The NETZSCH Twin Shaft Macerator is self-cleaning as the twin shafts rotate very slowly at slightly different speeds. Low driving power with a particularly high throughput guarantees efficient operation. The NETZSCH Twin Shaft Macerator ensures free flow and protects downstream pumping equipment and plant components.

                      Advantages of the NETZSCH Twin Shaft Macerator:
                      • high operating safety due to robust construction
                      • ease of operation and simple maintenance
                      • cost-effective due to low driving power at a particularly high throughput
                      • optimal performance even under the most extreme conditions
                  • Dosing and Emptying

                  • You’ve got the application, we’ve got the solution!
                    NETZSCH has been developing, producing and marketing NEMO® progressing cavity pumps for over 50 years and is one of the world’s most trend-setting problem solvers in some of the most difficult of applications – particularly in the area of dosing technology. At NETZSCH, our ever-growing know-how is consistently applied to further development. Here, not only is value placed on optimizing positive-displacement pump technology, but great attention is also given to the further development of the dosing components used by our customers in order to ensure that their ever-increasing requirements continue to be met. The S-Geometry which is used in NEMO® dosing technology provides a nearly shear-free conveyance and extremely gentle handling of highly abrasive, viscous and filled products. The NEMO® dosing technology is used in the most varied of Industries & Branches such as vehicle manufacturing, the electronics industry, the pharmaceutical and foods industries, renewable energy resources, and other bonding and sealing industries.

                      • NEMO® Dispensers

                      • The highest level of precision in dosing and reproducibility.
                        NEMO® Dispensers guarantee the highest level of precision in dosing and reproducibility. For this reason, NEMO® Dispensers and NEMO® Hand Dispensers are employed in a great variety of applications and industries.

                        Such as:
                        • in vehicle manufacturing
                        • in the electronics industry
                        • in renewable energy resources
                        • in the pharmaceutical and foods industries
                        • in other adhesive and sealing industries
                      • NETZSCH Barrel Emptying Pumps

                      • NETZSCH Barrel Emptying Pumps
                        Our Design – Your Advantage: Easy Serviceability, Dependability, Operating Safety

                        Base Frame
                        Base frame with pneumatic lifting device
                        Pump
                        NEMO® Progressing Cavity Pump
                        Follower Plate
                        Follower plate with leveling collar
                        Electrical Control
                        Design according to customer specifications
                        Pneumatic Control
                        As one-hand or two-hand control
