• Easy handling and simple transport due to ready packed units
  (starter or add-on bays)
• All-purpose, for example for stock, workshop, warehouse, showroom,
  cellar, office etc.
• Clear organization at a cheap price
• helves for the assembly of accessories like plain dividers and mesh dividers prepared –perforated at 50 mm centres
• Shelves adjustable at 25 mm vertical centres

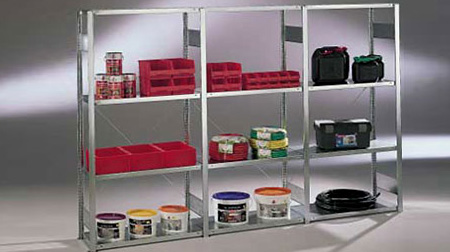

Simple assembly – META Quick SET boltless shelving

• Quick assembly and conversion without tools
• Assembly friendly boltless system
• Ready packed items make a simple handling and a simple transport possible
• All-purpose, for example for stock, workshop, warehouse, showroom, cellar, office etc.
• Shelves for the assembly of accessories like shelf divider or mesh divider prepared - perforated at 50 mm centres
• Shelves adjustable at 25 mm vertical centres
• Bay load capacity up to 900 kg
• Shelf load capacity 100 or 230 kg

• All racks are delivered ready for sale on a pallet!
• Easy sale directly from the pallet
• Designed for transport by parcel service or for use in boot
• Pallets can be packed according to your individual instruction and wishes

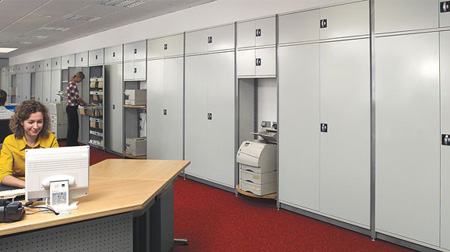

• Cheap bolted shelving system for offices, archives and filing departments
• Ideally suitable for the storage of folders, loose-leaves or magazines
• Shelves adjustable at 25 mm vertical centres
• Shelf load capacity: between 70 – 100 kg (with uniformly distributed load)

With assembled platform for bloc storage, the META Quick shelf system offers a perfect stockage system. Ideally suitable for spare-parts warehouses in industry and handcraft as well as for the production connecting trade. Thus even the most urgent stock orders can be realized without any difficulties. The wide range of accessories is all-purpose.

With the two tier shelving system META Quick, you will get a doubling of the storage space upwards. Equipped with a counter, this storage system is ideal for the stockage of every kind of small parts. The wide range of accessories is almost all-purpose.

The proven META Quick system has got an optimal solution also for shelving systems with three tiers. The professional spare part warehouse is designed for 30,000 items, the loading of the upper floors is done by an elevator. Furthermore the elevator-, stairs- and belt conveyor systems of the first-class shelfing system make safe rises and level connections possible.

• Optimal utilization of the ceiling height – up to 12 m
• 100 % horizontal clear entry to shelf length
• Shelf lengths of 1000 or 1300 mm
• Shelf depths of 300 – 800 mm
• Shelf vertical adjustment at 25 mm centres
• Shelves are Quickped
• Frames are delivered knocked down for ease of transport
• Bolted construction is also possible when appropriate
• Shelf load capacity from 80 - 400 kg
• Bay load capacity up to 7.5 tons
• Pre-galvanised or powder coated finishes according to RAL possible if required

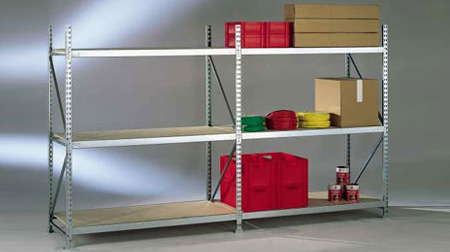

The META SPEED-RACK® is ideal for retail markets, industry and handcraft where bulky goods of light and middle weight are to be stored. The simple basic construction makes various mountings and an optimal operation possible. The all-round edge protection and the optional ground anchoring guarantee highest security.

• Rack with four shelves with chipboards or steel panels
• Shelf load capacity up to 500 kg, with uniformly distributed load
• Bay load capacity up to 3000 kg, with uniformly distributed load
• Shelf levels adjustable at 50 mm vertical centres
• Stepped longitudinal and cross beams
• Flush decks
• 2 cross support bars under each deck
• Metal clip-in foot
• Ground anchoring possible
• Uprights and beams pre-galvanised

Big, bulky and heavy articles are ideally stored in the META MINIRACK® speed racks. Shelf load capacities up to 600 kg and bay load capacities up to 4600 kg are performance characteristics speaking for themselves. Big storing spaces make it easier to load and disload. The innovative speed rack can also be integrated into a META Quick multi-tier shelving. All these and other combinations realize all-round MINI-RACKs which are used in many branches.

• Shelf load capacities up to max. 600 kg with uniformly distributed load
• Bay load capacities up to max. 4600 kg with uniformly distributed load
• Shelves adjustable at 50 mm vertical centres
• Easy to assemble

• Shelf load capacities up to max. 5.5 t
• Bay load capacities up to max. 23 t; higher bay load capacities on request
• Beams can be fitted at 50 mm centres
• The beam agraffe perfectly conforms to the boring of the supporting stand in order to ensure a positive and frictional connection.
• Static verification according to prEN15512
• On request individual weight details for frames and beams

MULTISTRONG L cantilever racks of META set the standard for the storage of light long long goods. Depending on requirements, they meet a wide variety of applications and guarantee safe working practices. The cantilever arms give reliable load carrying capacity and ease of loading and retrieval of the items stored. Screw in the fixing screw of the cantilever arm to fix the position exactly. At the same time a secure connection of the cantilever arm to the upright is ensured.

META MULTISTRONG L is unbeatable

• For the vertical and horizontal storage of sheet materials
• Hot-rolled profiles to IPE 120 standard; both sides perforated in case of a possible reconstruction
• Load capacity of cantilever arms up to 220 kg, with uniformly distributed load
• Upright loads up to 3460 kg if free-standing
• Food load capacity up to 5 times the individual cantilever arm safe load
• Cantilever arms can be clipped into uprights at 50 mm vertical centres.
• Each bay - starter or add-on type - is fully braced for easy assembly and stability
• Finished in RAL 5010, Enzian blue
• Standard-upright stands: 2000 mm, 2200 mm, 2500 mm
• Standard- bay widths: 1030 mm, 1330 mm
• Standard-cantilever arm lengths (single and double sided): 400 mm, 500 mm, 600 mm

MULTISTRONG L cantilever racks of META set the standard for the storage of light long long goods. Depending on requirements, they meet a wide variety of applications and guarantee safe working practices. The cantilever arms give reliable load carrying capacity and ease of loading and retrieval of the items stored. Screw in the fixing screw of the cantilever arm to fix the position exactly. At the same time a secure connection of the cantilever arm to the upright is ensured.

META MULTISTRONG L is unbeatable

• For the vertical and horizontal storage of sheet materials
• Hot-rolled profiles to IPE 120 standard; both sides perforated in case of a possible reconstruction
• Load capacity of cantilever arms up to 220 kg, with uniformly distributed load
• Upright loads up to 3460 kg if free-standing
• Food load capacity up to 5 times the individual cantilever arm safe load
• Cantilever arms can be clipped into uprights at 50 mm vertical centres.
• Each bay - starter or add-on type - is fully braced for easy assembly and stability
• Finished in RAL 5010, Enzian blue
• Standard-upright stands: 2000 mm, 2200 mm, 2500 mm
• Standard- bay widths: 1030 mm, 1330 mm
• Standard-cantilever arm lengths (single and double sided): 400 mm, 500 mm, 600 mm

Due to the high functionality and flexible applications, the MULTISTRONG cantilver rack is used by a lot of branches for the storage of heavy long goods. Thus MULTISTRONG S is also available as combination with mobile rack as well as hot pre-galvanised roof- and side cladding for outdoor applications. Please order our special brochure.

This is what MULTISTRONG S offers

• For cantilever arm depths up to 2000 kg
• Cantilever arms bolted at 100 mm centers
• Standard heights: up to 8000 mm
• Standard bay widths: 1000 mm, 1250 mm, 1500 mm
• Standard cantilever arm depths: (single and double sided) up to 2000 mm
• Hot rolled profile to IPE 500 – single sided or two sides perforated
• Finish RAL 5010, Enzian blue
• Hot pre-galvanised for outdoor applications on request
• Roof and side cladding available

The META inclined shelving system with ready clinched frame offers particularly high stability and load. The capacity per shelf is 200 kg. Thus the META Quick is ideal for the storage of heavy small components like screw packets or paperboard goods in small storage bins. Stored items glide effortlessly to the picking face via the 18° inclined shelves.

META Quick S3 - Quick, safe, inclined

• Simple and rapid boltless assembly with flat packed frame
• Top level fully usable with no top beam
• No transition edge of the shelves towards the inclining direction
• Low profile front edge stop enables easy removal of the containers or cartons from the picking face
• Inclined levels adjustable at 25 mm vertical centres
• Good price-performance ratio

META feeder racking with roller tracks offer you an unimpeded visual access to control stock levels of either cartons or components held in plastic boxes with improved picking times. The angled track levels ensure an "automatic" feeding and offer a rapid overall view about the available or unavailable goods. Important for stored items with date of expiry. Goods which are stored at first, are also used at first. The rack is loaded via the back; the items are removed from the picking face.

Your special advantages

• Top level fully usable with no top beam
• Stored items glide automatically to the picking face via the roller tracks
• Roller tracks can be located at centres to suit the stored items and have adjustable position guide rails for perfect application fit.
• Roller track pitch adjustment is 6 mm and levels have adjustment on 50 mm vertical centres.
• Low profile front edge stop enables easy removal of empty containers from the picking face.
• Basic elements are based on the proven rack system META MINI-RACK.

The META cable reel rack system enables the efficient storage, handling and visible control of all types of cable supplied from the reel. The bolted framed systems allow racks adapted to meet varying requirements, because the racks can be adjusted and supplemented with extra components.

Facts and advantages

• All accessories are easy to install into the racks.
• A-Frame heights 2200 - 5500 mm
• A-Frame base depths 1100 mm
• Shelf lengths from 900, 1100, 1300 mm
• Uprights powder coated in RAL 5010 gention blue
• Cross bracing pre-galvanised
• Beams in safety orange RAL 2001
• All the components such as beams, cable reel holders, feet and ground fixings are included. The cable reel bars must be ordered separately.

META MULTIPAL A-Frame racks are ideal for the vertical storage of heavy lengths of wood, bars or panels, because uprights and beams make the storage of heavy items possible. The META MINI RACK is recommended for the vertical storage of light goods.

MULTIPAL S for heavy goods

• Uprights and beams for the storage of heavy items
• Uprights angled at: 10°, maximum load leaned against the upright 200 kg
• Finish: Upright: pre-galvanised, beams: RAL 2001 safety orange
• Finish: Spigots: pre-galvanised, rod separator: RAL 2001 safety orange

MINI-RACK for light goods

• Frame height up to 3000 mm, end frame depth 500 mm
• Beam length 1400 mm
• Separation spigots/length: 400 mm
• Uprights angled at 6° - maximum load leaned against the upright 50 kg
• Finishes: Frame RAL 7035, light grey
  Infill pre-galvanised, beams RAL 7035 light grey

Due to the combination of standard and special components, META can offer convenient and cheap racking solutions for storing car tyres and wheels. In the following the different solutions:

The cheap one: META Quick S3 tyre and wheel racking.
The proven technique of the S3-frames - boltless assembly instead of assembly with bolts - with new stepped beams enables a quick, rapid and cheap storage of car tyres and rims.

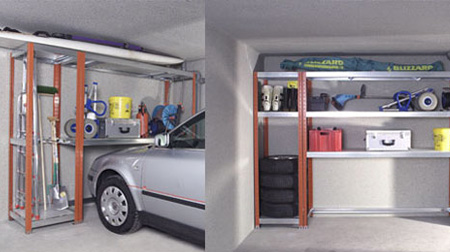

META has developed with the SPEED RACK garage shelving system a solution which fulfills the requirements of a space saving storage of all kind of goods in the garage. Free entrance for the car, stock ground for gardening tools and pieces of sports equipment. No more storage on the floor.

• Frame depth: 600 mm
• Bay width: 2000 mm and 600 mm
• Frame height: 1970 mm
• Shelf load capacity: 200 kg
• Finish pre-galvanised / chipboards nature

In these cases you increase the profitability of your warehouse with META MULTIBLOC® shelving systems.

You could create 100% additional storage capacity in your existing warehouse. Alternatively the space for existing goods can be reduced up to 50% of the previous space.

• Additional stocking areas
• Increasing of storage capacity
• Maximum using of the warehouse area
• Minimum operation costs in combination with FIFO principle

Why Multibloc?

• increasing energy costs, e.g. deep frozen warehouse
• costs for premises and building
• high invest puts in perspective having more pallet places
• with new buildings: the price per pallet place is ALWAYS cheaper
• best using of space with access to each pallet

META flow rack systems proved their value where flexibility, performance and profitability is necessary. The frequency of use compared to conventional rack systems is at approx. 60% and the economy of space is up to 30%.

Essential advantages of the META MULTILINE® flow racks:

• Higher storage capacity
• Increase of the transshipping performance
• Self-conveyance of goods
• Higher access possibility
• Reduction of transit times and working hours and thus cost savings
• Separate loading and unloading paths
• Improvement of the work flow
• Supporting rack construction from the proven META MULTIPAL® system

If requested, the goods are picked automatically by a powerful control set from the bin location and handled to a central picking zone. That way your picking performance isn't only considerably increased, you also increase your inventory and your ability to supply.

• Short access times by the picking system ”goods to the pick-up person” with increase of the picking performance up to 60%
• Saving of transit time (up to 80%)
• Creation of ergonomic and clearly arranged workplaces with permanent supply of goods to the workplace.
• Better picking organization with an info time reduced by up to 30%
• Direct access to all items
• Prevention of shortages by permanent inventory of the goods in stock with an intelligent inventory management software
• High security by a controlled access to the goods due to the locked system
• High individual weights tradable
• High stock concentration with optimal space utilization due to a high rack system
• Double deep storing possible

• Position in existing building with wall fixing location
• Location of fork lift access gate/s
• The runs of handrails etc
• Positioning of the steps

Legal information
Mezzanine floors and some multi-tiered shelving systems require planning consent by the relative Authority details of which will vary from state to state. At META we are well qualified to take you through this process and in Germany we are certified to BGR 234 (formerly ZH 1/428).
