Offer Profile
Jenaer Antriebstechnik GmbH
develops, manufactures and
supplies servo drives and mechatronical systems. Sales activities are
supported by an international network of distributors.
Many partnerships with manufacturers
of circuit packs, measuring systems and mechanical devices signify our
activities for achieving an advantageous cost/performance relation.
|
|
|
|

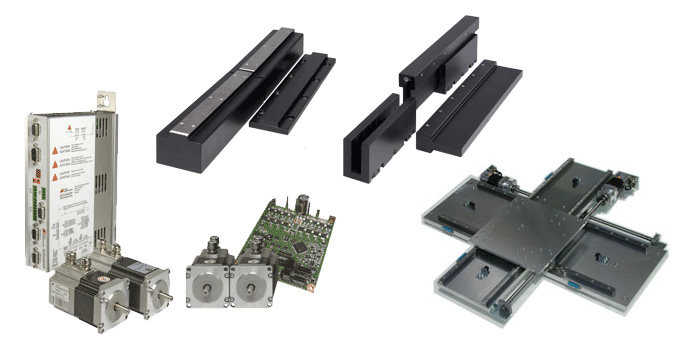

Product Line Up
|
Motors
Servo motors, stepper motors or special motors: JAT
offers you the appropriate drive solution in the power range up to 2,5 kW.
|
|
|
|
Multi-pole rotary Servo Motors:
ECOSTEP®
The encoder commutated multi-pole synchronous motor is at
its economical design as a hybrid stepper motor with encoder a low-budget
servo drive system that makes motion control available to many new
applications. The ECOSTEP®-range offers:
- Low losses referring to the torque and dimension below 1000 rpm
- Effective stall torques from 0.1 - 15 Nm
- Flange dimensions of 42, 56, 86, and 110 mm
- Motors with applicable holding brakes
from 0.5 - 5 Nm
- Mechanical options, e.g. gears and keyways
- Positioning resolution
from 8,000 PPR to 160,000 -PPR
- Suitable as direct drive cause to damped internal resonance
|
 |
Low-pole rotatary Servo Motors:
ECOSPEED
... the classics among the servo motors:
- Torque from 1 - 26 Nm
- Available with incremental encoder and absolute value encoder *
- Holding brakes from 1 - 10 Nm (optional) *
- Explosion-proof according to ATEX (optional) *
- Approvals: UL/CSA, CE *
*) depending on series |
|
Direct Linear Servo Motors:
ECOLIN®
Two- or three-phase directlinear - master of gantry and
cogging. For driving sharp-contoured and with small following error these
motors are really worth a try. The following features are available:
- Ironcore or ironless
- Standard motors switched in series (gantry)
- Peak forces from 150 up to 1650 N
- Available with complete precision mechanical system including a measurement device (option)
- Servo amplifiers: ECOLIN® or ECOVARIO®
|
|
|
|
Low-pole rotatory ATEX
Servo Motors
Servo motors
certified according to ATEX directive 94/9/EG:
- according to equipment group II, category 2G,
- temperature class T4 (135 °C)
- flameproof enclosure protection „d“
- explosion group IIB
- suitable for use in zones 1 and 2 (U.S.A. zone 1)
- fulfil the demands of EN 60079-0 + EN 60079-1
|
|
Stepper Motors
Features:
- 2-phase DC stepper motors, torque range 0.24 to 1.6 Nm (Max. holding torque)
- Step angle: 1.8°
- Rated supply voltage: 24 ... 60 V
- appropriate stepper motor amplifier:
ECOSTEP54 for 4 motors
|
|
|
|
|
|
Compact Servo Drives
Motion Control directly at the machine.
|
|
|
|
|
|
Compact Servo Drive: ECOMPACT
Compared to a solution with servo amplifiers located in a
central cabinet, decentral compact servo drives offer some advantages:
- Lower cabeling effort
- Smaller cabinet
- Minimizing of error sources
- Commissioning is faster and more simple
- Lower price because of integration
ECOMPACT 23E is based on our well-proven ECOSTEP motors series 23S.
ECOMPACT features digital current, speed, and position control.
Comprehensive motion control functionality is integrated. Parameterization
and setpoint setting via CANopen.
New: Strong growth in the ECOMPACT family: The new 34E series!
Peak torques up to 10 Nm, direct connection to 230 VAC: The new ECOMPACT
E400-34E. |
|
|
|
Amplifiers
JAT servo amplifiers and JAT stepper motor amplifiers.
|
|
|
|
ECOSTEP®/ECOLIN®
Servo Amplifiers
Compact servo amplifiers for the complete motor range
- Operation of 2-phase brushless synchronous motors, 2-phase synchronous linear motors, brushed DC servo motors, stepper motors
- Torque, force, speed, and positioning control
- Uniform control interface over the complete product range
- Field bus connection
via CAN, Profibus DP, or RS 485
- RS232 interface
- In conformity with CANopen DS402 standard
- Programmable digital inputs and outputs
- Second encoder input for load feedback or setpoint
- Analogue setpoint input
- Automatic driving of holding brake
- Separated logic and power supply
- DC supply from 24 VDC
- Interpolation via CANopen
|
|
ECOVARIO®
Servo Amplifiers
Compact servo amplifiers for the complete motor range
- Torque, force, speed, and positioning control
- Operation of 2- or 3-phase brushless synchronous motors and synchronous linear motors
- AC or DC power supply
- Uniform control interface over the complete product range
- Field bus connection
via CAN, Profibus DP, RS 485 or Ethernet
- RS232 interface
- In conformity with CANopen DS402 standard
- Programmable digital inputs and outputs
- 2 encoder interfaces (RS422, SINCOS, SSI, BISS®, EnDat®, HIPERFACE®)
- Analogue setpoint input
- Automatic driving of holding brake
- Separated logic and power supply
- Interpolation via CANopen
|
|
2-Axes Servo Amplifiers
ECOVARIO® MiniDual
- Single-PCB solution for integration on customer side
- Dimensions: 100 x 120 mm
- Digital torque, force, speed, and positioning control
- Operation of 2-phase synchronous servo motors, DC motors, stepper motors, voice coil actuators
- Max. output power: 2 x 0.45 kW
- DC supply voltage: 24 V ... 60 V
- Field bus connection via CANopen®
- RS232 parameterization interface
- Programmable digital inputs and outputs
- Automatic driving of holding brake
- Interpolation via CANopen®
|
|
|
|
ECOSTEP54 Stepper Motor Amplifier
- 4 axes motion control for 2-phase stepper motors
- Microstep resolution 12800 steps/rev
- Programmable phase current up to 2.5 A
- Separate logic and power supply
- 8 opto-coupled digital inputs and outputs
- 4 analogue inputs 0 ... 5 V, 10 bit
- 1 analogue output +/- 10 V, 8 bit
- Internal relay for switching off DC link
- Logic supply: 10 ... 30 VDC
- Power supply: 20 ... 45 VDC
- Control of a holding brake for each axis
- Parameterization and setpoint setting via RS232 or CANopen
- Compact controller in metal housing
|
|
ECO Studio - Commissioning in no time
ECO Studio is part of the new software package ECOSUITE
and provides convenient user interfaces for commissioning and
parameterization of our drives.
ECO Studio provides the following features:
- Parameterization of the servo amplifier families ECOSTEP and ECOVARIO, the compact servo drives ECOMPACT, and the stepper motor amplifiers ECOSTEP54
- Configuration of all parameters via PC
- Display of operation values
- Commissioning supported by wizards
- Explorer-like tree structure for easy menu guidance
- Oscilloscope function
- Loading and saving of parameter sets
- Offline parameterization
- Sequence programming
- Online help system
|
|
Accessories/Power Supply
- Single-phase power supply with and without brake chopper
- DC or DC/AC
- Primary: 230VAC/400VAC
- Secondary: 24 VDC, 60 VDC, 150 VDC
|
|
|
|
Mechatronical Systems
From linear axes via XY tables to multi-axes systems:
Complete, integratable sub systems for highest dynamic and precision.
|
|
|
|
Single Axis Systems
- Precision Linear Axis PLA-280
- Precision Linear Drive PLT
- Linear Axis with Linear Motor / Series LA-107
- Linear Axis with Linear Motor / Series LA-110
- Linear Axis with Linear Motor / Series LA-205
|
|
Two Axes Systems
- X-Y Precision Table
- Positioning System with Carbon Fibre Axis
- Flat Bridge
- Flat Bridge with Clearance (Gantry System)
- Flat Bridge as Mechanically Decoupled Gantry
- Flat Bridge with Spindle Drive
- X-Y Linear Motor Table
|
|
X-Y Table with Rotary Axes
- Complete, fitted X-Y table with 2 synchronous rotational axes
- Mechanically and electrically ready for connection
- X-Y spindle drive
- Servo amplifier ECOMiniDual
Available Versions
- Custom taylored travel in X-Y direction
- Synchronism of rotational axes can be decoupled
- Custom-taylored reproducibility
- Control interface positioning: CANopen or RS232
- Control interface interpolation: CANopen
|
|
|
|
Multiaxes Systems
- 8-axis Positioning System with Carbon Fibre Axes
- Gantry System with Carbon Fibre Axis
- 5-axis Handling System
- Double XYZ Positioning System
- 8-axis Handling System
|
|
Rotary Systems
- Hollow-Shaft Rotational Table HRT-100
- Hollow-Shaft Rotational Table HRT-190
- Rotational Table with Clearance
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
