The Baumüller Group develops and manufactures:
- Electric motors
- Converters
- Control engineering
- Networks in industrial communication
- Control cabinets, control pillars, control fields, control consoles
- Sheet metal components and coverings
- Drive systemsThe drive spectrum includes:
- DC motors
- Three-phase motors
- Disc motors
- Linear motors
- Specialty motors |
|
|
|
|
|
|
|
|
| Product Abstract |
|
|
Baumüller Electronic
The new drive concept from Baumüller – b maXX 4000 modular – scalable – open. |
Baumüller is
setting standards with b maXX, its newest generation of drive.
This series of converters and controllers was developed to meet current and
future automation technology requirements worldwide.
b maXX serves as a basis for both simple and complex automation solutions. |
|
 |
 |
 |
| b maXX 4000 - modular servo controller |
| b maXX has up to 11 drawers for plug-in modules and can
therefore be individually adapted for special automation tasks. Special plug-in
modules interface b maXX, including interface adaptors for most standard bus
systems. The plug-in b maXX-drivePLC module provides integrated intelligent
control. |
|
| Function and option modules for b maXX 4400 |
| With 20 function and option modules b maXX can easily be
adopted in line with the individual tasks of the drive and automation solution. |
|
| The control unit b maXX-drivePLC |
| With a typical cycle time of 100 microseconds for 1,000
lines of STL, b maXX-drivePLC is one of the fastest in-drive PLCs in the world
and is therefore ideally suitable not only for sophisticated control tasks but
also for demanding motion control tasks. |
|
 |
 |
 |
| b maXX 3000 - Servo controller up to 3 kW |
| The servo inverter b maXX 3400 was designed for low power
ratings up to 3 kW. With the new series of dynamic DSD servomotors in frame
sizes 28 to 36 and the linear motors, Baumüller offers a complete system for low
power ratings for all applications. |
|
| b maXX 2000 - Mini servo controller |
| b maXX 2000 is the mini servo controller for applications
under 1 kW. b maXX 2000, which comes in the built-in version b maXX 2300 and the
control cabinet version b maXX 2400, together with the pancake motors, linear
motors or the motors of the mini servo series DSD 28-36 from Baumüller, form the
ideal system for low power ratings. |
|

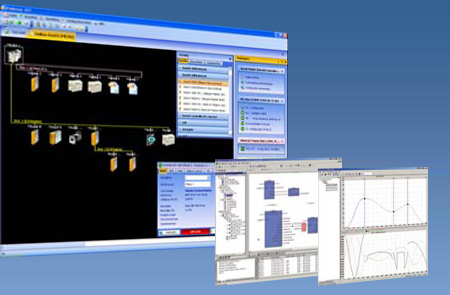

| WinBASS II: Operation and parameterization of b maXX |
| WinBASS II is a tool that simplifies the commissioning,
parameterization and operation of all b maXX controllers - for newcomers and
advanced users. |
|
Baumüller Automation
Control concepts for automation |
The modularization
of machinery is state of the art nowadays, and is based on the decentralization
of the system’s intelligence
Baumüller is a full-range provider in the automation of decentralized,
centralized and hybrid control architectures, whatever the application. |
|
 |
 |
 |

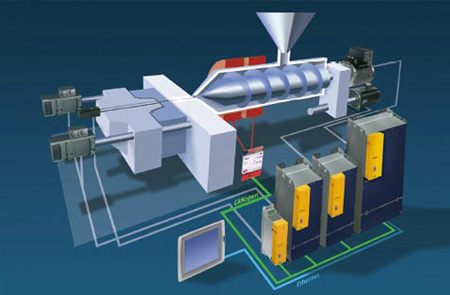

| Control concept b maXX-controllerPLC |
| The b maXX-controllerPLC is the consistent link between
the standard high performance PLC and the highly dynamic Motion Control PLC. |
|

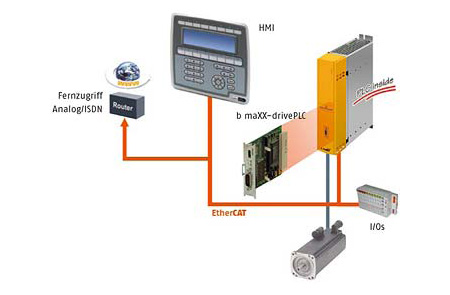

| Control concept b maXX-drivePLC |
| With a typical cycle time of 100 microseconds for 1000
lines of STL, the b maXX-drivePLC is one of the world’s fastest PLCs in a drive
and is therefore suitable for both comprehensive control tasks and demanding
Motion Control tasks. |
|
| Control concepts b maXX-softPLC |
| The b maXX-softPLC integrates automation tasks in the PC.
Complex control tasks and automation requirements in large systems are easy to
implement with the b maXX-softPLC. |
|
 |
 |
 |

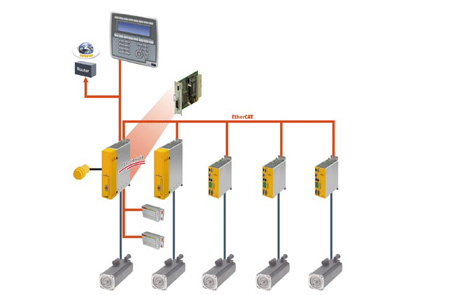

| Field bus systems |
| Many different bus systems have established themselves in
the field of industrial communication. Baumüller drive technology supports the
six most popular field bus systems EtherCAT®, Sercos®, Ethernet, CANopen,
CANsync and Profibus®. |
|
| b maXX HMI |
| User orientation and operator convenience are
characteristic of Baumüller operating and display products. All terminals in the
HMI series are programmed using the same b maXX HMI Programmer programming tool. |
|
| b maXX IPC |
The b maXX IPC product range consists of two complete
industrial computers that are ideally suitable for programming with PROPROGwt II
or for controlling in combination with the
b maXX-softPLC PLC. |
|
| Baumüller Motors |
| Baumüller offers a
wide range of servodrives. From linear drives and disc motors up to dynamic
servo drives and powerful High-Torque Motors. |
 |
 |
 |
 |
| DSD - Dynamic Motors |
The six installation sizes for the DSD-range of Baumüller
offer a suitable solution for almost every application in the automation. The
servo motors for highly dynamic applications with the highest
requirements of acceleration capacity and the best start-stop qualities. |
|
| DS/DA - Motors |
With a shaft height from 45 to 225 Baumüller offers the
largest product range of synchronous and asynchronous motors. The servo motor
for dynamic applications with highest requirements
of capacity and torque. |
|
| DST High-Torque Motors |
| Baumüller offers the DST-range up to 13500 Nm torque and
herewith provides the maximum dynamic in the direct drive technology. The
high-torque synchronous motors for application with maximum torque requirements. |
|
| DSL - Three-Phase Synchronous Linear Actuator |
| With its two variants the DSL 56 ensures optimal linear
motions. As a roller screw assembly for high forces and high velocities or as a
ball screw assembly in simple applications for low-cost linear drives. |
|
 |
 |
 |
 |
| DSD 45-IPG Three-Phase Synchronous Geared Motor |
| The new geared motor from Baumüller, the DSD 45-IPG, is
distinguished by its high torque and excellent dynamic response qualities.
Thanks to the integrated planetary gearing, the DSD 45-IPG is ideal for high
torque applications that require a high dynamic response. |
|
| BPx - Baumüller Planetary Gearing Range |
| In connection with our standard DS/DSD servo drives, the
BPx – planetary gear range is optimally suitable for applications that require
maximum standards of torque and dynamics. |
|
| Linear motors |
| The know-how used to develop and manufacture rotary motors
has been applied by Baumüller to linear motors. |
|
| Disc motors |
| The main strength of these motors are that they are small
and compact. In its shortest design, motor type GDM 12 N, only 39,5 mm of axial
space is required. |
|
|
|
|
|
|
|
|
|
|
|
|
| |
