PMDC Carbon-brush Motor

Diameter: 50.8
Length: 66-72-100
Voltage: 12,0-48,0
No load speed (rpm): 1.500-6000
Stall Torque GR.CM: 500,00-7000,00
Stall current AMP: 2,00-20
Output at maximum efficiency: 3,00-40,00

Applications:
Automotive • Home & Industrial

PMDC Carbon-brush Motor

Diameter: 27.7
Length: 32.50
Voltage: 1,20-30,00
No load speed (rpm): 3.000-30.000
Stall Torque GR.CM: 50,0-600
Stall current AMP: 0,30-33
Output at maximum efficiency:  0,5-20

Applications:
Automotive • Home & Industrial

PMDC Carbon-brush Motor

Diameter: 27.7
Length: 32.50
Voltage: 1,20-30,00
No load speed (rpm): 3.000-30.000
Stall Torque GR.CM: 50,0-600
Stall current AMP: 0,30-33
Output at maximum efficiency:  0,5-20

Applications:
Automotive • Home & Industrial

PMDC Carbon-brush Motor

Diameter: 27.7
Length: 37.80
Voltage: 1,20-30,00
No load speed (rpm): 2.500-30.000
Stall Torque GR.CM: 50,0-1000
Stall current AMP: 0,30-45,00
Output at maximum efficiency:  0,5-20

Applications:
Automotive • Home & Industrial

PMDC Carbon-brush Motor

Diameter: 27.7
Length: 37.80
Voltage: 1,20-30,00
No load speed (rpm): 2.500-30.000
Stall Torque GR.CM: 50,0-1000
Stall current AMP: 0,30-45,00
Output at maximum efficiency:  0,5-20

Applications:
Automotive • Home & Industrial

PMDC Carbon-brush Motor

Diameter: 27.7
Length: 46.50
Voltage: 2,40-36,00
No load speed (rpm): 3.000-30.000
Stall Torque GR.CM: 100,00-1500,00
Stall current AMP: 0,50-15,00
Output at maximum efficiency:  1,00-25

Applications:
Automotive • Home & Industrial

PMDC Carbon Brush Motor

Diameter: 36
Length: 40.00
Voltage: 3,00-36,00
No load speed (rpm): 2.500-15.000
Stall Torque GR.CM: 100,00-750,00
Stall current AMP: 0,50-5,00
Output at maximum efficiency:  0,5-6,0

Applications:
Automotive • Home & Industrial

PMDC Carbon Brush Motor

Diameter: 36.8
Length: 50.00
Voltage: 3,00-36,00
No load speed (rpm): 3.000-30.000
Stall Torque GR.CM: 100,00-1500,00
Stall current AMP: 3,00-35,00
Output at maximum efficiency:  6,0-51,0

Applications:
Automotive • Home & Industrial

PMDC Carbon Brush Motor

Diameter:  27.7
Length: 46.50
Voltage: 2,40-36,00
No load speed (rpm): 3.000-30.000
Stall Torque GR.CM: 100,00-1500,00
Stall current AMP: 0,50-15,00
Output at maximum efficiency:   1,00-25,00

Applications:
Automotive • Home & Industrial

PMDC Carbon Brush Motor

Diameter:   42
Length: 66.00
Voltage: 6.0-24
No load speed (rpm):  3.000-10.000
Stall Torque GR.CM: 100,00-4500,00
Stall current AMP: 6,0-60
Output at maximum efficiency:  6,00-60,00

Applications:
Automotive • Home & Industrial

Carbon Brush Motor

Flat or Square Type:  24,2x18,30
Length: 26.90
Voltage: 1.0-24
No load speed (rpm):  2.000-18.000
Stall Torque GR.CM: 25-250
Stall current AMP:0,10-3,00
Output at maximum efficiency:  0,50-4,0

Applications:
Automotive • Home & Industrial



Carbon Brush Motor

Flat or Square Type:  24,2x18,30
Length: 30.50
Voltage: 1.0-30
No load speed (rpm):  4.000-25.000
Stall Torque GR.CM: 50-350
Stall current AMP:0,30-8,00
Output at maximum efficiency:  0,60-8,0

Applications:
Automotive Central Locking Systems & Rearview Mirrors, Massagers, Motorized Plastic Models, Hair Dryers,
Radio Control Models, Can Openers, Cleaners and More



Carbon Brush Motor

Flat or Square Type:  35,9x33
Length: 50.00
Voltage: 3,0-36,0
No load speed (rpm):  3.000-30.000
Stall Torque GR.CM: 100,00-1500,00
Stall current AMP:3,0-35,0
Output at maximum efficiency:  6,00-51,0

Applications:
Air Pump – Vacuun Cleaner – Massager – Power Drill

Carbon Brush Motor

Flat or Square Type:  20,4 X 15,4
Length: 25.00
Voltage: 6.0-24
No load speed (rpm):   6.000-15.000
Stall Torque GR.CM: 100,00-1500,00
Stall current AMP: 0.30-1.0
Output at maximum efficiency:  0,05-3.0

Applications:
Automotive Rearview Mirror Systems or Head Lamp Adjusters

Precious Metal-Brush Motor / Carbon Brush Motor

Flat or Square Type:   20,4 X 15,4
Length: 25.10
Voltage: 1.0-24
No load speed (rpm):   5.000-15.000
Stall Torque GR.CM:  15-150
Stall current AMP: 0.30-2.50
Output at maximum efficiency:  0,10-3.0

Applications:
CD Players, Record Players, TVR, Automotive Air Conditioning Dampers & Mirrors, Solar Cell Products and
More

Precious Metal-Brush Motor / Carbon Brush Motor

Flat or Square Type:   20,4 X 15,4
Length: 32.10
Voltage: 1.0-24
No load speed (rpm):   5.000-15.000
Stall Torque GR.CM:  15-300
Stall current AMP: 0.30-8.0
Output at maximum efficiency:  0,30-7.0

Applications:
CD Players, Record Players, Electric Shavers, Tooth Brushes and More

Precious Metal-Brush Motor / Carbon Brush Motor

Flat or Square Type:   24,2 X 18,30
Length: 30.50
Voltage: 12,0-24,0
No load speed (rpm):   5.000-20.000
Stall Torque GR.CM:  50-350
Stall current AMP: 0.30-8.0
Output at maximum efficiency:  0,60-8,0

Applications:
Automotive Door Locking Systems and Rearview Mirrors

Stamped Metallic Brush Motor (KR) /  Carbon Brush Motors (KC)

Diameter:  24.2
Length: 30.50
Voltage: 1,5-30,0
No load speed (rpm):  3.500-30.000
Stall Torque GR.CM: 50,0-400
Stall current AMP: 0,30-5,0
Output at maximum efficiency: 0,30-8,0

Applications:
Massagers, Mini Fans, Hair Dryers, Motorized Plastic Models, Radio Control Models, Cleaners Automotive Door Locking System and More


Precious Metal-brush Motor

Diameter:  24.4
Length: 12.30
Voltage: 0,5-9,0
No load speed (rpm):  2.300-15.000
Stall Torque GR.CM: 5,0-30,0
Stall current AMP: 0,10-0,500
Output at maximum efficiency: 0.,05-0,40

Applications:
Vibration Joy Pads, CD Players, Record Players, Mini Fans, Air Fresheners, Solar Cell Products and More

Precious Metal-brush Motor

Diameter:  24.4
Length: 18.40
Voltage: 1.0-24,0
No load speed (rpm):  2.000-7.000
Stall Torque GR.CM: 10,0-90,00
Stall current AMP: 0,10-0,500
Output at maximum efficiency: 0,15-1,50

Applications:
CD Players, Record Players, Mini Fans, Gear Boxes, Air Fresheners, Solar Cell Products and More

Precious Metal-brush Motor

Diameter: 24.4
Length: 18.40
Voltage: 1.0-12,0
No load speed (rpm):  800-6.000
Stall Torque GR.CM: 5,0-30,0
Stall current AMP: 0,010-0,400
Output at maximum efficiency: 0,005-0,310

Applications:
CD Players, Record Players, Mini Fans, Gear Boxes, Air Fresheners, Solar Cell Products and More


Precious Metal-brush Motor

Diameter: 24.4
Length: 30.80
Voltage: 1,5-30,0
No load speed (rpm):   3.500-30.000
Stall Torque GR.CM: 50,0-200
Stall current AMP: 0,30-5,0
Output at maximum efficiency: 0,30-3,0

Applications:
Automotive Air Conditioning Damper Actuators, CD or VCD Players, Blood Pressure Meters, Aquarium Air Pumps and More

Precious Metal-brush Motor (Low noise)

Diameter:  32
Length:  22.80
Voltage:  0,5-24,0
No load speed (rpm):   1.300-7.000 Stall Torque GR.CM: 10,0-130,0
Stall current AMP: 0,10-2,00
Output at maximum efficiency: 0,05-1,0

Applications:
CD Players, Record Players, Mini Fans, Air Fresheners, Solar Cell Products and More

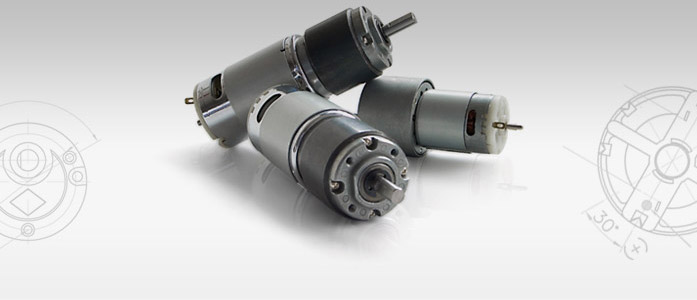

Geared motor, planetary - gearbox with sleeve bearing

Diameter: 16
Length: 44,95-55,90
Transmission ratio: 1:14-1:3027
Voltage: 1.0-12,0
No load speed (rpm):  700-2
Max.torque Ncm: 5,0-30,0

Applications:
Automotive • Home & Industrial

Geared motor, planetary - gearbox with sleeve bearing

Diameter: 22
Length: 50,35-61,30
Transmission ratio: 1:14-1.1996
Voltage: 3,0-24,0
No load speed (rpm):   600-4
Max.torque Ncm: 10,00-50,00

Applications:
Automotive • Home & Industrial

Geared motor, planetary - gearbox with sleeve bearing

Diameter:  35
Length: 74,70-94,10
Transmission ratio: 1:5-1:721
Voltage: 6,0-30,0
No load speed (rpm):   1100-8
Max.torque Ncm:  40,00-400,00

Applications:
Automotive • Home & Industrial



Geared motor, Spur gear - gearbox with sleeve bearing, brass pinion, metal cutting gears

Diameter:   36,7
Length: 7,30-69,80
Transmission ratio: 1:10-1:3000
Voltage: 3,0-30,0
No load speed (rpm):   600-2
Max.torque Ncm:  20,00-200,00

Applications:
Home & Industrial

Geared motor, Spur gear - gearbox with sleeve bearing, brass pinion, metal cutting gears

Diameter:  36,7
Length: 59,50-72,00
Transmission ratio: 1:10-1:3000
Voltage: 3,0-30,0
No load speed (rpm):  500-1
Max.torque Ncm: 20-200

Applications:
Home & Industrial

Geared motor, Spur gear - gearbox with sleeve bearing, brass pinion, metal cutting gears

Diameter: 36,7
Length:  66,0-78,50
Transmission ratio: 1:10-1:3000
Voltage: 3,0-30,0
No load speed (rpm):   600-2
Max.torque Ncm: 20-220

Applications:
Home & Industrial

Geared motor, planetary - gearbox with sleeve bearing

Diameter:  42
Length: 105,20-125,30
Transmission ratio: 1:14-1:3600
Voltage: 12,0-30,0
No load speed (rpm):   500-2
Max.torque Ncm:  300,00-900,00

 Applications:
Home & Industrial

Geared motor, planetary - gearbox with sleeve bearing

Transmission ratio: 1:100-1:300
No load speed (rpm):   100-20
Max.torque Ncm:  20,00-100,00

Applications:
Home & Industrial

Geared motor, Spur gear - Pinions and gears in sintered steel

Diameter:  33,0
Length:  57,80-66,80
Transmission ratio: 1:8-1:1953
Voltage: 3,0-30,0
No load speed (rpm):  500-1
Max.torque Ncm: 20-200

Applications:
Home & Industrial

Geared motor, Spur gear - Sintered cutting gears

Diameter: 28x24,5
Length:  70.1
Transmission ratio: 1:31-1:109
Voltage: 6,00-30,00
No load speed (rpm):   540-30
Max.torque Ncm: 20-150,00

Applications:
Home & Industrial

Geared motor, Spur gear - Pinions and gears in sintered steel, optional encoder

Diameter:   27,0
Length: 42.6
Transmission ratio: 1:43-1:819
Voltage: 1,5-24
No load speed (rpm):   200-3
Max.torque Ncm:  5,00-50,00

 Applications:
Home & Industrial

Geared motor, Spur gear - Pinions and gears in sintered steel,

Diameter: 27,0
Length: 48.9
Transmission ratio: 1:43-1:819
Voltage: 3,0-24
No load speed (rpm): 300-3
Max.torque Ncm: 5,00-80,00

Applications:
Home & Industrial


Geared motor, Spur gear - Pinions and gears in sintered steel

Diameter:  33,0
Length:   39,50-48,50
Transmission ratio: 1:8-1:1953
Voltage:  1,5-24
No load speed (rpm):  500-1
Max.torque Ncm: 50,00-150,0

Applications:
Home & Industrial

Geared motor, Spur gear - gearbox with sleeve bearing, optional Encoder • PTC • Potentiometer

Diameter:  46x76,6x26
Length:  50,50-74,50
Transmission ratio:  1:88 - 1:133
Voltage: 6,00-30,00
No load speed (rpm):   200-10
Max.torque Ncm: 20,00-200,00

Applications:
Automotive • Audio & Visual • ICT • Home & Industrial

Telescopic linear actuators

Voltage: 3,0-30
No load speed (mms) 4,2-10,00
Nominal load Kg 200,00-400,00
Max load Kg 600.00

-Working temperature: -10°C ~ +60°C
-High Strength Plastic Gears
-Aluminum Tubes
-Duty Cycles 10% ( 2 min. Work , 18 min. Rest)
-Limit Switches built-in (preset in factory)
-Possibility to deliver the remote controller box

Linear actuators

Dimensions: 24X36,60X59,00
Transmission ratio: 1:5-1:100
Voltage: 3-24
No load speed (mms) 0,5-5,00 Nominal load Kg 1,00-8,00
Max load Kg 10.00

-Output shaft material: brass
-Cover material: aluminum mould
-Possibility to deliver the linear actuator with hall sensor magnetic encoder

Linear actuators

Dimensions: 33X61X75
Transmission ratio: 1:12-1:108
Voltage: 3-24
No load speed (mms) 0,3-40
Nominal load Kg 1,00-150,00
Max load Kg 260.00

-Working temperature: -10°C ~ +60°C
-Housing in zamac die-casting
-Direction of rotation according to polarity
-Pinion and gears in sintered steel
-Duty cycles at 12Volt 90% on – 10% off; at 24Volt 80% on - 20% off
-Possibility to deliver the linear actuator with hall sensor magnetic encoder
-Possibility to deliver the linear actuator with PTC

Telescopic linear actuators

Transmission ratio: 1:5-1:40
Voltage: 3-30
No load speed (mms) 7,0-50,0  Nominal load Kg 8,00-65,00
Max load Kg 100.00

-Working temperature: -5°C ~ +60°C
-Powder Coated Aluminum Alloy Housing
-Adjustable Limit Switches included
-Possibility to deliver the linear actuator with hall sensor magnetic encoder
-Possibility to deliver the linear actuator with Potentiometer
-Possibility to deliver the remote controller box

Linear actuators

Dimensions: 34X61X112
Transmission ratio: 1:12-1:90
Voltage: 3-24
No load speed (mms) 0,3-40
Nominal load Kg 1,00-230,00
Max load Kg 300.00

-Working temperature: -10°C ~ +60°C
-Housing in zamac die-casting
-Direction of rotation according to polarity
-Pinion and gears in cutting gears
-Possibility to supply the screw with fork DIN 71752
-Possibility to supply the screw with fork Eyelet with internal hole diameter 12mm
-Possibility to deliver the linear actuator with hall sensor magnetic encoder
-Possibility to deliver the linear actuator with PTC
