Automated testing solution PV-LIT from InfraTec

Solar cell and solar module testingSolar cell and solar module testing during manufacturing

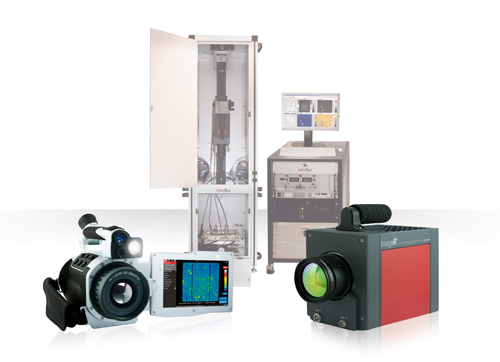

InfraTec’s fully automated optronic IR test system PV-LIT that now also can be equipped with thermographic systems of the latest generation and with megapixel resolution (VarioCAM ® High Definition and ImageIR ® 9300) allows serial as well as individual testing of solar cells and complete solar modules with highest precision. PV-LIT guarantees 100 % quality inspection within shortest time during the manufacturing process.

The PV-LIT testing system exhibited during the 27th European Photovoltaic Solar Energy Conference and Exhibition (25. – 28.09.2012 in Frankfurt am Main/Germany) represents the latest development of the modular product series by InfraTec which, at the same time, combines high performance capability with most excellent control comfort. Depending on the individual task and customer requirements, it is possible to operate with uncooled or cooled camera systems. The new systems by InfraTec achieve resolutions of up to (2,048 x 1,536) IR pixel with VarioCAM ® High Definition and (1,280 x 1,024) IR pixel with ImageIR ® 9300 and thus, even smallest failures can be captured with accuracy. The system enables testing of different kinds of defects. Numerous decisive testing criteria – such as limit values, temperature levels, number and size of defects – can be determined by the user. Short cycle times of less than a second and a reliable continuous operation allow for use in serial production. Flexible data interfaces permit optimal adjustment to local conditions.

For more information visit www.infratec.de
