EMO: BIG KAISER ensures precision with Torque Fit tightening fixture

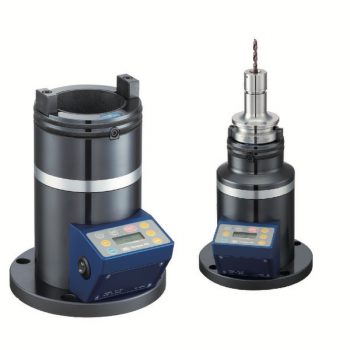

Photo by BIG KAISER Präzisionswerkzeuge AG

The Torque Fit makes it easy to guarantee that a collect chuck is tightened correctly, helping to reach high-precision machining by notifying the user of a correctly set torque value via an audible buzzer.

This tightening fixture was created to replace multiple torque wrenches and comes with adapters for all common machine tool interfaces such as HSK, SK, and BT.

For maximum convenience, torque values of all the BIG KAISER-made collet chucks are preset. The user can, however, set the torque to any value of their own choosing from 4 to 80 Nm. The minimum read value is 0.01 Nm at less than 10 Nm, and 0.1 Nm at 10 Nm or more. The Torque Fit includes an error LED to indicate overtightening.

“High precision is vital for machining applications,” says Giampaolo Roccatello, VP Sales at BIG KAISER. “The Torque Fit plays a relatively small yet essential role in ensuring that high precision is simple and quick to achieve in real-world conditions. It is far more economical for the customer to purchase only a single Torque Fit instead of multiple torque wrenches.”

For more information visit: ch.bigkaiser.com
