Enerpac’s new SL400 Hydraulic Gantry meets safety standards

Photo by ENERPAC B.V.

Safety is always at the forefront for Enerpac, the new SL400 meets the safety standards set by ASME B30.1-2009. The SL400 is their highest capacity bare cylinder gantry, and their only bare cylinder gantry equipped with 3 stage lifting cylinders. The gantry lifts to an impressive 30 feet at the top of the 3rd stage. Enerpac gantries offer best in class standard features for your lifting and rigging applications.

Capacity (4 legs): 207 – 450 tons
Lift Height: 10 – 30 feet

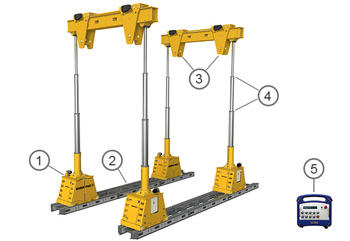

Best in Class Standard Features

1) Self-contained hydraulics in each gantry leg and an integrated self-propelled drive system
2) Same track width as SBL-Series Gantries
3) Powered side shift
4) 3 stage cylinders, 30 ft. range
5) Intellilift wireless control system

Quality

• Designed and tested to meet ASME B30.1-2009 safety standards
• Each gantry is tested to 120% of capacity at full extension and witness tested by Lloyds
• CE compliant design

Innovation

• Self-contained hydraulics in each gantry leg for uncluttered work area
• Wireless controls for optimum visibility of load
• Integrated self-propelled drive system for safe translating of load

Stability

• Same track width as SBL-Series Gantries
• Utilizes proven base design of SBL-500

Intellilift

• Can be operated locally at each leg or using the Intellilift remote control
• Remote can be operated using multi channel wireless control (2.4 GHz) or wired (RS-485)
• 2-Speed settings
• Automatic synchronization of lifting with accuracy of 1 inch (24 mm)
• Automatic synchronization of travel with accuracy of 0.60 inch (15 mm)
• Remote side shift control
