Meusburger introduces its new E 5126 Sliding guide bush with solid lubricant rings

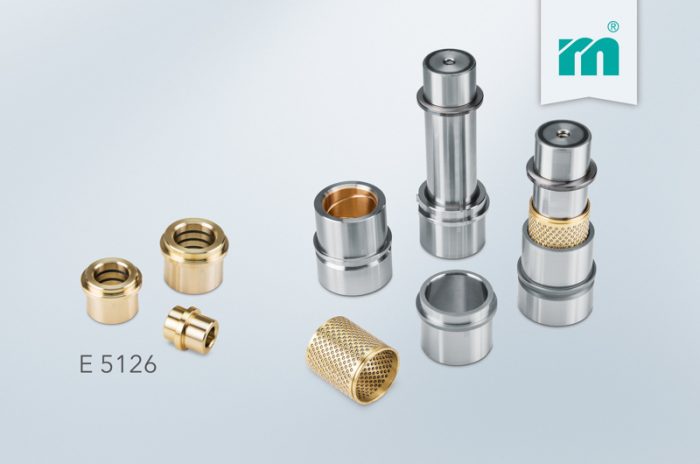

Photo by Meusburger Georg GmbH & Co KG

The standard parts manufacturer Meusburger expands its range with a new sliding guide bush with solid lubricant rings and collar. In addition the standard guiding system has been expanded with a diameter of 80 mm which is especially suitable for large dies.

New self-lubricating sliding guide bush

The E 5126 Sliding guide bush with solid lubricant rings and collar is characterised by optimal sliding properties thanks to resistant bronze and the graphite solid lubricant rings in the sliding surface. The bush and the retainer clip are interchangeable according to DIN 98314 / ISO 9448. Due to the G6 tolerance the play between the pillar and the bush is increased. Therefore the processing of thicker metal sheets during which high shear forces may occur is possible.

Guiding system with 80 mm diameter

The standard guiding system is now also available with diameter 80 mm and up to length 400 mm. It is therefore especially suitable for uses in large dies. The guiding system is available as a ball guide as well as with sliding guide bushes.

As usual the expert in standard components offers all products from stock.

For more information, please visit http://www.meusburger.com.
