NEW: INTEGRAmotor BLDC Parallel Shaft Gearmotor by Bodine

New INTEGRAmotor™ Combines Brushless DC Gearmotor with PWM Control and Encoder

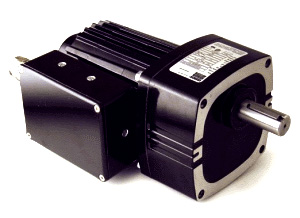

INTEGRAmotor 34B/FV-F Series
Photo by Bodine Electric

Bodine Electric’s new 24VDC, 1/4HP 34B/FV-F gearmotors provide up to 341 lb-in. (39 Nm) continuous torque. Stock models are available in gear ratios ranging from 5:1 to 180:1 and rated output speeds of 0.3 to 500 RPM.

The 34B/FV-F Series incorporates  following standard features:

• Integral 24VDC control simplifies installation, minimizes EMI, and reduces wiring cost.
• PWM voltage control, amplifier enable, direction and dynamic braking inputs. Fault signal output.
• Built-in 1024 PPR, two channel quadrature, optical encoder.
• Can operate in velocity or position control mode.
• Plug-in connectors for power, logic, and encoder.
• Internal current limit protects motor from short-term overload.
• Compact size takes up minimal space. IP-44.
• The 34B motor provides high starting torque, adjustable speed, and zero-maintenance.
• Unvented gearhousing for universal horizontal mounting.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• All steel helical gears. Gearing meets or exceeds AGMA 9 standard for maximum life and quiet operation.

Brushless DC gearmotors are virtually maintenance-free. They are ideal for medical equipment, packaging machines, conveyor systems, printing equipment, and factory automation applications.

For further information visit: www.bodine-electric.com
