New small and light-duty cantilever axis for “Pick & Place” applications from igus®

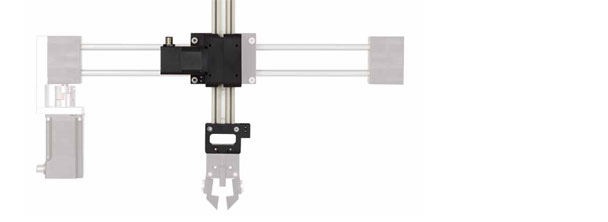

cantilever axis
The new drylin® cantilever axis GRW-0630 was particularly developed for pick & place applications with high dynamics and small loads.

In this type of axis carriage and motor are fixed while the axis moves. A direct, dynamic power transmission of (approx 20-30% more power/speed) takes place via the plastic rack steering without deflection and pretension of a toothed belt. Therefore the axis can be operated with a small motor and small loads up to around 1 kg.

  • 100% lubrication-free
  • Direct power transmission via rack steering
  • High dynamics
  • Light and small
  • Material combination: Aluminum profile / plastic rack steering
  • Adapter plates and connecting angles as accessories
  • Addition to 2 or 3 axis gantries
  • Low loads up to approx 1 kg

Application areas:
Pick & Place, portals, assembly, medical technology, 2- or 3-axis gantries

Visit www.igus.de for more information
