New square-tube linear system with anti-twist protection

drylin® Q-10 square guide – Small and angular
The new square-tube linear guide system measures only 7.5 mm in its edge length and can be clamped in housings with a diameter of 10 mm. The profile is hollow inside and can therefore accommodate supply cables (compressed air, liquid, electricity) in the interior well protected and saving space.

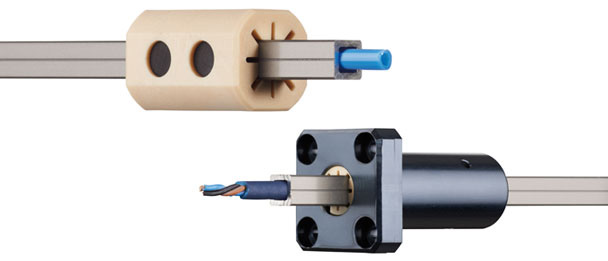

The appropriate guide bearing is available in two different versions: First, the one-piece lightweight solid plastic version and second, the option with plastic liner in anodized aluminum flange housing.

• Space-saving with anti-twist protection
• Lightweight through aluminum profile
• Lubricant free
• Tolerates torques up to 3Nm
• Cable duct in the square

Application area:
Laboratory equipment, e.g. pipettors or small gripper units.
