Stauff introduces new type ZR saddle clamps

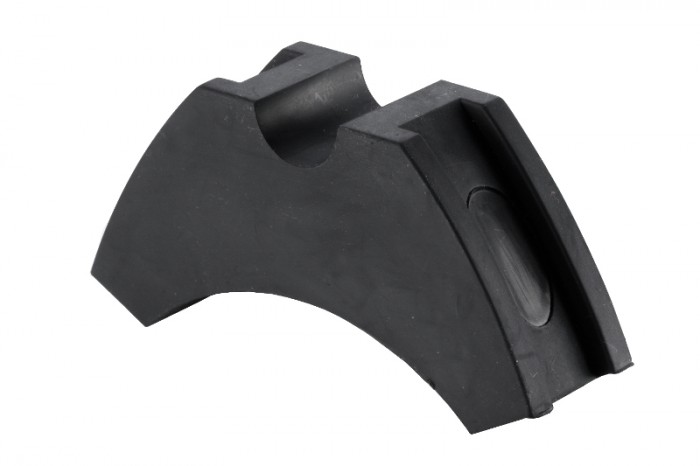

Standard saddle clamp type ZR518 from StauffPhoto by Walter Stauffenberg GmbH & Co. KG

Standard saddle clamp type ZR518 from Stauff
Photo by Walter Stauffenberg GmbH & Co. KG

Type ZR saddle clamps from Stauff allow direct fixing and safe guiding of tubes and hoses on hydraulic cylinders and other round or oval structures, without damaging their strength, integrity and surface coating as with screw-fixing or welding and without preparation or reworking. The simple system also allows a tube or hose with a small outer diameter to be installed on top of a significantly larger one. The clamps can be used in areas that are difficult to access. The position can be adjusted afterwards thanks to free axial and radial positioning of the clamps on the structure. This also makes the system suitable for retrofitting.

The standard version ZR518 made of thermoplastic elastomer material covers diameters in a range from 50 to 200 millimetres for the cylinder and 10 to 22 millimetres for the attached tube or hose. The diameters to be covered are used to calculate the overall length of the required tension band or the dimensions of the worm drive clamp, e.g. according to DIN 3017.

Stauff meets deviating requirements with numerous other variants which were implemented in the past and can be manufactured again at any time. If required, customised clamps can be developed for specific requirements or manufactured based on drawings and models provided.

For more information, please visit http://www.stauff.com.
