  • Offer Profile
  • AMETEK Sensors, Test & Calibration supplies materials testing machinesand force measurement instruments that provide the highest level of performance and capability for production testing, quality control, laboratory testing, research and education. Chatillon and Lloyd Instruments are just some of the world-renowned brands manufactured and supplied by AMETEK Sensors, Test & Calibration.
Product Portfolio
  • AMETEK Sensors, Test & Calibration - Measuring Up to Your Standards!

  • AMETEK Sensors, Test & Calibration supplies materials testing machines and force measurement instruments that provide the highest level of performance and capability for production testing, quality control, laboratory testing, research and education. Chatillon and Lloyd Instruments are just some of the world-renowned brands manufactured and supplied by AMETEK Sensors, Test & Calibration.

    Used to determine the physical and mechanical properties of raw materials and components and ideal for product testing of finished goods such as plastics, packaging, medical devices, electronic components, textiles, metals, composites, paper and more, AMETEK Sensors, Test & Calibration manufactures and supplies universal testing machines (UTM) and tensile testers worldwide.

    A comprehensive range of materials testing machines, force measurement machines, digital force gauges, torque gauges, grips, fixtures, load cells and accessories is backed up by an impressive customer support program that includes technical support, field and factory service capabilities, calibration and more.

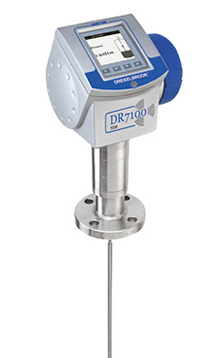

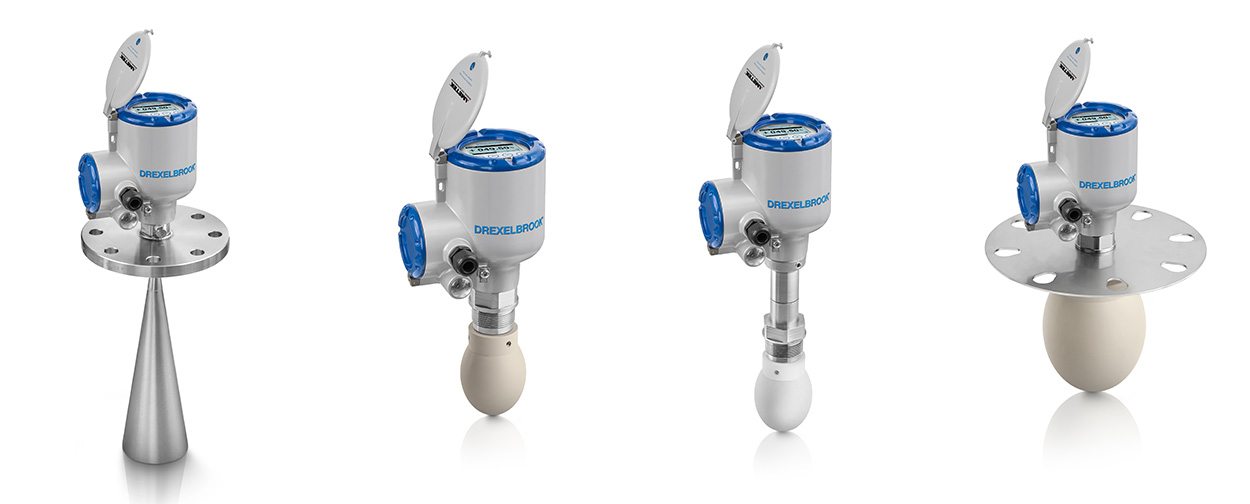

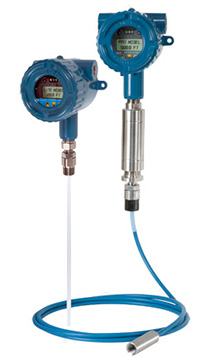

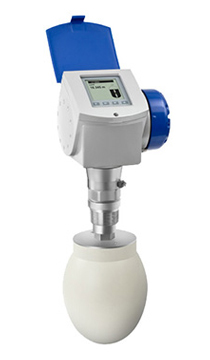

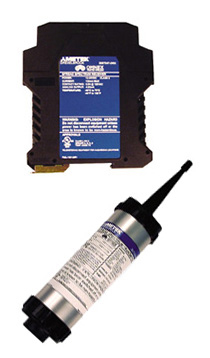

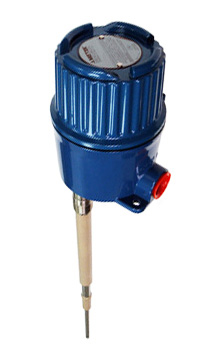

      • FMCW Based Radar Level Measurement

      • Drexelbrook Expands Range of FMCW Based Radar Level Measurement Products DRX400 and DRX500 Series Transmitters Added to Open-Air Radar Product Line
        horsham, pa – AMETEK Drexelbrook, a world leader in level measurement technology, has expanded its open-air radar level offering with the addition of the DRX400 (24 GHz) and DRX500 series (80 GHz) level transmitters.  Both incorporate state-of-the-art features and components.

          • Material Testers & Pneumatic Testers

          • AMETEK Drexelbrook, a world leader in level measurement technology, has expanded its open-air radar level offering with the addition of the DRX400 (24 GHz) and DRX500 series (80 GHz) level transmitters. Both incorporate state-of-the-art features and components.

            The DRX400 Series consists of 3 new models (DR5400, DR6400 & DR7400). This set of 24 GHz radar transmitters covers a broad range of applications including liquids and solids.

            The DRX500 Series consists of 3 new models (DR3500, DR6500 & DR7500). This set of 80 GHz radar transmitters covers applications with liquids, slurries and solids for both hygienic and non-hygienic requirements. All 80 GHz radar transmitters are especially beneficial for level measurements in narrow tanks with internal obstructions due to their small beam angle. The DRX500 transmitters, with its flush-mounted polyether ether ketone (PEEK) lens antenna and wide process connection options, is ideal for hygienic liquids.

            Both series of products feature a large, backlit LCD screen with 4-button keypad that can be assessed with a bar magnet without opening the housing cover. Each uses software that has a quick set up assistant for easy installation. Each conforms to NAMUR recommendations NE 21, NE 43 and NE 53 and can measure fast-moving processes. The transmitters are available with aluminum or stainless-steel housings.
            Radar is one of the most accurate technologies for process level and storage tank applications for continuous level measurement under demanding conditions. The transmitters utilize Frequency Modulated Continuous Wave (FMCW) technology that offers superior signal processing capabilities and a more reliable measurement than other techniques. The state-of-the-art signal

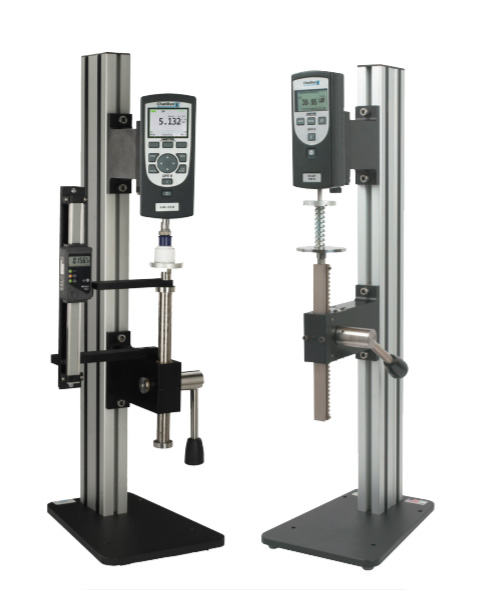

              • MT Series Manual Test Stand

              • The Chatillon MT Series manual test stand is a flexible, easy-to-use solution for force measurement. It comes in two versions: the MT150 with a 150 lbf (660N) capacity and the MT500 with a 500 lbf (2.5 kN) capacity.

                The 150 mm (6 inch) throat makes the MT Series excellent for testing large specimens, and the removable plate is designed to accommodate metric as well as imperial threaded fixtures.

                This manual test stand is ideal for tensile testing, compression testing, peel, and flexural testing.

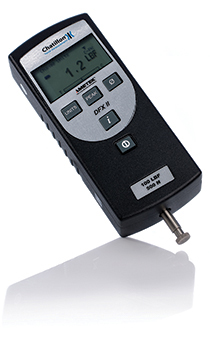

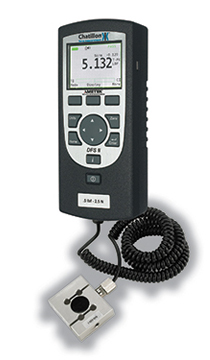

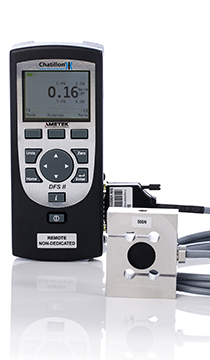

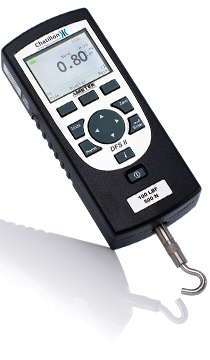

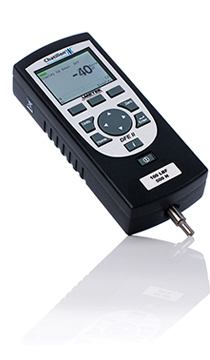

                The MT Series manual test stands are often used with the DFX II force gauge to check the force necessary to depress a button, or with the LG mechanical gauge to perform low range pull tests at the end of a production line where caps are placed on spray bottles. They are also used to test the force necessary to fold a cardboard container into proper shape.

                MT Series Key Features:
                • Simple to use
                • Compact, lightweight benchtop design for table or wall mount options
                • Can be positioned horizontally
                • Optional column heights (750, 1.000 an d 1.500 mm)

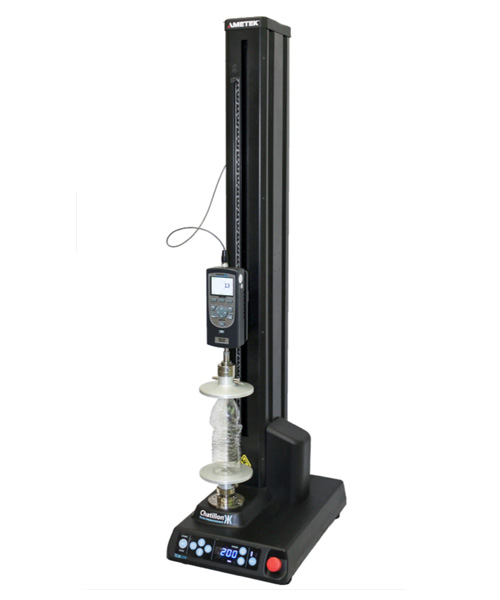

              • TCM Series Motorized Test Stands

              • The TCM series is well adapted for production environments. This low cost, motorized, ergonomic tester attached with our Chatillon DF Series digital force gauges makes tensile, compression, peel, and flexural testing of your samples an easy task.

                The motorized TCM Series force testers feature a small footprint while retaining ample clearance for large samples. With an ideal 100 mm (3.9 in) throat clearance, testing of large samples is no longer a limitation. The universal adapter plate with International threads sizes to ASM and Metric threads sizes provide flexibility for installing custom and standard fixtures.

                The force testers are equipped with tactile buttons with haptic feedback that has no moving parts or membranes. This maximizes durability, especially in production environments, and ensures that the buttons can be easily cleaned. The haptic feedback offers a vibration to alert the user that the command has been received. The TCM Series force testers may also be operated with an optional footswitch controller.

                A bright LED digital display indicates the travel speed and other text messages for the user to continuously monitor the status of the TCM tester. A high rate return speed is built into the TCM force testers to maximize production throughput. Adjustable Upper and Lower mechanical limit switches are integrated for safety and are used for different modes of operation as Cycling and Return To Zero.

                With a small foot print, Cycle and Auto Return Modes, Universal Auto Switching A/C input and durable tactile buttons with haptic feedback, the TCM Series is ideal for your testing needs.

                The motorized TCM Series force testers are available in two versions; the TCM100 with a force capacity of up to 100 lbf (500 N), and the TCM350 with capacity up to 350 lbf (1500 N).


                TCM Series Key Features:

                • Simple to use
                • Compact, lightweight bench top design
                • Set Force Limits to End the Test (with a Chatillon DF force gauge)
                • Large working area
                • Haptic button feedback
                • RS232 and Data output when used with a Chatillon DF force gauge

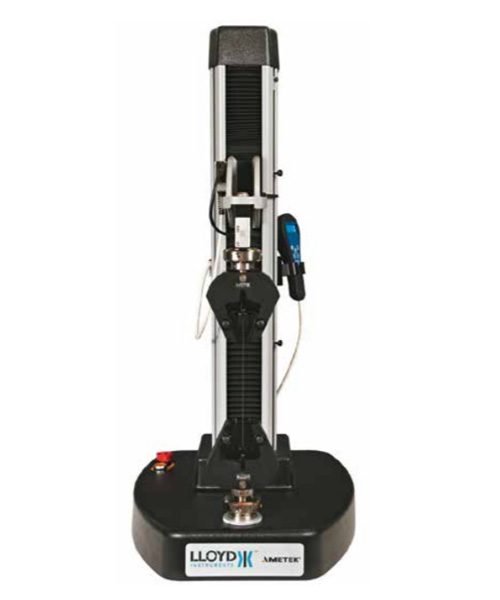

              • LS Series - Up to 5 kN

              • The LS materials testing machines from Lloyd Instruments are easy-to-use universal testing machines ideal for materials testing up to 5 kN (1124 lbf). The machines use high-accuracy interchangeable YLC Series load cells for tension, compression and cycling through zero-force measurements, and they have an accuracy of ±0.5% from 1% to 100% of load cell value.

                The LS Series have a large working area and come in three sizes and capacities: the LS1 (up to 1 kN/225 lbf), the LS2.5 (up to 2.5 kN/562 lbf) and the LS5 (5kN/1124 lbf).

                These materials testing machines feature an integral control console with a multi-function keyboard and easy-to-read backlit LCD to display load and extension information. The control console displays prompts and menus, which guide the user through machine operations.

                LS Series Key Features:
                • Simple to set up, operate and maintain
                • Data sampling rate 8 kHz
                • Save up to 600 test results
                • 10 programmable test set-ups
                • Multilingual and multi-unit display options as standard
                • Export data directly into your Excel and Word templates

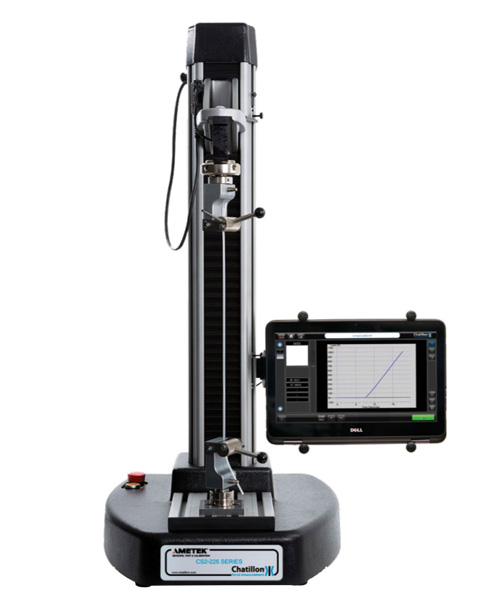

              • CS2 Series - Up to 5 kN

              • The CS2 Series are high quality digital force testing machines optimized for production and laboratory testing of applications up to 5 kN (1100 lbf). These force testing machines are an excellent choice for simple testing within plastic, rubber, packaging, pharma, cosmetic, electronics and wood.

                These robust force measurement machines provide their operators with an easy-to-use, intuitive and straight-forward method for tensile testing (Pull), compression testing (Push), shear testing, flexural testing or advanced multi-stage testing adherent to ISO and ASTM testing procedures.

                The CS2 Series feature a 2-in-1 laptop console with a user-friendly, robust and reliable 9” touch screen for use in production environments. The screen offers both graphical and tabular results along with a very intuitive user interface regardless of the operator skill level. A few touches are all it takes to set up a test, select runs and present reports.

                The set up parameters include limit testing (load, distance and time), break testing, cyclic and loop testing, multi-stage / user defined testing, spring rate calculation and height measurement.

                CS2 Series Key Features:
                • Intuitive, user-friendly 2-in-1 laptop
                • Colorful 9" screen for easy and fast test setups
                • Robust construction
                • Flexible "T" Slot mounting base for custom fixturing
                • Results and statistics are exported to CSV and PDF formats
                • Automatic export of results via RS232 interface after each test
                • 100 kHz data sampling
                • Multilingual and multi-unit display options as standard

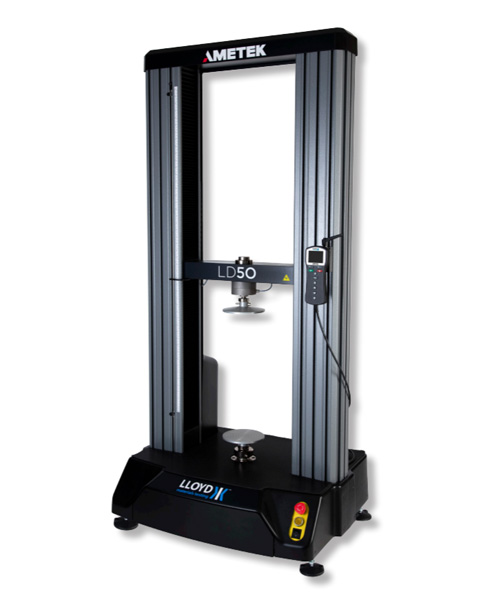

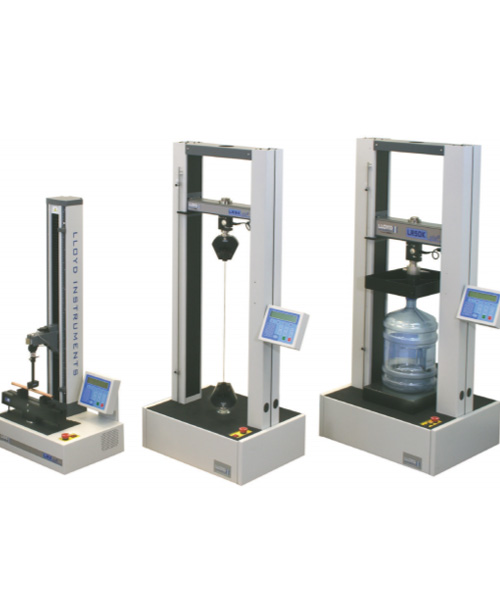

              • LD Series (bench mounted) - Up to 100 kN

              • The powerful LD Series testing machines from Lloyd Instruments combine high performance, ease of use and superior flexibility. These universal materials testing machines are ideal for testing applications up to 100 kN (22480 lbf) and are designed for both routine quality control testing, automated testing and for performing complex multi-stage testing.

                All LD Series testing machines feature an extra-large working area of 452 mm (17.8 in) and crosshead travel up to 1070 mm (42 in) extendable to 1669 mm (65.7 in).

                The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the test sample.

                Interchangeable pancake load cells ensure high accuracy and optimize the test machines for tension, compression and cycling through to zero force measurements.

                An advanced electrical design couples an AC drive with preloaded ball screws for better displacement accuracy.

                The flexible NEXYGENPlus software interacts with Excel and Word, offering you the possibility of automatically transferring your test results directly into your own corporate templates.

                LD Series Key Features:
                • Simple to set up, operate and maintain
                • High stiffness frame
                • High performance AC drive
                • Compliant to CE machinery directive
              • LR Plus Series (floor standing) - Up to 150 kN

              • The advanced LRPlus materials testing machines incorporate an extensive range of features making them ideal for performing complex as well as routine testing applications up to 150 kN (33722 lbf).

                The LRPlus Series are floor standing test machines, featuring a dual column design with crosshead travel range of up to 1150 mm (45.3 in) and a load cell accuracy of 0.5%.

                The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the sample under test.
                The crosshead is driven by twin lead screws and a high precision servo motor and DC servo system, to achieve a wide range of speeds.


                The NEXYGENPlus software interacts with Excel and Word, offering you the possibility of automatically transferring your test results directly into your own corporate templates.

                The LRPlus Series is available in two floor standing models: the LR100KPlus and LR150KPlus, with capacities up to 150 kN (33722 lbf).


                LRPlus Series Key Features:
                • Simple to set up, operate and maintain
                • Data sampling rate 8 kHz
                • Multilingual and multi-unit display options as standard
                • Export data directly into your Excel and Word templates
              • Pneumatic Testers

              • The Chatillon TT Series is a pneumatically-operated tester for measuring breaking strength of electrical leads, terminals, connectors, wire wraps, etc. When used with a mechanical gauge, it is ideal for areas where intrinsic safety is required.

                This pneumatic tester can be used for tensile or compression testing. The rapid test speed makes it ideal for production line testing, incoming inspection testing, or for the R&D laboratory.

                The pneumatic tester features a 6-inch (15 cm) test stroke and Ram speed may be controlled as low as 0.1-inch (2.5 mm) per minute.

                The tester operates using clean, dry air with a maximum air pressure up to 160 psig (11.2 bar). It meets MIL-T-7928 (ASG) requirements for crimped, solderless lugs.

                TT Series Key Features:
                • Simple to operate
                • Independent return speed
                • Automatic retracting jaws
            • Application Specific Testers

            • Specific needs demand unique solutions. AMETEK Test & Calibration Instruments are experts in designing materials testing solutions that work for you.

              We manufacture and supply application-specific materials testers. Our extensive expertise provide you materials testing solutions and the highest level of performance and accuracy within plastic testing, food texture analysis, medical device testing and friction testing.

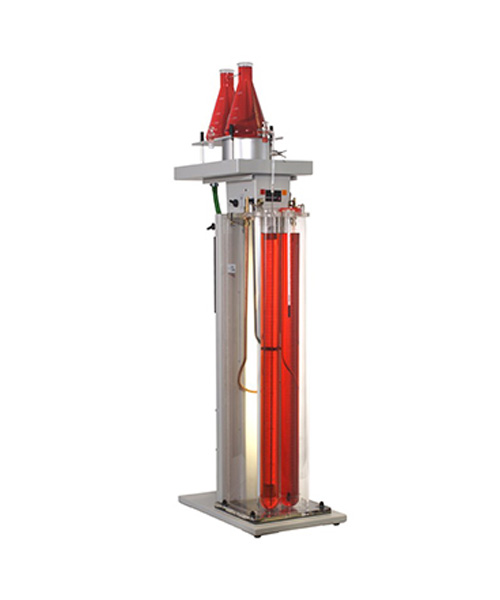

                • Density Columns - Density Measurement

                • Davenport density measuring columns are designed to measure the density of solid materials, notably plastics, according to BS2782 Part 6 Method 620D, ASTM D1505-68, ISO 1183 and others.

                  The density measuring machine also offers a quick comparative test, ideal for discerning density differences between similar materials.

                  Density Column Key Features:
                  • Measures density of small samples of solid materials
                  • Simple set-up, operation and maintenance
                  • Complies with BS2782 part 6 Method 620D, ASTM D1505-68, ISO 1183 and other international standards
                  • Accuracy to 0.0001g/ml
                  • Constant temperature control via heating and cooling circuits
                  • Accepts mains water
                  • Column solution filling apparatus supplied for ease of use

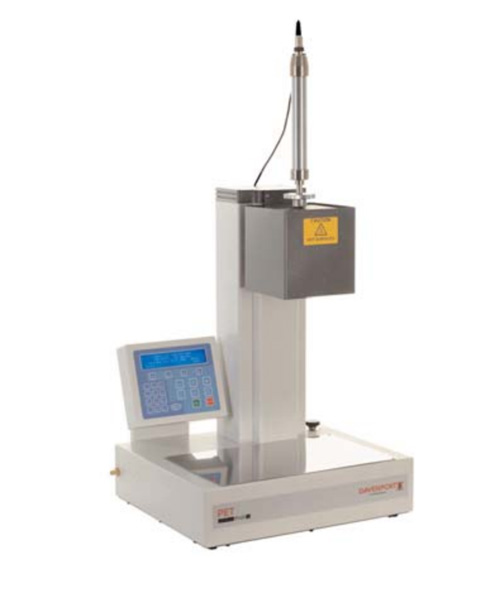

                • PETPlus - IV Measurement

                • The Davenport PETPlus IV testing machine is a unique and solvent-free test instrument designed for fast and safe intrinsic viscosity (IV) measurement of moisture-sensitive polyethylene terephthalate (PET). The instrument can be operated in stand-alone mode to provide on-screen results, or used with the powerful data analysis software, NEXYGENPlus PET.

                  Existing solvent methods for determining IV involve the need to handle and dispose of toxic solvents. The PETPlus method, however, is kinder to the environment and saves on the high costs of purchase and disposal of solvents.

                  PETPlus Key Features:
                  • Simple to set up and operation
                  • Fast analysis of samples (within 20 minutes)
                  • Small footprint
                  • Only requires power and a pressurized nitrogen supply for operation
                • TA1 Texture Analyzer

                • The TA1 texture analyzer is excellent at testing compression, shear, extrusion, puncture, hardness forces, etc. within food testing, pet food testing, cosmetics testing and pharmaceuticals testing.

                  The texture analyzer has a large working area of 180 mm (7.08 in) throat depth for larger specimens, and a wide range of work tables for flexibility. This test machine can perform rapid, detailed texture profile analysis (TPA) on applications up to 102 kgf (1 kN / 225 lbf).

                  TA1 Key Features:
                  • Large work area
                  • Data sampling rate 8 kHz
                  • Save up to 600 test results
                  • 10 programmable test set-ups
                  • Multilingual and multi-unit display options as standard
                  • Export data directly into your Excel and Word templates

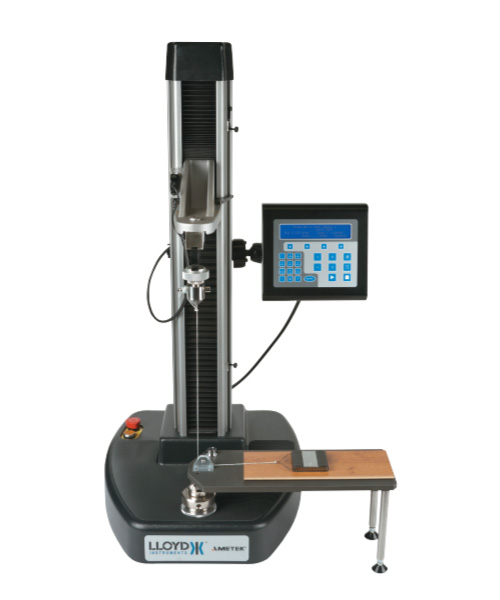

                • FT1 Friction Tester

                • The FT1 is a bench mounted dedicated friction tester. A friction table is mounted directly on the machine and the friction tester comes with a full set of accessories for performance of friction tests conforming to the requirements of ASTM D1894, ISO 8295 and TAPPI T549. The FT1 friction tester includes these standards as user configurable tests with an additional seven tests available for user custom configuration.

                  The console has a user interface dedicated to performing friction tests, and calculating static coefficient of friction, kinetic coefficient of friction, peak, and average load.

                  The machine is a fully self-contained instrument, however an USB is provided to allow computer control using the NEXYGENPlus data analysis software if required.

                  The friction tester has a large working area. The speed accuracy is +/-0.2% of selected speed from 2% to 100 of max. speed.

                  FT1 Key Features:
                  • Data sampling rate 8 kHz
                  • Wide speed range
                  • Dedicated interface
                  • High mechanical stiffness
              • Hardness Testers

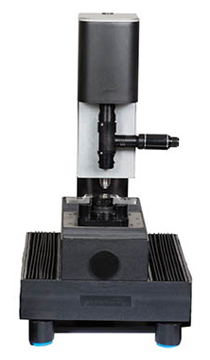

                  • MT91 Series - Rockwell Microhardness Testers

                  • The MT91 test cycle is so fast that you can use it for process control – not just quality control. Test reliability is improved since there is no human interpretation of the impression measurement, so operators no longer need to maintain such a high skill levels.

                    Mounted test samples no longer need the same high level of preparation – or even mounting in some cases. Your case-depth analysis has now become much easier.

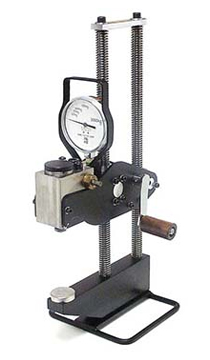

                  • KB Series - Brinell Hardness Testers

                  • The KB Series hardness tester applies up to 3000 kg load on a 10mm ball, making a visible indentation that is read using a Brinell scope or our B.O.S.S. system. The calibrated accuracy is better than 0.5% of the applied load.

                    Simply place the specimen between the anvil and test head, manually crank the test head downward onto the specimen and apply the desired load using the hydraulic lever.

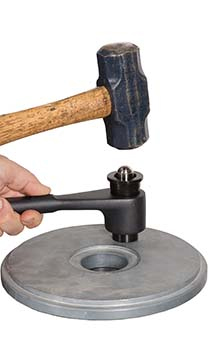

                  • Pin Brinell - Brinell Hardness Testers

                  • The Pin Brinell from Newage is the standard for economical Brinell hardness measurement.

                    This simple-to-use and inexpensive tester can be used across the entire Brinell range (HB100 to HB700).

                    The Pin Brinell is compact and this hardness tester is ideal for applications where mounting the sample on a more traditional bench tester may be impractical.

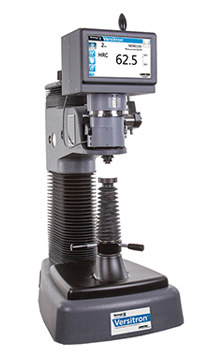

                  • Versitron Rockwell Hardness Tester

                  • The Versitron Rockwell hardness testing system is a unique and exclusive hardness testing system which provides its users with the benefit of the top-loading and test surface referencing technology.

                    Applying both the pre-load and full load in one test cycle makes it possible to perform a test in as little as 4 seconds!

                    This hardness testing machine is ideal for applications ranging from high volume to sampling, from production floor harsh environments to the lab and from testing awkward shaped parts to precise small part testing applications.

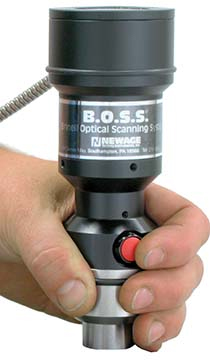

                  • B.O.S.S. Optical Scope - Brinell Hardness Testers

                  • The B.O.S.S brinell optical scanning system measures your brinell impressions faster, more accurately and more consistently than competing products on the market.

                    The B.O.S.S. system includes a high-resolution video scanning head with video imagery software. The software operates in a Windows environment. The software and scanning head can be added to your existing computer, or we can furnish a complete “turn-key” system using a desktop, laptop or tablet-style computer with printer and with mobile protective cabinet.
                  • HiLight Optical Scope - Brinell Hardness Testers

                  • The 5620 Series HiLight Brinell Optical Scopes from Newage features a high-efficiency LED array for its light source, providing excellent illumination and improved readability over conventional “flash light” scopes.

                    The LED array consists of four individual LEDs positioned to provide an even and consistent definition of the Brinell impression’s edge.

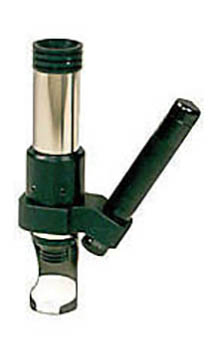

                  • Optical Pocket Scope - Brinell Hardness Testers

                  • The 35-450 Pocket Brinell Optical Scope from Newage is an economical, 20X optical scope for reading Brinell impressions. The compact design and fixed focus makes this pocket scope ideal for applications where you need a quick, but economical method for measuring the indentation.

                    A standard flashlight source, powered by a AAA battery, supplies the illumination. The reticule is calibrated in 0.1mm graduations with a range of 6mm and a field diameter of 7mm.
                • Extensometers

                • Extensometers are used to measure the exact changes in the length of the tested sample. They come in a variety of sizes and types designed for contacting or non-contacting measurement.

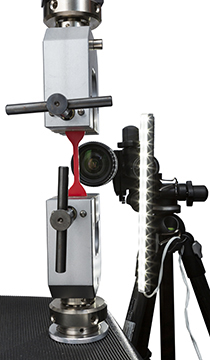

                    • Video Extensometers

                    • The VE1 extensometer offers high resolution measurement, simple preparations and an intuitive user interface.

                      The video extensometer measures longitudinal strain between two applied lines at a rate of up to 100 Hz. The strain data is synchronised and transferred to NEXYGENPlus 3 software (Plus Series and LS test machines).

                      Strains from 20 um/m up to more than 1000% can be measured. System calibration provides measurements from a few millimetres to multiple metres.

                      VE1 Key Features:
                      • Large application area
                      • Templates for different test setups and applications
                      • Available in six sizes

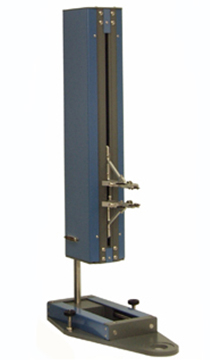

                    • Long Travel Extensometers

                    • We provide two long travel extensometers for materials testing; the EZ250Plus and the EX800Plus.

                      The first type is specifically aimed at the plastic and rubber industries to provide accurate readings of strain and extension over a large extension range. The unit, incorporating two clamping arms and precision potentiometers, produces a DC voltage proportional to the distance between the arms. This generates accurate readings of percentage strain and allows additional parameters such as yield point and break points to be calculated when used with NEXYGENPlus software.

                      Long Travel Extensometers Key Features:
                      • Rugged construction allows specimens to be tested through failure
                      • Plug & Play technology for easy installation and calibration
                      • Rubber buffers absorb impact loads at sample break to safeguard extensometer arms
                      • Fits all test machines
                    • Deflection Gauge Extensometers

                    • We supply a wide range of deflection gauge extensometers ideal for measuring deformation in three and four point bend tests and in compression testing applications.

                      Deflection Gauge Extensometers Key Features:
                      • Available in many sizes

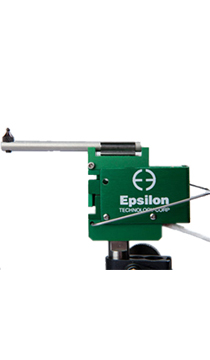

                    • Contacting Extensometers

                    • We provide a wide variety of contacting extensometers in just the size you need.

                      Our general purpose, precision extensometers are designed for testing a wide range of materials including metals, plastics, composites and ceramics operating in tension, compression and cyclic testing modes.

                      Contacting Extensometers Key Features:
                      • Available in many sizes
                      • Easy mounting to the sample
                  • Grips and Fixtures

                  • Each testing application is unique in some way and to cover the many different materials, shapes and sizes of samples that can be tested on our material testing machines and force measurement gauges; we offer a wide range of grips, fixtures, jigs and probes for a variety of test types.

                    On our website you can discover a selection of our most popular grips, fixtures, jigs and probes. We also have a special section of grips, fixtures, jigs and probes specially designed for food texture analysis.
                        • Grips and Fixtures for Force Gauges

                        • Grips and fixtures for the Chatillon force gauges. Find a selection of our most popular grips and fixtures here.
                        • Grips and Fixtures for Test Stands

                        • Grips, fixtures, jigs and probes for Chatillon and Lloyd Instruments test stands. Find a selection of our most popular grips and fixtures here.

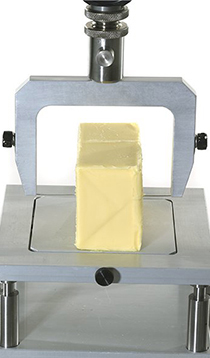

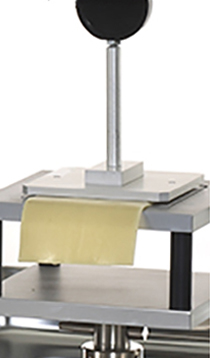

                    • Food Grips and Fixtures

                    • We supply material testing instruments to some of the world’s most innovative companies within the food industry. The reason for this is our extensive experience within food testing, combined with our high precision texture analysis and packaging test systems.

                      We provide the specialised TA1 food texture analyzer, the LTCM Series firmness testers and a wide range of grips, fixtures, jigs and probes specially designed for food testing within fields such as bakery, cereals, confectionary, meat, fruit, vegetables, dairy, pasta, gels and pet food.

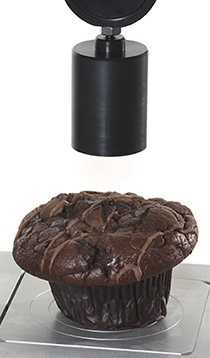

                        • Bakery Testing

                        • The TA1 texture analyzer, combined with one of our grips and fixtures for bakery testing, is capable of testing bakery ingredients through to finished products.

                          The effects of ingredients from different suppliers, baking times and recipes for the finished product can be rapidly measured and captured.

                          Dough extensity, dough stickiness, creep/relaxation, firmness/hardness, fracturability, springiness, cutting resistance, tensile strength, hardness of breadcrumbs and puncture of thin breads, pancakes and tortillas are just a few of the test types that you can perform with our food grips and fixtures for the bakery industry.

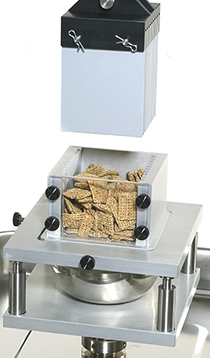

                        • Cereals Testing

                        • When combining the TA1 texture analyzer with one of our Kramer-type shear cells, you obtain a greater repeatability when bulk testing a sample.

                          The greater repeatability will average out the variation in the product that would be measured by testing each individual piece of cereal.

                          Firmness, hardness, crispiness, chewiness, flexural strength and shear are just a few of the test types that you can perform with our food grips and fixtures for cereals.

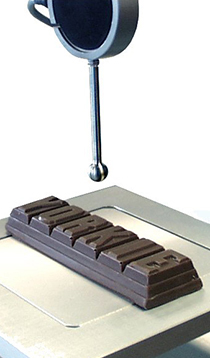

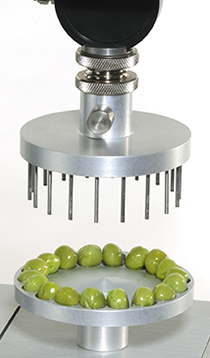

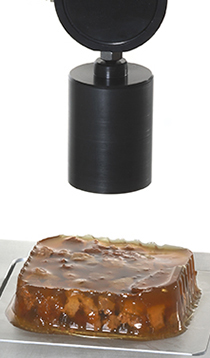

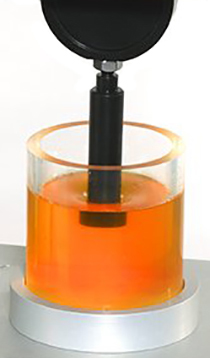

                        • Confectionary and Snacks Testing

                        • From the hardness of boiled sweets to the extensibility of chewing gum or the fracture strength of snack foods, the TA1 texture analyzer, combined with the right grips and fixtures, is capable of testing all samples on the same machine.

                          Typically, penetration tests are performed to measure properties such as coating hardness, stickiness and hardness. 3-point bend tests measure the flexural strength and rigidity of chocolate bars.

                          Firmness, hardness, gumminess, fracturability, stickiness, springiness, flexural strength and tensile strength are just a few of the test types you can perform with our food grips and fixtures for confectionary and snacks.

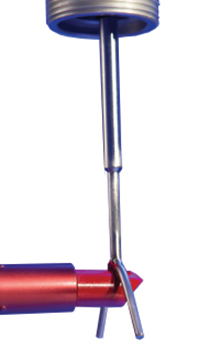

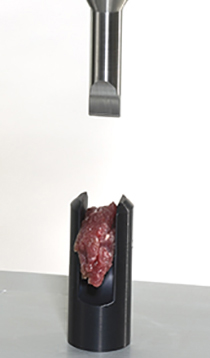

                        • Meat, Poultry and Fish Testing

                        • Texture analysis is used to assist the investigation of meat quality predictors at the on-farm and processing stage of production.

                          A novel measure of meat tenderness recently developed is the rapid slice shear force test. This method has advantages over the traditional Warner-Bratzler shear test for steak as it can be done immediately post-cooking.

                          Toughness of cooked meat, firmness, cutting strength and rapid slice shear force are just a few of the test types you can perform when combining the TA1 texture analyzer with our food grips and fixtures for meat, poultry and fish.
                        • Fruit and Vegetables Testing

                        • There are many factors that affect the texture of fruit and vegetables. The time of harvest and storage conditions have an effect on the rate of softening.

                          Texture analysis can help determine the physical properties of fruit and vegetables, and how they change during ripening.

                          Firmness of whole fruits/vegetables and extrusion properties of soft fruits, peas, beans, corn and processed fruit/vegetables are just a few of the test types you can perform when combining the TA1 texture analyzer with our food grips and fixtures for fruit and vegetables.
                        • Dairy Testing

                        • The development and quality control of dairy products are heavily reliant on texture analysis. During the development phase, texture analysis compares the texture of new formulations to existing proven products.

                          Consistency, gel strength, spreadability, tensile strength, extensibility, viscosity, creep, relaxation, cutting resistance, firmness and hardness of cheese, yoghurt, butter, sauces and ice cream are just a few of the test types you can perform by combining the TA1 texture analyzer with our food grips, fixtures, jigs and probes for dairy.
                        • Pasta, Rice and Noodles Testing

                        • The firmness, stickiness, elasticity and bending strength define the overall texture of cooked and uncooked pasta, noodles and rice.

                          The breaking strength of uncooked spaghetti and lasagne sheets can be measured using the 3-point bind jig. Our unique spaghetti compression fixture measures the deflection time. This method is very effective in defining the correct cooking time.

                          Pasta stickiness, noodle extensibility, pasta firmness and bending strength are just a few of the test types you can perform by combining the TA1 texture analyzer with our grips and fixtures for pasta, rice and noodles.
                        • Gels Testing

                        • Gels are widely used in the food, cosmetics and pharmaceutical industries.

                          The TA1 texture analyzer features standard test methods for the measurement of Bloom strength in accordance with GME and GMIA approved methods.

                          Bloom strength is measured by inserting an AOAC probe a fixed distance into the gel and recording the maximum force.
                        • Pet Food Testing

                        • Texture analyzers are routinely used for determining the hardness and consistency of various pet food products.

                          Biscuit hardness, canned food consistency and bending strength are just a few of the test types you can perform when combining the TA1 texture analyzer with our grips and fixtures for pet food testing.
                        • Cosmetics Testing

                        • The precise measurement of consistency, hardness, spreadability, bending strength and powder compaction is critical in the development and quality control of cosmetics.

                          Gel and cream consistency is measured using a back extrusion cell. The force required to extrude the sample is measured by the TA1 texture analyzer.

                          Lipstick bending and cutting force, penetration test, consistency and eye pencil breaking are just a few of the test types you can perform when combining the TA1 texture analyzer with our grips and fixtures for cosmetics testing.
                        • Packaging Testing

                        • The TA1 texture analyzer can be configured as a dual texture analysis and packaging testing machine by changing the fixtures.

                          Many food products are packaged in flexible packaging, which can be tested for its tensile strength, puncture resistance, heat bond peel strength, tearing strength and coefficient of friction.

                          By combining the TA1 texture analyzer with our grips and fixtures for packaging testing you can perform tests such as tension, carton erection, friction, puncture and top loading.
                      • Force Gauges

                      • The Chatillon digital force gauges are powerful yet user-friendly gauges, designed for either handheld use or test stand mounting. These digital force gauges and torque gauges offer the best price performance value of any digital force gauge available, along with a high precision and an easy to use force measurement solution.
                          • Digital Force Gauges

                              • DFE II Series Digital Force Gauges

                              • The Chatillon DFE II Series marks a new era in digital force measurement. This compact, easy-to-use digital force gauge is designed for economy applications without compromising functionality. It is ideal for hand held use, as well as for test stand applications.

                                This digital force gauge is often used for collecting production sample data at the end of a production line, for performing pass/fail tests, or (when mounted to the Chatillon LTCM test stand and connected to a computer) for online recording of quality testing data for incoming material inspection conformance.

                                A large, easy-to-read, high resolution dot matrix LCD full color display supports a variety of standard gauge functions, including normal and peak read¬ings, high/low limits, set points, pass/fail results, statistical results, load cell actuation and direction. The DFE II features an integral load cell with a measurement accuracy better than ±0.25% FS, and has analog, USB and RS232 serial communication.

                                DFE II Series Key Features:
                                • Simple user interface
                                • Capacities from 2 lbf (10 N) to 500 lbf (2500 N)
                                • Selectable units of measurement (ozf, gf, lbf, kgf and N)
                              • DFS II Series Digital Force Gauges

                              • This digital force gauge is often used to collect tear strength test data on new materials, while it allows you to perform statistic analysis on the data directly on the screen. By mounting the DFS II to a Chatillon LTCM test stand you can perform testing at the end of a production line and transfer the results to a PC for analysis.

                                A large, easy-to-read, high resolution, full color dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, set points, pass/fail results, statistical results, load averaging, load comparisons, % and sharp break detection, load cell actuation, and direction.

                                This compact, easy-to-use force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS II may be equipped with integral load cells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models.

                                DFS II Series Key Features:
                                • Simple user interface
                                • Selectable units of measurement (ozf, gf, lbf, kgf and N)
                                • Selectable password protection for gauge set ups
                              • DFX II Series Digital Force Gauges

                              • The Chatillon DFX II Series is a low cost digital force gauge, ideal for applications where users are interested in basic peak measurement, such as the force necessary to depress a button.

                                Attached to an MT test stand, this digital force gauge can measure the maximum tensile force applied before a cap comes off a spray can. Used with the optional pistol grip attachment, the DFX II can measure the force necessary to open a door.

                                This digital force gauge features an integral load cell with a measurement accuracy better than 0.3% FS. A large, easy-to-read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal peak reading. Selectable language displays and calibration procedure are included in the digital force gauge setup.

                                DFX II Series Key Features:
                                • Simple user interface
                                • 70-100 hours of continuous use
                                • Four capacities (10 lbf, 50 lbf, 100 lbf and 200 lbf)
                                • Selectable units of measurement (ozf, gf, lbf, kgf and N)
                              • DFS II R ND Series Digital Force Gauges (Non-dedicated)

                              • This digital force gauge allows the user to change the SLC load cells, adding the flexibility to use one base indicator and several load cells to meet different testing needs. It is ideal for performing tests in places where a handheld gauge would not fit.

                                The DFS II R ND is easy to use and designed for basic and complex applications. Ideal for handheld applications, the DFS II R ND may be equipped with integral load cells or a smart remote sensor for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models.

                                A large, easy-to-read, high resolution, full color dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, set points, pass/fail results, statistical results, load averaging, load comparisons, % and sharp break detection, load cell actuation, and direction.

                                DFS II R Series Key Features:
                                • Simple user interface
                                • Selectable units of measurement (ozf, gf, lbf, kgf and N)
                                • Selectable password protection for gauge set ups
                              • DFS II R Series Digital Force Gauges (Dedicated)

                              • The Chatillon DFS II R Series supplies all of the features of the DFS II in a package that provides the user with flexibility.

                                This digital force gauge is available with a remote SLC load cell that is dedicated to the unit, and offers the ability to test in locations where a fixed and integral load cell is impractical.

                                The DFS II R digital force gauge is compact, easy-to-use, and designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS II R may be equipped with integral load cells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models.

                                A large, easy-to-read, high resolution, full color dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, set points, pass/fail results, statistical results, load averaging, load comparisons, % and sharp break detection, load cell actuation, and direction.

                                DFS II R Series Key Features:
                                • Simple user interface
                                • Selectable units of measurement (ozf, gf, lbf, kgf and N)
                                • Selectable password protection for gauge set ups
                            • Mechanical Force Gauges

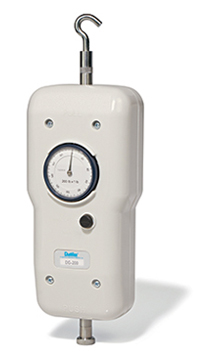

                                  • DG Series Mechanical Force Gauges

                                  • The Chatillon DG Series is a low cost force measurement solution, ideal for a wide range of force testing.

                                    DG Series mechanical force gauges features a 2.25-inch dial and a peak hold button for capture of the peak readings and an easy return to zero. The concentric dial measures clockwise only and rotates 360 degrees for taring. The DG Series comes with a universal mounting plate, and a mechanical overload feature protects the force gauge from damage.

                                    This mechanical force gauge has an accuracy of +0.5% of full scale, and can be used as a handheld force gauge or equipped with an optional handle set for two-hand operation. When combined with the MT500 Series mechanical test stand the DG Series provides a versatile, economic test system with a capacity up to 500 lbf (kN).

                                    DG Series Key Features:
                                    • Three graduation styles (lbf, kgf and Newtons)
                                    • Intrinsically safe
                                    • Peak load switch

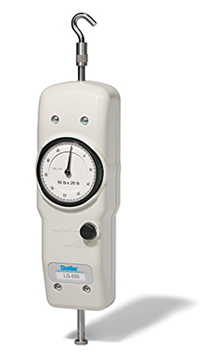

                                  • LG Series Mechanical Force Gauges

                                  • The Chatillon LG Series is a low cost force measurement solution, ideal for a wide range of force testing applications.

                                    These mechanical force gauges features a 2.25-inch dial and an accuracy of +0.5% of full scale, along with a peak hold button for capture of the peak readings and easy return to zero. The concentric dial measures clockwise only, and rotates 360 degrees for taring. A mechanical overload feature protects the force gauge from damage.

                                    The mechanical force gauge fits naturally in the hand for a comfortable and firm grip, even at maximum loads. It can also be mounted to a test stand for even greater control and consistent results in repetitive testing applications.

                                    LG Series Key Features:
                                    • Three graduation styles (lbf, kgf and Newtons)
                                    • Intrinsically safe
                                    • Peak load switch
                              • Ergonomic Force Gauges

                                    • MSE100 Series Ergonomic Force Gauges

                                    • The Chatillon MSE100 Series mechanical dynamometer is ideal for ergonomic evaluations, job task analysis, functional capacity, and muscle strength analysis.

                                      The dynamometer features a large, 2.25-inch dial for easy readability. The concentric dial measures clockwise only. A peak hold button captures peak readings and can quickly be returned to zero. The dynamometer has an accuracy of +0.5% of full scale, and a mechanical overload feature to protect the dynamometer from damage.

                                      The MSE100 is an excellent, portable solution for physical tensile (Pull) or compression (Push) testing.

                                      MSE100 Series Key Features:
                                      • Large readable dial
                                      • Peak load switch
                                      • Selectable units of measurement (lbf, kgf and Newtons)
                                      • Wide selection of ergonomic fixtures
                                    • DMG Series Ergonomic Force Gauges

                                    • The DMG Series dynamometer is ideal for functional capacity evaluations and basic muscle strength measurements where economy and ease-of-use are required.

                                      This compact gauge is designed for physical, occupational and sports applications, and general patient assessment in family, neurological, and orthopedic practices.

                                      Its simplicity is key to both clinicians and technicians, and the measurement accuracy is better than 0.5% full scale. A large, easy-to-read dial indicator displays peak strength.

                                      The DMG is an excellent, portable solution for physical tensile (Pull) or compression (Push) testing.

                                      DMG Series Key Features:
                                      • Peak load switch
                                      • Available in 200 lbf and 500 lbf capacities
                                      • Wide selection of ergonomical fixtures
                                • Hydraulic Force Gauges

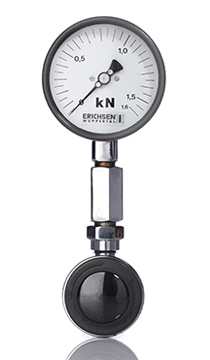

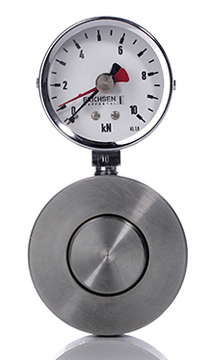

                                    • Erichsen Hydraulic Force Gauge - Model 329

                                    • This compact hydraulic force gauge from Erichsen Wuppertal is designed primarily for occasional force checks and field service, rather than continuous loading. The force gauge offers compensation on surfaces that are not straight and the display units in 63 mm diameter have a maximum reading pointer.

                                      Erichsen Force Gauge Model 329 Key Features:
                                      • Compact design – low profile and versatile
                                      • Compensation on surfaces that are not straight
                                      • Load Range; 250N (56Lbs) to 630kN (140,000Lbs)
                                      • Accuracy: 1.6% of full scale
                                      • High pressure hose and capillary tube options
                                    • Erichsen Hydraulic Force Gauge - Model 332

                                    • Due to its durable and robust construction, this hydraulic force gauge from Erichsen Wuppertal is highly suitable for rough operating conditions on permanent machines and installations.

                                      The 332 model is supplied with a precise pressure gauge of 100 mm nominal diameter with zero point correction. A wide range of accessories are available to cover most applications.

                                      Erichsen Force Gauge Model 332 Key Features:
                                      • Precise 100mm manometer
                                      • Manometer with Zero Point adjustment
                                      • Load Range; 1kN (220Lbs) to 1000kN = 1MN (220,000Lbs)
                                      • Accuracy: 1.6% of Full Scale
                                      • High pressure hose and capillary tube options

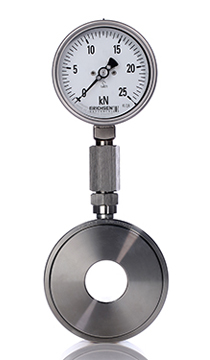

                                    • Erichsen Hydraulic Force Gauge - Model 338

                                    • The robust construction of this hydraulic force gauge from Erichsen Wuppertal is suitable for rough operating conditions on machines and installations and is especially suited for large surfaces. It can be used for occasional spot checks as well as integrated in a permanent installation.

                                      This Erichsen force gauge comes with an alignment ball for easy alignment of your load.
                                      The standard instrument is fitted with a 63 mm diameter gauge with maximum reading pointer.

                                      Erichsen Force Gauge Model 338 Key Features:
                                      • Compact design
                                      • Durable, robust construction
                                      • Ball feature for easy alignment of your load
                                      • Standard with a max. reading pointer
                                      • Load Range; 400N (90Lbs) to 63kN (14,000Lbs)
                                      • Accuracy: 1.6% of Full Scale
                                      • High pressure hose and capillary tube options
                                    • Erichsen Hydraulic Force Gauge - Model 343

                                    • This hydraulic force gauge from Erichsen Wuppertal comes with a center hole and can be used wherever there is a need to fit a link through the body of the load cell.

                                      The Erichsen force gauge is particularly suitable for continuous measurement of axial forces ─ for example, on anchoring devices, or to monitor bearing forces that arise on lathes, boring machines, extrusion presses etc.

                                      If suitable suspension links or housings are used, this load cell can also be employed to measure tension.

                                      The Erichsen Force Gauge Model 343 Key Features:
                                      • Designed for tension and compression applications
                                      • Load Range; 1kN (220Lbs) to 2500kN = 2.5MN (560,000Lbs)
                                      • Accuracy: 1.6% of Full Scale
                                      • High pressure hose and capillary tube options
                                  • Precision Weighing Scales

                                  • We offer a comprehensive range of precision weighing scales for a wide range of industries all over the world.

                                    Our product offering is backed up by an impressive customer support program that includes technical support, factory service capabilities and calibration.

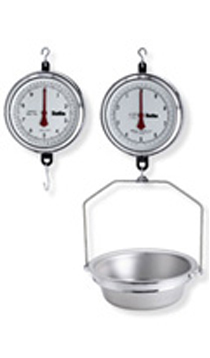

                                      • Hanging Scales

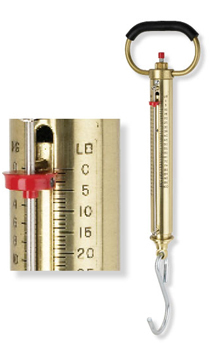

                                      • The Chatillon hanging scales for precision weighing come in a wide range of shapes, sizes and with different features.
                                      • Handheld Scales

                                      • The Chatillon handheld scales are world renowed in the fishing industry for its range of high quality linear scales.

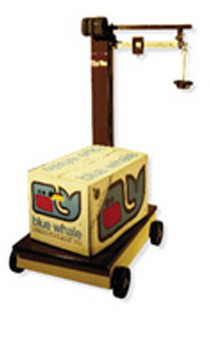

                                      • Portable Beam Scales

                                      • Chatillon offers a range of portable beam scales ideal for industrial plants, warehouses, terminals, laboratories, educational and commercial use.

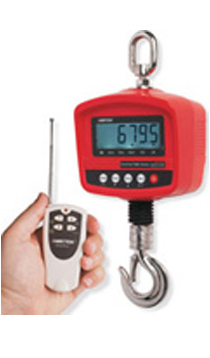

                                      • Crane Scales

                                      • The range of Chatillon crane scales covers digital crane scales as well as mechanical crane scales.
                                    • Point Level Measurement

                                    • Drexelbrook manufactures a full range of point level measurement instruments, providing the highest level of performance for liquids, slurries and bulk solids applications.
                                        • RF Admittance Level Measurement

                                        • RF Admittance is one of the most versatile technologies being used today in a wide range of point level applications. This technology is excellent for total product level and is also uniquely suited for differentiating the interface between insulating and conducting liquids.

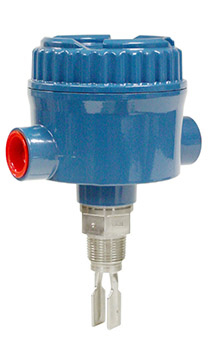

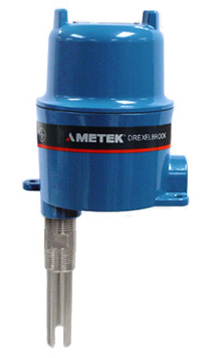

                                        • Vibration Level Measurement

                                        • Vibration technology is an excellent choice for most high or low-level liquid level measurement requirements. These products require no calibration and are not affected by changes in electrical properties of the material being measured.

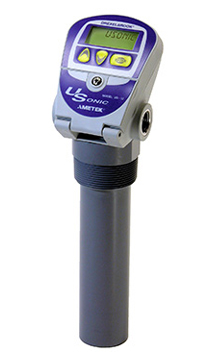

                                        • Ultrasonic Level Measurement

                                        • Ultrasonic technology is a great choice for high or low-level liquid level measurement requirements in a wide variety of liquids. These ultrasonic sensors require no calibration and are not affected by changes in electrical properties of the material being measured.

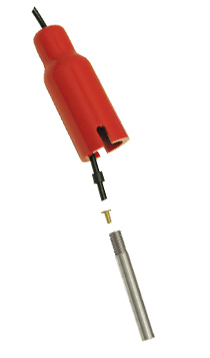

                                        • Conductivity Switches

                                        • B/W Controls offers a simple conductivity holder and electrode that can be configured for multiple measurement points. This is a simple level switch that can be used on liquids and light slurries. The B/W products utilize the conductive properties common to aqueous liquids to provide point level control and alarm functionality.

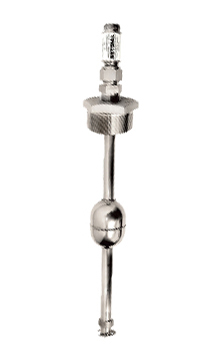

                                        • Float Switches

                                        • B/W Controls has been manufacturing float based tilt switches for decades. Simple tilt position is all that is needed to actuate a B/W relay and or signal a control panel of the alarm.
                                      • Continuous Level Measurement

                                      • Drexelbrook manufactures a full range of continuous level measurement instruments, providing the highest level of performance for liquids, slurries and bulk solids applications. With a wide variety of technology options, Drexelbrook is uniquely qualified to properly evaluate and recommend the very best solution for your application.
                                          • RF Admittance Level Measurement

                                          • RF Admittance is one of the most versatile technologies being used today in a wide range of continuous level applications. It has a long standing reputation as a proven technology in the most demanding level process environments.
                                          • Ultrasonic Level Measurement

                                          • Ultrasonic technology is a perfect choice for level applications that require low cost, non-contact measurement of liquids and slurries for level, distance, volume and open channel flow. These products have excellent accuracy and will handle measurements up to 30’.
                                          • Open Air Radar Level Measurement

                                          • Drexelbrook’s line of open air radar products offer superb resolution and accuracy for the demanding applications. This line of instruments features FMCW (Frequency Modulated Continuous Wave) technology to provide the strongest signal at the measurement surface providing the best return signals even with agitated liquids.
                                          • Guided Wave Radar Level Measurement

                                          • Drexelbrook’s line of guided wave radar products (TDR) utilizes the most advanced signal processing techniques to provide customers with some of the most accurate level transmitters on the market.

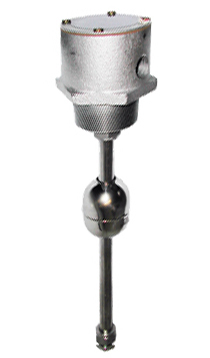

                                          • Magnetostrictive Level Measurement

                                          • Drexelbrook’s line of magnetostrictive level probes utilizes proven machine tool positioning accuracy combined with process compatible floats to offer liquid level, interface level and temperature measurements with no requirements for maintenance or calibration.

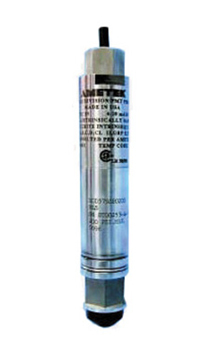

                                          • Hydrostatic Pressure Level Measurement

                                          • Drexelbrook’s line of hydrostatic submersible level transmitters utilize proven pressure sensing technology. These systems are designed for water and wastewater level monitoring and control applications.

                                            Ease of installation combined with no calibration makes this technology the perfect choice for low maintenance water well and wastewater measurements.
                                        • Control Relays

                                        • Drexelbrook manufactures a supporting line of control relays that are developed especially for use as safe, reliable, economical original equipment components in many different types of commercial and industrial products.

                                          Designed to operate from electrodes or probes contacting conductive liquids, our control relays are ideally suited for level control applications in such products as vending, dispensing, ice-making machines, water softeners, dishwashers, and coffee makers, plus many types of operating equipment in the food, drug, dairy, brewing, distilling and chemical processing industries.

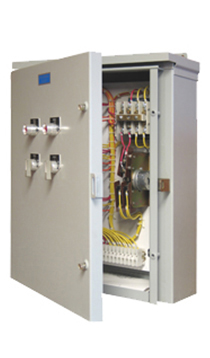

                                            • Alarm Panel

                                            • Drexelbrook manufacture and supply control panels under the brand B&W Controls. Our high quality control panels are supplied with control relay, wired terminal block, motor starter, or a base panel for external connections.

                                              Our B&W Controls system wiring diagrams are supplied to assure quick and easy installation and the confidence that the system will work right the first time.

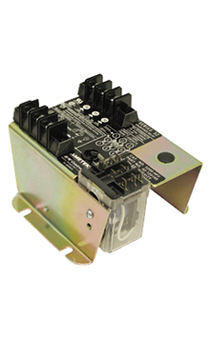

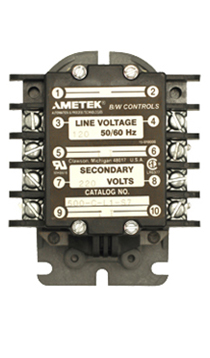

                                            • Induction Style

                                            • At Drexelbrook we manufacture the Model 1500 induction relay under the brand B&W Controls.

                                              A B/W floatless liquid level control system consists of a relay of the proper type, a holder designed to support one or more electrodes or probes in the liquid container, and the corrosion resistant electrodes themselves.
                                            • Solid State

                                            • The B/W Controls solid state relays are designed for controlling a wide variety of high and low resistance liquids, moist bulk materials, and general purpose use in applications requiring a low voltage control circuit.

                                              Supplied as compact package units, they combine performance-proven solid-state printed circuitry with an electromechanical load relay that features isolated double pole / double throw contacts for energizing pump motors, valves and other operating equipment.
                                          • Wireless Solutions

                                          • Drexelbrook supplies a line of monitoring and control wireless interface solutions that provide both one way and two way communication. This eliminates expensive hard wiring hardware and installation costs.

                                            The Drexelbrook offering provides a reliable, license free, wireless link between the field instrument and the control room.
                                                • Tube Mount Transmitter / DIN Rail Receiver

                                                • The 28670XX-DRX Series are unidirectional wireless systems that comprise a transmitter and a receiver.

                                                  This Drexelbrook transmitter accommodates two digital signals in the range from 5 to 30 V AC/DC or 100 to 240 V AC and one analog current signal (4-20 mA). These signals are available for further processing at the receiver in the form of two relay contacts and one 4-20 mA current output. In addition, a third relay in the receiver diagnoses the status of the wireless connection (RF link).

                                                  Key Features
                                                  • 1W Transmitter
                                                  • No Programming Required
                                                  • Class 1 Div 2, Groups A, B, C, D Listed
                                                  • Temperature range: -40º to 158ºF (-40º to 70ºC)

                                                  Power supply:
                                                  • AC transmitter: 100 to 240 VAC, 50 to 60 Hz, 10 VA
                                                  • DC transmitter: 12 to 30 VDC (regulated)

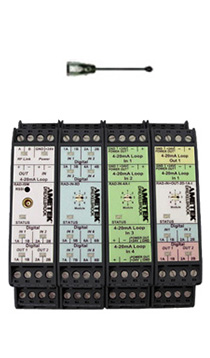

                                                • Two Way Monitoring and Control

                                                • The Drexelbrook 560 DRX Series wireless products feature 900KHz frequency hopping, spread spectrum technology to provide a reliable, license free, wireless link between the field instrument and the control room.

                                                  These wireless interface products provide a cost effective alternative to expensive hard wired connections.

                                                  Using Frequency Hopping Spread Spectrum (FHSS) technology, a robust signal is provided that is virtually free from disruption due to interference.

                                                  Key Features
                                                  • Transceiver and I/O Modules Preprogrammed from Factory
                                                  • Class 1, Div 2 Approved
                                                  • 33 Analog 0r 66 Digital Signals per Bank
                                                  • Temperature range: -40° to ++158° F (-40° to ++70° C)
                                                  • Power supply: One (1) 4-20mA analog input (16-bit, 125 ohms impedance) Two (2) digital inputs (5-30VDC)
                                            • Pressure Measurement & Water Cut Meter

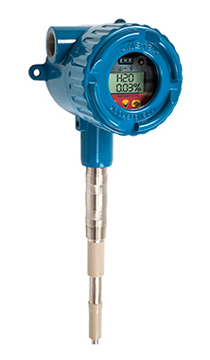

                                                  • Water Cut Meter

                                                  • For more than 50 years, Drexelbrook has been the world leader in capacitive based water cut measurement. We offer the highest pressure and temperature ratings in the industry and our capacitive probes can handle pressures up to 1500 Psi and temperatures up to 450°F.

                                                    Our popular Universal IV CM Series is a high quality water cut meter, also known as a water cut monitor or BS&W, with a range of 0-50% in light oil and 0-80% in heavy oil.

                                                    It is built upon the Drexelbrook expertise in RF Admittance that allows the electronics to ignore paraffin and other coatings that buildup on the probe.

                                                    The Universal IV CM features a unique Cote Shield that is designed into the Universal IV CM series and enables the instrument to ignore a pre-determined length of the sensing element.

                                                    This water cut meter comes with a Perm-A-Seal sensing element that does not require epoxy coatings that wear out and require expensive servicing.
                                                • Pressure Measurement

                                                • In addition to the Drexelbrook and BW Level product brands, Ametek STC offers a wide variety of pressure instruments and supporting component products. We are proud to present this offering under our US Gauge, PMT Products and Crystal Engineering brands. Select the appropriate product category below.
                                              • Linear Feedback

                                              • Linear Position Sensors play an important role in factory automation. They provide accurate, reliable, absolute position feedback to help automate today’s sophisticated machinery. Sensors must deliver value, be easy to set up, and interface easily into the host controller.

                                                We know the manufacturing challenges of today are extreme, so we designed and built sensors to meet and exceed these demands, regardless of the application or environment. Innovation, proprietary technology and decades of experience were the key to the development of our line of Linear Displacement Transducers.
                                                  • 953 VMax Series Linear Position Sensor

                                                  • The Gemco 953 Series VMAX Linear Displacement Transducer (LDT) is a linear position sensor developed to meet the most demanding processing challenges, regardless of application or operating environment.

                                                    The highly versatile VMAX offers absolute accuracy and reliability with high resolution and precision repeatability. The VMAX is resistant to contaminants and environmental conditions and is IP68 rated. Its rugged and durable mill duty construction exceeds competitive offerings, and its vibration resistance is lab tested at 30 Gs and shock resistance is lab tested at 1000 Gs.

                                                    Featuring
                                                    • Analog Outputs, 0-10 VDC, +/-10 VDC, 0-5 VDC, +/-5 VDC, 4-20mA
                                                    • SSI (Synchronous Serial Interface) 24, 25 or 26 Bit, Binary or Gray Code, Synchronous or Asynchronous Mode
                                                    • Digital Outputs, Start/Stop, Variable Pulse (PWM), Control Pulse
                                                    • High Shock Resistance to 1000Gs (lab tested)
                                                    • High Vibration Resistance to 30Gs (lab tested)
                                                    • Removable Cartridge for Hydraulic Applications
                                                    • Resolution to 0.00006”
                                                    • Linearity +/- 0.01%
                                                    • Wide Input Range of 7-30 VDC
                                                    • IP68 Rating
                                                    • Tri-color Diagnostic LED
                                                    • Programmable Zero & Span
                                                    • Sensor Length up to 300"
                                                  • 952 BlueOx Series Linear Position Sensor

                                                  • The Gemco 952 BlueOx Series Linear Displacement Transducer (LDT) is a linear position sensor designed for applications where high accuracy, high speed, and survival are important. It is lab tested and field proven to stand up to high shock and vibration.

                                                    With test results of 2,000 G's of shock and 30 G's of random vibration without false signals or mechanical damage, the BlueOx is ready to perform on the most demanding applications. The BlueOx is an ideal cylinder position sensor with absolute feedback.


                                                    Featuring
                                                    • Analog Outputs, 0-10 VDC or 4-20mA
                                                    • Digital Outputs, Start/Stop, Variable Pulse (PWM), Control Pulse
                                                    • High Shock Resistance to 2,000Gs
                                                    • High Vibration Resistance to 30Gs
                                                    • Resolution to 0.001”
                                                    • Linearity +/- 0.05%
                                                    • Wide Input Range of 13.5 -26.4 VDC
                                                    • IP67 Rating
                                                    • Programmable Zero & Span
                                                    • Sensor Length up to 168"
                                                  • 950IS Series Linear Position Sensor

                                                  • The Gemco 950IS Linear Displacement Transducer (LDT) is an intrinsically safe analog system. It uses a remote transmitter mounted in a safe area wired through intrinsically safe barriers to the LDT, which may be mounted in a hazardous area. The term 'Intrinsically Safe' pertains to a device's inability to produce an electrical spark of enough significance to cause ignition. This system incorporates circuitry that is U.L. listed for use in Class I, Groups C and D, Class II, Groups E, F and G, and Class III hazardous locations.

                                                    Featuring
                                                    • Output - 0 to 10 VDC or 4 to 20mA
                                                    • Linearity - .01”
                                                    • Repeatability - +/- 0.01% of Full Stroke
                                                    • Span Length – 1” to 300”
                                                    • Connectors – 2 Pin 12mm
                                                    • Enclosure – IP65
                                                  • 958A Compact Housing

                                                  • The GEMCO® 958 Series Compact Housing Linear Displacement Transducer (LDT) was developed to meet the most demanding processing challenges found in the Industrial and Mobile hydraulics industries, regardless of application or operating environment.

                                                    The 958A is a rugged, accurate, programmable zero and span, auto-tuning, non-contact linear displacement transducer in a compact housing rod-style package. The Compact Housing is less than 1.2" in depth, which allows the unit to be installed in applications where traditional Rod Style transducers will not fit, or in applications where customers are looking to simplify installation and serviceability of the sensor.

                                                    Featuring
                                                    • Analog Outputs, 0-10 VDC, 0-5 VDC, .25-4.75 VDC, .5-4.5VDC, 4-20mA
                                                    • High Shock Resistance to 1000Gs (lab tested)
                                                    • High Vibration Resistance to 30Gs (lab tested)
                                                    • Resolution to 16-bits
                                                    • Linearity +/- 0.04%
                                                    • Wide Input Range of 8-30 VDC
                                                    • Wide Temperature Range of -40°C to 105°C
                                                    • IP68 Rating
                                                    • Diagnostics
                                                    • Programmable Zero & Span
                                                    • Sensor Length up to 100"
                                                  • 958A Embedded Rod Style Linear Position Sensor

                                                  • The GEMCO® 958 Series Embedded Linear Displacement Transducer (LDT) was developed to meet the most demanding processing challenges found in the mobile hydraulics industry, regardless of application or operating environment.

                                                    The highly versatile 958 LDT offers absolute accuracy and reliability with high resolution and precision repeatability. The Embedded LDT is resistant to contaminants and environmental conditions and is IP68 rated. Its rugged and durable mill-duty construction exceeds competitive offerings. Its vibration resistance is lab tested at 30 Gs and shock resistance is lab tested at 1000 Gs. The LDT is easy to install and set up. It features the latest generation of Magnetostrictive position-sensing technology with automatic gain circuitry. Custom configurations are available to meet specific end user requirements. The 958 family is an ideal Cylinder Position Sensor with absolute feedback.

                                                    • Analog Outputs, 0-10 VDC, 0-5 VDC, .25-4.75 VDC, .5-4.5VDC, 4-20mA
                                                    • High Shock Resistance to 1000Gs (lab tested)
                                                    • High Vibration Resistance to 30Gs (lab tested)
                                                    • Resolution to 16-bits
                                                    • Linearity +/- 0.04%
                                                    • Wide Input Range of 8-30 VDC
                                                    • Wide Temperature Range of -40°C to 105°C
                                                    • IP68 Rating
                                                    • Diagnostics
                                                    • Programmable Zero & Span
                                                    • Sensor Length up to 100"
                                                    • Multiple Connector Options
                                                  • 950MD Series Housing

                                                  • The Gemco 950 Series Mill Duty Housing is designed for applications where mounting a standalone rod style Linear Displacement Transducer (LDT), also known as a linear position sensor, is prohibitive. Potential physical damage, environmental conditions or mounting limitations are all elements that are involved in specifying a linear position sensor that will perform flawlessly for many years.

                                                    The 950MD housing has been designed to eliminate all of the above problems by protecting the LDT from physical and environmental damage such as temperature, corrosives, shock & vibration, or dust and debris. Additionally, the 950MD offers a simple two point mounting scheme that can compensate for lateral and/or horizontal movement of the machine while in operation. The 950MD housing is also perfect for retrofitting existing cylinders with an LDT providing a continuous position feedback signal.

                                                    Featuring
                                                    • Cylinder Position Sensor
                                                    • Stainless Steel protective housing
                                                    • Simple two-point mounting offers Lateral and Horizontal Movement to compensate for machine slop
                                                    • Air purges to help cool electronics
                                                    • Optional Front and Rear Rod ends
                                                    • Optional Quick Disconnect connectors
                                                    • Optional Protective Bellows
                                                    • Sensor Length up to 240"
                                                  • 955 BRIK Series Linear Position Sensor

                                                  • The Gemco 955 Series BRIK Linear Displacement Transducer (LDT) is a linear position sensor developed to meet the most demanding processing challenges.

                                                    The 955 Series is easy to install and set up, and features the latest generation of Magnetostrictive position-sensing technology and offers absolute position feedback. A magnet assembly moves over the sensing element that determines the position and converts it to a readable output. The BRIK is a self-contained unit and does not have a can or head assembly. All of the electronics are incorporated in the sensor; which is less than one inch tall. It is available in analog, digital and quadrature outputs.

                                                    Featuring
                                                    • 6 different models
                                                    • Analog (Voltage & Current)
                                                    • Digital Outputs (Start/Stop, PWM & Control Pulse)
                                                    • Quadrature
                                                    • Sensor Length up to 180"
                                                  • 957 BRIK Series Linear Position Sensor

                                                  • The Gemco 957 BRIK Series Magnetostrictive Linear Displacement Transducer (LDT) is a linear position sensor for highly accurate continuous machine positioning in a variety of industrial applications. This position sensor is built to withstand the demanding processing challenges, regardless of application or operating environment.

                                                    The highly versatile 957 Brik Series offers absolute accuracy and reliability with high resolution and precision repeatability. The non-contact design allows this device to be used in highly repetitive applications without mechanical wear.

                                                    The 957 BRIK Series is available with Analog, Digital (Start/Stop, PWM & Control Pules) and Serial Synchronous Interface outputs, and offers competitive style connectors for truly drop-in replacement.
                                                  • 956 BLOK Housing

                                                  • The Gemco Series 956 BLOK Housing was designed for applications where mounting a standalone Rod or Profile style Linear Displacement Transducer (LDT), also known as a linear position sensor, is prohibitive. The 956 BLOK is an optional Rod and Barrel style housing for the 955 BRIK Series of linear position sensors. This housing adds a chamber, magnet and piston. The streamlined anodized aluminum extrusion houses the sensing element and electronics. The piston assembly moves over the sensing element that determines the position and converts it to a readable output.

                                                    Featuring
                                                    • Simple two-point mounting offers Lateral and Horizontal Movement to compensate for machine slop
                                                    • Optional Front and Rear Rod ends
                                                    • Male & Female Barrel thread options
                                                    • Sensor Length up to 36"
                                                    • Analog Outputs, 0-10 VDC, +/-10 VDC, 0-5 VDC, +/-5 VDC, 4-20mA
                                                    • Quadrature
                                                    • Digital Outputs, Start/Stop, Variable Pulse (PWM), Control Pulse
                                                    • IP67 Rating, IP68 Optional
                                                    • Tri-color Diagnostic LED
                                                    • Programmable Zero & Span
                                                  • ReadyLink Series Linear Position Sensor

                                                  • The ReadyLink EtherNet/IP LDT with RapidRecall is our newest Linear Displacement Transducer (LDT) developed with an EtherNet/IP network interface.

                                                    EtherNet/IP systems require only a single point network connection for both configuration and control, thus simplifying installation and wiring. Our line of linear displacement transducers, also known as linear position sensors, utilizes advanced, proven Magnetostrictive technology to provide highly precise and absolute non-contact position feedback down to 1-micron resolution.

                                                    Featuring
                                                    • RapidRecall Configuration Module
                                                    • Supports: Star, Line & DLR (Device Level Ring) topology
                                                    • Supports Encoder 22h Profile
                                                    • 5 status LEDs to monitor functionality of LDT and Network status
                                                    • IP address selection flexibility – Providing both local switch & software setting capability
                                                    • Diagnostics and alarm functionality
                                                    • Status Bits: Position & Velocity out of programmable limits range
                                                    • Wide input power operating range (7 – 30VDC) – Standard M12 connector
                                                    • IP67 Rated
                                                    • Non-contact technology (Magnetostrictive)
                                                    • Longevity: Nothing to wear out
                                                    • Simplified system wiring
                                                    • Programmable Zero & Span
                                                    • Sensor Length up to 300
                                                  • 925 Series Linear Cable Reel Sensor

                                                  • The Gemco 925 Series Cable Reel can be used as a linear position sensor in any industrial application to monitor a linear or reciprocating machine motion. The sensor package, along with the associated electronics (i.e. programmable logic controller, programmable limit switch, counter card, etc.) can sense the position of any linear motion and can, therefore, be used to control machines. The system consists of a heavy duty spring motor assembly attached to a precision machined cable drum. As the cable is pulled off of the precision drum, the drum rotates a shaft connected to it. This shaft is precisely geared such that the full number of revolutions of the drum is equal to the appropriate number of revolutions required by the chosen sensor.

                                                    Featuring
                                                    • Stroke Range up to 1200 inches (100 ft.) standard
                                                    • Mechanical Accuracy 0.05% of active stroke
                                                    • Variable Speed Range
                                                    • Cable Material .56 (actual) stainless steel aircraft grade
                                                    • Cable Tension - Type A unit 2.5 lbs. to 4.2 lbs. (stroke to 96"), Type A unit 1.25 lbs. to 4.2 lbs. (stroke to 192"), Type B unit 1.6 lbs. to 14.27 lbs., Type C unit .75 lbs. to 16.30 lbs.
                                                    • Housing Material - 10 gage cold rolled sheet steel with baked enamel paint finish
                                                    • Splash Proof Seal
                                                    • Temperature Range - Sensor dependent (most encoders and potentiometers are around 0° to 180° F standard; resolvers are typically -50° to 250° F)
                                                    • Use with a string potentiometer, draw wire petentiometer, and linear string potentiometer
                                                • Rotary Feedback

                                                • Our Rotary Position Sensors provide accurate, reliable, absolute position feedback that helps automate complexed machinery. The sensors play an important role in factory automation and deliver value, ease of use, and interface easily into the host controller.

                                                  Gemco is the industry leader in Rotary Position Products with over 50 years of experience. We pride ourselves on line or Rotary Limit Switches and Resolvers to help automate todays machinery. We provide sensors to survive in the most hostile environments.
                                                    • Rotating Cam Limit Switch

                                                        • 1980 Series Rotating Cam Limit Switch

                                                        • When motion is expressed in shaft rotation, either thru a roller chain, gear train, or directly, the 1980 Series Rotating Cam Limit Switch makes it possible to open or close independent circuits at any desired angular positions.

                                                          The 1980 Series is available in NEMA 1, NEMA 4 & 5, NEMA 7, NEMA 9, and NEMA 12 enclosures, and can be ordered with 2 to 40 circuits.

                                                          Featuring
                                                          • Precision Cam adjustment at any angular position of the Camshaft
                                                          • Speeds from 0 to 500 RPM in either direction
                                                          • No special Cams required for any contact setting from 4° to 356°
                                                          • No tools required to adjust Cam setting
                                                          • Accurate repeatability
                                                          • GEMCO rugged duty precision snap action switches
                                                          • U.L. recognized switches under file E56660
                                                        • 1980R Series Rotating Cam Limit Switch with Resolver

                                                        • Many press operations are now being fitted with automation equipment that requires limit switch outputs. While most press control outputs remain unchanged from die to die, the automation outputs frequently require adjustment. The 1980R Series Rotating Cam limit Switch with Resolver provides the safety and reliability of mechanical cams for press control circuits. The industrial grade resolver supplies the input to a programmable limit switch that provides the automation for the frequently changed outputs.

                                                          Featuring
                                                          • Resolver Output
                                                          • Precision Cam adjustment at any angular position of the Camshaft
                                                          • Speeds from 0 to 500 RPM in either direction
                                                          • No special Cams required for any contact setting from 4° to 356°
                                                          • No tools required to adjust Cam setting
                                                          • Accurate repeatability
                                                          • GEMCO rugged duty precision snap action switches
                                                          • U.L. recognized switches under file E56660
                                                        • 1983 Series Opto-Cam Rotating Cam Limit Switch

                                                        • By using a photo eye to optically actuate the 1983 Series Opto-Cam Rotating Limit Switch is ideal for applications requiring high speed positioning, up to 3600 RPM, where a mechanical switch would not be able to function.

                                                          The 1983 Series Opto-Cam has 2-40 circuit rotating cam limit switch assemblies with NEMA 1, 4, 7, and 12 enclosures. It has AC and DC outputs with 3-amp plug-in opto 22 outputs. Also, a 3" micro-adjust cam for precision settings from 1° to 359°.

                                                          Featuring
                                                          • Solid-State AC or DC outputs
                                                          • Precision Cam adjustment at any angular position of the Camshaft
                                                          • Speeds from 0 to 3,600 RPM in either direction
                                                          • No special Cams required for any contact setting from 4° to 356°
                                                          • No tools required to adjust Cam setting
                                                          • Accurate repeatability
                                                        • 1970 Series Drive-Chek Base Multi-purpose Sub Base

                                                        • The 1970 Series Drive-Chek is a multi-purpose sub base. It serves three purposes; namely, a broken chain or belt detector, a chain or belt tensioner, and a shock and vibration isolator, and is mounted under a chain or belt driven mechanism.

                                                          Each Drive-Chek unit is provided with a Gemco indicator switch that indicates when a drive belt or chain failure has occurred. Shock and vibration from the machine to the hinge plate of the Drive-Chek unit are dampened by coil springs on one end of the hinge plate and an elastomeric support on the other end. The springs also maintain a constant tension in the drive belt or chain.

                                                          Offers engineering protection from
                                                          • Broken Drive Chains
                                                          • Vibration
                                                          • Loose Drive Chains
                                                          • Shock damage
                                                      • Rotary Limit Switch

                                                            • 2000 Series Rotary Limit Switch

                                                            • The primary purpose of the 2000 Series Rotary Limit Switch is to control the intermediate or end limits of a linear or rotary motion. The limit switch is often used as a safety device to protect against accidental damage to equipment.

                                                              NEMA Type 1 and 12 (General Purpose) enclosures are molded from FIBRALLOY a special fiber glass material that is resistant to acids, alcohols, hydro carbons and heat. A tight fitting synthetic gasket prevents the entrance of oil and coolants. External mounting holes enable switch mounting without internal interference.

                                                              Featuring
                                                              • All Metal Gearing
                                                              • S.P.D.T. or D.P.D.T. Industrial Duty Switches
                                                              • NEMA 12, 4, 7 & 9 Enclosures
                                                              • Gear Ratios from 5:1 to 5333:1
                                                              • Positive, Independent Cam Settings
                                                              • Large Cover Openings for Ease of Wiring
                                                              • U.L. & CSA recognized switches
                                                            • 2006K Series Rotary Limit Switch

                                                            • The 2006 K Type Series Rotary Limit Switch can be used in applications requiring ratios from 5:1 to 1080:1 and is available in two and four circuits. The 2006 Series is primarily used for hoists, elevating jack mechanisms, packaging machinery, material handling equipment, conveyors, door operators and rotary operators where motion is expressed in shaft rotation.

                                                              The primary purpose of the limit switch is to control the intermediate or end limits of a linear or rotary motion. The limit switch is often used as a safety device to protect against accidental damage to equipment.

                                                              Featuring
                                                              • All Metal Gearing
                                                              • S.P.D.T. or D.P.D.T. Industrial Duty Switches
                                                              • NEMA 4 & 5 Oil tight – Water tight - Dust tight
                                                              • Ease of Wiring with Direct Access to All Switch Terminals
                                                              • Gear Ratios from 5:1 to 1080:1
                                                              • Positive, Independent Cam Settings
                                                              • Rugged Duty Die Cast Enclosures
                                                              • Large Cover Openings for Ease of Wiring
                                                              • GEMCO rugged duty precision snap action switches
                                                              • U.L. recognized switches under file E56660
                                                        • Resolver

                                                            • 1986 Series Resolver Assembly

                                                            • The Gemco 1986 Series resolvers have been the preferred source for rugged and accurate rotary positioning in a variety of industrial applications.

                                                              The brushless resolver works on the same principle as a rotary transformer to couple power in the rotor. The internal brushless resolver has three separate windings: a reference winding, a SIN winding and a COS winding. The reference winding is excited by an AC voltage. The SIN and COS winding are set 90° apart and provide two different output voltages whose ratio represent absolute position of the shaft.

                                                              Featuring
                                                              • 11 Different Package (Mounting) styles
                                                              • Optional Precision Zero-Backlash Gear Reducers
                                                              • 6 Different Resolver selections to meet needs
                                                              • 5 Optional – All Stainless Steel construction
                                                            • 1986MD Series Mill Duty Housing Resolver

                                                            • The 1986MD Series Mill Duty Resolver Housing has a ¼” (6.35 mm) plate steel construction and jackshaft input to drive resolvers, encoders, tach generators or any combination. There is also, an air purge fitting for positive pressure or cooling. The optional Vortex cooler or internal heater helps protect the resolver from extreme temperatures.

                                                              The 1986 Series with Mill-Duty Housing comes in custom versions that include all 316 stainless steel construction, and shaft sizes to 1-3/4” diameter.
                                                            • 1986XP Series Explosion Proof Resolver

                                                            • The 1986XP Series Explosion Proof Resolver is a 4.50” square mount resolver with a 3/8” input shaft that is designed to be mounted in hazardous applications.

                                                              It is available as a single turn, multi-turn and dual resolver packages. The six different Resolver types are available to electrically match any competitor’s package.
                                                          • PLS, PLC and Network Modules

                                                          • We manufacture a wide range of and rotary position sensors designed to enhance your process and help your line run faster, more reliably, and more precisely. The core of the business is based on the Gemco product line that has served the packaging industry with reliable solutions for over 50 years.

                                                            The technology we use continuously looks at the rotary position of a machine and, at ultra-high speeds, makes sophisticated process decisions to turn on and off devices such as glue guns and feeder systems. We designed these products to be easy-to-use and to ensure that machine changeover takes minutes, not hours. If it’s a simple stop at the end of the line application or an ultra-high speed multiple output process, we have the solution
                                                              • Programmable Limit Switch (PLS)

                                                                  • 2500 Series High Speed

                                                                  • The Gemco 2500 Series PLS is a high-speed resolver based Programmable Limit Switch that monitors rotary machine position and provides discrete limit switch outputs. These outputs are updated at a much faster rate than can be accomplished using any conventional PLC. The 2500 Series uses a unique easy to understand programming sequence. The traditional number buttons have been replaced with a rotary knob and the main controller has a 2 x 24 vacuum fluorescent display along with four push-button keys for programming.

                                                                    The 2500 Series is a family of PLS's that offers unparalleled flexibility. The main controller is resolver-based and consists of 8 isolated DC inputs and 8 isolated output relays, one fault check output relay and one optional brake monitor input relay.

                                                                    This unit can be used with our 1986 Series Resolver Assembly.

                                                                    Featuring
                                                                    • 12-Bit Resolution Resolver Input
                                                                    • 100µSec Update
                                                                    • 8 Inputs & 8 Outputs – Expandable to 64 Inputs & 64 Outputs in groups of 8
                                                                    • Linear Speed Compensation
                                                                    • Time Based Outputs
                                                                    • Motion Detect, Brake Monitor and Fault Check Outputs
                                                                    • Multi-Program
                                                                  • 1995A Series Micro-Set

                                                                  • The Gemco 1995A Series Programmable Limit Switch (PLS) was designed for use in rotary application. It incorporates many features for safe, efficient operation.

                                                                    The completely self-contained PLS can operate up to 30 independent mechanical relay outputs (six standard) based on the rotary position of the resolver. It offers an on-line "fault check" that provide an automatic, in process mechanism to verify that all major programmable limit switch functions are operating properly.

                                                                    This unit can be used with our Series 1986 Resolver Assembly.

                                                                    Featuring
                                                                    • 12-Bit Resolution Resolver Input
                                                                    • 285µSec Update
                                                                    • Large ¾” LED Display with Keypad Programming
                                                                    • 6 Mechanical Relay Outputs – Expandable to 30 Outputs in groups of 6
                                                                    • Linear Speed Compensation - Optional
                                                                    • Time Based Outputs - Optional
                                                                    • Motion Detect and Fault Check Outputs
                                                                    • Multi-Program - Optional
                                                                  • 1995B Series Micro-Set with Brake Monitor

                                                                  • The Gemco 1995B Series Micro-Set Programmable Limit Switch (PLS) with Brake Monitor is designed for use in the mechanical press industry. It incorporates many features for safe, efficient press automation.

                                                                    This completely self-contained PLS can turn up to 30 independent mechanical relay outputs on or off based on the rotary position of the press crank. On-line brake monitoring checks the stopping time of the press against a customer-selected preset stopping time. The 1995B Series PLS can also be used to check the stopping distance at any point in the stroke. A dedicated mechanical SPDT relay remains energized when stopping time is within tolerance. Once exceeded, the mechanical relay de-energizes to initiate a stoppage or warning signal.

                                                                    This Programmable Limit Switch can be used with our Series 1986 Resolver Assembly.

                                                                    Featuring
                                                                    • 12-Bit Resolution Resolver Input with Brake Monitor Output
                                                                    • 335µSec Update
                                                                    • Large ¾” LED Display with Keypad Programming
                                                                    • 5 Mechanical Relay Outputs – Expandable to 29 Outputs in groups of 6
                                                                    • Linear Speed Compensation - Optional
                                                                    • Time Based Outputs - Optional
                                                                    • Motion Detect and Fault Check Outputs
                                                                    • Multi-Program - Optional
                                                                  • 1995L Series Micro-Set with LDT Input

                                                                  • The Gemco 1995L Series Micro-Set programmable limit switch (PLS) with LDT input is designed for use in linear machine control applications. It incorporates many features for safe, efficient machine automation.

                                                                    This completely self-contained PLS can turn up to 30 independent outputs on or off based on the position of a linear displacement transducer or feedback from other analog devices such as pressure transducers, potentiometers, etc. It offers 0-10 VDC input with a built-in power supply for feed to a linear displacement transducer.

                                                                    Other input voltages are available for use with other devices.

                                                                    Featuring
                                                                    • 12-Bit Analog Input
                                                                    • Large ¾” LED Display with Keypad Programming
                                                                    • 6 Mechanical Relay Outputs – Expandable to 30 Outputs in groups of 6
                                                                    • Motion Detect and Fault Check Outputs
                                                                    • Multi-Program – Optional
                                                                    • Reset to Preset - Optional
                                                                  • 1992 Series Press Set

                                                                  • The 1992 Series Press-Set is a resolver-based system designed specifically for harsh pressroom environments. With its "ready-to-serve" menu, the Press-Set reduces setup time and scrap and tooling damage while increasing uptime and improving profits and efficiency.

                                                                    The 1992 Series Automation Controller is designed as a modular system that allows you to select features and options to reach the level of automation your processes require. It includes a 16 channel programmable limit switch and 12 programmable and 3 static die protection inputs. The programming features allow the unit it interfaces with feeders, tonnage monitor, lubricators and part transfer equipment.

                                                                    Featuring
                                                                    • 12-Bit Input – Single Turn Input
                                                                    • Large ¾”LED Display of Position & 2 x 24 LCD Display with Keypad Programming
                                                                    • 16 Relay Outputs
                                                                    • 12 Programmable Die Protection Inputs
                                                                    • Motion Detect
                                                                    • Multi-Program
                                                                    • Time-Based output
                                                                    • Linear Speed Compensation
                                                                    • 3 Counters – Stroke, Batch and Total
                                                                • Interface Modules

                                                                      • 2120 Series PLC

                                                                      • The 2120 Series Programmable Logic Control Interface Module is an accurate, absolute position sensing device for use with rugged, noise immune transducers in harsh environments. It can be used as a simple indicator of position or as a PLC Interface Module generating digital signals, as well as serial and analog outputs to feed PLC’s.

                                                                        Featuring
                                                                        • Modular Design – All metal case, rugged construction
                                                                        • Large ¾” LED Display
                                                                        • Ten (10) Segment LED Bar Graph
                                                                        • 14-Bit Resolver or Digital LDT Input
                                                                        • Optional Relay Board for Upper & Lower End Limits
                                                                        • Optional Digital Board for Binary, BCD or Gray Code outputs
                                                                        • Optional Analog Output – 16 bit 2 channel (Voltage or Current) of Position and RPM
                                                                        • Designed to: UL 508 Specifications
                                                                      • 1990DN Series DeviceNet Resolver

                                                                      • The 1990DN Series Resolver Interface Module plugs in as a node on any control system or a DeviceNet Scanner Card. Continuous rotary position data is provided with 23-bit resolution. In addition, eight built-in user programmable set-points allow direct control of critical functions. All programming is done over the DeviceNet network.

                                                                        Featuring
                                                                        • Resolution - 12 bit (4096 Counts)
                                                                        • RPM- 1024 max.
                                                                        • Conformance- This product has been tested by ODVA’s authorized Independent Test Lab and found to comply with ODVA Conformance Test Software Version A-12.
                                                                        • Device Type - Generic
                                                                        • Communications - Group 2 slave only
                                                                        • Messages Supported - Polled, Bit Strobed, Explicit
                                                                        • 8 Programmable Set points- Transmitted over the DeviceNet network
                                                                  • Shut Height Monitor & Controller

                                                                        • 2110 Series

                                                                        • The 2110 Series Shut Height Monitor gives you a highly accurate readout as you jog the shut height motor or manually adjust the shut height mechanism. Once proper shut height is determined, the readout can be recorded for use the next time the die is used in the same press, significantly reducing setup time and the number of test parts. Position accuracy of the 2110 is +/-.001".

                                                                          Featuring
                                                                          • Modular Design – All metal case, rugged construction
                                                                          • Large ¾” LED Display
                                                                          • Ten (10) Segment LED Bar Graph
                                                                          • 14-Bit Resolver or Digital LDT Input
                                                                          • Optional Relay Board for Upper & Lower End Limits
                                                                          • Optional Digital Board for Binary, BCD or Gray Code outputs
                                                                          • Optional Analog Output – 16 bit 2 channel (Voltage or Current) of Position and RPM
                                                                          • Designed to: UL 508 Specifications
                                                                        • 1996 Series

                                                                        • The 1996 Series Ram-Set™ Press Shut Height Controller is a dedicated stand-alone system which automatically positions the press shut height to a customer predetermined location. By consistently repositioning the shut height to a known “good” value each time a die is changed, hit-to-hit times will be greatly reduced, thus saving scrap and time. Other features include relays to interface existing ram adjust up/down motor starters as well as run/interlock circuitry. An additional relay monitors the shut height position once it has been driven to a “good” value. The relay stays energized as long as the shut height stays within a programmed +/- window around the setpoint. If the slide “drifts” to an unacceptable value the relay will de-energize, which could be used to stop the press.

                                                                          RAM-SET FEATURES:
                                                                          • Automatic and Manual Mode
                                                                          • Reliable Nonvolatile Memory
                                                                          • Press Run/Interlock Relay
                                                                          • Slide Gap Interlock
                                                                          • Motion Sensing
                                                                          • Slide Drift Indication
                                                                          • Electronic Overtravel Limits
                                                                          • Easy Keypad Data Entry
                                                                          • Allows Entry of Up to 500 Die Numbers/Shut Height Values
                                                                          • Self Diagnostics and Fault Code Display
                                                                          • Keylock Security
                                                                          • For Use on Single and Double Action Presses
                                                                          • Large LED Display
                                                                          • Serial Communication
                                                                          • Absolute Linear Position Feedback to .001"
                                                                    • Cable and Hose Carriers

                                                                    • Catrac is used on various types of machinery as a means of safety and efficiently conveying power, electrical, air, or fluid (or a combination of these) to equipment in motion. Catrac is designed to be maintenance free and to protect cables and hoses from abrasion, wear and twisting. A wide variety of options are available.
                                                                          • Catrac

                                                                          • Our vast line up of standards will allow you to select the optimum Catrac cable carrier or Catrac hose carrier to suit your specific needs. Link heights from 2” for lighter duty applications through 14” for larger industrial type applications are available, as well as a huge array of bending radii and widths. Custom designs are a specialty. Catrac cable and hose carriers are manufactured from 80,000 psi hi-tensile strength steel links with #12 gauge and #10 gauge link plates being the standard.

                                                                            Featuring
                                                                            • Center pivot design for minimal cable and hose wear
                                                                            • Wide variety of standard carrier designs
                                                                            • Available in any radius or width
                                                                            • Custom designs available to optimize your system
                                                                            • Superior finish and corrosion resistance
                                                                            • No pinch points
                                                                            • JIT programs
                                                                            • Short lead times
                                                                          • Snaptrac

                                                                          • The corrosion resistant, nonconductive Snaptrac carrier is made of a longwearing nylon composition, and can be used with electric, air, gas or hydraulic hoses.

                                                                            Light and secure even at high speeds, Snaptrac carriers will provide protection for the components inside the carrier. The carrier is durable against harsh corrosive environments as found in refineries and marine application, chemical fumes, refrigeration fluids, lubricating oils and solvent present in a temperature range from -13 to 257°F.

                                                                            Featuring
                                                                            • Enclosed Designs
                                                                            • Vertical Separator
                                                                            • Horizontal Separator
                                                                            • Vertical/Horizontal Separators
                                                                            • Drilled Frames
                                                                      • Industrial Brakes

                                                                      • Gemco Industrial Brakes stop virtually any type of industrial machine. Applications such as steel mills, indoor and outdoor bridge cranes, gantries, heavy-duty cranes, high-duty cycle cranes, lock and dam projects, stacker reclaimers, and commercial laundry equipment are just some of the uses for Gemco Industrial Brakes.
                                                                          • Electro-Thrust Industrial Brakes

                                                                          • The Electro-Thrust Series Shoe Brakes have AISE sizes range from 8" in diameter up to 30" diameter wheels. Torque values range from 100 foot-pounds to 9,000 ft./lbs.

                                                                            The brakes are spring set for fail-safe operation with an electro-hydraulic actuator that overcomes a setting spring and releases the brake. The actuator is stroked by means of applying power, either AC or DC, to an integral motor attached to a twin cavity housing. The housing is filled with fluid and as the motor spins it creates fluid motion. As the fluid travels through the housing it applies upward pressure to a piston that overcomes the setting spring to release the brake.

                                                                            Featuring
                                                                            • Spring Applied, Electrically Released
                                                                            • AISE Rated
                                                                            • 6”to 30” Diameters
                                                                            • 60-9000 lbs./ft. Torque
                                                                            • AC or DC Actuators
                                                                            • Self-Centering
                                                                            • Multiple Voltage Inputs
                                                                            • External Torque Springs
                                                                            • Asbestos Free Linings
                                                                            • Set Delay Valve
                                                                            • Adjustable Setting Time
                                                                            • Stainless Steel Pivot Pins
                                                                          • Hydraulic Industrial Brakes

                                                                          • The hydraulic brakes are proven high performance brake systems, they are tough, reliable and provide trouble free service. Brake wheel sizes ranging from 6” to 18” are available.

                                                                            Our hydraulic brakes are available either with standard hydraulic setting, setting with parking feature or with air powered hydraulic operation. The powered systems may be direct or remote controlled. Air remote control, hydraulic remote control, and electric remote control allow the customer the flexibility to satisfy most requirements.

                                                                            Featuring
                                                                            • Hydraulically Applied, Spring Released
                                                                            • 6” to 18” Diameters
                                                                            • 150-1800 lbs./ft. Torque
                                                                            • Parking Feature
                                                                            • Remote Bleeding
                                                                            • Air Assisted AC or DC Operation
                                                                            • Conversion System
                                                                          • Magnetic Industrial Brakes

                                                                          • The Magnetic Industrial Brakes electrical mechanism consists of one or two DC magnets. As power is introduced to the coils it creates an electro-magnetic field that brings the coils together to release the brake. Cutting power to the coils allows the spring to extend back to its normal state and sets the brake.

                                                                            Shunt or series coils are available and rated for continuous or intermittent duty ratings. We also offer single point adjustment on magnetic brakes 8" in wheel diameter or larger. This speeds up the brake installation and shoe lining wear adjustment by a single point adjusting feature. Brake wheel diameters of 4 ½” to 30" are available, and are AISE rated. Rectifiers are available for AC operation. These Magnetic Shoe brakes are designed Crane hoist, stationary hoist, drive roller brakes and lock & Dam motor brakes.

                                                                            Featuring
                                                                            • Spring Applied, Electrically Released
                                                                            • AISE Rated
                                                                            • 4 ½” to 30” Diameter
                                                                            • 15-9000 lbs./ft. Torque
                                                                            • DC Operation
                                                                            • Series or Shunt Coils
                                                                            • Asbestos Free Linings
                                                                          • Solenoid Industrial Brakes

                                                                          • Solenoid Industrial Brakes can be powered by 115 VAC thru 575 VAC, single phase. Brake wheel diameters ranging from 4 ½” to 10" are available.
                                                                            These Solenoid Shoe brakes are designed for light duty crane bridge brakes and holding brakes.

                                                                            Featuring
                                                                            • Spring Applied, Electrically Released
                                                                            • 4 ½” to 10” Diameter
                                                                            • 10-160 lbs./ft. Torque
                                                                            • AC Solenoid Operation
                                                                            • Single Phase, 60 Hertz Coils
                                                                            • Asbestos Free Linings
                                                                        • Safety Products, Foot and Palm Switches

                                                                        • Gemco has been supplying control and automation solutions for mechanical presses for over 35 years. We have a unique product and system mix that allows you to select the level of automation you need to stay profitable.

                                                                          We have also discovered that automation without effective monitoring can be costly. Therefore, we have “damage control” products and system features that allow you to monitor your automated systems.
                                                                              • Safetimeter 1999 Series

                                                                              • The Gemco 1999 Semelex II Safetimeter test set is field proven to accurately measure stop time and safety distance to verify compliance with federal and state requirements. It is designed for harsh industrial environments, and is portable, light weight, and easy to use.

                                                                                The 1999 Semelex II Safetimeter is a self-contained, portable electronic stop time meter capable of measuring elapsed time, stop time (Ts) from 1-9999 milliseconds. It also calculates the minimum safety distance (Ds) based on the OSHA formula, as understood by the factory, and will display up to 999.9" to the nearest 0.1".

                                                                                It is the same unit OSHA uses when they perform tests in your facility.
                                                                              • 1025 Series Palm and Foot Switches

                                                                              • The 1025 Series Palm and Foot Switches are industrial rated switches suited for applications where an operator must have both hands free to perform other functions or, where a highly visible foot switch is required for quick and easy operation. We have an electric foot switch available for a wide varieties of contact arrangements, ratings and enclosure styles. Industrial duty, 4 way, 5 port air valves, pneumatic foot switch are available for air control circuits.

                                                                                Featuring
                                                                                • Heavy duty treadle operated foot switch – Type B
                                                                                • Heavy duty side treadle operated foot switch – Type C
                                                                                • Heavy duty mushroom button, foot or palm operated switch – Type D
                                                                                • NEMA 4 Enclosures
                                                                                • Optional protective cover
                                                                                • Single or dual circuit
                                                                                • Optional locking latch kit
                                                                          • Control Relays & Level Measurement

                                                                                • Motogard Control Relay

                                                                                • All Motogard systems fully conform to the NEC requirements for integral motor thermal protection. The temperature inside of the motor is monitored at all times. Using Positive Temperature Coefficient (PTC) Thermistors embedded in or in contact with the surface, the Motogard system is able to continually sense when the equipment exceeds the pre-selected temperature limits.

                                                                                  Motogard systems are recommended for applications requiring high reliability under conditions of heavy duty or severe ambient contamination. Minimum RFI interference, absence of arcing, and maintenance free long life are built into the Motogard systems.

                                                                                  Featuring
                                                                                  • Solid state logic circuitry assuring rapid, spark free noiseless operation with no drift or chatter
                                                                                  • “Fail Safe” operation protecting against sensor lead breakage or loss of power
                                                                                  • Protection against sensor lead short circuit (series 135 and 150 only)
                                                                                  • Solid state or electro-mechanical outputs (Triac in series 115 and 120, Form C electromechanical relay in series 135 and 150
                                                                                • 7330 Series Pro-Stik II

                                                                                • The 7330 Pro-Stik II Series are intrinsically safe programmable liniear position sensors ideal for monitoring in a variety of liquids and tanks.

                                                                                  These position sensors are based on the proven magnetostrictive technology and are available in different models including our popular explosion proof and flame proof models.

                                                                                  The 7330 Pro-Stik II position sensor is loop powered and available with a rigid 316 stainless steel or flexible PVDF material. It has a security feature by utilizing a timing sequence that is used to unlock the probe for programming. This ensures that the span cannot be accidentally programmed by someone in the field.

                                                                                  Featuring
                                                                                  • 4-20mA span
                                                                                  • Pressure rating: Up to 1000 psi
                                                                                  • Power supply: 13.5 to 30 VDC
