Trust Suntech to Deliver Reliable Performance Over Time

  • World’s No.1 manufacturer of crystalline silicon photovoltaic modules

  • Unrivaled manufacturing capacity and world-class technology

  • Rigorous quality control meeting the highest international standards: ISO 9001: 2008 and ISO 14001: 2004

  • 10 year material and workmanship warranty

Visit our facebook page

Product Line Up
Commercial & Agricultural
Purchase solar power at lower prices than utility electricity.
Solar energy powers your building and protects the environment while reducing monthly electricity bills.
  • High module conversion efficiency
    Up to 15.4%, through superior cell technology and leading manufacturing capability
  • Positive tolerance
    Guaranteed positive tolerance from 0~5% ensures power output reliability
  • Extended wind and snow load tests
    Entire module certified to withstand extreme wind (3800 Pascal) and snow loads (5400 Pascal) *
  • Self clean effect
    Anti-reflective, hydrophobic layer improves light absorption and reduces surface dust
  • Excellent weak light performance
    Excellent performance under low light environments (mornings, evenings, and cloudy days)
  • Suntech current sorting process
    All Suntech modules sorted and packaged by amperage, maximizing system output by reducing mismatch losses by up to 2%
  • Reliable performance
    Transferable performance warranty over 25 years & 10-year material and workmanship warranty
  • Superior warranty
    Up to 6,7% more guaranteed power for 25 years of system operation
  • Ammonia resistant (TÜV Rheinland)
    Suntech modules deliver full performance also in agricultural holdings


STP250S - 20/Wd
STP245S - 20/Wd

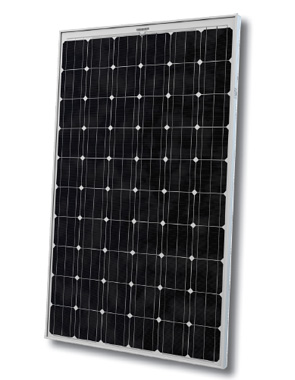

250 Watt MONOCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 15.4%, through advanced cell technology and manufacturing capabilities

STC STP
250S
STP
245S
Optimum Operating Voltage (Vmp) 30.7 V 30.5 V
Optimum Operating Current (Imp) 8.15 A 8.04 A
Open Circuit Voltage
(Voc)
37.4 V 37.3 V
Short Circuit Current
(Isc)
8.63 A 8.52 A
Maximum Power at STC (Pmax) 250 W 245 W
Module Efficiency 15.4% 15.1%
Operating Module Temperature -40 °C to +85 °C
Maximum System
Voltage
1000 V DC (IEC)
Maximum Series Fuse
Rating
20 A
Power Tolerance 0/+5%
NOCT STP
250S
STP
245S
Maximum Power at NOCT (Pmax) 183 W 180 W
Optimum Operating Voltage (Vmp) 27.9 V 27.8 V
Optimum Operating Current (Imp) 6.55 A 6.46 A
Open Circuit Voltage
(Voc)
34.4 V 34.3 V
Short Circuit Current
(Isc)
6.96 A 6.89 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.45 %/°C
Temperature Coefficient of Voc -0.34 %/°C
Temperature Coefficient of Isc 0.050 %/°C

Mechanical Characteristics
Solar Cell Monocrystalline 156 × 156 mm
(6 inches)
No. of Cells 60 (6 × 10)
Dimensions 1640 × 992 × 50 mm
(64.6 × 39.1 × 2.0 inches)
Weight 19.1 kgs (42.1 lbs.)
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated (3 bypass diodes)
Output Cables TUV (2Pfg1169:2007), UL 4703, UL 44
4.0 mm² (0.006 inches²),
symmetrical lengths (-) 1000 mm (39.4 inches) &  (+) 1000 mm (39.4 ")
Connectors MC4 connectors
HiPerforma PLUTO245 - Wdm
PLUTO240 - Wdm
PLUTO235 - Wdm
245 Watt POLYCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 15.1%, through superior cell technology and
leading manufacturing capability

STC PLUTO 245 PLUTO 240 PLUTO 235
Optimum Operating Voltage (Vmp) 29.8 V 29.6 V 29.4 V
Optimum Operating Current (Imp) 8.23 A 8.11 A 8.00 A
Open Circuit Voltage (Voc) 37.2 V 36.9 V 36.4 V
Short Circuit Current (Isc) 8.55 A 8.46 A 8.42 A
Maximum Power at STC (Pmax) 245 W 240 W 235 W
Module Efficiency 15.1% 14.8% 14.4%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5%
NOCT PLUTO 245 PLUTO 240 PLUTO 235
Maximum Power at NOCT (Pmax) 180 W 176 W 172 W
Optimum Operating Voltage (Vmp) 27.1 V 26.9 V 26.7 V
Optimum Operating Current (Imp) 6.64 A 6.54 A 6.44 A
Open Circuit Voltage (Voc) 34.0 V 33.9 V 33.7 V
Short Circuit Current (Isc) 6.92 A 6.84 A 6.80 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.40 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.051 %/°C

Mechanical Characteristics
Solar Cell Polycrystalline silicon 156 × 156 mm (6 inches)
No. of Cells 60 (6 × 10)
Dimensions 1640 × 992 × 50mm
(64.6 × 39.1 × 2.0 inches)
Weight 19.1 kgs (42.1 lbs.)
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated
Output Cables TUV (2Pfg1169:2007), UL 4703, UL44
4.0 mm² (0.006 inches²),
symmetrical lengths (-) 1000 mm (39.4 inches) &  (+) 1000 mm (39.4 ")
Connectors MC4 connectors
STP235 - 20/Wd
STP230 - 20/Wd
STP225 - 20/Wd
235 Watt POLYCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 14.4%, through superior cell technology and
leading manufacturing capability

STC STP235-20/Wd STP230-20/Wd STP225-20/Wd
Optimum Operating Voltage (Vmp) 30.2 V 29.8 V 29.6 V
Optimum Operating Current (Imp) 7.79 A 7.72 A 7.61 A
Open Circuit Voltage (Voc) 37.0 V 36.8 V 36.7 V
Short Circuit Current (Isc) 8.35 A 8.25 A 8.15 A
Maximum Power at STC (Pmax) 235 W 230 W 225 W
Module Efficiency 14.4% 14.1% 13.8%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5%
NOCT STP235-20/Wd STP230-20/Wd STP225-20/Wd
Maximum Power at NOCT (Pmax) 172 W 168 W 165 W
Optimum Operating Voltage (Vmp) 27.4 V 27.1 V 26.9 V
Optimum Operating Current (Imp) 6.27 A 6.20 A 6.12 A
Open Circuit Voltage (Voc) 34.0 V 33.9 V 33.8 V
Short Circuit Current (Isc) 6.79 A 6.68 A 6.65 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.44 %/°C
Temperature Coefficient of Voc -0.33 %/°C
Temperature Coefficient of Isc 0.055 %/°C

Mechanical Characteristics
Solar Cell Polycrystalline silicon 156 × 156 mm (6 inches)
No. of Cells 60 (6 × 10)
Dimensions 1640 × 992 × 50mm
(64.6 × 39.1 × 2.0 inches)
Weight 19.1 kgs (42.1 lbs.)
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated
Output Cables TUV (2Pfg1169:2007), UL 4703, UL44
4.0 mm² (0.006 inches²),
symmetrical lengths (-) 1000 mm (39.4 inches) &  (+) 1000 mm (39.4 ")
Connectors MC4 connectors


Residential
Suntech lowers your electricity bills year-round.
Solar energy powers your home and protects the environment while reducing your monthly electricity bills. But all solar modules are not alike. There are significant differences among solar modules, warranties, and manufacturers. Find out why more homeowners are discovering that Suntech is the smart choice in solar.
  • Positive tolerances
    Guaranteed positive tolerance from 0~5% ensures power output reliability
  • Withstand high wind and snow loads
    Entire module certified to withstand extreme wind loads (3800Pascal) and snow loads (5400 Pascal) *
  • Self clean effect
    Anti-reflective, hydrophobic layer improves light absorption and reduces surface dust
  • Excellent weak light performance
    Excellent performance under low light environments (mornings, evenings, and cloudy days)
  • Suntech current sorting process
    All Suntech modules sorted & packaged by amperage, maximizing system output by reducing mismatch losses by up to 2%
  • Reliable performance
    Transferable performance warranty over 25 years & 10-year material and workmanship warranty

STP250S - 20/Wd
STP245S - 20/Wd
250 Watt MONOCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 15.4%, through superior cell technology and leading manufacturing capability

STC STP250S STP245S
Optimum Operating Voltage (Vmp) 30.7 V 30.5 V
Optimum Operating Current (Imp) 8.15 A 8.04 A
Open Circuit Voltage (Voc) 37.4 V 37.3 V
Short Circuit Current (Isc) 8.63 A 8.52 A
Maximum Power at STC (Pmax) 250 W 245 W
Module Efficiency 15.4% 15.1%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5%
NOCT STP250S STP245S
Maximum Power at NOCT (Pmax) 183 W 180 W
Optimum Operating Voltage (Vmp) 27.9 V 27.8 V
Optimum Operating Current (Imp) 6.55 A 6.46 A
Open Circuit Voltage (Voc) 34.4 V 34.3 V
Short Circuit Current (Isc) 6.96 A 6.89 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.45 %/°C
Temperature Coefficient of Voc -0.34 %/°C
Temperature Coefficient of Isc 0.050 %/°C

Mechanical Characteristics
Solar Cell Monocrystalline 156 × 156 mm (6 inches)
No. of Cells 60 (6 × 10)
Dimensions 1640 × 992 × 50mm (64.6 × 39.1 × 2.0 inches)
Weight 19.1 kgs (42.1 lbs.)
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated (3 bypass diodes)
Output Cables TUV (2Pfg1169:2007), UL 4703, UL 44
4.0 mm² (0.006 inches²), symmetrical lengths (-) 1000 mm (39.4 inches) and (+) 1000 mm (39.4 ")
Connectors MC4 connectors
STP195S - 24/Ad+
STP190S - 24/Ad+
195 Watt MONOCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 15.3%, through superior cell technology and leading manufacturing capability

STC STP195S-24/Ad+ STP190S-24/Ad+
Optimum Operating Voltage (Vmp) 36.6 V 36.6 V
Optimum Operating Current (Imp) 5.33 A 5.20 A
Open Circuit Voltage (Voc) 45.4 V 45.2 V
Short Circuit Current (Isc) 5.69 A 5.62 A
Maximum Power at STC (Pmax) 195 W 190 W
Module Efficiency 15.3% 14.9%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 15 A
Power Tolerance 0/+5%
NOCT STP195S-24/Ad+ STP190S-24/Ad+
Maximum Power at NOCT (Pmax) 142 W 139 W
Optimum Operating Voltage (Vmp) 33.2 V 33.1 V
Optimum Operating Current (Imp) 4.27 A 4.19 A
Open Circuit Voltage (Voc) 41.8 V 41.3 V
Short Circuit Current (Isc) 4.61 A 4.56 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.45 %/°C
Temperature Coefficient of Voc -0.34 %/°C
Temperature Coefficient of Isc 0.050 %/°C

Mechanical Characteristics
Solar Cell Monocrystalline silicon 125 × 125 mm (5 inches)
No. of Cells 72 (6 × 12)
Dimensions 1580 × 808 × 35mm (62.2 × 31.8 × 1.4 inches)
Weight 15.5 kgs (34.1 lbs.)
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated (3 bypass diodes)
Output Cables TUV (2Pfg1169:2007), UL 4703
4.0 mm² (0.006 inches²), symmetrical lengths (-) 1000 mm (39.4 inches) and (+) 1000 mm (39.4 ")
Connectors RADOX® SOLAR integrated twist locking connectors


Utility-Scale
Our proven utility products provide reliable, long-term electricity delivery. Our integrated approach facilitates installation and maintenance, minimizing balance of system costs and maximizing value for utility projects. Suntech’s innovative utility products are designed with the customer in mind.


STP280 - 24/Vd
STP275 - 24/Vd
280Watt POLYCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 14.4%, through superior cell technology and leading manufacturing capability


STC STP280-24/Vd STP275-24/Vd
Optimum Operating Voltage (Vmp) 35.2 V 35.1 V
Optimum Operating Current (Imp) 7.95 A 7.84 A
Open Circuit Voltage (Voc) 44.8 V 44.7 V
Short Circuit Current (Isc) 8.33 A 8.26 A
Maximum Power at STC (Pmax) 280 W 275 W
Module Efficiency 14.4% 14.2%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5%
NOCT STP280-24/Vd STP275-24/Vd
Maximum Power at NOCT (Pmax) 204 W 201 W
Optimum Operating Voltage (Vmp) 32.0 V 31.9 V
Optimum Operating Current (Imp) 6.39 A 6.29 A
Open Circuit Voltage (Voc) 40.8 V 40.7 V
Short Circuit Current (Isc) 6.74 A 6.68 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.44 %/°C
Temperature Coefficient of Voc -0.33 %/°C
Temperature Coefficient of Isc 0.055 %/°C

Mechanical Characteristics
Solar Cell Polycrystalline silicon 156 × 156 mm (6 inches)
No. of Cells 72 (6 × 12)
Dimensions 1956 × 992 × 50mm (77.0 × 39.1 × 2.0 inches)
Weight 27.0 kgs (59.5 lbs.)
Front Glass 4.0 mm (0.16 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated (3 bypass diodes)
Output Cables TUV (2Pfg1169:2007), UL 4703, UL 44
4.0 mm² (0.006 inches²), symmetrical lengths (-) 1000 mm (39.4 inches) and (+) 1000 mm (39.4 ")
Connectors H4 connectors (MC4 connectable)
Superpoly STP295 - 24/Vd
STP290 - 24/Vd
STP285 - 24/Vd
295 Watt POLYCRYSTALLINE SOLAR MODULE
High module conversion efficiency
Up to 15.2%, through superior cell technology and leading manufacturing capability

STC STP295-24/Vd STP290-24/Vd STP285-24/Vd
Optimum Operating Voltage (Vmp) 35.7 V 35.6 V 35.4 V
Optimum Operating Current (Imp) 8.27 A 8.15 A 8.06 A
Open Circuit Voltage (Voc) 45.1 V 45.0 V 44.9 V
Short Circuit Current (Isc) 8.57 A 8.42 A 8.37 A
Maximum Power at STC (Pmax) 295 W 290 W 285 W
Module Efficiency 15.2% 14.9% 14.7%
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5%
NOCT STP295 STP290 STP285
Maximum Power at NOCT (Pmax) 215 W 211 W 208 W
Optimum Operating Voltage (Vmp) 32.3 V 32.2 V 32.1 V
Optimum Operating Current (Imp) 6.66 A 6.56 A 6.48 A
Open Circuit Voltage (Voc) 41.3 V 41.2 V 41.0 V
Short Circuit Current (Isc) 6.90 A 6.80 A 6.77 A

Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) 45±2°C
Temperature Coefficient of Pmax -0.44 %/°C
Temperature Coefficient of Voc -0.33 %/°C
Temperature Coefficient of Isc 0.055 %/°C

Mechanical Characteristics
Solar Cell Polycrystalline silicon 156 × 156 mm (6 inches)
No. of Cells 72 (6 × 12)
Dimensions 1956 × 992 × 50mm (77.0 × 39.1 × 2.0 inches)
Weight 27.0 kgs (59.5 lbs.)
Front Glass 4.0 mm (0.16 inches) tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 rated (3 bypass diodes)
Output Cables TUV (2Pfg1169:2007), UL 4703, UL 44
4.0 mm² (0.006 inches²), symmetrical lengths (-) 1000 mm (39.4 inches) and (+) 1000 mm (39.4 ")
Connectors H4 connectors (MC4 connectable)


Technology

Suntech Silicon-Powered Solar Technology
Silicon is the world's most dependable solar technology. With over 40 years of demonstrated field performance, silicon modules have continued to outlast and outperform other solar technologies.
SUNTECH SILICON-BASED SOLAR OFFERINGS
Suntech offers reliable silicon solar products, polycrystalline and monocrystalline modules, that allow customers design and application flexibility. High-performance features and superior reliability make Suntech products the best choice for your solar power system.

High Module Efficiencies
Roofs often have limited space for solar modules. The higher each module’s efficiency, the better the efficiency of the entire system. Our solar modules have above-average efficiencies of up to 15.4%.

Enhanced Weak Light Performance
Module output under laboratory conditions usually does not reflect actual output in real-world installations. In the field, performance under low light conditions has a strong impact on energy yield. Our novel cell design and improved solar glass ensure that Suntech modules perform well under real world, low light conditions.

Self Cleaning
A special layer in the high quality solar glass of the Suntech modules causes water to run off more quickly, thereby enabling the glass to clean itself of dust and dirt in a similar manner to the lotus effect. A further layer improves the reflective behaviour, allowing more sunlight to be transported into the modules and causing less light to be reflected. In this way the module is also able to produce more electricity. An ingenious combination for improved yields and consistently high system performance.

Power Optimized Current Sorting
Suntech sorts and packages modules with matching current characteristics to ensure each module string can achieve maximum power output. Current-matched modules install quickly, minimize lost power due to module mismatch, and maximize lifetime energy output.

Approved for increased wind and snow loads
Suntech'solar modules are subjected to the most stringent load tests. In contrast to suction loads of 2,400 Pa, which result from dynamic wind loads, Suntech modules withstand suction loads of up to 3,800 Pa (~270 km/h/168mph) by default. Moreover, the modules withstand a snow load of 5,400 Pa, which corresponds to a weight of 550 kg/m2/112.7Ibs./sq. ft.

Positive power tolerance
Many competitors' solar modules have a power tolerance of+/- 3%, meaning that, ultimately, system owners receive less output for their money. Our solar modules all enjoy positive power output tolerance of up to +5%

6,7% more power guaranteed
The customary power output warranty within the industry is 90% of power for a period of up to 10 years and 80% for 25 years. But for system operators, the performance of solar modules not only needs to be high but also constant. For this reason, we offer a power output warranty for our products that is beyond the industry standard and scaled optimally: 95%/5 years, 90%/12 years, 85%/18 years, and 80%/25years.

Ammonia-resistant (TÜV Rheinland)
Particularly the use of solar modules in agriculture puts high requirements on the ammonia resistance of the module materials used. All Suntech solar modules are tested using the newly developed test procedure of TÜV Rheinland in compliance with DIN 50916. This procedure strictly tests the performance behavior as well as the behavior of various materials, isolation, and security characteristics.

World-Class Manufacturing
State-of-the-art manufacturing lies at the core of Suntech's business and enables us to deliver high-quality solar products to our customers at an affordable price. Our 2.4 Gigawatt manufacturing capacity makes Suntech the largest module manufacturer in the world, allowing us to offer advanced products and leverage economies of scale. Suntech manufacturing sites, located in China and the United States, follow the strictest production guidelines and are staffed by highly-trained manufacturing experts.

CELL PRODUCTION

Suntech solar cells undergo a chemical surface micro-texturing process that improves their ability to capture light. The cell production facility employs industry-leading manufacturing techniques to create high conversion efficiency solar cells.

MODULE PRODUCTION

Cells with similar electrical characteristics are matched during module assembly to minimize efficiency losses. Laminated modules are equipped with corrosion-resistant frames and weather-proof electrical components to create a durable, water-tight product.

TESTING AND VERIFICATION

Our quality control program features 52 tests and checks throughout the cell and module manufacturing process. Once fully assembled, all Suntech modules undergo a final performance test and are categorized based on power and current production. Our rigorous review process ensures we deliver only the highest quality products to our customers.

AWARDS AND RECOGNITION

- UL Witness Test Data Program
- VDE Test Data Acceptance Program Certification
- Frost & Sullivan Solar Energy Development Company of the Year
- ISO 9001: Quality Management System
- ISO 14001: Environmental Lifecycle Management
- Suntech is recognized by Murphy&Spitz for 'Unrivalled' Commitment to Sustainability

Pluto Cell Technology: The Next Generation of Solar
After eight years of intensive R&D, the world record holding PERL solar cell design from the University of New South Wales (UNSW) has been successfully commercialized to Suntech’s production lines as Pluto™ solar cells and HiPerforma™ solar modules. Well exceeding efficiencies achieved by conventional screen-printing processes, Pluto technology has been independently verified to reach efficiencies of greater than 19% in mass production.

Pluto cells feature a unique texturing process that improves sunlight absorption, even in conditions of low and indirect light. Our innovative Pluto cell design and ultra-fine top contact gridlines combine to boost power output, delivering a 10-15% performance advantage using the same materials, wafers, and module line equipment as a standard cell.

"The successful production of Pluto solar cells and panels is the result of years of world-class research and development and is a milestone achievement for Suntech. This breakthrough technology is integral to Suntech’s strategy to drive towards grid parity and widespread global adoption of solar energy solutions. For customers, Pluto means greater efficiency and power output, equating to better utilization of space and lower installation costs." Dr. Zhengrong Shi, CEO

Ongoing upgrades of production processes are planned that will allow us to continue to increase efficiency and value for our customers well into the future.



3
  C
Exit the Hall  Exit to Hall SUNTECH   Exit to Hall   Next Corridor 6-10
