Electromechanical Division - Europe

Parker Electromechanical Europe develops and manufactures components and systems that are used for state-of-the-art Motion Control automation including a wide range of mechanical components for handling and precision applications.

Product Line Up
Electromechanical Division - Europe Products

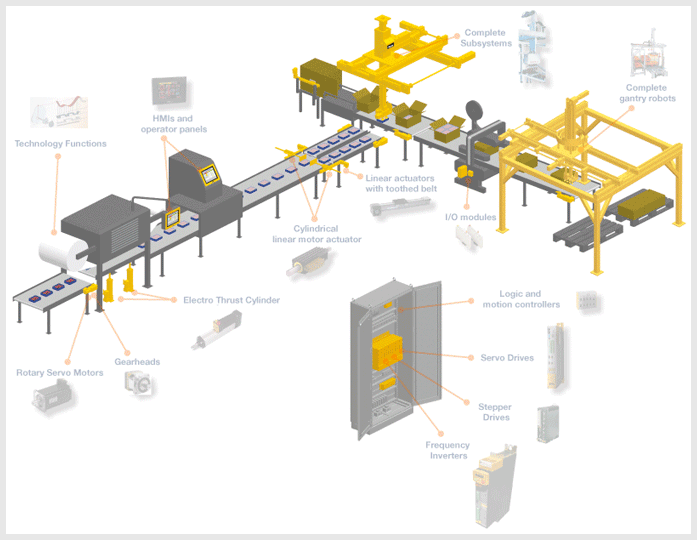

With one of the most comprehensive ranges of linear actuators, electric cylinders and handling sub-systems on the market, complemented by a range of motion controllers, servo motors, servo drives, stepper systems and planetary gearboxes, Parker Electromechanical is able to offer products to suit any single or multi axis application.

MOTION CONTROL

MOTION CONTROL
SERVO DRIVES
MOTORS
PLANETARY GEARBOXES

LINEAR ACTUATORS AND ELECTRIC CYLINDERS
POSITIONING TABLES AND STAGES
STEPPER DRIVES


HANDLING SYSTEMS

CORE HANDLING
Technical Data:

Core length: 600 – 12.000 mm
External diameter 50 – 400 mm
Core weight: max. 10 kg/m
Core package weight: max. 1.000 kg
Cycle time: 4 packages/min.
LINE GANTRIES
2-axis gantries

Basic version in 5 types GL02 – GL06
Rotary axis available as an option
Load up to max. 150 kg
Interface of the equipment supplied can be defined by the customer
 Loading Gantries
Loading gantry for loading and unloading turning machines

X-axis: HLE 150
Z-axis: HZR 80 / HZR 100
Rotating axis: pneumatic
Gripper: pneumatic
Payload: 2x10 kg / 2x30 kg
Market: Tool manufacturing industry
ROOM GANTRIES
3-axis gantries

Basic version in 10 Typen GR02 – GR11
Rotary axis available as an option
Payload up to max. 150 kg
Interface of the equipment supplied can be defined by the custome

Pallet handling robot
Technical Data:

X-Axis(horizontal),
Type HLE 150,
Speed 2.5 m/s, Acceleration 3 m/sē
Y-Axis(horizontal),
Type HPLA 120,
Speed 2.5 m/s, Acceleration 3 m/sē
Z-Axis(vertikal),
Type HTR 80,
Speed 2.5 m/s, Acceleration 3 m/sē
C-Axis (axis of rotation),
Type HDM 409, rotation angle 360°
Average cycle time 7 s
Suction gripper
for boxes which can be held by suction (e.g. cardboard)
Available in the sizes:

300 x 200 mm up to 10 kg
400 x 300 mm up to 25 kg
600 x 400 mm up to 50 kg
KLT-gripper
for C-, R- and RL-KLT-boxes
Available in the sizes:

400 x 300 mm up to 25 kg
600 x 400 mm up to 50 kg
Shelf-picking unit - Single mast unit
Length of shelf: max. 12 m
Height of shelf: max. 4 m
Payload: max. 50 kg
Performance, double cycles: max. 200/h

Shelf-picking unit - Two-mast unit:
Length of shelf: max. 40 m
Height of shelf: max. 8 m
payload: max. 200 kg
Performance, double cycles: max. 120/h

PICK AND PLACE HANDLING

Handling small glass bottles
X-axis: HLE 100
Z-axis: ETB 50
Rotation axis: pneumatic
Payload: 5 kg
Market: Pharmaceuticals
Handling for car screens
X-axis: HLE 100
X1-axis: HPLA 120
Y-axis: HPLA 120
Payload: 25 kg
Market: Components suppliers
Handling for Rooftiles
X-axis: HLE 150
Z-axis: ETB 100
Gripper: pneumatic
Payload: 160 kg
Market: Construction
Handling for Carrier with Wafers
X-axis: HLE 100
Z-axis: ETB 100
Payload: 7 kg
Market: Clean room
Handling for formwork
X-axis: HLEZ 150
Y-axis: HLE 150
Z-axis: HZR 100
Gripper: pneumatic
Payload: 150 kg
Market: Construction
