Parker Electromechanical Europe
  • Offer Profile
  • Electromechanical Division - Europe

    Parker Electromechanical Europe develops and manufactures components and systems that are used for state-of-the-art Motion Control automation including a wide range of mechanical components for handling and precision applications.
Product Portfolio
  • Electromechanical Division - Europe Products

  • With one of the most comprehensive ranges of linear actuators, electric cylinders and handling sub-systems on the market, complemented by a range of motion controllers, servo motors, servo drives, stepper systems and planetary gearboxes, Parker Electromechanical is able to offer products to suit any single or multi axis application.
      • MOTION CONTROL

        • HANDLING SYSTEMS

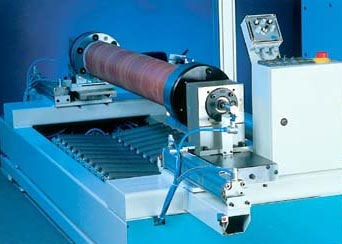

            • CORE HANDLING

            • Technical Data:

              Core length: 600 – 12.000 mm
              External diameter 50 – 400 mm
              Core weight: max. 10 kg/m
              Core package weight: max. 1.000 kg
              Cycle time: 4 packages/min.
            • LINE GANTRIES

            • 2-axis gantries

              Basic version in 5 types GL02 – GL06
              Rotary axis available as an option
              Load up to max. 150 kg
              Interface of the equipment supplied can be defined by the customer
            •  Loading Gantries

            • Loading gantry for loading and unloading turning machines

              X-axis: HLE 150
              Z-axis: HZR 80 / HZR 100
              Rotating axis: pneumatic
              Gripper: pneumatic
              Payload: 2x10 kg / 2x30 kg
              Market: Tool manufacturing industry
            • ROOM GANTRIES

            • 3-axis gantries

              Basic version in 10 Typen GR02 – GR11
              Rotary axis available as an option
              Payload up to max. 150 kg
              Interface of the equipment supplied can be defined by the custome
              • Pallet handling robot

              • Technical Data:

                X-Axis(horizontal),
                Type HLE 150,
                Speed 2.5 m/s, Acceleration 3 m/s²
                Y-Axis(horizontal),
                Type HPLA 120,
                Speed 2.5 m/s, Acceleration 3 m/s²
                Z-Axis(vertikal),
                Type HTR 80,
                Speed 2.5 m/s, Acceleration 3 m/s²
                C-Axis (axis of rotation),
                Type HDM 409, rotation angle 360°
                Average cycle time 7 s
              • Suction gripper

              • for boxes which can be held by suction (e.g. cardboard)
                Available in the sizes:


                300 x 200 mm up to 10 kg
                400 x 300 mm up to 25 kg
                600 x 400 mm up to 50 kg
              • KLT-gripper

              • for C-, R- and RL-KLT-boxes
                Available in the sizes:


                400 x 300 mm up to 25 kg
                600 x 400 mm up to 50 kg
              • Shelf-picking unit - Single mast unit

              • Length of shelf: max. 12 m
                Height of shelf: max. 4 m
                Payload: max. 50 kg
                Performance, double cycles: max. 200/h

              • Shelf-picking unit - Two-mast unit:

              • Length of shelf: max. 40 m
                Height of shelf: max. 8 m
                payload: max. 200 kg
                Performance, double cycles: max. 120/h
          • PICK AND PLACE HANDLING

                • Handling small glass bottles

                • X-axis: HLE 100
                  Z-axis: ETB 50
                  Rotation axis: pneumatic
                  Payload: 5 kg
                  Market: Pharmaceuticals
                • Handling for car screens

                • X-axis: HLE 100
                  X1-axis: HPLA 120
                  Y-axis: HPLA 120
                  Payload: 25 kg
                  Market: Components suppliers
                • Handling for Rooftiles

                • X-axis: HLE 150
                  Z-axis: ETB 100
                  Gripper: pneumatic
                  Payload: 160 kg
                  Market: Construction
                • Handling for Carrier with Wafers

                • X-axis: HLE 100
                  Z-axis: ETB 100
                  Payload: 7 kg
                  Market: Clean room
                • Handling for formwork

                • X-axis: HLEZ 150
                  Y-axis: HLE 150
                  Z-axis: HZR 100
                  Gripper: pneumatic
                  Payload: 150 kg
                  Market: Construction
