Schleicher Electronic, a leading
provider of first class automation solutions with a broad product portfolio.
Customer focus and practical experience combined with excellent know-how enable
Schleicher to adapt customer-specific tasks fast and serve them efficiently with
intelligent applications.
|
|
|
|
|
|
Navigation |
|
|
|
Offer Profile
Our sales concentrates on
complete system solutions supported by comprehensive industry know-how and
highly specialized engineers.
Thus the Schleicher support team guarantees custom-made support ranging from
problem description to the proposed solution.
|
|
|
|
Product Line Up
Automation Systems
Decades of direct practical experience and customer
contact are the background to the astounding openness, versatility and
performance of Schleicher’s current automation solutions – integrated
systems from a single supplier, setting standards for integration and
practicability.
Schleicher’s controllers have a unique advantage. Only they unite complex
motion control (CNC) with logic control (PLC) to open up astonishing
possibilities, for example controlling welding current by feedrate or
activating saved motion programs to coordinate smooth movements. Schleicher
has redefined MotionControl in terms of functionality, flexibility and
elegance of operation.
|
|
XCx-Systems
The new XCx controller series brings a wind of change to
automation with its combination of efficiency and convenience. The different
performance classes provide the fast-flexible-economical solution for
machine tools, production machines, robotics and handling. XCx also makes a
convincing contribution to factory automation as central or sub-controllers.
Complicated PLC programming for simple axis control? Doing without the
convenience of PLC in complex CNC applications? Permanent CNC/PLC
synchronization on the XCx gives an enormous boost to productivity, because
it allows complex processes that would normally be unthinkable. Transparent
integration of motion and logic control opens up unimagined new
possibilities, such as position detection on interrupt signal, valve control
linked to path motion, adapting welding current to path feedrate, or simple
activation of saved motion programs to coordinate smooth movements.

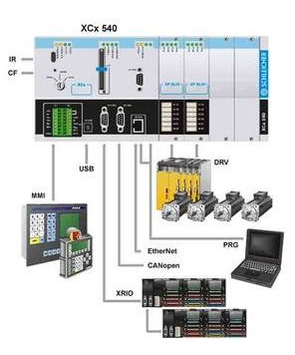

Open for Your Application
XCx controllers are true communication professionals, open in all directions
and easy to connect. Communication via Ethernet and TCP/IP with OPC server
and integrated web server means you can run visualization and data entry on
any standard browser. The parameterizing, diagnosis and test functions can
be called directly on site, in the local network or on the Internet.
Expansion cards for field buses, drives, networking and fast I/O points
allow flexible adaptation to almost any task.
|
|

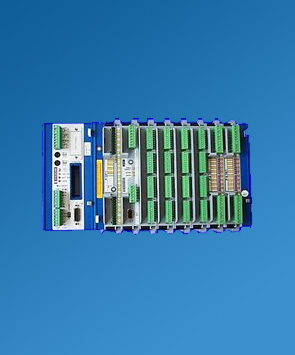

microLine – the Economical First Step
The low cost microLine rounds off our range of
controllers. Small, black and strong, for the less complicated automation
tasks and distributed data (pre-)processing. With its expansion modules for
fast counters, positioning and axis interface, microLine creates on-the-spot
function systems, e.g. for controlling feed axes.
- Stand-alone or with CANopen interface
- Powerful PLC with multitasking operating system
- 8 RIO I/O modules can be connected in any combination
- Up to 128 digital or 56 analog I/Os can be connected locally
- Distributed expansion via CANopen to max. 127 bus stations
- MULTIPROG programming system to IEC 61131-3 under Windows
- Serial interface for programming, visualization and terminal operation
- Integrated startup and diagnosis functions (see RIO Bus Couplers)
microLine only shows its true strength when it is networked in the CANopen
field bus. Rather than increasing the performance of the master PLC in a
control system, part of the data processing is undertaken in parallel by
distributed local microLines. The advantages are convincing: fast response
times, optimal adaptation of controller performance, reduced bus load,
segmented startup and improved emergency running properties.
|
|

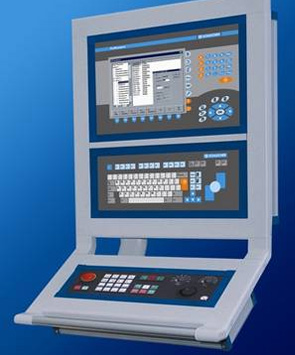

ProNumeric
ProNumeric is an IPC-based high performance CNC/PLC
automation system where even complex applications are easy to operate. It
consists of a computer box and a separate operator panel. It provides
everything you could wish for with respect to performance, ease of use and
expansion.
- VxWin multi-tasking operating system (VxWorks & Win 9x/NT) guarantees
prioritization of control tasks
- Permanent-synchronous CNC and PLC runtime system with mutual shared RAM
- CANopen field bus interface connects the I/O level
- Optical Sercos interface plus interrupt input for measuring sensor signals
- 4 slots for PCI cards allow, for example, multi-axis applications with 64
Sercos drives in up to 32 NC subsystems
- Interpolation cycle: 1 ms with 8 NC axes
- Separate CNC operator panel in IP65 with 12.1" TFT colour display, as
touchscreen if required
- Command level connected via Ethernet with TCP/IP
- Options: customized machine control panel, PC foil keyboard, CD-RW drive
- ProSyCon is a pure PLC offering the same features, but without CNC
functionalities.
|
|

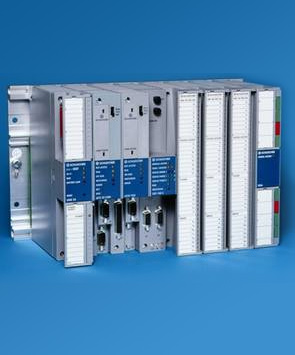

Promodul - U
Promodul-U is a modular automation system for medium and
high performance programmable logic controllers and numeric controllers (PLC
& CNC). It can be extended up to 256 function modules and 4096
inputs/outputs. Up to four freely selected control units can be operated as
a multi-processor system in the main rack. Up to 64 NC axes can then be
controlled in 32 NC subsystems. The multitasking operating system guarantees
flexible application of a wide range of programs and optimal utilization of
computing capacity through free cycle definition. There is a wide range of
modules for configuring the automation system appropriately for the task.
- CNC/PLC control units with graded capacities
- Control units with CANopen interface
- Expert modules for communication (Interbus-S, -Profibus-FMS), analog value
processing, hydraulic control and temperature control
- Modules for axis positioning with Sercos interface or analog setpoint
interface
- Digital input, output and combination modules
- Interface modules for connecting extension racks
- Memory cassettes and programming units
|
|

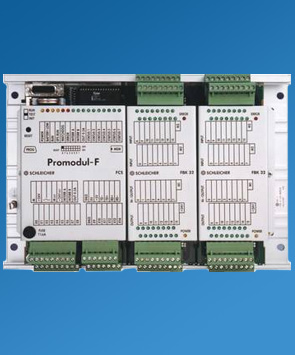

Promodul - F
The compact Promodul-F controller is a universal
automation system for bit and analog value processing, and position control.
Control units for PLC and CNC, universal I/O modules, a positioning
interface and various racks provide inexpensive solutions for automation
tasks. The control units can be expanded up to 6 modules with 192
inputs/outputs. It is networked using the manufacturer-independent Profibus-FMS
and CANopen systems. Control units are offered with a range of capacities.
They have the functions you would expect from a modern compact controller:
- Multitasking operating system
- Fast interrupt inputs
- Integrated connection for positioning a servo axis
- Integrated analog inputs/outputs
- Networking with Profibus-FMS or CANopen
- Up to 3 serial interfaces
- CNC control units with integrated PLC and shared RAM
|
|

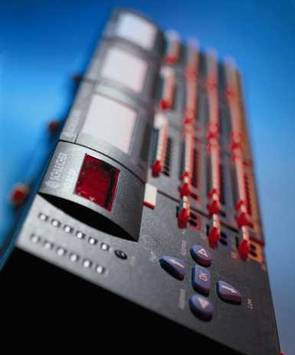

Promodul - P03
Since 01. Jan 2010 the system family Promodul-P03 is no
longer available.
We will do reparing and replacement in the scope of our technical
possibilities.
The Promodul–P03 is the logical development of the successful Promodul–P02.
It is designed to offer advanced, economical, application-focused solutions.
Expansion up to 1024 I/Os, networking with up to 32 controllers, interaction
between control units and intelligent periphery components, easy programming
and short cycle times guarantee optimized production processes. Convenient
and powerful operator panels make the automation process transparent and
optimally controllable.
- 16-bit processor
- two cyclical programs, two interrupt programs faster than 100 µs
- 100 subprograms, one initialization program for presetting particular
values
- Operational data logging, clock timer function through integrated
real-time clock
- 1- or 2-channel position detection module, 22-bit resolution up to 100 kHz
- Positioning processor, 24-bit resolution
- Space-saving modern design
|
|
Software
Excellent Price and Performance
The new XCx controller series brings a wind of change to automation with its
combination of efficiency and convenience. The different performance classes
provide the fast-flexible-economical solution for machine tools, production
machines, robotics and handling. XCx also makes a convincing contribution to
factory automation as central or sub-controllers.
CNC Integrates PLC
Complicated PLC programming for simple axis control? Doing without the
convenience of PLC in complex CNC applications? Permanent CNC/PLC
synchronization on the XCx gives an enormous boost to productivity, because
it allows complex processes that would normally be unthinkable. Transparent
integration of motion and logic control opens up unimagined new
possibilities, such as position detection on interrupt signal, valve control
linked to path motion, adapting welding current to path feedrate, or simple
activation of saved motion programs to coordinate smooth movements.
Open for Your Application
XCx controllers are true communication professionals, open in all directions
and easy to connect. Communication via Ethernet and TCP/IP with OPC server
and integrated web server means you can run visualization and data entry on
any standard browser. The parameterizing, diagnosis and test functions can
be called directly on site, in the local network or on the Internet.
Expansion cards for field buses, drives, networking and fast I/O points
allow flexible adaptation to almost any task.
Fast and Convenient
Extra convenience normally slows a system down. Not on XCx. It unites the
advantages of the IPC – many interfaces, interchangeable memory media, high
performance – with the efficiency and long-term stability of a conventional
controller. XCx gains its clear speed advantage by concentrating on the
essentials in combination with convenient day-to-day use.
-
Interpolates up to 64 CNC axes in 32 NC subsystems
-
Synchronizes interpolated motions with switching processes
-
Coordinates path motion with technology parameters
-
Processes freeform contours and electronic cams as well as straight lines
and circle and helix contours
-
Transforms any machine kinematics into Cartesian coordinates
-
Controls NC servo drives via CANopen, Sercos and SLM (Control Techniques)
-
Connects the sensor/actuator level with fast series-connected I/Os and
CANopen
-
Communicates as standard via Ethernet and TCP/IP in any factory network, via
CAN in any system
-
Visualizes @ Web in HTML and Java on any standard browser via integrated web
server and via OPC server for standard visualization software, and on
directly connected terminals
-
Sends alarms by text message or e-mail with specific alarm messages such as
“Coolant low”
-
Logs via serial interface or direct to compact flash
-
Allows easy updating worldwide via compact flash Integrated
|
|
MULTIPROG®
MULTIPROG®
4.0 PLC Programming System
Wide-ranging modifications even while PLC is running
With MULTIPROG® 4.0 Schleicher provides a convenient software tool for PLC
programming microLine, XCx and ProNumeric/ProSycon controllers in Windows
NT/2000/XP and 9x environments, as well as for automatic configuring of
Schleicher XRIO I/O modules. The development environment supports all five
IEC programming languages and also permits mixed programming in the graphic
languages.
The system can convert automatically between IL, LD and FBD, allowing
different developers and service engineers each to use their preferred
language on one and the same project.
With MULTIPROG® program modifications (including adding variables, instances
or modules) are possible even when the PLC is running: The online display
shows the active process in all the programming tool editors, while
powerflow marks the active path. Project administration is conducted using
MULTIPROG®’s central tree display, whose appearance and function are
oriented on the familiar Windows Explorer. Commentaries can be maintained in
several different languages, which can be switched as required online.
MULTIPROG® has an integrated OPC server for data access (specification 2.04)
for integrating controllers on Windows PCs. A wide range of models,
convenient edit wizards and other help functions allow you to create
projects very quickly. For example, syntax is recognized on entry and marked
in colour straight away. Flexible sorting and search functions support work
with the variable editor. Complex data type structures are possible,
including nested structures, arrays and strings.
Programmed modules can be saved in libraries or as a protected branch in the
project tree, and provided with selective read, write and debug rights on
the resource level. Of course Schleicher’s ready-made libraries are also
available – from standard PLC functions through to powerful technology
modules such as PID controllers.
|
|
CNC Know-how
Our decades of consistent attention to customers’ actual
production conditions have given the Schleicher CNC unequalled openness,
versatility and parameterizability.
- Absolute integration of CNC and PLC
- Up to 64 axes in 32 NC subsystems
- Parallel program and tool management for each sub-system
- Axes can be exchanged between sub-systems
- Interface for special transformations
- Flexible parameterizing, e.g. program memory management, tool memory,
circle error tolerance, axis-specific interpolation fineness
Schleicher supports efficient automation, in particular through the
flexibility of our CNC programming.
- Synchronization of definable NC subsystems
- Axes can move independent of the interpolation context
- Acceleration ramp programming in percent, linear or sine
- Reverse processing of program segments
- Velocity or coordinate superposition by handwheel after safety enable
- Customer can parameterize cycle programming
- Indexed parameter programming as on PLC
- Machining sequences can be saved and called as CNC function
- Teach function for simple applications
|
|
ProCANopen
Configuring CANopen with ProCANopen
CANopen is an open, CAN-based communication protocol. Its broad spectrum of
applications encompasses the fields of transport and control systems,
measuring, medicine, railways, maritime applications and many more –
wherever the combination of high flexibility and fast data transfer is
required. The experience of many component manufacturers and users flowed
into the specification, creating an established standard that is maintained
by the user organization CAN in Automation e.V. (CiA)..
Features and Advantages:
ProCANopen allows fast, efficient configuring of complete CANopen networks,
as well as for individual devices. The user get pinpoint support in all
project phases: planning, development, startup and servicing. The wide range
of functions and intuitive user interface allow the user to concentrate
immediately on defining the plant parameters. ProCANopen configures
automatically under the CANopen rules. This considerably reduces the time
required for configuring, even in complex systems. The quality of the
configurations is also enhanced, which in turn increases plant safety.
Functions:
ProCANopen offers a wide range of functions oriented on the configuring
process for CANopen networks. These are:
- Structuring the task
- Selection/design of devices
- Definition of process data
- Definition of communication parameters
- Definition of device parameters in object directories
- Comparison of data with the programming environment for programmable
devices and masters , IEC61131, ASAM-GDI
- Generation of additional export formats
- Download of project data and startup
- System analysis and customer service
- Documentation
- Applications
ProCANopen is used for programming CANopen networks. Other applications are:
Test tool during development. Interactive configuration and adjustment of
parameters allows device functionality to be tested.
|
|
Multitasking
All Schleicher controllers have multi-tasking operating
systems for optimal adaptation to the process. Individual program modules
detect and process machine events in millisecond cycles. This produces an
extremely short delay time, guaranteeing outstanding repeatability in
production.
The time-critical programs are controlled in the fast high-priority tasks.
Monitoring programs and user guidance are processed in the mid- and
low-priority tasks.
Tasks are processed in order of priority, ensuring that the critical
processes are handled first, and completely. The less critical processes are
handled in the remaining time according to their priority.
|
|
Nerthus
Solutions for Path Optimization
The Nerthus software reduces the number of NC records for freeform contours
through no-loss data reduction, to allow highly precise and highly dynamic
axis motions.
- Effective optimization of complex programs
- Ideal for 3D applications, e.g. mould making
- Precise contouring at max. velocity
- Enormous acceleration of processing
Nerthus solves all the usual path optimization problems – easy to operate
and independent of the technology. The software can generate optimized NC
programs automatically from CAD/CAM data. With just a few taught
interpolation points the Online-Curve-Interpolator (OCI) generates a smooth
motion, e.g. for handling tasks or 3D machining with constant path feedrate.
Sophisticated compensation procedures ensure constant removal of material.
|
|
|
|
COP Operator Panels
COP 300 / COP 400 - The new Touch operator
panels with High End performance: »Human-Machine-Interfaces« for greater
user comfort
With excellent image quality, the new Touch operator panels of Schleicher
invite for »communication« with the control world. The range comprises sizes
of 4.3 up to 15 inches and represents different price categories. Always
produced in accordance with impressive quality standard, casing versions and
designs are available in metal or plastic.
Characteristics like maximum functionality, excellent visualization and fast
data transfer are common to all systems. Furthermore, the parallel
connection of several PLCs for each panel is possible. Aside from the use of
»classic« interfaces, serial and ethernet, the higher quality operator
panels also allow integration into TCP/IP networks.
Via special editors that access a standard object library, visualization
projects can be implemented easily and comfortably via PC and then
transferred to the terminals.
The COP 300 series combines state-of-the-art features and performance with
an outstanding design. They are the ideal choice for every HMI application
including factory and building automation.
The touch panels of the COP 400 series are equipped with the operating
system Windows CE ® and a powerful micro browser technology they are the
ideal choice for web server based visualisations and operating interfaces.
COP Operator Panels
Operation and Visualization Made to Measure
Schleicher has the right operator panel for every application. Economical
and space-saving for simple applications, high-resolution touchscreen for
PC-supported control of complex processes or mobile with process-specific
and context-specific visualization.
Mobile Operation and Setup
Process-specific visualization on the mobile operator panels allows perfect
adaptation to any task, while real-time-capable softkeys and function keys
facilitate fast operation of the machine. Versions with emergency stop
button, incremental handwheel or joystick are available as options.
CNC Operation – Mobile and Stationary
The COP CNC operator panels with CNC-specific and freely configurable
function keys are perfect for handling and assembly devices, machine tools
and factory automation systems. You can switch between CNC user interface
and visualization whenever you need. On Schleicher XCx controllers the COP H
CNC offers real plug ’n’ play capability: Immediate operation without even
configuring the device. Small Size – Small Price The BT and TP panel-mounted
terminals come into their own where graphic visualization and mobility are
not required. Easy to connect to the controller via universal interfaces or
optional CANopen field bus and very small for use in cramped spaces. These
terminals are the low-cost solution for simple operating and monitoring
tasks.
Visualizing at the Highest Level
For sophisticated automation tasks we have a Windows-based panel-mounted
terminal and two panels with different performance profiles for connection
to standard and industrial PCs.
|
|
COP 300 / COP 400
|
|
|
|
|
|
Distributed I/O Systems
Intelligent Signal Management
Field bus connection of peripherals is standard these days. This increases
the importance of intelligent signal management for efficient mediation
between controller and periphery. The well thought-out, advanced RIO I/O
system is streets ahead with its wide range of modules, which pick up, pass
on and output the process-specific signal mix as required. RIO offers
further scope for increasing the efficiency of periphery communication with
the microLine mini-controller and the RIO function modules, which allow
distributed data preprocessing with plant-floor controller performance.
Bus Couplers connect the modules to a Profibus-DP, CANopen, DeviceNet
or InterBus field bus:
- 8 RIO I/O modules can be connected in any combination (digital, analog,
function modules)
- Up to 128 digital or 56 analog I/Os can be connected locally
- Field bus diagnosis via LEDs
- BC series with display, keypad and integrated commissioning and diagnosis
functions:
- Display I/O values
- Force inputs and outputs
- Trace function for diagnosis
- Non-volatile definition of control states
- Programmable preferred shut-off state
- User lockout with optional password
- EC series as low-cost economy version without the special BC features
Digital I/O Modules with 8 or 16 channels and vibration-resistant
spring terminals:
- DC 24 V, AC and relay modules
- Combination channels can be used as inputs or outputs
- Max. output current per channel 1 A
- Outputs can be connected in parallel, short-circuit-proof and overcurrent-protected
- Simple diagnosis via LEDs
Analog I/O Modules detect measured values and pass position signals
to the field peripherals:
- Voltage inputs as differential inputs with ±10 V
- Current inputs as single-ended inputs, range 0..20 mA or 4..20 mA
- Resolution of A/D-D/A converter: 12-bit
- Sampling rate 2 ms
- Outputs short-circuit-proof
Terminal Extensions
create two additional jumpering levels, allowing three-wire connection on
all RIO module types.
Compact I/Os
with up to 16 digital channels and integrated bus coupler for Profibus-DP,
CANopen, DeviceNet and InterBus.
Function Modules
The function modules measure and evaluate distributed processes. They free
capacity in the central controller and improve local precision, because
their millisecond reaction time is immune to field bus delay and PLC cycle
time.
Axis Interface
Incremental/absolute encoder interface
Inputs for limit switch, reference cam, servo amplifier ready
Output for controller enable
Combination input/output can be used as required
Analog output ±10 V.
Positioning
Positioning of two axesPositioning and homing with and without zero
signalEvaluation of two limit switchesCountersIndependent up/down counters
up to 200 kHzTwo 32-bit counters with two threshold values or four 16-bit
counters with one threshold value.
Temperature Sensing
Module for four Pt100 / Pt1000 sensors, measuring range -100 to +450 °CModule
for four K/J/L thermoelements, measuring range -200 to +1369 °CResolution
0.1 °C over the whole measuring range.
|
|
Distributed I/O Systems
|
|
|
|
|
|
Machine Data Logger MDL
Security with a userbased guarantee
The machine data logger (MDL) saves any process data permanently and securly.
The incorruptible proof of operating conditions, machine use , maintenance
etc. makes it possible to achieve a performance based warentee. Utilization
warrenties offer enormous advantages for machine maufacturers the same as
for machine users. The usual timebased garrantees in every case try to reach
the specifred machine operating time and therefore plan difficult calculable
risks like machine limistations and incomplete service. The MDL excludes
such risks: manufactures now define their guarrantee limits, and users can
plan reliably.
Increased availability, reduced service costs
The Machine data logger (MDL) can save costs for the user by user defined
service intervals. The MDL supports early warning functions of the
manufactures, warning if selected operating parameters reach a limit:
production interuptions are reduced so resulting service costs only load
dependent. The secure production data acquisition increases the market value
of the machine by the MDL and creates an additional security during the
rental, for example with construction machines.
Incorruptible control
The manufacturer can lock the MDL parameters using a PC- programm. In
operation the master- SPS writes the selected process data over the profibus-
DP. Every access is recorded with an internal time marker. The stored data
is retained over 15 years and can be read in a table format by the machine
manufacturer via a USB- interface. Every MDL works with machine related and
blocks similary to a dongle by deactivating the SPS. Also exchange of the
MDL or the access to the data storage is impossible.
|
|
Machine Data Logger MDL
|
|
|
|
|
|
ICM GSM - Industrial Communication Module GSM-Modem
GSM-Modem for wireless Communication:
- Quad-Band Modem (850/900/1800/1900 MHz), for use in all GSM standard
networks.
- Standard antenna suitable with 900 and 1800 MHz frequency.
- Modem can be used for both building up data transmission with other modems
and sending and receiving SMS - messages.
- RS 232 interface for data exchange with a superior control or PC.
- Two status LED's.
- Supply voltage DC 12 – 24V.
- Housing compatible to DIN mounting rails.
Typical applications for an industrial GSM Modem
- Machine-to-machine communication
- Tele service
Diagnosis
Machine messages via SMS
- Production data acquisition
Machine status and / or number of cycles may be collected and
reported in a central head office
Consistently capturing of production data for 100% control and
traceability
- For advanced requirements in process control, e.g.:
drinking water purification
waste water treatment and sewage plants
transportation of chilled and sensitive cargo
|
|
ICM GSM
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3
|
|
