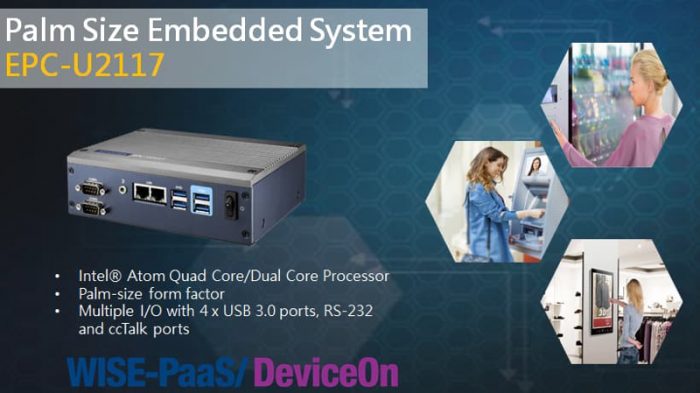

Advantech’s new EPC-U2117 fanless embedded system features considerable boost for graphic and CPU performance

Advantech, a leading embedded computing provider announces its latest fanless embedded system EPC-U2117. The palm-sized system uses the latest Intel® Atom® E3900 processor technology to give a 30% CPU performance enhancement and a 45% graphic performance boost. EPC-U2117 is designed with dual display output, multiple I/O, and wide range 12-24V DC power inputs, which target smart vending machines, digital signage, smart kiosk, and more. EPC-U2117 is compatible with Microsoft Windows 10 IoT Enterprise, and Linux OS. Furthermore, EPC-U2117 has Advantech’s WISE-PaaS DeviceOn intelligent software integrated for remote system monitoring and management.

Fanless and Palm-size Design with Optimized Thermal Solution

EPC-U2117 is a palm-sized metal chassis which measures only 170 x 117 x 52.6mm for mounting as a desktop PC, or via wall, or DIN-Rail mount. The top extruded aluminum passive heatsink thermal solution is designed for -20 ~60 °C wide temperature operation. It integrates two expansion slots including one M.2 for Wi-Fi or GPU module, and one full size Mini PCIe for 3G/LTE connection or mSATA storage. EPC-U2117 reserves 4 antenna apertures to support wireless connection. With its optimized thermal design and two independent add-on modules for maximum performance, EPC-U2117 offers the best solution for outdoor or harsh environment applications and space limited applications such as outdoor vending machines, passenger information systems, digital signage, smart kiosk and more.

Wide Range Power Source and Dedicated I/O Design for Kiosk and Automation

EPC-U2117 is an ideal choice for applications needing wide range power as it offers 12V to 24V DC input. Customers can directly use the system from different power supplies without extra adapters. EPC-U2117 comes with multiple connectivity and expansion options including one RS-232 and one ccTalk. Furthermore, Intel’s latest processor with better performance makes it fit for smart vending machines or smart kiosks and digital signage. The COM port can also be customized to MDB and RS-422/485 for device control and payment device. It offers four USB 3.0 ports, one audio jack, dual gigabit LAN ports and CANBus for general system control.

WISE-PaaS DeviceOn and Dual Storage for Best System Reliability and Security

EPC-U2117 supports multiple storage, which includes onboard eMMC up to 128GB, mSATA, and 2.5” SSD/HDD for flexible storage options. Customers can install OS and key data in eMMC for best security protection and reliability. If customer request big storage capacity and high data transfer, they can use mSATA or SATA SSD for better storage performance. EPC-U2117 comes with Advantech’s WISE-PaaS DeviceOn software, which offers remote management, system monitoring for better device performance, security, and reliability, and predictive maintenance. WISE-PaaS also supports BIOS/FW OTA to upgrade the system and devices with latest firmware to keep everything running at peak performance.

EPC-U2117 Fanless & Wide-Temp Support

• Intel® Atom® E3900, series processor; low power, high performance.
• Supports two gigabit Ethernet and one M.2 & one Full Size miniPCIE module for Wi-Fi, 3G/LTE, mSATA modules.
• Multiple I/O with 4 x USB 3.0 ports, RS-232 (optional for MDB) and ccTalk(optional for RS422/RS485) ports for data communication.
• Wide range power input support—12~24V DC input for Industry and transportation.
• Palm-size, with extended temperature support under -20 ~ 60 °C.
• Supports Win10 Enterprise 64-bit, Linux OS.
• Advantech WISE-PaaS/DeviceON SW built-in.
• Certificated with AWS Greengrass & Microsoft Azure IoT Edge.

For more information, please visit http://www.advantech.eu.
