Offer Profile
'Success through
continuity' is the motto of Kemper, the no. 1 in row-independent rotary crop
headers. Since the market launch in 1986 more than 20,000 units have been
sold.
Core Competences
- Product engineering
- Driven by customer needs
- High flexible assembly line
- Strictly quality driven
- Modern E-coat and powder paint system
- Marketing, service, parts and information provided to our customers
worldwide
|
|
|
|
Product Line Up
|

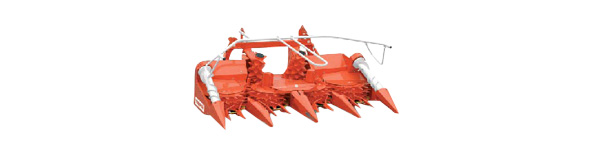

Rotary crop header
|
|
300 Series
The headers of the 300 Series operate in an open cut
mode. Fast and uncompromising. Up to 10 cutting rotor blades enable
operation regardless of the distance between rows and over a wide range of
crops.
The row independent cutting technology makes it possible to operate in the
field from any direction - particularly important when harvesting laid
crops.
|
|
|
|
330
Length: 2,06 m
Overall width: 3,00 m
Height: 1,36 m
Working width: 3,00 m
Transport width: 3,00 m
Weight (basic equipment): 1500 kg
|
 |
345
Length: 2,06 m
Overall width: 4,55 m
Height: 1,50 m
Working width: 4,50 m
Transport width: 3,00 m
Weight (basic equipment): 2100 kg
|
|
|
|
360
Length: 2,06 m
Overall width: 6,05 m
Height: 2,26 m
Working width: 6,00 m
Transport width: 3,00 m
Weight (basic equipment): 2680 kg
|
|
375
Length: 2,06 m
Overall width: 7,55 m
Height: 2,30 m
Working width: 7,50 m
Transport width: 3,00 m
Weight (basic equipment): 3250 kg
|
|
|
|
400 Series
|
|
|
|
445
Length: 2,20 m
Overall width: 4,60 m
Height: 1,15 m
Working width: 4,55 m
Transport width: 2,47 m
Weight (basic equipment): 1795 kg
|
|
460
Length: 2,78 m
Overall width: 6,05 m
Height: 2,28 m
Working width: 6,00 m
Transport width: 3,00 m
Weight (basic equipment): 2750 kg
|
|
|
|
475
Length: 2,78 m
Overall width: 7,55 m
Height: 1,52 m
Working width: 7,50 m
Transport width: 3,30 m
Weight (basic equipment): 3300 kg
|
|
|
|
|
|

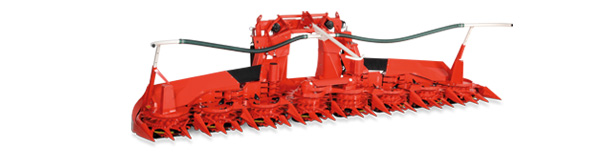

390 Plus
|
|
|
|
390 Plus
Working width: 9,50 m
Transport width: 3,30 m
This new and innovative rotary crop header has a working width of 9 metres, which is expressed in the type designation 390plus, and with a row distance of 75 cm it can harvest 12 rows of maize in a single pass.
The plus stands for the additional utilisation options and additional customer benefits. The special plus of this machine is its universal versatility in the harvest of biomass cultures.
This is of key interest for contractors during difficult economic periods, because the all new 390plus is a real alternative for specialised direct cut headers.
ONE Kemper rotary header for all thin stemmed crops.
|
|
|
|
|
|
Mounted forage harvesters
Kemper offers a complete line of tractor mounted forage
harvesters with row independent rotary crop headers.
The Champion C 1200, C2200 and C3000 equipped with rotary crop headers have
working widths of 1.25, 2.25 and 3.0 m (2, 3 and 4 rows of 75cm).
For the harvest of swathes, the C 2200 and C 3000 can be optionally equipped
with a pick-up of 2.0 m.
|
|
|
|
Champion C1200
Mowing head
Length: 2,80 m
Width: 1,76 m
Working width: 1,25 m
Working height: 3,95 m
Transport: 3,70 m
Weight: 1100 kg
Power: 59 Kw
PTO speed: 1000 rpm
|
 |
Champion C2200
Mowing head
Length: 2,55 m
Width: 2,35 m
Working width: 2,28 m
Working height: 4,20 m
Transport: 3,70 m
Weight: 2050 kg
Power: 80 Kw
PTO speed: 1000 rpm
Pick-up
Length: 2,15 m
Width: 2,40 m
Working width: 2,00 m
Working height: 4,20 m
Transport: 3,70 m
Weight: 1500 kg
Power: 50 Kw
PTO speed: 1000 rpm
|
|
Champion C3000
Mowing head
Length: 2,80 m
Width: 3,00 m
Working width: 3,00 m
Working height: 4,20 m
Transport: 3,70 m
Weight: 2350 kg
Power: 100 Kw
PTO speed: 1000 rpm
Pick-up
Length: 2,15 m
Width: 2,60 m
Working width: 2,00 m
Working height: 4,20 m
Transport: 3,70 m
Weight: 1700 kg
Power: 70 Kw
PTO speed: 1000 rpm
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
