F-Mount Lenses
Manual focus lenses for F mount cameras in
industrial applications
With our ZF lenses, we offer high resolution image quality for technical and
industrial applications. Carl Zeiss F-Mount lenses for industrial
applications are key components in complex production processes as well as
in measuring tasks, quality assurance and many other applications. Proving
their outstanding image performance, reliability and high quality.
ZF LensesCarl Zeiss ZF lenses are compatible with any F-Mount camera.
The F-Mount is a popular used standard for high-resolution industrial
cameras with large sensor sizes and for line scan cameras with sensors up to
43 mm. ZF lenses from Carl Zeiss are widely used in machine vision,
automation, quality inspection, optical metrology as well as in Research and
Development e.g. with High Speed cameras. Thanks to the large image format,
our objective lenses are ideal for the constantly increasing use of
high-resolution image sensors with bigger sensor formats.
Due to the manual adjustment of the focus the helical focusing mount of ZF
lenses are much more precise than usual focusing mounts.
- high resolution
- color purity
- robust housing
- precise manual focus and aperture setting
- stray light absorption
ZF-I: Industrial EditionThe Industrial Edition of ZF lenses are
provided with lock screws for both the aperture setting and focus.
Both the locking screws and the stable design make the lens inure to
vibrations and improve measuring repeatability and avoiding machine
downtime.
ZF-IR: Infrared Edition
The Infrared Edition of ZF lenses are suitable for the use with special
cameras like IR cameras without an IR blocking filter. The transmission of
ZF-IR lenses adds up to 70% at 1000 nm, while usual lenses exhibit only 20%.
Versatile Camera Mounts
These high sophisticated optical designs are also available with
different mounts like M42 Screw Mount (S-Mount) and EF-Mount.
|
|
|
|
Super Wide Angle
|
|
|
|
Distagon T* 3,5/18 ZF
Aperture range
f/3.5 – f/22 (1/ 2 stop intervals)
• A floating elements design ensures performance
virtually unchanged from close distance to infinity
• The lens design produces nearly distortion-free images
• Precise manual focusing
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mounts such as EF mount.
|
 |
Distagon T* 2,8/21 ZF
Aperture range
f/2.8 – f/22
• A floating elements design ensures performance
virtually unchanged from close distance to infinity
• The lens design produces nearly distortion-free images
• Precise manual focusing
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mounts such as EF mount
|
|
|
|
|
|
Wide Angle
|
|
|
|
Distagon T* 2,8/25 ZF
Aperture range
f/2.8 – f/22 (1/ 2 stop intervals)
• Low close-range adjustment (6 cm / 2.4") from object to front lens surface
• Optimal control of flare and stray light
• Precise manual focusing
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
ZF-IR: Infrared Edition
Features special coating for optimized performance in near-infrared
applications.
Camera Mounts
Available for other camera mounts such as EF or M42 screw mount.
|
|
Distagon T* 2/28 ZF
Aperture range
f/2 – f/22 (1/2 stop intervals)
• High Speed lens
• Integrated floating elements design ensures consistent performance at any
distance
• Optimal control of flare and stray light
• Precise manual focusing
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mounts such as EF bayonet mount.
|
|
Distagon T* 2/35 ZF
Aperture range
f/2 – f/22 (1/ 2 stop intervals)
• High Speed lens
• Precise manual focusing
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mounts such as EF or M42 screw mount.
|
|
|
|
Standard & Tele
|
|
|
|

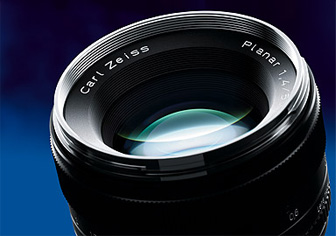

Planar T* 1,4/50 ZF
Aperture range
f/1.4 – f/16 (1/ 2 stop intervals)
•
The fast f/1.4 aperture produces bright images even under difficult lighting
conditions
•
The lens design produces nearly distortion free images over the entire frame
•
Precise manual focusing
•
Robust full-metal construction
•
Identical color reproduction of all models assures the quality of products
measured by hue difference
•
For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
•
Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
ZF-IR: Infrared Edition
Features special coating for optimized performance in near-infrared
applications.
Camera Mounts
Available for other camera mounts such as EF or M42 screw mount.
|
|
Planar T* 1,4/85 ZF
Aperture range
f/1.4 – f/16 (1/ 2 stop intervals)
• The fast f/1.4 aperture produces bright images even under difficult
lighting conditions
•
The lens design produces distortion-free images
over the entire frame
•
Outstanding image definition enables you to clearly recognize even the edges
of the object
•
Precise manual focusing
•
Robust full-metal construction
•
Identical color reproduction of all models assures the quality of products
measured by hue difference
•
For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
•
Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
ZF-IR: Infrared Edition
Features special coating for optimized performance in near-infrared
applications.
Camera Mounts
Available for other camera mounts such as EF or M42 screw mount.
|
|
|
|
|
|
Makro Lenses
|
|
|
|
Makro-Planar T* 2/50 ZF
Aperture range
f/2 – f/22 (1/ 2 stop intervals)
•
A fast f/2 aperture is useful under low-light conditions
•
A floating elements design ensures performance virtually unchanged from
close distance to infinity
•
The lens design produces nearly distortion-free images over the entire frame
•
Robust full-metal construction
•
Identical color reproduction of all models assures the quality of products
measured by hue difference
•
For industrial cameras with F-Mount up to sensor sizes of 24x36 mm.
•
Mounts and optical coatings can be modified on request
• High resolution
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mount such as EF bayonet mount.
|
|
Makro-Planar T* 2/100 ZF
Aperture range
f/2 – f/22 (1/ 2 stop intervals)
• A fast f/2 aperture is useful under low-light conditions
• Outstanding image definition enables you to clearly recognize even the
edges of the object
• Precision mechanics and a very large angle of rotation enables to focus
very precisely on image details
• Robust full-metal construction
• Identical color reproduction of all models assures the quality of products
measured by hue difference
• Mounts and optical coatings can be modified on request
ZF-I: Industrial Edition
Features special screws to fix focus and aperture settings also in rough
situations.
Camera Mounts
Available for other camera mount such as EF bayonet mount.
|
|
|
|
|
|
Telecentric Visionmes Lenses
Carl Zeiss VISIONMES lenses are developed for crucial
measuring tasks in industry and feature telecentric optics. For optical
metrology at high precision telecentric optics are essential.
With this type of objective lens the light is parallel over the whole object
field and the image size will remain the same even if the objects position
would vary.
Carl Zeiss offers telecentric lenses with outstanding image performance and
extremely low distorsion for the purpose of imaging and/or measuring objects
up to 300 mm diameter.
Distorsion up to 105 mm object size: 3 µm
Distorsion up to 300 mm object size: 5 µm
Every single lens is manufactured in Germany and quality tested with the
accurateness you can expect from Carl Zeiss. Inspection certificate on
request.
|
|
|
|
Features
VISIONMES® telecentric lenses use a parallel beam
path, permitting exact imaging of even difficult object shapes.
Measuring
excellence:
• Extreme low distortion over the entire object field
• Connection of any standard CCD matrix
• High information transfer rate for the use in CCD receivers
• Diffraction-limited imaging for maximum resolution
• High aperture for short exposure times
• Optimum adaptation of edge contour and depth of focus to the measuring
object
• Low sensitivity to stray light
• Modular design permitting the
• Graduated object fields up to 300 mm diameter
All lenses for 1" CCD-chip diagonal on request.
All lenses with c-mount. All lenses for spectral range from 480 nm to 690
nm.
|
|
Lenses
Object field / Image field /
Aperture |
CCD
chip size |
Working
distance1
S [mm] |
Telecentric
range1
T [mm] |
Measuring field
Object size
[mm] |
|
11 / 8 / 0.01 |
1/2" |
160 |
+ / – 9 |
~ 6 x 8 |
|
11 / 11 / 0.02 |
2/3" |
54 |
+ / – 2.5 |
~ 6 x 8 |
|
11 / 11 / 0.02o |
2/3" |
17 |
+ / – 5 |
~ 6 x 8 |
|
11 / 11 / 0.02b |
2/3" |
54 |
+ / – 5 |
~ 6 x 8 |
|
13 /11 / 0.01 |
2/3" |
65 |
+ / – 2 |
~ 8 x 10 |
|
22 / 11 / 0.05 |
2/3" |
66 |
+ / – 2.5 |
~ 13 x 17 |
|
22 / 11 / 0.05o |
2/3" |
56 |
+ / – 5 |
~ 13 x 17 |
|
18 / 6 / 0.05 |
1/3" |
66 |
+ / – 10 |
~ 20 x 17 |
|
35 / 6 / 0.1 |
1/3" |
67 |
+ / – 2.5 |
~ 39 x 33 |
|
35 / 8 / 0.1 |
1/2" |
64 |
+ / – 2 |
~ 21 x 28 |
|
35 / 11 / 0.1 |
2/3" |
58 |
+ / – 1.4 |
~ 21 x 28 |
|
70 / 6 / 0.1 |
1/ 3" |
113 |
+ / – 13 |
~ 79 x 67 |
|
70 / 8 / 0.1 |
1/ 2" |
103 |
+ / – 10.5 |
~ 43 x 55 |
|
70 / 11 / 0.1 |
2 / 3" |
75 |
+ / – 8 |
~ 43 x 55 |
|
70 / 16 / 0.1 |
1" |
58 |
+ / – 4 |
~ 40 x 40 |
|
105 / 6 / 0.1 |
1/ 3" |
182 |
+ / – 16 |
~ 119 x101 |
|
105 / 8 / 0.1 |
1/ 2" |
171 |
+ / – 12 |
~ 65 x 83 |
|
105 / 11 / 0.1 |
2 / 3" |
121 |
+ / – 10 |
~ 65 x 83 |
|
150 / 8 / 0.1 + |
1/ 2" |
225 |
+ / – 35 |
~ 93 x118 |
|
150 / 11 / 0.1+ |
2 / 3" |
165 |
+ / – 25 |
~ 90 x120 |
|
150 / 16 / 0.1+ |
1" |
110 |
+ / – 20 |
~ 86 x 86 |
|
225 / 8 / 0.1 + |
1/ 2" |
340 |
+ / – 55 |
~ 140 x177 |
|
225 / 11 / 0.1+ |
2 / 3" |
260 |
+ / – 40 |
~ 135 x 180 |
|
300 / 8 / 0.1 + |
2 / 3" |
450 |
+ / – 75 |
~ 187 x 236 |
|
300 / 11 / 0.1+ |
1/ 2" |
335 |
+ / – 55 |
~ 180 x 240 |
|
300 / 16 / 0.1+ |
2 / 3" |
230 |
+ / – 40 |
~ 172 x172 |
|
6 / 18 / 0.029 |
85 |
85 |
+ /
– 1 |
~ 4 x 4 |
Object field and Image field diameter in millimeter
(o) Lens with 90° angle on the object side
(b) Lens with 90° angle on the image side
((+) Lenses with variable stop
All lenses are available for 1" CCD on request! Spectral Range for all
lenses 480 - 690 nm
|
|
Moduless
Telecentric Visionmes Moduls
TVM is a illumination module for telecentric lenses and works either with
Carl Zeiss Visionmes lenses for an object field of 35 mm or 70 mm.
It features highly parallel and homogeneous illumination exactly fitting to
the telecentric Carl Zeiss Visionmes lenses. Due to its high parallelism*
diffraction at the edges is nearly prohibited and the exact detection is
considerably improved. *The angle to the optical axis is less than 0.1°
As the TVM is designed to be robust and shows several machine seating
surfaces it proves to be - in combination with a 35 mm or 70 mm Visionmes
lens - an ideally tuned module featuring illumination and objective lens you
can easily integrate in your metrology solution.
|
|
|
E
