Offer Profile
The Jungheinrich Group is one
of the world's three largest suppliers of industrial trucks, warehousing
technology and materials flow technology. In Europe, Jungheinrich is the
leading supplier of warehousing technology. Since 1953, the Group, which has
its headquarters in Hamburg, has been offering forklift-based products and
services designed to get things moving for industrial customers.
|
|
|
|
Product Line Up
|
Industrial trucks
Jungheinrich offers you the right pallet truck,
forklift, and order picker for any application. With over 600 different
vehicles to chose from, you are sure to find what you need for your
operations, regardless of the lifting height, surface, or transport
distances involved. For more information on our material handling equipment,
click on the product group you are interested in.
|
|
|
|
Hand pallet trucks
The broad range of Jungheinrich hand pallet trucks
ensures you a cost-effective solution for your specific needs, running the
gamut from traditional, 2,200 kg payload hand pallet trucks to scissor
pallet trucks, with your choice of galvanized or partial and full stainless
steel variants.
|
 |
Pallet trucks
With Jungheinrich pallet trucks, you can rest assured
that you will find the best solution for any transport distance, with
pedestrian trucks for short distances, combined pedestrian/stand-on
equipment for medium-range operations, and stand-on/seat trucks for longer
distances. Payload capacities from 1,600 kg to 3,500 kg allow you to select
the most economical solution for your specific needs.
|
|
Stacker
Jungheinrich stackers offer you customized solutions for
any transport distance and lifting height, featuring pedestrian trucks for
short distances, combined pedestrian/stand-on equipment for medium-range
operations, and stand-on/seat trucks for longer distances. Payload
capacities of 1,600 kg to 3,000 kg and lifting heights of up to 5,350 mm
provide a wide range of options, guaranteeing the best solution for your
operations.
|
|
|
|
Electric counterbalance trucks
Jungheinrich electric counterbalance trucks offer
tailor-made solutions for indoor and combined indoor/outdoor operations.
Variants include the compact, rear-wheel drive Series 1 EFG, the
high-traction Series 2 EFG and the Series 3, 4 and 5 four-wheeled forklifts
with payload capacities of 1,600 kg to 5,000 kg.
|
|
ICE trucks
Jungheinrich's range of diesel/gas forklifts offers a
wide scope of options in terms of payload capacity and drive systems.
Payload capacities range from 1,600 kg to 9,000 kg. Drive systems include
hydro-dynamic drives and hydro-static drives.
|
|

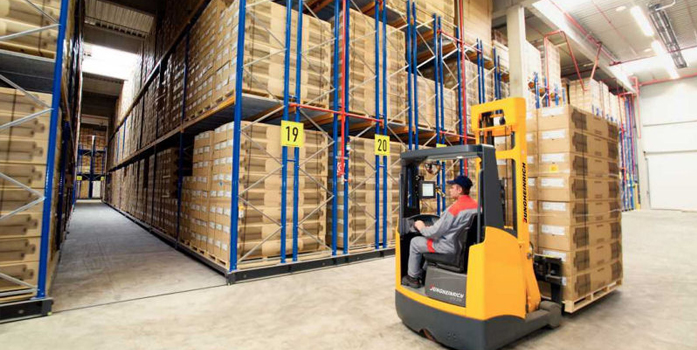

Reach trucks
With Jungheinrich reach trucks, you can find the best
solution for any lifting height. Options include the compact Series 1
vehicles, the particularly quick Series 2 equipment, and the Series 3 trucks
with lifting heights of up to 12,020 mm, as well as the C Series for
indoor/outdoor use and the Q Series multi-directional reach trucks.
|
|
|
|
Order pickers
Jungheinrich order pickers are the most economical way of
maximizing picks per hour. The range of products includes the Series 1 and 2
ECE horizontal order pickers and the Series 1 and 3 EKS vertical order
pickers, with picking heights of up to 10,390 mm.
|
|
Tow tractors
Thanks to their wide range of couplings, Jungheinrich tow
tractors offer the best solution for towing any kind of trailer. They are
ideally suited for small train supply with trailer payloads of up to 7,000
kg.
|
|
VNA trucks
EKX, EFX and ETX represent Jungheinrich’s solutions for
all high-rack systems with stacking heights of up to 14,570 mm. One shining
example: the EKX, a "man-up" stacker which allows the driver to slot-in and
retrieve entire pallets as well as stack individual items.
|
|
|
|
Compact Shuttle Storage Systems
Pallet carriers that can travel independently in racking
channels are at the core of the Jungheinrich compact shuttle storage
systems. Designed either to go under pallets (Under Pallet Carriers, UPCs)
or to enter pallets (In Pallet Carriers, IPCs).
|
|
|
|
|
|
|
|
Jungheinrich specials
The Jungheinrich AG opened a production plant in
Lüneburg in 1990. This plant has designed, engineered, commissioned,
documented and delivered special solutions tailored to suit individual
customer requirements. The plant in Lüneburg has a total area of 20.500
square metres, thereof 7.950 square metres area is the manufacturing
facilities and currently employs 150 personnel.
Special applications require customised fork lift trucks. This is
particularly relevant for tasks where operation-specific transporting,
unusual storing of goods or complicated space conditions make life difficult
for standard trucks. Jungheinrich provides an individual alternative: the
Jungheinrich special-build. Here the quality and efficiency of standard
truck production is combined with very individual requirements. Consistent
modular construction of the whole Jungheinrich programme makes this
possible. Added to this are the further advantages of standard production:
excellent reliability, service friendliness and performance efficiency.
Process security = investment security
Although we are creatively and individually developing a suitable truck
solution for you, standards and directives are important regarding "process
security" - 100% accurate as with our standard production. These include EU
safety requirements, quality standards, test routines, standardisations and
ISO certification.
Your advantage: individual truck solution plus long-term investment
security.
|
|
|
|
Packaging manufacturer
|
|
Foundries
|
|
Printing industry
|
|
Paper industry
|
|
|
|
Engine building
|
|
Chemicals industry
|
|
Timber industry
|
|
Steel industry
|
|
|
|
Cable industry
|
|
Automotive industry
|
|
|
|
|
|
|
|
Racking systems
Racking is much more than just steel. Racking is the
key to optimum throughput efficiency, because the efficiency of the entire
material flow is optimised only through requirement-specific design of a
racking system.
Jungheinrich provides you with this key: Racking systems, mezzanines and
self-supporting stores (silos). For the storage of pallets, containers and
stillages – for cartons or long goods – Jungheinrich offers you the complete
solution: comprehensive warehouse planning that sees racking and trucks/
rack servicing cranes as one system working “hand in hand”. From initial
planning and projecting up to hand over. From consultation via tailor-made
financing right up to one of the widest Service networks in Europe.
|
|
|
|
Storage of Pallets
Pallets and box pallets can be stored in the most
different way - depending on individual conditions. Jungheinrich is prepared
for any application and therefore has available various racking systems for
all storage and picking tasks.
|
|
|
|
Adjustable Pallet Racking
Adjustable pallet racking is the most common racking
system. In contrast to single position racking, it carries several pallets
between two uprights on every level. In standard design, it reaches heights
of 8 to 10 m and it can also be raised to high racks with 12 m height and in
automatic operation up to 30 m height.
Adjustable pallet racking is particularly suitable for large quantities of
individual, mainly palletised articles. In contrast to block stacking, there
is no contact between pallets which allows direct access to all pallets.
Easy adjustment of racking levels ensures optimum storage utilisation.
Double-deep storage can also be realised.
|
|
Narrow Aisle Systems
Narrow aisle systems are the giants among multi-position
racking systems. They have the performance characteristics of multi-position
racking at heights over 10 m and are freestanding. Reduced requirement for
working aisles and extremely high lift heights are their distinguishing
features.
Narrow aisle systems are used specifically where
a) the space is limited and
b) it is necessary to increase throughput compared with multi-position
racking.
|
|
Single Bay Racking
Single bay racking carries one load unit per bay between
two uprights on every level. Angle profiles arranged in depth direction take
on the shelf function – additional space is gained through the omission of
beams.
Single bay racking is particularly suitable for storing ranges with large
quantities per article and heavy goods. With the accessible arrangement of
load units, single bay racking is always advantageous when orders are picked
straight from the pallet or box pallet.
|
|
|
|
High Bay Racking
High bay racks (rack clad buildings) are racking
constructions to which roof and walls are fixed. The stores are
automatically controlled and reach heights up to 40 m. The silo design
provides shortest construction times and offers interesting depreciation
opportunities.
High bay racks are used for storing large quantities of high throughput
articles.
|
|
Mobile Racking
Mobile racking is mounted on motorised mobile bases. This
facilitates the opening of a racking aisle at any position of the system.
Mobile racking saves working aisles and created storage space (up to 90%
compared with traditional racking). It nonetheless provides access to every
load unit. Mobile racking is particularly suitable for medium quantities of
goods and a medium number of different articles with low access requirement.
|
|
Pallet Live Storage
Jungheinrich pallet live storage consists of racking
uprights forming a channel.
Storage is carried out on one side and retrieval on the other side of
racking. As soon as a pallet is retrieved, the other pallets move up
automatically to the retrieval position on inclined roller conveyors. Brake
rollers keep gravity under control and an automatic separating device
ensures that the pallet at the front is never under impact pressure from the
following pallet.
|
|
|
|
Push-back Racking
Jungheinrich push-back racking consists of racking
uprights forming a channel.The conveyors slope between 3 and 5%.
Deposit and retrieval in this system is carried out on the same racking
side. If there are already load units in one of the channels, the new load
unit has to push the one previously deposited against the slope. Pallets
already in the channel move up automatically when a pallet is retrieved.
|
|
Drive-In/Drive-Through Racking
With drive-in and drive-through racking, load units are
stored on the racking depth one after the other on two continuous shelves.
A loading/unloading cycle per racking field from the top to the bottom (or
the other way round) must be observed during depositing and retrieval.
|
|
Compact Shuttle Storage Systems
Carriers travelling independently in the pallet channel
are the heart of the Jungheinrich compact shuttle storage systems – the
complete solution consisting of the modules channel racking, carrier truck
and carrier.
This expands your efficiency spectrum of traditional compact storage systems
– space saving through the omission of working aisles – and realise
optimisation potential regarding volumetric efficiency, throughput ratio,
article variety, space utilisation ratio and careful treatment of loads.
|
|
|
|
Storage of Small Parts
Small parts are often stored in tote bins, cartons or
trays. No matter whether for storage or order picking - Jungheinrich offers
the complete product portfolio in every application.
|
|
|
|
Shelving
Shelving over multiple levels made of steel plate or wood
is used for storage. Jungheinrich shelving is available as slot together or
bolted style. It is also suitable for high rack installations over 12 m
high.
Jungheinrich shelving facilitates the storage of goods with large article
ranges at small to medium quantities. The racking can be universally
utilised in all industry branches for small parts but also for bulky parts.
|
|
Carton Live Storage
Drive-through racking works according to the Fifo method
for small parts or packages of any size.
Roller conveyors ensure that stored goods move forward automatically to the
retrieval point. This strict adherence to sequence ensures that nothing gets
out of date in drivethrough racking.
|
|
Automatic Small Parts Storage
Automatic small parts storage (miniload) ensures
excellent space-saving storage of small parts in containers, stillages or
cartons. These are stored on angled supports – with full utilisation of room
height.
Miniload systems mainly serves for the storage of small parts with large
number of articles in limited unit numbers per article and with high
throughput requirements.
|
|
|
|
Long goods and platforms
There are articles, e. g. pipes or plates, which are
too long fort he storage on pallets. In this case cantilever rackings are
the right solution.
|
|
|
|
Cantilever Racking
There is practically no limit to the length of cantilever
arm racking. This racking for the storage of long goods such as poles, pipes
and boards.
Each racking upright is equipped with several cantilever arms (supports) for
carrying the load.
The distance between uprights depends on the weight of the goods to be
stored.
|
|
Mezzanine Platforms
The mezzanine platform is a self-supporting walk-on steel
construction. It is erected in an existing building.
Mezzanine platforms create additional storage areas on the platform itself
and at the same time room underneath – e.g. for production. Compared with
integral mezzanine floors, racking platforms offer many individual design
options. For instance, they can also be used as order picking platforms.
|
|
Multi-Tier Shelving
Dependent on the type of goods, operational capacity and
available picking time, a combination of two existing systems often provides
an economic solution.
Best example: Order picking platforms, i.e. a combination of shelving and
storage platform.
|
|
|
|
Logistic systems, Warehouse Management, Batteries and
Chargers
|
|
Logistic systems
|
|
|
|
|
|
Planning and designing, System implementation, Maintenance and service
With more than 50 years logistic know-how Jungheinrich
also offers, besides fork lift trucks and racking systems, installation of
warehouse systems up to complete distribution centres.
To meet individual demands of our customers we offer a broad product
spectrum: from systems of trucks and rackings, warehouse management and
truck control software up to complex systems with high bay rackings (also as
silo), stacker cranes and conveyors.
As total responsible partner we accompany our customers from initial
discussions over planning and designing, coordination and organisation of
all logistic trades during implementation right up to „handing over the
key".
Behind your personal contact partner stands a team of experienced
specialists from the areas of material flow analysis, designing, simulation,
warehouse administration and truck control.
|
|
|
|
Warehouse Management
|
|
|
|
|
|
For the efficient management of all warehouse processes
Flexibility is the essential factor for optimising
logistic processes. Only those companies who adjust their materials flow to
changing requirements will be able to process deliveries cost-effectively in
the long term. Jungheinrich warehouse management systems provide you with
this flexibility – with optimally adjusted hardware and software components
that ensure efficient integrating of material and information flows for
every size of company and every storage type. With the opportunity to
individually optimise warehouse processes.
Optimised processes at every level
Increasing demands on throughput and delivery times require quick reactions
in warehousing. Apart from the technical equipment (e.g. racking, industrial
trucks or automatic components), an optimum design of all material flow
processes as well as information flows must be ensured. The basic hierarchy
of communication in a storage environment can be depicted as follows:
|
|
|
|
Batteries and Chargers
|
|
|
|
|
|
Combined forces: truck, battery and charger from one
supplier.
Complete solutions for the whole supply chain.
Jungheinrich provides batteries and suitable chargers for all its electric
trucks:
counterbalance, pedestrian stackers and order pickers. A carefully
coordinated system for long term, cost effective and reliable operations.
Over 3,500 Jungheinrich service engineers throughout Europe make their own
contribution. They know “their” equipment like no one else.
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
15
|
|
A
