Electric Linear Motion: Screw Drives
|
|
|
|
MXE Screw Drives
- Guidance System: Choice of S- Solid Bearing or P- Profiled Rail
- Rigidity: Medium to High
- Maximum static lateral load: 70-1472 lb. (depending on bearing and carrier selection)
- Maximum stroke: 59-120 inches (depending on screw and model selection)
|
 |
B3S Screw Drives
- Guidance system: Recirulating ball bearings
- Rigidity: High
- Maxium static lateral load: 591-4636 lb. (depending on load carrying options
- Maxium stroke: 61-120" (depending on screw selection)
|
|
|
|
TruTrack TKS Screw Drives
- Guidance system: Ground profile rails and ball bearing blocks
- Rigidity: Superior
- Maxium static lateral load: 868-1735 lb. (depending on load carrying options
- Maxium stroke: 29-96" (depending on screw selection)
|
|
|
|
|
|
Electric Linear Motion: Belt Drive
|
|
|
|
B3W Belt Drives
- Guidance system: Recirculating ball bearings
- Rigidity: High
- Maximum radial load: 341-8032 lb. (depending on load carrying options)
- Maximum lateral load: 591-4636 lb (depending on load carrying options)
- Maxium stroke: 156-292" (depending on body size)
|
|
TruTrack TKB Belt Drives
- Guidance system: Ground profile rails and ball bearing blocks
- Rigidity: Superior
- Maxium static lateral load: 200-1735 lb. (depending on load carrying options
- Maxium stroke: 96"
|
|
|
|
Electric Linear Motion: Rod Style Screw Actuators
|
|
|
|
RSA/RSM Series Rod Screw Actuators
The RSA/RSM Series of rod screw actuators offers the most complete selection of sizes, options and system components. Designed with high performance, high thrust, dependability and mounting flexibility in mind, the offer a cost-competitive solution for a multitude of motion control applications.
- 6 different body sizes
- 5 different screw selections
- Thrust capabilities ranging from 70 to 7000 lbs
- Strokes in any incremental length up to 60 inches depending on actuator selection
- Conforms to both NFPA and ISO industry mounting standards
|
|
GSA/GSM Series Guided Screw Drive Actuators
The GSA/GSM series of guided screw actuators combines a rod screw actuator with mounting blocks, guide rods and bearings. A complete selection of sizes, options and system components are available. The GSA/GSM series offers high performance, dependability and mounting flexibility for pivotal applications.
- 4 english and metric body sizes
- Thrust capacities range from 70 to 2700 lbs
- Good resistance to side loading
- Wide tooling plate for end effector mounting
- Choice of linear ball or composite bearings with internal lubrication of guide rods for increased bearing life
- Standard or oversized guide rod diameter for increased rigidity and lower deflection
- Strokes in any incremental length up to 36 inches depending on body size
|
|
|
|
Tolomatic ServoWeld™ Actuators
|
|
|
|
ServoWeld™ Advantages
- Excellent service life
- Zero maintenance
- Soft-Touch welding
- Lower cost of use
- Improved production rate/reduced cycle time
- Longer weld cap life
- Minimal environmental impact
- Supports manufacturing flexibility
|
|
SW series actuator
- Zero maintenance with repeatable performance for millions of cycles
- Patent-pending 8-pole hollow core motor for optimized unit length, force, speed and performance
- Ball or roller screw in the same body size for application flexibility
- Electroless nickel plated steel hexagon shaft with 25 RMS prevents weld slag adhesion
- 230VAC/325VDC or 460VAC/680VDC skewed windings potted directly into the aluminum extrusion minimizes cogging, keeps unit dimensions as small as possible & enhances thermal transfer
|
|
|
|
Pneumatic Rodless Actuators: Band Type Cylinders and Slides
|
|
|
|
MX Band Cylinder Series -
Maximum Durability
- Three different bearing guidance systems: Internal, Solid and Profiled Rail
- Rigidty: Low to heavy
- Maximum loads: 65 to 1472 lb. (depending on bore size and bearing selection)
- Maximum stroke: 203 to 206 inches (depending on bore size and bearing selection)
- Bores sizes: 1" (25mm), 1.25" (32mm), 1.50" (40mm)
|
|
LS Linear Slide Series
- Guidance system: Ground steel shafts and internal bearings
- Rigidity: High
- Maximum load: 10-200 lb. (depending on bore size and load carrying options)
- Maximum stroke: 72"
- Bore Sizes: 0.50 and 1 inch
|
|
|
|
Pneumatic Rodless Actuators: Magnetically Coupled
Cylinders and Slides
|
|
|
|
Magnetically Coupled Cylinders
Magnetically coupled cylinders have no mechanical connection between the carrier and piston resulting in a fully enclosed actuator body that prevents contaminants from entering or escaping. Mag cylinders are an excellent choice for applications with environmental concerns.
- 4 bore sizes: 0.250", 0.375", 0.625" and 1"
- 3 magnetic coupling strengths
- Field repairable design minimizes downtime
- Air or oil actuated to 100 PSIG
- Flexible mounting
|
|
Magnetically Coupled Slides
Magnetically coupled slides provide exceptional rigidity in a low-profile design. They have no mechanical connection between the carrier and piston resulting in a fully enclosed actuator body that prevents contaminants from entering or escaping. Mag slides are an excellent choice for applications with environmental concers or those that require end-of-stroke adjustment.
- 3 bore sizes: 0.375", 0.625" and 1"
- Choice of sintered bronze or linear ball bearings
- Air or oil actuated to 100 PSIG
- Shock absorber option
|
|
|
|
Pneumatic Rodless Actuators: Cable Cylinders
In 1955, Tolomatic introduced the first cable cylinder to the market and it is still offers several popular and efficient, cost and space saving designs. Tolomatic offers double acting, double purchase, single acting and track cable cylinder models with a wide variety of bore sizes and options.
Cable cylinders provide these distinct advantages:
- Allows equal force to be applied in both directions
- Cables can be specified in different lengths for application flexibility
- Cylinders can be isolated from any work area with extended cable lengths
- Strokes up to 60 feet
- Optional automatic cable tensioners
- Auto tensioner and brake combinations available for static holding
|
|
|
|
Single Acting Cable Cylinders
- Bore Sizes: 8 sizes ranging from 3/4-inch to 5 inches
- Strokes: Up to 60 feet
- Maximum Force Output: 43.5-1919 lb. (depending on cylinder selection)
- Maxium Pressure: 100 to 500 PSI (depending on cylinder selection)
- Cost savings advantage over double acting models
- Horizontal positioning with vertical movement capability
|
|
Double Acting Cable Cylinders
- Bore Sizes: Nine sizes ranging from 0.5 to 5 inches
- Strokes: Up to 60 feet
- Maximum Force Output: 19.4 to 1919 lbs (depending on model)
- Maxium Pressure: 100 to 500 PSI (depending on model)
- Auto Tensioners and Caliper Disc Brake options
|
|
|
|
Pneumatic Actuators: Rod Cylinder Slides
Tolomatic's RCS Series rod cylinders and Power-Block 2 rod cylinder slides are versatile
performers with a wide range of options. These actuators have the highest load weight vs
extension for their kind in the industry and they are ready to ship in 5 days or less.
|
|
|
|
RCS Rod Cylinder Slides

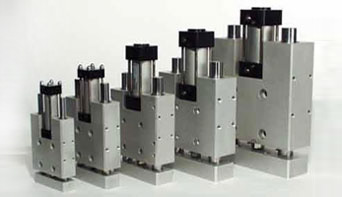

Tolomatic's RCS Series rod cylinder slide is a versatile performer with a wide range of options. These actuators have the highest load weight vs extension for its kind in the industry and they are on the shelf and ready to ship.
- 5 bore sizes ranging from 3/4 to 2 inches
- Strokes up to 12 inches
- Oversized guide rods and composite bearing combination
- Standard guide rods and ball bearing combination
- Single side access for ports, mounting holes, stop collar and switch adjustments
- Available with shock absorbers, stop collars and bumpers
|
|
Power-Block 2™ Rod Cylinder Slide
The Power-Block 2 rod cylinder slide's space saving design delivers maximum force and can withstand heavy side loads. It is the perfect choice for conveyor line stops and load lifting applications.
- 6 bore sizes from 0.05" to 3.25"
M
- aximum strokes to 6" depending on bore size
- Composite or linear bearings
- Shaft diameters up to 1.25"
|
|
|
|
Pneumatic Vane Rotary Actuators
|
|
|
|
Tolomatic Vane Rotary Actuators
Tolomatic's Vane Rotary Actuators offer an unbeatable combination of high torque, compact design, low breakaway and low price. Our vane rotary actuators designs have extruded aluminum housings with integral stators; rotor shafts; Buna-N double-lip vane and stator seal and a unique shaft and end cap design.
- 3 rotary actuator bore sizes
- Actuator torques up to 325 inch-pounds
- Double-lip seal design for high efficiency
- Rotary actuators are permanently pre-lubed
- Available in 100 and 280 degree rotations
- Optional infinitely adjustable stops for 1817 and 1825 series
|
|
|
|
|
|
Power Transmission: Gearboxes
|
|
|
|
Slide-Rite™ Gearboxes
- Leak-proof gearbox
- 1:1 ratio Compact and Standard gear drives
- 1:1 ratio Standard gear drive
- 2:1 ratio Standard gear drive
- 3:2 ratio Standard gear drive
- High torque ball bearings gear drive
|
|
Slide-Rite™ CR Gearboxes
- Corrosion resistant gearbox
- Leak-proof gearbox
- 1:1 ratio Compact and Standard gear drives
- High torque ball bearing gearbox
|
|
|
|
Float-A-Shaft® Gearboxes
- Compact 1:1 gear drive ratio
- Standard 1:1, 2:1, 2.5:1 and 3:2 gear drive ratios
- Low torque journal bearing gearbox
- High torque roller bearing gearbox
- Foot mount and flat base gearbox styles
|
|
|
|
|
|
Power Transmission: Caliper Disc Brakes
|
|
|
|
Pneumatic Brakes
- Available in three sizes: P10, P20, P220
- Replaceable High-Grade Friction Material
- Standard Buna-N Seals
- Durable Construction
- Zinc Plated Bolts
|
|
Hydraulic Brakes
- Replaceable High-Grade Friction Material
- Standard Buna-N Seals
- Bleeder Screws
- Aluminum or Cast Iron Construction
- Zinc Plated Bolts
- H210 model offers high torque in 8" wheel
|
|
|
|
Hydraulic/Mechanical Brakes
- Machined or Stamped Lever/Cam
- Standard EPR Seals
- Replaceable High-Grade Friction Material
- Aluminum or Cast Iron Construction
- Zinc Plated Bolts
- Bleeder Screws
- H/ME210 model offers high torque in a 8" wheel
|
|
Mechanical Brakes
- Zinc Plated Bolts
- Aluminum or Cast Iron Construction
- Machined or Stamped Lever/Cam
- Replaceable High-Grade Friction Material
- For use in areas that do not have access to other types of power
- ME210 offers high torque in a 8" wheel
|
|
|
|
Spring Applied Brakes
- Bellville Spring Washers
- Aluminum or Cast Iron Construction
- Standard Buna-N Seals
- Replaceable High-Grade Friction Material
- Zinc Plated Bolts
|
|
|
