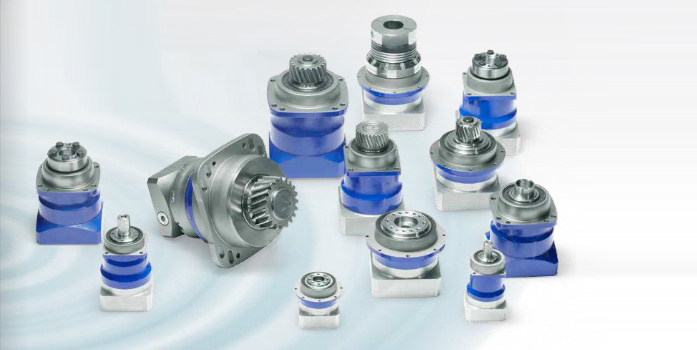

| SP+, Low-backlash planetary gearhead with output shaft |
- ideally suited to highly dynamic cyclic (S5) and
reliable continuous (S1) operation .
- Max. accel. torque: 1100 Nm
- Easy and reliable mounting to any servo motor
|
|
| TP+, Low-backlash planetary gearhead with ISO output
shaft |
- ideally suited to highly dynamic cyclic (S5)
and reliable continuous (S1) operation
- Max. accel. torque: 6000 Nm |
|
| HG+, Low-backlash hollow-shaft gear reducer |
- ideally suited to highly dynamic cyclic (S5) and
reliable continuous (S1) operation
- Max. accel. torque: 640 Nm |
|
| SK+ New Right-Angle Precision |
- Low-backlash right-angle gearhead with innovative hypoid technology.
- Designed for cyclic and continuous operation.
- Max. acceleration torque: 640 Nm
- Easy and reliable mounting to any servo motor
|
|
| WITTENSTEIN motion control |
|
 |
 |
 |
 |
TPM/TPMA, HIGH TORQUE
Compact Rotary Servo Actuator |
- compact bruschless AC-servo motor / gearbox combination
(saving up to 40% in the length)
- Provides high dynamic performance in an extremely compact package. Ideal for
high cyclic applications in compact machine designs. |
|
| TERNARY, flexible & precise positioning |
- Intelligent and free programmable linear positioning
system.
- For single-axis positioning where pneumatics doesn't provide the required
level of control and servos are too complicated and expensive.
- Low noise level and optimal precision. |
|
|
Servo actuator with integrated signal and power
transmission
via inductive slip ring |
| |
|
|
|
 |
 |
 |
 |
| MSSI, Mini AC Servomotor |
- Highly dynamic servomotors with highest power density
and up to 97% of efficiency.
- designed to be used under extreme site conditions. |
|
| Mini AC Servomotors without housing |
| |
|
| Motor with integrated gearhead |
| |
|
| Servocontroler |
Digital automatic controller with:
- torque regulation;
- resolver and encoder support. |
|
| WITTENSTEIN Bastian gears |
|
 |
 |
 |
 |
| BIGG - teeth technology |
| - polished bevel gears through a highly technology
provides the ideal gear for your individual applications. Bevel gears, spur
wheels or internal teeth. |
|
| Spur wheels |
- Tooth type: straight, diagonally, conical
- module: 0,3-6 up to 400 mm
- quality: up to DIN 4 |
|
| Bevel gears |
- module: 0,6-9 up to 270-500 mm
- quality: up to DIN 4 and/or DIN 7 |
|
|
