- Founded in 1828 as a smithy, today Konrad Pumpe GmbH is an innovative specialised company for plant engineering, with approx. 100 employees producing customised equipment and machine systems for diverse applications such as barn equipment, dosing systems and biogas plants. The firm primarily processes steel and stainless steels. The main strengths of Konrad Pumpe GmbH include custom-made equipment and own developments.
Visit us on:
Biogas Technology
-
You will profit from our many years of experience and professional methods of operating. The company Konrad Pumpe GmbH has specialised in the production of qualitatively high grade and above all unique products in the biogas technology sector. The storage and dosing of the most difficult, long fibrous substrates such as grass silage, solid manure and maize straw plays an important role in many biogas plants. The dosing and conveying technology of Konrad Pumpe GmbH captivates with high quality, operational reliability and economic efficiency - due to lowest energy consumption and low-wear.
BIG-Mix
-
Maximum economic efficiency. Maximum operational reliability. Greatest flexibility.
The storage and dosing of difficult, long-fibrous substrates such as grass silage, horse and farmyard manure or straw and hay plays an important role in many biogas plants. The Pumpe BIG-Mix solid dosing unit is characterized by a large storage volume with a subsequent, proven mixing and dosing technology with a vertical mixing screw. It is highly versatile for the most difficult substrates and characterized by its low energy consumption. Our BIG-Mix make sure you get a durable system with proven technology and individual adaptation possibilities.
- 35 up to 315 m³ storing volume
- effective feedrate with low own power consumption
- for 100% horse, cattle and turkey manure, grass silage, maize straw, but also wood chips, green waste or other waste material
- processing and dosing area for even dosing of all substrates
- hydraulically driven stainless steel push strip system without movable carriers
- low operating costs due to robust and low-wear construction
- liquid-tight construction according to Water Resources Act

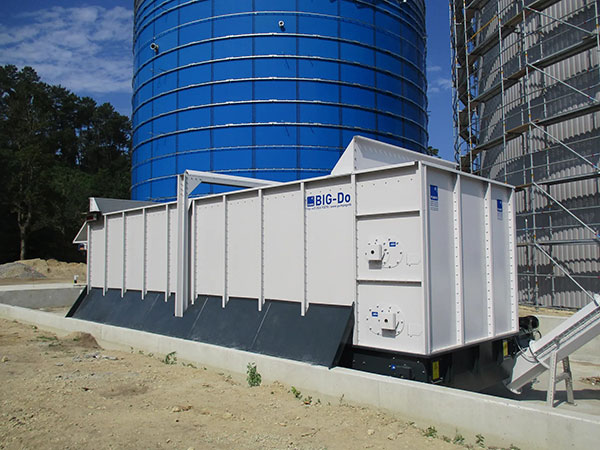

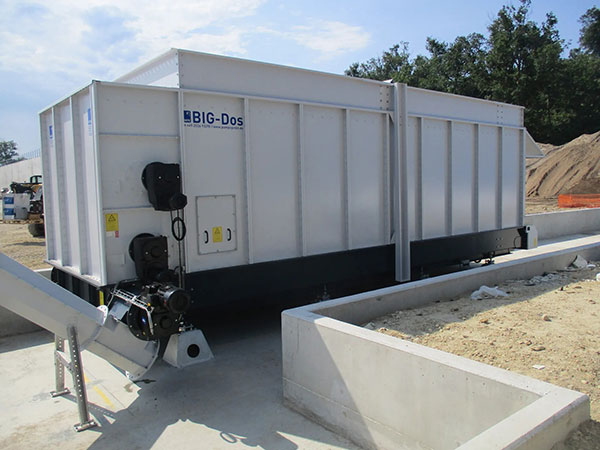

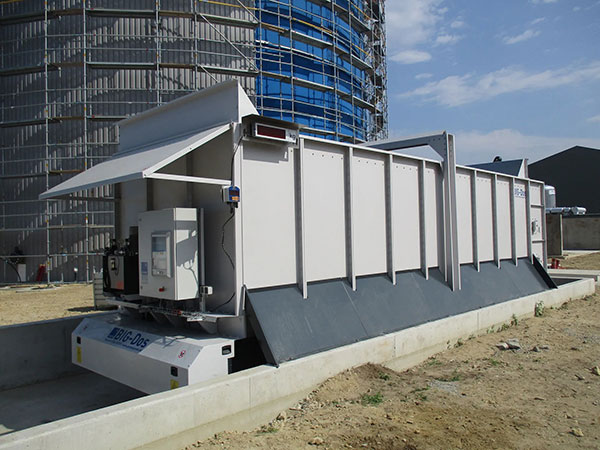

BIG-Dos
-
Optimal dosing units for your company
Our experience has taught us that every plant has its own unique requirements when it comes to capacity, substrate materials and conveyor technology. With our customized and proven BIG-Dos dosing units, we here at PUMPE have developed just the right solution to each of these challenges. Here are a few examples of areas of application.
- 43 up to 105 m³ storage volume
- effective feedrate at low own energy consumption
- dissolving roller in the upper section
- suitable for short-shredded horse, cattle and turkey manure, grass silage, maize straw, but also wood chips, film shreds and other waste material
- hydraulically driven push strips without movable carriers
- low operating costs due to the robust and low-wear construction
- liquid-tight construciton according to Water Resources Act
- completely made of stainless steel
BIOMISCHER
-
Optimal solutions for all requirements
With a BIOMISCHER in combination with our biomass screws, a biogas plant can be fed evenly and reliably. With us, you get your feeding technology from a single source. The base container is made of stainless steel as standard. Optionally, the top part, the mixing screw and its blades can also be supplied in stainless steel. This ensures low wear: rust-free, low-maintenance and robust.
- 12 to 80m³ loading volume
- for 100% manure and grass silage and other waste materials
- low power consumption
- with mixing and processing area
- on request with weighing device and complete electrical control
- robust and reliable construction

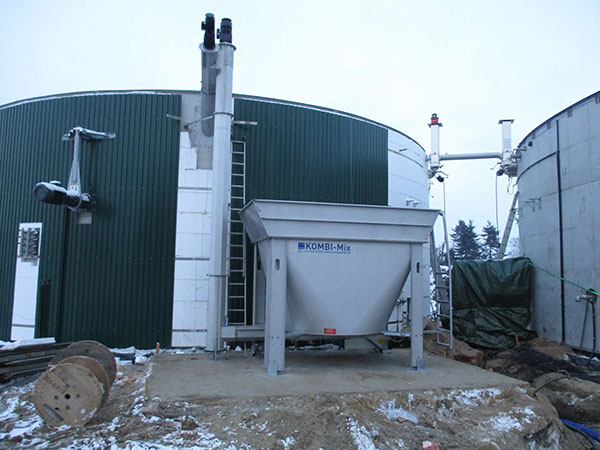

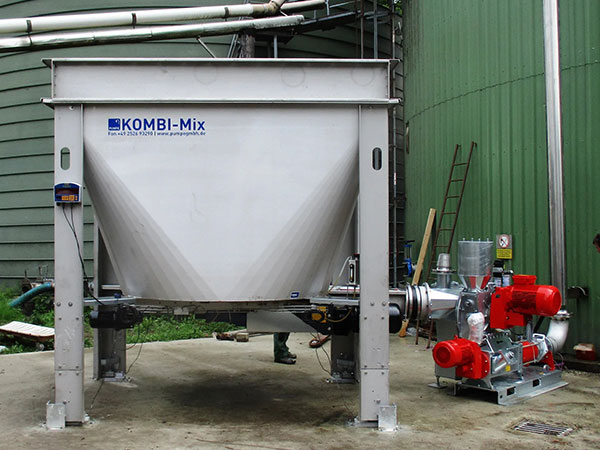

KOMBI-Mix
-
Complete dosing systems for biogas plants
Solid substrates such as maize, WPS, solid and poultry manure are stored, processed and fed in solid form by the solid dosing system into the digester below the liquid level.
- Sizes 8 and 12 m³
- In standard version all product contacted parts made of stainless steel
- Basic equipment with sword dosing
- Optionally with dosing and mixing screw
- Screw technology type 360K, type 360 and type 450
- Conveying capacity approx. 8 m³/h

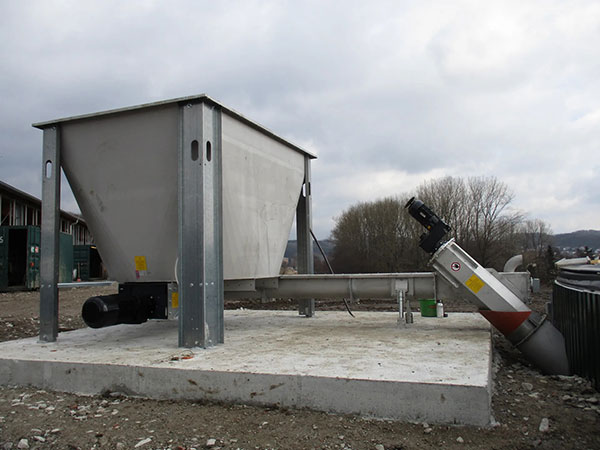

Solid material dosing unit
-
Robust. Economical. Durable.
Solid substrates such as maize, WPS, solid and poultry manure are stored, processed and fed in solid form by the solid dosing system into the digester below the liquid level.
- Low internal power consumption
- 13 to 50 m³ loading volume
- attractive price-performance ratio
- with mixing and preparation zone
- on request with weighing device and complete electrical control

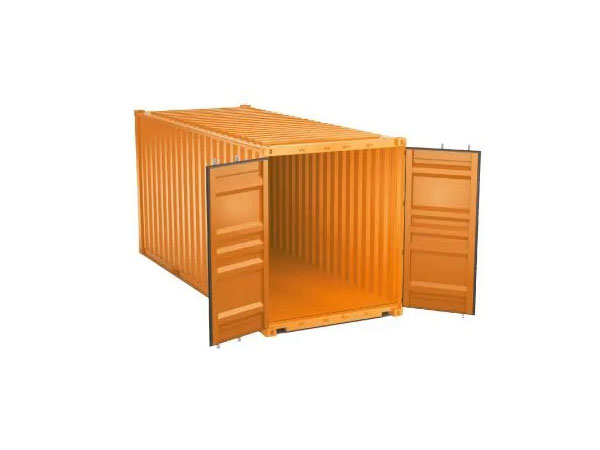

BIO-Mix-C
-
Solids dosing unit for transport in 40-foot ISO sea containers
The BIO-Mix-C is a solids dosing unit that is used for storing, processing and dosing solids and substrates in biogas plants. The system is specially designed for transport in 40-foot ISO sea containers and ensures reliable and efficient processing and dosing of various substrates and agricultural waste. This includes solids such as maize silage, GPS, solid manure, rice and maize straw.
We offer our system in sizes ranging from 18 to 46 m³ and with a vertical mixing screw or a dosing sword, depending on the planned substrate feed. The BIO-Mix-C is made of stainless steel in the area in contact with the product. Thanks to the robust design of the BIO-Mix-C, we can guarantee a long service life and functionality of your solid matter dosing unit.
- 18 bis 46 m³ loading volume
- Intensive processing of solids such as maize silage, GPS, solid manure, rice and maize straw
- Suitable for transport to distant countries and continents
- robust construction, made in Germany
- with mixing and preparation zone
- attractive price-performance ratio
Biomass dosing technology
-
Versatile application possibilities
The intake and dosing are optimally matched to the mixing technology in the fermenter. The vertical screw conveyor also serves as a support for the fermenter screw, which is important for fermenters whose walls cannot bear any mechanical loads.
- Delivery rate up to 50 m³/h
- lined with wear-resistant bearing plastic
- all parts in contact with the product are made of stainless steel
- continuous delivery rate
- according to ATEX-guidelines

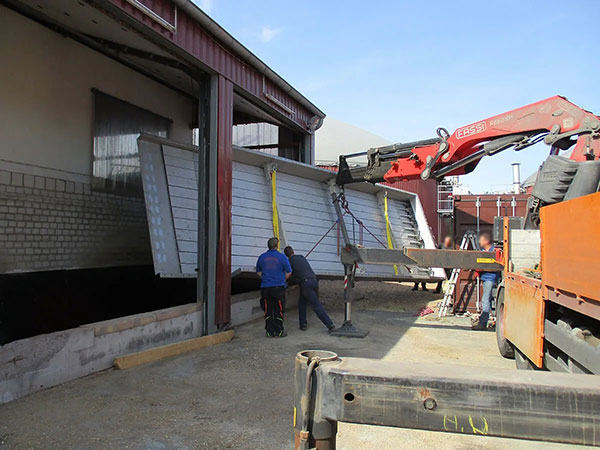

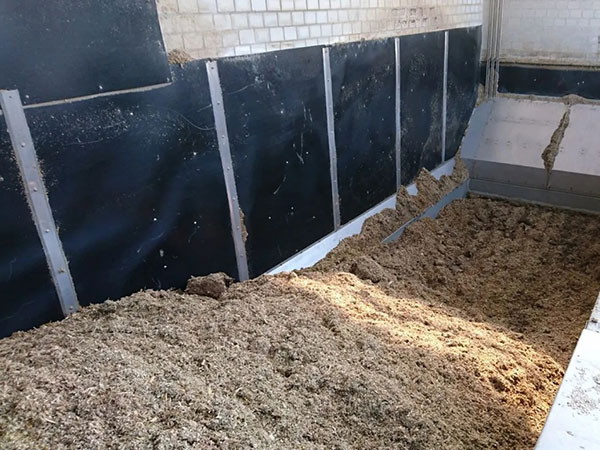

Conversion kits for biomass feeders
-
For modernisation and repowering
Our unique push bar system is characterised by the lowest energy input with a large storage volume for difficult substrates. The special feature consists of 12 to 16 stainless steel push bars, individually driven by hydraulic cylinders, which transport the substrate into a mixing and dosing area. With this push bar system, the most difficult substrate materials, such as 100% grass silage, solid manure, green cuttings, etc. can be easily processed. Storage volumes of up to 150 m³ are available.
Old walking floor systems such as concrete push floors or our solids dosing unit type SB-Mix can be renovated and processes optimised within a very short time and at low cost. The new floor assembly is mounted in the existing unit/concrete pit and connected to the existing control cabinet.
- Push floor system for quick and easy installation on site
- effective feed with low power consumption
- for 100% horse, cattle and turkey manure, grass silage, maize straw as well as wood chips, foil chips and other waste materials
- up to approx. 150 m³ loading volume
- hydraulically driven push bars without movable drivers
- low operating costs due to robust and low-wear construction
Agricultural technology
-
We offer a comprehensive range of agricultural technology from liquid feeding systems to CCM dosing systems.
UNI-Dos
-
UNI-Dos for heavy flowing bulk materials
We offer complete dosing systems for storing and processing heavy-flowing feedstuffs such as CCM, wet cereals, spent grains, bread flour and many others, and for dosing them by screw technology.
Bread Crusher
-
Perfect solutions for all requirements
We offer complete dosing systems with receiving hopper, bread crusher, conveyor technology and feeding systems.
Our bread crusher has a width of 2.6m, is 1.4m deep and the filling height is approx. 2.5m.
Liquid feeding
-
Konrad Pumpe GmbH can guarantee you the highest functionality and operational safety due to its more than 25 years of experience in the liquid feeding sector. We are happy to offer you complete feeding systems for your personal circumstances from a single source. In a detailed consultation, we will jointly develop and implement the feeding concept adapted to your requirements.
Forage fermentation
-
Better forage conversion
During feed fermentation, carbohydrates (sugar/starch) are converted into lactic acid by adding special lactic acid bacteria strains. Within 12 hours, the pH value in the mixture is lowered to below pH 4, thereby reducing undesirable microorganisms such as yeasts or coli germs. Mixtures of cereals (wheat, barley, rye, triticale, maize) and protein feeds (soya, rape, peas and field beans) mixed with warm water (60-65°C) are suitable for fermentation. The ready-fermented feed can be used proportionally up to 50% in the liquid feed ration.
- Reduction of feed costs
- Better feed conversion
- Stable forage due to natural lactic acid
- Lower consumption of feed acids to lower the pH value
- Improved palatability when using rapeseed meal and field beans
Medication
-
Medication systems for liquid feeding systems
In the feed kitchen/stable anteroom, an additional medication dosing container is set up, which is equipped with an agitator and an external pump.
- Medication mixture is dosed into spur lines
- Mixing tank up to 130 litres
- with agitator and replenishment
- Electropneumatic dosing valve
- Dosing quantity adjustable via diaphragm pump
Pallet racks
-
The strengths of our Jolk pallet racks at a glance:
- Material: painted steel, stainless steel 1.4301 and stainless steel 1.4571
- Surfaces spray-pickled or electropolished
- Pallet load capacity up to 1,550 kg
- Bay loads up to 11,000 kg
- Frame made of U-profile, support surfaces made of hollow box profile
Silo plants
-
Storage und loading of bulk material onto trucks and silo vehicles
The handling of bulk goods is still associated with a high personnel effort. Therefore, we have set ourselves the goal of developing a conveyor system for silo-truck loading that loads trucks and silo vehicles quickly and without complexity. Save time, logistics costs and reduce your personnel and operating costs. Bulk goods should be stored in a silo and loaded onto a truck or silo vehicle as efficiently as possible. Secure yourself a durable system with proven technology and individual adaptation options. Free-flowing and relatively dry bulk materials are conveyed. Special designs are also available for difficult bulk materials, such as abrasive or sensitive materials. For each of these challenges, we at PUMPE offer exactly the right answer. With our customised conveying systems, we have the right solution for every user.
Mechanical engineering
-
Many years of experience in sheet metal and stainless steel processing as well as dedicated personnel from all areas of metal processing form the foundation of our company.
Laser technology
-
TruLaser 3040 from Trumpf
Using the Trumpf Trulaser 3040 cutting machine we are in a position to fulfil your wishes in a minimum time and extremely flexibly.
The LoadMaster makes it possible to load our machines with sheet metal. It transports the sheets from the loading position to the pallet changer and deposits them there. The advantages of the LoadMaster are the automatic loading of the machine, the limited space needed and the increase in productivity. We are able to load sheet metal sizes of 4 X 2 Metres and with a weight up to 2200 kg in a cycle time of 112 seconds.
The processing of the sheet metal is made with the new generation of the well-tried laser-cutting machine TruLaser 3040. Stainless steel and aluminium are cut free of oxide and burrs. Depending on the type of metal thicknesses to be cut can vary from 0.5 to 25 mm. For programming we use the ToPs-programming stations from Trumpf. The transfer of CAD-data in the conventional formats is possible.
The connection to a sheet metal storage "STOPA" to the CNC-Processing machines is done in May 2013.
CNC-Bending
-
VarioPress 300, TruBend 8170 and Ecopress 175
Konrad Pumpe GmbH has established itself through its competence and many years of experience in the sector CNC-sheet metal processing. We offer services such as CNC-forming with highest possible demands of quality. Qualitatively top-grade products are produced using first-rate processes.
When forming metal precision is essential. With the assistance of our Trumpf folding presses it is possible for us to offer a customer-oriented service and to find solutions to the most differing tasks. With the TruBend machine it is possible to process a bending length of up to 4050 mm. Complete solutions from one source and first class quality can therefore be guaranteed.
CNC-Cutting
-
Lathes, Milling and Key Seating Machines
In 2011 Konrad Pumpe extended its production capacity by building a further production hall. We are now in the position to process complex machined individual and series components. The Vertical Machining Centre DMG 1035 V eco has a working range of 1035 X 500 X 510 mm.
The CNC-Universal-Lathe CTX 510 eco provides us with a first class prerequisite for demanding lathe work. The machine is equipped with the most modern 3D-control system software, an automatic mobile tailstock, a turret with 12 tool stations and a hydraulic 3-jaw chuck. The CTX 510 can machine work pieces with a length of 1050 mm and a diameter of 465 mm.Our electronic grooving and profiling machine is in the position to machine grooves between 3 and 32 mm in width over a length of 425 mm from a bore diameter of 10 mm.
Contract work
-
We offer our customers from industry, the trades and also private customers a range of services in the areas of planning, construction, processing, manufacture and assembly.
Our team consists of 70 employees who are characterised by teamwork, flexibility and commitment as well as creativity and adherence to deadlines. We carry out our own productions, including assembly, in Germany as well as in other European countries by our own trained specialists. The factory's own production control ensures our high quality standards.
