BAP Abwassertechnik
- Offer Profile
- Traditionally, we produce
high quality innovative valves.
Since 40 years we are engaged with the development and manufacturing of valves, especially in the field of waste water.
Our product range obviously includes fittings for industrial applications and utilities.
Good customer service and high customer satisfaction is a matter of course.
Product Portfolio
Products
- BAP sewage technology offers the full range of piping armatures and accessoires, regulation devices and control units, penstocks and non-return valves to you. Starting with the simple gate valve, draw-off penstock or regulation penstock up to the swing check valve with hydraulic damper or float throttle with remote control.
Flushing valves
- Flushing valve: round, sqaure or rectangular model with
grab handle.
Materials: stainless steel, aluminium and steel
Features:- soft seal
- wall mounted
- slide closure
- simple mounting and maintenance

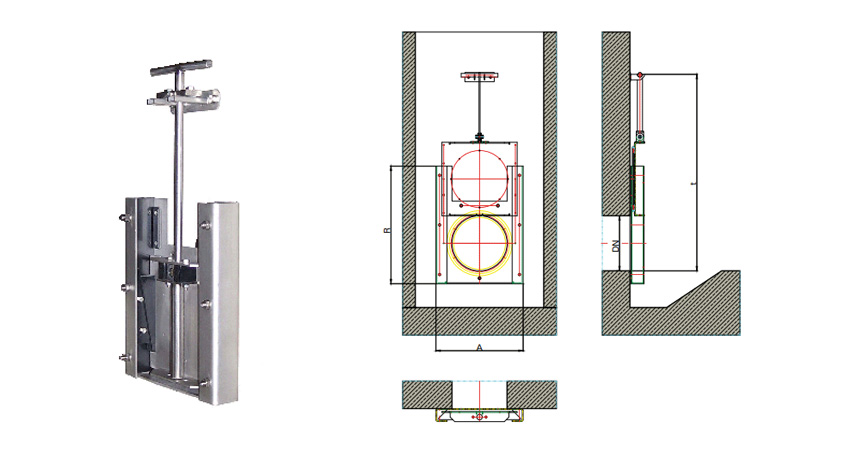

Draw-off penstocks
- Draw-off pentsock: ruound, square or rectangular model
with grad handle.
Materials: stainless steel, aluminium, steel and cast iron
Features:- soft seal
- wall mounted
- slide closure
- simple mounting and maintenance
Penstocks
- Penstocks in round, square or rectangular model.
Materials: stainless steel, aluminium, steel and cast iron. In the nominal widths
DN 100 - 2000 and above. Also as regulation valve version deliverable.
Features:- non-rising and rising spindle
- soft or hard seal
- wall mounted or wall anchor
- slide closure
- grooveless opening possible
- simple mounting and maintenance
Sluice valves
- Sluice valve for grouting in or wall mo:unted,
rectangular or special profils:
Materials: stainless steel, aluminium and steel
In the dimensions b x h 100 x 100 up to 2000 x 2000 and above.
Also as four sided sealing form deliverable.
: Features- non-rising or rising spindle
- soft seal also double sided possible
- wall mounted or wall anchor
- slide closure
- grooveless opening
- simple mounting and maintenance
Stop gates
- Stop gates for grouting in or wall mounted, rectangular
or special profils.
Materials: stainless steel, aluminium, and steel
In the dimensions b x h 100 x 100 up to 2000 x 2000 and above.
Features:- with grad handle and/or eyelets
- soft seal watertight on three sides
- wall mounted or wall anchor
- plate with measurement on request
- grooveless opening
- simple mounting and maintenance
Lowering penstocks
- Lowering penstock gate in rectangular or special
profiles.
Materials: stainless steel, aluminium and steel
In the dimensions b x h 100 x 100 up to 2000 x 2000 and above.
Features:- non-rising or rising spindle
- soft seal watertight on three or four sides
- wall mounted or wall anchor
- openings with free fall for openings flow rate measurements if required
- simple mounting and maintenance
Non-return valves
- Non-return valve with counter-weight, ordinary or
flouting hollow lid, for wall mounting, with flange connection, wall anchor
or push-in connection piece.
Materials: stainless steel, aluminium, steel and cast iron
Features:- round, square, rectangular or special profils
- soft or hard seal
- simple mounting and maintenance
Distributors
- Distributors of various types for grouting in or
plugging,
with self-locking worm gear pir with hand or actuating drive.
Materials: stainless steel, aluminium and steel
Features:- hand or electric drive
- soft seal
- supplied for any application
- simple mounting and maintenance
Crests, overfall weirs
- Crest according DIN 19558 with downflow baffle
forplug-fixing to grouted-in anchor rail.
Adjustable overfall weirs in any dimension with the require drives in stainless steel, aluminium and steel.
Rebound plates, wall pipes,
pipe fittings- Dashplates, wallpipes and pipe fittings for wall mounted
or casting in.
In stainless steel, steel and cast iron (only wall pipes and pipe fittings).
Dimensions from DN 50 up to DN 1800 an above.
Regulating choke valves,
controle valves- BAP float throttle device is a perfected conception on
throttle and control the storage level regulation. Mainly used for the
outllet of rain catchment basins, channels and sewage plant inlets.
BAP float throttle device are made of stainless steel in combination with high quality polymers like PA and POM.
Advances towards classic regulation devices:- no difference of water level nessesary
- the regulation device works automatically, diversions are eliminated by its self
- works without electric power
- constant nominal discharge, max +/- 3,5% from the calculated run-off
- nominal discharge changeable
- simple mounting and maintenance
- no difference of water level nessesary
Knife gate valves
- Kife gate valves in different body types and overfall
lentgh.
One or double side seated knife gate valves available.
Body in GG 25 (EN JL 1040), GGG 40 (EN JL 1030), 1.4408 and steel or stainless steel welded. Shut plates standard made of stainless steel.
Features:- size from DN 50 up to DN 1800 and above
- nominal pressure from PN 2 up to PN 50
- flange connection according EN 1092-2 PN 10 drilled, other drillings on request
- soft or hard sealing
- individual drive
- simple mounting and maintenance
Gate valves
- Gate valves in different body types and overfall length.
soft seated F5 Body made of GG 25 (EN JL 1040), GGG 40 (EN JL 1030), 1.4408 or cast steel.
Overall length:
F4 (DIN 3202), basic series 14 (DIN 588-1)
F5 (DIN 3202-1), basic series 15 (DIN 588-1)
Features:- size from DN 50 up to DN 1800 and above
- nominal pressure from PN 2 up to PN 100
- flange connection according EN 1092-2 PN 10
- soft (up to PN 50) or hard seated
- spindle also in stainless steel available
- simple mounting and maintenance
Swing check valves
- Swing check valves in different body types and overall
length.
ody made off GG 25 (EN JL 1040), GGG 40 (EN JL 1030), cast steel and stainless steel. Disks in similar materials. Variations with counter-weight,
hydralic damper, spring- or by pass. Soft or hard seated if required.
Overall length:
F4 (DIN 3202), basic series 14 (DIN 588-1)
F5 (DIN 3202-1), basic series15 (DIN 588-1)
Features:- soft or hard seated
- nominal pressure from PN 2 bup to PN 100
- flange connection according EN 1092-2 PN 10
- simple mounting and maintenance
Butterfly valves
- Butterfly valves in
different body types and overall legth.
Body made of GG 25 (EN JL 1040), GGG 40 (EN JL 1030), cast steel or
weldet type. Disks in similar material.
Seat EPDM, NBR, Viton or metal (only BAP 15.18).
overall legth:
K1 (DIN 3202), basic series 20 (DIN 588-1)
K3 (DIN 3202), basic series 16 (DIN 588-1)
F4 (DIN 3202-1), basic series 14 (DIN EN 588-1)
Simple mounting and maintenance.
Flanged joints for pipes
- Flanged joints in
diiferent types and overall length.
Size from DN 50 up to 1800 and above.
Fixable and non fixable types.
Flange connection according EN 1092-2 PN 10.
Nominal pressure from PN 2 up to PN 100.
Flange joints made of stainless steel, steel and cast iron.
Flood control/ stop log systems
- Logs
- Frames
- Moble frames
- Lifting device for stop logs
Actuations
- BAP sewage technology offers the full range of actuations
for armatures to you. Starting with the simple hand operation throughout
control square in the pit over electric actuators up to hydraulic drives.
We advise you gladly to get the coorect drive selection and control unit!
Example: BAP electric actuator
Power input: 1800W
Nominal tension: 230 V
On-load speed: 40-140 min¹
Torwue: 25-160Nm
Tool input: ø 30 mm
Weight: ca. 10,2 kg
