  • Offer Profile

  • Qimarox is a leading manufacturer of components for material handling systems. As a manufacturer of, among other things, palletisers, product lifts, pallet lifts, packaging machines and shielding systems, Qimarox distinguishes itself by its contemporary vision and approach, in which innovation, quality and added value are of paramount importance.

Product Portfolio

  • Vertical conveyors for small goods

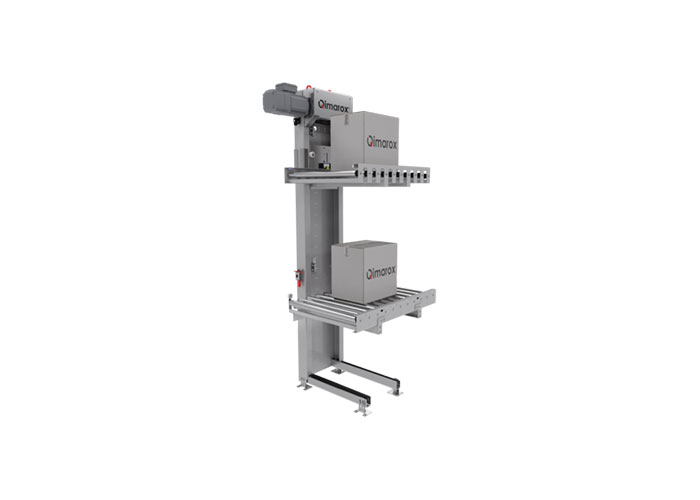

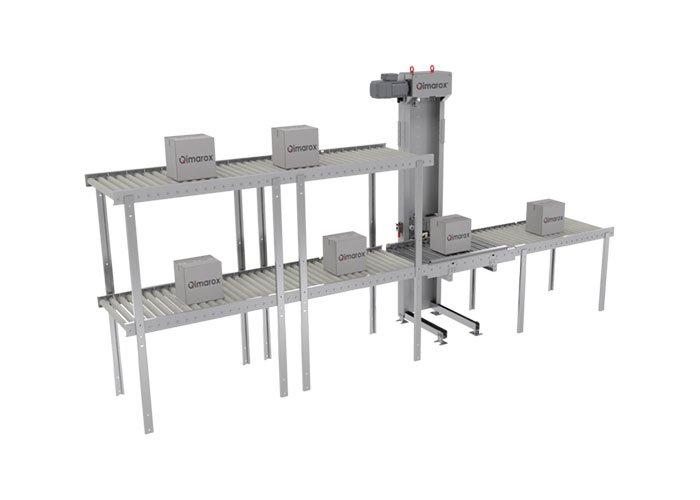

      • Vertical conveyor Prorunner mk1

      • The Prorunner mk1 is a compact and robust discontinuous product lift that requires minimal maintenance and is attractively priced.

        The vertical conveyor Prorunner mk1 has the following specifications:
        • Lowest infeed/outfeed position of the mk1: 360 mm / 14 inch
        • Highest infeed/outfeed position of the mk1: 14,300 mm / 555 inch
        • Max. Column height: 14,450 mm / 47 feet
        • Drive: SEW 0,55 kW
        • Max. Product weight: 100 kg / 220 lbs
        • Max. Product size: 910 x 610 mm / 36 x 24 inch
        • Max. Throughput: 420 p/hour
        • Required surface: 500 x 900 mm / 20 x 35 inch

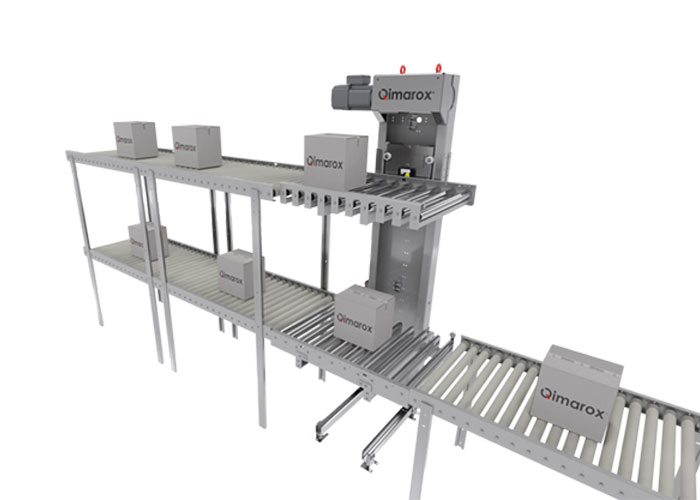

      • Vertical conveyor Prorunner PR2

      • High-speed VRC (Vertical Reciprocating Conveyor) with a timing belt drive, based on the successful Qimarox Prorunner mk1. This VRC ensures seamless and reliable transport to multiple input and output levels. Compact design: optimizes space utilization in any facility. High capacity: handles loads up to 100 kg with up to 500 movements per hour.

        Vertical Conveyor Prorunner PR2 specifications:
        • Lowest infeed/outfeed position: 350 mm / 14 inch
        • Highest infeed/outfeed position: 17,610 mm / 693 inch
        • Max. Column height: 17,950 mm /  706 inch
        • Drive: SEW DRN 0,55 kW - 3 kW
        • Max. Product weight: 100 kg / 220 lbs
        • Max. Product size: 1125 x 760 mm / 44 x 30 inch
        • Max. Throughput: 500 p/hour
        • Required surface: 500 x 900 mm / 20 x 35 inch

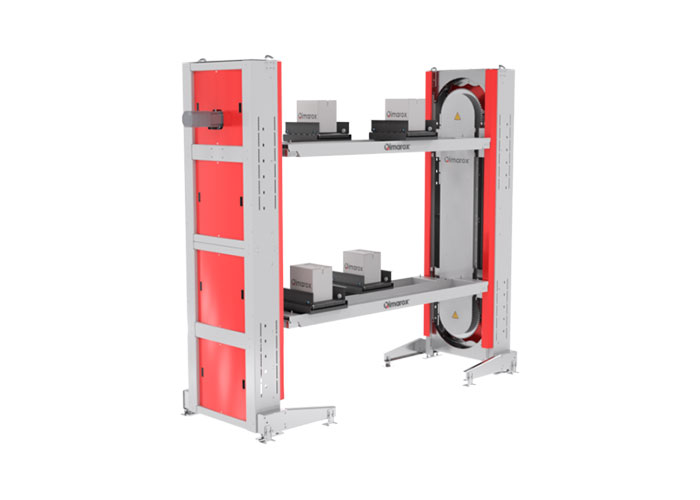

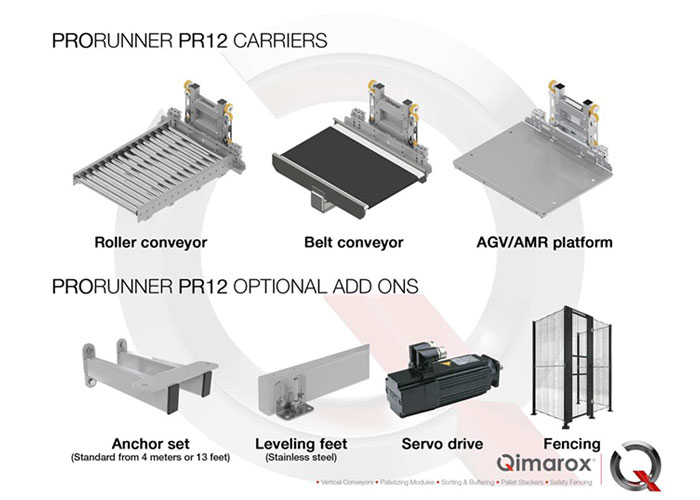

      • Vertical Conveyor Prorunner PR12

      • The PR12 is a discontinuous vertical conveyor with a small footprint built for AMR and products up to pallet size. The machine has good positioning accuracy, stiffness and a high capacity. The PR12 is the perfect choice to transport Automated Guided Vehicles or products. The machine column can even be fitted with a secondary carrier which is individually driven. This doubles the capacity. Each carrier can be fitted with a roller conveyor or a platform for an AMR.

        The specifications for the discontinuous vertical conveyor Prorunner PR12 are:
        • Lowest infeed/outfeed position of the PR12: 200 mm / 8 inch
        • Highest infeed/outfeed position of the PR12:  23.300 mm / 919 inch
        • Max. Column height: 24.000 mm / 79 feet
        • Drive: Gear motor with encoder (closed loop) / Servo drive without encoder (open loop)
        • Max. Product weight: 150 kg / 330 lbs per carrier (can be increased by 75 kg / 165 lbs by choosing for a HD* edition - max. 300 kg / 660 lbs per carrier)
        • Max. Product size: 850 x 700 mm / 33 x 28 inch
        • Max. speed = 2 meter a second / 6.5 feet p/s
        • Required surface single carrier: 966 x 1125 mm / 13 ft²
        • Required surface double carrier: 1.125 x 1.932 / 23 ft²

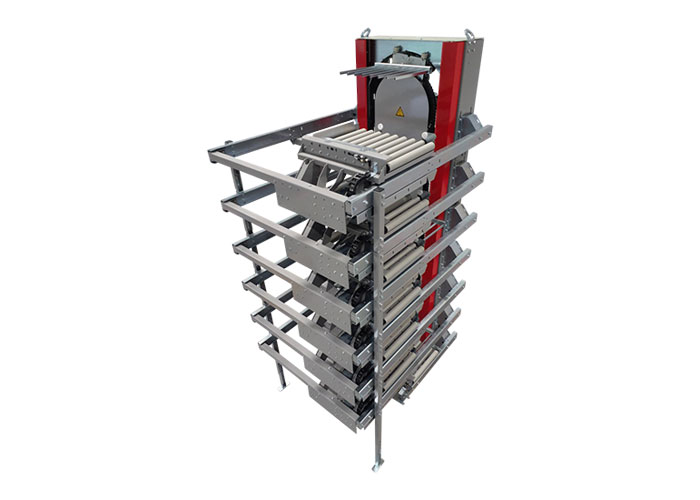

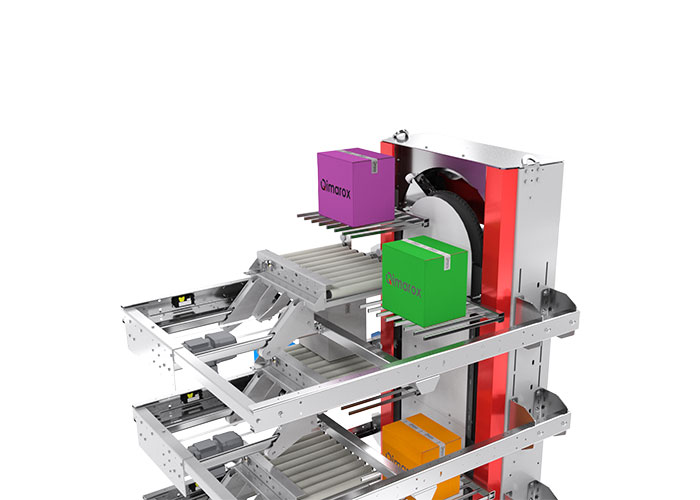

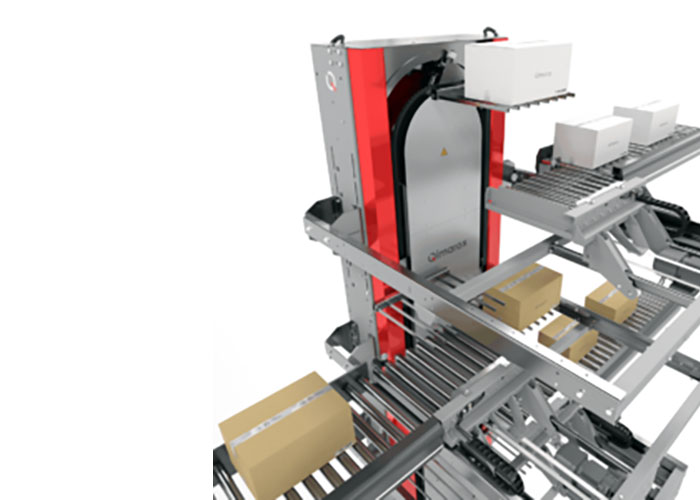

      • Continuous vertical conveyor Prorunner mk5

      • The Prorunner mk5 is a modular continuous vertical conveyor perfect for average to high capacity material handling applications.

        The Prorunner mk5 is a fully module based continuous product lift that can be easily assembled in almost any configuration. This system incorporates only highly reliable components that offer an extremely long service life. Maintenance is restricted to an absolute minimum.

        The specifications for the continous vertical conveyor Prorunner mk5 are:
        • Lowest infeed/outfeed position of the mk5: 676 mm / 27 inch
        • Highest infeed/outfeed position of the mk5: 19,200 mm / 757 inch
        • Max. column Height: 19,700 mm / 65 feet
        • Drive System: SEW 0.37 kW
        • Max. product weight: 50 kg per carrier / 110 lbs per carrier
        • Min. product size: 225 x W x 50 / 9 inch x W x 2 inch
        • Max. product size: 600 mm x 610 mm x H / 23.5 inch x 24 inch x H
        • Throughput: 1 carrier for 200 products per hour (add further carriers for higher capacities)
        • Configuration: B3 or C2 for elevating, 6G or 7F for descending (more options become available with a different type of carrier)
        • Securyfence Safety Fencing H=2120 mm (83.47")
        • Pitch Product Carrier 75 mm (2.95")
        • Infeed Conveyor: gravity roller conveyor / powered roller conveyor optional
        • Outfeed Conveyor: gravity roller conveyor / powered roller conveyor optional

      • Prorunner mk5 Washdown (WD)

      • The Washdown Prorunner mk5 is a continuous vertical conveyor designed in stainless steel for easy cleaning, making it ideal for when clean operations are needed. Suitable for average to high capacity material handling applications.

        The Prorunner mk5-WD is a fully module based continuous product lift that can be easily assembled in almost any configuration. This system incorporates only highly reliable components that offer an extremely long service life. Maintenance is restricted to an absolute minimum.

        The specifications for the continuous vertical conveyor Prorunner mk5-WD are:
        • Full stainless steel design
        • Lowest infeed/outfeed position of the mk5: 650 mm / 25.5 inch
        • Highest infeed/outfeed position of the mk5: 7300 mm / 287 inch
        • Max. column Height: 8000 mm / 26 feet
        • Drive System: SEW 0.37 kW
        • Max. product weight: 50 kg per carrier / 110 lbs per carrier
        • Min. product size: 600 x 400 / 23.6 inch x 15.7 inch
        • Max. product size: 600 mm x 600 mm x H / 23.6 inch x 23.6 inch x H
        • Throughput: 1 carrier for 200 products per hour (add further carriers for higher capacities)
        • Configuration: B3 or C2 for elevating, 6G or 7F for descending (more options become available with a different type of carrier)
        • Securyfence Safety Fencing H=2120 mm (83.47")
        • Pitch Product Carrier 75 mm (2.95")
        • Infeed Conveyor: gravity roller conveyor / powered roller conveyor optional
        • Outfeed Conveyor: gravity roller conveyor / powered roller conveyor optional

      • Continuous vertical conveyor Prorunner mk5-XL

      • The Prorunner mk5-XL continuous vertical conveyor is suitable for average to high capacity applications. It is perfect to transport (bigger) products vertically up and down.

        The specifications for the Prorunner mk5-XL are:

        • Lowest infeed/outfeed position of the mk5: 810 mm / 32 inch
        • Highest infeed/outfeed position of the mk5: 17,300 mm / 680 inch
        • Max column height: min. aprox. 18 mtr / 705 inch
        • Drive System: SEW 0,55 - 4,0 kW
        • Max. product weight: 50 kg per carrier / 110 lbs per carrier
        • Max. product size: - 900 mm x 610 mm x H / 35 inch x 24 inch x H
        • Throughput: 1 carrier for 200 products per hour (add further carriers for higher capacities)
        • Configuration: B3 or C2 for elevating, 6G or 7F for descending (more options become available with a different type of carrier)
        • Securyfence Safety Fencing H=2120 mm (83.47")
        • Pitch Product Carrier 75 mm (2" 61/64)
        • Infeed Conveyor: gravity roller conveyor / powered roller conveyor / belt conveyor / shuttle roller conveyor
        • Outfeed Conveyor: gravity roller conveyor / powered roller conveyor / belt conveyor / shuttle roller conveyor

    • Vertical conveyors for pallets

    • Qimarox offers various types of vertical conveyors for empty or loaded pallets which can be used in combination with our palletising modules or as stand-alone units in pallet conveyor systems.

      A vertical pallet conveyor is a type of conveyor system that is used to transport pallets or other large items between different levels in a warehouse or manufacturing facility. Unlike horizontal conveyor systems, which move items along a single plane, vertical pallet conveyors lift items vertically, allowing them to be transported between different floors or levels of a facility.

        • Pallet lift Prorunner mk9

        • The Prorunner mk9 is a vertical pallet conveyor that automates the transport of pallets by lifting and/or lowering the pallets to the desired level of your facility. No manual labor is required anymore when you choose for the Prorunner mk9

          Advantages of the vertical pallet conveyor Prorunner mk9 are:
          • Minimal footprint
          • Right-angled setup also possible
          • Suitable for vertical sorting (multiple floors)
          • Pallets, racks, etc. up to 1,250 kg
          • Sturdy, low maintenance machine
          • No chains need lubricating or tightening
          • It makes minimal operating sound
          • Solid steel construction

        • Pallet lift Prorunner mk10

        • The Prorunner mk10 is the perfect pallet lift for heavy pallets and offers a solution for capacities of up to 100 pallets per hour.

          Advantages:
          • Minimal footprint
          • Infeed / discharge to all sides
          • Suitable for vertical sorting (multiple floors)
          • Pallets, racks, etc. up to 2000 kg
          • Sturdy, low maintenance machine
          • Quiet
          • Solid steel construction
          • Standard equiped with drop-down safety

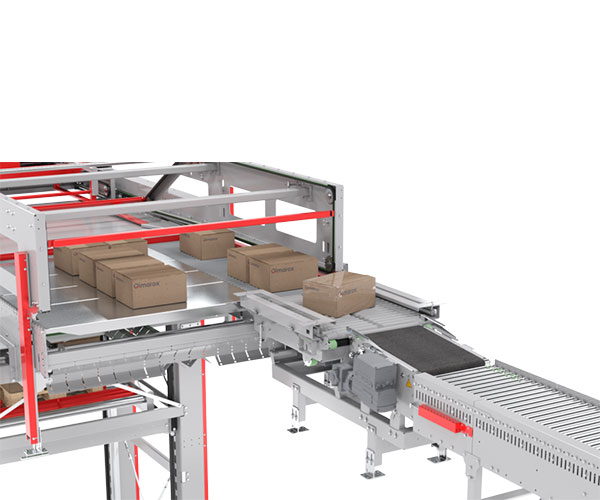

      • Palletizing solutions

      • Palletization or palletizing is a logistic process which consist of placing items/goods stacked together on a pallet. The goal of this process is to make it easier for a manufacturer to transport their loads.

          • Palletizer Lowrunner LR8 – for IQF products

          • The Lowrunner LR8 Palletizer is designed specifically for palletizing cartons containing frozen foods, such as vegetables, fries, and fruits.

            Benefits of the Lowrunner LR8
            • Unique method of pattern formation, where products are positioned on exact coordinates (patented)
            • Pallet building with a bi-directional stacking plate
            • User-friendly touchscreen operation
            • Freely programmable stacking patterns
            • Solid construction with perfect finishing for tough jobs
            • Easy access for service and maintenance
            • Standard machine with commercially available components

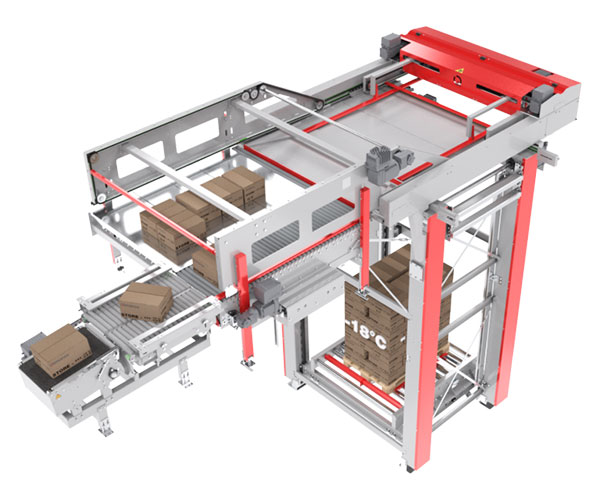

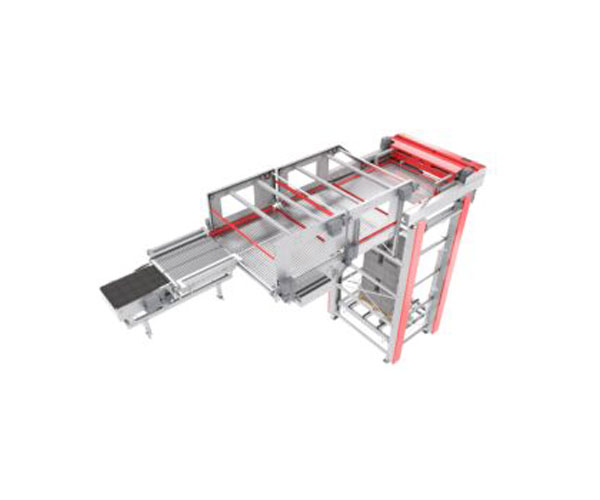

          • Palletizer Highrunner HR8 – for IQF products

          • The Highrunner HR8 Palletizer – for IQF products is used for palletizing cartons containing frozen food – mainly vegetables, fries & fruits.

            Benefits of the Highrunner HR8
            • Unique method of pattern formation, where products are positioned on exact coordinates (patented)
            • Vertical pallet conveyor Prorunner PR10 included, with automated drop-down safety
            • Built-in buffer for depositing products in layers
            • User-friendly touchscreen operation
            • Pattern generator included
            • Freely programmable stacking patterns
            • Solid construction with perfect finishing for tough jobs
            • Easy access for service and maintenance
            • No more than 2.4 x 3.4 metres of space is required
            • Standard machine with commercially available components

          • Logistics Palletizer Highrunner HR9

          • The Highrunner HR9 is designed for the logistics industry and has handling capacities of 500 – 1,500 products per hour.

            The Qimarox Highrunner HR9 Logistics palletizer is specially designed for logistic operations. Therefore, this machine is very effective where many different products are handled in short batches. Our unique and patented layer-formation system can generate a large variety of layer patterns. These patterns can be selected automatically or generated by the state-of-the-art pattern generator. A specially designed pattern generator will present to you the most optimal layer pattern according to box size and pallet size. As example, if the installation is equipped with a full 3D product scanner it is even possible to have the system working fully autonomously.

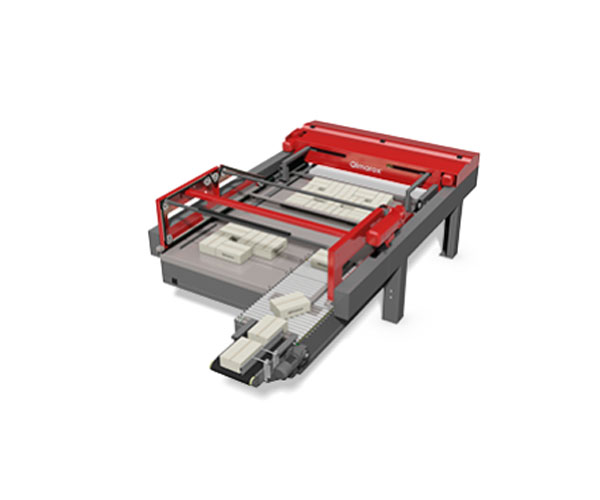

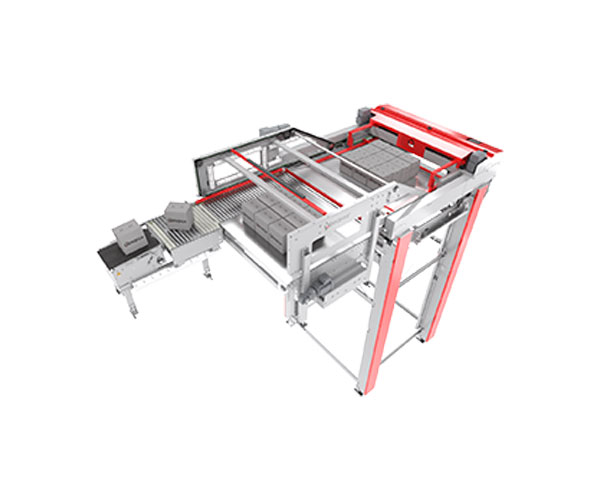

          • Palletizer Lowrunner LR1 Qimarox

          • The modular LOWRUNNER LR1 palletizer from Qimarox is a 5-axis palletizer with a capacity of up to 800 packages per hour. It is an entry-level model, suitable for an environment where rapid return on investment is desired or necessary. Optionally, the LOWRUNNER mk1 can also places the pallets and intermediate sheets by itself.

            Benefits of the Lowrunner LR1
            • Unique method of pattern formation, where products are positioned on exact coordinates (patented)
            • Layer building row-by-row to give high flexibility in layer forming
            • User-friendly touchscreen operation
            • Freely programmable stacking patterns
            • Solid construction with perfect finishing for tough jobs
            • Easy access for service and maintenance
            • Not more than 2.4 x 3.4 metres of space needed
            • Standard machine with commercially available components

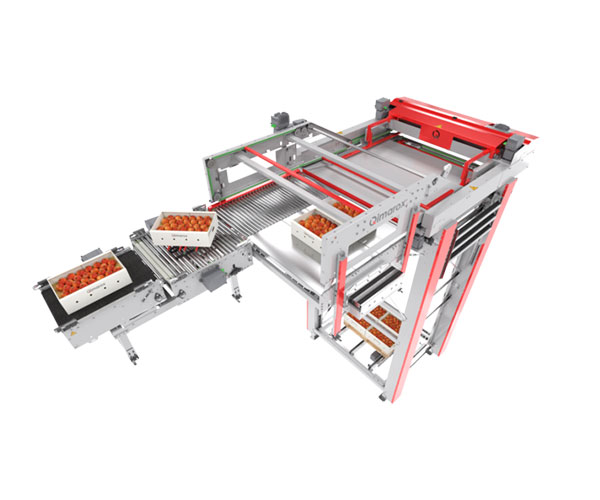

          • Palletizer Lowrunner LR3

          • The modular LOWRUNNER LR3 palletizer from Qimarox is a palletizer with a capacity of up to 1,500 packages per hour. It is suitable for an environment where rapid return on investment is desired or necessary. Optionally, the LOWRUNNER LR3 can also be equipped with the Qimarox Sheetrunner to put intermediate sheets between layers.

            The Lowrunner LR3 can handle a wide range of products:

            • boxes
            • boxes with lids
            • trays
            • trays with foil
            • crates
            • etc.

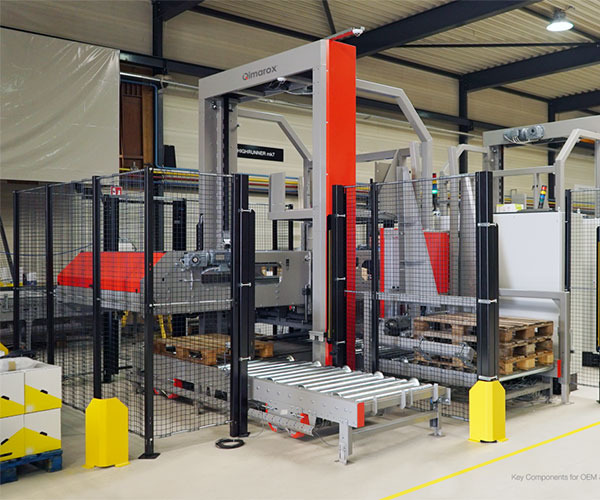

          • Palletizer Highrunner HR7

          • The Highrunner HR7 series is used for handling capacities of 500 – 4.500 products per hour.

            What distinguishes Highrunner flexible palletizer from most other palletizing systems is the position of the pattern-formation conveyor. In the Highrunners, the pattern-formation conveyor is located at a height, while the pallet is moved up and down with a pallet lifter. The top of the pallet is consequently always located at the same level as the pattern-formation conveyor.

            • Built-in buffer for depositing products in layers
            • User-friendly touchscreen operation
            • Freely programmable stacking patterns
            • Solid construction with perfect finishing for tough jobs
            • Easy access for service and maintenance
            • No more than 2.4 x 3.4 metres of space is required
            • Standard machine with commercially available components

        • Pallet handling

        • Qimarox can supply various modules for pallet handling. These modules can be used in combination with our pallet lifts or palletising modules but also as stand-alone units. Pallet handling machines are industrial machines that are used to move and manipulate pallets, which are horizontal platforms typically used for storing and transporting goods. These machines come in a variety of types and sizes, and can be used for tasks such as loading and unloading pallets from trucks, stacking and unstacking pallets, and moving pallets within a warehouse or storage facility. Some examples of pallet handling machines include forklifts, pallet jacks, pallet dispensers and pallet conveyor systems. These machines are essential for efficient and safe handling of pallets in industrial and commercial settings.

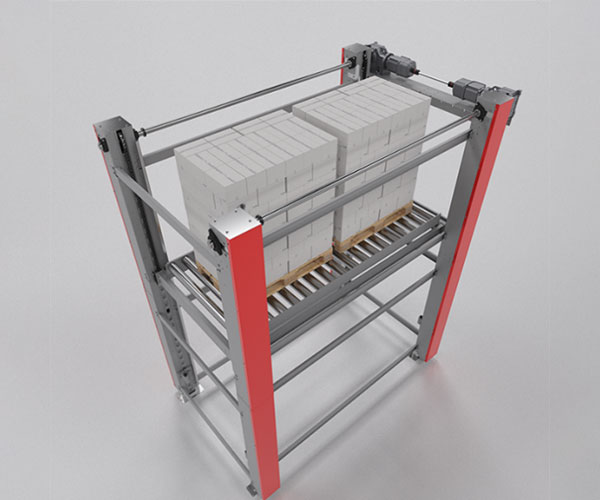

            • Loaded pallet stacker Prorunner mk10-PS

            • Based on our successful Prorunner mk10 pallet lift the loaded Pallet Stacker is a very versatile unit to stack loaded pallets on top of each other.

              The specifications of the pallet stacker Prorunner mk10-PS are:

              • Lowest infeed/outfeed position of the mk10-PS: 0 mm / 0" inch (Floorlevel)
              • Highest infeed/outfeed position of the mk10-PS: 1,000 mm / 40 inch
              • Max. lifting weight: 1000 kg / 2200 lbs
              • Max. pallet size: 1,750 x 1,550 mm / 67 x 61 inch
              • Max. infeed throughput: 120 single pallets p/hour
              • Max. outfeed throughput: 60 doubled pallets p/hour
              • Also possible to stack more than 2 pallets on top of each other
              • Standard stacking height 3.000 mm / 120 inch

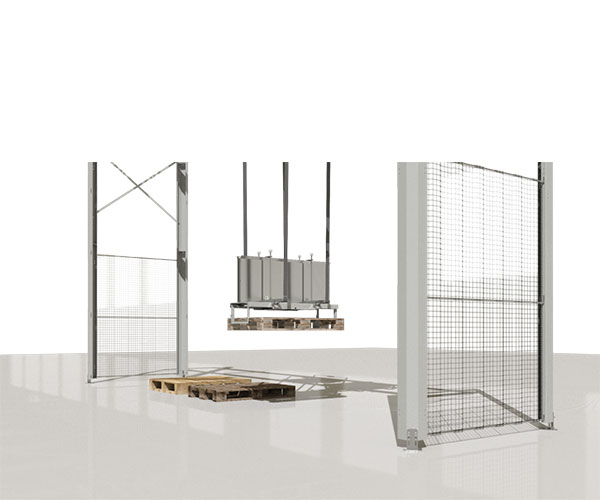

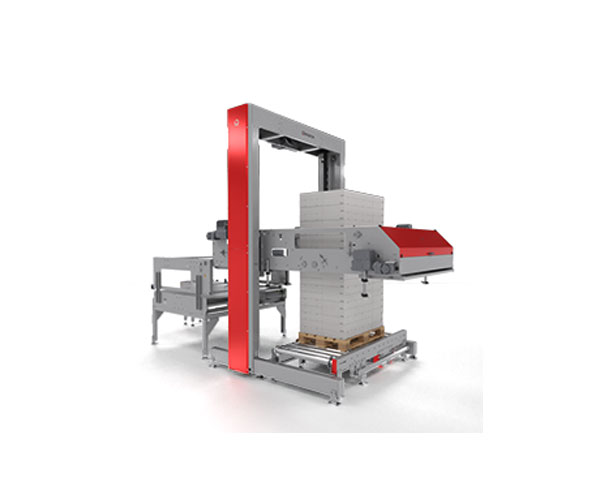

            • Pallet Dispenser PD1 for empty pallets

            • The Qimarox Pallet Dispenser is suitable for stacking and/or de-stacking of empty pallets.

              The specifications of the pallet dispenser PD1 are:

              Min. pallet size: 800 x 800 mm /32" x 32" inch
              Max. pallet size: 1200 x 1200 mm / 48" x 48" inch
              Throughput (incl. pallet transport): 225 p/hour
              Maximum pallet stack height: 2,500 mm / 98" inch
              Lifting power: 300 kg / 660 Lbs.

            • Pallet Dispenser PD2 for empty pallets

            • The Qimarox Pallet Dispenser PD2 is suitable for stacking and/or de-stacking of empty pallets.

              The specifications of the pallet dispenser PD2 are:

              Min. pallet size: 800 x 800 mm /32" x 32" inch
              Max. pallet size: 1200 x 1200 mm / 48" x 48" inch
              Throughput (incl. pallet transport): 120 p/hour
              Maximum pallet stack height: 2,500 mm / 98" inch
              Lifting power: 400 kg / 880 Lbs.

          • Safety fencing

          • Industrial safety fencing is a type of fencing used in industrial settings to protect workers and equipment from potential hazards. This fencing is typically made of sturdy materials such as steel or aluminum, and is designed to withstand the rigors of industrial environments. It is often used to enclose machinery or hazardous areas, or to create barriers around areas where workers may be at risk of injury. Safety fencing can help prevent accidents and injuries, and can play an important role in ensuring the overall safety of industrial workplaces.

              • Safety Fence Mesh Panels – Securyfence

              • Securyfence consists of profiled mesh panels that are screwed to the posts via tubes. The standard sizes don’t fit? You can easily cut and saw the mesh panels and tubes to fit on the spot.

                All Securyfence mesh panels have a mesh size of 40 × 39 mm and a wire thickness of 3 mm.

                The mesh panels can be attached to sturdy, square columns with simple hand tools. Specifications of the columns:

                • Thickness: 50 x 50 mm
                • Height: 2256 mm or 1156 mm
                • Base plate: 138 × 138 mm and a thickness of 6 mm.

              • Safety Fencing Hinged Doors – Securyfence

              • Securyfence hinged doors offer easy access to protected machines or shielded areas. The hinged doors are available in two widths.

                Securyfence hinged doors are available in three standard widths:

                • 730 mm
                • 990 mm
                • 1240 mm

                The dimensions were chosen so that the doors can easily be exchanged with standard mesh panels. This also means you can easily install an additional door afterwards, without having to adjust the complete setup.

              • Safety Fencing Sliding Doors – Securyfence

              • With Securyfence sliding doors, you can create an opening in your machine guard or area guard in even the most confined of spaces.

                Securyfence sliding doors for safety fencing are available in three standard widths:

                • 730 mm
                • 990 mm
                • 1240 mm

                The dimensions were chosen so that the doors can easily be exchanged with standard mesh panels. This also means you can easily install an additional door afterwards, without having to adjust the complete setup.

              • Stainless Steel – Securyfence

              • Stainless steel safety fencing, perfect for environments that needs to be clean such as food processing or for pharma.

                Benefits of the Securyfence Stainless Steel fencing at a glance:
                • Quick to assemble
                • Simple to customise
                • Extra sturdy thanks to profiling
                • Modular system
                • Good transparency
                • Available in stainless steel
                • Dimensions meet all CE and NEN standards
