- KAUP has its origins in Leider, an urban district of Aschaffenburg. In 1894 a smithy was founded which later specialized in repairs in the field of ship and harbour equipment and was the forerunner of today's company. In the beginning of the 1960s the company, headed by Otmar Kaup, began with the manufacturing of attachments for forklift trucks. Later production was extended to include container spreaders and stationary equipment for material handling. With various trend-setting innovations and designs KAUP succeeded, over the last five decades in offering its customers optimized solutions for specific task requirements in material handling. Therefore many forklift trucks today fulfil their jobs with KAUP know-how. The wide variety of KAUP products is made possible by the high range of production and the sophisticated KAUP-modular system which can be used to configure any individual customer requirement.
Product Portfolio

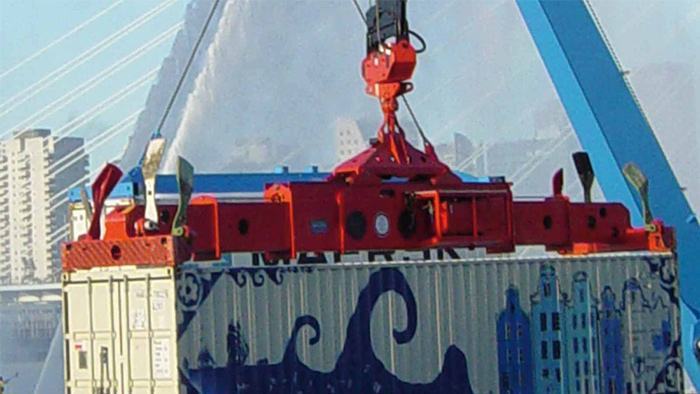

Forklift spreader for container handling
-
KAUP Container spreaders for forklift trucks guarantee efficient handling for all container types. Whether it’s a top spreader, spreader for lateral or frontal pick-up, rigid design or telescopic - KAUP spreaders can be optimally configured for almost any application.
KAUP forklift trucks spreaders ensure maximum handling performance, providing an excellent view of the container corners. This enables the operator to position the spreader quickly and accurately.
Fixed Top Lift Spreader T192E
-
- For top handling a specified container size (10' to 40' ISO / Sealand / special container dimensions)
- To be slipped onto forks and inverted forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 45.000 kg

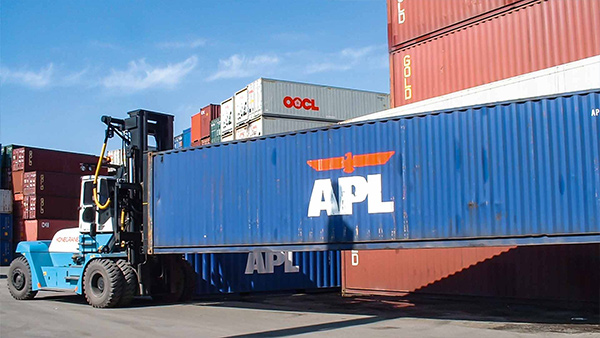

Telescoping Top Lift Spreader T192E
-
- For flexible top handling of 10' to 40' ISO / Sealand / special container dimensions
- To be slipped onto forks and reversible forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 45.000 kg
Double Telescoping Top Lift Spreader T192E
-
- For top handling of containers with customized dimensions for example; accommodation, office, construction or module containers.
- To be slipped onto forks and inverted forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 12.000 kg
Fixed Side Lift Spreader T193
-
- For lateral handling of a specified container size (10' to 40' ISO / Sealand / special container dimensions)
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 12.000 kg
- Optionally available with independant sideshift
- Optionally available with hydraulically adjustable bottom support
Telescoping Side Lift Spreader T193
-
- For flexible lateral handling of 10' to 40' ISO / Sealand / special container dimensions
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from1.000 kg to 12.000 kg
- Optionally available with independent sideshift
- Optionally available with hydraulically adjustable bottom support
Fixed End Lift Spreader T193L
-
- For lateral handling of empty containers
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 8.000 kg
Rotating End Lift Spreader T193LD (360° endless)
-
- For lateral handling and turning empty containers
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 8.000 kg
KAUP Container Spreaders
-
KAUP Container Spreaders are variably usable and have proven to be successful in worldwide use since more than 30 years - on ships, port terminals or transhipment stations. Due to the consequently applied modular principle of KAUP they have a very favourable ratio between empty weight and payload and can be adapted without any problems to individual requests concerning load capacity, stroke speed and increasing container sizes.
KAUP provides a wide range of Container Spreaders
-

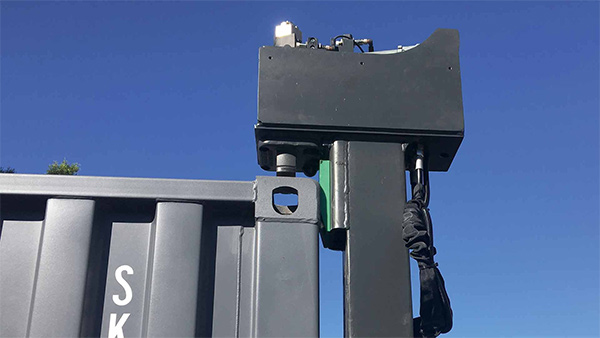

For centering the view-optimized designed spreader during positioning on a free-standing container the KAUP Container Spreaders are equipped with folding flippers. Depending to the specific need the crane operator can fold them upwards or downwards.
The range of Container Spreaders from KAUP is extremely diverse. But the individual data concerning type, mounting, details of load calculation, data about the transported containers and other technical specifications render Container Spreaders very complex. Therefore it is necessary to contact us directly to adapt container Spreaders to the particular application.
Attachments 4.0: T160B - 'e-controlled' & T160B - 'e-operated'
- Passenger cars are increasingly being offered in electric and hybrid versions. Likewise forklift trucks. That's the reason why KAUP takes the same path - an electronical one.

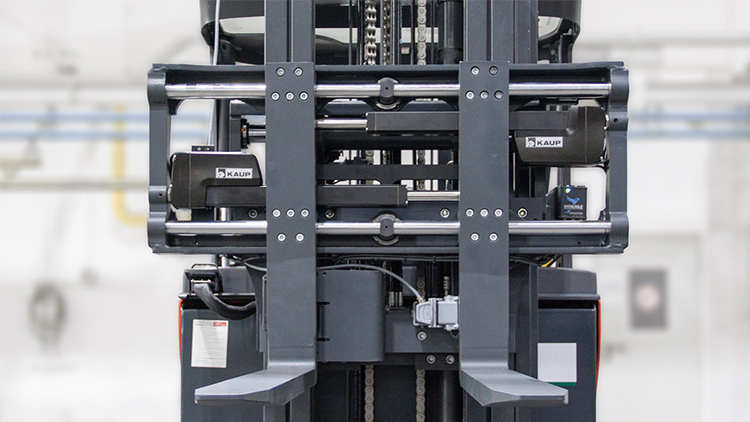

Fork Positioner T160B - 'e-operated': The 1st fully electronic attachment
-
The Fork Positioner T160B - 'e-operated' is a so-called viable study. This attachment does not need even one drop of hydraulic oil. An absolute novelty!
The T160B - 'e-operated' can be used normally. Why? KAUP has been successful in implementing all known functions of a fork positioner electrically - electronically driven: 'e-operated'. In addition, the patented control system with an open interface opens up new communication options for the attachment and forklift truck. The Fork Positioner T160B - 'e-operated': an attachment 4.0.
Qualities:
- Fully electronically driven - complete elimination of hydraulic oil
- Precise sideshift & fork adjusting functions via a PLC
- Define sideshift depending on lifting height
- Opening ranges can be individually defined
- Independent electronical control of the attachment
- Open interface for integration into the control system of the lift truck
- Basis: Fork Positioner T160B

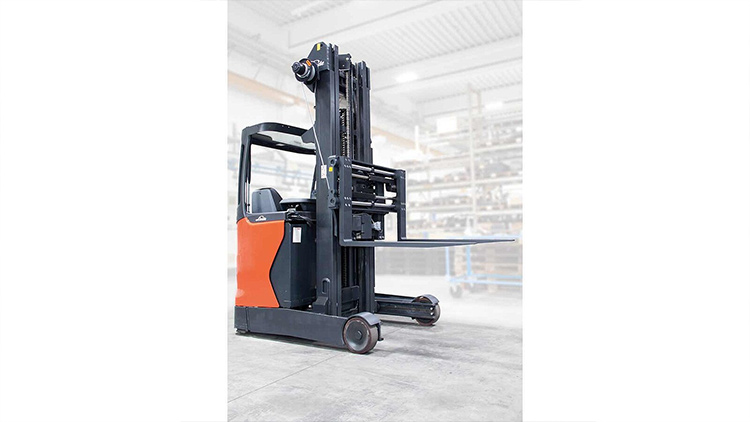

Fork Positioner T160B - 'e-controlled': The 1st hybrid attachment
-
What makes the Fork Positioner T160B - 'e-controlled' so special? It's not the drive. Because the attachment still uses hydraulic oil, the same as all other other well-known attachments. Rather, the control system of the fork positioner is surprising.
The new control system enables the control and adaption of the sideshift and fork adjusting functions electronically - 'e-controlled'. Thus the maximum permitted sideshift is always available so that the maximum possible load capacity can always be used. The Fork Positioner T160B - 'e-controlled': an attachment 4.0.
Qualities:
- Hydraulic drive - proven components
- Precise sideshift & fork adjusting functions via a PLC
- Figures for maximum available sideshift itself or preset sideshifts are individually adjustable
- Opening ranges can be individually defined
- Open interface for integration into the control system of the lift truck
- Basis: Fork Positioner T160B
KAUP - Attachments
-
KAUP attachments turn every forklift into a multifunctional allrounder with many talents because our Sideshifters, Fork Positioners, Clamps etc. solve nearly every material handling task. We offer worldwide the widest product spectrum of forklift attachments. Ranging from reasonable priced attachment families for less demanding applications on the one hand to innovative high-capacity products and premium products on the other hand.
Our attachments connect flexibility and variety with high profitability and economic efficiency. In addition, KAUP attachments can be equipped with a range of additional options. Regardless if saltwater resistant finish, a limited rotation or differing opening ranges and capacities are required - we offer the optimum solution for every need.
Sideshifters
-
Sideshifters are the most common attachments encountered on forklift trucks. Depending on the capacity of the truck Sideshifters allow lateral shift of the load from ± 100 up to ± 160 mm. This saves time and increases manoeuvrability. With the so called Container Sideshifter even larger lateral sideshift stroke is possible.
KAUP has two different versions of Sideshifters in their product range - hook-on version and integrated version.
KAUP Sideshifters can be combined with numerous other KAUP attachments and thus considerable increase the application possibilities.

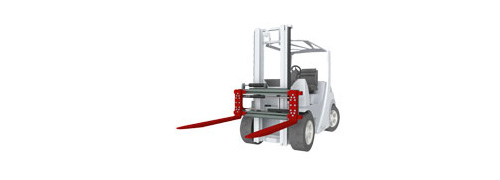

Fork Positioners
-
The demands on material handling tasks are increasingly more complex. KAUP Fork Positioners accommodate these requirements, as they increase the flexibility and profitability with more handling capacity of every forklift truck.
Especially when the width of the load changes constantly. For this reason Fork Positioners are the most frequent attachment found on forklift trucks after sideshifters. And KAUP offers a large variety of Fork Positioners - suitable for every transportation and operational task.
KAUP Fork Positioners are also, in some cases, available as integrated version with even better residual capacity.
Multi Pallet Handlers
-
KAUP Multi Pallet Handlers significantly rationalise in-plant transportation and are in operation world wide in all branches of industry. They are put into operation where several pallets or other loads are transported simultaneously; therefore KAUP Multi Pallet Handlers contribute to efficient and economical logistics.
The construction consisting of KAUP T-profiles, C-profiles and, depending on the model, round profiles ensures highest stability even under tough working conditions, long operation with extended intervals between servicing and a minimum of required maintenance.
Rotators - Ladle Tippers
-
The Rotators of KAUP are the right choice to turn load, to empty container, to tip recumbent load on a palette or to put up a recumbent load. Driven by four possible oil engines and three differently big snail gears running in the oil bath, these attachments can be equipped with fork carriage as well as forks. In addition, they are the base for numerous rotating attachment combination.
Beside the normal versions of his Rotators KAUP also has special variations for the fishing economy and for foundries on offer.
With the Ladle Tipper of KAUP different foundry ladles can be taken up, be transported as well be emptied to the left, on the right and forwards.
Fork Clamps
-
The Fork Clamps of KAUP can be used to the transport of palletised good as well as for clamp works.
With different slip-on clamp arms these attachments become special clamps to transport, for example, stones or barrels with few handles.
Combined with other attachments of KAUP the application possibilities of the fork clamps still increase once more.
Bale Clamps
-
No matter if it is for the transportation of reusable materials in the recycling industry or loading and unloading of trucks or railway wagons in the paper industry: transportation of non-palletised products and goods makes the most different demands for forklift truck attachments. KAUP's large variety of special clamps always ensures the availability of the right device for the most different material handling tasks in their programme.
Based on a modular construction method all KAUP clamps have an identical robust, view-optimised basic construction of T and C profiles. They differ only concerning the load-carrying capacity and the construction width. Also the combination with suitable rotary units is possible if the application case demands it.
Fork Carriage
- The KAUP Fork Carriage can be used to extend the existing fork carriage of the forklift truck and for a quick change between attachments and/or forks.
Fork Carriage T013
-
to enlarge the width of the original fork carriage or as false carriage for fork drop-off
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment can be fitted with load backrest model T179.
Please note the additional information below the data table.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The existing fork carriage of the forklift truck can be extended with a KAUP Fork Carriage type T013. It can also be used for quick change between attachments and/or forks.
Upon request KAUP Fork Carriages can be supplied to increase the lost load centre and as adapter fork carriage between the forklift truck and other attachments.
Qualities:- Solid construction for heavy duty operation
- Best visibility
Adapter Carriage T 013.1 / T013.2
-
for changing to different ISO class
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment can be fitted with load backrest model T179.
Please note the additional information below the data table.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP Fork Carriages type T013.1 and T013.2 can be used as adapter for changing to different ISO classes. This makes it possible to use an existing attachment even when the forklift truck is changed.
Qualities:- Solid construction for heavy duty operation
- Best visibility
Sideshifters
-
Sideshifters are the most common attachments encountered on forklift trucks. Depending on the capacity of the truck Sideshifters allow lateral shift of the load from ± 100 up to ± 160 mm. This saves time and increases manoeuvrability. With the so called Container Sideshifter even larger lateral sideshift stroke is possible.
KAUP has two different versions of Sideshifters in their product range - hook-on version and integrated version.
KAUP Sideshifters can be combined with numerous other KAUP attachments and thus considerable increase the application possibilities.
Advantages of KAUP Sideshifters:- Very good visibility conditions
- Very simple and quick assembly
- Equal shifting force and speed in both directions
- SOFTSTOP end-of-stroke slow down and SMOOTHROLL bottom hooks with compact rollers available for several models
- Patented QUICKSEAL cylinder for quick exchange of seal kits without tools
- Use of greasable highly wear resistant EASYSLIDE sliding pads with excellent sliding characteristics possible.
Possible operational areas:- All branches of industry
- All forms of pallet handling
- Container loading in harbours
- Loading and unloading of trucks
Sideshifter High-Performance Model T151P2
-
1 hydraulic function, Quick mounting, hook-on type, end-of-stroke slow-down SOFTSTOP, high visibility design, e.g. CofG up to 1.800 mm, Bottom brackets with roller guidance, SMOOTHROLL.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T179.
Attachment is available for operation in explosion hazardous areas.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
Many requirements and different widths of fork carriages require an unlimited number of variations. The KAUP High-Performance Sideshifter type T151P2 supplies this variation. In addition, all sideshifter components such as housings, pistons and brackets are identical in design as those used in other KAUP attachments with additional sideshift function. This optimises maintenance and simplifies repairs.
Qualities:- Strong design for heavy duty operation
- Best visibility
- Construction widths of up to 3.500 mm possible
- Equal shifting force and shifting speeds in both directions
Sideshifter for Reach Trucks 2T151P2
-
1 hydraulic function, Quick mounting, hook-on type, end-of-stroke slow-down SOFTSTOP, high visibility design, e.g. CofG up to 1.800 mm, Bottom brackets with roller guidance, SMOOTHROLL.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T179.
Attachment is available for operation in explosion hazardous areas.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP, as leading manufacturer of attachments, has a comprehensive range of attachments for Reach Trucks. The Sideshifter for Reach Trucks 2T151P2 is the right choice when palletised goods must be shifted laterally on a regular basis. The Sideshifter optimises in-plant material handling.
Qualities:- Design and fork carriage width specially adapted for operation with Reach Trucks
- Fork carriage tilt for Reach Trucks with fixed mast possible
- Sideshift stroke of ± 100 mm serially - less sideshift stroke possible
Sideshifter with increased sideshift stroke T151P-C
-
Sideshifter for container stuffing applications - 1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T179.
Attachment is available for operation in explosion hazardous areas.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The KAUP Container Sideshifter T151P-C simplifies loading and unloading of containers. This attachment with increased sideshift stroke makes it possible to reach beyond the chassis width of the forklift truck and place loads close to the container wall.
Qualities:- Optimal utilisation for container loading
- Ideal for confined spaces
Sideshifter, integral mounting T151 I
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T179.
Attachment is available for operation in explosion hazardous areas.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP offers the complete Sideshift program as integrated Sideshifters and as integrated Sideshifters with increased lost load centre.
Qualities:- Very good residual capacity
- Maximum visibility
- Minimum loss of friction due to roller guides extends the length of operation, especially on battery powered forklifts
Multiple Sideshifters
-
KAUP Multiple Sideshifters considerably rationalise the operation of every forklift truck as with this attachment two, three, four or even five transport units can be picked up at the same time.
One basic sideshifter shifts the complete Multiple Sideshifter with load units laterally. The two, three, four or five additional fork carriages can be shifted simultaneously or individually by hydraulic function. Accordingly the load can be shifted together or apart without problems.
Advantages of KAUP Multi Sideshifters:- Highly efficient forklift truck operation due to simultanious pick-up of two, three, four or five same sized transport units.
- Maximum residual capacity due to minimum weight and minimum lost load centre
- Optimal view through and over the attachment
- One basic sideshifter shifts the complete Multiple Sideshifter with load units laterally
Possible operational areas:- All types of industry e.g. brickworks, construction, beverage industries
Double Sideshifter T252B
-
2 hydraulic functions
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T179.
Please note the additional information below the data table.
Specification:
The Double Sideshifter T252B is a part of the KAUP Multiple Sideshifter product range. This attachment extends the operation of every forklift truck as the Double Sideshifter can simultaneously pick up two transport units.
Qualities:- Very good residual capacity
- Good visibility conditions
- SMOOTHROLL- bottom hooks with compact rollers serially

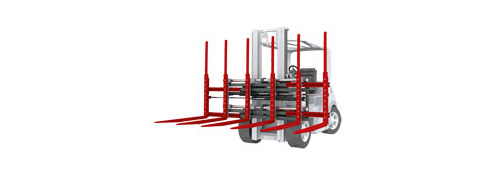

Triple Sideshifter T253B
-
2 hydraulic functions
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T179.
In the table some specific attachments are highlighted in yellow. These versions are the most common sizes, widths and opening ranges. The choice of such a version ensures favourable / short delivery times.
Specification:
The Triple Sideshifter T253B is a part of the KAUP Multiple Sideshifter product range. This attachment extends the operation of every forklift truck as the Triple Sideshifter can simultaneously pick up two transport units next to each other.
Qualities:- Very good residual capacity
- Good visibility conditions
- SMOOTHROLL- bottom hooks with compact rollers serially
- Optional: single or pairwise control of fork pairs
Triple Sideshifter T253B-3
-
with 3 fork carriages - 2 hydraulic functions
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T179.
Please note the additional information below the data table.
Specification:
The Triple Sideshifter T253B-3 is a part of the KAUP Multiple Sideshifter product range. This attachment extends the operation of every forklift truck as the Triple Sideshifter can simultaneously pick up three transport units next to each other.
Qualities:- Very good residual capacity
- Good visibility conditions
- SMOOTHROLL- bottom hooks with compact rollers and SOFTSTOP-end of stroke slow down serially
- Optional: single or pairwise control of fork pairs
Fork Positioners
-
The demands on material handling tasks are increasingly more complex. KAUP Fork Positioners accommodate these requirements, as they increase the flexibility and profitability with more handling capacity of every forklift truck.
Especially when the width of the load changes constantly. For this reason Fork Positioners are the most frequent attachment found on forklift trucks after sideshifters. And KAUP offers a large variety of Fork Positioners - suitable for every transportation and operational task.
KAUP Fork Positioners are also, in some cases, available as integrated version with even better residual capacity.
Advantages of KAUP Fork Positioners:- KAUP has the largest portfolio of Fork Positioners world wide
- All attachments available for light, medium and heavy transport duties
- Low weight with compact dimensions
- Extremely high stability
- High visibility design
- Simple and quick assembly
- SOFTSTOP end-of-stroke slow down and SMOOTHROLL bottom hooks with compact rollers available for all ranges with P2 sideshifter
- Highly wear resistant sliding profiles for improved sliding properties located between the profiles
Possible operational areas:- All branches of industry
- Pick-up of pallets or grate boxes - lengthwise or crosswise
- Transportation of bars, pipes, drums, cable drums, frames
- Handling of chip board, plasterboard, timber, steel girders, pre-fabricated concrete parts
Sideshifter with fork adjustment T156
-
with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T173.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The Sideshifter with Fork Adjustment T156 is the starter series of KAUP Fork Positioners. This attachment with excellent price-performance ratio is designed with hydraulic parallel movement with two cylinders and is based on the P4-Sideshifter.
Qualities:- Excellent price-performance ratio
- For light duty operation
- Hydraulic parallel movement
- Independent sideshift
- Original forklift trucks useable
- Optional: without sideshift
Fork Positioner T163SN
-
with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T173.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
Simply designed and therefore extremely economical, the KAUP Fork Positioner T163SN has absolutely symmetrical fork adjustment with synchronism via roller chain. This range is based on the Sideshifter T151-P2 rangewith corresponding capacities.
Qualities:- For light duty (indoors e.g. in dirt free conditions)
- Synchronism via roller chain
- Original forklift trucks useable
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
- With sideshift (T163SN) or without sideshift (T163N)
Fork Positioner T163S
-
with integrated sideshift dependent on the opening range
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP Fork Positioner, type 2T163S, a specially innovative attachment. Innovative because it combines best visibility and a very compact, low construction height with a large sideshift stroke and extremely robust drive technology inclusive of double roller chains. This attachment is therefore outstanding for loading and unloading containers, for handling narrow loads and loads with low entry height.
Qualities:- Excellent visibility
- For light duty operation
- Robust drive technology due to double roller chains
- Integrated sideshift stroke of ± 425 mm maximum
- Extremely compact due to low construction height
Fork Positioner T160
-
with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330, 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP Fork Positioner T160 offers an excellent view to the fork tips and the load as well as a favourable lost load centre. Therefore the achievable residual capacity is very good. The qualities of this attachment are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation
- Excellent residual capacity
- High stability with optimal tare weight
- Very good visibility conditions
- Valve block sideshift serially
- Use of longer forks possible
- Original forklift trucks useable
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
- More opening ranges with same construction width compared to shaft guided Fork Positioners
Fork Positioner, integrated T160 BI
-
with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP integrated Fork Positioner T160BI is an economical integrated Fork Positioner with excellent view to the fork tips and load. Compared to hook-on attachments in the T160 range this Fork Positioner has an even better, higher residual capacity.
Qualities:- Economical integrated Fork Positioner for moderately heavy operation
- Excellent residual capacity
- High stability with optimal tare weight
- Very good visibility conditions
- Valve block sideshift serially
- Original forklift trucks useable
Fork Positioner, integrated T160ITW
-
with valveblock sideshift dependent on the opening range - without forks, for forks with quick release system 'Terminal West' - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP integrated Fork Positioner T160ITW is an economical integrated Fork Positioner with excellent view to the fork tips and load. Compared to hook-on attachments in the T160 range this Fork Positioner in Terminal-West version has an even better, higher residual capacity.
Qualities:- Terminal West version for quick change of forks
- Economical integrated Fork Positioner for moderately heavy operation
- Excellent residual capacity
- High stability with optimal tare weight
- Very good visibility conditions
- Valve block sideshift serially
Fork Positioner T160Z
-
with valveblock sideshift dependent on the opening range - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP hook-on Fork Positioner T160Z (A) is an economical Fork Positioner with welded on or screwed on forks offering an excellent view to the fork tips and load. Therefore the achievable residual capacities are very good.The qualities of the range of T160Z (A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation
- Excellent residual capacity
- High stability with optimal tare weight
- Very good visibility conditions
- Valve block sideshift serially
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation (A-version)
- Forks with a length of more than 2400mm available upon request
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
Fork Positioner, integrated T160IZ
-
with valveblock sideshift dependent on the opening range - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The integrated KAUP Fork Positioner T160IZ(A) is an economical integrated Fork Positioner with welded on or screwed on forks offering an excellent view to the fork tips and load. Compared to hook-on attachments in the T160Z(A) range this Fork Positioner has an even better, higher residual capacity.
Qualities:- For moderately heavy operation
- Excellent residual capacity
- High stability with optimal tare weight
- Very good visibility conditions
- Valve block sideshift serially
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation (A-version)
Fork Positioner T466
-
with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP hook-on Fork Positioner T466 has been specially designed with optimised visibility and residual capacity. This attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466 Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation - complete program with capacities of up to 10 tons
- Very good residual capacity
- Excellent visibility
- Original forklift trucks useable
- Independent sideshift serially
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
Fork Positioner, integrated T466BI
-
with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP integrated Fork Positioner T466BI has been specially designed with optimised visibility and residual capacity. Compared to hook-on Fork Positioners in the T466 range with even better, higher residual capacities this attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466BI Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation - complete program with capacities of up to 10 tons
- Very good residual capacity
- Excellent visibility
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation (A-version)
- Independent sideshift serially
Fork Positioner T466Z
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP hook-on Fork Positioner T466Z(A) has been specially designed with optimised visibility and residual capacity. This attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466Z(A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation - complete program with capacities of up to 10 tons
- Very good residual capacity
- Excellent visibility
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation (A-version)
- Independent sideshift serially
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
Fork Positioner, integrated T466 BIZ
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
The KAUP integrated Fork Positioner T466BIZ (A) has been specially designed with optimised visibility and residual capacity. Compared to hook-on Fork Positioners in the T466 range with even better, higher residual capacities this attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466BIZ (A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.
Qualities:- For moderately heavy operation - complete program with capacities of up to 10 tons
- Very good residual capacity
- Excellent visibility
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation (A-version)
- Independent sideshift serially
Fork Positioner T466ZH
-
without sideshift - 1 hydraulic function
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Specification:
KAUP, as leading manufacturer of attachments, also has a comprehensive range of attachments for Reach Trucks. The Fork Positioner type T466ZH is one of them.
Individual details regarding wheel arms and ground clearance as well as the possible width of the attachment and other technical details make Reach Trucks very complex. Therefore it is advisable to contact our specialists directly for an individual consultation regarding our attachments and accessories for Reach Trucks.
Qualities:- Hook-on Fork Positioner for Reach Trucks with extended fork shank
- Very good residual capacity
- Excellent visibility
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation
- Opening range larger than the construction width
- Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
Fork Positioner for reach trucks T160B
-
Without sideshift - Attachment without forks - forks in accordance with ISO 2328, 1 hydraulic function
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP, as leading manufacturer of attachments, also has a comprehensive range of attachments for Reach Trucks. The Fork Positioner type T160B is one of them.
Individual details regarding wheel arms and ground clearance as well as the possible width of the attachment and other technical details make Reach Trucks very complex. Therefore it is advisable to contact our specialists directly for an individual consultation regarding our attachments and accessories for Reach Trucks.
Qualities:- Hook-on Fork Positioner for Reach Trucks
- Very good residual capacity
- Excellent visibility
Fork Positioner for reach trucks T160BZ
-
Without sideshift - 1 hydraulic function
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP, as leading manufacturer of attachments, also has a comprehensive range of attachments for Reach Trucks. The Fork Positioner type T160BZ is one of them.
Individual details regarding wheel arms and ground clearance as well as the possible width of the attachment and other technical details make Reach Trucks very complex. Therefore it is advisable to contact our specialists directly for an individual consultation regarding our attachments and accessories for Reach Trucks.
Qualities:- Hook-on Fork Positioner for Reach Trucks
- Very good residual capacity
- Excellent visibility
- Supplied with welded forks
- Supplied optionally with screw on forks for wear intensive operation
Fork Positioner T410Z
-
with independent sideshift, 2 hydraulic functions - without forks - for forks acc. to ISO 2330
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The robust KAUP Fork Positioner T410Z is the alternative to Fork Positioner T466B when a large opening range is required on a small construction width. This attachment is ideal for heavy duty operation and is supplied without forks. Numerous individual configurations are possible.
Qualities:- Strengthened design
- Good residual capacity
- Independent sideshift serially
- Original forks or Telescopic Forks can be used
Fork Positioner T411Z
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The KAUP hook-on Fork Positioner T411Z is a robust attachment for exceptionally heavy duty operation - ideal for uneven surfaces. Spreading forces induced, for example when handling coils (several) cable drums, rolls or wire coils, can readily be supported due to the large overlap of sectional profiles between fork guide and clamp body. Speedy working cycles and millimetre accurate positioning of the transport load is possible.
Qualities:- Good residual capacity
- Good visibility conditions
- Independent sideshift serially - alternatively valve block sideshift
- Opening range significantly larger than the construction width
- Use of longer forks possible
Fork Positioner T411 BZ
-
with valveblock sideshift dependent on the opening range - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available with cylinder and sideshifter protection.
Attachment is available for operation in explosion hazardous areas.
Specification:
The KAUP hook-on Fork Positioner T411BZ is a robust attachment with large opening ranges for exceptionally heavy duty operation - ideal for uneven surfaces. The construction of this Fork Positioner predestines it for handling long loads and steel girders and especially for heavy duty operation in, for example, concrete plants.
Qualities:- Very large opening ranges
- Good residual capacity
- Valve block sideshift - dependent on opening range - serially
- Opening range significantly larger than the construction width
- Independent sideshift optionally
- Screw-on forks optional
Fork Positioner, integrated T411 BZI
-
with valveblock sideshift dependent on the opening range - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Attachment is available with cylinder and sideshifter protection.
Attachment is available for operation in explosion hazardous areas.
Specification:
The KAUP integrated Fork Positioner T411BZI is a robust attachment with very large opening ranges suitable for exceptionally heavy duty operation - ideal for uneven surfaces. The construction gives an optimal view to the fork tips. The residual capacity is, due to the integration in the mast of the forklift truck, higher than the T411BZ range.
Qualities:- Very large opening ranges
- Valve block sideshift - dependent on opening range - serially
- Screw-on forks optional
Fork Positioner with round forks T411ZR
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available for operation in explosion hazardous areas.
Specification:
The KAUP hook-on Fork Positioner with Round Forks T411ZR is a robust attachment for exceptionally heavy duty operation - ideal for uneven surfaces. Spreading forces induced, for example when handling coils (several) cable drums, rolls or wire coils, can readily be supported due to the large overlap of sectional profiles between fork guide and clamp body. Speedy working cycles and millimetre accurate positioning of the transport load is possible between the forks or with the round forks.
Qualities:- Good residual capacity
- Good visibility conditions
- Independent sideshift serially
- Opening range significantly larger than the construction width
- Load pick up in area of fork tips or with maximum opening range easily possible
Rotating Fork Positioner T456BZ
-
Rotation 360° continuous - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Specification:
This attachment combines the advantages of two KAUP series: Rotators and Fork Positioners. With the 1000-fold proven basic components of the KAUP modular system the result is a robust device with numerous different application possibilities.
Qualities:- Good visibility conditions
- Rotation 360° endless
- Solid construction
- Attachment also available with screw-on forks
- Optionally available with sideshift
- Larger models and construction widths optionally available
Rotating Fork Positioner foundry version T456ZG
-
Rotation 360° continuous - 2 hydraulic functions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially manufactured in foundry version. It is designed for operation in applications with extremely high temperatures. Further Information are displayed in a glossary in the info-center.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The design is, in principle, the same as the normal T456BZ version, the foundry version of this attachment range is suitable for applications with extremely high working temperatures as found, for example, in steel works. Compared to the T456BZ, the KAUP Rotating Fork Positioner T456ZG has a closed front plate and basic plate as well as heat resistant coated hydraulic pipes.
Qualities:- Attachment also available with screw-on forks
- Solid construction
- Rotation 360° endless
- Optionally available with sideshift
- Larger models and construction widths optionally available
Multi Pallet Handlers
-
KAUP Multi Pallet Handlers significantly rationalise in-plant transportation and are in operation world wide in all branches of industry. They are put into operation where several pallets or other loads are transported simultaneously; therefore KAUP Multi Pallet Handlers contribute to efficient and economical logistics.
The construction consisting of KAUP T-profiles, C-profiles and, depending on the model, round profiles ensures highest stability even under tough working conditions, long operation with extended intervals between servicing and a minimum of required maintenance.
Advantages of KAUP Multi Pallet Handlers:- Choice between visibility optimised design and residual capacity optimised design
- Solid construction from T-profiles and C profiles for highest stability and long operating hours
- Service and maintenance friendy design
- Very little wear and tear - SMOOTHROLL-roller guided needle bearing brackets and SOFTSTOP-end of stroke slow down serially
- Synchronism for high operation speeds
- Numerous individual adaptations possible
- Low wear and tear Hardox protection in fork bend optionally
Possible operational areas:- All branches of industry
- Beverage industry
- Building material trade - building industry
- All kinds of pallet commissioning and other forms of freight handling
Double Pallet Handler T429C
-
with separate sideshift - with screw-on forks - for 1 or 2 pallets side by side, Model T429-4 for 2 pallets in front of each other or 4 pallets in front and next to each other - 2 hydraulic functions
Multi Pallet Handling: For 1 or 2 pallets next to each other or e.g. 2 or 4 pallets in front of and next to each other.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is available for operation in explosion hazardous areas.
Please note the additional information below the data table.
Specification:
The newly designed Double Pallet Handler range T429C set new standards for Multi Pallet Handlers in lost load centre, residual capacity and visibility through and over the attachments to the fork tips and load. The practice orientated solid construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance. At the same time the new Double Pallet Handler consumes 20% less energy.
Qualities:- Double Pallet Handler for heavy duty tasks
- Excellent visibility conditions
- Good residual capacity
- Screw-on forks serially
- Synchronized for quicker working speeds
- Independent sideshift serially
- Optional: single control of seperate fork pairs - adjustment of opening range to suit different types of pallets
Triple Pallet Handler T429B1-2-3
-
with independent sideshift - with bolt-on forks, for 1, 2 or 3 pallets side
by side - 2 hydraulic functions
Multi Pallet Handling: 1, 2 or 3 pallets next to each other.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Please note the additional information below the data table.
Specification:
The simple construction of KAUP Triple Pallet Handler T429B-1-2-3 with innovated visibility improved design ensures a clear view through and over the attachment to the fork tips and load. The practice orientated construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance even in heavy duty operation. The excellent residual capacity compared to similar models increases the productivity of this Multi Pallet Handler even more.
Qualities:
Triple Pallet Handlers for heavy duty tasks
Very good visibility conditions
Excellent residual capacity - best lost load centre in this class
Synchronized for quicker working speeds
Independent sideshift serially
Screw-on forks serially
Optional: independent control of seperate fork pairs - adjustment of opening range to suit different types of pallets
Double / Triple Pallet Handler on a Pantograph T429 / T149Z
-
with independent sideshift - with bolt-on forks, for loading and unloading of up to 3 pallets from one side Lorries, Waggons etc. - 2 hydraulic functions + solenoid valve
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment is available for operation in explosion hazardous areas.
Specification:
The combination of the well known KAUP Multi Pallet Handler with a Pantograph T149Z creates an attachment with a multitude of application possibilities. It makes speedy loading of lorries or wagons from the side possible as well as loading and unloading double deep storage racks. As with all other KAUP Multi Pallet Handlers, the Double/Triple Pallet Handler with Pantograph type T429C/T149Z has a durable and reliable construction with a minimum of required maintenance with maximum operation.
Qualities:- Good visibility conditions
- Synchronized for quicker working speeds
- Independent sideshift serially
- Screw-on forks serially
Six Pallet Handler T429-4-6
-
with independent sideshift - with bolt-on forks, Pallet handling lengthwise 800 x 1.200 mm for 4 or 6 pallets - 2 hydraulic functions
Multi Pallet Handling: For 4 or 6 pallets for pallet pick-up lengthwise 800 x 1.200 mm.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Please note the additional information below the data table.
Specification:
The KAUP Sixfold Pallet Handler T429-4-6 can transport up to six pallets at the same time and makes speedy loading of lorries or wagons from the side possible as well as loading and unloading double deep storage racks. The innovative visibility improved design makes this attachment the lightest in its class with comparable capacity. T-profiles and C-profiles ensure highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance even in heavy duty operation.
Qualities:- Six Pallet Handler for heavy duty tasks
- Excellent residual capacity - lightest attachment in this class
- Very good visibility conditions
- Synchronized for quicker working speeds
- Independent sideshift serially
- Screw-on forks serially
Four Pallet Handler / Eight Pallet Handler T419-2-4 / T419-4-8L
-
with independent sideshift - for 2 or 4 pallets side by side or 4 or 8 pallets - 2 hydraulic functions
Multi Pallet Handling: For 2 or 4 pallets next to each other or e.g. 4 or 8 pallets in front of and next to each other..
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
The KAUP Four / Eight Pallet Handler type T419-2-4/T419-4-8-L can transport up to eight pallets at the same time and speeds up loading and unloading of trucks, wagons and storage racks considerably. The innovative visibility improved design ensures a good view to the fork tips and load. The practice orientated construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance.
Qualities:- Four / Eight Pallet Handler for heavy duty tasks
- Good residual capacity
- Good visibility conditions
- Synchronized for quicker working speeds
- Independent sideshift serially
Rotators - Ladle Tippers
-
The Rotators of KAUP are the right choice to turn load, to empty container, to tip recumbent load on a palette or to put up a recumbent load. Driven by four possible oil engines and three differently big snail gears running in the oil bath, these attachments can be equipped with fork carriage as well as forks. In addition, they are the base for numerous rotating attachment combination.
Beside the normal versions of his Rotators KAUP also has special variations for the fishing economy and for foundries on offer.
With the Ladle Tipper of KAUP different foundry ladles can be taken up, be transported as well be emptied to the left, on the right and forwards.
Advantages of the Rotators of KAUP:- Robust construction friendly to servicing and friendly to service
- Good residual capacity
- Many application possibilities
- Base for all rotating combinations of KAUP
- Serially load-carrying capacity up to 25 tonnes - on inquiry up to 50 tonnes
- Limitation of the rotation optionally
- Original forks usable
Possible operational areas:- Branch-covering application - for example, in recycling industry, foundries, food industry, textile industry, iron industry and metal industry
- Turns of transport property
- Emptying of containers - boxes or grid boxing etc.
Rotator 360° endless T351
-
1 hydraulic function
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Please note the additional information below the data table.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The KAUP Rotator 360° endless T351 is the entrance in the world of the rotating attachments.
According to application case and customer wish the gear can be positioned at two different places. Differing lost loads and residual capacities are the results.
Qualities:- Good visibility conditions
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Original forks usable
- Lateral supporting fork and load stabilizers optionally
Rotator 360° endless, foundry version T351G
-
1 hydraulic function
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially manufactured in foundry version. It is designed for operation in applications with extremely high temperatures. Further Information are displayed in a glossary in the info-center.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The KAUP Rotator 360° endless T351 is also available in a foundry implementation. This attachment is adapted to the demands of this operational area with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes. Otherwise this rotator resembles the T351.
Qualities:- Foundry implementation
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Original forks usableLateral supporting fork and load stabilizers optionally
Rotator 360° endless, fishing industry T351.1S / T351.1.3S
-
1 hydraulic function
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially manufactured for the fishing industry and is available in two versions T351.1S and T351.1.3S. Further Information are displayed in a glossary in the info-center.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
Beside the foundry implementation the KAUP Rotator 360° endless T351 is also available in two fishing implementation. These attachments are adapted to the demands of this operational area with special sea-water resistant paint, galvanised screws, flanges and fork carriages (according to implementation) as well as with silicone to close drillings and drill holes sealed. But also for tannings this device is suitable.
Qualities:- Fishing implementation
- Good visibility conditions
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Original forks usable
- Lateral supporting fork and load stabilizers optionally
Rotator 360° endless T391
-
with independent sideshift - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Please note the additional information below the data table.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
As opposed to the entrance models of the rotating attachments the KAUP Rotator 360° endless T391 owns a sideshift. It allows an even more exact work with the device.
According to application case and customer wish the gear can be positioned at two different places. Differing lost loads and residual capacities are the results.
Qualities:- Good visibility conditions
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Sideshift serially
- Original forks usable
- Lateral supporting fork and load stabilizers optionally
Rotator 360° endless, foundry version T391G
-
with independent sideshift - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is serially manufactured in foundry version. It is designed for operation in applications with extremely high temperatures. Further Information are displayed in a glossary in the info-center.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The KAUP Rotator 360° endless T391 is also available in a foundry implementation. This attachment is adapted to the demands of this operational area with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes. Otherwise this rotator resembles the T391.
Qualities:- Foundry implementation
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Sideshift seriallyOriginal forks usable
- Lateral supporting fork and load stabilizers optionally
Rotator 360° endless, fishing industry T391S - T391.3S
-
with independent sideshift - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially manufactured for the fishing industry and is available in two versions T351.1S and T351.1.3S. Further Information are displayed in a glossary in the info-center.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
Beside the foundry implementation the KAUP Rotator 360° endless T391 is also avialable in two fishing implementation. These attachments are adapted to the demands of this operational area with special sea-water resistant paint, galvanised screws, flanges and fork carriages (according to implementation) as well as drill holes sealed with silicon.
Qualities:- Good visibility conditions
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Independent sideshift serially
- Original forks usable
- Lateral supporting fork and load stabilizers optionally
Rotator 360° endless 10 - 30 T351
-
1 hydraulic function
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment serially equipped with cylinder and sideshift protection.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
For extra heavy duty cases: the KAUP Rotator type 10-42T351 with 360° endless rotation. This model has an especially high torque and can therefore easily transport heavy loads such as containers and carriages.
Qualities:- Good visibility conditions
- Good residual capacity
- High torque
- Rotation 360° endlessly
- Robust construction with gear drive
- Lateral supporting fork and load stabilizers optionally
Casting Device for Foundry Ladles T360G
-
2 hydraulic functions, To empty ladles to both sides and forwards.
Attachment is serially manufactured in foundry version. It is designed for operation in applications with extremely high temperatures. Further Information are displayed in a glossary in the info-center.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
The KAUP Casting Device for Foundry Ladles T360G can be used to empty ladles to the left, on the right and forwards. For it the attachment is hung up directly in the fork carriage.
Qualities:- Good visibility conditions
- Stable construction
- Independent sideshift optionally
- Other implementation on inquiry
Ladle Tipper T360
- with independent sideshift - tilt angle a = 100° to the right side in driving direction - 2 hydraulic functions
Fork Clamps
-
The Fork Clamps of KAUP can be used to the transport of palletised good as well as for clamp works.
With different slip-on clamp arms these attachments become special clamps to transport, for example, stones or barrels with few handles.
Combined with other attachments of KAUP the application possibilities of the fork clamps still increase once more.
Advantages of the KAUP Fork Clamps:- Robust construction from T-profiles and C-profiles for the highest stability and long operation durations
- Construction friendly to servicing and friendly to service
- Fork clamps are provided with toe-in
- SOFTSTOP-final situation damping and role guidance SMOOTHROLL serially
- Combinable with other attachments - for example, rotary units and/or puttable on clamp arms
Possible operational areas:- Branch-covering
- Admission of palletes or grid boxing - along or crosswise
- Transport of non-palletised load
Fork Clamp T411
-
with independent sideshift - 2 hydraulic functions - also availabe with round forks
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The variously applicable Fork Clamp T411 is the base for all clamps of KAUP. Therefore, this attachment particularly suitable for hard use can be adapted very well to the individual demands. No matter, whether different hook-on fork cross sections for divergent charges, changed hook-on fork forms or the combination with other attachments: KAUP makes it possible.
Qualities:- For hard onsets suitable
- Good visibility conditions
- Good residual capacity
- Independent sideshift serially
- Screw-on forks and round prongs optionally
- Load backrest optionally
- Optionally the most different puttable on clamp arms
Harbour Clamp T411AH
-
with independent / valveblock sideshift - 2 hydraulic functions - with bolt-on forks - fork length 1.150 mm
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment serially equipped with cylinder and sideshift protection.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The KAUP Harbour Clamp T411AH is a variation of the fork clamp. Particularly two things make this attachment special: On the one hand on about 2/3 of the hook-on fork length also in the hook-on fork width to rejuvenated sharpened hook-on forks (knife hook-on forks) to be able to take up standing transport property also close together. And on the other hand the parts protected against starting-up damages of the fork clamp - cylinder and side racketeer's unity.
Qualities:- For hard use suitable
- Good visibility conditions
- Good residual capacity
- Independent sideshift or valveblock sideshift serially
- Bolt-on forks serially
- Cylinder, Ramming, Tube and Side racketeer's protection serially
- Load backrest optionally
Fork Clamp with Turnable Forks T411D
-
with independent sideshift - Fork length max. 1.300 mm - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
In the table some specific attachments are highlighted in yellow. These versions are the most common sizes, widths and opening ranges. The choice of such a version ensures favourable / short delivery times.
Specification:
Flexibility is the motto of the KAUP Fork Clamp with Turnable Forks T411D. This clamp is a very universally applicable attachment, because the carrying part of the hook-on forks is turnable by ± 90 °. Therefore, the rotary hook-on fork clamp can be used for hook-on fork works as well as the clamps by bale, boxes and cardboards. If the carrying part are turned only around by 45 °, besides, the transport of barrels or other cylindrical bodies is easily possible.
Qualities:- Suitably to the Handling of the most different load forms - palettised product, grid boxing, underrun loads (basic position), barrels and cylindrical bodies (45 ° positions), bales, clamps, cardboards etc. (90 ° positions)
- Very good visibility conditions
- Independent sideshift serially
- Load backrest optionally
- Puttable on clamp arms optionally
Slip-on Arms
-
In order to increase the application possibilities of Fork Clamps KAUP can supply suitable slip-on clamping arms for nearly every application.
Regardless if for transportation of pallets or grate boxes or to clamp different types of loads: KAUP attachments become even more flexible with a large range of clamping arms.
Advantages of KAUP slip-on clamping arms:- Simple assembly
- Service and maintenance friendly design
- Suitable clamping arms for every application
Possible operational areas:- All branches of industry
- Construction industry
- Food industry
- Chemical industry
Block Arms T102UVP
-
underslung version with vulcollan lining
Specification:
KAUP Block Arms T102UVP are the right choice to pick up packets of blocks and bricks. The underslung Block Arms are simply slipped on the carrying part of the existing forks and secured.
Qualities:- Simple assembly
- Solid construction
Block & Brick Arms T102UH
-
underslung Block & Brick Arms, with mechano-hydraulic equilibration
Specification:
KAUP underslung Block & Brick Arms T102UH are designed with mechano-hydraulic equilibration with different coatings which compensate irregular contours so that the load can be clamped optimally.
Qualities:- Simple assembly
- Solid construction
- Complete range of different buffers for compensation
Block Arms T102VP
-
slip-on version with vulcollan linings
Specification:
KAUP underslung Block arms T102VP are designed to clamp and transport packets of building blocks. If required the height of the arms can be doubled.
Qualities:- Simple assembly
- Solid construction
Bale Arms T103A
-
slip-on version
Specification:
KAUP Bale Arms T103A are the right choice if bales or similar loads are only transported occasionally.
Qualities:- Simple assembly
- Solid construction
Bale Arms T103AG
-
gripping nap strap coated, slip-on version
Specification:
If bales, boxes, cartons and similar goods need only be transported occasionally, then KAUP Bale Arms T103AG are the right choice.
Qualities:- Simple assembly
- Solid construction
- Rubber coating on clamping arms
- Optionally other coatings available
Drum Arms T105A
-
slip-on version, for handling of cylindrical steel drums1) - rubber coated
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available for operation in explosion hazardous areas.
Specification:
KAUP Drum Arms T105A are the right choice when cylindrical drums - regardless if steel, plastic or other - need only be handled occasionally.
Qualities:- Simple assembly
- Solid construction
- Rubber coating on clamping arms
- Optionally other coatings available
- Variation with stainless steel available
- Adaption to other diameters optional
Rotating Roll Arms T106A
-
slip-on version - mechanically turnable
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
When cylindrical drums - regardless if steel, plastic or other - stored vertically or horizontally - need only be handled occasionally KAUP Rotating Roll Arms T106A are the right choice.
Qualities:- Simple assembly
- Solid construction
- Other drum diameters available
- Mechanically turnable
Rotating Roll Arms T106AH90
-
slip-on version - hydraulically turnable up to 90°, 1 hydraulic function
Attachment is hydraulically tiltable by 90°
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Specification:
KAUP Rotating Roll Arms T106AH 90° are used when cylindrical loads are only occasionally picked up and tilted or turned.
Qualities:- Simple assembly
- Solid construction
- Other drum diameters available
- Hydraulically turnable by 90° Adaption for drum handling possible
Rotating Roll Arms T106AH180
-
slip-on version - hydraulically turnable up to 180°, 1 hydraulic function
Attachment is hydraulically tiltable by 180°.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Specification:
Cylindrical loads can be picked up and turned by 180° and completely emptied with KAUP Rotating Roll Arms T106AH 180°.
Qualities:- Simple assembly
- Solid construction
- Other drum diameters available
- Hydraulically turnable by 180° Adaption for drum handling possible
Bale Clamps
-
No matter if it is for the transportation of reusable materials in the recycling industry or loading and unloading of trucks or railway wagons in the paper industry: transportation of non-palletised products and goods makes the most different demands for forklift truck attachments. KAUP's large variety of special clamps always ensures the availability of the right device for the most different material handling tasks in their programme.
Based on a modular construction method all KAUP clamps have an identical robust, view-optimised basic construction of T and C profiles. They differ only concerning the load-carrying capacity and the construction width. Also the combination with suitable rotary units is possible if the application case demands it.
Advantages of KAUP Bale Clamps, Cellulose Clamps, Recycling Clamps, Foam Rubber Clamps:- High stability - solid design
- View-optimised design
- Solid and thin arm construction in different versions
- Quick and simple assembly
- Valveblock sideshift or independent sideshift serially
- SOFTSTOP end-of-stroke slow down and SMOOTHROLL bottom hooks with compact rollers serially with independent sideshift
- Highly wear-resistant sliding profiles fitted between the profiles for improved sliding properties
- Pressure relief valve serially
- Manometer for simple control of the working pressure serially
- Varied application possibilities - also on wheel loaders and telescopic loaders
- Suitable accessories - load backrests, sideshift i.e. hose protection - retrofittable for heavy duty applications
- Optionally available: cylinder and piston rod protection
Possible operational areas:- Palletless transportation of bales of paper, waste paper, tobacco, textiles, boxes and other containers
- Specially designed clamping arms are available for transportation of pulp, foamed plastic (polystyrene), wool and Big-Bags
- Recycling industry, paper industry, textile industry
Bale Clamp, Pulp Bale Clamp T413
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
KAUP attachments of the class T413 designed with high visibility are mainly used for in-plant, non-palletised transportation of bales of paper, waste paper, tobacco and textiles or also boxes and containers. Pulp, foamed plastic (polystyrene) wool and Big-Bags can also be transported with specially designed clamping arms.
Qualities:- Excellent price-performance ratio
- Very good visibility
- Solid strengthened design with KAUP clamp profiles from T-profiles and C- profiles
- Solid slim arm design
- Independent sideshift serially
- Combination with KAUP rotary devices possible
- Customer specified modifications feasible
Bale Clamp, Pulp Bale Clamp T413
-
with valveblock sideshift dependent on the opening range - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification: KAUP attachments of the class T413 designed with high visibility are mainly used for in-plant, non-palletised transportation of bales of paper, waste paper, tobacco and textiles or also boxes and containers. Pulp, foamed plastic (polystyrene) wool and Big-Bags can also be transported with specially designed clamping arms.
Qualities:- Excellent price-performance ratio
- Very good visibility
- Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
- Solid slim arm design
- Valveblock sideshift serially
- Combination with KAUP rotary devices possible
- Customer specified modifications feasible
Recycling Bale Clamp T413RC
-
with independent sideshift - with cylinder- and sideshift protection - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment serially equipped with cylinder and sideshift protection.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Recycling Bale Clamps are suitable for the transportation of non- palletised reusable materials in the recycling industry. This special range of bale clamps has several specific features, e.g. clamping arms 2 metres long for clamping the load, strengthened arm connections on the clamp profiles to allow clamping with the tips of the arms.
Qualities:- Excellent price-performance ratio
- Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
- Strengthened arm construction with toothed bars
- Solid wear and tear bars under clamp body and clamp arms optionally
- Independent sideshift serially
- Combination with KAUP rotary devices possible
- Customer specified modifications feasible
Recycling Bale Clamp T413RC
-
with valveblock sideshift dependent on opening range with cylinder- and sideshift protection - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment serially equipped with cylinder and sideshift protection.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Recycling Clamps are suitable for the transportation of non- palletised reusable materials in the recycling industry. This special range of bale clamps has several specific features, e.g. clamping arms 2 metres long for clamping the load, strengthened arm connections on the clamp profiles to allow clamping with the tips of the arms.
Qualities:- Excellent price-performance ratio
- Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
- Strengthened arm construction with toothed bars
- Solid wear and tear bars under clamp body and clamp arms optionally
- Valveblock sideshift serially
- Combination with KAUP rotary devices possible
- Customer specified modifications feasible
Foam Rubber Clamp T413R
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The easiest way to transport non-palletised bales of foam rubber or styrofoam is with clamps in the T413R range designed with high visibility. The Foam Rubber Clamp has the same high qualities of all KAUP clamps: variability, stability, reliability.
Qualities:- Excellent price-performance ratio
- Good visibility conditions
- Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
- Strong tube design
- Independent sideshift serially
- Customer specified modifications feasible
Block Clamps
-
KAUP Block & Brick Clamps are used worldwide for the non-palletised transportation of all kinds of industrially manufactured blocks and bricks. They grip packets of bricks from the side and are therefore suitable for handling of packets of upright format blocks with plane surfaces such hollow, lime sand and concrete blocks as well as curb stones.
However the ideal Block and Brick Clamp can be configured to nearly every individual purpose. How? With the extensive KAUP Block and Brick Clamp program and the possibility to adapt KAUP attachments to suit nearly every individual working application.
Advantages of KAUP Block & Brick Clamps:- Solid design with T-profiles and C-profiles for highest stability and long operation
- Service and maintenance friendly construction
- All Block & Brick Clamps with toe-in
- SOFTSTOP end-of-stroke slow down and SMOOTHROLL bottom hooks with compact rollers serially for all models
- Block & Brick Clamps can be combined with all other KAUP attachments, e.g. Rotators
Possible operational areas:- Building and construction industries
- Landscaping
Block Clamp T412V
-
with independent sideshift - with polyurethane lining and parallel compensation - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Block Clamps T412V are best suited to pick up packets of upright format blocks with plane surfaces such as hollow, lime sand and concrete blocks as well as curb stones with high dimensional stability. The arms have a central swinging support to uniformly distribute the pressure and have flexible Vulcollan bars to compensate variations in dimensions of the load.
Qualities:- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Independent sideshift serially
- Load Backrest optionally
Block Clamp T412V-3
-
with independent sideshift - with mechanical equilibration plates with Vulcollan coating - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Block Clamps T412V-3 are fitted with clamping arms with especially large mechanical equilibration plates with Vulcollan coating. This attachment is particularly suited for handling large blocks or packets of blocks with plane surfaces and high dimensional stability.
Qualities:- Mechanical equalisation
- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Independent sideshift serially
- Load Backrest optionally
Block & Brick Clamp T412H
-
with independent sideshift - with mechano-hydraulic equilibration pistons - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Block and Brick Clamps T412H are used for handling small format blocks such as building bricks and paving stones. The grease filled clamping arms of this attachment have mechano-hydraulic equilibration pistons with different coatings. They adapt to irregular shaped loads and can therefore clamp the load as required. Steel plates for handling rough, hard, heavy concrete blocks, rubber coating for pick up of aerated concrete blocks and Vulcollan coating as an all-rounder are just some of the possibilities available.
Qualities:- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Independent sideshift serially
- Different kinds of equalising buffers on offer
- Load Backrest optionally
Block Clamp T412HP
-
with independent sideshift - with mechano-hydraulic equilibration pistons - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Block Clamps T412HP are usually used to handle blocks with the common dimensions of 400 x 200 x 200 mm. Therefore the clamping arms are each fitted with three mechanical equilibration plates (400 x 200 mm). Typically they are manufactured from bulb plate. Depending on the particular application, polyurethane coated contact surfaces are also available.
Qualities:- Hydro-mechanical compensation
- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Independent sideshift serially
- Load Backrest optionally
Block Clamp T412UVP
-
with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions, Fork Clamp T411 underslung version (with vulcollan lining) T102UVP
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
KAUP Block Clamps T412UVP are the most suitable attachment when handling is frequently changed between pick up of pallets or grate boxes and handling packets of blocks. This attachment can be used as a Block Clamp and also as a Fork Clamp. Therefore they are typically used in the building industry.
In order to handle packets of blocks the underslung Block Arms are simply slipped on the carrying part of the existing forks and secured.
Qualities:- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Low entry measurements required
- Simple assembly
- Independent sideshift serially
- Load Backrest optionally
Block & Brick Clamp T412UH
-
with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions, Fork Clamp T411 underslung version (with hydraulic equilibration pistons) T102UH
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
With the KAUP Block & Brick Clamp T412UH it is easy to change between pick up of pallets or grate boxes and handling packets of blocks because this attachment can be used as a Block Clamp and also as a Fork Clamp. Therefore they are typically used in the building industry.
The underslung Block Arms with mechano-hydraulic equalising are suitable for handling small sized blocks. They are mounted oscillating on the carrying part of the existing forks and secured.
Qualities:- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Low entry measurements required
- Simple assembly
- Independent sideshift serially
- Different kinds of equalising buffers on offer
- Load Backrest optionally
Appliance- / Carton Clamps
-
KAUP Appliance Clamps and Carton Clamps are used worldwide to transport white product (fridges, washing machines etc.) and brown product (consumer electronics). However, the ideal appliance and carton clamp can be configured for nearly any kind of job. How? With the numerous variations of the big KAUP programme and the possibility to adapt the attachments of KAUP individually for nearly every purpose.
Sensor technology is one of the possibilities. For it the clamp arms and/or the clamp body are equipped with sensors that recognise independently how many load units should be taken up. And the sensor system regulates the required pressure to the load admission. The program offer of KAUP starts in this field with easy devices with firmly opposed pressure. It continues with an "intelligent" clamp with dynamic regulation of the clamp strength. And it ends with the top-of-the-line model with so-called "Sensoric implementation". This model chooses automatically and dynamically the right pressure for an undisturbed handling.
Advantages of the KAUP Appliance and Carton Clamps:- Robust construction from T-profiles and C-profiles for the highest stability and long operation durations
- Construction friendly to servicing and friendly to service
- An easy assembly
- Clamp arms are provided with toe-in
- Soft stop-final situation damping and role guidance SMOOTHROLL for all classes available
Possible operational areas:- Consumer goods industry
- Food industry
- Building material industry
Appliance Clamp T413G
-
with independent sideshift - rubber coated arms - both arms fix - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
The KAUP Appliance Clamp T413G is used for the transport of white and brown product as well as other wide loading property. Equipped with very slender arms this attachment is suited particularly for the truck and container loading.
Qualities:- Low lost load - very good residual capacities
- Very good visibility conditions
- Very slender clamp arms
- Independent sideshift serially
- Load backrest optionally
Carton Clamp T413G-1L
-
with independent sideshift - rubber coated arms - one arm fix, one arm swivelling - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
The KAUP Carton Clamp T413G-1L is used where white and brown product as well as other wide loading property is used. On account of his very slender arms this attachment is suited particularly for the truck and container loading.
Qualities:- Low lost load - very good residual capacities
- Very good visibility conditions
- Very slender clamp arms
- Independent sideshift serially
- Load backrest optionally
Telescopic Appliance Clamp T413GT
-
with independent sideshift - rubber coated arms - both arms fix - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
The KAUP Telescopic Appliance Clamp T413GT is used where white and brown product as well as other wide loading property is used. The slender clamp arms predestine this attachment for the truck and container loading.
Qualities:- Very good visibility conditions
- Extremely big opening ranges with small construction width
- Independent sideshift serially
- Load backrest optionally
Telescopic Appliance- / Carton Clamp T413GT-1L
-
with independent sideshift - rubber coated arms - one arm fix, one arm swivelling - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
The KAUP Telescopic Appliance-/Carton Clamp T413GT-1L is used for the transport of white and brown product as well as other wide loading property. The long, slender clamp arms predestine this attachment for the truck and container loading.
Qualities:- Good visibility conditions
- Extremely big opening ranges with small construction width
- Independent sideshift serially
- Load backrest optionally
Appliance Clamp tiltable 2T413G-2H
-
with independent sideshift - rubber coated arms - both arms 90° forward tipping - 2 hydraulic functions + solenoid valve
Attachment is hydraulically tiltable by 90°
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Please note the additional information below the data table.
Specification:
With the KAUP Appliance Clamp tiltable 2T413G-2H it is possible to take up loading property and to set down 90° recumbent safely. Therefore, this attachment is suited especially to move stored goods or to load and unload truck, carriages and containers and to use, besides, the height optimally.
Qualities:- Independent sideshift serially
- Contact pads of the clamp arms up to 90° hydraulically tiltably
- Load backrest optionally
Appliance- / Carton Clamp T414-1L
-
with independent sideshift - rubber coated arms - both arms swivelling - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
Equipped with parallel running contact pads the KAUP Appliance-/Carton Clamp T414-1L is used to transport white and brown product as well as other wide loading property certainly.
Qualities:- Low lost load - very good residual capacities
- Very good visibility conditions
- Independent sideshift serially
- Load backrest optionally
Appliance- / Carton Clamp T414-2L
-
with independent sideshift - rubber coated arms - two contact pads per swivelling arm - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
With the KAUP Appliance-/Carton Clamp T414-2L wide loads with different load masses can be taken up. Because with two contact pads per clamp arm this attachment is able to compensate existing tolerance.
Qualities:- Low lost load - very good residual capacities
- Good visibility conditions
- Independent sideshift serially
- Load backrest optionally
Telescopic Appliance- / Carton Clamp T414GT-1L
-
with independent sideshift - rubber coated - both arms swivelling - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available with automatic pressure adjustment.
Attachment is available with sensors for fully automatic pressure control.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Please note the additional information below the data table.
Specification:
The KAUP Telescopic Appliance-/Carton Clamp T414GT-1L is equipped with parallel running contact pads. The long, slender clamp arms predestine this attachment for the truck and container loading.
Qualities:- Good visibility conditions
- Independent sideshift serially
- Load backrest optionally
Drum Clamps
-
KAUP Drum Clamps are used to transport all kind of drums palletless and in a safe way with forklifts.
The extensive and many-sided drum clamp programme of KAUP encloses attachments which clamp, tip and turn single drums. Other attachments can carry up to four drums pre and side by side. The wide port folio is complemented by special solutions for the transport of special drums, by slip-on drum arms and drum tipping arms for already existing fork clamps.
Advantages of the KAUP Drum Clamps:- Robust construction of T-profiles and C-profiles for the highest stability and long operation durations
- Easy assembly
- Construction friendly to servicing and friendly to service
- Adaptation of the instep arms to the application case
- Combination with other attachments possibly
Possible operational areas:- Breweries
- Food industry
- Chemical industry
Drum Clamp T415-1
-
with independent sideshift - for cylindrical steel drums - 2 hydraulic functions, This Drum Clamp can transport 1 or 2 drums palletless and safely.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Please note the additional information below the data table.
Specification:
The KAUP Drum Clamp T415-1 can transport a drum or two drums side by side certainly and without palettes. Therefor the clamp arms are serially vulcanised with rubber.
Qualities:- Low lost load - good residual capacity
- Good visibility conditions
- Stable construction
- Independent sideshift serially
Drum Clamp T415-2
-
with independent sideshift - for cylindrical steel drums - 2 hydraulic functions, This Drum Clamp can transport 2 or 4 drums palletless and safely.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
The KAUP Drum Clamp T415-2 can transport two (one in front of the other) or four drums (pre and side by side) safely and without palettes. Therefor the clamp arms are serially vulcanised with rubber.
Qualities:- Low lost load - good residual capacity
- Good visibility conditions
- Stable construction
- Independent sideshift serially
Rotating Drum Clamp T455-1
-
360° rotation continuous - to transport cylindrical steel drums - arms covered with Remagrip, 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
The KAUP Rotating Drum Clamp T455-1 guarantees the safe transport of cylindrical steel barrels under all working conditions of a forklift like the acceleration, (curves) driving and braking. In addition, the sure lifting, rotating and emptying of these transport units becomes possible with this attachment.
Qualities:- Good visibility conditions
- Stable construction
- Arms covered with Remagrip
- Optionally other arm pads
- Rotation 360° endlessly
- Optionally with sideshift available
- Implementation for plastic barrels optionally
Mini Drum Clamp T445F
-
slip-on version - hydraulically turnable - for cylindrical steel drums and garbage bins - 2 hydraulic functions
Attachment rotates hydraulically by 180° endless in both directions.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
The KAUP Mini Drum Clamp T445F is the right choice when cylindrical drums and/or garbage vessels with a hydraulically rotating attachment should be emptied occasionally. For it the mini drums clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.
Qualities:- Simple assembly
- Good visibility conditions
- Original forks can be used
- Clamp arms with rubber covering serially
- Rotary corner up to 180°
Mini Drum Clamp T405
-
slip-on-fork version, arms coated with Remagrip - for cylindrical steel drums and garbage bins - without rotation - 1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
The KAUP Mini Drum Clamp T405 is the right choice when cylindrical drums and/or garbage vessels should be transported occasionally. For it the mini drums clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.
Qualities:- Simply assembly
- Good visibility conditions
- Original forks can be used
- Clamp arms with rubber covering serially
Mini Drum Tipping Clamp T405/130
-
slip-on-fork version, arms coated with Remagrip for cylindrical steel drums - without rotation - 90° forward tipping - 2 hydraulic functions
Attachment is hydraulically tiltable by 90°
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available for operation in explosion hazardous areas.
Specification:
With the KAUP Mini Drum Tipping Clamp T405/130 cylindrical drums can be taken up, transported and put away when required around 90° tilted. For it the mini drums clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.
Qualities:- Simply assembly
- Good visibility conditions
- Up to 90° hydraulically tiltably
Drum Tipping Clamp T406H/-2H
-
without sideshift - with hydraulically tiltable clamp arms 180° forward - 2 hydraulic functions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is hydraulically tiltable by 180°.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
With the KAUP Drum Tipping Clamp T406 H/-2H it is possible that cylindrical steel drums, however, also other containers can be dumped ahead. Moreover, it is feasible with the T406-2H-version of this attachment to take up recumbent drums and to bring them in a vertical position. For it clamp arms are serially vulcanised with rubber.
Qualities:- Good visibility conditions
- Good residual capacity
- Robust construction
- Up to 180° hydraulically tiltably
Drum Tipping Device T130F
-
90° tipping, rubber coated flaps - for cylindrical steel drums - 2 hydraulic functions
Attachment is hydraulically tiltable by 90°
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Specification:
With the KAUP Drum Tipping Device T130F several upright standing cylindrical steel barrels can be lifted at the same time, be transported recumbent and be put down again upright. For the safe admission and the unthreatened transport the clamping jaws of the drum tipping device are elastic-occupied.
Qualities:- Very good price-achievement relation
- Very good visibility conditions
- Tilting corner 90° forwards
- Independent sideshift optionally
Beer Keg Clamp 2T415B
-
with independent sideshift - to handle beer kegs - 2 hydraulic functions + 1 solenoid valve
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
The KAUP Beer Keg Clamp T415B is a special attachment. It was specially developed for the transport of several beer drums. Load stabilizers are a firm component of the beer keg clamp. It enables the clamp to transport several drums about one another.
Qualities:- Good visibility conditions
- Including load stabilizers
- Independent sideshift serially
Cask Handler T415W / WD
-
with independent sideshift - 2 hydraulic functions
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment rotates hydraulically by 180° endless in both directions.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
The KAUP Cask Handler 0.3T415W opens up new dimensions in internal transport logistics.
Fitted with the 0.3T415W every forklift truck can take over all transportation requirements in warehouses and cellars quickly, securely and efficiently which, to date, was done manually and therefore very time consuming.Designed for working in confined spaces the0.3T415W can handle stacked casks as well as stackand retrieve them even in narrow passages -and this to the left or right in driving direction.
Qualities:- Good visibility conditions
- Solid construction
- Robust drive technology due to double roller chains
- Valve block sideshift serially
- On request: one of the rams fitted with hydraulically rotating rollers
Rotating Clamps
-
The modular construction method of KAUP attachments makes it possible that basically all clamps can be combined with rotary units. When required a sideshift stroke extends the application possibilities even more.
Only a limited number of basic components are necessary to upgrade proven attachments for new operational areas. Roll Clamps, Fork Clamps, Bale Clamps and the Pallet Turnover Clamp are the most common attachments fitted with a rotary unit.
Advantages of KAUP Rotating Clamps:- Varied application possibilities
- Combinations of 1000-fold proven basic components
- Maintenance and service friendly construction
- If required: good availability of spare parts due to the KAUP modular concept
Possible operational areas:- Palletless transportation of bales of paper, waste paper, tobacco, textiles, boxes and other containers
- Emptying of containers - boxes or grid boxes etc.
- All branches of industry - for example in recycling industry, foundries, food industry, textile industry, iron and metal industries
Rotating Fork Clamp T451
-
Rotation 360° continuous - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is available for operation in explosion hazardous areas.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available with cylinder and sideshifter protection.
Specification:
The KAUP Rotating Fork Clamp T451 is an attachment designed with high visibility. Its solid, strengthened construction using 1000-fold proven basic components of the KAUP modular system gives numerous possibilities for heavy duty applications.
Qualities:- Good visibility conditions
- Solid construction
- Rotation 360° endless
- Attachment also available with screw-on forks
- Opening range larger than the construction width
- Optionally available with sideshift
Rotating Fork Clamp with Turnable Forks T451D
-
Rotation 360° continuous - fork length max. 1.300 mm - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Specification:
The KAUP Rotating Fork Clamp with Turnable Forks T451D is a very versatile attachment and suitable for all kinds of applications as the carrying part of the forks are tiltable by 45° and 90°. On the one hand all kinds of fork operation with palletised products, grid boxing and loads with suitable insertion pockets can be carried out, on the other hand the attachment opens up opportunities for clamping and turning of bales, boxes and cartons.
Qualities:- Good visibility conditions
- Strong construction
- Rotation 360° endless
- Opening range larger than the construction width
- Optionally available with sideshift
Pallet Turnover Clamp T451W
-
Rotation 360° continuous - with two movable fork pairs - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available for operation in explosion hazardous areas.
Attachment is available with cylinder and sideshifter protection.
Specification:
The KAUP Pallet Turnover Clamp T451W is an attachment designed with high visibility and suitable for all kinds of applications. It can be used to turn palletised and non-palletised goods or to exchange pallets e.g. from production pallets to transport pallets. It is also suitable for empting grid boxes or other transport containers.
Qualities:- Good visibility conditions
- Solid construction
- Rotation 360° endless
- Two double forks serially for secure handling
- Optionally available with sideshift available
- Optionally with lateral supporting plate
Pallet Turnover Clamp with Pusher T451WA
-
360° rotation continuous - with Pusher - 2 hydraulic functions plus solenoid valve
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available for operation in explosion hazardous areas.
Attachment is available with cylinder and sideshifter protection.
Pallet Turnover Clamp with Pusher T451WA
Specification:
Pallet Turnover Clamps with Pusher are put into operation when loads have to be transferred from a production pallet to a cheaper transport pallet (one way pallet) or directly loaded into containers, onto lorries or railway wagons. The palletized goods are picked up with the forks, clamped and turned 180°. When the clamp is opened, the load rests on both carrying plates and then can be pushed off onto the transport pallet into the container or directly onto the lorry or railway wagon.
Qualities:- Stable construction
- Rotation 360° endlessly
- Optionally with sideshift available
Pallet Turnover Clamp T451W/180
-
Rotation 360° continuous - with additional pair of forks to empty various boxes - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available for operation in explosion hazardous areas.
Attachment is available with cylinder and sideshifter protection.
Specification:
An additional fork pair distinguishes this attachment from the Pallet Turnover Clamp T451. It allows an easy and safe emptying of the most different transport containers or grid boxing with suitable insertion slots.
Qualities:- Good visibility conditions
- Stable construction
- Rotation 360° endlessly
- Two double forks with additional fork pair serially for safe handling
- Optionally with sideshift available
Rotating Bale Clamp T453
-
Rotation 360° continuous - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available with cylinder and sideshifter protection.
Specification:
The combination with a rotary unit extends the application possibilities of the bale clamp of KAUP even more. Because with the Rotating Bale Clamp T453 the rotating and turning of goods without palettes like cellulose bale, material bale, paper bale, waste paper bale or tobacco bale become easily possible. The insides of the clamp arms of this attachment are optimised for the respective transport purpose. Generally the fixed arms are designed with toe-in.
Qualities:- Good visibility conditions
- Stable construction
- Rotation 360° endlessly
- Optionally with sideshift available
Rotating Bale Clamp T453/180
-
Rotation 360° continuous - with additional pair of forks to empty various boxes - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Attachment is available with cylinder and sideshifter protection.
Specification:
An additional fork pair distinguishes this attachment from the Rotating Bale Clamp T453 and allows easy and safe emptying of the most different transport containers or grid boxing with suitable insertion slots.
Qualities:- Good visibility conditions
- Stable construction
- Rotation 360° endlessly
- Optionally with sideshift available
Tyre Handler T421SV
-
with independent sideshift - 2 hydraulic functions + 2 solenoid valves
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Attachment rotates hydraulically as level compensation by ± 20° in both directions.
Attachment is hydraulically tiltable by 90°
Specification:
A special attachment: the KAUP Tyre Handler T421SV. It allows the trouble-free transport of colossal, heavy tyres and their assembly in mining, mines and building industry. Optionally the attachment can be also adapted to the application at very low temperatures.
Qualities:- Robust construction
- Solid and slender arm construction
- Independent sideshift and level balance serially
- Serially contact pads around 90° rotating
Rotating Roll Clamps
-
Rotating Roll Clamps of KAUP - also known as Paper roll clamps - can take up all kinds of roles carefully. This makes this attachment everywhere inalienable where the handling of the most different role types is essential.
In any case of paper and cellulose roles concrete tubes or tyres (piles): The rotating role clamps of KAUP are the right choice.
Advantages of the KAUP Rotating Roll Clamps:- Many application possibilities
- Combinations 1000-fold proven basic components
- Serviceable construction friendly to servicing
- In case of need: Good availability of spare parts by the KAUP modular concept
Possible operational areas:- Paper industry
- Recycling industry
- Building industry
- Tyres - and automobile industry
Rotating Roll Clamp T458BC
-
360° rotation continuous - short arm fixed - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
With the view-optimised designed KAUP Rotating Roll Clamp T458BC all kinds of roles can be taken up carefully and be advanced. This makes this attachment everywhere inalienable where the Handling of paper roles, concrete tubes and similar one is essential.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solid, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Service friendly
Rotating Roll Clamp T458BC-2
-
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
With the view-optimised designed KAUP Rotating Roll Clamp T458BC-2 all kinds of roles can be taken up carefully and be advanced. The contact pad of this attachment is divided and allows in such a way that at the same time two roles - also with different diameters - can be transported stacked. This makes this attachment everywhere inalienable where the handling of paper roles, concrete tubes and similar one is essential.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solid, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Service friendly
Rotating Roll Clamp T458B
-
360° rotation continuous - short arm adjustable in 45° position - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
With the newly designed, view-optimised KAUP Rotating Roll Clamp T458B all kinds of rolls can be carefully taken up and transported. This makes this attachment indispensable for handling paper rolls, concrete tubes and similar cylindrical goods.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solid, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Service friendly
Rotating Roll Clamp T458B-2
-
360° rotation continuous - short arm adjustable in 45° position - split contact pads - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
With the new view-optimised designed KAUP Rotating Role Clamp T458B-2 roles and pipes can be taken up and transported carefully. The contact pad of this attachment is divided and allows in such a way that at the same time two roles - also with different diameters - can be transported stacked. This makes this attachment everywhere inalienable where the dandling of paper roles, concrete tubes and similar is essential.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solid, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Service friendly
Rotating Roll Clamp T458 S
-
Short arm fixed - 2 hydraulic functions, Especially designed for extreme narrow rolls (width from 150 mm)
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Specification:
The view-optimised designed KAUP Rotating Role Clamp T458S is well suited especially for the careful admission and the transport of narrow roles from a width of 150 mm.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Respectable, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
Rotating Tyre Clamp T458BR
-
360° rotation continuous - short arm adjustable in 45° position (BCR = fixed) - continuous contact pads - 2 hydraulic function
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
The new view-optimised designed KAUP Rotating Tyre Clamp T458BR is predestined for the transport of several tyres at the same size. The short clamp arm is hydraulically adjustable under a rotary corner of 45°, so a concentric load admission can be guaranteed with this role clamp.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solid, slender arm construction
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Artificial positive rake optionally
- Service friendly
Rotating Tissue Roll Clamp T458BT
-
360° rotation continuous - short arm adjustable in 45° position (BCT = fixed) - split contact pads - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
The new view-optimised designed KAUP Rotating Tissue Roll Clamp T458BT is well suited especially for the careful admission and the transport of paper and cellulose roles.
Qualities:- Very good visibility conditions
- Favorable lost load and weight
- Solild, slender arm construction
- Different contact pad coatings available
- Rotation 360° endlessly
- Limitation on rotation 180° optionally
- Service friendly
Rotating Roll Clamp T458 P
-
360° rotation continuous - with parallel guided arms - 2 hydraulic functions
Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
Specification:
The models of the class T458P/T258 of KAUP own an essential differentiation sign compared with other rotating role clamps: Independent of the used opening range the available clamp strength is always commensurate. This allows, that the carried product - no matter of which size - can always be taken up with the same strength carefully and can be transported certainly by parallel guided clamp arms.
Qualities:- Robust construction
- Solild and very slender arm construction
- Rotation 360° endlessly
Reach Forks - Pantograph
-
KAUP Pantographs optimise logistics and warehousing. Reach Forks and Pantographs make it possible to load and unload palletised loads with sufficient bottom clearance stacked on the opposite side of trucks and wagons. These attachments also play an essential part when stacking and unloading loads double deep on shelves.
Pantographs can be combined with a large variety of KAUP attachments such as Fork Positioners, Clamps and Multi Pallet Handlers. The spectrum of possible applications increases immensely.
Advantages of KAUP Pantographs:- Pusher Forks combine the advantages of the reach truck with the advantages of the counterbalance truck
- Good visibility through and over all Pantographs
- Numerous applications possible
Possible operational areas:- All branches of industry
- General logistics of palletised goods
- Food industry
- Construction industry
- Beverage industryFoundries
Reach Fork T140SV
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
KAUP Reach Forks T140SV combine the advantages of reach trucks - narrow working aisles with the lost load centre close to the front chassis - with those of the counterbalance forklift truck. The mobile fork on the backrest - the Reach Fork - inserts under the pallet. At the same time the fixed bearing forks support the loading process. By retracting the Reach Forks and backrest the load is moved to the bearing area of the forklift truck. It can then be picked up and transported.
Qualities:- Very good residual capacity
- Good visibility conditions
- Solid design
- Sideshift serially
Pantograph T149 / T149Z
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is available for operation in explosion hazardous areas.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Specification:
The KAUP Pantograph type T149/T149Z is put into operation whenever Telescopic Forks or Reach Forks cannot be used due to the thickness of the forks. The knife forks of this attachment can pick up loads with very little bottom clearance and stacked double deep for transportation. Additionally the Pantograph T149/T149Z can be combined with a whole range of other KAUP attachments - for example Bale Clamps and Roll Clamps.
Qualities:- Original forks useable
- Solid design
- Sideshift optionally
Telescopic Forks - Conveyer Belt Forks
-
KAUP Telescopic Forks make it possible to pick-up or set down palletised loads from the opposite side of trucks and wagons or stacked double deep on shelves. Therefore this attachment provides quick loading options and increases loading speeds. In addition Telescopic Forks can be used as hydraulic fork extensions.
With a low lost load centre which compares favourably with standard forks and slightly higher weight, Telescopic Forks achieves a good residual capacity. In addition Telescopic Forks can be easily combined with other KAUP Attachments, e.g. Fork Positioners.
The new KAUP Conveyor Belt Forks - the revolution for efficient stacker's application.
With this attachment the handling of palettised and non-palettised load is possible - completely without device change. For this reason the conveyor belt forks of KAUP decisively extend the application possibilities of every forklift. For example they allow the transport of bag products on slip-sheets of cardboards and of extensive not clammy product. But also euro-palettes can be taken up easily along and crosswise and be transported safely.
Advantages of KAUP Telescopic Forks:- Very good visibility conditions
- Excellent residual capacity
- Very simple and quick assembly
- Service friendly construction
Possible operational areas:- All types of industry
- General logistics of palletised goods
- Food industry
- Beverage industry
- Building industry
- Engineering industry
Advantages of the KAUP Conveyor Belt Forks:- Quick and safe handling of palettised and non-palettised load
- Maximum height use during the loading & unloading of containers
- Maximum stacker's load-carrying capacity
- The best visibility conditions
- No device or stacker's change required
Possible operational areas:- Building material industry
- Consumer goods and food industry
- Furniture industry
- Air cargo logistics
Telescopic Forks T180CT
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
Using KAUP Telescopic Forks trucks, wagons and goods stored double deep on shelves can be loaded and unloaded. To achieve this, Telescopic Forks are designed with hydraulic synchronous fork shoes which can, if necessary, be extended step-less.
Qualities:- Excellent residual capacity
- Low lost load centre
- Very good visibility conditions
- Forks with hydraulic synchronism
Fork Positioner with Telescopic Forks T466B/T180CT
-
with independent sideshift - 2 hydraulic functions + solenoid valve
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Specification:
KAUP Telescopic Forks can be easily combined with other attachments. The Fork Positioner with Telescopic Forks type T466/T180CT is one of these combinations. The forklift truck driver can adjust the distance between forks to suit the width of the load and, at the same time, handle loads to be lifted from or put down double deep.
Qualities:- Very good residual capacity
- Good visibility conditions
- Independent sideshift serially
- Also available in integrated version
- Forks with hydraulic synchronism
Conveyer Belt Forks T180FG
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The entrance in the world of the KAUP Conveyer Belt Forks is the class T180FG. Hung up directly with an ISO connection in a sideshifter or fork positioner of KAUP, the conveyor belt forks extend the application possibilities of the known attachments once more.
Qualities:- The best visibility conditions
- Maximum stacker's load-carrying capacity
- Number of the tapes and fork dimensions adaptably adaptable
Conveyer Belt Forks T180FG2-4S
-
with independent sideshift · with adjustable forks - 2 hydraulic functions + solenoid valve
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Specification:
Variability is capitalised with the KAUP Conveyer Belt Forks T180FG-2-4S. The independent sideshift and the hydraulically adjustable forks of this attachment facilitate that different palettised and non-palettised load can be transported point-exactly.
Qualities:- The best visibility conditions
- Low lost load
- Maximum stacker's load-carrying capacity
- Independent sideshift serially
Push-Pulls
-
KAUP Push-Pulls are a part of the KAUP Pusher range of products. They enable transportation of loads with inexpensive and place saving slip-sheets which are usually made of plastic or cardboard. This KAUP attachment makes expensive and unwieldy wooden pallets superfluous and optimal economical loading of overseas containers possible.
Advantages of KAUP Push Pulls:- Extremely high stability
- Scissor system for all attachments in this range
- Self supporting pushing mechanism - no further support required
- Simple and quick assembly
- Maintenance and service friendly design
Possible operational areas:- Building industry - cement sacks
- Beverage industry - bottles and beverage can logistics
- Agriculture - sacks of seeds
- Food industry
- Consumer goods industry - brown goods
- Logistic of cartons and sacked goods
Pusher T141S 1 hydraulic function
-
Pusher with pallet retainer T142S 2 hydraulic functions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP Pusher T141S and Pusher with pallet retainer T142S are part of the KAUP Push-Pull range of products. Contrary to palletless loading, using this attachment the load is either pushed completely with the wooden/plastic pallet (T141S) or separated from the wooden/plastic pallet (T142S).
Pushers are mounted directly on to the fork carriage between the existing forks and can be combined with other KAUP attachments.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
- Different lengths of forks useable
- Multi-fork pushers available upon request
- Combination with other attachments - for example sideshifters - possible
Push-Pull T143SA - slip-on-fork version - 1 hydraulic function
-
Push-Pull with sheet saver T145SA, slip-on-fork version - 1 hydraulic function - and built-in solenoid valve with accessory kit
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
KAUP Push-Pulls T143SA and Push-Pulls with sheet saver T145SA are the right choice when frequent changes between load handling with standard forks and material handling with push-pulls are carried out because this attachment can be fitted with slip-in pockets onto existing forks.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
Push-Pull T143S
-
1 hydraulic function
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull T143S is the right choice when slip-sheets are regularly used as transport mode.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
Push-Pull T144S
-
with independent sideshift - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull T144S is the right choice when slip-sheets are regularly used as transport mode. Serially fitted sideshift ensures simple and exact positioning of the attachment.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
- Sideshift serially
Push-Pull with sheet saver T145S
-
1 hydraulic function - and built-in solenoid valve with accessory kit
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull with sheet saver T145S is the right choice when slip-sheets are regularly used as transport mode. In order to separate the complete load from the slip-sheet during pushing, the attachment is fitted with a so called pallet retainer. It grips the slip-sheet firmly while the load is pushed off so that the slip-sheet can be used several times.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
Push-Pull with sideshift and sheet saver T146S
-
2 hydraulic functions - and built-in solenoid valve with accessory kit
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull with sideshift and sheet saver T146S is the right choice when slip-sheets are regularly used as transport mode. In order to separate the complete load from the slip-sheet during pushing, the attachment is fitted with a so called pallet retainer. It grips the slip-sheet firmly while the load is pushed off so that the slip-sheet can be used several times. Serially fitted sideshift ensures simple and exact positioning of the attachment.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
- Sideshift serially
Crane jibs and other attachments
-
KAUP's extensive range of products covers various solutions for all different material handling applications. KAUP has, apart from Sideshifters, Fork Positioners and Co., other attachments in their portfolio.
Crane jibs, carrying rams, tipping carriage, loading bucket, bucket discharging device and snow plough blade cannot be allocated to any of the normal product families they are listed in this sector. These attachments with special solutions round off the KAUP product range and further extend the application possibilities of the forklift truck.
Crane Jib T183, T183TM, T183TH
-
Specification:
Different versions of this range of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible. The manually swivelling crane column (180° to the right and left) further extends the application possibilities of this attachment. Depending on the version chosen, the crane hook can be either adjusted mechanically (T183), the telescopic boom extended mechanically (T183TM) or hydraulically (T183TH).
Qualities:- Solid construction
- Good visibility conditions
- Simple assembly
- Original forklift truck forks can be used
- Combination with other attachments possible
Crane Jib T183C, T183CTM, T183CTH
-
Specification:
Different versions of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible.
Depending on the version chosen, the crane hook can be either adjusted mechanically (T183C), the telescopic boom extended mechanically (T183CTM) or hydraulically (T183CTH).
Qualities:- Solid construction
- Good visibility conditions
- Simple assembly
- Original forklift truck forks can be used
- Combination with other attachments possible
Crane Jib T183G
-
slip-on-fork version
Specification:
The simple KAUP Crane Jib model T183G is designed with insertion pockets and fitted directly onto standard forklift truck forks and secured there. This attachment makes it possible to lift loads beyond the tips of the forks. This is the perfect choice when a Crane Jib is only used occasionally.
Qualities:- Solid construction
- Simple assembly
- Different sizes of original forklift truck forks can be used
- Position of crane hook adjusted mechanically - optionally available with mechanically telescoping jib (T183GTM) or hydraulically telescoping jib (T183GTH)
Crane Hook T183 G/S
-
slip-on-fork version
Specification:
The simple but strong KAUP Crane Hook model T183G/S is the right choice when loads are infrequently picked up from above and transported. As the attachment is slipped on existing forks mounting is simple and can be carried out speedily.
Qualities:- Solid construction
- Simple assembly
- Original forklift truck forks can be used
Crane Jib T183H, T183HTM, T183HTH
-
Specification:
Different versions of this range of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible. The hydraulically swivelling crane column (90° to the right and left) further extends the application possibilities of this attachment. Depending on the version chosen, the crane hook can be either adjusted mechanically (T183H), the telescopic boom extended mechanically (T183HTM) or hydraulically (T183HTH).
Qualities:- Solid construction
- Good visibility conditions
- Simple assembly
- Original forklift truck forks can be used
- Combination with other attachments possible
Loading Bucket T184
-
1 hydraulic function
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The KAUP Loading Bucket T184 is the right choice for transporting loose goods such as sand, gravel, coal, grain, fertilizer, cement, concrete etc. and to overcome heights, e.g. for filling silos. The specific weight of loose goods can vary between 0,75 to/m³ (grain) and 3,5 to/m³ (scrap metal).
This attachment can even be put into use in winter to clear snow or to deposit it.
Qualities:- For heavy duty operation
- Strong, strengthened construction
Carrying Ram T185
-
Steel tube version
Specification:
KAUP Carrying Rams T185 in steel tube version can be found on forklift trucks wherever tubes, coils or other material wound on cores are transported. Carrying Rams with capacities of up to 80 tons can be found in the KAUP product range.
Qualities:- Manufactured from steel with high tensile and yield strength
- Solid design
- Mounted directly on to the fork carriage - from 12 tons capacity upwards with PIN-type mounting
- Carrying Ram coated with Polyurethan optional
Carpet Carrying Ram T185 T
-
Specification:
Carpet rolls with a small inner diameter can be easily transported with a KAUP Carpet Carrying Ram T185T. The length of the long thin ram should be at least 2/3 of the length of the carpet to be transported. This means that a ram with a length of 3.500 mm can transport a carpet with a length of 5.000 mm.
Qualities:- Manufactured from steel with high tensile and yield strength
- Solid design
- Mounted directly on to the fork carriage
- Optionally to slip-on forklift truck forks
- Variation for handling Big Bags available
Tipping carriage T130
-
1 hydraulic function
Attachment is hydraulically tiltable by 60°.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
Externally the Tipping Carriage is the same as a normal Pantograph. The difference lies in the details as the KAUP Tipping Carriage type T130 can tilt up to 90° forwards.
The Tipping Carriage can be combined with a whole range of other attachments which require a tilting function and so presents numerous application possibilities.
Qualities:- Tilting angle 90° forwards optional
- Variation with forward-backwards tilt available upon request
- Original forklift truck forks useable
Bucket Discharging Device T167C
-
hydraulically operated for drop bottom buckets - 1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The metal industry is a typical application area for KAUP Bucket Discharging Devices type T167C. This attachment is often used for the transportation of drop-bottom containers which are hydraulically opened.
The Bucket Discharging Device can be mounted directly on the fork carriage between the existing forks. They are often combined with a KAUP Fork Positioner.
Qualities:- Low weight
- Low lost load centre
Snow Plough Blade T198G1 / T198FG1
-
mechanically tiltable - to clear to right or left side - with fork pockets for slipping on forks with a maximum fork cross cut, of 160 x 60 mm - distance between fork pockets measured over the outer edges 560 mm
Specification:
Snow clearing is one of the many various applications of a forklift truck. During snow clearing "invisible" obstructions such as kerbs, manhole covers, gate holders can be expected. Therefore the KAUP Snow Plough Blade T198FG1 is fitted with flexible bottom flaps especially to protect the fork carriage and mast.
Qualities:- Strong, strengthened construction
- Exchangable Polyurethan ridge serially (T198G1)
- Four spring loaded flaps as option (T198FG1)
- With mechanical swivel to clear right-left serially
Forks
-
The Forks of KAUP are the connector between load and forklift. Hence it is one of the most claimed segments. Therefore, forks should fulfil the highest quality standards. And the forks of KAUP correspond to these standards.
KAUP offers a wide programme in different forks. It encloses above all forks with suspensions in the ISO implementation. Other suspensions and different implementation are available.
In addition, the port folio of KAUP covers some special forms of forks which allow other application possibilities beside the usual use.
Advantages of the KAUP Forks:- Wide product port folio
Possible operational areas:- Branch-covering
- All forms of the Palettenhandlings
Hook-on Forks T180
-
for mounting on ISO fork carriage
Attachment is available for operation in explosion hazardous areas.
Specification:
The hook-on forks T180 of KAUP are the standard hook-on forks with ISO suspension to the admission and the transport of palettised load. If in parallel several hook-on forks are used, the handling of bagged cargo is also possible.
Qualities:- An easy assembly
- Numerous different load-carrying capacity and hook-on fork lengths in the programme
- Robust implementation
Hook-on Forks T180TW
-
with quick release system 'Terminal West'
Specification:
The quickly changeable hook-on forks T180TW of KAUP possesses a terminal west suspension. With these hook-on forks palettised load can be taken up.
Qualities:- An easy assembly
- Numerous different load-carrying capacity and hook-on fork lengths in the programme
- Robust implementation
Fork Extensions T181G
-
closed version - for KAUP attachments
Specification:
With the closed KAUP Fork Extensions T181G normal hook-on fork prongs can be extended. This solution is the right choice if the available hook-on forks should be extended sometimes and not infinitely. For it the available hook-on forks draw in the hook-on fork shoe of the fork extensions and being arrested there.
Qualities:- Robust construction
- An easy assembly
- Original forks of the stacker usable
Cross Girder T180LA
-
slip-on-fork version
Specification:
The KAUP Cross Girder T180LA is put on directly on the available forks. It is used to transport especially long loads like pipes or metal sheets solidly.
Qualities:- Robust construction
- An easy assembly
- Original forks of the stacker usable
- Optionally: ISO suspension instead of fork shoes
Foldable forks T180KM
-
for mounting on ISO fork carriage - mechanically foldable
Specification:
The KAUP Foldable forks T180KM are used where shortage of space (for example lift use) or internal transport makes it sometimes necessary to fold on the forks. For it the forks are hung up directly in the fork carriage and are opened mechanically.
Moreover, the foldable forks can also be combined with other attachments of KAUP, for example bale clamps.
Qualities:- Robust construction
- An easy assembly
- Very good visibility conditions
Foldable forks T180KH
-
for mounting on ISO fork carriage - hydraulically foldable - 1 hydraulic function
Attachment is hydraulically tiltable by 90°
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The Foldable Forks T180KH of KAUP are used where shortage of space (for example lift use) or internal transport makes it sometimes necessary to fold on the forks. For it the forks are hung up directly in the fork carriage and are opened hydraulically.
Moreover, the foldable forks can also be combined with other attachments of KAUP, for example bale clamps.
Qualities:- Robust construction
- An easy assembly
- Very good visibility conditions
Height adjustable fork T158
-
for mounting on ISO fork carriage - 1 hydraulic function, The height adjustable fork is used in combination with a hook-on fork as level compensator
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The height adjustable fork T158 of KAUP is hung up directly in the ISO carriage and serves as a level compensator. If two height adjustable forks are used at the same time, an additional heave occurs. Height adjustable forks are used together with a hook-on fork.
Qualities:- Robust construction
- An easy assembly
Load Backrest - Load Stabilizer
-
Different kinds of transport loads such as cardboard packaging, timber, sheets of metal or grate boxes can be stabilized and secured with KAUP Load Backrests and Stabilizers for in-plant handling and transportation.
Advantages of KAUP Load Backrests - Load Stabilizers:- Extremely high stability
- Simple and quick assembly
- Excellent visibility conditions
- Combination with numerous different attachments possible
Possible operational areas:- All branches of industry
- Paper industry
- Beverage industry
- Construction industry
- Metal and engineering industry
- Wholesale and warehouse shipping
Load Stabilizer T124 ST
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The KAUP Telescopic Load Stabilizer T124ST has a large opening range with a low construction height. Therefore this Load Stabilizer is best suited for large volume goods, e.g. for stabilizing and securing stacks of Euro pallets.
Qualities:- Solid construction
- Good visibility conditions
- Combination with other attachments possible
Load Stabilizer T129ST
-
1 hydraulic function
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Specification:
The KAUP Load Stabilizer T129ST is mounted onto the fork carriage of the forklift truck and can be combined with other KAUP attachments.
Qualities:- Solid construction
- Good visibility conditions
- Good residual capacity
Load Stabilizer T155ST
-
Optimized for maximum residual capacity by carriages beside the frame - 2 hydraulic functions
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Specification:
The KAUP Stabilizer with optimised residual capacity has a contact pad frame mounted directly into the fork carriage of the attachment and therefore achieves a low lost load centre. The sideshift stroke allows the driver to compensate inaccuracies.
Qualities:- Solid construction
- Good visibility conditions
- Good residual capacity
- Independent sideshift serially
Load Backrest T173
-
for fork positioner T156 and T163N/SN
Attachment is available for operation in explosion hazardous areas.
Specification:
The KAUP Load Backrest T173 has been designed to secure and stabilize loads transported with KAUP Fork Positioners T163SN.
Qualities:- Solid construction
- Good visibility conditions
Load Backrest T179
-
for fork carriages and sideshifter - bracket mounted version
Specification:
The KAUP Load Backrest T179 has been designed to secure and stabilize loads.
Qualities:- Solid construction
- Good visibility conditions
- Suitable for fork carriages and sideshifters
Load Backrest T479
-
for KAUP ranges T160 (from 6T), T410Z, T411, T411Z,, T411ZR, T411D, T412, T413, T414, T415, T406, T466 (from 6T)
Attachment is available for operation in explosion hazardous areas.
table.
Specification:
The KAUP Load Backrest T479 has been designed to secure and stabilize loads transported with all kinds of KAUP Fork Positioners and Clamps.
Qualities:- Solid construction
- Good visibility conditions
Load Backrest T479.1
-
for KAUP ranges T160B / T466B up to 4.8T
Specification:
The new KAUP Load Backrest T479.1 has been designed to secure and stabilize loads transported with all kinds of KAUP Fork Positioners and thus expands the portfolio of KAUP Load Backrests.
Qualities:- Good visibility conditions
Further KAUP attachments
Carrying Ram T185P/S
-
for loading paper reels into containers
Transportation of paper reels - especially for overseas transportation - is traditionally very complex and at riskof being damaged as paper reels are transported as breakbulk and need to be repeatedly loaded or unloaded.
More and more bulk goods are being transported in dry freight containers as, from the manufacturer to thereceiver, the goods need only be loaded and unloaded once. Additionally, during transportation in the containerthe goods are protected from adverse weather conditions. Thus it makes sense to transport sensitive paperreels in a dry freight container.
However, the framework conditions set an enormous challenge. Rolls of liner board have a diameter of up to1.250 mm, a length of 3.800 mm and weigh up to 4 tons. They can neither be stacked standing 'eye-to-the-sky'nor loaded crosswise behind each other as a normal 40' ISO- Container 9,6' High Cube has an inner dimensionof approx. 2.330 x 2.655 mm.
You want to know more about this KAUP product innovation? Then download the corresponding product brochure.
Discharging Device T167S
-
The new Discharging Device T167S - Perfect for emptying boxes based on Euro pallets with a pallet frame and for emptying grate boxes
Facts which speak for themselves:- cost efficient - retro-fitting on available forklift trucks
- slip-on - quick mounting, immediately ready for operation
- residual capacity - remains unchanged for normal forklift truck operation
- forced control - no additional hydraulic circuit required
- flexible - three load holding arm positions for different pallet frame heights
Technical information:- Designed to slip onto a rotating fork clamp (Fork profile 120 x 50 mm and 150 x 50 mm)
- 3 locking positions for pallet frame heights of 800, 1.200 and 1.600 mm
- Weight ca. 360 kg
Fork Positiomer T160B - 'e-controlled'
-
Specification:
What makes the Fork Positioner T160B - 'e-controlled' so special? It's not the drive. Because the attachment still uses hydraulic oil, the same as all other other well-known attachments. Rather, the control system of the fork positioner is surprising.
The new control system enables the control and adaption of the sideshift and fork adjusting functions electronically - 'e-controlled'. Thus the maximum permitted sideshift is always available so that the maximum possible load capacity can always be used. The Fork Positioner T160B - 'e-controlled': an attachment 4.0.
Qualities:- Hydraulic drive - proven components
- Precise sideshift & fork adjusting functions via a PLC
- Figures for maximum available sideshift itself or preset sideshifts are individually adjustable
- Opening ranges can be individually defined
- Open interface for integration into the control system of the lift truck
- Basis: Fork Positioner T160B
Fork Positioner T160B - 'e-operated'
-
Specification:
The Fork Positioner T160B - 'e-operated' is a so-called viable study. This attachment does not need even one drop of hydraulic oil. An absolute novelty!
The T160B - 'e-operated' can be used normally. Why? KAUP has been successful in implementing all known functions of a fork positioner electrically - electronically driven: 'e-operated'. In addition, the patented control system with an open interface opens up new communication options for the attachment and forklift truck. The Fork Positioner T160B - 'e-operated': an attachment 4.0.
Qualities:- Fully electronically driven - complete elimination of hydraulic oil
- Precise sideshift & fork adjusting functions via a PLC
- Define sideshift depending on lifting height
- Opening ranges can be individually defined
- Independent electronical control of the attachment
- Open interface for integration into the control system of the lift truck
- Basis: Fork Positioner T160B
KAUP Container Spreaders
-
KAUP Container Spreaders are variably usable and have proven to be successful in worldwide use since more than 25 years - on ships, port terminals or transhipment stations. Due to the consequently applied modular principle of KAUP they have a very favourable ratio between empty weight and payload and can be adapted without any problems to individual requests concerning load capacity, stroke speed and increasing container sizes.
For centering the view-optimized designed spreader during positionning on a freestanding container the KAUP Container Spreaders are equipped with folding flippers. Depending to the specific need the crane operator can fold them upwards or downwards.
KAUP provides a wide range of Container Spreaders
The range of Container Spreaders from KAUP is extremely diverse. It ranges from forklift truck Spreaders to Telescopic Spreaders up to Spreaders for fully laden containers. But the individual data concerning type, mounting, details of load calculation, data about the transported containers and other technical specifications render Container Spreaders very complex. Therefore it is necessary to contact the Spreader division directly to adapt container Spreaders to the particular application.
Please contact us!
Possible operational areas:- Gantry container bridges
- Mobile harbour cranes
- Portal cranes
- Ship to shore cranes
- Forklift trucks
- Reach stackers
- Luffing cranes
- Straddle carriers
KAUP Stationary Material Handling Equipment
-
1000-fold proven components of the KAUP modular design combined in a particular way: these make up KAUP Stationary Material Handling Equipment. They consist of project related system solutions which can be integrated in every production process.
Our devices have already been implemented for handling bagged products such as sugar or cement. But also in goods handling and storage of consumer goods and beverages, when turning sheet metal or paper sheets for processing on both sides, our application orientated devices are in great demand.
The majority of our equipment is driven by a hydraulic power unit. They can be controlled automatically, semiautomatically or manually and so optimally adjusted to the customer requirements. Rental Service - Used Equipment
-
KAUP Rental Service and Used Equipment sales are the economical alternative for the most different Material Handling tasks. Whether it is testing on site which attachment is the right one for your specific operation purpose or bridging repair times. Sometimes a used device can be more economic than a new one - on the large site of 3,200 sqm in Aschaffenburg you will find what you need. Because KAUP always has about 1,500 new or as good as new attachments in permanent stock there. For rental or sale (here you can learn more about KAUP used equipment service).
Individual range of services
Regardless of whether you rent a device for a single day or several months or if you want to buy it immediately: our offer is geared to your requirements - in the matter of rental therefore you can expect customized solutions which even include necessary wear and tear parts (not including fork tines). For instance in case of long term rental we always submit you a project related offer (here you can learn more about KAUP rental service).
An average of 4,000 equipment rentals per year in Germany, Europe and throughout the world proves our competence in this sector.
Modern attachments
The attachments available as rental service and used equipment sales are thoroughly tested. They meet all the quality standards which KAUP demands of an attachment and offer state-of-the-art technology. This is why KAUP offers guarantee of one year on used equipment.
Before each use our rental devices are intensively checked, maintained and looked after by KAUP specialist staff. Therefore every customer is assured to fall back on technically flawless and reliable equipment for the whole rental period. If you nevertheless need skilled assistance during rental employment you can furthermore rely on the qualified KAUP service.
Fast and predictable transport
You can rely on KAUP's contract transport carrier to ensure that the ordered rental or used attachment reaches its destination quickly. Because this flexible and reliable partner is transporting on behalf of KAUP, using their own vehicles, to destinations throughout Germany within 24 hours. If required and depending on availability even until 8 a.m. the following day. We will already inform you about fixed and predictable costs for transporting your rental or used equipment during the quotation phase for each particular attachment. Thus you will receive a quick operating overview about all possibilities and expected costs.
Contact persons:
Do you have any questions or would you like a quote? Our employees will help you!
Mietservice und Gebrauchtgerätecenter von KAUP
KAUP Rental Service and Used Devices Centre in Aschaffenburg: 1,500 attachments for various requirements on 3.200 sqm
Fast and predictable transport
You can rely on KAUP's contract transport carrier to ensure that the ordered rental or used attachment reaches its destination quickly. Because this flexible and reliable partner is transporting on behalf of KAUP, using their own vehicles, to destinations throughout Germany within 24 hours. If required and depending on availability even until 8 a.m. the following day. We will already inform you about fixed and predictable costs for transporting your rental or used equipment during the quotation phase for each particular attachment. Thus you will receive a quick operating overview about all possibilities and expected costs.
Professional advice
Your contact partners of KAUP rental service are highly qualified specialists with extensive know-how who are at your disposal for support and consultation during and after each project.
Do you have any questions or an upcoming project?
We are ready to help you on all rental requests! Accessories
-
We offer an extensive range of accessories for KAUP attachments. It includes, for example, quick change devices, different kits to operate additional attachment functions and sensor technology for Appliance- and Large Surface Clamps.
Our offer of accessory equipment for KAUP attachments includes much more than the products listed here.
Ask us for all the possibilities!
For all enquiries and orders of spare parts and accessories please indicate the type of attachment and its serial number. This information can be found on the identification plate attached to the unit. Additionally this information is engraved on the attachment body. e-l-m Fork Positioners:
-
KAUP has the broadest portfolio of Fork Positioners amongst attachment manufacturers. The KAUP range programme is supplemented by Fork Positioners from our Danish sales cooperation partner e-l-m Kragelund A/S.
The leading manufacturer in Scandinavia is specialized in integrated attachments, which are readily available for nearly every known integration version. For this reason KAUP presents the most extensive range of Fork Positioners on the highest technical level on the market. And customers will find the appropriate solution for all different Material Handling tasks.
Your advantages:- Reliable and efficient attachments with synchronised technology
- Professional distribution and service by KAUP organisation
- Reliable KAUP support during the entire operating life
- Efficient e-l-m organisation
- Optimal availability of spare parts
