Schaeffler Smart Maintenance Tools, formerly Bega Special Tools, founded in 1978, is an internationally operating company. Since August 2021, Bega has been part of Schaeffler. As “Smart Maintenance Tools” we are part of the Schaeffler Lifetime Solutions division (formerly Industry 4.0). We are a manufacturer and distributor of special tools with our own brand name BETEX®. These maintenance tools are used for safe, cost-effective assembly and disassembly of bearings and drive components.
The tools are used in production and maintenance departments in MRO and OEM companies. Schaeffler Smart Maintenance Tools exports through a network of distributors and supplies all types of industries. Due to our specialization, we supply (customized) solutions, for example, in the wind, rail, mining and steel industries.Visit us on:
BETEX® professional hydraulics for industrial use.
-
BETEX has a growing range of high pressure workshop hydraulic equipment, developed by Schaeffler Smart Maintenance Tools. Ideal for performing a wide variety of maintenance jobs in your workshop or production area. The products are produced and tested according to international standards (ISO 9001-2008). The maximum operating pressure is 700 bar standard.
- Maximum standard operating pressure is 700 bar standard.
- High pressure hand pumps are available in 1000, 1500 and 2800 bar
- Compatible with major international brands
- Supply from stock

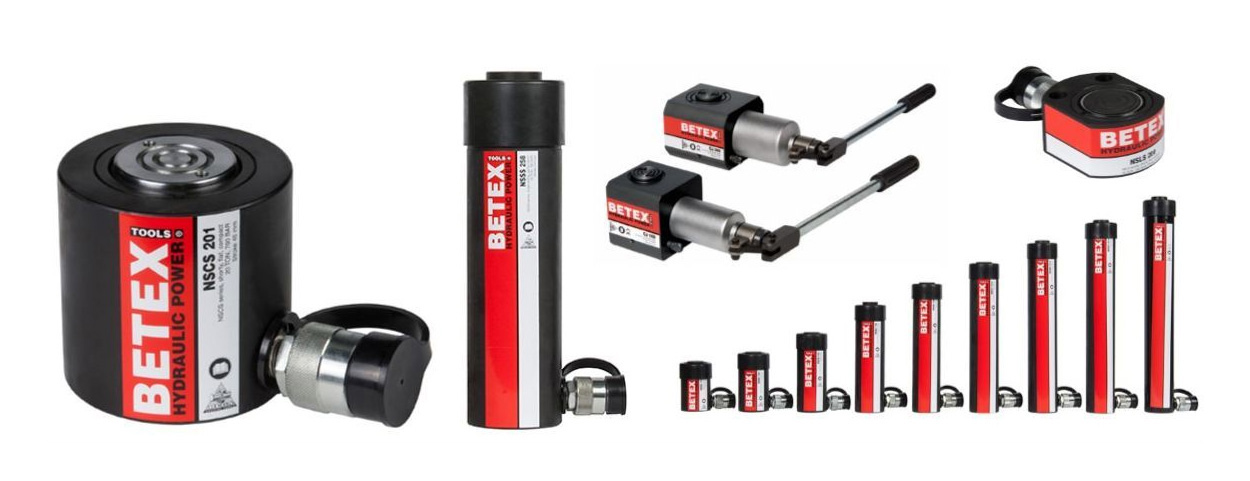

Hydraulic cylinders 700 bar

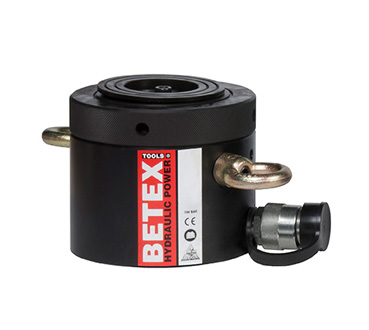

BETEX JLLC cylinders
-
High tonnage, single acting, load return
Capacity : 50-1000 ton
Stroke : 50-300 mm
Max. working pressure : 10,000 psi / 700 bar- Single-acting, load return.
- With locknut for positive and safe load holding over a long period of time.
- Chrome plated to prevent corrosion and to lower friction for smoother operation.
- Withstands side-load forces up to 5% of rated cylinder capacity without scoring.
- Stop ring for piston blow-out protection.
- Interchangeable, hardened, grooved saddle as standard.
- High-flow coupler and dust cap included with all models.
- Female coupler and dust cap included with all models.
- Cylinders inside roll-polished, outside blasted with black nitride coating.
JLPC cylinders
-
High tonnage, single acting, load return, compact
Capacity : 60-1000 ton
Stroke : 50-300 mm
Max force : 10,000 psi / 700 bar- All cylinders are single-acting with load-return.
- Extremely low height for use in confined spaces.
- With locknut for positive and safe load holding over a long period of time.
- Chrome plated to prevent corrosion and to lower friction for smoother operation.
- Withstands side-load forces up to 3% of rated cylinder capacity without scoring.
- Pressure relief valve port functions as a stroke limiter.
- Female coupler and dust cap included with all models.
- Cylinders inside roll-polished, outside blasted with black nitride coating.

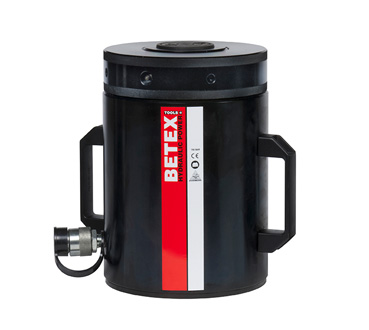

BETEX ALNC cylinders
-
Aluminium, single acting, load return
Capacity : 50 - 100 tons
Stroke : 50 - 250 mm
Max force : 10,000 psi / 700 bar- Considerably lighter than steel cylinders.
- All cylinders are single-acting with load-return.
- Locknut for positive and safe load holding over a long period of time.
- Large piston surface for side load protection.
- Hard-anodized coating reduces wear and corrosion.
- Female coupler and dust cap included with all models.
- Carrying handles on all models as standard.
- Mounting holes bottom: M6 (V), 10 mm deep (Z).

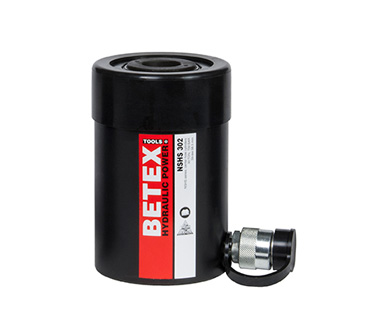

BETEX NSHS cylinders
-
Hollow, single acting, spring return
Capacity : 12 - 100 ton
Stroke : 8 - 160 mm
Max. operating pressure : 10,000 psi / 700 bar- All rams are single-acting with spring return
- Pistons are hard chromed
- Rams inside roll-polished
- Exterior blasted with black nitride coating
- Female coupler and dust cap included with all models

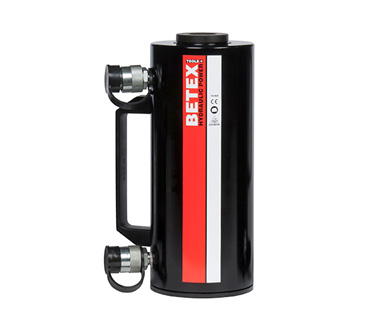

BETEX ADHC cylinders
-
Hollow, double acting
Capacity : 30-60 ton
Stroke : 50-250 mm
Max. working pressure : 10,000 psi / 700 bar- Considerably lighter than steel cylinders.
- Hard-anodized coating reduces wear and corrosion.
- Stop rings for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Female coupler and dust cap included with all models.
- Carrying handles on all models as standard.
- Mounting holes base plate: M6 (V), 10 mm deep (Z).

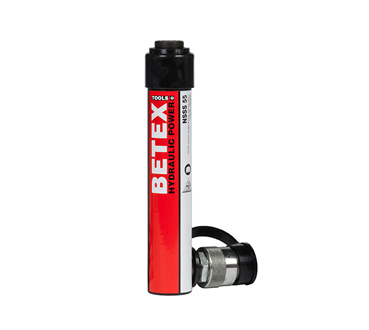

BETEX NSSS cylinders
-
Standard, single acting, spring return
Capacity : 4.5 - 100 ton
Stroke : 25.4 - 362 mm
Max. working pressure : 10,000 psi / 700 Bar- All cylinders are single-acting with spring return.
- Pistons are hard chromed.
- Rams inside roll-polished.
- Exterior blasted with black nitride coating.
- Female coupler and dust cap included with all models.
BETEX NSCS cylinders
-
Compact, short stroke, single acting, spring return
Capacity : 10 - 100 ton
Stroke : 38 - 62 mm
Max. operating pressure : 10,000 psi / 700 bar- All rams are single acting with spring return.
- Pistons are hard chromed.
- Rams inside roll-polished.
- Exterior blasted with black nitride coating.
- Female coupler and dust cap included with all models.

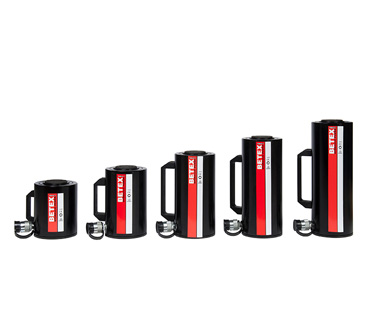

BETEX SSA cylinders
-
Aluminium, single acting, spring return
Capacity : 20 - 100 ton
Stroke : 50 - 250 mm
Max. operating pressure : 10,000 psi / 700 bar
Custom stroke lengths and capacities are available.- Considerably lighter than steel cylinders.
- All cylinders are single-acting with spring-return.
- Chrome plated center hole for extra protection.
- Large saddle surface for side load protection.
- Special O-ring protects inside form dirt.
- Hard-anodized coating reduces wear and corrosion.
- Female coupler and dust cap included with all models.
- Rod wiper protects inner cylinder from dirt.
- Carrying handles on all models as standard.
- Mounting holes base plate: M6 (V), 10 mm deep (Z).

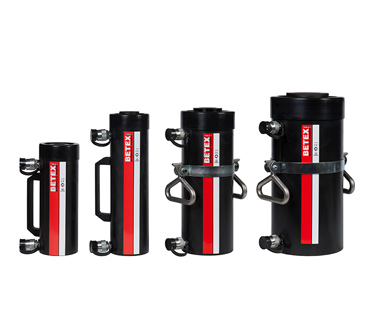

Hollow, double acting
-
Double acting
Capacity : 10 - 100 ton
Stroke : 150 - 470 mm
Max operating pressure : 10,000 psi / 700 Bar- Cylinders are double-acting.
- Pistons are hard chromed.
- Ram inside roll-polished.
- Exterior blasted with black nitride coating.
- Female coupler and dust cap included with all models.
BETEX NDAH cylinders
-
Hollow, double acting
Capacity : 30 - 100 ton
Stroke : 76 - 257 mm
Max operating pressure : 10,000 psi - 700 Bar- All cylinders are double-acting and hollow.
- Pistons are hard chromed.
- Ram inside roll-polished.
- Exterior blasted with black nitride coating.
- Female coupler and dust cap included with all models.
- Particularly suitable for construction sites, shipyards, utility companies, mining and maintenance workshops.
Hydraulic hand pumps
BETEX aluminium hand pump sets
-
All sets are pre-mounted, you can get started right away!
The pumps are single acting (except the AHP703, this one is double-acting), two-stage.Our hand pump sets are supplied complete with:
- Aluminium hand pump
- T-adaptor
- Pressure gauge
- Hose 1,5 mtr.
- Couplings
- Steel storage case

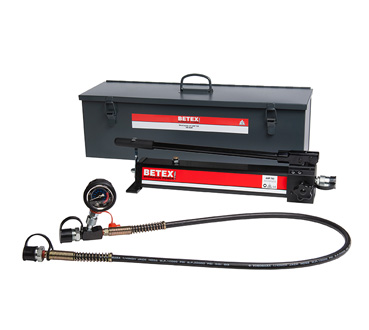

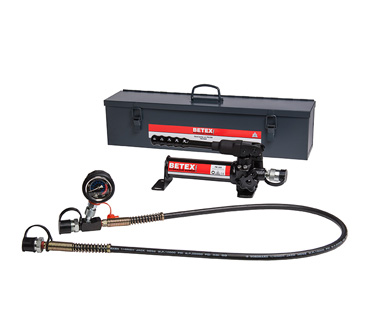

BETEX steel hand pump sets
-
All sets are pre-mounted, you can get started right away!
All pumps are two-stage, single acting (P 904D is double acting).Our hand pump sets are supplied with:
- Steel hand pump
- T-adaptor
- Pressure gauge
- Hose 1,5 mtr.
- Couplings
- Steel storage case

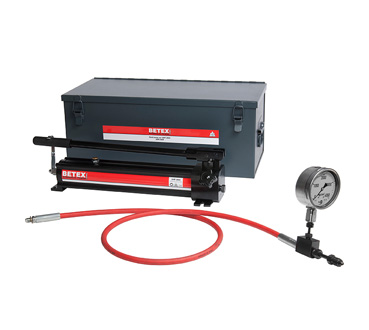

BETEX high pressure hand pump sets
-
All sets are pre-mounted, you can get started right away!
The pumps are single acting, two-stage.Our hand pump sets are supplied complete with:
- Steel hand pump
- T-adaptor
- Pressure gauge
- Hose 1,8 mtr.
- Couplings
- Steel storage case

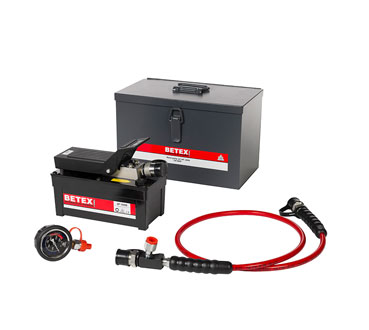

BETEX AP 1600S air-hydraulic foot pump set
-
This set is pre-mounted, you can get started right away!
The pump is single-acting and 2-stage.This foot pump set is supplied with:
- Foot pump
- T-adaptor
- Pressure gauge
- Hose 1.5 mtr.
- Couplings
- Steel storage case
Hydraulic hand pumps, 2-stage

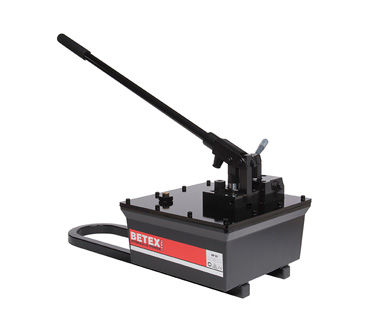

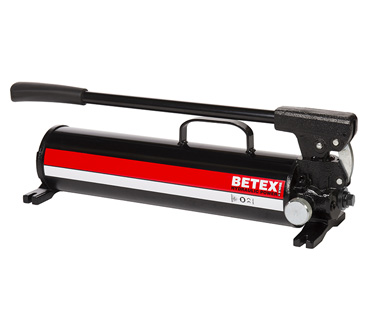

BETEX HP80 steel hand pump, heavy duty
-
- Heavy-duty hydraulic hand pumps for the heavy jobs.
- Two-stage pump provides rapid pumping to load the cylinder quickly.
- Low handle effort required for easy operation.
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- The pumps are equipped with a slow discharge function. Which allows for multidirectional operation.
- The HP 80D is designed especially for double-acting cylinders, without the need for an extra control valve and adapters.
BETEX HP35 steel hand pump, heavy-duty
-
- Our handpumps are always characterized by their rugged steel construction and easy-operation handles.
- The handy release knobs with locking mechanism are perfect for industrial applications and daily operations.
- Specially designed HP35D is for double-acting cylinders without the need for extra controlling valve and adapters.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
BETEX PB / HC-serie steel hand pump, heavy duty
-
- Heavy-duty hydraulic hand pumps for the heavy jobs.
- Two-stage pump provides rapid pumping to load the cylinder quickly.
- Low handle effort required for easy operation.
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- Suitable for single-acting cylinders.
- External control and locking of maximum pressure.
- Our hand pumps are characterised by their rugged construction and easy-operation handles.
- Carrying handle for easy portability.
- The professional choice for a wide range of industrial applications.
BETEX HP80 steel hand pump, heavy duty
-
- Heavy-duty hydraulic hand pumps for the heavy jobs.
- Two-stage pump provides rapid pumping to load the cylinder quickly.
- Low handle effort required for easy operation.
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- The pumps are equipped with a slow discharge function. Which allows for multidirectional operation.
- The HP 80D is designed especially for double-acting cylinders, without the need for an extra control valve and adapters.
P 900 series Steel heavy duty hand pumps
-
- High pressure (700 bar) hydraulic hand pumps for heavy work.
- 2-stage hand pumps for bringing the cylinder quickly under pressure
- Little effort needed, easy operation.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
- Our hand pumps are always characterized by their rugged construction and easy-operation handles.
- Handles for simple positioning.
- The professional choice for a large number of industrial applications and daily activities.
- P 904D is a double acting hand pump for use of a double-acting cylinder.

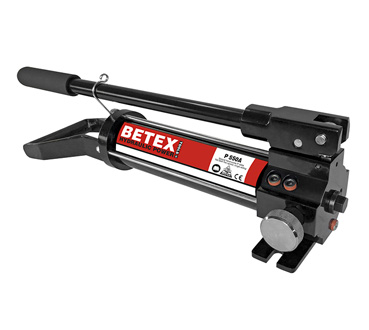

P 350 / P 550 / P 1000 special hand pumps
-
- Special lightweight design with unique triangle hand-held base for easy handling and operation.
- The sealed aluminium oil reservoir allows the handpumps to be operated at all angles without the risk of air contamination and oil spills; This allows under water- and sub-sea operation.
- A = single port hand pump is used for one single-acting cylinder.
- B = twin port hand pump is used for two single-acting cylinders simultaneously.
- D = double-acting hand pump is used for one double-acting cylinder.
Betex Foot pumps

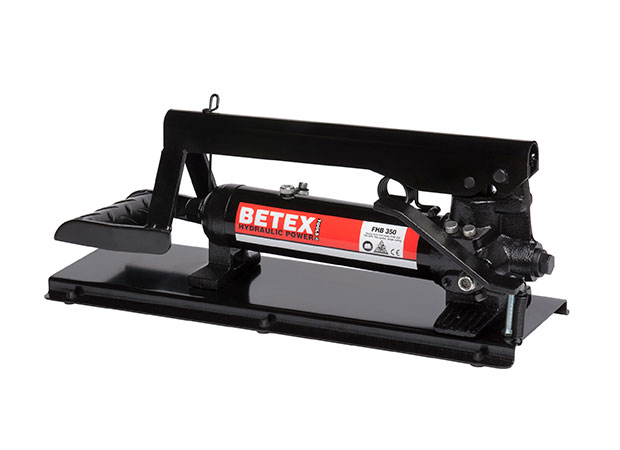

BETEX FHB series, foot pumps, 700 bar
-
- BETEX® innovative foot pumps are not only attractively designed, but are also durable and stable.
- Foot-operated pump and release pedal, providing accurate control for operating in different conditions.
- Spring-loaded foot pedal is convenient and easy to operate.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
Hydraulic air pumps

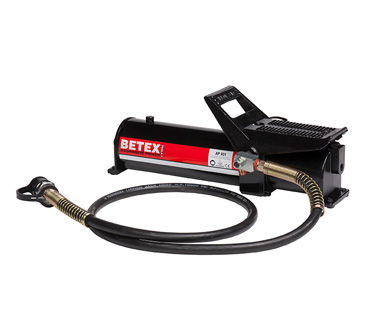

BETEX AP 921 foot pump
-
- The air-driven hydraulic pump is designed for use with single-acting cylinders and tools like the BETEX cylinder series.
- Rugged construction: most components are made of aluminium alloy and are built for long service life, easy operation and portability.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
- New inlet/outlet design features slow deflation function reducing noise, and allows multidirectional operation.

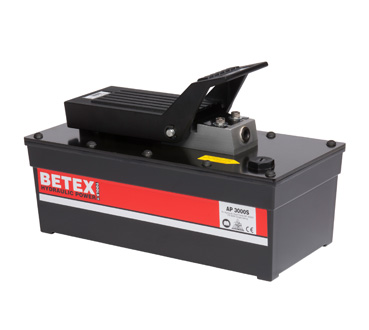

BETEX AP1600/3000/8000 foot pumps
-
- The air-driven hydraulic pump is designed for use with single-acting cylinders and tools like the BETEX cylinder serie.
- Rugged construction: most components are made of aluminium alloy and are built for long service life, easy operation and portability.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
- New inlet/outlet design features slow deflation function reducing noise, and allows multidirectional operation.
- The AP-D-models are specially designed for double-acting cylinders without the need of an additional control valve and connecting pieces.
- The AP 1600S is also available in a set.
- New in this range is the AP 8000 serie with a capacity of 7200cc.

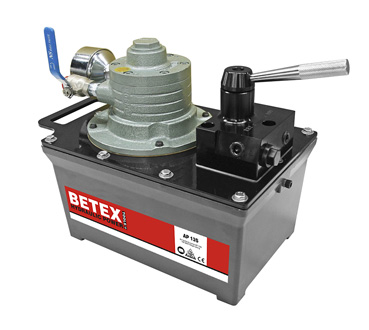

BETEX AP 13 air pumps
-
- Two-speed operation.
- 3 liter durable aluminium reservoir design.
- Air motor capable of starting under full load.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
- AP 13S is single acting; the AP 13D models are specially designed for double-acting cylinders without the need of an additional control valve and connecting pieces.
BETEX AP 18 air pumps
-
- Two-speed operation.
- 8 liter durable aluminium reservoir design.
- Air motor capable of starting under full load.
- Automatic 10,000 psi overload-relief valve protects components in hydraulic systems and ensures safe operation.
- AP 18S is single acting; the AP 18D models are specially designed for double-acting cylinders without the need of an additional control valve and connecting pieces.

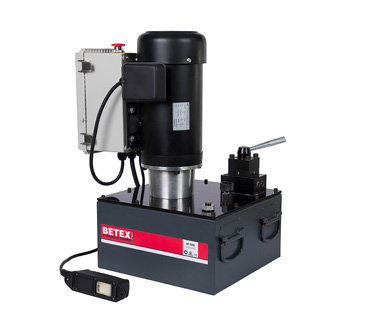

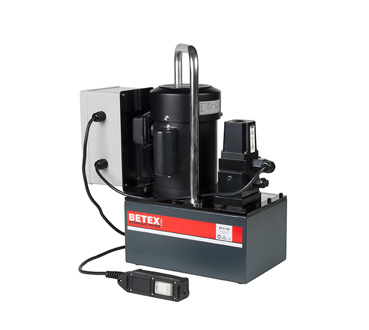

Electric pumps

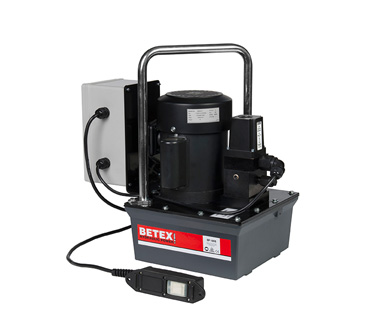

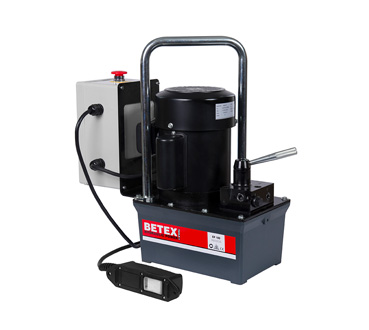

BETEX EP13 electric pumps, 3L
-
- Electric pump 120V or 230V, 5A, 50/60 Hz universal induction motor, thermal protected.
- Very quiet (about 80dBA at 700 Bar).
- Remote control incl cord (3m).
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- Specially designed EP13D is for double-acting cylinders without the need for extra controlling valve and adapters.

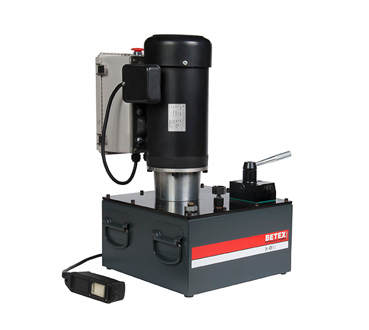

BETEX EP18 electric pumps, 8L
-
- Electric pump 120V or 230V, 5A, 50/60 Hz universal induction motor, thermal protected.
- Very quiet (about 80dBA at 700 Bar).
- Remote control incl cord (3m).
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- Specially designed EP18D is for double-acting cylinders without the need for extra controlling valve and adapters.
- Type EP18SS and EP18DS are fitted with a solenoid valve.
- For current stock level contact our sales department.
BETEX EP211 electric pumps, 11L
-
- Electric pump 120V or 230V, 12A, 50/60 Hz universal induction motor, thermal protected.
- Very quiet (about 80dBA at 700 Bar).
- Remote control incl cord (3m).
- Automatic overload-relief valve (700 bar) protects components in hydraulic systems and ensures safe operation.
- Specially designed EP211D is for double-acting cylinders without the need for extra controlling valve and adapters.
- Type EP211SS and EP211DS are fitted with a solenoid valve.
BETEX P 905 / AHP 704 / AHP 705 / UHP 2800 ultra/high pressure hand pumps
-
- P 905: Steel high pressure hand pump up to 1000 bar.
- AHP 704/ AHP 705: high working pressure up to 1000 / 1500 bar.
- UHP 2800: Light weight aluminium model for ultra high working pressure of 2800 bar for special applications.
- Automatic overload-relief valve protects components in hydraulic systems and ensures safe operation.
BETEX UHAP ultra high pressure air pumps
-
General purpose air driven ultra high pressure hydraulic pump suitable for pumping water and oil up to 2800 bar.
- Portable, compact.
- Single acting.
- Max. air pressure: 7 bar/100psi.
- Max. output pressure: 2800 bar.
- With easy to connect bayonet coupler and flexible hose (3 mtr).
- Automatic overload-relief valve.
- Including air filter.
- The pumps are without oil.
- Optional: trolley.
Ultra High pressure pumps
P 905 / AHP 704/5 / UHP 2800 ultra/high pressure hand pumps
-
ALUMINIUM HAND PUMPS: 1000 / 1500 / 2800 BAR
- AHP704: high working pressure up to 1000 / 1500 bar
- UHP2800 light weight model for ultra high working pressure of 2800 bar for special applications
- Automatic overload-relief valve protects components in hydraulic systems and ensures safe operation

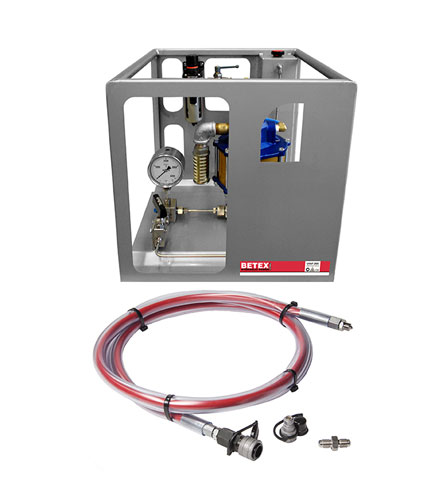

UHAP ultra high pressure air pumps 2800 BAR
-
General purpose air driven ultra high pressure hydraulic pump suitable for pumping water and oil up to 2800 bar
- Portable, Compact
- Single acting
- Max. driving pressure: 7 bar/100psi
- Max. output pressure: 2800 bar
- With easy to connect bayonet coupler and flexible hose (3 mtr)
- Automatic overload-relief valve
- Including air filter
- Optional: trolley
Workshop presses

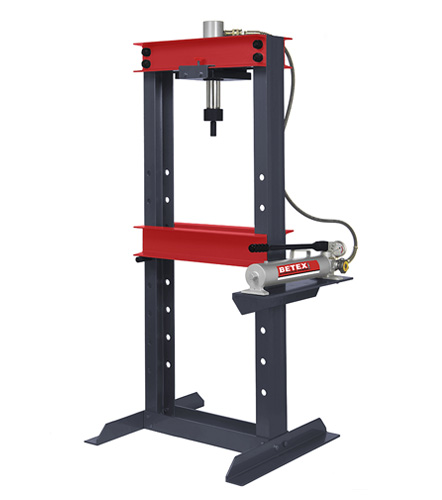

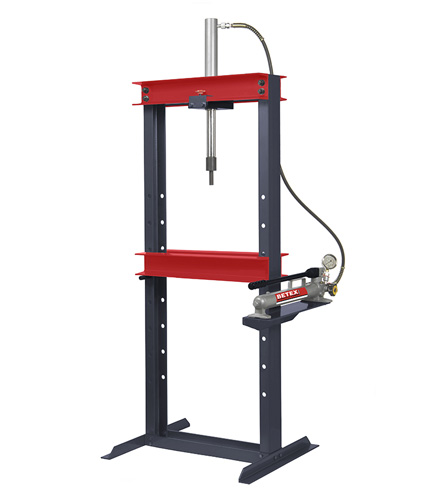

BETEX SHOP PRESSES 10T
-
Ideal for small pressing jobs. Repair of motors, transmissions, mounting and dismounting of couplings, bearings and other workpieces.
- The robust steel frame provides maximum stability and cannot bend.
- Various operating positions possible for the press bed.
- Steel crossbars prevent the frame from deforming when loaded.
- Includes pressure gauge for exact pressure readings.
- Single-acting and spring-return cylinder can be moved horizontally on the upper frame.
- Also available with hand, electric or air-hydraulic pump.
- Available in 2 models: 10 and 25 tons.
BETEX WSP shop presses - 25 tons
-
Suitable for heavy-duty pressing jobs, in garages, industrial workshops, for mounting and dismounting of couplings, bearings and other workpieces.
- The robust steel frame provides maximum stability and cannot bend.
- Various operating positions possible for the press bed.
- Steel crossbars prevent the frame from deforming when loaded.
- Includes pressure gauge for exact pressure readings.
- Single-acting and spring-return cylinder can be moved horizontally on the upper frame.
- Also available with hand, electric or air-hydraulic pump.
- Available in 2 models: 10 and 25 tons.

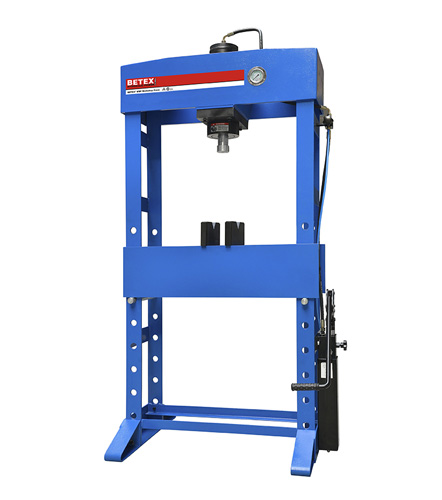

BETEX WSPM shop presses - hand/foot operated - 15-50 tons
-
These robust hydraulic workshop presses are suited for professional assembly work, or for professional testing of a wide range of components. They are used for pressing, straightening, bending, punching, assembly, disassembly, etc.
The piston is easy to operate using the hand pump. While operating the press, operation can be switched from hand pump to foot pump.
Advantages of this workshop press:
- High quality! The robust steel frame is welded for maximum stability and a long services life.
- Work surface height is easy to adjust.
- Extremely suitable for high-precision work.
- The 50-ton version of the press is equipped with a hoist.
- Chrome-plated piston with automatic return.
- Single-acting and spring-return cylinder can be moved horizontally on the upper frame (for 50 ton models only).
- Includes pressure gauge for exact capacity readings.
- Includes a set of V adapters.

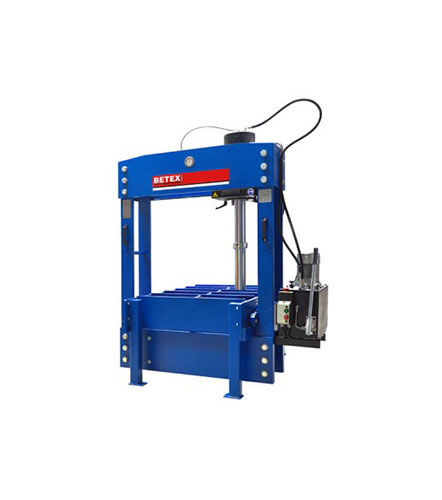

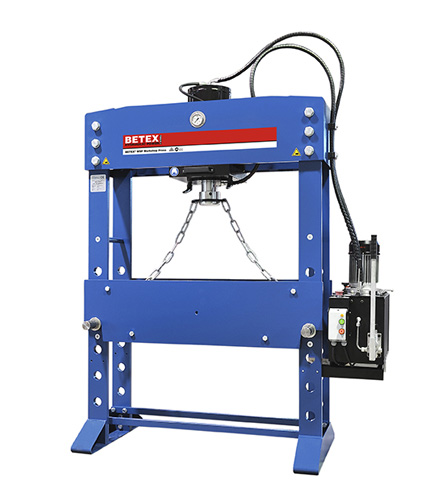

BETEX WSPE shop presses - electric - 30-300 tons
-
These electric hydraulic workshop presses are suited for general assembly work, straightening, and for testing a wide range of components.
Unique! You have a choice of two different piston speeds: as soon as the rapidly lowering piston detects counter pressure, it will automatically switch back to a lower speed.
- High quality! The robust steel frame is welded for maximum stability and a long life span.
- Extremely well suited for high-precision work, manual or electric operation.
- Work surface height is easy to adjust.
- Cylinder can be moved horizontally on the upper frame (excl. 30 & 60 tonnes).
- Two piston speeds, chrome-plated piston with removable piston head.
- Includes gauge for exact press force readings.
- Joystick for high-precision piston operation.
- Double-acting hand pump (only for 100 to 200 ton versions) for high-precision piston operation.
- 220V CEE connector to connect a lamp or drill, if required.
- The presses are supplied without oil. (Advice: Tellus 46)
BETEX PFPE - portal press - manual/electric - 100 to 160 tons
-
These robust hydraulic portal presses with a manually operated portal are made of high-grade steel. They are extremely suitable for the shaping, straightening or bending of large sheets and heavy materials. The frame can be moved lengthwise and the cylinder can be moved sideways, enabling access to the material from all sides.
The cylinder and frame can be moved manually. The hydraulic system is very precise, whether the press is operated electrically or manually (using the hand pump). This portal press is equipped with an integrated pressure gauge. The two-speed motorised hydraulic unit has automatic high-speed shutdown and includes a pressure regulator, a joystick to operate the cylinder and a hand pump for high-accuracy pressing.
The machine is supplied with cylinder extension as standard. (Excl. oil, Tellus 46).Options:
- Flat lower table.
- Custom dimensions, versions and tonnages available on request.
- Set of V blocks.
- Remote control/foot pedal.

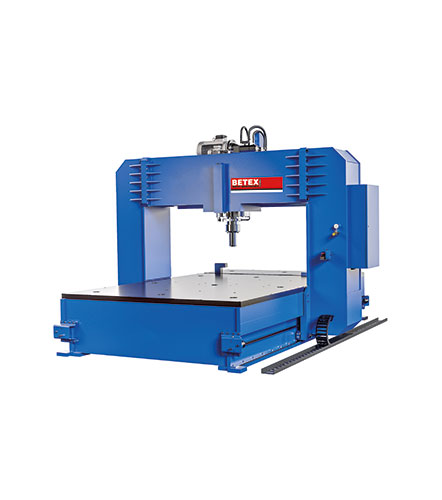

BETEX PFPE Electric 150-300T
-
These robust hydraulic portal presses are made of high-grade ST-52 3 steel and extremely suitable for the shaping, straightening, or bending of large sheets and heavy materials. The frame can be moved lengthwise and the cylinder can be moved sideways, enabling access to the material from all sides.
All portal presses are equipped with a double-acting cylinder with a chrome-plated piston and anti-wear guideways to protect the cylinder. This press bushing has been designed especially so that different attachments can be fitted to it.
- You controle the plunger with a ‘hanging’remote control. With this remote control you also move the frame and the cylinder.
- There’s an emergency stop with interlock. The control panel (on the right side of the machine) contains a switch for the unique work type (manual or semi-automatic) and a switch for the relative working speed (with 1 of 2 different speeds).
- The two-speed electric hydraulic pump automatically switches to the lower speed when it detects counter pressure.
- The hydraulic pump is also equipped with a pressure controller and a gauge. (Excl. oil; advice: Tellus 46).
Hydraulic jacks

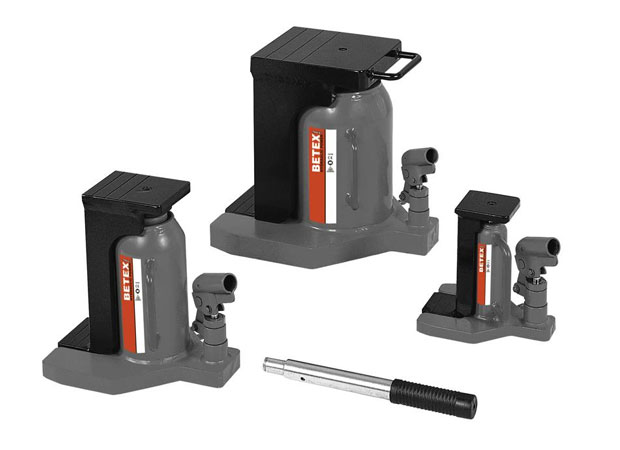

BETEX TOE JACKS
-
- Heat-treated and chrome-plated hydraulic rod provides longer seal life and optimal performance.
- Internal safety valve prevents toe jack being used beyond its rated capacity.
- Leakages are prevented by welding the housing onto the forged base.
- Strong toe lift for long service life.
- Low toe heights for tight spaces.
- Swivel sockets for easy operation.
- Toe jacks can be operated quickly by hand without a load.
- Removable handle makes unit easier to operate.

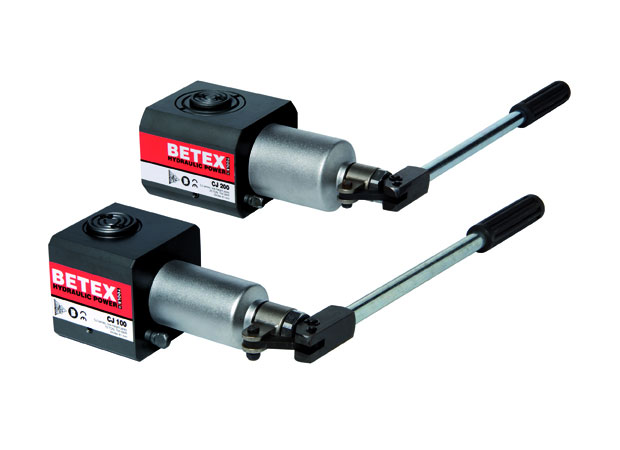

BETEX CJ CYLINDERS
-
Capacity : 10 or 20 tons
Stroke: 41 mm
Max. working pressure: 10,000 psi / 700 bar- Spring-loaded.
- Piston hard chromed.
- Ram inside roll-polished.
- Perfect for jobs with limited space, like positioning machines, mounting tools or load tests.

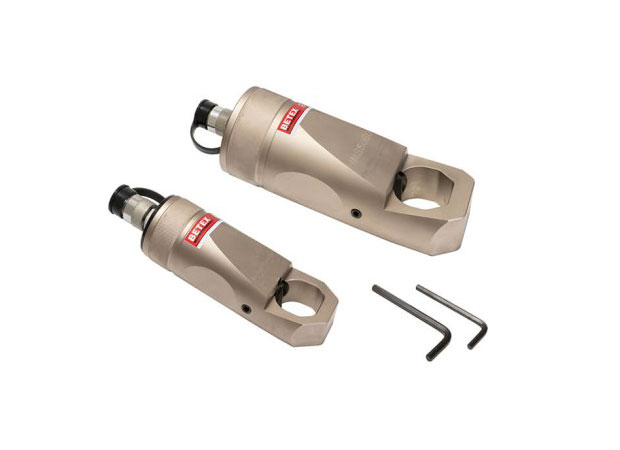

Betex Nutsplitters
Hydraulic nutsplitters
-
- Compact design used in confined space with enough force to split rusted nuts
- All models feature a rugged one-piece cutting frame coupled to a heavy-duty hydraulic cylinder
- Specially designed "tool steel" cutter blade cuts the nut to the precise point where it cracks
- Unique angled head design to keep full contact with the nut being penetrated
- Unique angled cutter blade with radius to have greater resistance to cutting and breaking nuts
- 5 popular models applicable to cover the largest range of nut sizes
Hydraulic spreaders, lifting wedges, flange spreaders

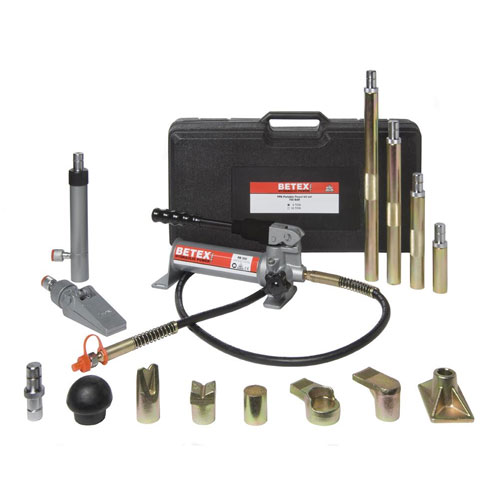

BETEX PPK portable power kits
-
BETEX portable power kits are available in 2 types:
- Set PPK 4, including 4 tons cylinder, 100 mm stroke in handy carrying case.
- Set PPK 10, including 10 tons cylinder, 150 mm stroke, in handy carrying case on wheels.
Advantages:
- "Snap-on" design for quick and easy assembly and disassembly.
- Extra thick extension rods designed for strength prevent bending.
- Single acting pump, 700 bar with safety valve to prevent overloading.
- Flexible hydraulic hose, 1,8 mtr.
- Versatile through many different accessories!
- All parts are made of forged steel.
BETEX 15 TL / 15 TLS / 25 TLS spreader & lifting wedge
-
These tools are simple and very practical for spreading or lifting loads, such as engines, gearboxes, flanges, etc., with high accuracy.
Advantages / applications:
- Loads are lifted perpendicularly!
- Ideal for numerous industrial maintenance repair jobs.
- Accurate height adjustments (for instance shaft alignment) can easily be executed by one person.
- Easy, light and very practical to use.
- Particularly suitable when available space is very limited.
- Suitable for spaces of 5 to 43 mm.
- Due to the reduced thickness of the jaws, made of high quality hardened steel, these wedges can be used for jobs where working space is extremely limited.

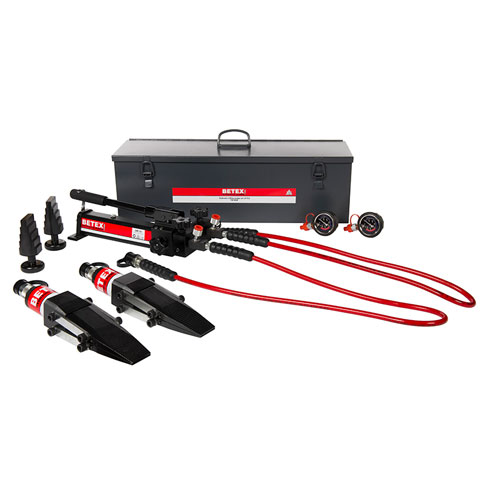

BETEX PFS 10T hydraulic flange spreaders
-
Applications:
- Spreading flanges is safe and easy with a set of hydraulic flange spreaders.
- No more use of hammer and chisel, so less strenuous, time saving and most of all safe working.
- Use flange spreaders in sets for an even higher spreading force
- Adjustable claw widths from 104 mm to 216 mm for a large number of applications.
- Special wedge for larger spread.
- Usable up to a max. flange width of 2 x 92 mm. The flange bolt has a min. diameter of 31.75 mm.
Mobilift hydraulic work benches

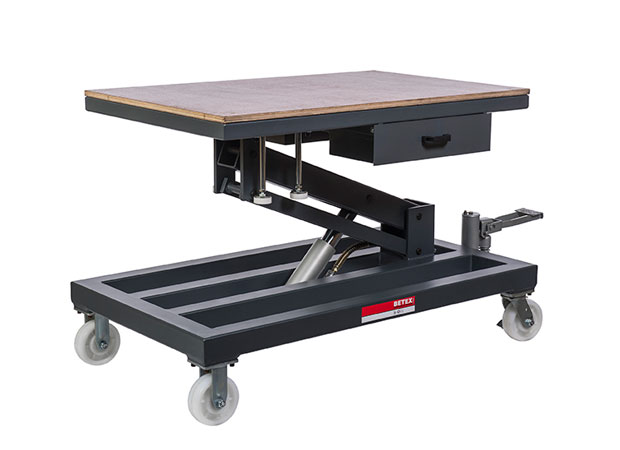

BETEX MOBILIFT
-
The BEETX Mobilift is a hydraulic work bench with a modern construction based on a unique one-arm lifting principle. The workbench is mobile and stable. No hindrance of cables running across the floor thanks to the hydraulic pump. All these features make the BETEX Mobilift a very popular addition to workshops and - after getting acquainted with it - it is impossible to imagine working without it.
Mobilift work benches are available with 2 types of load capacity, 400 or 1000 kg.
Advantages:
- Very stable, therefore very suitable as a work bench.
- Extra safe thanks to lack of ‘scissor’ movement.
- Wooden workbench prevents workpieces from slipping.
- Equipped with 2 lockable drawers.
- Easy operation.
- Promotes right working posture
Dismounting
- With the help of the right puller you can disassemble bearings, couplings, rings, etc. in no time at all. Capacities from 4 to 150 tons.
You can choose from mechanical and hydraulic pullers, 2- or 3-jaw pullers; external, internal, blind, reversible, heavy duty. The unique self-centering series provide great user convenience. Legs do not come loose and the well-distributed pulling force prevents damage to the workpiece and / or shaft. The HP and HSP hydraulic pullers have a built-in pump and cylinder, making them suitable for use in places with limited space. For safe bearing disassembly, choose our self-centering pullers! BETEX mechanical pullers

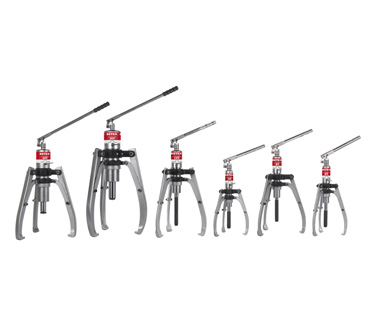

BETEX MSP 2/3-arm pullers
-
2-12 tons, self-centering, external puller
- Safe and easy dismounting of bearings, couplings, rings, etc.
- Ergonomic design, easy to operate by one person.
- Practical! Self-centering 2-arm or 3-arm puller, including locking. Easy to convert, can be used in any position.
- Safe! The arms slide inwards or outwards simultaneously. Bending or deflecting is impossible.
- Economical! 2-arm or 3-arm puller combination, 2 pullers for the price of one.
- Strong! The harder the pulling force, the tighter the jaws grip around the workpiece.
- 2, 3, 5, 8, 10, 12 t cap.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.

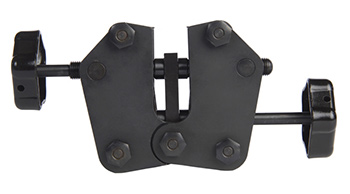

BETEX KZZ parallel key extractors
-
For professional removal of parallel keys
With the BETEX KZZ, you can easily remove keys from shafts of motors, pumps and all kinds of other applications in drive technology. For keys up to a width of 35 mm.
Safe! Hammer and chisel are no longer needed.
Advantages:
- Safe dismounting.
- Quick dismounting.
- No damage to shafts or keys due to perpendicular dismounting.
- Shafts remain straight.
- Saves time, labour and costs.
- Jaws are made from specially tempered steel.
- Threaded screws with left and right trapezoidal thread.

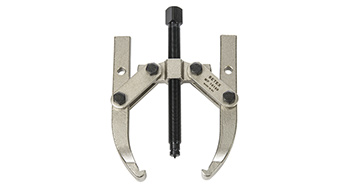

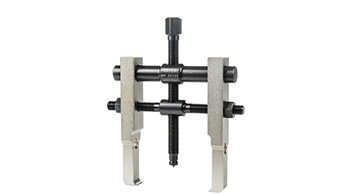

BETEX MP10/11 universal 2-arm pullers
-
External puller
Simple, handy 2-arm puller for external grip. Suitable for dismantling pulleys, bearings, rings and fans of electric motors. During dismantling, the arms cannot slip because they are pressed against the puller bridge. The greater the pressing force, the tighter the arms grip on the workpiece!
These pullers are also available with extended arms for even greater capacity.
- External puller.
- 2-arms.
- Available as MP10 in 9 standard sizes.
- Available as MP11 in 9 sizes with extended arms.

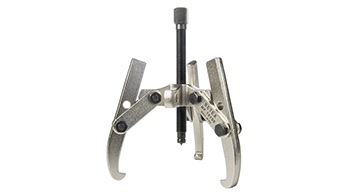

BETEX MP15/16 universal 2/3-arm pullers
-
External puller
Simple, handy 2/3-arm puller for parts gripped externally like pulleys, bearings, rings, etc. Suitable for removing fans from electric motors. During operation, the arms cannot slip because they are pressed against the cross bar. The harder the pulling force, the tighter the jaws grip around the workpiece.
These pullers are also available with extended arms for even larger capacity.
- External puller.
- 2- or 3-arms.
- Available in 9 standard sizes.
- Available in 9 sizes with extended arms.

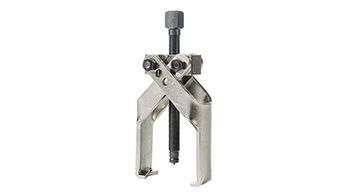

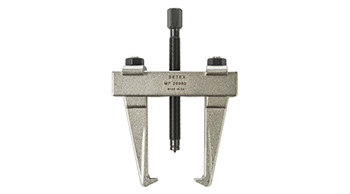

BETEX MP20 2-arm pullers
-
Internal and external puller
This 2-arm puller is extremely well-suited to applications involving the extraction of bearings, rings, sprockets, couplings etc. The jaws are forged and therefor extra strong. Reversal of the arms makes internal dismantling also possible. The self-locking system guarantees that the arms will not deflect.
- External and internal puller.
- 2-arms, reversible.
- Self-locking.
- Also available as set MP20000 with a display including 5 sizes: MP20080, MP20115L, MP20155, MP20195, MP2025.

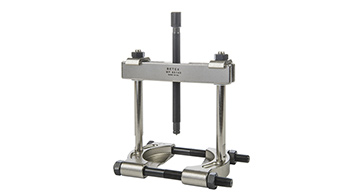

BETEX MP25 universal 2-arm bearing pullers
-
External puller
These bearing pullers are particularly suitable for extracting bearings, bearing rings, gears, discs etc. for tight or difficult to reach areas. First lateral force is applied to grip the part with the sharp jaws. These grip on the radius of the outer ring. Due to the special construction, the arms cannot move during use. You prevent damage and save time.
- External puller.
- 2-arms.
- For tight spaces.
- Special jaw construction for extra strong grip.
BETEX MP26 2-arm pullers
-
Cross arms, external puller
This puller is particularly suitable for extracting bearings, pinions, pulleys etc. for tight or difficult to reach areas.
- External puller.
- 2-arms.
- For a wider spread and depth, puller arms can be assembled in variable positions.
- Easy to handle, cross arm puller.
BETEX MP30 2/3-arm pullers
-
Selfcentering, external puller
The 2/3 arms of these pullers adjust themselves simultaneously and symmetrically, inwards, or outwards. Work efficient with perfect positioning of the arms. The arms cannot bend or deflect. The higher the pulling force, the tighter the grip of the arms.
These pullers are also available with extended arms for even larger capacity.
- External puller.
- 2- or 3-arms.
- Self-centering.
- Available in 6 standard sizes.
- Available in 3 sizes with extended arms.

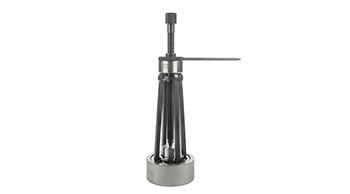

BETEX MP40 4-arm ball bearing pullers
- Internal puller
These four-arm bearing puller have been specially developed to extract ball-bearings from casings and shafts simultaneously. For when there is no free space internally or externally. The arms grip the bearing between the inner- and outer ring. For extra grip and the desired leverage effect, a supplied ring can be used. The blue numbered bearings are dismantled without the ring.
Used for the 6000, 6200, 6300 and 6400 bearing series.
- Internal puller.
- 4-arms.
- Available as set MP40900 in handy case with 3 sizes: MP40100, MP40200, MP40300.

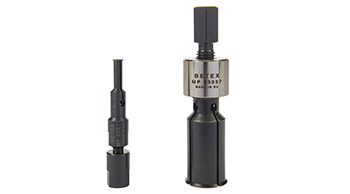

BETEX MP50 Expanders
-
Internal puller
This special expander system has been developed to facilitate rapid and effective dismantling under difficult conditions, e.g., in 'blind holes'. The multiple adjustable jaws (up to 6) ensure the correct grip from behind the bearing. Deflection is impossible. The counter supports are universal, which means that the arms can be twisted in any direction to find the best point of pressure.
The larger types are equipped with a conical puller adapter in the expander, which prevents friction when tightening the screw. Bearings, bushings, seal rings etc. are extracted effortlessly.
- Internal puller combination.
- Combine with sliding hammer or counter support.
- Collets MP50507 and MP50811 have no housing.
- Also available in 7 different sets, including sliding hammer and/or counter support.
BETEX MP60/65 bearing splitters
-
Internal dismantling
BETEX MP60/MP65 are constructed for the dismounting of hard-to-reach bearings and other parts, where there is insufficient space for grip with a puller. Suitable for multiple applications.
- External puller combination.
- Available in 8 splitter sizes with matching counter supports.
- Available separately or as set*.
- Large spindles have retractable points.
BETEX Shaft protectors
-
Shaft protector sets for shaft centers and hollow shafts
These shaft protectors are indispensable between shaft and bearing puller, when dismounting bearings, couplings, etc.
There are 2 types protectors: 625 for shaft center protection and 630 for hollow shafts.By using these shaft protectors you prevent:
- damage to the center hole and screw.
- puller overload due to tilting.

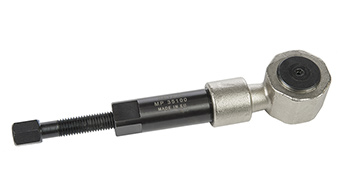

BETEX MP35 hydraulic mini press
-
8 tons
This auxiliary tool is used to increase pressure for stuck parts. The hydraulic mini press is placed between the shaft and the spindle. It administers a 5 mm stroke; max pressing capacity is 8 tons. The impact loosens the stuck workpiece. This prevents overloading and wear on the spindels.
- Combine with mechanical pullers.
- Time-saving.
- Prevents overload.
- Protects spindles from bending.
- Use for bearings, gears, sprockets, discs etc.
BETEX hydraulic bearing pullers

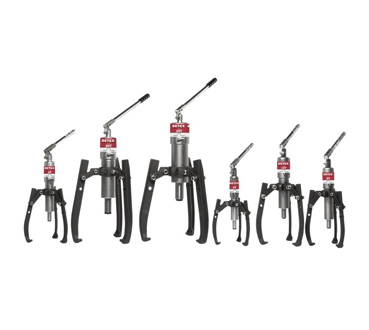

BETEX HP 2/3-arm pullers
-
4-30 tons, external dismantling
Compact pullers with integrated pump and cylinder for dismounting components such as bearings, bushings, wheels, couplings and pulleys.
- The self-contained hydraulic pump saves space, as you don’t need a separate pump, hose or cylinder.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- 2-arm or 3-arm puller combination, easy to convert.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- The lightweight telescopic handle can be rotated 360°.
- Can be used in any position.
- Safety net/blanket, adapter and shaft protector included.
- In useful carrying case.
- 4, 6, 8, 12, 20 or 30 t capacity.
BETEX HSP 2/3-arm pullers
-
4-30 tons, self-centering, external dismantling
Compact pullers with integrated pump and cylinder for dismounting components such as bearings, bushings, wheels, couplings and pulleys.
- The self-contained hydraulic pump saves space, as you don’t need a separate pump, hose or cylinder.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- 2-arm or 3-arm puller combination, easy to convert.
- The HSP pullers are self-centering.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- The lightweight telescopic handle can be rotated 360°.
- Can be used in any position.
- Safety net/blanket, adapters and shaft protector included.
- In useful carrying case.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
- 4, 6, 8, 12, 20 or 30 t capacity

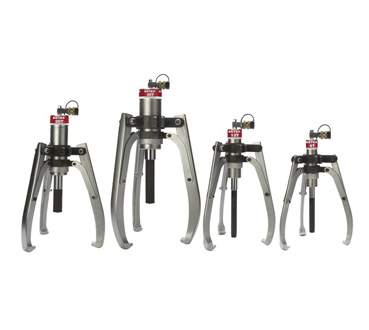

BETEX HXP 2/3-arm pullers
-
8-50 tons, self-centering, external dismantling
Safe and user-friendly dismounting of bearings, couplings, rings, etc.
- Separate 2-stage handpump available.
- Self-centering 2-arm or 3-arm puller, easy to convert.
- The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- HXP503 also available with mobile crane. (HXPC 50T)
- Accessory sets available for the 8-ton and 12-ton versions.
- Adapters and shaft protector included.
- In useful carrying case.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
- 8, 12, 20, 30 and 50 ton cap.

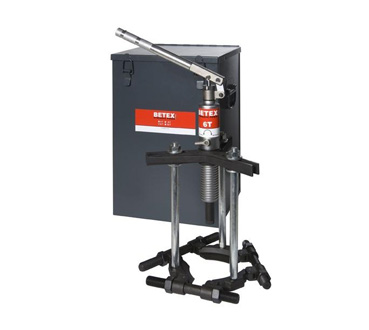

BETEX Tri-Section Pullers
-
4-12 tons, external dismantling
Hydraulic jaw puller set
- Complete hydraulic puller set, including Tri-section Plate, for safe and easy dismounting.
- The thin edge of the bearing splitters ensures to remove the most difficult graspable components.
- The firm grip behind a bearing's inner and outer rings ensures that the pulling forces are not transmitted through the moving parts, preventing damage to the bearing.
- Most parts are forged SCM440 alloy steel, creating a very safe and durable product.
The complete set includes:
- Integrated pump and cylinder.
- Handle 360 degrees adjustable.
- Tri-section plate.
- Puller block.
- Connection rods.
- Steel storage case.

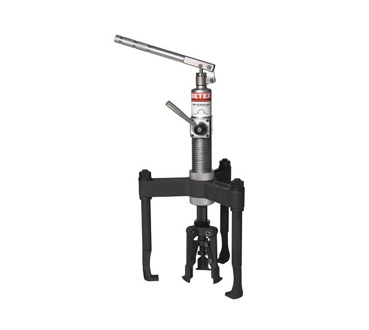

BETEX HPP Push Puller
-
Self-centered, internal and external dismantling
With its 3-in-1 design, the BETEX HPP hydraulic puller is a tool for mounting and dismounting, including internal dismounting of bearings, wheels and rings.
- The BETEX HPP is suitable for both dismounting and mounting bearings. Mounting is possible by using the supplied screw adapter (bolt size M12-P1.75). It can easily be screwed into the shaft, causing the arms of the HPP puller to exert a pushing force against the inner ring of the bearing.
- The BETEX HPP has a puller specifically designed to dismount bearings via the inner ring. This makes it possible to dismount bearings that cannot be dismounted externally. In this case, the arms of the outer puller push against the workpiece.
User- Friendly
- The special 3-in-1 design gives you one puller to easily fit or remove bearings, wheels and rings.
- The 3-arm design ensures an even and constant force when mounting and dismounting.
- Use the supplied extensions for longer shaft lengths.
- The arms of the self-centring inner puller shift inwards or outwards simultaneously, preventing slipping or deflecting.
- The BETEX HPP is equipped with an integrated pump and cylinder.

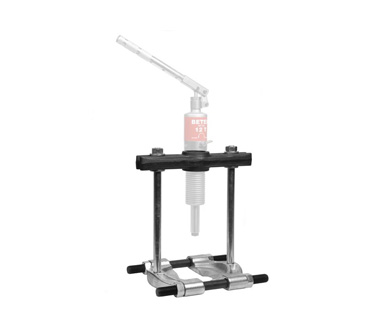

BETEX HP/HSP/HXP
-
Accessory sets
This accessory set consists of:
- 1 puller block.
- 2 connecting rods (legs).
- 1 set of bearing splitters for a min./max Ø 15-290 mm.
Betex mobile hydraulic pullers

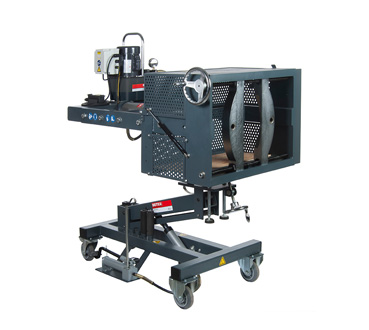

BETEX MOBIPULLER
-
Mobile, 25 & 50 tons
For heavy-duty dismounting jobs. One person can do the job!
The BETEX mobile hydraulic puller quickly and easily removes machine parts such as bearings, couplings, bushings, gear wheels, etc. The Mobipuller excels in its functional and ergonomic operation. It is stable, mobile and adjustable in height. An operating pressure of up to 25 and 50 tons can be applied, at an opening of 430 mm. To ensure safe and easy operation, the electrical versions are supplied with remote control.All models are equipped as standard with:
- Overload protection.
- Oil-filled pressure gauge.
- 4 adapters (extensions): 2 x Ø40 mm and 2 x Ø50 mm.
- 4 stable wheels with polyurethane tyres.
- 2 castor wheels with double-functioning brake.
- Safety cage.
- Dimensions LxWxH: 1570x990x1510 mm.
- The press frame can be extended in 2 steps of 190 mm each.
Advantages
- Mobile.
- Can be used when there is little space behind the workpiece.
- One person can do the job.
- Extra safe thanks to the safety cage.

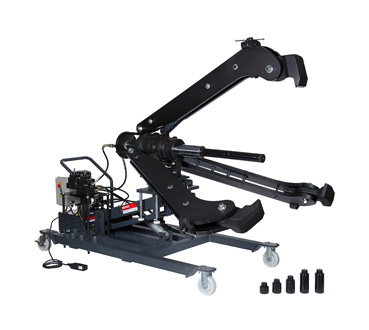

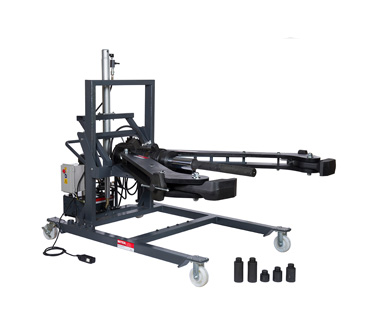

BETEX HXPM 50T PULLER - 2 ARM
-
Mobile, 50 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Remote control included.
- 4 adapters included.
- Safety blanket included.
Operation
- Double-acting cylinder for clasping, opening and closing the arms, for a safe and secure grip on the workpiece.
- An electrohydraulic 230V-700 bar pump operates the cylinder and the height adjustment. This is a 2-stage pump with an output of 2.8 litres/minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting.
- The mobile frame has 2 castor wheels (with brake) and 2 fixed wheels.
- A hydraulic single acting cylinder with a max. operating pressure of 700 bar (50 tons).
- The total stroke is 330 mm. Four adapters (extensions) are included, with a total length of 620 mm.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
BETEX HXPM 50T PULLER 2/3 arm
-
Mobile, 50 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Remote control included.
- Safety blanket included.
Operation
- Double-acting cylinder for clasping, opening and closing the arms, for a safe and secure grip on the workpiece.
- An electrohydraulic 230V-700 bar pump operates the cylinder and the height adjustment. This is a 2-stage pump with an output of 4.2 litres/minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting from behind the workpiece.
- The puller is easy to convert into a 2-arm or 3-arm version.
- The puller is vertically adjustable by 5°.
- The mobile frame has 2 castor wheels (with brake) and 2 fixed wheels.
- A hydraulic single acting cylinder with a max. operating pressure of 700 bar (50 tons).
- The total stroke is 330 mm. Four adapters (extensions) are included, with a total length of 620 mm.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.

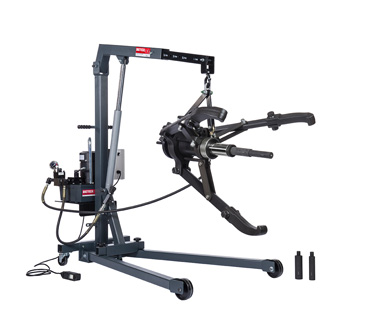

BETEX HXPC 50T PULLER with crane
-
Mobile, 50 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. It is easy to convert into a 2-arm or 3-arm version. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Can be used in any position.
- Remote control included.
- Safety blanket included.
Operation
- An electrohydraulic 230V-700 bar pump operates the cylinder and the crane. This is a 2-stage pump with an output of 2.8 litres per minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting from behind the workpiece.
- The crane has 2 castor wheels and 2 fixed wheels.
- A hydraulic single acting cylinder with a max. operating pressure of 700 bar (50 tons).
- The total stroke is 159 mm. Two adapters (extensions) are included, with a total length of 310 mm.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.

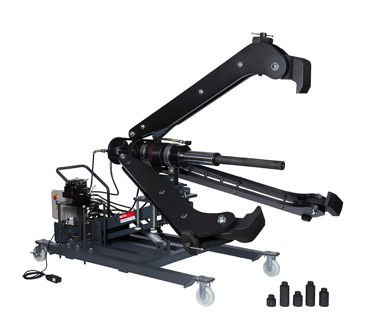

BETEX HXPM 100T PULLER - 2 arm
-
Mobile, 100 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Remote control included.
- Blanket included.
Operation
- Double-acting cylinder for clasping, opening and closing the arms, for a safe and secure grip on the workpiece.
- An electrohydraulic 400V-700 bar pump operates the cylinder, height adjustment and arms. This is a 2-stage pump with an output of 9.5 litres/minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting.
- The mobile frame has 2 castor wheels (with brake) and 2 fixed wheels.
- A hydraulic single acting cylinder with a max. operating pressure of 700 bar (100 tons).
- The total stroke is 270 mm. Seven adapters (extensions) are included, with a total length of 1125 mm.
- Adjustable jaw tips for optimum grip.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
BETEX HXPM 100T PULLER 2/3 arm
-
Mobile, 100 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. The puller is easy to convert into a 2- or 3-arm version. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Remote control included.
Operation
- Double-acting cylinder for clasping, opening and closing the arms for a steady grip on the workpiece.
- An electrohydraulic 400V-700 bar pump operates the cylinder. This is a 2-stage pump with an output of 9.5 litres per minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting from behind the workpiece.
- The puller is vertically adjustable by 5°.
- The mobile frame has 2 castor wheels (with brake) and 2 fixed wheels.
- A hydraulic single acting cylinder with a max. operating pressure of 700 bar (100 tons).
- The total stroke is 270 mm. Seven adapters (extensions) are included, with a total length of 1125 mm.
- Adjustable jaw tips for optimum grip.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
BETEX HXPM 150T PULLER - 3 arm
-
Mobile, 150 tons
For dismounting of all kinds of transmission parts such as bearings, couplings, gear wheels, wheels, etc.
- The puller is self-centering, easy to manoeuvre and adjustable in height. The arms slide inwards or outwards simultaneously.
- The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending or deflecting is impossible.
- Integral safety release valve prevents overload and ensures that you never exceed the maximum force.
- Remote control included.
Operation
- Double-acting cylinder for clasping, opening and closing the arms, for a safe and secure grip on the workpiece.
- An electrohydraulic 400V-700 bar pump operates the cylinder. This is a 2-stage pump with an output of 9.5 litres/minute at 7 bar counter pressure.
- The design prevents the puller arms from slipping or deflecting.
- The mobile frame has 2 castor wheels (with brake) and 2 fixed wheels.

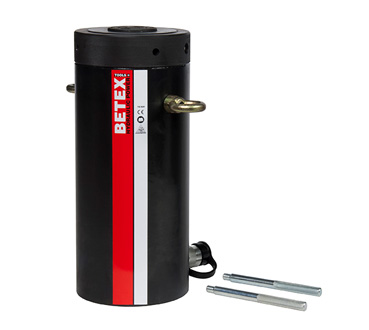

- A hydraulic double-acting cylinder with a max. operating pressure of 700 bar (150 tons).
- The total stroke is 330 mm. Seven adapters (extensions) are included, with a total length of 1125 mm.
- Adjustable jaw tips for extra grip.
Advantages of unique self-centering pullers:
- The arms slide inwards or outwards simultaneously.
- Prevents damage to shaft and object being pulled.
- Can be operated by one person.
- Work efficiently and save time.
