  • Offer Profile
  • We design, manufacture and distribute a complete range of gearmotors, drive systems and planetary gearboxes to satisfy the most demanding needs for industrial processes, automation, mobile and renewable energy applications. We offer tailored solutions, whose strength lies in the high technology content of each product and the careful integration of different technologies.

    As a leading company in the global power transmission market, we are committed to satisfy our customers' requirements, thanks to high quality products and a comprehensive pre- and post-sales service.
Product Portfolio
  • Wind

  • Solutions for wind energy
    Well aware of the need to produce renewable, clean energy alternatives to oil, 30 years ago Bonfiglioli saw the opportunity of exploiting its vast experience in gearboxes for developing ad-hoc solutions for wind energy.  A number of wind turbine gearboxes (700T series) has been designed, engineered and manufactured by Bonfiglioli Trasmital. The result was a complete packagededicated to the wind energy sector which seamlessly enabled the control of energy generation, from rotor blades positioning with a pitch drive to nacelle orientation with a yaw drive.

    Drawing on its vast experience in inverter design, Bonfiglioli Vectron has produced a completelyintegrated inverter solution for yaw drives and is now developing a pitch drive control system as well as re-generator inverters to direct the electricity created by the wind turbine into the power grid. Working closely with customers to develop tailor made applications, Bonfiglioli uses its flexibility to deliver reliable, superior performance products, which comply with any worldwide standard. Some of the largest companies around the world already use Bonfiglioli Wind Energy Solutions. One out of every three wind turbine globally uses a Bonfiglioli gearbox, making the company a preferred worldwide supplier of these applications for almost 30 years.
  • Gearboxes, Gearmotors

    • 700T  series

    • Bonfiglioli products are used in the latest state-of-the-art wind turbines to control the necessary functions of pitch and yaw drives systems. The 700T series planetary speed reducers are used by a number of leading wind turbine manufacturers thanks to their advanced technical features, creating the highest level of performance.

      Torque Range 2500 ... 300000 Nm
      Gear Ratios 60 ... 3000

      Key Features
      Flange mounted
      Output shaft: splined or with integral pinion
      Rugged construction
      High torque capacity
      Output shafts supported by heavy duty bearings

      General features

      High transmissible torque
      High radial/thrust load capacity
      High shock resistance and designed for heavy duty
      Wide range of reduction ratios (from 60 up to 3000)
      High efficiency
      Compact dimensions
      Low weight
      Low cost
  • Inverter

    • Agile Inverter series

    • The advanced series of standard sensorless inverters Agile from Bonfiglioli are well suited for applications where easy start up, space saving and downtime prevention are primary needs, as for example Yaw Drives in wind turbines.

      Yaw Drives Power Range
      1.1kW up to 11kW / 3-Phase 320V...528V
      45Hz...66 Hz

      Type of Control
      Innovative control dedicated to open loop drives:
      Sensor-less vector speed and torque control forinduction motor
      Sensor-less vector speed and torque control forbrushless motor
      V/f scalar sensor-less control

      Type of Motor
      Asynchronous AC induction motor
      Synchronous AC permanent magnets motor without feedback Group drive possible
    • Active Cube Inverter series

    • A full series of solution & servo drives, compact andflexible, is suitable to be used in wind turbine’s drives where outstanding performance in terms of accuracyand response time are requested, as for example PitchDrives.

      Pitch Drives Power Range
      7.5 up to 37kW / 3-Phase 320V...528V / 45Hz...66Hz

      Type of Control
      Open and closed loop selectable control function:
      Vector speed, torque and position control for induction motor
      Vector speed, torque and position control for brushless motor
      V/f scalar sensor-less control

      Type of Motor
      Asynchronous AC induction motor
      Synchronous AC permanent magnets motor
  • Motors

    • BN series

    • The IEC-normalized BN motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration.
      Single and dual polarity versions are available; three possible brake options are offered one DC and two AC supplied, granting further flexibility to the system. Finally, all BN motors are inverter duty.

      Power Range for wind turbine drives From 0.25 kW up to 30 kW
      Frame Sizes From IEC 71 up to 200
      Pole Numbers 4, 6
      Mounting Options Foot IM B3, Flange IM B5 and IM B14
      Voltage 230/400 - 400/690 V
      Frequency 50 Hz and 60 Hz
      Compliance 2006/95/CE (LVD) and 2004/108/CE (EMC), CSA and UL Approved Design
    • BE series

    • The IEC-normalized BE motors comply with IEC 60034- 30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV Directives.
      They are available in the 0.75 - 22 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single pole version available with generally, two brake options offered, one DC and one AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.

      Power Range (4 pole)
      0.75 kW ... 22 kW
      Frame Sizes 80B ... 180L
      Pole Numbers 2, 4, 6
      Mounting Options Foot IM B3, Flange IM B5 and IM B14
      Operation 50 Hz e 60 Hz
      Compliance IEC 60034-30:2008 (IE), 2006/95/EC (LVD) and 2004/108/EC (EMC)
  • Photovoltaic

  • Solutions for photovoltaic
    Incentives for electrical energy production using photovoltaic systems to convert solar energy have led to a significant increase in the number of medium andlarge  photovoltaic installations. These can be classified on the basis of installation type. Photovoltaic systems can be installed on the roofs of commercial and industrial buildings or on the ground. Bonfigioli’s new RPS inverters are suited to all types of installation and guarantee maximum efficiency and maximum working life. Any maintenance required on RPS Inverters can be completed by service personnel in extremely short times.

    Bonfiglioli inverters have an expected working life of over 20 years. By functioning efficiently and reliably for this period of time, they offer a sure return on investment. Bonfiglioli inverters can be controlled over the web from anywhere in the world and service personnel can be alerted in real time to ensure prompt and guided interventions to restore full functionality and production in the event of a fault. Bonfiglioli offers extended warranties of up to 20 years as well as training courses to give customers autonomy in simple maintenance and repair tasks.
  • Inverter

    • RPS Compact Outdoor 120 kWp and 170 kWp

    • The RPS 450 Compact Outdoor series now includes two new power ratings: 120 kWp and 170 kWp. Water-proof, robust and equipped with an innovative cooling system, these new inverters carry on delivering excellent performance even under adverse weather conditions and in high temperatures.
      The external body features a precision, compact design for easy transport. Internal components are all top quality and integrated in a simple system architecture designed for maximum reliability and for quick and easy maintenance.
      The new RPS Compact Outdoor inverters come complete with transformer. An optional integrated monitoring system can also be installed to permit system supervision and to ensure maximum output at all times.
      Bonfiglioli’s new outdoor inverters are specially designed to guarantee top performance even when exposed to direct sunlight and fear no rivals when it comes to efficiency over time.

      Technical data
      - Innovative cooling system
      - IP 54 protection rating
      - High efficiency
      - Built-in transformer
      - Integrated monitoring system (optiona
    • RPS TL Modular Outdoor and RPS Transformer Station

    • The RPS Modular Outdoor 220 kWp inverter and RPS Transformer Station are two new Bonfiglioli solutions that deliver a high level of resistance to outdoor operating conditions as well as superbly flexible installation. The all-new design of this modular solution enables installations to be configured to meet specific needs and gives PV park operators the freedom to choose from a wide range of transformer cabins, rated for 440 kWp, 660 kWp, 880 kWp and 1110 kWp.
      The compact design and limited weight of the cabins permit installation even on rough ground. PV system designers will therefore have no trouble in finding the perfect solution to match the characteristics of the area in which their park is located. The external body is resistant to water, dirt and dust, and can be installed virtually anywhere, even near the transformer cabin. This reduces energy losses and the length of cabling needed, cutting installation costs in the process. The innovative cooling system allows full rated output to be maintained in high ambient temperatures, even when the system is exposed to direct sunlight.
      The ultimate in flexibility from a single product.

      Technical data
      - Innovative cooling system
      - IP 54 protection rating
      - Short DC cables for lower energy losses
      - Up to 5 MPPT per MW
      - Integrated monitoring system (optional)
    • RPS TL Modular System


    • Superb reliability and modular design and build are just some of the strengths of Bonfiglioli’s RPS TL series: these versatile solar inverters continue to perform well even in the presence of system failures.
      Use of readily available, top quality electro-mechanical components reduces the incidence of failures in terms of cost and repair times. Faster, more secure and fault-free connections mean maximum efficiency.
      Bonfiglioli RPS 450 TL series inverters can be configured either for Master-Slave or multi-MPPT functioning. These features, combined with high technology content, robust design and compact dimensions, make the RPS TL series particularly suitable for use in medium and large fields.

      Technical data
      - Power ratings from 280 kWp to 1450 kWp
      - External transformer for low loss
      - Efficiency 98.4%
      - Master-Slave or Multi MPPT configuration to optimise photovoltaic field output
      - Under-load disconnector on the DC side and disconnector on the AC side in every inverter module to permit local repairs without having to shut down the entire system
    • RPS Compact System

    • Bonfiglioli's RPS 450 Compact series of solar inverters represents a ready to use, highly efficient solution. Inverter components like the transformer filter group (which has no intermediate junctions), axial fans, converter module and all electromechanical components are easily accessible and easy to replace even by non-specialist personnel.
      Simple and accurate design, rotary disconnectors and pull-out fuses on the DC and AC sides make the scheduled maintenance tasks specified by the manufacturer extremely easy, and keep servicing quick and cost-efficient. Thanks to top quality components and amazingly easy transport and installation, the RPS Compact series is ideal for use with roof installations on commercial and industrial buildings.

      Technical data
      - Power range from 30 kWp to 170 kWp
      - Output voltage 400 VCA for feed to low tension grids
      - Efficiency 96.7% (inclusive of transformer)
      - Top quality components
      - Extremely robust and durable design
    • RPS Compact System Outdoor

    • Bonfiglioli's RPS 450 Compact Outdoor series of solar inverters represents a ready-to-use, easily transportable but highly efficient solution that is ideal for outdoor installations. Simple, accurate design, rotary disconnectors and pull-out fuses on the DC and AC sides make the scheduled maintenance tasks specified by the manufacturer extremely easy and keep servicing quick and cost-efficient.
      Optional integrated String Connection Boxes with string monitoring functionality ensure the fullest exploitation of electrical energy. Top quality components like the transformer filter group (which has no intermediate junctions), axial fans and converter module are easily accessible and easy to replace even by non-specialist personnel. Thanks to its rugged design, the RPS Compact Outdoor series is ideal for use in roof installations on commercial and industrial buildings.

      Technical data
      - Power range from 30 kWp to 60 kWp
      - Index of protection IP 54
      - Output voltage 400 VAC for feed to low tension grids
      - Efficiency 96.7% (inclusive of transformer)
      - Integrated string connection box (optional)
    • RPS Station

    • Bonfiglioli's RPS Station photovoltaic field conversion system offers a tailored solution capable of minimising system design times and costs and maximising the efficiency of any photovoltaic field with a medium voltage feed to the grid. Technical solutions like copper bus bar AC connections, configurable control panels and partitioned system rooms ensure fewer and easier maintenance and repair operations.
      RPS TL modular inverters form the heart of the RPS Station and permit modular or centralised engineering to maximise system performance. Bonfiglioli RPS Stations are delivered fully cabled, tested and installed, and come complete with all the necessary photovoltaic field management components.

      Technical data
      - Standard power ratings
        1000 kWp, 1250 kWp and 1600 kWp*
      - Optimized and coordinated ventilation system
      - Tailored solutions for every application
      - System installed in a monobloc cabin made from vibrated and reinforced concrete
      - A vast range of options and accessories
      * Other power on request
  • Communication

    • RPS Log

    • Bonfiglioli RPS Log 1000 is a monitoring tool for photovoltaic systems designed with a large integrated touchscreen display that allows the tabular and graphic evaluation of installation data. RPS Log 1000 supports up to 20 inverters simultaneously via an RS485 interface, allowing data from each inverter to be read, saved and analysed.
      RPS Log 1000 measures and compares efficiency data for individual strings, monitoring up to 1440 strings consistently, and also compares the performance of individual inverters. This allows malfunctions to be easily and securely diagnosed for all photovoltaic fields.
      The web-based software allows both tabular and clear graphic display of daily, monthly and annual yields - at any time, and anywhere in the world. RPS Log 1000 sends out alarm messages via email or SMS as preferred, and provides a USB connection for data transfer. RPS Log 1000 does not require any software installation.

      Technical data
      - Fault monitoring: monitoring of each individual inverter
      - Inverter state: status and fault notification for all inverters • Evaluation: daily production notification
      - Evaluation: daily production notification
      - Notice transmission: by e-mail or SMS or directly on display
      - Inverter parameters: current, voltage, power, DC and AC
    • RPS Sensor Bo

    • Bonfiglioli RPS Sensor Box is an extremely useful item of equipment, and provides valuable information for the analysis of solar field energy efficiency. RPS Sensor Box provides a reliable target/actual comparison as well as quick and easy fault recognition. Sensors are positioned in the PV field monitoring system to record deviations between potential and actual power production. Ambient data measurements are saved in the RPS Log 1000 data logger that interfaces with the Sensor Box. The Sensor Box comprises sensors for wind, solar radiation, outside temperature and module temperature. All components of the RPS Sensor Box connect up quickly and easily via an RS485 interface which permits secure data transmission over up to 1000m. Sensors are secured by screws, making installation of the solution extremely quick and easy. An optional outside temperature sensor can provide a reference value for solar radiation, enabling the forecasting of possible power production. If any deviation occurs, the RPS Sensor Box generates a warning message.

      Technical data
      - External temperature sensor with 3m connection cable
      - Anemometer with 5 meter connection cable
      - Box made from die-cast aluminium for outdoor installation (IP65 degree of protection)
      - All cables are resistant to UV and weather agents
      - Power is supplied via the RS485 data cable
    • RPS Portal

    • RPS Portal provides global centralised administration of all connected fields via the internet. This professional platform offers installers and dealers of photovoltaic fields essential added-value functions such as the configuration of remote RPS Logs over the internet, and the monitoring of all relevant data, including string data, insolation and temperature.
      RPS Portal also provides useful field comparison functions and can display visual summaries of all controlled fields and identify failures at a glance. RPS Portal permits accurate system monitoring and ensures the quick and easy identification of failures, thus saving time and money and boosting customer fidelity. RPS Portal is the perfect solution for the efficient troubleshooting and professional management of solar energy installations.

      Technical data
      - Configuration: all remote Solar-Logs via web interface
      - Alerts: email or SMS notification
      - Easy remote monitoring from any PC, MAC or LINUX computer via Internet
      - Central management and visualization of all installed units
      - Opportunities for additional revenue from maintenance contracts
  • Installation

    • SCB String Connection Box

    • Bonfiglioli's SCB string connection boxes let you connect from 8 to 24 strings in parallel, and also provide protection and detailed monitoring of the photovoltaic generator. Components like a DIN rail fuse holder string with positive and negative pole protection, and an under-load output disconnector guarantee accurate failure isolation, facilitate maintenance and maximise energy efficiency.
      The String Connection Box optimises cabling, reduces system downtime and facilitates maintenance by technical personnel. The photovoltaic system is further protected by the presence of overvoltage dischargers on the DC side, with removable cartridges for easy resetting. The SCB series is compatible with all commercial photovoltaic modules. Functionality is guaranteed over a temperature range of -25 to +50°C. A pressure compensation valve prevents the formation of condensate. Installation is quick, easy and safe.

      Technical data

      - DC inputs: 8,16,24
      - Maximum working voltage 1000 V
      - Inom STC 11 A (8.8 A with anti current recircul. diodes)
      - IP65 degree of protection for outdoor installations,
        with UV resistant glass fibre reinforced polycarbonate box finished in RAL 7035 (light grey)
      - DC side overvoltage protection: Class II C, low voltage 230 V: Class II C, LAN interface Class D (Cat 5)
      - TCP/IP communication protocol with shielded CAT5 cable
  • Mobile

  • Solutions for Mobile and Construction machinery
    Bonfiglioli Vectron delivers products and services for completely integrated inverter solutions. These solutions complement Bonfiglioli’s power transmission and control offering to the industrial sector. Since 1976, Bonfiglioli Trasmital’s know-how in the power transmission industry has focused on special applications offering 100% reliability in the manufacturing of gear motors for mobile machinery. This includes the full range of slew and wheel drive applications and gearboxes for wind turbine pitch and yaw drive systems. Today Bonfiglioli Trasmital stands at the forefront of the industry as a key partner to top manufacturers worldwide.
  • Gearboxes

    • Planetary drives - 300 series


    • The 300 series are compact and powerful. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loads and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 20 finely spaced frame sizes, spanning over the 1000-1.100.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.

      Torque Range 1000 ... 1.100.000 Nm
      Transmissible Mechanical Power up to 1050 kW
      Gear Ratios 3,4 ... 5.000
      Gear Unit Versions
      In line,
      Right angle (with a spiral bevel gear set)

      Output Configuration
      Foot and flange mounted
      Output shaft: solid with key, splined, splined hollow,
      hollow with shrink disc

      Input Configurations
      Flanged axial piston hydraulic motors
      Hydraulic orbit motors
      IEC and Nema motor adaptors
      Solid input shaft

      Hydraulic Brake released parking brake on request
      Electric Brake DC and AC type
    • Universal Worm-Gearmotors -
      VF/W series

    • Bonfiglioli worm gears are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.

      Torque Range 13 Nm... 7.100 Nm
      Mechanical Rating (n1= 1400 min-1) 0,04 ... 75 kW
      Gear ratios 7 ... 10000

      Output Configurations
      Keyed Hollow Shaft
      Plug-in Solid Output Shaft
      Torque Limiter as an Option

      Input Configurations
      VF and W: IEC-normalized motor adapter
      VF and W: solid input shaft

      Applicable AC motors
      VF and W: IEC-normalized and brake motors - BN/BE series
      W: integral motors and brake motors series M/ME series
      Single and dual speed motors

      Main Brake Features
      DC and AC supply
      Faster Brake Engage/Disengage through Electonically
      Controlled AC/DC Rectifier type SB, NBR, SBR (options)
    • Helical Gearmotors - C series


    • Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.





      Torque Range 45 Nm... 12.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0,08 kW ... 213 kW
      Gear ratios 2,6 ... 1481

      Output Configuration
      Foot and Flange mount
      Metric or Inch series Solid Output shaft

      Input Configurations
      IEC and NEMA motor Adaptors
      Metric or Inch series Solid Output shaft

      Applicable AC motors
      Integral motors and Brake motors - M/ME series
      IEC-normalized Motors and Brake motors - BN/BE series
      Single and Dual Speed Motors

      Main Brake Features
      DC and AC supply
      Faster Brake Engage/Disengage through Electonically
      Controlled AC/DC Rectifier type SB, NBR, SBR (options)
    • Helical-bevel Gearmotors - A series

    • The A series is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.

      Torque Range 100 Nm... 14.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0,22 ... 150 kW
      Gear ratios 5,4 ... 1715

      Output Configuration
      Foot and Shaft mount - Two Bore Options per Size
      Keyless Shrink Disc Fitting
      Metric or Inch series Solid Output shaft
      Adapter bushings matching more shaft diameters
      Splined hollow shaft to DIN 5480

      Input Configurations
      IEC and NEMA motor Adaptors
      Servomotor adapters
      Metric or Inch series Solid Input Shaft

      Applicable AC motors
      Integral motors and Brake motors - M/ME series
      IEC-normalized Motors and Brake motors - BN/BE series
      Single and Dual Speed Motors
    • 600W2/3 Wheel drives

    • This gear shift final drive is specifically designed for wheeled and tracked machines featuring a significantly different travel/operating speed ratio.
      The product is the ideal solution for road paving machines, construction equipment, as well as agricultural and forestry machines.

      Torque range 15000 Nm - 40000 Nm

      Gear Ratios
      LO speed : 71 87 85 104 141,3
      HI speed : 20.5 20.5 24.5 24.5 24.5

      Applicable motors
      Cartridge axial piston hydraulic motors

      Brake
      Hydraulically released multidisc type
      Parking braking
      Emergency braking
    • Shaft mounted speed reducers - TA series

    • The TA series has long established itself in the industry until become a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors.
      Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.

      Torque Range (n1= 900 min-1)
      150 Nm ... 16.000 Nm
      Mechanical Rating (n1= 900 min-1) 1,1 kW ... 156 kW
      Gear ratios 5,0 ... 31,5

      Outputt
      Keyed hollow shaft
      Up to three bore options per frame sIze

      Gearcase
      Sturdy cast housing suitable for outdoor installation

      Backstop
      Available on all frame sizes - externally accessible
  • Electric motors

    • Three-phase motors BN

    • The IEC-normalized BN motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the 0.06 - 30 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single and dual pole versions available with generally, three brake options offered, one DC and two AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.

      kW rating (4 pole)) 0.06 kW ... 30 kW
      Frame Sizes 56A ... 200L
      Pole Numbers 2, 4, 6, 8, 2/4, 2/6, 2/8, 2/12, 4/6, 4/8
      Mounting Options Foot IM B3, Flange IM B5 and IM B14
      Operation 50 Hz and 60 Hz
      Compliance 2006/95/EC (LVD) and 2004/108/EC (EMC)
      Inverter Duty All frame sizes
      Housing Cast aluminium
  • Inverter

    • ACTIVE Solution drive

    • A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.

      Power Range (ACT401)
      0.55 - 132 kW / three-phase 360 - 480V / 50 - 60 Hz (± 10%)

      Power Range (ACT201) 0.55 - 9.2 kW / single or three-phase 200 - 240V / 50 - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function:
      sensor-less control, sensor-less field oriented control,
      field oriented control with encoder

      Overload Capacity 150% for 60s / 200% for 1s
      Switching Frequency 2, 4, 8, 12, 16 kHz
      Enclosure IP20 (EN 60529)
      EMC Filter Integrated up to 9.2 kW (EN 61800-3)
    • ACTIVE CUBE Solution and servo drive

    • A full series of solution & servo drives, compact and flexible, dedicated both to high demandingindustrial automation systems and to motion control architectures, in match with Bonfiglioliservomotors.

      Power Range (ACU401)
      0.25 - 132 kW / three-phase 360 V - 480 V / 50 Hz - 60 Hz (± 10%)

      Power Range (ACU201) 0.25 - 9.2 kW / single or three-phase 200 V - 240 V / 50 Hz - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function: sensor-less control, sensor-less fieldoriented control, field oriented control with speed sensor,field oriented control of synchronous servomotors with speed/position sensor

      Overload Capacity 200% for 1min (size 01 and 03) / 150% for 1min (other ratings),
      Shorter overload: 200% for 1sec all ratings

      Switching Frequency 2, 4, 8, 12, 16 kHz
      Enclosure IP20 (EN 60529)
      EMC Filter Integrated up to 9.2 kW (EN 61800-3)
    • AGILE Smart sensorless drive

    • Agile series provide in a sensorless vector inverter innovations able to boost plant efficiency through open loop vector control of brushless motors, MMC memory cards and web control. Agile inverters are easy to install, program and quick to start-up without the needs of specialized resources.

      Power Range 0.25 kW - 11 kW / three-phase 320 V ... 530 V / 45 Hz... 69 Hz

      Motor compatibility
      Two types of motor:
      Asynchronous AC motors
      Permanent magnet synchronous (brushless) motors

      Type of Control
      Selectable control function:
      V/f control for asynchronous motors
      Sensor-less vector control for asynchronous motors
      Sensor-less vector control for brushless motors

      Degree of protection IP20 (EN 60529)
  • Industrial

  • Solutions for industrial applications
    Optimised lean manufacturing principles, major investments in research and development to maintain a high level of innovation, a “local forlocal” service strategy, and  a customer servicenetwork that is near to the customer and can rely on a large number of directly controlled subsidiaries and distributors all over the world, enable the Bonfiglioli group to be flexible and rapid and to stay in close touch with the changing needs of the markets it serves. With the acquisition of the Vectron brand, Bonfiglioli established itself as leader in the industrial automation sector. Bonfiglioli Vectron supplies products and services for completely integrated inverter solutions.These solutions complement Bonfiglioli’s power  transmission and control offering to the industrial sector.
  • Standard Gearmotors and Gearboxes

    • Universal Worm-Gearmotors -
      VF/W series

    • Bonfiglioli worm gears are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.

      Torque Range 13 Nm... 7.100 Nm
      Mechanical Rating (n1= 1400 min-1) 0,04 ... 75 kW
      Gear ratios 7 ... 10000

      Output Configurations
      Keyed Hollow Shaft
      Plug-in Solid Output Shaft
      Torque Limiter as an Option

    • Helical Gearmotors -
      C series

    • Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.




      Torque Range 45 Nm... 12.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0,08 kW ... 213 kW
      Gear ratios 2,6 ... 1481

      Output Configuration
      Foot and Flange mount
      Metric or Inch series Solid Output shaft

    • Universal Worm-Gearmotors for hostile environments - VF-EP/W-EP series

    • Wormgears and motors are also available in the enhanced protection "EP" configuration, featuring food grade specifications and extra corrosion protection, allowing for cleanability and sanification after operation. Besides the food processing, the EP configuration will also suit the requirements of the chemical and pharmaceutical industry as well as the marine on-board and quayside installations.

      Applications
      Food processing, chemical and pharmaceutical industry
      Marine on-board and quayside installation
      Corrosive and/or highly hygenic environments

      Availability on
      Gears: VF 44, VF 49, W 63, W 75, W 86
      Motors: BN 63 ... BN 112 / M1SD ... M3LC

    • Single reduction helical Gearmotors -
      S series

    • Simple and yet powerful is the S series, developed for the pump industry as well as the fan and blower application. Foot and flange mounted, with shaft dimensions to the UNEL standard.

      Torque Range 21 Nm... 200 Nm
      Mechanical Rating (n1= 1400 min-1) 0,12 ... 11,6 kW
      Gear ratios 1,4 ... 13,1
      Output Configuration Foot and Flange mount

    • Helical-bevel Gearmotors -
      A series

    • The A series is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.

      Torque Range 100 Nm... 14.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0,22 ... 150 kW
      Gear ratios 5,4 ... 1715

      Output Configuration

      Foot and Shaft mount - Two Bore Options per Size
      Keyless Shrink Disc Fitting
      Metric or Inch series Solid Output shaft
      Adapter bushings matching more shaft diameters
      Splined hollow shaft to DIN 5480

    • Bevel Gears -
      RAN series

    • The units of the RAN series are designed to fit the purpose of transmission laid out in right angle setting. Easy to fit and almost maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive system. Also available in the version for screw jack duty.

      Torque Range 3 Nm... 3.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0.15 kW ... 91 kW
      Gear ratios 1,0 ... 7,4
      Shaft Arrangement Single or Double Shaft Projection

    • Shaft mounted speed reducers -
      TA series

    • The TA series has long established itself in the industry until become a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.

      Torque Range (n1= 900 min-1) 150 Nm ... 16.000 Nm
      Mechanical Rating (n1= 900 min-1) 1,1 kW ... 156 kW
      Gear ratios 5,0 ... 31,5
      Output Keyed hollow shaft
      Up to three bore options per frame sIze

    • Shaft mounted gearmotors -
      F series

    • No better, easier and neater installation than with a shaft mounted unit of the F series. Lightweight and performing, an F unit is the dependable drive for all the material handling applications.

      Torque Range 140 Nm... 14.000 Nm
      Mechanical Rating (n1= 1400 min-1) 0,17 ... 125 kW
      Gear ratios 6,4 ... 2099

      Output Configuration
      Keyed Hollow Shaft - Two Bore Options per Size
      Keyless Shrink Disc Fitting
      Plug-in Solid Output Shafts as an Option

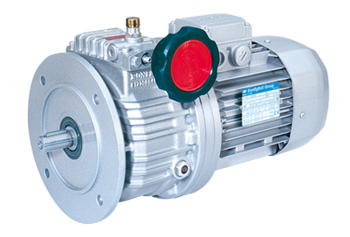

    • Mechanical Speed Variators -
      V series

    • The renovated V series features a brand new speed setting mechanism that optimizes the operation, extending the lifetime of the core parts, and allowing the speed variator to run cooler and smoother than ever before. Also available with the additional helical reduction and in combination with most Bonfiglioli gears.

      Max. to Min. Speed Setting  5.2 times
      ∞ Reduction through a differential unit

      Mechanical Rating (n1 = 1400 min-1) 0,18 kW ... 9,2 kW
      Additional Helical Reduction iN = 2,5 ... 6,3

      Output Configurations

      Foot and Flange mount
      Metric or Inch series Solid Output shaft
      Compact and IEC Match With Helical and Worm Gear Units

  • Motors

    • BE series

    • The IEC-normalized BE motors comply with IEC 60034-30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV Directives. They are available in the 0.75 - 22 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single pole version available with generally, two brake options offered, one DC and one AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.

      kW rating (4 pole) 0.75 kW ... 22 kW
      Frame Sizes 80B ... 180L
      Pole Numbers 2, 4, 6
      Mounting Options Foot IM B3 & Flange IM B5 and IM B14
      Operation 50 Hz and 60 Hz

    • Three-phase motors BN

    • The IEC-normalized BN motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the 0.06 - 30 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single and dual pole versions available with generally, three brake options offered, one DC and two AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.


      kW rating (4 pole)
      0.06 kW ... 30 kW
      Frame Sizes 56A ... 200L
      Pole Numbers 2, 4, 6, 8, 2/4, 2/6, 2/8, 2/12, 4/6, 4/8
      Mounting Options Foot IM B3 & Flange IM B5 and IM B14
      Operation 50 Hz and 60 Hz

    • Single-phase motors BS

    • Single-phase motors of the BS series are manufactured to the applicable IEC standards and are of the enclosed type, externally ventilated and with run capacitor permanently connected.
      Motors are available in the B5 and B14 flange mountings, in the 4-pole execution. For applications requiring high starting torque the version with both the run and the starting capacitor can be specified.


      kW ratings
      0,06 … 1,5 kW
      Frame sizes 56A to 90L
      Poles 4
      Mounting Flange mounting IM B5 and IM B14
      Frequency 50 and 60 Hz

    • BTD series

    • BTD Series servomotors are designed to provide effective solutions for applications demandinghigh efficiency, compact motors.The extremely small size of these actuators, achieved by the use of advanced materials and designtechnology, ensures exceptional dynamics and low temperature operation.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMCrequirements, and a PTC temperature probe with reinforced insulation, these motors guaranteesecure electrical connections under all ambient operating conditions.

      Stall torque 0,26 Nm … 27 Nm
      Rated speed 3000, 4500 min-1
      Power supply 230, 400 Vac
      Inertia Low for BTD sizes from 0.26 Nm … to 1 Nm
      Conformity 2006/95/EC (LVD) and 2004/108/EC (EMC)

    • BCR series

    • BCR Series servomotors are designed to satisfy the needs of continuous and transient high torque applications.Thanks to a wide torque range and above average instantaneous overload ratings, BCR servomotors are robust enough for even the most demanding drive applications.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guaranteea secure electrical connection under all ambient operating conditions.

      Stall torque 0,2 Nm … 115 Nm
      Rated speed 2000, 3000, 4500 rpm
      Power supply 230, 400 Vac
      Inertia Low for BCR sizes from 0.2 Nm … to 1 Nm
      Conformity
      2006/95/EC (LVD) and 2004/108/EC (EMC)

    • BC series

    • The motors of the BC series are the simple, proven and economical solution to the requirements of DC drives. The materials and the design concepts exploited allow the use of BC motors under the severest duty and with 4-quadrants thyristor converters. Motors can be operated in the –20 to +40 °C temperature range and are IP54 protected and class F isolated.


      Torque Range 0.3 Nm ... 4.5 Nm
      Speed 1500, 2000, 3000 min-1
      Supply 12, 24, 36, 48,65, 110, 180, Vdc
      Configurations IM B5 and IM B14 Flange Mount
      Ventilation
      BC110 ... BC140 non-ventilated
      BC220 ... BC310 TEFC

  • Frequency Inverters

    • AGILE Smart sensorless drive

    • Agile series provide in a sensorless vector inverter innovations able to boost plant efficiency through open loop vector control of brushless motors, MMC memory cards and web control. Agile inverters are easy to install, program and quick to start-up without the needs of specialized resources.

      Power Range 0.25 kW - 11 kW / three-phase 320 V ... 530 V / 45 Hz... 69 Hz

      Motor compatibility
      Two types of motor:
      Asynchronous AC motors
      Permanent magnet synchronous (brushless) motors

      Type of Control
      Selectable control function:
      V/f control for asynchronous motors
      Sensor-less vector control for asynchronous motors
      Sensor-less vector control for brushless motors

      Degree of protection IP20 (EN 60529)

    • ACTIVE Solution drive

    • A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.

      Power Range (ACT401) 0.55 - 132 kW / three-phase 360 - 480V / 50 - 60 Hz (± 10%)

      Power Range (ACT201) 0.55 - 9.2 kW / single or three-phase 200 - 240V / 50 - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function:
      sensor-less control, sensor-less field oriented control,
      field oriented control with encoder

      Overload Capacity 150% for 60s / 200% for 1s
      Switching Frequency 2, 4, 8, 12, 16 kHz
      Enclosure IP20 (EN 60529)

    • ACTIVE CUBE Solution and servo drive

    • A full series of solution & servo drives, compact and flexible, dedicated both to high demandingindustrial automation systems and to motion control architectures, in match with Bonfiglioliservomotors.

      Power Range (ACU401) 0.25 - 132 kW / three-phase 360 V - 480 V / 50 Hz - 60 Hz (± 10%)

      Power Range (ACU201) 0.25 - 9.2 kW / single or three-phase 200 V - 240 V / 50 Hz - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function: sensor-less control, sensor-less fieldoriented control, field oriented control with speed sensor,field oriented control of synchronous servomotors with speed/position sensor

      Overload Capacity 200% for 1min (size 01 and 03) / 150% for 1min (other ratings), Shorter overload: 200% for 1sec all ratings
      Switching Frequency 2, 4, 8, 12, 16 kHz
      Enclosure IP20 (EN 60529)

    • VCB Power drive

    • Reliable, highly compact and a robust choice for any application, this inverter with high-level functions soundly meets the requirements of a constantly evolving market.

      Power Range (VCB400)
      132 kW - 800kW, three-phase 320V- 560V
      45Hz - 66Hz

      Type of Control
      Selectable Vector control function:
      sensor-less control, sensor-less field oriented control,
      field oriented control with encoder

      Overload Capacity 120% / 150% for 60s
      Switching Frequency 1kHz up to 8kHz

    • SYNTHESIS Sensorless drive

    • The simple use, wide range of controls, integrated EMC filter, IP65 protection level and the limited size make the SYN10 a sound response to the broadest needs for electronic speed variation, where basic performance and contained costs are matched with robust construction and great reliability.

      Power Range (SYN10 S 220)
      0.2 - 0.75kW 1-Phase 200 - 240V / 50 - 60Hz (+10,-15%)
      1.5 - 2.2kW 1 and 3-Phase 200 - 240V / 50 - 60Hz (+10,-15%)

      Power Range (SYN10 T 400)
      0.75 - 2.2kW 3-Phase 380 - 460V / 50 - 60Hz (+10,-15%)

      Type of Control
      V/f control with Torque Gain and Selectable Patterns

      Overload Capacity
      150% for 60s
      Switching Frequency 4-16 kHz

    • SYNPLUS Sensorless drive

    • The simple use, the wide range of controls as a sensor less vector or U/f frequency inverter, the built in EMC filter and brake transistor, the extensive communication possibilities and simple PLC function as standard features, make SYNPLUS the right AC drive for medium level applications, where the performances at reasonable costs are matched with robust structure and absolute reliability.

      Power Range (SYNPLUS 200)
      0.4 - 2.2 kW / single-phase 200 - 240V + 10% / -15%

      Power Range (SYNPLUS 400)
      0.75 - 11 kW / three-phase 380 - 480V +10% / -15%

      Type of Control
      V/F and sensorless vector control CT/VT mode selection

      Overload Capacity 150% for 60s
      Switching Frequency 2 - 16 kHz

  • Servo Technology

    • LC: Low-backlash gearboxes

    • Low backlash, smooth operation and a user friendly motor assembly are key features of the planetary drives of the LC series.

      Standard Backlash
      12' … 15'
      Reduced Backlash 6' … 8'
      Nominal Output Torque 10 Nm … 300 Nm
      Maximum Acceleration Torque 16 Nm ... 160 Nm
      Emergency Stop Torque 28 Nm ... 360 Nm
      Gear Ratio 3 ... 100
      Output Configuration Flange mount
    • MP: Low-backlash gearboxes

    • Reduced backlash, smooth operation, easy motor assembly and numerous product configurations as standard options are some of the many outstanding features of the MP series.

      Standard backlash
      1 stage 15', 2 stages 15', 3 stages 17'
      Reduced backlash 1 stage 10' , 2 stages 10', 3 stages 12'
      Gear ratio
      1 stage 3 ≤ i ≤ 10
      2 stages 9 ≤ i ≤ 100
      3 stages 48 ≤ i ≤ 1000
    • TR: Low-backlash gearboxes

    • TR planetary drives are landmark for extremely reduced backlash, silent operation and facilitated motor assembly along with top reliability. TR units will match servomotors from most makes.

      Standard backlash 1 stage 5', 2 stagea 5', 3 stages 7'
      Reduced backlash 1 stage 3', 2 stages 3', 3 stages 5'
      Gear ratio
      1 stage 3 ≤ i ≤ 10
      2 stages 9 ≤ i ≤ 100
      3 stages 48 ≤ i ≤ 1000

    • SL: Precision gearboxes for pulley drives

    • The new SL Series from Tecnoingranaggi knows no rivals in compactness, efficiency and optimisation for timing belt pulley drive systems. SL Series reduced backlash units are the ideal complement to conveyor belt servo-drives and all other applications needing to combine high precision with ultra-compact size.

      Backlash Standard φ = 12 arcminutes
      Reduced φ = 6 arcminutes
      Transmission ratios i = 3, 4, 5, 7, 10
      Efficiency η = 97%
      Servomotor coupling Clamping device
      Options Timing belt pulley with groove profile type AT
      Maintenance Not required

    • KR: Precision right-angle gearboxes

    • The reduced backlash bevel helical drives of the KR series yield the best possible combination of precision, dynamics and compactness at unbeatable price. Numerous input and output configurations, as well as more transmission ratios, lend the product an unparalleled flexibility of use.

      Standard backlash φ = 8 arcmin
      Transmission ratio i = 1, 2, 5
      Servomotor coupling Hollow shaft with clamping device
      Mounting options
      Keyed hollow shaft
      Parallel shaft, single or double extension
      Hollow shaft with shrink disc
      Mounting flange

    • LCK: Precision right-angle gearboxes

    • Gear units of series LCK replicate in the right angle layout the brilliant features that are already typical of the in-line products of the LC series, with the right angle layout shape facilitating installation in tight spaces.

      Standard backlash
      φ = 6' - double reduction
      φ = 8' - triple reduction
      Transmission ratios 6 ≤ i ≤ 100
      Servomotor coupling Low inertia coupling device
      Options Smooth, keyless output shaft
      Maintenance Maintenance-free

    • ACTIVE CUBE Solution and servo drive

    • A full series of solution & servo drives, compact and flexible, dedicated both to high demandingindustrial automation systems and to motion control architectures, in match with Bonfiglioliservomotors.

      Power Range (ACU401) 0.25 - 132 kW / three-phase 360 V - 480 V / 50 Hz - 60 Hz (± 10%)

      Power Range (ACU201) 0.25 - 9.2 kW / single or three-phase 200 V - 240 V / 50 Hz - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function: sensor-less control, sensor-less fieldoriented control, field oriented control with speed sensor, field oriented control of synchronous servomotors with speed/position sensor

      Overload Capacity
      200% for 1min (size 01 and 03) / 150% for 1min (other ratings), Shorter overload: 200% for 1sec all ratings

      Switching Frequency 2, 4, 8, 12, 16 kHz

    • BTD series

    • BTD Series servomotors are designed to provide effective solutions for applications demandinghigh efficiency, compact motors.The extremely small size of these actuators, achieved by the use of advanced materials and designtechnology, ensures exceptional dynamics and low temperature operation.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMCrequirements, and a PTC temperature probe with reinforced insulation, these motors guaranteesecure electrical connections under all ambient operating conditions.

      Stall torque 0,26 Nm … 27 Nm
      Rated speed 3000, 4500 min-1
      Power supply 230, 400 Vac
      Inertia Low for BTD sizes from 0.26 Nm … to 1 Nm
      Conformity 2006/95/EC (LVD) and 2004/108/EC (EMC)

    • BCR series

    • BCR Series servomotors are designed to satisfy the needs of continuous and transient high torque applications.Thanks to a wide torque range and above average instantaneous overload ratings, BCR servomotors are robust enough for even the most demanding drive applications.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guaranteea secure electrical connection under all ambient operating conditions.

      Stall torque 0,2 Nm … 115 Nm
      Rated speed 2000, 3000, 4500 rpm
      Power supply 230, 400 Vac
      Inertia Low for BCR sizes from 0.2 Nm … to 1 Nm
      Conformity 2006/95/EC (LVD) and 2004/108/EC (EMC)

  • Heavy Duty

    • Parallel shaft gear units -
      HDP series

    • Torque ratings consistently high, gear ratios in close progression, numerous mounting options along with compact dimensions will ease the engineering of any application. The housing from nodular cast iron ensures robustness even in the harshest environment and the class of precision the gear are machined into helps producing an extremely quit and vibration-free operation.

      Torque Range 4650 ... 194000 Nm
      Gear Ratios 7,1 ... 500
      Mounting Foot, flange, shaft mounting
      Input solid shaft, motor adapter
      Output  solid, (single and double extension), keyed hollow,shrink disc

    • Parallel shaft gear units for single-screw extruder drive - HDPE series

    • The HDPE series is the configuration specifically developed for single-screw extruder drive generated from the renown heavy duty series HDP, with which it shares most of the component parts and gearing.
      Mounted forward to the sturdy nodular cast iron case, and housed into a robust extruder support, HDPE units feature a heavy duty spherical roller thrust bearing of series 294…E, exclusively sourced from primary brands.

      Transmissible Torque 4650 MN2 75000 Nm
      Gear Ratios 7,1 iN 125.0 with progression = 1,12
      Mounting Foot
      Input solid shaft, direct motor mounting, lantern housing with flexible coupling

      Output shaft

      Thrust bearing of various dimension and capacity and hollow shafts of various shapes and dimensions.
      Standard shaft is keyed hollow to UNI 6604.
      Mounting dimensions to customer specifications can be provided.

    • Bevel helical speed reducer -
      HDO series

    • The new bevel helical series from Bonfiglioli optimises superior performance with compact dimensions and flexibility. The several options that can be selected from the catalogue facilitate customization to meet specific application requirements. Gear case from nodular cast iron guarantee rigidity in all circumstances while gears, integrally ground finished on their profile, ensure quiet and vibration-free operation even in the harshest conditions.

      Torque Range 24000 ...194000 Nm
      Gear Ratios 5.6 ... 400
      Mounting Foot, flange, shaft mounting

      Input solid shaft, lantern housing c/w flexible coupling
      double input shaft (pony drive)
      Output shaft solid, (single and double extension), keyed hollow, shrink disc

    • Planetary drives - 300 series

    • Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 18 finely spaced frame sizes, spanning over the 1.000 - 1.400.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.

      Torque Range 1000 - 1.400.000 Nm
      Mechanical Rating (n1= 1400 min-1) up to 450 kW
      Gear ratio 3.4 to 5.000
      Gear Unit Version In line
      Right angle (with Gleason bevel gear set)

      Output
      Foot and flange mounted
      Output shaft: keyed solid, splined, splined hollow
      hollow shaft with shrink disc

    • AGILE Smart sensorless drive

    • Agile series provide in a sensorless vector inverter innovations able to boost plant efficiency through open loop vector control of brushless motors, MMC memory cards and web control.
      Agile inverters are easy to install, program and quick to start-up without the needs of specialized resources.

      Power Range 0.25 kW - 11 kW / three-phase 320 V ... 530 V / 45 Hz... 69 Hz

      Motor compatibility
      Asynchronous AC motors
      Permanent magnet synchronous (brushless) motors

      Type of Control
      Selectable control function:
      V/f control for asynchronous motors
      Sensor-less vector control for asynchronous motors
      Sensor-less vector control for brushless motors

      Degree of protection IP20 (EN 60529)


    • ACTIVE Solution drive

    • A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.

      Power Range (ACT401) 0.55 - 132 kW / three-phase 360 - 480V / 50 - 60 Hz (± 10%)

      Power Range (ACT201) 0.55 - 9.2 kW / single or three-phase 200 - 240V / 50 - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function:
      sensor-less control, sensor-less field oriented control,
      field oriented control with encoder

      Overload Capacity 150% for 60s / 200% for 1s
      Switching Frequency 2, 4, 8, 12, 16 kHz

    • ACTIVE CUBE Solution and servo drive

    • A full series of solution & servo drives, compact and flexible, dedicated both to high demandingindustrial automation systems and to motion control architectures, in match with Bonfiglioliservomotors.

      Power Range (ACU401) 0.25 - 132 kW / three-phase 360 V - 480 V / 50 Hz - 60 Hz (± 10%)

      Power Range (ACU201) 0.25 - 9.2 kW / single or three-phase 200 V - 240 V / 50 Hz - 60 Hz (± 10%)

      Type of Control
      Selectable Vector control function: sensor-less control, sensor-less fieldoriented control, field oriented control with speed sensor,field oriented control of synchronous servomotors with speed/position sensor

      Overload Capacity 200% for 1min (size 01 and 03) / 150% for 1min (other ratings), Shorter overload: 200% for 1sec all ratings

      Switching Frequency 2, 4, 8, 12, 16 kHz

    • VCB Power drive

    • Reliable, highly compact and a robust choice for any application, this inverter with high-level functions soundly meets the requirements of a constantly evolving market.

      Power Range (VCB400)
      132 kW - 800kW, three-phase 320V- 560V
      45Hz - 66Hz

      Type of Control
      Selectable Vector control function:
      sensor-less control, sensor-less field oriented control,
      field oriented control with encoder

      Overload Capacity 120% / 150% for 60s
      Switching Frequency 1kHz up to 8kHz
