- Z-LASER is THE German manufacturer of laser sources for innovative customer applications. Over the past 30 years we have successfully established ourselves in the following areas:
- Laser as positioning aid (industry and trade)
- Lasers for image processing
- Laser projectors as positioning aids (industry and trade)
- Customer-specific lasers (OEM laser solutions)
Z-Laser
Positioning laser
-
Positioning lasers – Light the way
Positioning lasers are always used where precision in alignment and positioning is required. They indicate certain positions safely and reliably on a wide variety of materials. As line lasers, they are often used on band saws, cross-cut saws, press brakes and various cutting machines. Therefore they are often found in the wood, metal or textile industry. As cross lasers, these laser modules reliably mark points for drilling or other processing steps. With the help of circular lasers, the correct positioning of round objects is made much easier.
Laser for machine vision
-
Lasers for machine vision from Z-LASER are used as structured illumination in many machine vision systems. The combination of laser illumination and machine vision offers interesting possibilities for the automation of optical quality control. With this form of illumination the spatial contours of moving and non-moving objects can be captured.
The lasers are used in combination with an industrial camera to detect and measure defects, presence, diameter, edges, gaps and more. Depending on the type of objects to be examined, line lasers with homogeneous and thin line projections or different patterns (multi lines, dot grids, grid structures, random patterns etc.) as well as wavelengths (blue, green, red, IR) are usually used.
Laser projectors
-
Material and time savings thanks to laser projectors from Z-LASER
Industrial laser projectors serve as optical guidance systems. In many manufacturing processes, they allow working without templates by indicating directly on the workpiece how tools have to be positioned or material has to be mounted.
This can be the case, for example, in welding and assembly or in so-called light guide systems. In this way, laser projectors guide employees step-by-step through the assembly process.The laser projectors from Z-LASER are particularly convincing due to their fast and stable projection with a high repetition rate, so that visual flickering is reduced or at best prevented. The Z-LASER laser projectors are optimized for 2D and 3D applications and offer a highly accurate projection in the sub-millimeter range. The optical angles (80° x 80°) allow the coverage of large working areas.
Positioning laser
- Precise alignment and positioning thanks to perfectly visible laser lines on almost all surfaces.

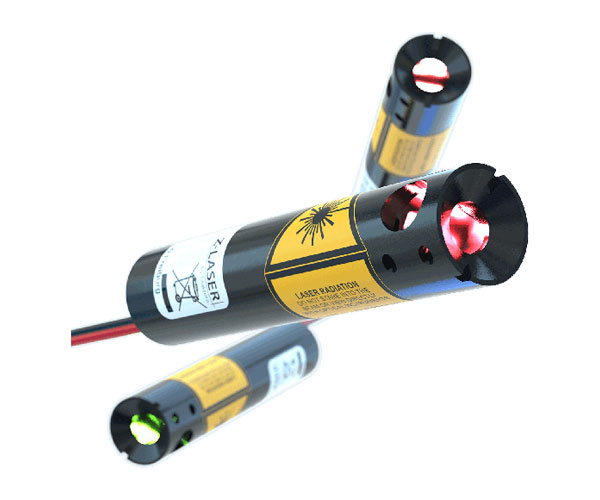

ZD Module
-
Compact in size, powerful in visibility – available as line, dot, or cross projection
The ZD is a universal mini laser module with a diameter of only 11 mm, making it the perfect choice for devices and machines with limited installation space. Its compact form factor delivers impressive visibility, and it is available in line, dot, or cross projections. Typical applications include woodworking, stone processing, textile production, tire manufacturing, and metalworking—industries where precise alignment is needed even under tight spatial conditions. Available from green (520 nm, 10 mW) too red (635 nm, 15 mW) versions, it combines flexibility with reliable performance.
ZRG Modul
-
Green DPSS line laser – unbeatable brightness and reliability
The ZRG Module is a diode-pumped solid-state (DPSS) laser that emits bright green light at a wavelength of 532 nm. It delivers exceptionally bright, long laser lines, setting the standard for applications such as sawmills, textile cutting tables, and natural stone processing. With its rugged construction and integrated wide-range power supply, it is ready to connect and immediately operational. The focusable line laser is available in four power classes from 5 mW to 40 mW, ensuring maximum flexibility for different application needs. When visibility and precision matter most, the ZRG is the number one choice.
ZQ1-MagicLine
-
The brightest eye-safe line laser for industrial precision
The ZQ1-MagicLine is the brightest eye-safe line laser in its class worldwide, setting new standards in industrial laser technology. With its unique combination of laser class 2M safety and 600 mW optical output, it ensures a bright and precise line even in the most challenging lighting conditions. Unlike conventional lasers, it remains clearly visible in bright environments, making it ideal for positioning tasks with widely varying light levels. Its green 520 nm wavelength is especially well perceived by the human eye, while the 70° fan angle creates long, uniform lines. Manual focusing further enhances flexibility, making the ZQ1-MagicLine the perfect solution whenever precision, visibility, and safety must align.
ZM18 Modul
-
The powerful all-rounder – compact and flexible
The ZM18 is an industry-grade laser module that, with its compact sensor-style design, integrates easily into existing machines and systems. Offering high flexibility its ZM18B and ZM18B3 Variants are suitable for a wide range of positioning applications. Machine vision applications across different industries are made possible due to its ZM18S3 Variant. Delivering non-stop reliable meassuring results. The built-in, user-friendly focusing optics allow quick adjustments to varying working distances and requirements. Thanks to its robust construction, the ZM18 is ideal for reliable continuous use in demanding industrial environments.
ZKV Module
-
Adjustable & continuous circle projection for barrel and wood construction
The ZKV is a circle projection laser that uses a rotating mirror to project highly visible red or green circles onto the work surface. With the wired joystick remote control, the diameter can be adjusted seamlessly—from 270 mm to 1,400 mm at an installation height of 1,000 mm. This eliminates the need for conventional templates and makes the alignment of workpieces faster and more precise. Main applications include barrel construction and the production of wooden cable drums, where the ZKV increases efficiency and accuracy. Its simple operation and flexible adjustment make it a practical and reliable tool in industrial manufacturing.
Z5A Belt-Aligner
-
Fast, safe, precise – laser-assisted belt alignment
The Z5A Belt-Aligner is a laser-based tool for the exact alignment of belt drives and pulleys. A compact line laser from the ZAT series is mounted in a specially designed holder and projects a red line that runs precisely parallel to the magnetic reference surface. Using the included target markers, drive and idler pulleys can be aligned quickly, safely, and without risk while at a standstill. Proven thousands of times in industrial use, the Z5A stands out for its ease of handling and reliable results. Delivered as a complete set with holder, measuring blocks, battery, and transport case, it offers everything needed for efficient belt alignment.
ZAT Module
-
Battery-powered, robust, and versatile – the mobile laser module
The ZAT is a battery-powered laser module designed for flexible positioning tasks in industrial environments. With its rugged metal housing and integrated power supply using either AA batteries or rechargeable cells, it operates independently of external power sources. A push button at the rear of the housing enables simple on/off operation for quick handling. The ZAT is particularly well-suited for woodworking, stone processing, and metalworking, and can be easily retrofitted to machines such as miter saws, dowel drilling machines, or tile cutters. Offering mobility and reliability in one, it provides an effective solution for precise alignment tasks wherever flexibility is needed.

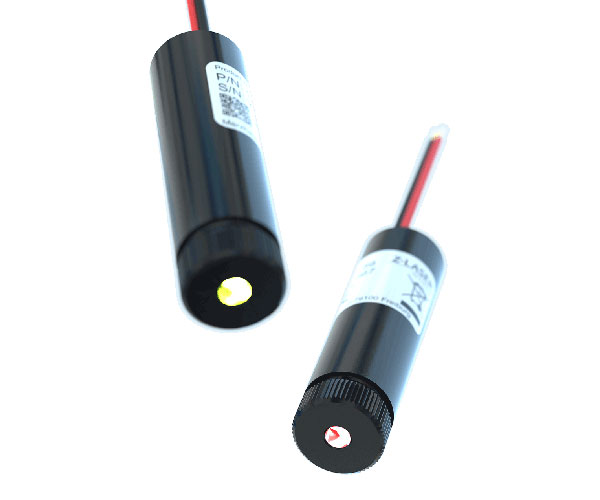

ZF-pe-F Modul
-
Precise dot laser – compact in size, powerful in visibility
The ZF-pe-F is an ultra-compact dot laser module with a diameter of only 11 mm, making it easy to integrate into space-limited machine setups. Manual focusing allows the laser to be perfectly adjusted for any working distance, ensuring maximum flexibility in use. With a wavelength of 635 nm (red) or optionally 520 nm (green), it delivers excellent visibility on a wide range of materials. Electrically isolated and equipped with a wide 5–24 VDC supply range including reverse-polarity protection, the module is available with output powers from 1 to 5 mW. Typical applications include woodworking, stone processing, textiles, metal, tire, concrete, and food industries where compact precision is essential.
ZPT-F Module
-
Positioning laser with unique Peltier cooling – trusted performance in industry
The ZPT-F is the only positioning laser worldwide with Peltier cooling and a temperature-stabilized laser source. This innovation guarantees consistently high visibility and precision, even in tough production environments. Thanks to the integrated heavy-duty power supply and adjustable focusing unit, installation into different machine setups is straightforward and flexible. Its rugged design and easy maintenance ensure long service life with minimal downtime. With a proven track record over many years, the ZPT-F delivers reliability and accuracy you can count on.
ZR Modul
-
Durable line projection for tough industrial environments
The ZR is a red positioning laser with an asymmetric optic that projects especially long and homogeneous lines for precise alignment. With an optical output of up to 40 mW at 635 nm, it provides excellent visibility even across large working areas. An integrated heavy-duty power supply with a wide input range (90–265 VAC) ensures strong interference resistance and reliable operation under demanding industrial conditions. Compact dimensions of Ø 40 mm x 200 mm make it easy to integrate into machines and systems. Typical applications include textile tables and circular saws, where long and uniform line projection is critical for accuracy.
Laser projectors
- Industrial laser projectors for projecting patterns and contours as an optical guidance aid.

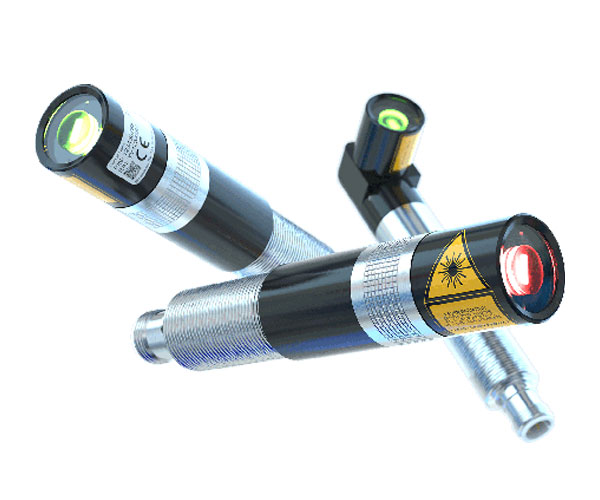

ZQ1-Laserfamily
-
High-Performance Lasers for Demanding Measurement Tasks
The ZQ1 Series is designed for the most demanding industrial applications. Their rugged, vibration- and shock-resistant housings provide optimal protection for the optoelectronic components against heat, cold, dust, water, and more. With intelligent monitoring and integrated Peltier cooling, ZQ laser modules ensure stable performance, reliable operation, and a long service life – even under the toughest conditions.
ZQ1 Series Product Features- For Continuous Industrial Use: Rugged, shock-resistant housings provide optimal protection.
- Reliable Under Extreme Conditions: Whether heat, humidity, vibrations, or high-speed applications – the ZQ1 Series remains stable in operation.
- Maximum Performance Stability: Intelligent cooling ensures long-lasting durability in harsh environments.
- Homogeneous and Precise Illumination: Powerful, bright laser lines for uniform illumination.
- Compact & User-Friendly: High performance with tool-free focusing for efficient operation.
ZX-Laserfamily
-
Unmatched Precision for Machine Vision Applications
The ZX laser modules set new standards in laser precision – made possible by highly automated production processes, where all optical components are aligned by a 14-axis robot. Their rugged housings are engineered for use in harsh environments, ensuring long-lasting, worry-free performance in complex machine vision applications.
Additional ZQ1 Series Features- For Precise Machine Vision Tasks: Ideal for complex machine vision setups and 3D triangulation sensors.
- Automated Manufacturing: A 14-axis robot ensures maximum alignment precision during production.
- Robust & Durable: Engineered for harsh environments with a long, worry-free service life.
- The World’s Most Precise Lasers: Boresight error below $0.8 \text{ mrad}$ – delivering unmatched global accuracy.
Z Fiber Module
-
Maximum beam quality for machine vision, analytics, and medical technology
The Z Fiber Module (ZFSM) is a high-end laser with active cooling, designed for the most demanding measurement methods and applications. Its exceptional beam characteristics deliver projection quality that far surpasses conventional free-beam solutions. Users can choose between blue, green, and red wavelengths to match specific application requirements. Intelligent monitoring functions ensure long-term performance stability, even during extended operation. With integrated interfaces such as RS-232 and I²C, the module integrates seamlessly into complex machine vision systems, medical devices, and analytical instruments.
Laserprojector
-
What Z-LASER Projectors Deliver for Your Production
Z-LASER industrial laser projectors serve as precise optical guidance systems. They eliminate the need for physical templates by projecting directly onto the workpiece, showing exactly where tools or materials must be positioned. This transforms processes such as welding, assembly, and even worker guidance with step-by-step visual instructions.

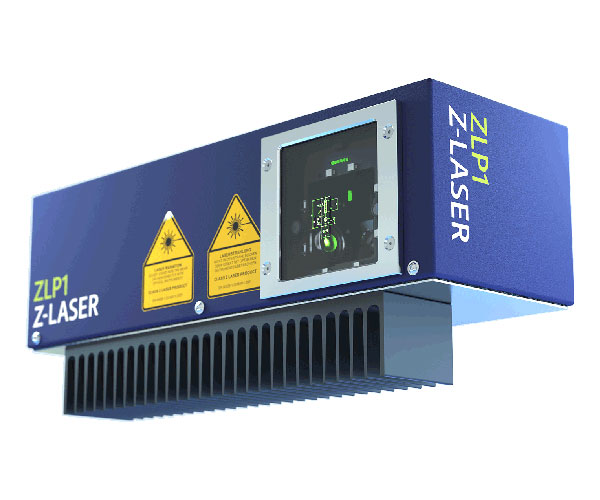

ZLP1 – Laser Projector
-
Compact laser projector for efficient worker guidance
The ZLP1 is a compact and cost-effective laser projector designed for industrial applications. It is particularly suited for small working areas and short distances, making it ideal for picking, logistics, and worker guidance tasks. By projecting optical work instructions directly onto the workspace, the ZLP1 supports employees in real time, increasing both efficiency and process reliability. The projector is eye-safe in laser class 2M and can be controlled via the intuitive ZLP-Suite software or integrated into existing applications through an API. Additional software modules allow flexible function extensions, ensuring the ZLP1 can be adapted precisely to individual requirements.

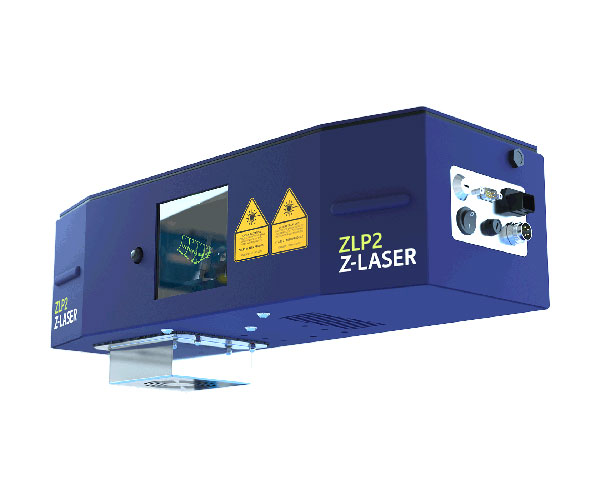

ZLP2 – Laser Projector
-
High-performance laser projector with superior beam quality
The ZLP2 is a powerful laser projector equipped with a fiber-coupled Z-FIBER laser source to deliver outstanding beam quality. With an accuracy of 0.25 mm per meter of working distance, it is ideal for precise projections in traditional applications such as woodworking and stone processing, as well as demanding composite material tasks. Operation is simple via the intuitive ZLP-Suite software with graphical user interface or through the integrated programming interface (API). In addition, native control via TCP/IP-enabled PLC systems is supported, allowing seamless integration into automated workflows. The ZLP2 thus provides a flexible, expandable, and reliable solution for industrial applications where precision and efficiency are critical.

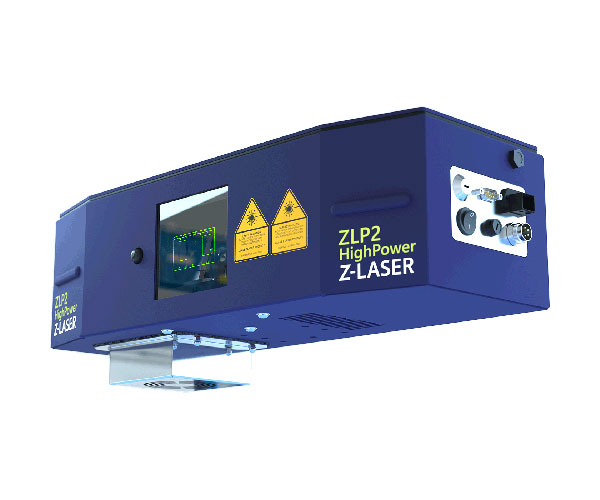

ZLP2 – HighPower
-
High-power laser projector for maximum precision under the toughest conditions
The ZLP2 HighPower sets a new standard for laser projection in the most demanding environments. With an enhanced laser source, upgraded mechanics, and optimized electronics, it delivers superior brightness, precision, and durability—even in challenging light conditions or across large projection distances. Achieving an accuracy better than ±0.25 mm/m, it supports working areas up to 10 × 10 m and projection distances of up to 15 m. Typical applications include concrete construction, aerospace, and wind turbine blade manufacturing, where it can improve process efficiency by up to 30%. Its modular design allows key components to be replaced in the field in under an hour, minimizing downtime, while standardized interfaces and an intuitive API ensure seamless integration into existing systems.
Customer Success Stories
Baufritz Relies on Laser Projection for Timber Construction
- With Z-LASER’s projection technology, Baufritz optimizes the production of timber elements – achieving maximum precision, efficiency, and sustainability in modern timber house manufacturing.
Concrete Rudolph Uses Z-LASER Projectors for Precast Concrete Elements
- With Z-LASER’s projection technology, Concrete Rudolph achieves faster, more precise, and more efficient alignment in precast concrete production.
Precise Roof Truss Production with Laser Projectors
- Natec GmbH relies on a multi-projector system from Z-LASER for the production of nail plate trusses – ensuring maximum accuracy, efficiency, and quality in modern timber construction.
Precise Adhesive Placement with Laser Projectors
- Mayer GmbH relies on the ZLP1 laser projector from Z-LASER for adhesive tape application – ensuring higher accuracy, process reliability, and efficiency in assembly.
Laser-Assisted Weld Seam Inspection for Audi Sports Cars
- With state-of-the-art laser projection, Audi achieves 100% weld seam inspection in R8 production – ensuring greater efficiency, precision, and quality in aluminum body manufacturing.
Save Time And Costs
- Optimize production process of rotor blades with laser projection systems
