  • Offer Profile

  • The Worldwide Leading Manufacturer of Articulated Arms with Central Locking Knob

    The FISSO articulated arm can be quickly deployed in any desired position while the central clamping knob ensures that all three joints are precisely fixed and held securely.

    Due to our extensive experience in the OEM business segment and the comprehensive range of models, we are your competent partner. FISSO articulated arms deliver exceptional performance no matter what the application.

    For more than 40 years, the original component manufacturer behind the FISSO brand have been renowned for the exacting attention to detail and carefully considered designs found in our products.

Product Portfolio

  • FISSO

  • Swiss Made Articulated Arms and Holding Systems for Medical, Industrial and OEM Applications

    Welcome to Baitella AG, the worldwide leading manufacturer of articulated arms with central locking knob

    FISSO develops and manufactures high-quality articulated arms, holding systems and customized OEM solutions for medical technology, industrial automation, metrology and machine integration. For more than 50 years, customers worldwide have relied on FISSO for precision, reliability and Swiss Made quality.

    Thanks to the unique central locking mechanism, FISSO articulated arms can be positioned quickly and securely fixed with a single adjustment knob. This enables highly accurate and repeatable positioning for cameras, sensors, measuring devices, medical equipment and many other applications.

      • Precise Articulated and Magnetic Stands for Use in Dimensional Metrology

      • Increase efficiency and reduce manufacturing errors with robust and secure holders

        Features:

        • 3D dial indicator stands from Fisso, stand out due to their high quality and reliability
        • Different magnetic stands and accessories for holding dial indicators and dial test indicators
        • 3D Articulated Indicator Holders are available in several designs
        • Precise microfine adjustment, zero-play fine adjustment made of high-quality steel and precise positioning
        • Combined holder for dial gauges and electronic 8 mm probes

          • Holders & Mounts for Machine Vision & Automation

          • FISSO machine vision holders provide precise and stable positioning for industrial cameras, sensors, lighting systems and optical components. Designed for machine vision, quality inspection and automation applications, our modular mounting systems ensure maximum rigidity, repeatability and vibration resistance for reliable image acquisition.

              • Swivel mount D14 D12

              • Features:
                • For easy, flexible and fast mounting of optical sensors, vision cameras, lasers and lights.
                • Clamp made of aluminum.
                • Lower rod in diameter 14 mm, external thread, M8.
                • Upper rod in diameter 12 mm, internal thread M6.
                • Product without 2 x Mounting Plate 85.040.
                • Other combinations on request.

              • Machine Vision Camera-Monitor Mount 200 mm

              • Features:
                • OE20.10, Mounting Plate M6.
                • Articulated arm 200 mm.
                • Mounting Plate M6.
                • OE20.20,Mounting Plate M6.
                • Articulated arm 200 mm 1/4″ 20 UNC.
                • OE20.30, Mounting Plate M6.
                • Extension bar 200 mm.
                • Articulated arm 200 mm.

              • Machine Vision Camera-Monitor Mount 260 mm

              • Features:
                • OE26.10:
                • Mounting Plate M8.
                • Articulated arm 260 mm.
                • Mounting Plate M6.
                • OE26.20:
                • Table Clamp M8.
                • Articulated arm 260 mm.
                • Mounting Plate M6.

              • Laser-light guide holder 200 mm

              • Features:
                • OE20.40, Steel Base M6.
                • Articulated arm 200 mm.
                • Clamp D 9-12 mm M6.
                • OE20.50,Table Clamp M6.
                • Articulated arm 200 mm.
                • Clamp D 9-12 mm M6.

              • Sensor Mount 130 mm

              • Features:
                • OE13.10, Mounting Plate M6.
                • Articulated arm 130 mm.
                • Mounting Plate M6.
                • OE13.20, Magnetic Base M6.
                • Articulated arm 130 mm.
                • Mounting Plate M6.

              • Articulated Arm 200 mm M6-1/4" 20 UNC

              • Enhance Precision with FISSO’s Articulated Arm 200 mm

                Discover FISSO’s articulated arm, designed for precise positioning in industrial and manufacturing environments. Our 200 mm arm provides flexible and reliable support for various applications.

                Advanced Engineering for Precision

                FISSO’s articulated arm is engineered with advanced features to ensure exact positioning. It offers stability and accuracy in handling tools and equipment.

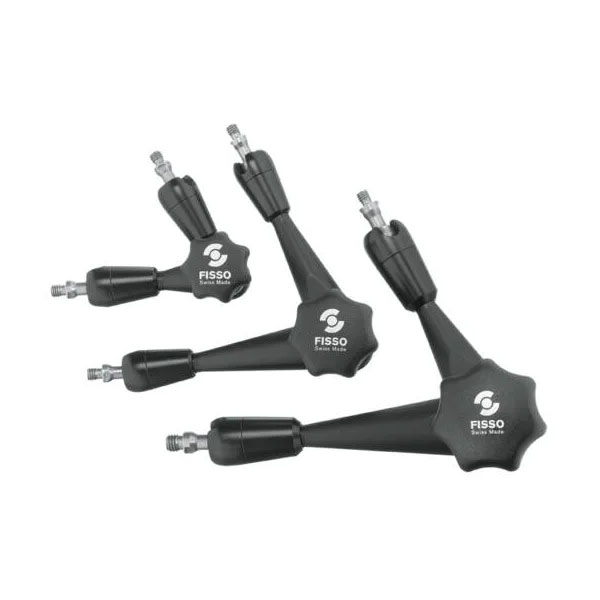

              • Articulated arm Strato Line - 4.030 – 4.160

              • Explore FISSO’s Strato Line Articulated Arms for Industry

                Discover the versatility and precision of FISSO’s Strato Line Articulated Arms, tailored to enhance industrial operations.

                Versatile Positioning for Diverse Applications

                Achieve precise positioning and flexibility with FISSO’s Strato Line Articulated Arms, ideal for a wide range of industrial tasks.

              • Mounting Plate

              • Features:
                • Compatible with T-Slot Aluminum frame 20×20, 30 x 30, 40 x 40 mm.
                • Adapter compatible with many machine vision cameras.
                • 85.030: Thread M6 Female.
                • 85.040: Thread M8 Female.

              • Mounting Clamp for Rod D14-D12

              • Enhance Your Operations with FISSO’s Mounting Clamp for Rod D14-D12

                Discover the versatility of FISSO’s Mounting Clamp for Rod D14-D12. This adaptable solution meets diverse industrial needs, offering reliable support and precise positioning.

                Innovative Design for Flexibility

                FISSO’s mounting clamp features an advanced design. It adapts easily to different rod sizes, ensuring secure and stable positioning for your equipment.

              • Mounting Rod, Mounting Bar in D12 and D14

              • Features:
                • Material: Steel.
                • # 81.622 D12 x 170 mm, M6 (Female).
                • # 81.670 D12 x 178 mm, M8 (Male).
                • # 81.671 D14 x 208 mm, M8 (Male).

              • Adjustable Sensor/Laser Clamp

              • Features:
                • For clamping round objects (sensors, lasers, tubes….) between 15 and 40 mm.
                • Art 5.202 2xM6 (lateral and top), Art 5.204 2xM8 (lateral and top).
                • Dimensions: Aluminum profile 80x20x40 mm.
                • Surface: black anodized.

              • Laser Holder, Light guide holder - Tube holder

              • Features:
                • For securely holding devices or parts with a diameter between 9 and 16 mm.
                • Mounting hole diameter 9-12 mm, M6 Thread.
                • Mounting hole diameter 11-16 mm, M6 Thread.
                • Mounting hole diameter 10 mm, M6 Thread.
                • Further diameter on request.
                • Material: Aluminium.

              • Magnetic Base

              • Features:
                • Switch Magnet, M6, 34x30x35 mm, adhesive force 300 N.
                • Switch Magnet, M6, 40x40x40 mm, adhesive force 600 N.
                • Switch Magnet, M8, 60x50x55 mm, adhesive force 800 N .
                • Switch Magnet, M8, 75x50x55 mm, adhesive force 1000 N.
                • Switch Magnet, M10x1.25, 120x60x55 mm, adhesive force 1500 N .
                • Switch Magnet, M10x1.25, 120x130x55 mm, adhesive force 2 x 1500 N.

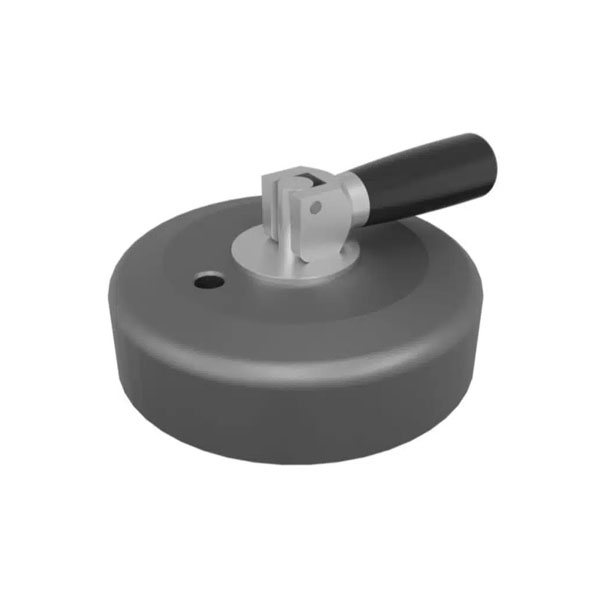

              • Vacuum Base

              • Features:
                • Vacuum Base , D88 x 27 mm, M8 Thread, adhesive force aprox. 300 N.

              • Table Clamp

              • Features:
                • Clamping base 20sz, Opening 40mm, 80 x 20 x 40 mm, 2 x M6.
                • Clamping base 30sz, Opening 40mm, 80 x 30 x 50 mm, 2 x M8.
                • Clamping base 30k, Opening 40mm, 80 x 30x 45 mm, 2 x M8 with plastic jaw.
                • Clamping base 20sz, Opening 80mm, 150 x 82 x 60 mm, on request.

              • Steel base

              • Features:
                • Table top base, Ø 150 mm, for 1 articulated arm, M6.
                • Table top base, Ø 150 mm, for 1 articulated arm, M8.
                • Table top base, Ø 100 mm, up to 3 articulated arms 1 x M8, 2 x M6 with rubber pad.
                • Table top base , Ø 100 mm, up to 3 articulated arms 3 x M6 with rubber pad.

            • Dial Indicator Holders, Magnetic Bases & Stands

                • Strato Line XS-13 Indicator Stand - Model XS-13 F + S2

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 130 mm.
                  • Switch magnet approx. 300N.

                • Strato Line S-20 Indicator Stand - Model S-20 F + M

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 200 mm.
                  • Switch magnet approx. 800N.

                • Strato Line 3D Articulated Gauging Arm - S-20.60

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 200 mm.
                  • Anyform magnet approx. 600N, switchable.

                • Strato Line M-28 Indicator Stand - Model M-28 F + V

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 280 mm.
                  • Vacuum base.

                • Strato Line M-28 Indicator Stand - Model M-28 F + G

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 280 mm.
                  • Sliding granite base.

                • Strato µ-Line 3D Articulated Gauging Arm - AP28.10

                • Features:
                  • Precision fine adjustment Ø 8 mm.
                  • Articulated arm 287 mm.
                  • Switch magnet approx. 800N.

                • Classic Line 3300-28 Magnetic Stand - Model 3300-28 F + M

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 288 mm.
                  • Switch magnet approx. 800N.

                • Classic Line 4400-45 Magnetic Stand - Model 4400-45 F + SM

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 450 mm.
                  • Switch magnet approx. 1000N.

                • Classic Line 6400-63 Magnetic Stand - Model 6400-63 F + MM

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 630 mm.
                  • Switch magnet approx. 1500N.

                • Classic Line 3D Articulated Gauging Arm - 6463.49

                • Features:
                  • Fine adjustment Ø 8 mm.
                  • Articulated arm 630 mm.
                  • Column 450 mm.
                  • Double switch magnet approx. 2x1500N.

              • Industrial Holders

                  • Customized Holders for OEMs

                  • Features:
                    • A customized FISSO holder can be constructed from our wide range of components.
                    • Build a custom clamping system for holding heavyweight oder lightweight objects or components.
                    • First choose a base, and then add the articulated arm, connectors, and clamps.

                  • Printed Circuit Board Holder

                  • The articulated arms are mounted to a heavy steel base and can be easy adjusted for positioning work at any angle.

                    Features:
                    • Quick clamp with plastic jaws.
                    • Articulated arm 280 mm.
                    • Steel base Ø 150 mm.

                  • Stabilizing Holder - 4340.80

                  • Heavy-duty articulated arm and clamps for holding and positioning parts up to 5 kilograms (11 Pounds) in a radius of 400 mm (15’7 Inches).

                    Features:
                    • Top quick clam KT2 ST.
                    • Articulated arm 400 mm.
                    • Bottom quick clamp KT3 ST.

                  • Stabilizing Holder - 6362.80

                  • Heavy-duty articulated arm and clamps for holding and positioning parts up to 10 kilograms (22 Pounds) in a radius of 600 mm (23’5 Inches).

                    Features:
                    • Top quick clamp KT3 ST.
                    • Articulated arm 620 mm.
                    • Bottom quick clamp KT4 ST.

                  • Quick Clamps

                  • Features:
                    • KT1, Clamping opening 25mm, M6 Thread, Steel.
                    • KT1, Clamping opening 25mm, M6 Thread, Aluminium.
                    • KT2, Clamping opening 50mm, M8 Thread, Steel.
                    • KT2, Clamping opening 50mm, M6 Thread, Steel.
                    • KT2, Clamping opening 50mm, M6 Thread, Aluminium.
                    • KT3, Clamping opening 75mm, M8 Thread, Steel.
                    • KT3, Clamping opening 75mm, M12 Thread, Steel.
                    • KT4, Clamping opening 110mm, M12 Thread, Steel.

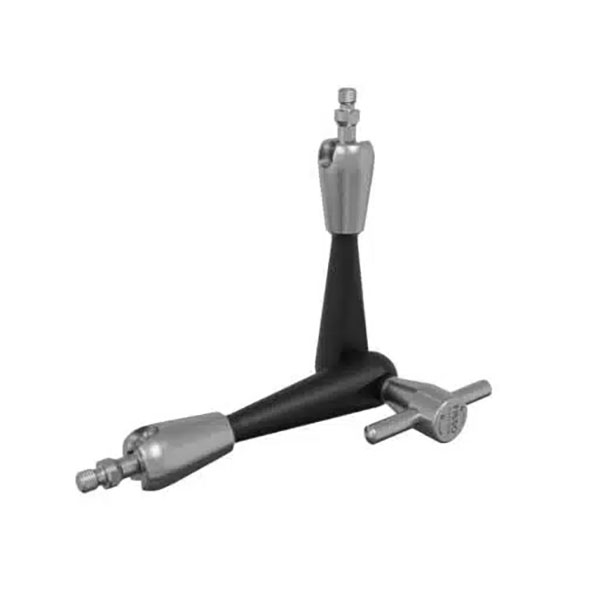

                  • Articulated Arm for extreme temperatures

                    • For use in temperatures between -55 and 150 °C (-67 and 310 F)
                    • Very low magnetic property
                    • Action radius: 200 mm

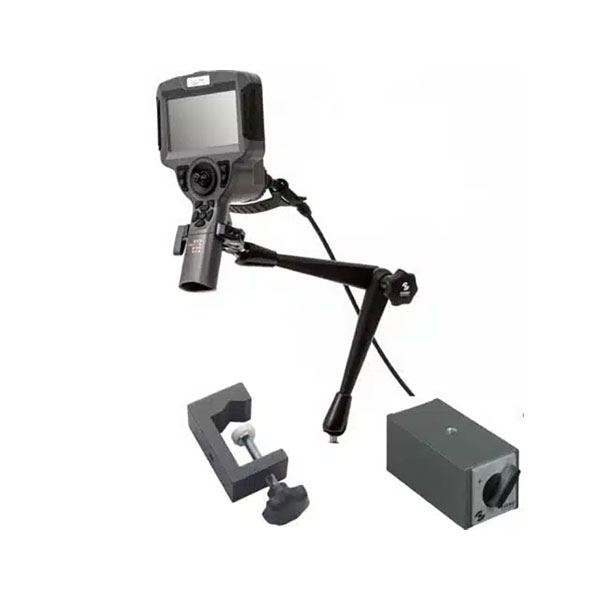

                  • Industrial Endoscope Holder

                  • OE44.10 – With Table clamp

                    • Art. arm 4.400
                    • Table clamp 5.204
                    • Crab-Clamp 5.130

                    OE44.20 – With Magnet Base

                    • Art. arm 4.400
                    • Magnet Base 5.057
                    • Crab-Clamp 5.130

                • Photo Holders

                • FISSO photo holders provide precise positioning and stable mounting for photography, film, and studio applications. These articulated photo arms, also known as magic arms, swivel arms, or multilink arms, allow flexible and secure positioning of cameras, lights, mirrors, reflectors, and small objects.The modular FISSO system enables photographers and film professionals to build custom setups using articulated arms, clamps, magnetic bases, vacuum bases, and adapters. This flexibility ensures stable positioning and fast adjustments during demanding photo and video productions.

                    • Photography Set with Carrying Case

                    • Features:
                      • Quick clamp with plastic jaws.
                      • Extension 200 mm.
                      • Articulated arm 200 mm.
                      • Adapter M6/3/8″Ww.
                      • Toping thread for 3/8″ Ww/1/4″Ww.
                      • Open-end wrench size 7.
                      • Steel base Ø 100 mm.
                      • Clamping base.

                    • Articulated arm Classic Line

                    • Enhance Your Industrial Operations with FISSO Classic Line Articulated Arms

                      Upgrade your industrial setup with FISSO’s Classic Line Articulated Arms, designed for precision and reliability.

                      Versatile Positioning for Various Applications

                      Achieve precise positioning and flexibility with FISSO’s Classic Line Articulated Arms, suitable for diverse industrial tasks.

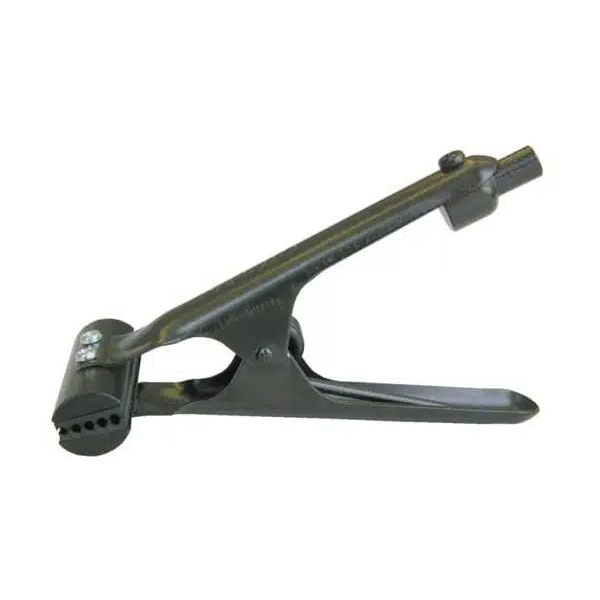

                    • Quick Clamp with Plastic Jaws

                    • Features:
                      • Multi-purpose clamp, M6 thread, 21 mm.
                      • Multi-purpose clamp, M6 thread, 50 mm.

                    • Smartphone Holder

                    • For flexible and ergonomic positioning of smartphones / cellphones.

                      Consist of:

                      • Articulated Arm 4.130 : 200 mm
                      • Steel Base: 5.041
                      • Handy Clamp 93.557: opening  60-85 cm

                    • Tablet Holder

                    • For flexible and ergonomic positioning of Tablets

                      Consist of:

                      • Articulated Arm 4.300: 340 mm
                      • Steel Base 5.032 (Other Bases possible)
                      • Tablet Clamp

                    • Articulated arm Strato Line

                    • Explore FISSO’s Strato Line Articulated Arms for Industry

                      Discover the versatility and precision of FISSO’s Strato Line Articulated Arms, tailored to enhance industrial operations.

                      Versatile Positioning for Diverse Applications

                      Achieve precise positioning and flexibility with FISSO’s Strato Line Articulated Arms, ideal for a wide range of industrial tasks.

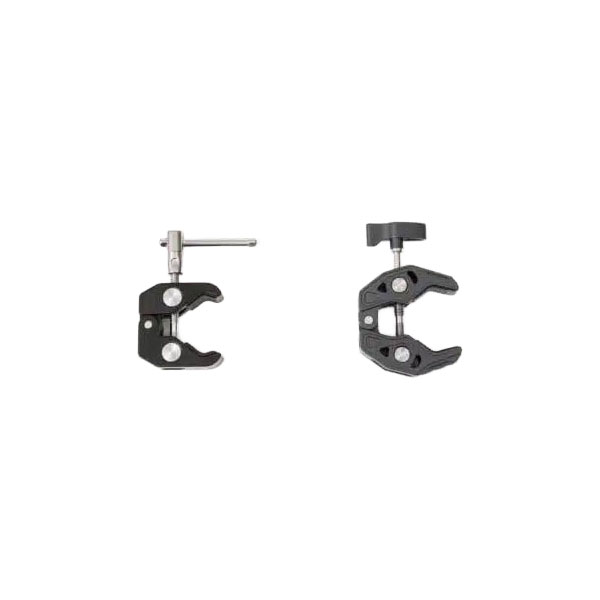

                    • Crab Clamp

                    • It can quickly attach cameras, monitors, LED lights, etc. to round pipes, tables, handlebars, tripods and stabilizer handheld rings.

                      In addition, built-in cushions provide protection and clamping stability.

                      Wide compatibility: equipped with 1/4″-20 threaded holes and 3/8″-16 threaded holes

                      With anti-slip cushions make the holding safer and more stable.

                    • Quick clamp with plastic jaws

                    • Various sizes and designs (see details)

                      • Multi-purpose clamp, M6 thread, 21 mm
                      • Multi-purpose clamp, M6 thread, 50 mm

                    • Vacuum Base

                    • The vacuum base adheres to all flat and non-porous surfaces.

                      • Vacumm Base , D88 x 27 mm, M8 Thread, adhesive force aprox. 300 N

                      Boost Efficiency with FISSO’s Vacuum Base for Industrial Applications

                      Discover FISSO’s Vacuum Base, designed for stability and adaptability in various industrial applications. Our vacuum base ensures secure and precise positioning for your equipment.

                  • Precision Run-Out Testing and Balancing for Industrial Applications

                  • FISSO run-out testers and balancing units are designed for precise concentricity measurement and efficient balancing of rotating components. These high-precision systems help detect run-out deviations that may cause vibration, noise, premature wear, or reduced machine performance.Ideal for production, quality control, and metrology environments, FISSO testing solutions ensure reliable measurement results and improved manufacturing efficiency.

                      • Run Out Tester - 6.300 / 6.301 / 6.302

                      • Base plate length 500 mm / without base plate / base plate lenght 1000 mm The run out tester is available with roller wheels (120 mm, accuracy < 0.005 mm) or V-shaped prism supports made of hard metal (adjustable laterally). The two supports can be moved on the base plate and fixed with one handle in the desired position. One support can be adjusted in height up to 30 mm to compensate for different diameters of the workpieces.

                        Features:
                        • Discs Ø 120×4 mm.
                        • Diameter compensation max. 60 mm.
                        • Workpiece Ø max. 240 mm.
                        • Workpiece weight max. 25 kg.
                        • Groove stone width 14 mm.

                      • Run Out Tester - 6.400 / 6.401 / 6.402

                      • Base plate lenght 500 mm / without base plate / Base plate lenght 1000 mm The run out tester is available with roller wheels (120 mm, accuracy < 0.005 mm) or V-shaped prism supports made of hard metal (adjustable laterally). The two supports can be moved on the base plate and fixed with one handle in the desired position. One support can be adjusted in height up to 30 mm to compensate for different diameters of the workpieces.

                        Features:
                        • Carbide support in the prism.
                        • Diameter compensation max. 60 mm.
                        • Workpiece Ø max. 240 mm.
                        • Workpiece weight max. 25 kg.
                        • Grove stone width 14 mm.

                      • Balancing Unit for Grinding Wheels

                      • Base plate lenght 330 mm / Base plate lenght 495 mm. The balancing unit is equipped with two wheel supports which can be adjusted steplessly on the base plate and fixed with one handle in the desired position. Static balancing eliminates laborious alignment with spirit levels.

                        Features:
                        • Discs Ø 120×4 mm.
                        • Workpiece Ø max. 500 mm.
                        • Balance weight max. 25 kg.
                        • Groove stone width 14 mm.
