With over 20 years’ experience in the development, building and implementation of computed tomography systems, we are passionately leading the way in the field of metrology and non-destructive material testing hardware and software solutions in the global market.
Our team of experts – which includes a large network of partners worldwide – boasts a broad variety of experience and expertise.
Visit us on:

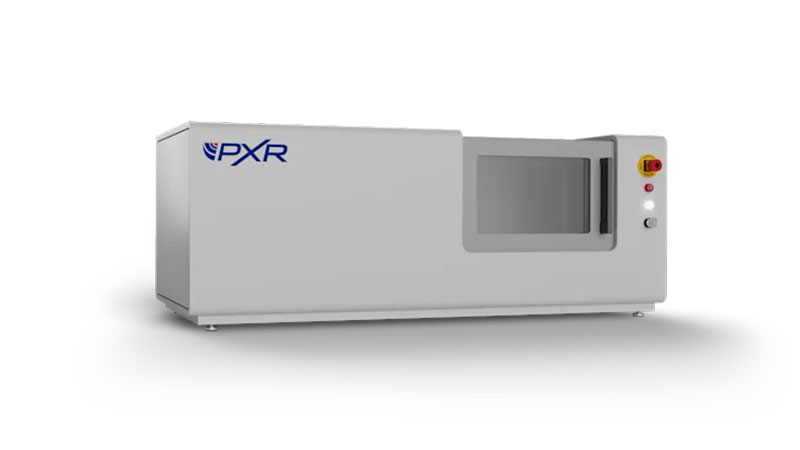

CT Benchtop Systems
- Our benchtop CT systems are compact enough to be placed on a table, are easy to use, and have a small footprint. These systems are especially attractive as they require low levels of maintenance.
CT-PORTABLE
-
The CT-PORTABLE is specially developed for portable testing small samples made of weakly absorbent materials. The low weight and small size gives the posibility to take it with you in a transportation case. Even if it's small if gives full CT functionality including helix scans.
- Smallest full CT on the market
- Isotropic resolution in all layers
- Advanced helix trajectories
- Large windows for demonstrations
- Ergonomic design, easy to handle
- Compact and light design for easy transport
- Fully shielded system
CT-MINI
-
CT-MINI – the Original – with minimal space requirements, suited to inspect plastics, ceramics, and light metals.
- Industrial X-ray Computed Tomography (CT)
- Non-destructive testing (NDT) – 2D and 3D
- Defect recognition (voids, cracks, …)
- Contactless metrology
- Easy operation
- Radiation safety better than 1 µSv/h
- Desktop system
CT-COMPACT plus
-
CT-COMPACT plus, the most versatile benchtop system for 3D-CT requirements. “We enable the CT-COMPACT, performing as the most flexible micro CT system on a bench” Joachim Gudat, the founder and CEO of ProCon X‑Ray GmbH, says, during the companies 10th anniversary.
- Industrial X‑ray Computed Tomography (CT)
- 3D volume CT
- Non-destructive testing (NDT) – 2D and 3D
- Quality control independent of material
- Defect recognition (voids, cracks, …)
- Contactless metrology
- Numerous CT artefact corrections
- Easy operation
- Radiation safety better than 1 µSv/h
- Desktop system
CT-MICRO
-
The latest System generation by ProCon X‑Ray is perfectly coordinated to the requirements of smaller spaces where high performance is a non-negotiable.
- Laboratory X‑ray Computed Tomography (CT)
- 3D volume CT
- Optimized scan-time
- Easy operation
- Radiation safety better than 1μSv/h
- Mobile deployable
- Numerous CT artefact corrections
- Desktop system
CT Microscopes
- Our CT Microscopes offer the perfect solution for situations where you need more than just high resolution. These systems are specially developed for the highest resolution available on the market.

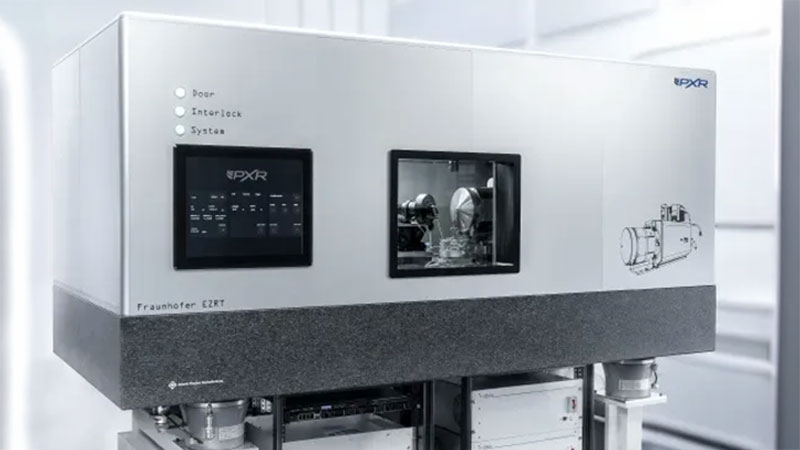

CT-ALPHA nanotube
-
CT-system for resolutions down to 150 nm
The CT-ALPHA nanotube provides a unique solution for high-resolution measurements far ahead of established industrial micro CT scanners by applying the latest developments from X-ray research.
- Min. voxel sampling 50 nm
- Spatial resolution of 150 nm
- Photon counting detector
- Variable field of view
- Automatic alignment
- State-of-the-art reconstruction

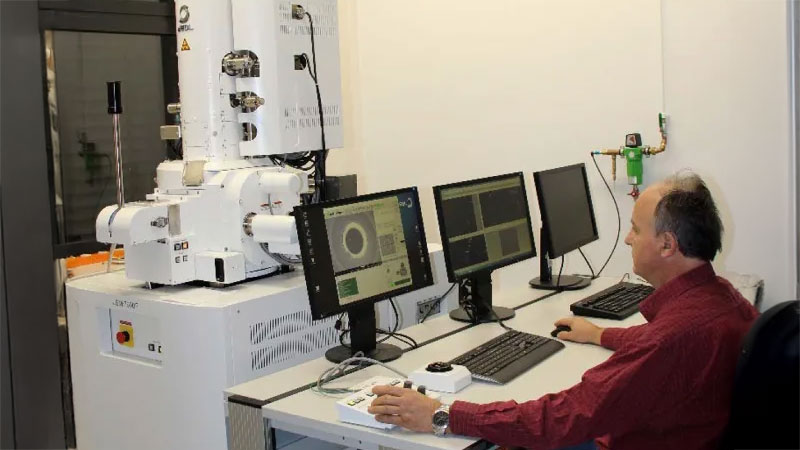

CT-NANO
-
Explore new possibilities for visualization with 3D X-ray imaging for materials research, life sciences, natural resources and industrial applications.
- X-ray Computed Tomography (nanoCT)
- Scanning Electron Microscope (SEM)
- Digital Radiography (DR)
- Energy-Dispersive X‑ray spectroscopy (EDX)
- 3D volume CT
- Non-destructive testing (NDT) – 2D and 3D
- Quality control independent of material
- Defect recognition (voids, cracks, …)
- Radiation safety better than 1 µSv/h
CT Floor Standing Systems
- Our CT floor standing systems offer customized solutions for demanding requirements. This is an excellent option if a benchtop system is not sufficient in terms of sample size, resolution or required energy. These high-energy systems offer up to 450 kV. Furthermore, these systems offer X-ray sources with sub-micron focal spots. Based on your requirements, multi sources are possible, as well as multi detectors.

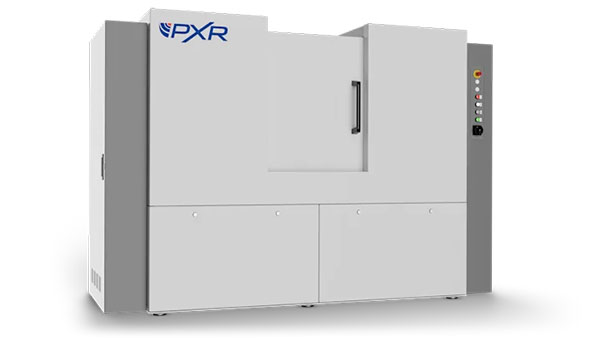

CT-ALPHA
-
The CT-ALPHA system meets the most stringent demands in CT X‑ray. With this Computed Tomography system, ProCon X-ray GmbH offers the highest possible flexibility for individual customer requirements.
- Industrial X-ray Computed Tomography (CT)
- 3D volume CT
- Non-destructive testing (NDT) – 2D and 3D
- Quality control independent of material
- Defect recognition (voids, cracks, …)
- Contactless metrology
- Numerous CT artefact corrections
- Helix CT
- Easy operation
- Radiation safety better than 1 µSv/h
CT-ALPHA 450 kV
-
The CT-ALPHA 450 kV system meets the most stringent demands in CT X‑ray. With this Computed Tomography system, ProCon X-ray GmbH offers the highest possible flexibility for individual customer requirements.
- Industrial X-ray Computed Tomography (CT)
- 3D volume CT
- Non-destructive testing (NDT) – 2D and 3D
- Quality control independent of material
- Defect recognition (voids, cracks, …)
- Contactless metrology
- Numerous CT artefact corrections
- Helix CT
- Easy operation
- Radiation safety better than 1 µSv/h
CT-ALPHA choris
-
The "choris" in the name of this CT-ALPHA comes from the Greek and means "without". This means the system is designed without a cabinet and is supposed for bunker installation. ALPHA choris is designed for a very wide range of applications. It is the ideal solution for very large and very heavy test specimens. The ALPHA allows future conversions and retrofits of primary components and offers the greatest possible flexibility in its configuration.
- Industrial X-ray Computed Tomography (CT)
- 3D volume CT
- Non-destructive testing (NDT) – 2D and 3D
- The most cost efficient system at high voltage
- The most flexible combination of components possible
- The size of samples is not limited by a cabinet
X-Ray Service
-
Computed Tomography Scanning Services for Manufacturing Optimisation
CT scan services by ProCon X-Ray
Send us a part that you would like to have scanned, and we provide you with a detailed report to assist in refining your design and manufacturing process.
What we do How the Process WorksAfter you have contacted us to express your interest, we consult with you to discuss the item that you would like to have investigated.
We discuss the material of the sample, the purpose of the investigation as well as the specifics of what you'd like to find out through the use of a CT scan.
We then perform the scan, evaluate the resulting images and compile a detailed report in which the images are explained and contextualised.
Stress Test Before Mass Production
-
CT scans can be used to determine the quality and durability of parts before significant investments are made into large-scale manufacturing.
When parts are required to meet strict quality standards in order to be certified by a laboratory, it makes sense to perform tests and create accurate simulations to determine whether a part would pass costly certification processes.

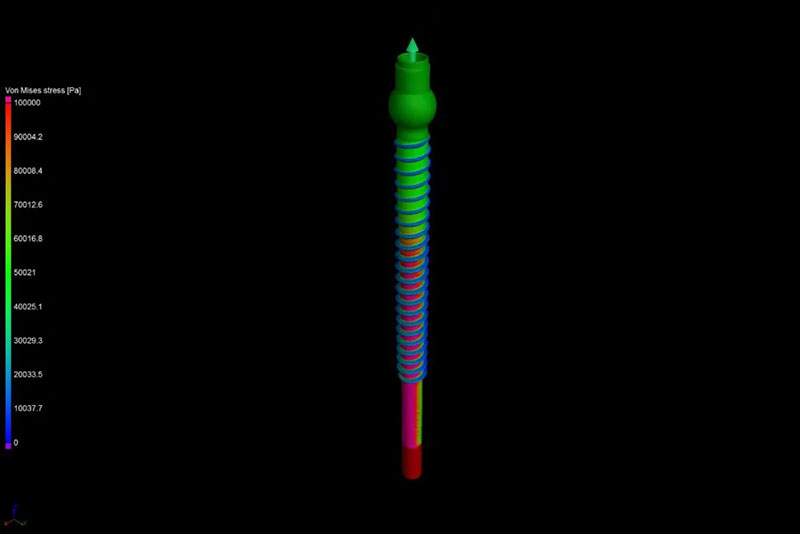

This image is an example of a screw where a stress test was simulated to determine potential weaknesses in the material.
Improve your Process and Product
-
Our CT scan service can assist in improving quality control and manufacturing processes.
By evaluating and assessing a part while still in the design, development and prototype phases, the overall quality of the manufacturing process — as well as the end product — can be significantly improved.
In industries where the safety of manufactured parts is critical in order to meet exacting quality standards, refining the design and prototype before large-scale manufacturing commences can save considerable time and money.
Dimensional 3D measurement technology
-
Dimensional 3D measurement technology offers the possibility of fast, single-point-based distance and angle analyses. This means that all shape and position tolerances can be evaluated.

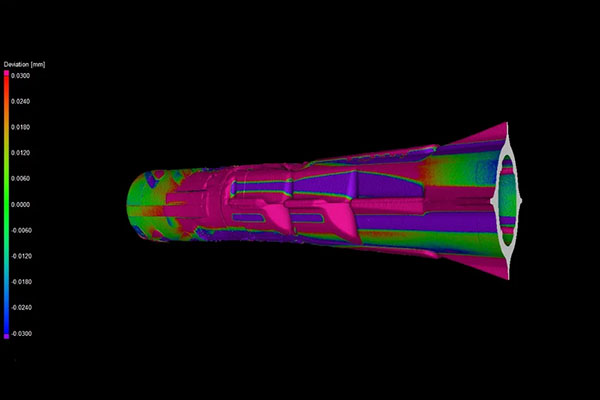

Target/actual comparison: Color-coded comparisons between all data types provide easy-to-understand, visual information about deviations.
Analysis of the wall thickness of a part can be performed. We have the ability to create a direction-based assessment for cubic components or a sphere-based assessment for complex, organic geometries.
Confidentiality is guaranteed
-
Your test samples are treated with the strictest confidentiality.
We understand that trade secrets are to remain just that, and when required, we sign a non-disclosure agreement to keep both the sample and the test results confidential.
Software
-
Nowadays, the operation of any modern hardware requires the use of specialised software to control and evaluate the results obtained.
With our user-friendly and modular control software, we ensure that your CT image information can be optimally utilised without restricting the choice of subsequent analysis software. The image information is output in such a way that it can be seamlessly interpreted and further processed by a wide range of analysis software.
We are happy to recommend the right software solution based on your individual requirements.
The Right Software for your ProCon Device
-
Usually, our clients commit to one software package that they use in addition to XTom for image editing and analysis. We only use and recommend software that we know well, and that we work with ourselves.
Because this is a rather substantial investment, we always aim to understand your goals for end-use application so that we can advise you on the best software programme to suit your requirements.
We put together a software solution for you consisting of the recording software, the reconstruction software and the evaluation/visualisation software.
Software Customisation
-
Like our hardware, our software is customisable as well.
We can add and create features based on your requirements, and can also keep adding features to your operating system package even after you have started working with the software.
Improve your Workflow
-
We offer training in our in-house XTom recording software to help you integrate new programmes into your existing processes.
The software programmes we recommend help to improve the accuracy and speed of Image processing, so that your workflow speed is increased, and you are able to derive even more benefit from the images captured by your device.
With our complete solution comprised of hardware and software, you have the ability to see more, deeply.
