  • Offer Profile
  • MIKROTRON is a renowned manufacturer of small and especially robust high-speed cameras on the international market of industrial image processing. The digital high-speed cameras have excellent technical characteristics, e.g. with regard to resolution and photo sensitivity, and are being used for industrial and scientific applications, as well as in sports analysis, advertisements or documentaries.

    Our broad scope of products is on the one hand result of consequently developing camera technology with an innovative team of engineers and computer scientists. On the other hand the experience from development, production, sales, service and support is integrated into the production process. It is important to us, to realize the needs of our customers and to fully understand their desired applications in order to be able to provide tailor-made solutions with our high-speed cameras.
Product Portfolio

  • High-Speed Recording Cameras

  • MotionBLITZ® high-speed recording cameras Cube and mini can be found among the world’s most compact high-speed recording cameras in their category. Cube and mini give precise insight in fast motion processes, especially, in cases where there is only limited space to place a high-speed recording camera. Their outstanding performance features make them efficient analysis tools to monitor and optimize processes. In extreme situations such as difficult lighting conditions, varying temperatures, vibrations or jolting, not only in case of space limitations, high-speed cameras reliably deliver comprehensive pictures.

    With its built-in display, the high-speed recording camera eosens TS3 offers a user-friendly operation as handheld high-speed snapshot camera.

    Due to a substantial product range and the various performance characteristics of the high-speed cameras, it is possible to find exactly the appropriate device for every individual application.

    Our customers use MIKROTRON high-speed cameras in all areas of industrial development and production, in natural sciences and research as well as in sports sciences.

    ModelResolution
    (Pixel, H x V)    		Filmrate (fps)Light sensitivity
    (ASA)monochrom/color    		Extended  recording time (seconds)(opitonal)
    EoSens®mini21,696 x 1,7101 - 523, more than 100,0001,200 / 1,0002,82
    EoSens®mini11,280 x 1,0241 - 506, more than 100,0002,500 / 2,0006,5
    EoSens®Cube71,696 x 1,7101 - 523, more than 100,0001,200 / 1,00011,28
    EoSens®Cube61,280 x 1,0241 - 506, more than 80,0002,500 / 2,00013
    MotionBLITZ ®Cube41,280 x 1,02425 - 1,010, more than 80,000250 / 1606,5
    MotionBLITZ ®Cube21,280 x 1,02418 - 500, more than 40,000200 / 1606,5
    eosens TS31,280 x 1,0241 - 500, more than 20,000 3,200 / 1,60013
    The models Cube and mini are optional expendable: ImageBLITZ, Multi Sequence, Hi-G.
    The models Cube and mini are partly optional expendable: IRIG-B, F-Mount Front

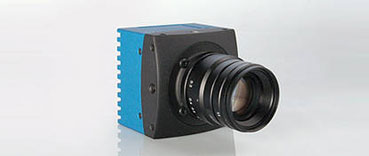

      • MotionBLITZ EoSens® mini

      • MotionBLITZ EoSens® mini high-speed recording cameras especially were developed to record the fastest processes in extremely confined spaces. Owing to its minute dimensions of only 63 x 63 x 64.5 mm, the MotionBLITZ EoSens® mini can be used flexibly.

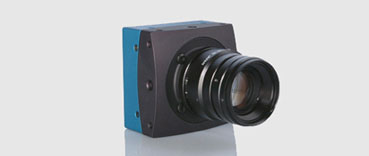

      • MotionBLITZ® Cube

      • The various models of the MotionBLITZ® Cube product line are a result of enhancements in camera technology made by our innovative team of engineers and IT specialists.

        The high-speed recording cameras out of MIKROTRON’s MotionBLITZ® Cube family offer different performance characteristics. According to the type of application, different rates, resolutions or photo sensitivities as well as various additional options assure a reliable and efficient control of fastest processes.

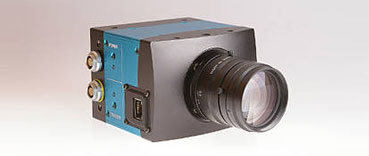

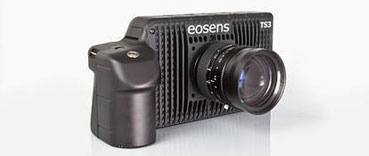

      • eosens TS3

      • The eosens TS3 combines the performance characteristics of the EoSens® MotionBLITZ Cube6 and mini1 high-speed camera lines with the portability and ease of use of a handheld “snapshot” high-speed camera.

        Independently from external power supply, the high-speed camera works for up to four hours. Due to the internal memory of the eosens TS3, the use of the high-speed recording camera is possible even without any connection to notebook or PC. That way, up to 13 seconds can be recorded at full resolution and speed.

    • Machine Vision Cameras

    • MIKROTRON‘s Machine Vision cameras are small and sturdy. Due to their outstanding performance characteristics, they are efficient tools for monitoring the fastest motion processes. Even if conditions are odd (e.g. limited space, difficult lighting conditions, variations in temperature, vibrations), MIKROTRON‘s Machine Vision cameras are ideally suited for optical control. Errors can be identified reliably and defective processes corrected. A targeted control and optimization of automated processes raises efficiency and assures high quality in a way that costs can be reduced.

      Our customers use MIKROTRON Machine Vision cameras in all segments of industrial development and production, in research and natural sciences as well as in sports analysis.

      According to the individual requirements of the most diverse applications, Machine Vision cameras are offering various of different interfaces.

      ModelResolution
      (Pixel,
      H x V)       		Framerate (fps)Interface
      EoSens® 25CXP 5 ,120 x 5,1201 - 80, more than 100,000CoaXPress®
      EoSens® 4CXP 2,336 x 1,7281 - 560, more than 100,000CoaXPress®
      EoSens® 3CXP1,690 x 1,7101 - 560, more than 100,000CoaXPress®
      EoSens® 3CL1,690 x 1,7101 - 285, more than 100,000Full Camera Link
      EoSens® CL full1,280 x 1,0241 - 506, more than 100,000Full Camera Link
      EoSens® CL base1,280 x 1,0241 - 120Base Camera Link
      EoSens® GE1,280 x 1,0241 - 80 Gigabit Ethernet
      All Camera models have a C-Mount lens adapter.
      All models are optionally extendable to F-mount lens adapter.

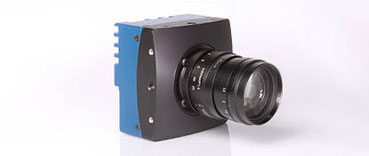

        • CoaXPress®

        • The EoSens® CXP high-speed cameras were especially developed for the monitoring of fastest motion processes. Precisely the cameras identify errors and optimize processes to the point.

          Direct evaluation and processing of the gained data at the PC becomes possible, because of the new CoaXPress® interface which enables the transfer of an ever growing data stream with 25 GBit/s in real time.

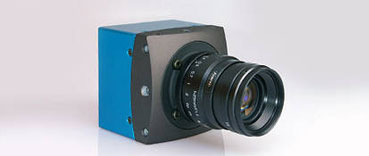

        • CameraLink®

        • The conception of MIKROTRON high-speed cameras with CameraLink® interface is mainly targeted to various industrial applications. Using this robust and powerful interface speeds of up to 600 frames per second and data rates of up to 850 MB/s can be achieved. The uniform standard of all components (high-speed camera, frame grabber, cable and plug) results in a reliable and simple use of the high-speed cameras. With its high resolution of 1690 x 1710 pixels, even smallest objects can be visualized in great detail and crystal-clear pictures are delivered from the EoSens® 3CL.

        • Gigabit Ethernet

        • MIKROTRON high-speed cameras with Gigabit Ethernet interface can be used for the most diverse applications. The technical flexibility of the interface allows for the transfer of data with rates of up to 110 MB/s and maximum cable lengths of 100 m. Using Gigabit Ethernet and GigE Vision standards MIKROTRON high-speed cameras can be integrated into already existing system without any complication. Even complex installations with several cameras are easy to be realized.

      • High-Speed Recording Systems

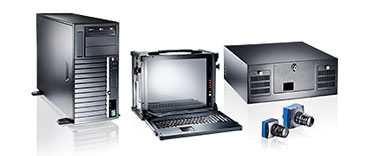

      • MotionBLITZ® LTR and LTR portable long time recorders combine the features of classical high-speed cameras with the advantages of long recording periods of up to seven hours. With this innovative concept even the fastest processes can be recorded over a long period of time without interruption.

        The MotionBLITZ® CVR high-speed recorder allows to capture every crucial moment as well. Every error can be identified and eliminated. Processes can be analyzed and optimized directly. Due to the extremely quick downloading of the recorded material the system is ready to use again in less than four minutes.

        Thus, with the high-speed recording systems of MIKROTRON fast moving processes can be analyzed and optimized.

        Our customers use high-speed recording in all areas of industrial production, research and development as well as in sports analysis. The High-Speed Recording Systems help them to create highly efficient operational sequences by constantly enhancing processes.

        Various models of the LTR family offer a great variety. Thus for every application there is the right high-speed recorder.

        ModelResolution
        (Pixel, H x V)        		Framerate (fps)Light sensitivity
        (ASA) monochrom/color        		Extended
        recording time
        (minutes) (optional)
        MotionBLITZ® LTR1.31,280 x 1,0241 - 506, more than 17,0002,500 / 2,000130
        MotionBLITZ® LTR1.3 portable1,280 x 1,0241 - 506, more than 17,0002,500 / 2,000440
        MotionBLITZ® LTR21,696 x 1,7101 - 120, more than 30,0001,200 / 1,00055
        1,280 x 1,0241 - 253, more than 30,0002,500 / 2,00044
        MotionBLITZ® LTR2 portable1,696 x 1,7101 - 120, more than 30,0001,200 / 1,00055
        1,280 x 1,0241 - 253, more than 30,0002,500 / 2,00055
        MotionBLITZ® LTR3.0 portable1,696 x 1,7101 - 560, more than 14,0001,200 / 1,00060
        MotionBLITZ® LTR4.0 portable2,336 x 1,7281 - 560, more than 14,0003,200 / 2,40040
        MotionBLITZ® CVR 2,336 x 1,7281 - 560, more than 35,0003,200 / 2,400-

          • MotionBLITZ® LTR

          • MotionBlitz® LTR long time recording systems allow a continuous recording of fastest processes in many fields of application. With highest frame rates the longtime recording systems provide insights in processes which cannot be captured as detailed and continuously with any other technology than long time recording. Thus, the long time recorders offer ideal requirements for analysis and optimization of fast moving processes.

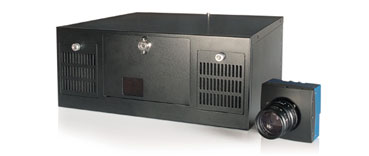

          • MotionBLITZ® CVR

          • The MotionBLITZ® CVR high-speed recording system is ideally suited to analyze fastest and most complex processes in industrial applications. It is built up of a high-speed camera and a high-performance recorder (including all cables). The user-friendly MotionBLITZ® Director2 software with an extensive feature set allows easy operation of the high-speed recording system.

          • MotionBLITZ® Director2 Kit

          • MotionBLITZ® Director2 Kit is a low cost high-speed recording system for the analysis and monitoring of processes. Errors can be identified and eliminated instantly. Without an expensive training period, the system can easily be integrated into already existing standardized PC systems due to the intuitive user interface of the software and hence generates immediate results. Complete systems consist of high-speed CMOS camera, framegrabber, cable and power plug. That way, the system is ready-to-use after set-up.

        • Accessories

        • In addition to our high-speed cameras and systems we offer a wide range of accessories for industrial image processing.

              • Lenses

              • KOWA industrial lenses – Compact, bright and high-resolving

              • Frame Grabber

              • Frame Grabber for industrial Image Processing – tested for Compatibility

              • Cable Assembly

              • High-quality cables for all applications

              • Lighting

              • The right solution for image processing

              • Software for Machine Vision

              • Halcon – Standard software for industrial image processing

              • CameraLink® Accessories

              • Multipurpose components
