  • Offer Profile
  • Your Partner for level measurement in solids & liquids

    UWT GmbH is one of the world's leading manufacturers of measurement technology for the detection and monitoring of levels, limit levels in any kind of bulk materials, solids as well as in liquids, pastes and foam. We have successfully demonstrated that over the decades a family owned business can, with clear principles, dedicated employees and innovative thinking, make a difference.

    Since its foundation in 1977, the UWT GmbH product portfolio has developed and refined to provide solutions for a wide range of industries such as the food sector, plastic applications, cement plants, chemical industry, wood and rubber sector, environmental and power plants, etc. The company is ISO 9001: 2015 certified.
Product Portfolio

  • Point Level Measurement

  • Level detectors detect media at a predefined position depending on the installation position.

    Level detectors are mainly installed as full or empty detectors in the upper or lower part of a silo or container. This prevents the silo from overfilling or running empty. In combination with a level sensor, this results in a redundant system which additionally increases plant safety. If a certain fill level is of particular interest, the sensors can also be used as demand detectors.

    There are different technologies for level detection, which have their advantages and disadvantages depending on the application. For the selection, numerous process conditions have to be considered, which the sensor technology has to cope with. In addition, the requirements for bulk solids sensors differ from those for liquid sensors. For this reason, UWT offers a broad portfolio of different technologies such as rotary paddle switches, vibration level switches and capacitive sensors. This allows us to individually address their requirements in order to always provide them with the best possible solution.

    Typical challenges:

    • Media type (e.g. bulk, powder, liquid, paste, etc.)
    • Media properties (e.g. bulk density, conductivity, viscosity, etc.)
    • Input conditions (e.g. tank material, tank geometry, installation position, installations within the tank, etc.)
    • Process conditions (e.g. pressure, temperature, ambient conditions, explosion protection, hygiene requirements, etc.)

    In addition to our point level detection sensors our product portfolio also includes a variety of continuous level measurement sensors which unlike limit level sensors can detect the exact level of a medium in real time.

      • Rotary Paddle Level Switch

      • Rotonivo® - proven allrounder for point level measurement

        The Rotonivo® rotary paddle level switch from UWT operates reliably and maintenance-free and offers a compatible solution for plants for safe level detection in bulk solids. It has all current international approvals for use in gas and dust explosive atmospheres and is one of the first rotary vane detector certified according to SIL 2. Overfill protection and no-load protection are guaranteed for the long term.

        The three Rotonivo® rotary paddle level sensor series RN 3000, RN 4000 and RN 6000 cover the complete range of applications, from simple to extreme.

          • Rotonivo® - RN 3001

          • Application area
            The rotating paddle detector Rotonivo® RN 3001 is used in storage and process vessels as a full, demand and empty detector in all bulk solids. It can be configured for process temperatures up to +1100 °C and process overpressure up to 10 bar. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +1100°C (-40°F … +2012°F)

            Your benefit

            • Simple, reliable and maintenance-free all-rounder in bulk materials
            • Can be configured for almost any application
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 3002 - Rope

          • Application area
            The rotating paddle detector Rotonivo® RN 3002 with rope extension is mainly used in storage and process vessels as a full detector in all bulk solids. Taking into account the tensile forces, it can also be used as a demand or empty detector. It can be configured for process temperatures up to +600 °C and process overpressure up to 10 bar. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Simple, reliable and maintenance-free all-rounder in bulk materials
            • Sensor length can be flexibly shortened or extended
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 3002 - Tube

          • Application area
            The rotating paddle detector Rotonivo® RN 3002 with tube extension is mainly used in storage and process vessels as a full detector in all bulk solids. It can be configured for process temperatures up to +1100 °C and process overpressure up to 10 bar. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +1100°C (-40°F … +2012°F)

            Your benefit

            • Simple, reliable and maintenance-free all-rounder in bulk materials
            • Can be configured for almost any application
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 3002 strengthened rope version

          • Application area
            The Rotonivo® RN 3002 rotating paddle detector with strengthened rope version is used in storage and process vessels mainly as a demand and empty detector in bulk solids measurement. During application, tensile forces due to the rope overlap must be taken into consideration. These amount to a maximum of 28 kN. Process temperatures up to +600 °C and a process overpressure up to 10 bar can be flexibly configured. The measurement results of the level sensor are insensitive to adhering material as well as to dust generation. Overfill protection and no-load protection are guaranteed for the long term.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Simple, reliable and maintenance-free all-rounder in bulk materials
            • Sensor length can be flexibly shortened or extended
            • Strengthened rope version for tensile forces up to 28 kN

          • Rotonivo® - RN 3003

          • Application area
            The rotating paddle detector Rotonivo® RN 3003 is used in storage and process vessels as a full, demand and empty detector in all bulk solids. It can be configured for process temperatures up to +250 °C and process overpressure up to 10 bar and is mechanically extremely resilient. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Mechanically extremely resilient for heavy and coarse-grained bulk materials
            • Simple, reliable and maintenance-free all-rounder in bulk solids applications
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 3004

          • Application area
            The rotating paddle detector Rotonivo® RN 3004 is used in storage and process vessels as a full, demand and empty detector in all bulk materials. It can be configured for process temperatures up to +600 °C and process overpressure up to 10 bar and is mechanically very resilient. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Very resilient to high mechanical loads for applications in all bulk materials
            • Simple, reliable and maintenance-free all-rounder in bulk solids applications
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 3005

          • Application area
            The rotating paddle detector Rotonivo® RN 3005 is used as a full detector in tank and container loading bellows for all bulk materials. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator. Due to its compact design, it can be installed in a space-saving manner in the loading sets.

            Medium: Solids
            Process pressure:             -0,9 bar ... +0,8 bar (-13.1 psi … +11.6 psi)
            Process temperature:             -40°C ... +80°C (-40°F … +176°F)

            Your benefit

            • Simple, reliable and maintenance-free limit switch in loading bellows
            • Works in almost all bulk materials
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 4001

          • Application area
            The rotating paddle detector Rotonivo® RN 4001 is used in storage and process vessels as a full, demand and empty detector in many bulk materials without extreme process conditions. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

            Medium: Solids
            Process pressure:             -0,9 bar ... +0,8 bar (-13.1 psi … +11.6 psi)
            Process temperature:             -40°C ... +80°C (-40°F … +176°F)

            Your benefit

            • Very cost-effective level limit switch in bulk solids
            • Simple, reliable and maintenance-free multi-talent in bulk solids
            • Plug and play level limit switch without calibration

          • Rotonivo® - RN 6001

          • Application area
            The Rotonivo® RN 6002 rotating paddle switch with pipe extension is used in storage and process vessels mainly as a full detector in all bulk materials and can be configured for process temperatures up to +1100 °C and process overpressure up to 10 bar. The RN 6002 offers more space for wiring due to the larger housing, flameproof enclosures for use in the GasEx area and certification according to SIL2.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +1100°C (-40°F … +2012°F)

            Your benefit

            • Increased space within housing allows for ease of access for wiring
            • Flameproof version available for use within potentially explosive atmospheres (gas)
            • SIL 2 certified

          • Rotonivo® - RN 6002 - Rope

          • Application area
            The Rotonivo® RN 6002 rotating paddle switch with rope extension is used in storage and process vessels mainly as a full detector in all bulk solids and can be configured for process temperatures up to +600 °C and process overpressure up to 10 bar. The RN 6002 offers more space for wiring due to the larger housing, flameproof enclosures for use in the GasEx area and SIL2 certification.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Increased space within housing allows for ease of access for wiring
            • Flameproof version available for use within potentially explosive atmospheres (gas)
            • SIL 2 certified

          • Rotonivo® - RN 6002 - strengthened rope version

          • Application area
            The Rotonivo® RN 6002 rotating paddle detector with strengthened rope extension is used in storage and process vessels mainly as a demand and empty detector in bulk solids measurement. During application, tensile forces due to the rope overlap must be taken into consideration. These amount to a maximum of 28 kN. The Rotonivo® with strengthened rope version can be configured for process temperatures up to +600 °C and process overpressure up to 10 bar. The RN 6002 offers more space for wiring due to a larger housing, flameproof enclosures for use in the GasEx area and SIL2 certification.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Convenient wiring possible due to large electronics housing
            • Strengthened rope version for tensile forces up to 28 kN
            • Certified according to SIL2

          • Rotonivo® - RN 6002 - Tube

          • Application area
            The Rotonivo® RN 6002 rotating paddle switch with tube extension is used in storage and process vessels mainly as a full detector in all bulk materials and can be configured for process temperatures up to +1100 °C and process overpressure up to 10 bar. The RN 6002 offers more space for wiring due to the larger housing, flameproof enclosures for use in the GasEx area and certification according to SIL2.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +1100°C (-40°F … +2012°F)

            Your benefit

            • Increased space within housing allows for ease of access for wiring
            • Flameproof version available for use within potentially explosive atmospheres (gas)
            • SIL 2 certified

          • Rotonivo® - RN 6003

          • Application area
            The Rotonivo® RN 6003 rotating paddle switch is installed in storage and process containers as a full, demand and empty switch in the entire bulk solids spectrum. It can be configured for process temperatures up to +250 °C and up to 10 bar process overpressure and is mechanically extremely resilient. The RN 6003 offers more space for wiring due to the larger housing, flameproof enclosures for use in the GasEx area and SIL2 certification.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +250°C (-40°F … +482°F)

            Your benefit

            • Increased space within housing allows for ease of access for wiring
            • Flameproof version available for use within potentially explosive atmospheres (gas)
            • SIL 2 certified

          • Rotonivo® - RN 6004

          • Application area
            The Rotonivo® RN 6004 rotating paddle switch functions in bulk solids processing plants as overfill protection and empty run protection in storage and process vessels. The full, demand and empty detector can be configured for process temperatures up to +600 °C and a process overpressure up to 10 bar and is mechanically very resilient. The RN 6004 offers more space for wiring due to the larger housing, flameproof enclosures for use in the GasEx area and SIL2 certification.

            Medium: Solids
            Process pressure:             -0,9 bar ... +10 bar (-13.1 psi … +145 psi)
            Process temperature:             -40°C ... +600°C (-40°F … +1112°F)

            Your benefit

            • Increased space within housing allows for ease of access for wiring
            • Flameproof version available for use within potentially explosive atmospheres (gas)
            • SIL 2 certified

        • Vibration Level Switch

            • Mononivo® - MN 4020

            • Application area
              The vibration rod Mononivo® MN 4020 is used in storage and process vessels as a full, demand, and empty detector in all bulk solids. A stainless steel probe extension allows the vibration rod to work in a variety of aggressive environmental conditions. Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Simple, reliable and maintenance-free all-rounder in bulk materials
              • Can be configured for almost any application
              • Plug and play level limit switch without calibration

            • Mononivo® - MN 4030

            • Application area
              The vibration rod Mononivo® MN 4030 is used in storage and process vessels as a full and demand detector in all bulk solids. The measuring probe can be flexibly adjusted up to a length of 4000 mm and puts the switching point where the application needs it. A stainless steel probe extension allows the vibrating fork to work in a variety of aggressive environmental conditions.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Probe extension adjustable up to 4000 mm length
              • Plug and play level limit switch without calibrations

            • Mononivo® - MN 4040

            • Application area
              The vibration rod Mononivo® MN 4040 is used in storage and process vessels as a full and demand detector in all bulk solids. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Flexibility in probe length due to self-assembly kit
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 1020

            • Application area
              The vibrating fork Vibranivo® VN 1020 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. The short extension enables the probe to withstand high mechanical loads. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Extension is completely made of stainless steel
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 1030

            • Application area
              The vibrating fork Vibranivo® VN 1030 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. The measuring probe can be flexibly adjusted up to a length of 4000 mm and puts the switching point where the application needs it. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Probe extension adjustable up to 4000 mm length
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 1040

            • Application area
              The vibrating fork Vibranivo® VN 1040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk materials. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Flexibility in probe length due to self-assembly kit
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 1050

            • Application area
              The Vibranivo® VN 1050 vibrating fork is used in storage and process vessels as a full detector in dry and free flowing solids. The level probe can be flexibly configured up to a length of 7000 mm and puts the switching point where the application needs it. The boom of the vibrating fork sensor with cable extension is the safe solution in applications where lateral forces act on the vibrating fork.

              Medium: Solids
              Process pressure:               -1 bar … +6 bar (-14.5 psi … +87 psi)
              Process temperature:               -25°C … 80°C (-13°F … +176°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Probe extension adjustable up to a length of 7000 mm
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 2020

            • Application area
              The vibrating fork Vibranivo® VN2020 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Extension is completely made of stainless steel
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 2030

            • Application area
              The vibrating fork Vibranivo® VN 2030 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Probe extension adjustable up to 4000 mm length
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 2040

            • Application area
              The vibrating fork Vibranivo® VN 2040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk materials. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube. Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Flexibility in probe length due to self-assembly kit
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 2050

            • Application area
              The vibrating fork Vibranivo® VN 2050 is used in storage and process vessels as a full detector in many dry and free flowing bulk solids. The measuring probe can be flexibly adjusted up to a length of 20000 mm and puts the switching point where the application needs it. Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids.

              Medium: Solids
              Process pressure:               -1 bar … +6 bar (-14.5 psi … +87 psi)
              Process temperature:               -25°C … 80°C (-13°F … +176°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Probe extension adjustable up to a length of 20000 mm
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 4020

            • Application area
              The vibrating fork Vibranivo® VN 4020 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. The short extension enables the probe to withstand high mechanical loads. Its stainless steel probe extension allows the vibrating fork to work in a variety of aggressive environmental conditions.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free, very cost-effective sensor for use in many bulk materials
              • Extension completely made of stainless steel
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 4030

            • Application area
              The vibrating fork Vibranivo® VN 4030 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids. The measuring probe can be flexibly adjusted up to a length of 4000 mm and puts the switching point where the application needs it. A stainless steel probe extension allows the vibrating fork to work in a variety of aggressive environmental conditions.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free, very cost-effective sensor for use in many bulk solids
              • Probe extension adjustable up to 4000 mm length
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 4040

            • Application area
              The vibrating fork Vibranivo® VN 4040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free, very cost-effective sensor for use in many bulk solids
              • Flexibility in probe length due to self-assembly kit
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 5020

            • Application area
              The vibrating fork Vibranivo® VN 5020 is used in storage and process vessels as a full, demand and empty detector in dry and free flowing bulk solids. The short probe arm ensures high robustness for applications with heavy mechanical loads. The high surface quality of the stainless steel probe makes the level sensor compatible for use in applications with hygiene requirements. The VN 5020 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Probe arm is completely made of stainless steel
              • Flameproof versions available for use in potentially explosive atmospheres (gas)

            • Vibranivo® - VN 5030

            • Application area
              The Vibranivo® VN 5030 vibrating fork is used in storage and process vessels as a full and demand detector in dry and free flowing solids. The vibration probe can be flexibly configured up to a length of 4000 mm and puts the switching point where the application needs it. The high surface quality of the stainless steel probe makes the point level measurement ideal for use in applications with hygiene requirements. The VN 5030 offers more space for wiring due to the larger housing and additionally a flameproof version for use in GasEx areas.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Probe extension adjustable up to 4000 mm length
              • Flameproof version available for use within potentially explosive atmospheres (gas)

            • Vibranivo® - VN 5040

            • Application area
              The Vibranivo® VN 5040 vibrating fork is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids. The vibrating level switch probe is supplied as a kit for tube extension with a cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the vibrating fork sensor via the tube length. The VN 5040 offers more space for wiring due to the larger housing and additionally a flameproof design for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Flexibility in probe length due to self-assembly kit (modular)
              • Flameproof version available for use within potentially explosive atmospheres (gas)

            • Vibranivo® - VN 5050

            • Application area
              The Vibranivo® VN 5050 vibrating fork is used in storage and process vessels as a full detector in dry and free flowing solids. The level probe can be flexibly configured up to a length of 7000 mm and puts the switching point where the application needs it. The vibrating fork sensor boom with optional cable extension is the safe solution in applications where lateral forces act on the vibrating fork. The VN 5050 offers more space for wiring due to the larger housing and additionally a flameproof design for use in GasEx areas.

              Medium: Solids
              Process pressure:               -1 bar … +6 bar (-14.5 psi … +87 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials
              • Probe extension adjustable up to a length of 7000 mm
              • Plug and play level limit switch without calibration

            • Vibranivo® - VN 6020

            • Application area
              The Vibranivo® VN 6020 vibrating fork is used in storage and process containers as a full, demand and empty detector in dry and free flowing bulk solids. Due to its high sensitivity, the vibrating level switch is particularly suitable for very light bulk solids. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygiene requirements. The VN 5020 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Extension is completely made of stainless steel
              • Flameproof versions available for use in potentially explosive atmospheres (gas)

            • Vibranivo® - VN 6030

            • Application area
              The Vibranivo® VN 6030 vibration fork is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids. Due to its high sensitivity, the vibration probe is suitable for very light bulk solids. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygiene requirements. The VN 6030 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Probe extension adjustable up to 4000 mm length
              • Flameproof version available for use within potentially explosive atmospheres (gas)

            • Vibranivo® - VN 6040

            • Application area
              The Vibranivo® VN 6040 vibrating fork is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk materials. The vibration fork is supplied as a kit for tube extension with a cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe via the tube length. Due to its high sensitivity, the point level probe is particularly suitable for very light bulk solids. The VN 6040 offers more space for wiring due to the larger housing and additionally a pressure-resistant design for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +16 bar (-14.5 psi … +232 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Flexibility in probe length due to self-assembly kit
              • Flameproof version available for use within potentially explosive atmospheres (gas)

            • Vibranivo® - VN 6050

            • Application area
              The Vibranivo® VN 6050 vibrating fork is used in storage and process vessels as a full detector in many dry and free flowing bulk solids. The tuning fork sensors can be flexibly configured up to a length of 20000 mm and bring the switching point where the application needs it. Due to its high sensitivity, the point level probe is particularly suitable for very light bulk solids. The VN 6050 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.

              Medium: Solids
              Process pressure:               -1 bar … +6 bar (-14.5 psi … +87 psi)
              Process temperature:               -40°C … +150°C (-40°F … +302°F)

              Your benefit

              • Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
              • Probe extension adjustable up to a length of 20000 mm
              • Flameproof version available for use within potentially explosive atmospheres (gas)

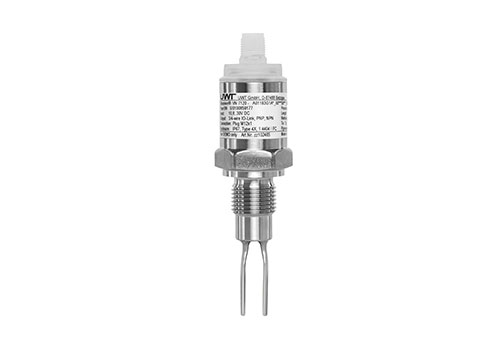

            • Vibranivo® - VN 7120

            • Application area
              The Vibranivo® VN 7120 is a vibration level switch specifically designed for detecting liquids. This versatile sensor operates effectively in various types of containers, pipes, or agitator tanks, making it ideal for a wide range of applications in the food industry, breweries, dairies, the chemical and petrochemical industries, as well as in the water and wastewater sectors. The Vibration Fork is also highly effective for leak detection in double-walled containers, tanks, or catch basins.

              Your benefit

              • Hassle-Free Setup: Save time with easy commissioning—no calibration needed
              • Dependable Performance: Achieve accurate measurements, even with material buildup, flow variations, turbulence, or air bubbles
              • Cost-Effective Operation: Enjoy zero maintenance and servicing costs for long-term reliability

            • Vibranivo® - VN 7130

            • Application area
              The Vibranivo® VN 7130 is a Vibration Level Switch designed for accurate liquid detection. This sensor operates effectively in various types of containers, pipes, or agitator tanks, making it suitable for a wide range of applications in the food industry, breweries, dairies, the chemical and petrochemical industries, as well as in the water and wastewater sectors. The Vibration Fork allows for the switching point to be individually remote-adjusted up to 4 meters, providing enhanced flexibility in installation and operation.

              Your benefit

              • Quick Setup: Save time with commissioning—no calibration required
              • Consistent Accuracy: Dependable measurements, unaffected by material buildup, flow, turbulence, or air bubbles
              • Maintenance-Free: Zero servicing costs, ensuring long-term reliability.

          • Capacitive Sensors

              • Capanivo® - CN 4020

              • Application area
                The capacitive point level sensor Capanivo® CN 4020 is used in storage and process vessels as a full, demand, and empty detector in all bulk solids from a DK value of 1.6. The probe made of glass fiber reinforced PPS plastic is FDA compliant and also suitable to be used in food. Due to its "Active Shield" function any buildup does not in any way affect the accuracy of the measurement results of the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +180°C (-40°F … +356°F)

                Your benefit

                • Very cost-effective level limit switch in bulk solids
                • Simple, reliable and maintenance-free multi-talent in bulk solids
                • Plug and play level limit switch without calibration

              • Capanivo® - CN 4030

              • Application area
                The capacitive point level sensor Capanivo® CN 4030 is used in storage and process vessels as a full and demand detector in all bulk solids from a DK value of 1.6. The measuring probe can be flexibly adjusted up to a length of 3000 mm and puts the switching point where the application needs it. Due to its "Active Shield" function any buildup does not in any way affect the accuracy of the measurement results of the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +16 bar (-14.5 psi … +232 psi)
                Process temperature:                 -40°C … +110°C (-40°F … +230°F)

                Your benefit

                • Maintenance-free, very cost-effective level limit switch in many bulk materials
                • Probe extension is adjustable up to a length of 3000 mm
                • Plug and play level limit switch without calibration

              • Capanivo® - CN 4050

              • Application area
                The capacitive point level sensor Capanivo® CN 4050 is used in storage and process vessels as a full detector in all bulk solids from a DK value of 1.6. The measuring probe can be flexibly adjusted up to a length of 6000 mm and puts the switching point where the application needs it. In addition, this probe extension with expanded cable is the basis for beneficial effects, if lateral forces act on the extension.

                Medium: Solids
                Process pressure:                 -1 bar … +6 bar (-14.5 psi … +87 psi)
                Process temperature:                 -30°C … +80°C (-22°F … +176°F)

                Your benefit

                • Maintenance-free, very cost-effective level limit switch in many bulk materials
                • Probe extension is adjustable up to a length of 6000 mm
                • Plug and play level limit switch without calibration

              • Capanivo® - CN 7100

              • Application area
                The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Due to the compact design with 1/2" process connection the sensor is perfectly suited for use in small vessels and pipes. In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements. With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.

                Medium: Solids
                Process pressure:                 -1 bar … +10 bar (-14.5 psi … +145 psi)
                Process temperature:                 -30°C … +100°C (-22 … +212°F)

                Your benefit

                • Easy integration in existing processes with IO-Link technology
                • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                • Suitable for CIP/SIP-processes with temperatures up to 150°C

              • Capanivo® - CN 7120 - Stainless steel

              • Application area
                The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Due to the compact design with 1/2" process connection the sensor is perfectly suited for use in small vessels and pipes. In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements. With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.

                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +125°C (-40°F … +257°F), CIP/SIP up to 150°C (302°F)

                Your benefit

                • Easy integration in existing processes with IO-Link technology
                • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                • Suitable for CIP/SIP-processes with temperatures up to 150°C

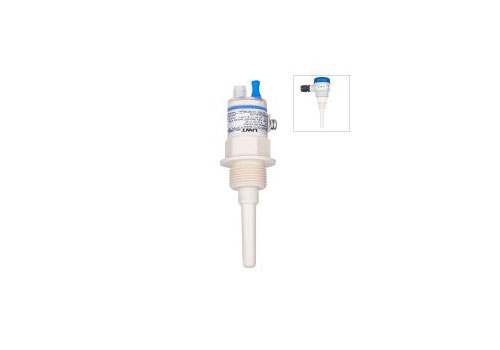

              • Capanivo® - CN 7121 - Synthetic

              • Application area
                The capacitive level limit switch Capanivo® CN 7121 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Made entirely of durable, chemical resistant plastic materials, the sensor is ideal for aggressive media. Even measurement from outside the vessel without direct material contact is possible. Thanks to the innovative IO-Link electronics, sensor data can be digitally transmitted quickly and easily. The sensitivity is adjusted in a user-friendly way via a potentiometer directly at the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +10 bar (-14.5 psi … +145 psi)
                Process temperature:                 -40°C … +125°C (-40°F … +257°F), CIP/SIP up to 150°C (302°F)

                Your benefit

                • Easy integration in existing processes due to IO-Link technology
                • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                •  Wetted part made from PVDF for maximum chemical resistance

              • Capanivo® - CN 7130

              • Application area
                The capacitive level limit switch Capanivo® CN 7130 with tube extension is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. The tube extension can be flexibly configured up to 4 m, and allows for installation in long sockets. The stainless steel tube can withstand high mechanical forces. With the IO-Link technology on board digital data collected by the sensor can be transfered quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.

                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +125°C (-40°F … +257°F), CIP/SIP up to 150°C (302°F)

                Your benefit

                • Easy integration in existing processes due to IO-Link technology
                • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                • Suitable for CIP/SIP-processes with temperatures up to 150°C

              • Capanivo® - CN 7150

              • Application area
                The capacitive level limit switch Capanivo® CN 7150 with cable extension is used as a full, demand or empty detector in all kinds of liquids. The cable can be individually configured up to 20 m. The sensor is installed/mounted from the top. Via a user-friendly potentiometer the sensitivity can be adjusted directly at the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +10 bar (-14.5 psi … +145 psi)
                Process temperature:                 -40°C … +125°C (-40°F … +257°F), CIP/SIP up to 150°C (302°F)

                Your benefit

                • Relay, 8/16 mA or 4…20 mA continuous signal output
                • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                • Suitable for CIP/SIP-processes with temperatures up to 150°C

              • Capanivo® - CN 8100

              • Application area
                The capacitive level detector Capanivo® 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids. Due to different probe versions, a suitable solution will be found for every installation setting. A robust construction allows service at process temperatures up to +125 °C and a process overpressure up to 25 bar.


                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +125°C (-40°F … +257°F)

                Your benefit

                • Simple commissioning without adjustment to the medium
                • Adjustable hysteresis avoids unnecessary switching and thus increases the service life of the system
                • Reliable measurement results even with strongly adhering material

              • RFnivo® - RF 3100

              • Application area
                The capacitive point level sensor RFnivo® RF 3100 is used in storage and process vessels as a full, demand, and empty detector in all bulk solids from a DK value of 1.5. It operates at process temperatures up to +240 °C and process overpressure up to 25 bar. Due to its "Active Shield" function any buildup does not in any way affect the accuracy of the measurement results of the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +240°C (-40°F … +464°F)

                Your benefit

                • Simple, reliable and maintenance-free all-rounder in bulk materials
                • To be configured for almost any application
                • Plug and play level limit switch with automatic calibration

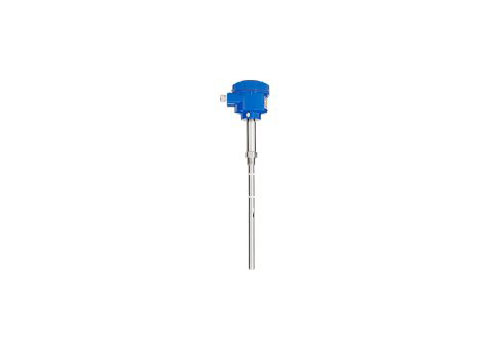

              • RFnivo® - RF 3200

              • Application area
                The capacitive point level sensor RFnivo® RF 3200 is used in storage and process vessels as a full, demand, and empty detector in all bulk solids from a DK value of 1.5. It is mechanically very resilient and operates at process temperatures up to +240 °C and process overpressure up to 25 bar. Due to its "Active Shield" function any buildup does not in any way affect the accuracy of the measurement results of the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +25 bar (-14.5 psi … +363 psi)
                Process temperature:                 -40°C … +240°C (-40°F … +464°F)

                Your benefit

                • Mechanically very resilient
                • Maintenance-free sensor for use in all bulk solids
                • Plug and play level limit switch with automatic calibration

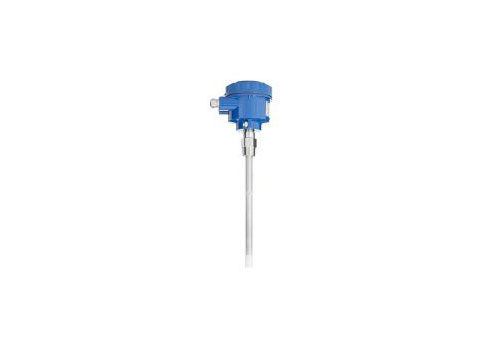

              • RFnivo® - RF 3300

              • Application area
                The capacitive point level sensor RFnivo® RF 3300 is used in storage and process vessels as a full, demand, and empty detector in all bulk solids from a DK value of 1.5. It operates at process temperatures up to +500 °C and process overpressure up to 10 bar. Due to its "Active Shield" function any buildup does not in any way affect the accuracy of the measurement results of the sensor.

                Medium: Solids
                Process pressure:                 -1 bar … +10 bar (-14.5 psi … +145 psi)
                Process temperature:                 -40°C … +500°C (-40°F … +932°F)

                Your benefit

                • Sensor suitable for high process temperatures
                • Maintenance-free sensor for use in all bulk solids
                • Plug and play level limit switch with automatic calibration

              • RFnivo® - RF 8100

              • Application area
                The capacitive level detector RFnivo® RF 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids from a DK value of 1.5. It can generally be used at process temperatures up to +200 °C and process overpressure up to 35 bar. Its "Active Shield" function ensures reliable functionality within applications with adhering material.

                Medium: Solids
                Process pressure:                 -1 bar … +35 bar (-14.5 psi … +511 psi)
                Process temperature:                 -40°C ... +200°C (-40°F … +392°F)

                Your benefit

                • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                • "Inverse Frequency Shift" technology ensures precise measurement results
                • Maintenance-free sensor

              • RFnivo® - RF 8200

              • Application area
                The capacitive level detector RFnivo® RF 8200 is used in storage and process vessels as a full, demand and empty detector in all liquids from a DK value of 1.5. It can generally be used at process temperatures up to +400 °C and process overpressure up to 35 bar. Its "Active Shield" function ensures reliable functionality of the sensor against any buildup.

                Medium: Solids
                Process pressure:                 -1 bar … +35 bar (-14.5 psi … +511 psi)
                Process temperature:                 -40°C … +400°C (-40°F … +752°F)

                Your benefit

                • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                • "Inverse Frequency Shift" technology ensures precise measurement results
                • High-quality graphite and ceramic materials guarantee maintenance-free operation even at high temperatures

            • Continuous Level Measurement

                • Radar Sensors

                • Continuous level measurement with non-contact radar Free-radiating radar sensors can determine the level of a medium without contact. The so-called FMCW radar measurement method (Frequency Modulated Continous Wave) is used for this purpose. The transmitted signal is modulated between two known frequency values (NivoRadar® NivoRadar 76 … 84 GHz) and the difference between the transmitted signal and the echo signal is measured. This difference frequency is directly proportional to the transit time and thus to the distance. The level can then be calculated by adjusting the respective vessel height.

                  Free-radiating radar sensors are used in both bulk solids and liquid applications.

                    • NivoRadar® - NR 3100

                    • The NivoRadar® 3100 enables continuous level measurement of bulk solids under all process conditions. The sensor with a plastic horn antenna offers an economical solution and delivers highly precise measurement results due to its narrow beam angle of only 3° in applications up to 80°C. With a measuring range of up to 120 meters, the sensor is a compatible solution for a wide range of applications in non-contact measurement technology.

                      Your benefit

                      • Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
                      • Reliable and precise measurement results thanks to 80 GHz radar technology
                      • Maintenance-free sensor for long-lasting and trouble-free level measurement

                    • NivoRadar ® - NR 4100

                    • Application area
                      The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 4100 with a very narrow beam angle of 4° is used in various industrial applications in storage silos, process tanks and IBC containers or on stockpiles for continuous level measurement. The free-radiating level transmitter has a compact design with a 1" process connection (PVDF) and a measuring range of up to 30 m as well as a very fast response time. The radar sensors are food compliant, WHG-certified and suitable for use in hazardous areas. The radar level transmitters have a high dust protection class and can be used in abrasive bulk materials as well as materials prone to caking.

                      Medium: Liquids, Solids
                      Process pressure: -1 bar … +3 bar (-14.5 psi … +43 psi)
                      Process temperature: -40°C ... +80°C (-40°F … +176°F)

                      Your benefit

                      • Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
                      • Inexpensive and at the same time durable, robust and maintenance-free measurement technology
                      • Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp

                    • NivoRadar ® - NR 7100

                    • Application area
                      The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 7100 with a narrow beam angle of 8° is used in various industrial applications in storage silos, process tanks and IBC containers for continuous level measurement. The free-radiating level transmitter has a compact design with a 1 1/2" process connection (PVDF) and a measuring range of up to 8 m as well as a very fast response time. The food-compliant radar devices are suitable for use in processes in the food industry. The radar level transmitters can be used in aggressive media such as acids, alkalis and solvents as well as in highly viscous liquids and oils.

                      Medium: Liquids, Solids
                      Process pressure: -1 bar … +3 bar (-14.5 psi … +43 psi)
                      Process temperature: -40°C ... +60°C (-40°F … +140°F)

                      Your benefit

                      • Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
                      • Inexpensive and at the same time durable, robust and maintenance-free measurement technology
                      • Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp

                    • NivoRadar ® - NR 7200

                    • Application area
                      The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 7200 with a narrow beam angle of 8° is used in various industrial applications in storage silos, process tanks, IBC containers or open basins for continuous level measurement. The free-radiating level transmitter has a compact design with a 1 1/2" process connection (PVDF) and a measuring range of up to 15 m as well as a very fast response time. The radar sensors are food compliant, WHG-certified and suitable for use in hazardous areas. The radar level transmitters can be used in aggressive media such as acids, alkalis and solvents as well as in highly viscous liquids and oils.

                      Medium: Flüssigkeiten, Schüttgüter
                      Prozessdruck: -1 bar … +3 bar (-14.5 psi … +43 psi)
                      Prozesstemperatur: -40°C ... +80°C (-40°F … +176°F)

                      Your benefit

                      • Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
                      • Inexpensive and at the same time durable, robust and maintenance-free measurement technology
                      • Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp, optional Plug on Display

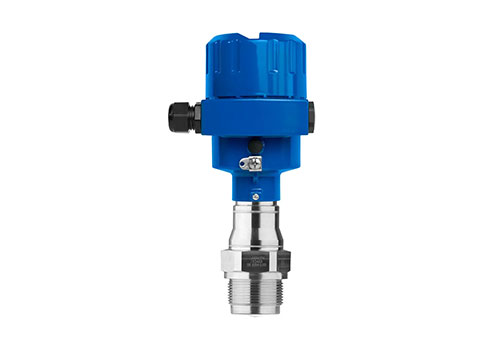

                    • NivoRadar® - NR 3200 | Threaded antenna

                    • The NivoRadar® 3200 offers continuous level measurement of bulk solids under various process conditions. This compact radar sensor is equipped with an integrated antenna and a robust stainless steel threaded connection, making it ideal for applications with temperatures up to 250 °C. The NivoRadar® 3200 is perfectly suited for smaller process containers, even in hazardous areas, while ensuring reliable measurement results.

                      Your Benefit:

                      • Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
                      • Reliable and precise measurement results thanks to 80 GHz radar technology
                      • Maintenance-free sensor for long-lasting and trouble-free level measurement

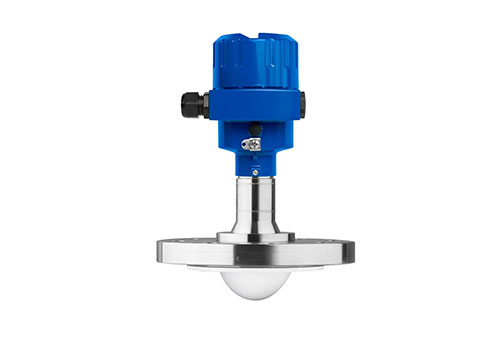

                    • NivoRadar® - NR 3300 | Lens antenna

                    • The NivoRadar® 3300 enables continuous level measurement of bulk solids under all process conditions. Equipped with a lens antenna and a stainless steel flange connection, this radar sensor delivers highly precise measurement results due to its narrow beam angle of only 3°, even at temperatures up to 250 °C. The adjustable flange allows for easy alignment in conical silo areas, ensuring the entire contents is reliably detected. Thanks to an integrated compressed air connection for cleaning the lens antenna, accurate level measurement can also be ensured in dusty environments.

                      Your Benefit:

                      • Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
                      • Reliable and precise measurement results thanks to 80 GHz radar technology
                      • Maintenance-free sensor for long-lasting and trouble-free level measurement

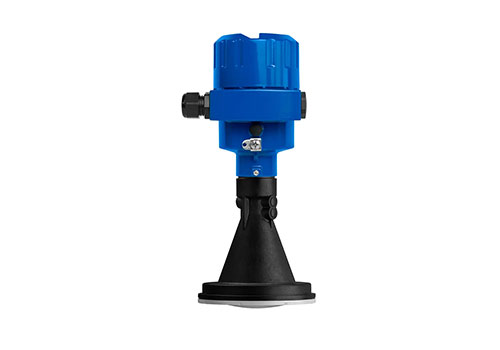

                    • NivoRadar® - NR 8100 | Plastic horn antenna

                    • The NivoRadar® 8100 provides continuous level measurement of liquids under all process conditions. With its plastic horn antenna, this radar sensor also offers an economical solution. Thanks to its narrow beam angle of only 3°, the radar delivers highly precise measurement results up to 120 meters. This makes the NivoRadar® 8100 the ideal choice for a wide range of applications in non-contact measurement technology at temperatures up to 80 °C.

                      Your Benefit:

                      • Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
                      • Reliable and precise measurement results thanks to 80 GHz radar technology
                      • Maintenance-free sensor for long-lasting and trouble-free level measurement

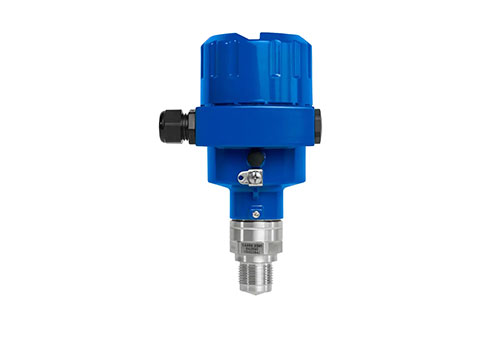

                    • NivoRadar® - NR 8200 | Threaded antenna

                    • The NivoRadar® 8200 enables continuous level measurement of liquids under all process conditions, making it ideal for applications with temperatures up to 250 °C and pressures up to 40 bar. This compact radar sensor is equipped with an integrated antenna and a 3/4" stainless steel threaded connection. Its space-saving design makes the NivoRadar® 8200 particularly suitable for small process containers and environments with agitators.

                      Your Benefit:

                      • Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
                      • Reliable and precise measurement results thanks to 80 GHz radar technology
                      • Maintenance-free sensor for long-lasting and trouble-free level measurement



                    • NivoRadar® - NR 8300 | PTFE Antenna System

                    • The NivoRadar® 8300 offers precise continuous level measurement of liquids, even under the most demanding process conditions. Equipped with a PTFE-encapsulated antenna and a robust flange connection, this radar sensor is the ideal solution for use with aggressive materials. All materials used are chemically resistant, ensuring long-lasting durability and reliable performance. Additionally, the sensor complies with strict SIL 2/3 guidelines and can be supplied in an intrinsically safe manner.

                      Your Benefit:

                      • Time-saving and easy commissioning via the UWT LevelApp, the integrated display, or PACTware
                      • Reliable and precise level measurement thanks to 80 GHz radar technology
                      • High durability through the use of chemically resistant materials for maximum resilience

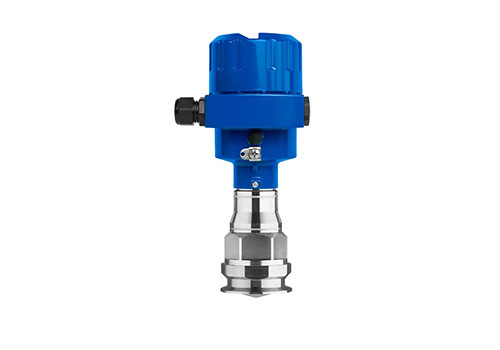

                    • NivoRadar® - NR 8400 | Hygienic antenna

                    • The NivoRadar® 8400 enables continuous level measurement of liquids under a wide range of process conditions. Equipped with a PEEK antenna system and various hygienic connections, this radar sensor is the ideal solution for use in the food and pharmaceutical industries. The high surface quality of the parts in contact with the media prevents buildup and significantly simplifies cleaning. Additionally, the sensor can be optionally configured with a stainless steel housing to further meet hygienic requirements.

                      Your Benefit:

                      • Time-saving and easy commissioning via the UWT LevelApp, the integrated display, or PACTware
                      • Reliable and precise level measurement thanks to 80 GHz radar technology
                      • Efficient cleaning thanks to hygienic design

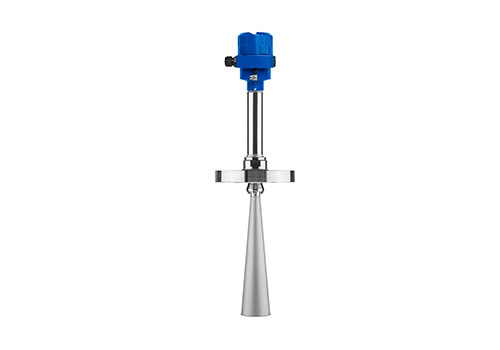

                    • NivoRadar® - NR 8500 | Horn antenna high-temperature

                    • The NivoRadar® 8500 provides continuous level measurement of liquids, even under extreme process conditions. This radar sensor is equipped with a robust stainless steel horn antenna and is the ideal solution for high-temperature and high-pressure applications. Thanks to high-quality materials and reliable seals, the NivoRadar® 8500 operates precisely at temperatures up to 450 °C and pressures up to 160 bar. The narrow beam angle of only 3° ensures highly accurate measurement results even over longer distances.

                      Your Benefit:

                      • Time-saving and easy commissioning via the UWT LevelApp, the integrated display, or PACTware
                      • Reliable and precise level measurement thanks to 80 GHz radar technology
                      • Maintenance-free sensor, even under extreme process conditions

                  • NivoGuide®

                  • Continuous level measurement with Guided Radar / TDR

                    Guided radar sensors use so-called pulse technology to determine the level. An electromagnetic wave generated by the electronics is coupled to the probe and guided downward along the probe. When the wave hits the material surface, part of the energy is reflected. This so-called echo signal is also guided along the rod back to the electronics, detected by them and converted into a level indication via a transit time measurement. With pulse technology, the running time is thus measured directly. Guided radar sensors are used in both bulk solids and liquid applications.

                      • NivoGuide® - NG 3100

                      • Application area
                        The guided radar sensor NivoGuide® NG 3100 is used for continuous level measurement in bulk solids applications from a Dk value of 1.5. The large measuring range up to a vessel height of 75 m covers many applications in bulk solids. Intuitive operation and a Quick Start Wizard makes commissioning simple and safe.

                        Medium: Solids
                        Process pressure:                         -1 bar … +40 bar (-14.5 psi … +580 psi)
                        Process temperature:                         -40°C ... +200°C (-40°F … +392°F)

                        Your benefit

                        • Simple, menu-driven commissioning and diagnostics with operating module and display
                        • Maintenance-free sensor
                        • Use in narrow vessels possible due to guided radar signal

                      • NivoGuide® - NG 8100

                      • Application area
                        The guided radar sensor NivoGuide® 8100 measures the level of liquids or oils of any kind. In addition to level measurement, this TDR sensor can also reliably and precisely detect an interface, which is likely to be formed between two liquids. Due to the robust sensor design and a wide range of versions, the sensors are suitable to be used in large storage tanks as well as in small process vessels or bypass tubes.

                        Medium: Liquids
                        Process pressure:                         -1 bar … +40 bar (-14.5 psi … +580 psi)
                        Process temperature:                         -40°C ... +200°C (-40°F … +392°F)

                        Your benefit

                        • Simple, menu-driven commissioning and diagnostics with operating module and display
                        • High measurement reliability even in applications with steam, foam formation or condensate to reduce unwanted downtimes
                        • Maintenance-free sensor

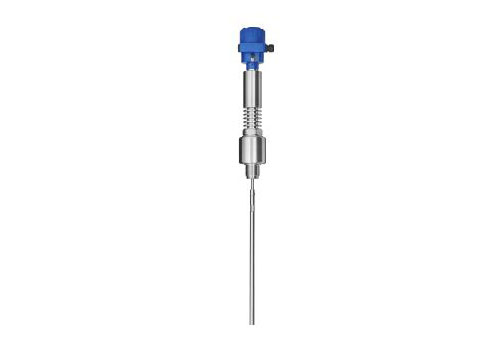

                      • NivoGuide® - NG 8200

                      • Application area
                        The guided radar sensor NivoGuide® 8200 measures the level of liquids or oils under most extreme process conditions. The extremely robust sensor construction, resistant materials as well as a special reference line extend the field of application of the TDR sensors by high-pressure, high-temperature and saturated steam applications. Thus, temperature ranges from -196 °C ... 450 °C and process pressures up to 400 bar can be covered.

                        Medium: Liquids
                        Process pressure:                         -1 bar … +400 bar (-14.5 psi … +5800 psi)
                        Process temperature:                         -196°C … +450°C (-321°F … +842°F)

                        Your benefit

                        • Simple, menu-driven commissioning and diagnostics with operating module and display
                        • Precise measurement results even in extreme steam applications due to additional reference line
                        • High-quality graphite and ceramic materials ensure maintenance-free operation even under most extreme conditions.

                    • Electromechanical Lot System

                    • Continuous level measurement with electromechanical plumb bob sensor Level determination with an electromechanical plumb bob sensor is one of the most customer-friendly technologies due to its simplicity and comprehensibility. The basis of this measuring method is the tape or rope coil driven by an electric motor and the sensing weight attached to it. This can be adjusted to the bulk density of the medium.

                      Electromechanical plumb bob sensors are mounted on the container roof. A sensing weight is lowered into the vessel. The sensing weight is attached to the end of a measuring cable/tape, which is wound on a spool driven by an electric motor. When the sensing weight hits the product, the spooling direction is reversed and the weight returns to its initial position. During the downward movement of the sensing weight, the distance is measured electronically by the rotation of the rope/tape reel. The microprocessor converts the measured distance into a volume-specific output signal that depends on the silo geometry. The output signal is updated after the sensing weight hits the product.

                      Electromechanical plumb bob sensors are also suitable for interface measurement of solids in liquids. The sensing weight is immersed in the liquid and reverses its direction of rotation only when it reaches the solid surface. The sensing weight can be universally adapted to the density of the sediment.

                        • NivoBob® - NB 3100

                        • Application area
                          The electromechanical plumb bob sensors NivoBob® NB 3100 is used for continuous level measurement in bulk storage silos of various applications. The simple electromechanical measuring method makes it a reliable all-rounder, approved in the practical use in almost all bulk solids. Especially in granulates or bulk solids with a low DK value, the NB 3100 works perfectly.

                          Medium: Solids
                          Process pressure:                           -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                          Process temperature:                           -40°C ... +250°C (-40°F … +482°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle up to 30 m measuring range
                          • Works in almost all bulk granulates
                          • Very sensitive due to very light sensing weight

                        • NivoBob® - NB 3200

                        • Application area
                          The electromechanical plumb bob sensors NivoBob® NB 3200 is used for continuous level measurement in bulk storage silos of various applications. The simple electromechanical measuring method makes it a reliable all-rounder, approved in the practical use in almost all bulk solids. Especially in dusty, sticky or low DK bulk materials the NB 3200 works perfectly.

                          Medium: Solids
                          Process pressure:                           -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                          Process temperature:                           -40°C ... +250°C (-40°F … +482°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle up to 50 m measuring range
                          • Integrated belt cleaner for applications in dusty and sticking bulk materials
                          • Can be used in almost all bulk solids

                        • NivoBob® - NB 3300

                        • Application area
                          The NivoBob® NB 3300 electromechanical plumb bob sensor is used for continuous level measurement of separating layers in various tanks and settling basins. The simple electromechanical measuring principle makes the NB 3300, in practice, the optimal sensor for these applications. Its precise sensitivity can be adjusted to slurries and solids in liquids and can also be configured for use in corrosive media with increased resistance.

                          Medium: Solids
                          Process pressure:                           -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                          Process temperature:                           -40°C ... +80°C (-40°F … +176°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle in interface layers
                          • Brushless motor for many measuring cycles in short intervals
                          • Sensitive and flexible adjustment to slurries and solids

                        • NivoBob® - NB 3400

                        • Application area
                          The NivoBob® NB 3400 electromechanical plumb bob sensor is used for continuous level measurement of separating layers in various tanks and settling basins. It can be used for applications with solids in liquids and does not need to be calibrated. In practice, the simple electromechanical measuring principle makes the NB 3400 the optimal sensor for these applications.

                          Medium: Solids
                          Process pressure:                           -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                          Process temperature:                           -40°C ... +80°C (-40°F … +176°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle up to 50 m measuring range
                          • Integrated belt cleaner
                          • Brushless motor for many measuring cycles in short intervals

                        • NivoBob® - NB 4100

                        • Application area
                          The electromechanical plumb bob sensors NivoBob® NB 4100 is used for continuous level measurement in bulk storage silos of various applications. The simple electromechanical measuring method makes it a reliable all-rounder, approved in the practical use in almost all bulk solids. Especially in granulates or bulk solids with a low DK value, the NB 4100 works perfectly.

                          Medium: Solids
                          Process pressure:                           -0,2 bar … +0,2 bar (-3.0 psi … +3.0 psi)
                          Process temperature:                           -40°C ... +80°C (-40°F … +176°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle up to 30 m measuring range
                          • Works in almost all bulk granulates
                          • Very cost-effective level sensor in bulk solids

                        • NivoBob® - NB 4200

                        • Application area
                          The electromechanical plumb bob sensors NivoBob® NB 4200 is used for continuous level measurement in bulk storage silos of various applications. The simple electromechanical measuring method makes it a reliable all-rounder, approved in the practical use in almost all bulk solids. Especially in dusty, sticky or low DK bulk materials the NB 4200 works perfectly.

                          Medium: Solids
                          Process pressure:                           -0,2 bar … +0,2 bar (-3.0 psi … +3.0 psi)
                          Process temperature:                           -40°C ... +80°C (-40°F … +176°F)

                          Your benefit

                          • Durable, simple and reliable measuring principle up to 30 m measuring range
                          • Integrated belt cleaner for applications in dusty and sticking bulk materials
                          • Very cost-effective level sensor in bulk solids

                      • Capacitive Sensors

                      • Continuous level measurement with capacitive measurement technology

                        To explain capacitive level measurement technology, it is important to understand the basic principle of a capacitor. A capacitor consists of two conductive electrodes insulated from each other. It has the ability to store energy between its electrodes within an electric field. If non-conductive material gets between the electrodes, the amount of storable energy increases and thus the capacitance of the capacitor.

                            • NivoCapa® - NC 8100

                            • Application area
                              The capacitive level sensor NivoCapa® 8100 is a simple and cost-effective solution for level measurement of liquids or oils. Interface measurement is possible as well. It can be used in large storage tanks, small process vessels, buffer tanks, hoppers, sumps, bypass or downtubes. The different gadget versions make installations from above and below possible and - due to remote housing - can also be used in vibrating environments or in areas of limited space.

                              Medium: Liquids
                              Process pressure:                               -1 bar … +35 bar (-14.5 psi … +511 psi)
                              Process temperature:                               -40°C ... +200°C (-40°F … +392°F)

                              Your benefit

                              • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                              • "Inverse Frequency Shift" technology ensures precise measurement results
                              • Maintenance-free sensor

                        • Interface Measurement

                            • Liquid Layers

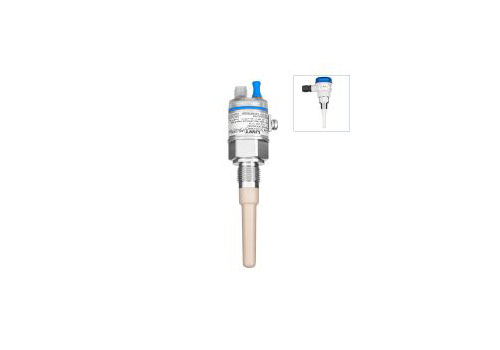

                                • Capanivo® - CN 7100

                                • Application area
                                  The capacitive level detector Capanivo® 7100 is used as a full/demand or empty detector as well as for leakage detection in any kind of liquids. Due to its compact design, the sensor is ideal for small containers or tubes. Even aggressive media will be reliably detected due to the resistant materials. Even measurement from the outside and thus without direct contact with the medium is possible.

                                  Medium: Liquids
                                  Process pressure:                                   -1 bar … +10 bar (-14.5 psi … +145 psi)
                                  Process temperature:                                   -30°C … +100°C (-22 … +212°F)

                                  Your benefit

                                  • Simple commissioning without adjustment to the medium
                                  • "Tip Sensitivity" allows measurement from the outside as well as use in both metallic and non-metallic containers
                                  • Reliable measurement results even with strongly adhering material

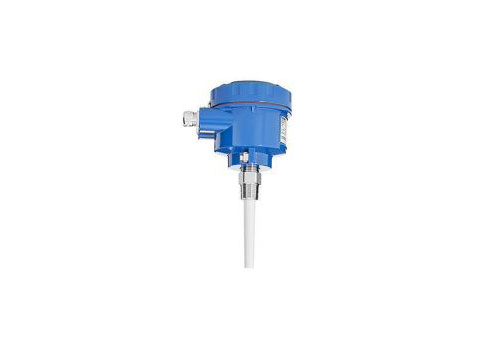

                                • RFnivo® - RF 8200

                                • Application area
                                  The capacitive level detector RFnivo® RF 8200 is used in storage and process vessels as a full, demand and empty detector in all liquids from a DK value of 1.5. It can generally be used at process temperatures up to +400 °C and process overpressure up to 35 bar. Its "Active Shield" function ensures reliable functionality of the sensor against any buildup.

                                  Your benefit

                                  • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                                  • "Inverse Frequency Shift" technology ensures precise measurement results
                                  • High-quality graphite and ceramic materials guarantee maintenance-free operation even at high temperatures

                                • Capanivo® - CN 7120 - Stainless steel

                                • Application area
                                  The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Due to the compact design with 1/2" process connection the sensor is perfectly suited for use in small vessels and pipes. In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements. With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.

                                  Your benefit

                                  • Easy integration in existing processes with IO-Link technology
                                  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                                  • Suitable for CIP/SIP-processes with temperatures up to 150°C

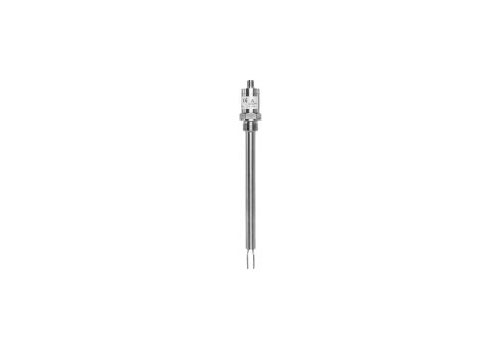

                                • Capanivo® - CN 7121 - Synthetic

                                • Application area
                                  The capacitive level limit switch Capanivo® CN 7121 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Made entirely of durable, chemical resistant plastic materials, the sensor is ideal for aggressive media. Even measurement from outside the vessel without direct material contact is possible. Thanks to the innovative IO-Link electronics, sensor data can be digitally transmitted quickly and easily. The sensitivity is adjusted in a user-friendly way via a potentiometer directly at the sensor.

                                  Your benefit

                                  • Easy integration in existing processes due to IO-Link technology
                                  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                                  • Wetted part made from PVDF for maximum chemical resistance

                                • Capanivo® - CN 7130

                                • Application area
                                  The capacitive level limit switch Capanivo® CN 7130 with tube extension is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. The tube extension can be flexibly configured up to 4 m, and allows for installation in long sockets. The stainless steel tube can withstand high mechanical forces. With the IO-Link technology on board digital data collected by the sensor can be transfered quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.

                                  Your benefit

                                  • Easy integration in existing processes due to IO-Link technology
                                  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                                  • Suitable for CIP/SIP-processes with temperatures up to 150°C

                                • Capanivo® - CN 7150

                                • Application area
                                  The capacitive level limit switch Capanivo® CN 7150 with cable extension is used as a full, demand or empty detector in all kinds of liquids. The cable can be individually configured up to 20 m. The sensor is installed/mounted from the top. Via a user-friendly potentiometer the sensitivity can be adjusted directly at the sensor.

                                  Your benefit

                                  • Relay, 8/16 mA or 4…20 mA continuous signal output
                                  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
                                  • Suitable for CIP/SIP-processes with temperatures up to 150°C

                                • Capanivo® - CN 8100

                                • Application area
                                  The capacitive level detector Capanivo® 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids. Due to different probe versions, a suitable solution will be found for every installation setting. A robust construction allows service at process temperatures up to +125°C and a process overpressure up to 25 bar.

                                  Your benefit

                                  • Simple commissioning without adjustment to the medium
                                  • Adjustable hysteresis avoids unnecessary switching and thus increases the service life of the system
                                  • Reliable measurement results even with strongly adhering material SIL 2 certified

                                • NivoCapa® - NC 8100

                                • Application area
                                  The capacitive level sensor NivoCapa® 8100 is a simple and cost-effective solution for level measurement of liquids or oils. Interface measurement is possible as well. It can be used in large storage tanks, small process vessels, buffer tanks, hoppers, sumps, bypass or downtubes. The different gadget versions make installations from above and below possible and - due to remote housing - can also be used in vibrating environments or in areas of limited space.

                                  Your benefit

                                  • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                                  • "Inverse Frequency Shift" technology ensures precise measurement results
                                  • Maintenance-free sensor

                                • NivoGuide® - NG 8200

                                • Application area
                                  The guided radar sensor NivoGuide® 8200 measures the level of liquids or oils under most extreme process conditions. The extremely robust sensor construction, resistant materials as well as a special reference line extend the field of application of the TDR sensors by high-pressure, high-temperature and saturated steam applications. Thus, temperature ranges from -196 °C ... 450 °C and process pressures up to 400 bar can be covered.

                                  Your benefit

                                  • Simple, menu-driven commissioning and diagnostics with operating module and display
                                  • Precise measurement results even in extreme steam applications due to additional reference line
                                  • High-quality graphite and ceramic materials ensure maintenance-free operation even under most extreme conditions
                                  • SIL 2/3 certified

                                • NivoGuide® - NG 8100

                                • Application area
                                  The guided radar sensor NivoGuide® 8100 measures the level of liquids or oils of any kind. In addition to level measurement, this TDR sensor can also reliably and precisely detect an interface, which is likely to be formed between two liquids. Due to the robust sensor design and a wide range of versions, the sensors are suitable to be used in large storage tanks as well as in small process vessels or bypass tubes.

                                  Your benefit

                                  • Simple, menu-driven commissioning and diagnostics with operating module and display
                                  • High measurement reliability even in applications with steam, foam formation or condensate to reduce unwanted downtimes
                                  • Maintenance-free sensor
                                  • SIL 2/3 certified

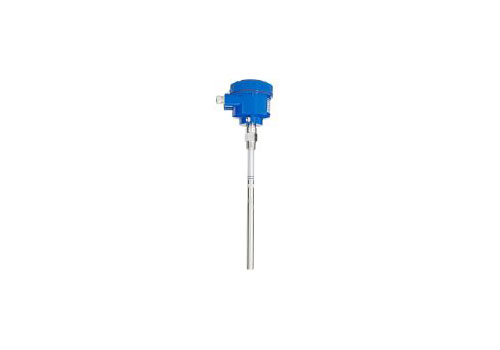

                                • RFnivo® - RF 8100

                                • Application area
                                  The capacitive level detector RFnivo® RF 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids from a DK value of 1.5. It can generally be used at process temperatures up to +200°C and process overpressure up to 35 bar. Its "Active Shield" function ensures reliable functionality within applications with adhering material.

                                  Your benefit

                                  • Reliable measurement results even with viscous, adhesive medium due to "Active Shield" technology
                                  • "Inverse Frequency Shift" technology ensures precise measurement results
                                  • Maintenance-free sensor

                              • Solids in Liquids

                              • There are several industries where sludge levels or solids in liquids need to be detected. For example, in sediment tanks or basins, filters or lamella separators in the metal industry, in chemical plants, in lime or gravel works and in the wastewater industry. What matters here is the measurement accuracy and also durability of the sensor technology. Pollution, chemicals and gases often have a negative affect on the sensors and require special resistance.

                                Continuous level measurement

                                The plumb bob series NivoBob® NB 3300/3400 meets the requirements of many interface measurements and are very reliable due to the simple measuring principle. A 4-20mA analog signal as well as a Modbus RTU/Profibus DP interface are available for level evaluation.

                                Level limit measurement

                                Vibration forks of the Vibranivo® series VN 1000 or VN 5000 can be used to measure limit levels of slurries and solids in liquids. The wetted parts are made of resistant stainless steel. With the VN 1030 and VN 5030 versions, even depths of approx. 4m can be realized when installed from above in a tank or basin. The high sensitivity required for the respective solids detection can be easily set on the electronics.

                                  • NivoBob® - NB 3300

                                  • Application area
                                    The NivoBob® NB 3300 electromechanical plumb bob sensor is used for continuous level measurement of separating layers in various tanks and settling basins. The simple electromechanical measuring principle makes the NB 3300, in practice, the optimal sensor for these applications. Its precise sensitivity can be adjusted to slurries and solids in liquids and can also be configured for use in corrosive media with increased resistance.

                                    Medium: Solids
                                    Process pressure:                                     -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                                    Process temperature:                                     -40°C ... +80°C (-40°F … +176°F)

                                    Your benefit

                                    • Durable, simple and reliable measuring principle in interface layers
                                    • Brushless motor for many measuring cycles in short intervals
                                    • Sensitive and flexible adjustment to slurries and solids

                                  • NivoBob® - NB 3400

                                  • Application area
                                    The NivoBob® NB 3400 electromechanical plumb bob sensor is used for continuous level measurement of separating layers in various tanks and settling basins. It can be used for applications with solids in liquids and does not need to be calibrated. In practice, the simple electromechanical measuring principle makes the NB 3400 the optimal sensor for these applications.

                                    Medium: Solids
                                    Process pressure:                                     -0,5 bar … +1,7 bar (-7.3 psi … +25 psi)
                                    Process temperature:                                     -40°C ... +80°C (-40°F … +176°F)

                                    Your benefit

                                    • Durable, simple and reliable measuring principle up to 50 m measuring range
                                    • Integrated belt cleaner
                                    • Brushless motor for many measuring cycles in short intervals

                                  • Vibranivo® - VN 1020

                                  • Application area
                                    The vibrating fork Vibranivo® VN 1020 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. The short extension enables the probe to withstand high mechanical loads. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

                                    Medium: Solids
                                    Process pressure:                                     -1 bar … +16 bar (-14.5 psi … +232 psi)
                                    Process temperature:                                     -40°C … +150°C (-40°F … +302°F)

                                    Your benefit

                                    • Maintenance-free sensor for use in many bulk materials
                                    • Extension is completely made of stainless steel
                                    • Plug and play level limit switch without calibration

                                  • Vibranivo® - VN 1030

                                  • Application area
                                    The vibrating fork Vibranivo® VN 1030 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids. The measuring probe can be flexibly adjusted up to a length of 4000 mm and puts the switching point where the application needs it. The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.

                                    Medium: Solids
                                    Process pressure:                                     -1 bar … +16 bar (-14.5 psi … +232 psi)
                                    Process temperature:                                     -40°C … +150°C (-40°F … +302°F)

                                    Your benefit

                                    • Maintenance-free sensor for use in many bulk materials
                                    • Probe extension adjustable up to 4000 mm length
                                    • Plug and play level limit switch without calibration

                                  • Vibranivo® - VN 5020

                                  • Application area
                                    The vibrating fork Vibranivo® VN 5020 is used in storage and process vessels as a full, demand and empty detector in dry and free flowing bulk solids. The short probe arm ensures high robustness for applications with heavy mechanical loads. The high surface quality of the stainless steel probe makes the level sensor compatible for use in applications with hygiene requirements. The VN 5020 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.

                                    Medium: Solids
                                    Process pressure:                                     -1 bar … +16 bar (-14.5 psi … +232 psi)
                                    Process temperature:                                     -40°C … +150°C (-40°F … +302°F)

                                    Your benefit

                                    • Maintenance-free sensor for use in many bulk materials
                                    • Probe arm is completely made of stainless steel
                                    • Flameproof versions available for use in potentially explosive atmospheres (gas)

                                  • Vibranivo® - VN 5030

                                  • Application area
                                    The Vibranivo® VN 5030 vibrating fork is used in storage and process vessels as a full and demand detector in dry and free flowing solids. The vibration probe can be flexibly configured up to a length of 4000 mm and puts the switching point where the application needs it. The high surface quality of the stainless steel probe makes the point level measurement ideal for use in applications with hygiene requirements. The VN 5030 offers more space for wiring due to the larger housing and additionally a flameproof version for use in GasEx areas.

                                    Medium: Solids
                                    Process pressure:                                     -1 bar … +16 bar (-14.5 psi … +232 psi)
                                    Process temperature:                                     -40°C … +150°C (-40°F … +302°F)

                                    Your benefit

                                    • Maintenance-free sensor for use in many bulk materials
                                    • Probe extension adjustable up to 4000 mm length
                                    • Flameproof version available for use within potentially explosive atmospheres (gas)

                                • Level Monitoring and Visualisation

                                    • NivoTec® - NT 3500 | Custom project visualisation

                                    • Application area

                                      The NivoTec® NT 3500 level visualization system is designed for monitoring level control and level limit measurement of silo, tank and process vessels via a web server system. The NivoTec® NT 3500 simplifies dispatching, transmits levels to PCs, laptops, tablets, smartphones, connects locations and creates interfaces to ERP systems. It can flexibly connect and evaluate old and new plants. The plant size is not limited.

                                      Your benefit

                                      • Autonomous system without expensive licenses. Access via standard browser software
                                      • Transmits levels into the Ethernet, makes them transparent and evaluable
                                      • System can be flexibly adapted to delete 'the' plant and to customer requirements

                                    • NivoTec® - NT 4500

                                    • Application area
                                      The NivoTec® NT 4500 level visualization system is designed for monitoring level control and level limit measurement of silo and process vessels via a web server system. The NivoTec® NT 4500 simplifies dispatching, transmits levels to PCs, laptops, tablets, smartphones and connects locations. It fulfills a certain standard of functions that cannot be changed on a project basis and thus achieves a very attractive price. Up to 50 containers can be monitored.

                                      Your benefit

                                      • Autonomous system without expensive licenses. Access via standard browser software
                                      • Transmits levels into the Ethernet, makes them transparent and evaluable
                                      • System is standardized and reasonably priced.

                                    • NivoTec® - NT 4600

                                    • Application area
                                      The NivoTec® NT 4600 level visualization system is designed for monitoring level control and level limit measurement of silo and process vessels via a 7" touch panel. It is inexpensive due to a standardized software and makes an evaluation of up to 15 level sensors and 15 max detectors possible. It can be used as a built-in module in an existing control cabinet or supplied as a complete module in a pre-wired control cabinet.

                                      Your benefit

                                      • Inexpensive, standardized level visualization on a 7" touch panel
                                      • Up to 15 vessels to be displayed
                                      • Easy assembly and commissioning

                                    • NivoTec® - NT 4700

                                    • Application area
                                      The NivoTec® NT 4700 level indicator modules are designed for local indication of the level of sensors with a 4-20 mA signal via a digital display. They offer an ideal solution when a low-cost, local indication is sufficient. They can be installed flexibly due to their compact design. They are fully configured and can be easily put into operation.

                                      Your benefit

                                      • Inexpensive, simple level indication on an LED display
                                      • Compact housing, fully configured
                                      • Easy assembly and commissioning

                                    • NivoTec® - NT 4900

                                    • Application area
                                      The NivoTec® NT 4900 level indicator modules consist of LED display modules, which are designed for local indication of the level of sensors with a 4-20 mA signal via a digital display. They offer an ideal solution when a low-cost, local indication is sufficient. They are built-in modules and can be easily integrated into an existing control cabinet.

                                      Your benefit

                                      • Inexpensive, simple level indication on an LED display
                                      • Small built-in module for installation in a control cabinet
                                      • Easy assembly and commissioning

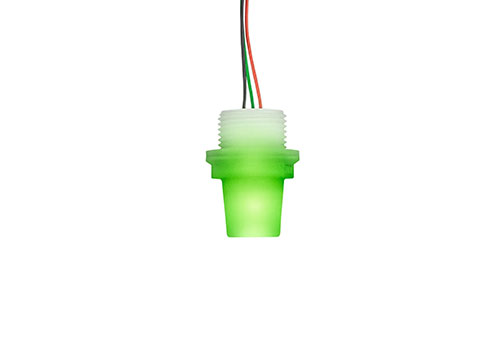

                                    • NivoLED® - NL 9000

                                    • The NivoLED® 9000 is a signal light specifically designed for use in hazardous areas. The LED visualizes the switching status of level sensors and displays status information from other technical devices through clearly visible colors, green and red. The operator is visually alerted to potential issues and can respond quickly to prevent system downtime. The LED can be configured with a level sensor or easily integrated into existing systems as an accessory.

                                      Your benefit

                                      • Highly visible status indication for sensors and other technical devices in hazardous areas (Zone 21 | Zone 2)
                                      • Easy integration into existing sensors or components
                                      • Energy-efficient with low power consumption and long service life

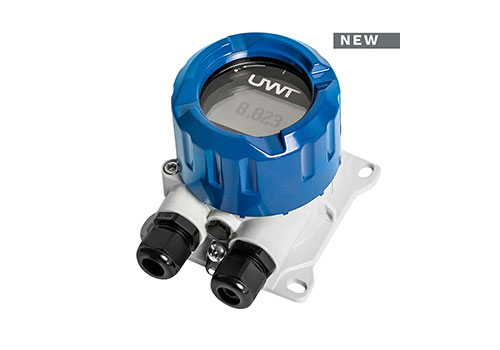

                                    • NivoTec® - NT 9000 | Local fill level display

                                    • The NivoTec® NT 9000 is a local display unit for a 4…20 mA signal. The device is directly inserted into the signal line and functions as a display instrument for a 4…20 mA current loop. It can be combined with both passive two-wire and active four-wire sensors. The displayed value can be selected between the current or a scaled value (e.g., volume, mass, etc.).

                                      Your benefit:

                                      • Visualization of the level at easily accessible points
                                      • Easy installation, suitable for outdoor use
                                      • Compatible with connection to any 4…20 mA sensors (active or passive)

                                  • SPARE PARTS & ACCESSORIES

                                  • Explore the spare parts and accessory options for your UWT sensor by utilizing the filters on the left-hand side. Additionally, you have the option to view our comprehensive list of Spare Parts & Accessories. Should you have any inquiries, feel free to contact us; we are delighted to assist you! Check out our How-tocategory in the blog, where you can find informative videos, such as step-by-step guides on motor replacement and other useful topics

                                      • Solutions

                                      • LEVEL MEASUREMENT SOLUTIONS FOR SOLID & LIQUID APPLICATIONS

                                        As experts in the field of level measurement, UWT offers not only standard solutions, but also customized special configurations.

                                        With experience from over 1,000,000 applications in the field, we will also find the perfect solution for your measurement application
                                        - whether bulk solids or liquids, whether metal, food or chemicals, whether building materials or rubber.
                                        Talk to us about your individual industry requirements - we will be happy to advise you!
