Product Portfolio

  • Crane System and Hoisting Equipment

      • Control Switch

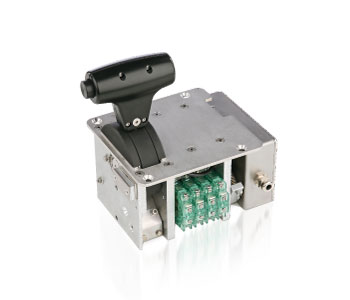

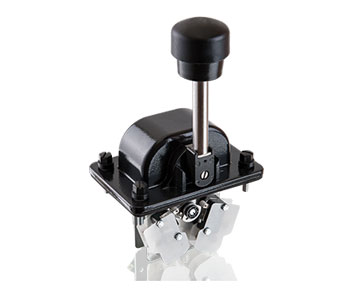

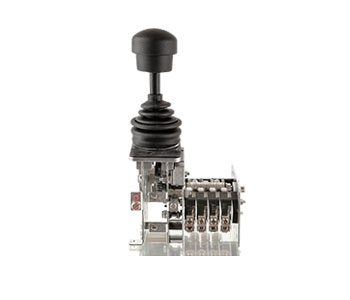

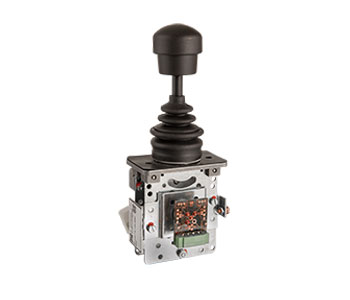

          • Control Switch N6

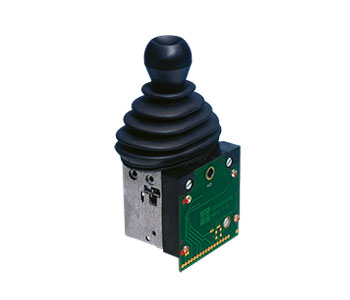

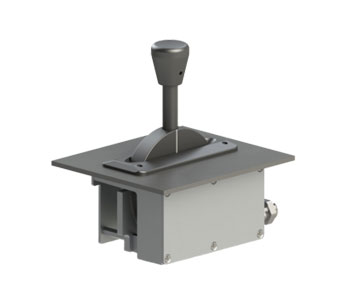

          • The control-switch N6 is a rugged switching device for hoisting applications.
            The modular design enables the switching device to be used universally.
            The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

            Technical data
            Mechanical life N6 10 million operating cycles
            Operation temperature -40° C to +60° C
            Degree of protection IP54

          • Control Switch N9

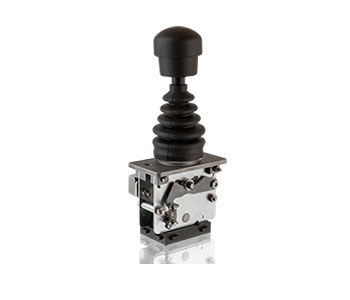

          • The control-switch N9 is a rugged switching device for hoisting applications.
            The modular design enables the switching device to be used universally.

            Technical data
            Mechanical life N9 10 million operating cycles
            Operation temperature -40° C to +60° C
            Degree of protection IP54



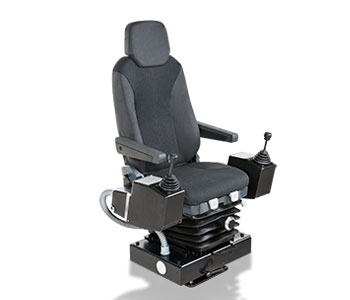

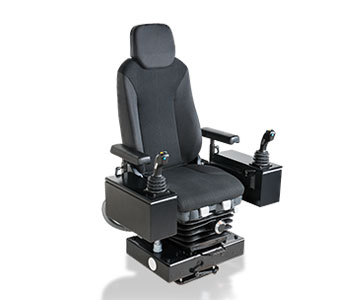

        • Crane control unit

            • Crane control unit KST 10

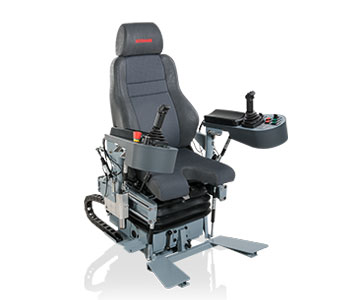

            • The KST 10 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The sheet steel equipment boxes are vertically and horizontally
              adjusted. The arrangement of the joysticks, indicators and control
              devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)
              Special boxes available upon request.

              Driver seat
              As standard the KST 10 is fitted with a KFS 11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross-member with swivel base
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance.
              Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 9011 black

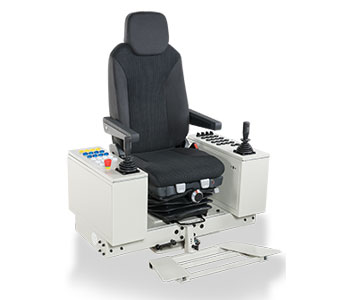

            • Crane control unit KST 19

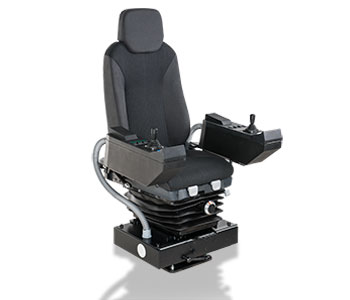

            • The KST 19 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The sheet steel equipment boxes are vertically and horizontally
              adjusted. The arrangement of the joysticks, indicators and control
              devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)
              Special boxes available upon request.

              Driver seat
              As standard the KST 19 is fitted with a KFS 10 seat. The seat itself
              is fitted with a pneumatic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross-member with swivel base
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance.
              Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 7000 squirrel grey

            • Crane control unit KST 4

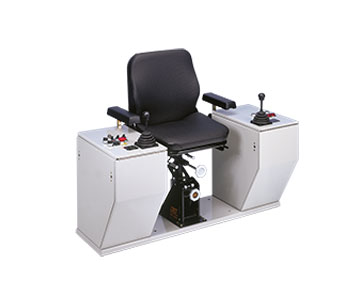

            • The KST 4 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The sheet steel equipment boxes are vertically and horizontally adjusted. The arrangement of the joysticks, indicators and control devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)
              Special boxes available upon request.

              Driver seat
              As standard the KST 4 is fitted with a KFS 11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross-member with swivel base
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance. Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 9011 black

            • Crane control unit KST 5

            • The KST 5 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The equipment boxes are made from sheet steel and as standard have a hinged lid with locking feature. This allows for easy inspection and maintenance. The side of the equipment boxes is as standard fitted with an inspection plate which again is lockable. The arrangement of the joystick, indicators and control devices is customized according to customer specifications. This combined with the custom sized and profiled equipment boxes that are available means that the KST 5 is very flexible and customizable solution.

              Driver seat
              As standard the KST 5 is fitted with a KFS 11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross-member with swivel base
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance. Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 9011 black

            • Crane control unit KST 6

            • The KST 6 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes:
              The sheet steel equipment boxes are vertically and horizontally
              adjusted. The arrangement of the joysticks, indicators and control
              devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)

              Driver seat
              As standard the KST 6 is fitted with a KFS 11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross-member with swivel base
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance.
              Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 9011 black

            • Crane control unit KST 7

            • The KST 7 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The equipment boxes are made from sheet steel and as standard have a hinged lid with locking feature. This allows for easy inspection and maintenance. The side of the equipment boxes is as standard fitted with an inspection plate which again is lockable. The arrangement of the joystick, indicators and control devices is customized according to customer specifications. This combined with the custom sized and profiled equipment boxes that are available means that the KST 7 is very flexible and customizable solution.

              Driver seat
              The tipped spring mounted seat KFS 4 is fit with an hydraulic vibration absorption system incl. weight adjustment. With the folding spring mounted seat you can also arrive your workplace in small cabins.

              Base plate
              The crane control unit is available with or without base plate.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 7032 pebble-grey

            • Crane control unit KST 8

            • The KST 8 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes:
              The sheet steel equipment boxes are vertically and horizontally adjusted. The arrangement of the joysticks, indicators and control devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)
              Special boxes available upon request.

              Driver seat:
              As standard the KST 8 is fitted with a KFS 11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather.

              Cross member with swivel base:
              The cover of the sheet steel cross-member including the driver’s seat is forward foldable.
              Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance.
              Swivel base has zero-clearance bearing and can be locked by a friction brake.

              Surface treatment:
              Base coat and textured varnish
              Standard colour RAL 9011 black

            • Crane control unit KST 85

            • The KST 85 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort.

              Equipment boxes
              The sheet steel equipment boxes are vertically and horizontally
              adjusted. The arrangement of the joysticks, indicators and control
              devices is customized according to customer specifications.
              Cabling is run through a duct in the cross-member. (Terminal block)
              Special boxes available upon request.

              Driver seat
              The comfortable spring mounted seat KFS 85 with roller-bearing swivel systems.

              Heating console
              Cover with 2 steps heating (2x2 kW 400V AC) with integrated
              ventilator. The cover of the heating cover can be tilted forward to reach the terminal block of the heating and cable execution.

              Surface treatment
              Base coat and textured varnish
              Standard colour RAL 9011 black

          • Double-handle controller

              • Double-handle controller D8

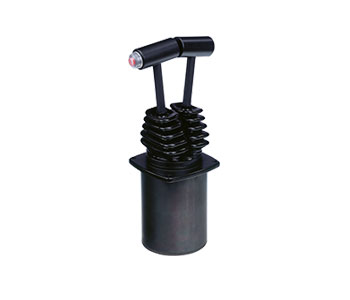

              • The double-handle controller D8 is a robust switching device for the hoisting applications.
                The modular design enables the switching device to be used universally.
                The double-handle controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                Technical data
                Mechanical life D8 10 million operating cycles
                Operation temperature -40° C to +60° C
                Degree of protection IP54 front

              • Double-handle controller D85

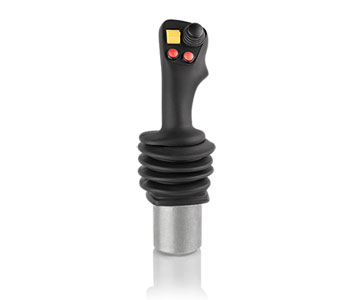

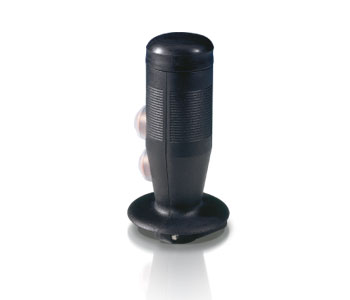

              • The double-handle controller D85 is a robust switching device for hoisting applications.
                The modular design enables the switching device to be used universally.
                The double-handle controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                Technical data
                Mechanical life D85 8 million operating cycles
                Operation temperature -40° C to +60° C
                Degree of protection IP54 front

            • Driver seat

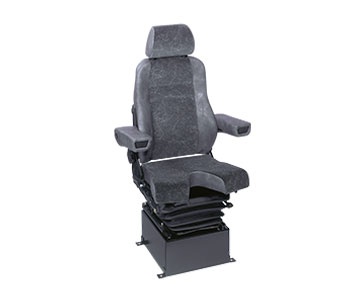

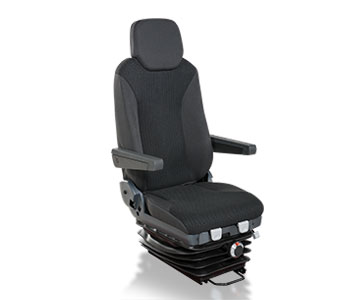

                • Driver seat KFS 10

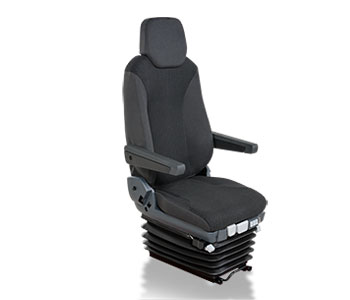

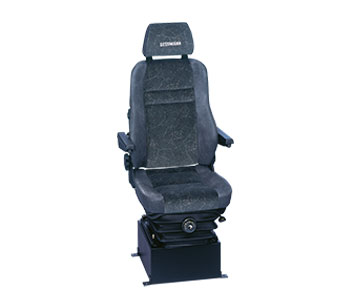

                • The crane driver`s seat KFS 10 is ergonomically designed and provides a high grade of comfort.
                  The driver`s seat has a pneumatic vibration absorption system with weight adjustment by compressor (24V DC 8 Ampere) and a standard seat cushion V-cut.
                  Through its three horizontal adjustment, it can be flexibly adapted to very many applications.
                  All adjustment controls are positioned ergonomically within easy access.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Suspension stoke 80mm
                  Weight adjustment 50 - 150kg (pneumatic)
                    50 - 130kg (mechanical)
                  Horizontal adjustment
                  Seat with suspension system 160mm
                  Seat part individual 240mm
                  Seat cushion 160mm
                  Inclination of the backrest max. 90°
                  Height and slope adjustment 60mm

                • Driver seat KFS 11

                • The crane driver`s seat KFS 11 is ergonomically designed and provides a high grade of comfort.
                  The driver`s seat is a low level mechanical suspension seat with an oilhydraulic vibration absorption system with weight adjustment.
                  All adjustment controls are positioned ergonomically within easy access.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Suspension stoke 80mm
                  Weight adjustment 50 - 150kg
                  Horizontal adjustment 230mm
                  Inclination of the backrest -12° / +40°
                  Slope adjustment -10° / +12°
                  Height adjustment 65mm




                • Driver seat KFS 12

                • The crane driver`s seat KFS 12 is ergonomically designed and provides a high grade of comfort.
                  The driver's seat is equipped with an air-sprung vibration system.
                  The weight adjustment is infinitely.
                  Heated seats 24V, lumbar support, seat cushion adjustment, seat allocation recognition and headrest raint are included in the standard delivery.
                  All adjustment controls are positioned ergonomically within easy access.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Suspension stoke 80mm
                  Weight adjustment 50 - 150kg
                  Horizontal adjustment 230mm
                  Inclination of the backrest -12° / +40°
                  Slope adjustment -10° / +12°
                  Height adjustment 100mm
                  Seat cushion adjustment 60mm

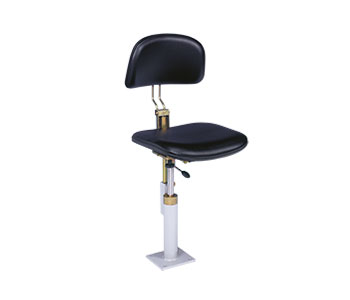

                • Driver Seat KFS 2

                • The crane driver's seat KFS 2 has stepless high adjustment by means of a gas-loaded spring. The backrest can be tilted, forwards onto the cushion, which in turn can then be tilted 90° sideways.
                  All these functions are performed easily via levers.

                  Technical data
                  Horizontal adjustment 100mm
                  Inclination of the backrest 10°
                  Height adjustment 120mm




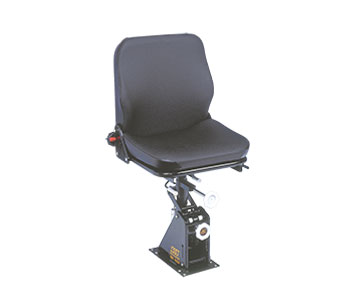

                • Driver seat KFS 4

                • The crane driver's seat KFS 4 has stepless high adjustment by means of a gas-loaded spring and an oil hydraulic vibration absorption system with weight adjustment.
                  The backrest can be tilted, forwards into the cushion, which in turn can then be tilted 90° sideways.
                  All functions are performed by a simple lever operation.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Suspension stoke 80mm
                  Weight adjustment 50 - 150kg
                  Horizontal adjustment 100mm
                  Inclination of the backrest 20°
                  Height adjustment 100mm

                • Driver Seat KFS 8

                • The crane driver's seat KFS 8 is a static seat with ergonomically
                  designed and provides a high grade of comfort.
                  The driver's seat is equipped with roller-bearing swivel system.
                  All adjustment controls are positioned ergonomically within easy access.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Horizontal adjustment 150mm
                  Inclination of the backrest 28°
                  Height adjustment 65mm




                • Driver seat KFS 9

                • The crane driver`s seat KFS 9 is ergonomically designed and provides a high grade of comfort.
                  The driver`s seat is a low level mechanical suspension seat with an oilhydraulic vibration absorption system with weight adjustment.
                  Upon request, a pneumatic vibrating system with weight adjustment is available.
                  All adjustment controls are positioned ergonomically within easy access.
                  The metal parts are protected against corrosion and painted black.

                  Technical data
                  Suspension stoke 80mm
                  Weight adjustment 50 - 150kg (pneumatic)
                    50 - 130kg (mechanical)
                  Horizontal adjustment 160mm
                  Inclination of the backrest max. 90°
                  Height and slope adjustment 60mm

              • Gear limit switch

                    • Gear limit switch GE 1

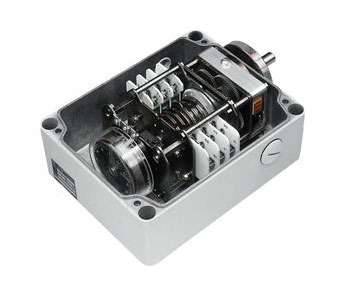

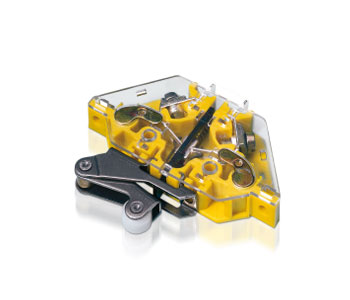

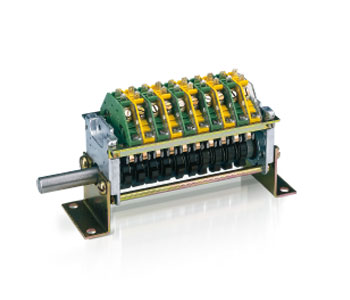

                    • The gear limit switch GE 1 / GE 2 is a rugged switching device designed for hoisting applications.
                      The modular micro changeover contacts with positive opening operation.
                      The device is programmed by means of stepless adjustment of double cam disks, which can be provided from 18° to 192° contact disks according to the switching program
                      required.
                      The type GE 1 includes a double cam disk conjointly lockable.


                      Technical data
                      Mechanical life GE1 / GE2 10 million operating cycles
                      Operation temperature -40° C to +60° C
                      Degree of protection IP65
                      Colour  RAL 7032 pebble grey

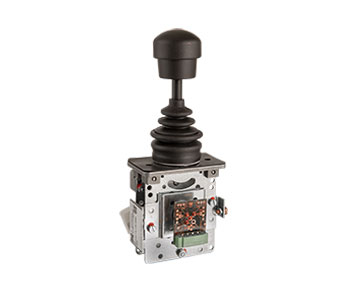

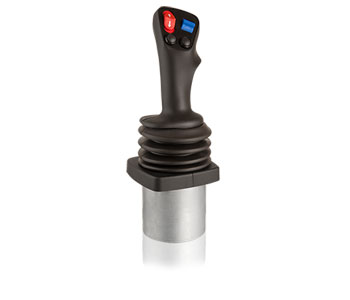

                • Multi-axis controller

                    • Multi-axis controller V11

                    • The multi-axis controller V11 is a robust switching device for crane and hoisting applications.
                      The modular design enables the switching device to be used universally.
                      The V11 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life 10 million operating cycles
                      Operation temperature -40° C to +60° C
                      Degree of protection IP54 front

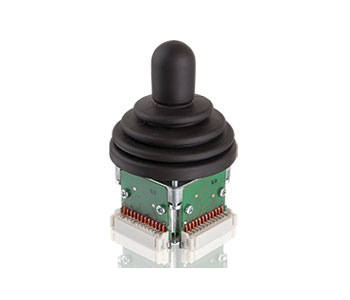

                    • Multi-axis controller V14

                    • The multi-axis controller V14 is a robust switching device for remote control and electro-hydraulic applications.
                      The modular design enables the switching device to be used universally.
                      The V14 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V14 6 million operating cycles
                      Operation temperature -40° C to +60° C
                      Degree of protection IP65

                    • Multi-axis controller V20

                    • The multi-axis controller V20 is a rugged switching device for remote control.
                      The multi-axis controller is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V20 3million operating cycles
                      Operation temperature -40° C to +60° C
                      Degree of protection IP65



                    • Multi-axis controller V21

                    • The multi-axis controller V21 is a robust hall sensor switching device for electro-hydraulic applications.
                      The V21 is especially suitable for installation in our ball handles.
                      The multi-axis controller is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life 5 million operating cycles
                      Operating force 1,6 till 3,5N
                      Supply voltage 5V DC stabilized100mm
                      Operation temperature -40°C till +60°C20°
                      Degree of protection IP67

                    • Multi-axis controller V22

                    • The multi-axis controller V22 is a robust switching device for remote control.
                      The multi-axis controller is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V22 3 million operating cycles
                      Operation temperature -40° C till +60° C
                      Degree of protection IP65




                    • Multi-axis controller V23

                    • The multi-axis controller V23 is a robust switching device for remote control applications.
                      The multi-axis controller is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V23 3 million operating cycles
                      Operation temperature -40° C till +60° C
                      Degree of protection IP67 front




                    • Multi-axis controller V24

                    • The association drive V24 is designed as a driving joystick for construction and agricultural machinery.
                      It has a parking position which can be inserted in the zero position.
                      The V24 is characterized by its extremely rugged design.
                      Through it's various interfaces and the many possibilities of combination with our numerous ball handles the V24 is very flexible.

                      Technical data
                      Mechanical life V24 20 million operating cycles
                      Supply voltage see interface
                      Operation temperature -40°C till +60°C
                      Degree of protection IP54
                      Functional safety PLd (EN ISO 13849) possible

                    • Multi-axis controller V25

                    • The multi-axis controller V25 is available in either single-axis or multi-axis options and is a robust controller used commonly in electro-hydraulic applications.
                      With many output options including voltage, amperage and switching contacts and many handle options the V25 series is hugely customizable.
                      The V25 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V25 8 million operating cycles
                      Supply voltage see interface
                      Operation temperature -40°C till +60°C
                      Degree of protection IP54
                      Functional safety PLd (EN ISO 13849) possible

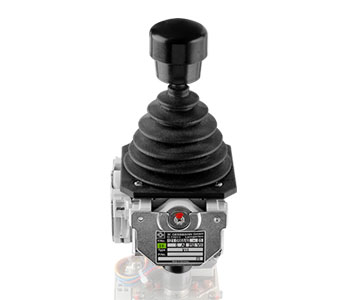

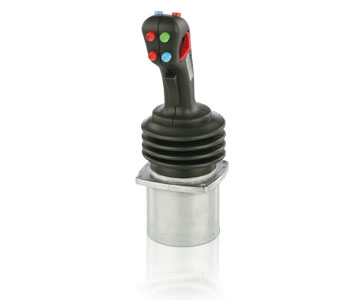

                    • Multi-axis controller V6/VV6

                    • The multi-axis controller V6/VV6 is available in either single-axis or multi-axis options and is a robust controller used commonly in electro-hydraulic applications.
                      The modular design and many possibilities of combination with our handles enables the switching device to be used universally.
                      The V6/VV6 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V6 10 million operating cycles
                      Mechanical life VV6 20 million operating cycles
                      Operation temperature -40°C till +60°C
                      Degree of protection IP54 front

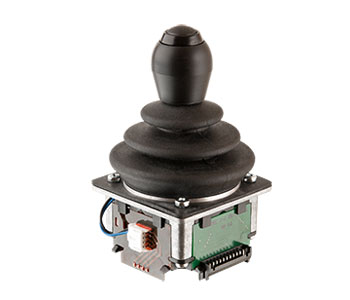

                    • Multi-axis controller V8/VV8

                    • The multi-axis controller V8/VV8 is available in either single-axis or multi-axis options and is a robust controller used commonly in electro-hydraulic applications.
                      With many output options including voltage, amperage and switch contacts and many handle options the V8/VV8 series is hugely customizable.
                      The V8/VV8 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V8 10 million operating cycles
                      Mechanical life VV8 20 million operating cycles
                      Operation temperature -40°C till +60°C
                      Degree of protection IP54




                    • Multi-axis controller V85/VV85

                    • The multi-axis controller V85/VV85 is available in either single-axis or multi-axis options and is a robust controller used commonly in electro-hydraulic applications.
                      With many output options including voltage, amperage and switching contacts and many handle options the V85/VV85 series is hugely customizable.
                      The V85/VV85 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.

                      Technical data
                      Mechanical life V85 10 million operating cycles
                      Mechanical life VV85 20 million operating cycles
                      Supply voltage see interface
                      Operation temperature -40°C till +60°C
                      Degree of protection IP54
                      Functional safety PLd (EN ISO 13849) possible

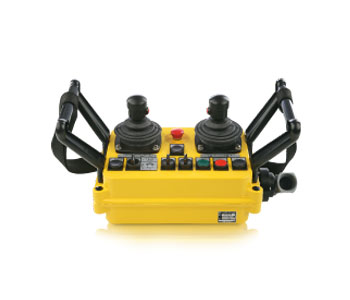

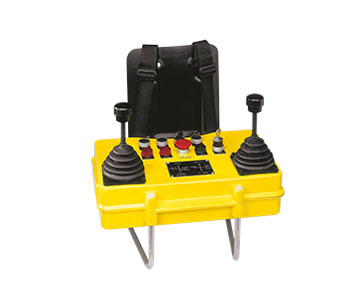

                  • Portable control unit

                      • Portable control unit TS 1

                      • The portable control unit TS 1 is used for controlling and monitoring the necessary equipment.
                        The chest panel and straps enable the operator to carry it without becoming tired.
                        An adjustable carrying strap can also be fitted for use without the chest plate.

                        Surface treatment
                        Priming and structure-finishing paint
                        Standard colour RAL 7032 pepple-grey

                        Technical data
                        Operation temperature -40°C to +60°C
                        Degree of protection IP54

                      • Portable control unit TS 2

                      • The portable control unit TS 2 is used for controlling and monitoring the necessary equipment.
                        The chest panel and straps enable the operator to carry it without becoming tired.
                        An adjustable carrying strap can also be fitted for use without the chest plate.

                        Surface treatment
                        Priming and structure-finishing paint
                        Standard colour RAL 7032 pepple-grey

                        Technical data
                        Operation temperature -40°C to +60°C
                        Degree of protection IP65

                    • Electro Hydraulics and Industrial Applications

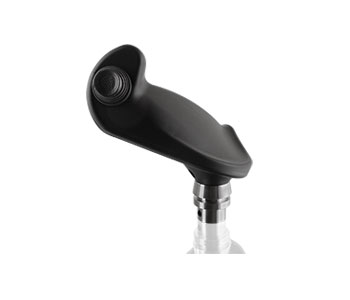

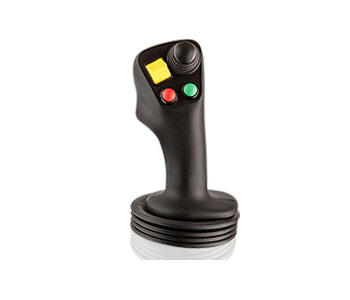

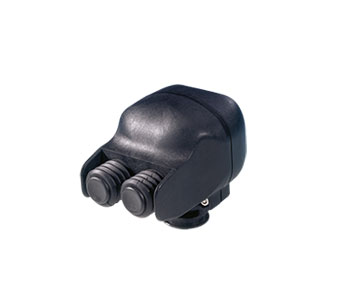

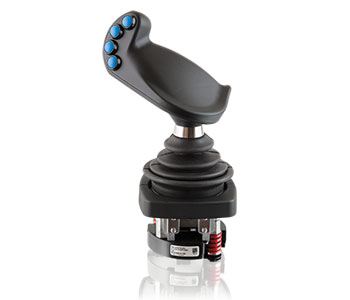

                        • Palm grip

                            • Palm grip B1

                            • The palm grip B1 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible cable (4 respectively 8x0,25qmm, 450mm long).
                              The mounting piece can be supplied with a tapped hole M10 (standard) or M8.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54
                              Contact complement (* 1,5A 24V DC13)

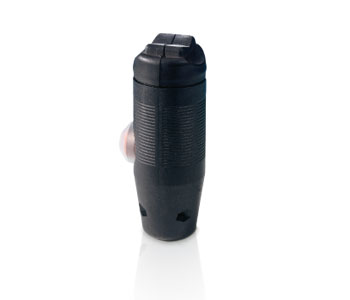

                            • Palm grip B10

                            • The palm grip B10 has different equipment options for many requirements.
                              It is compatible with our double-handle controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

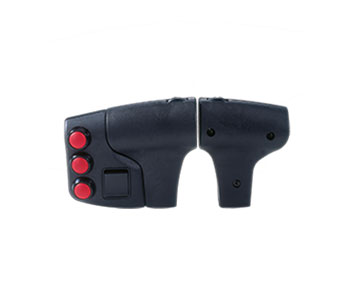

                            • Palm grip B14/B15

                            • The palm grip B14/B15 has different equipment options for many requirements.
                              It is compatible with our multi-axis and single-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm
                              (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 0,1A 24V DC13

                            • Palm grip B2

                            • The palm grip B2 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible cable (8x0,25qmm, 450mm long).
                              He can be tilted in any direction by 20 degrees and can lock in this position.
                              The mounting piece can be supplied with a tapped hole M10 (standard) or M8.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

                            • Palm grip B20

                            • The palm grip B20 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)



                            • Palm grip B22

                            • The palm grip B22 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 7mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5 24V DC13 (* 0,1A 24V DC13)

                            • Palm grip B23

                            • The palm grip B23 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

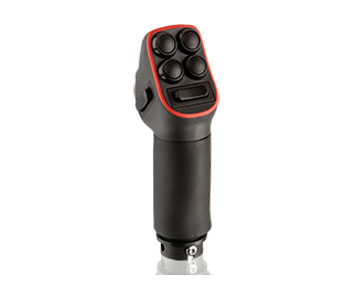

                            • Palm grip B24

                            • The palm grip B24 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The superior grip surface is framed by an illuminated colored ring element.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

                            • Palm grip B25

                            • The palm grip B25 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC 13 (* 0,1A 24V DC13)



                            • Palm grip B28

                            • The palm grip B28 has different equipment options for many requirements.
                              It is compatible with our multi-axis and single-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 10mm (standard).

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54

                            • Palm grip B29

                            • The palm grip B29 has different equipment options for many requirements.
                              It is compatible with our multi-axis and single-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 0,1A 24V DC13

                            • Palm grip B3

                            • The palm grip B3 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

                            • Palm grip B5

                            • The palm grip B5 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (4 respectively 8x0,25qmm, 450mm long).
                              The mounting piece can be supplied with a tapped hole M10 (standard) or M8.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54
                              Contact complement 3A 24V DC13 (* 1,5A 24V DC13)

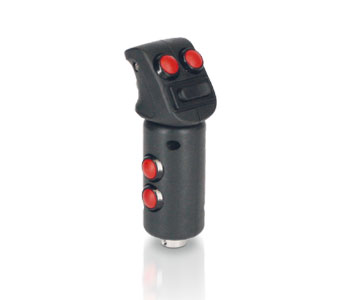

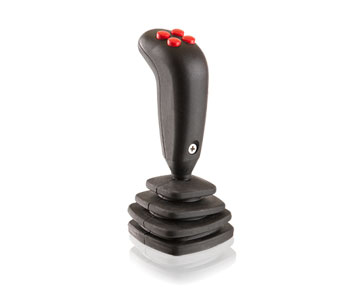

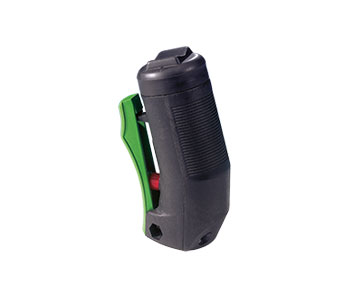

                            • Palm grip B6

                            • The palm grip B6 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible cable (4 respectively 8x0,25qmm, 450mm long).
                              The mounting piece can be supplied with a tapped hole M10 (standard) or M8.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP54
                              Contact complement 1,5A 24V DC13

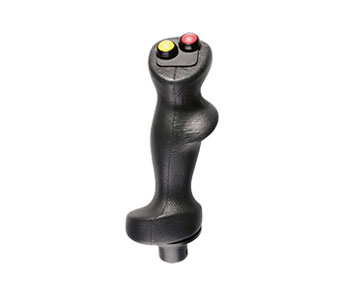

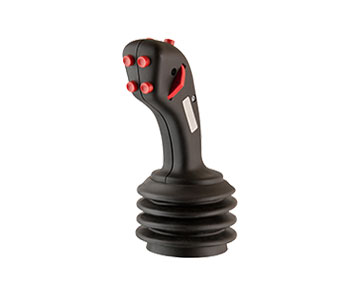

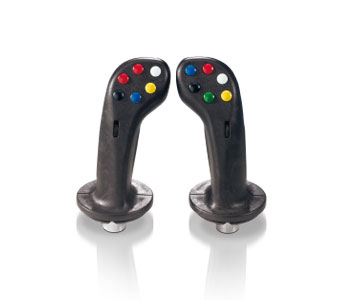

                            • Palm grip B7/ B8

                            • The palm grip B7 / B8 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13 (* 0,1A 24V DC13)

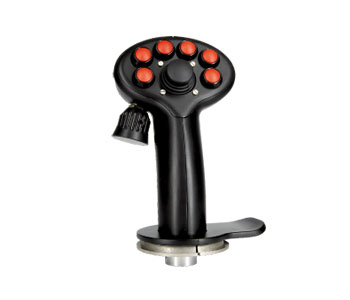

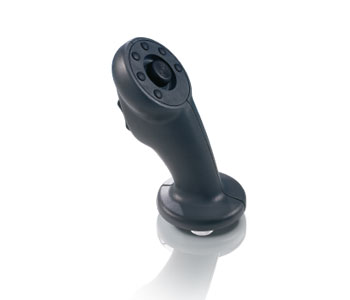

                            • Palm grip B9

                            • The palm grip B9 has different equipment options for many requirements.
                              It is compatible with our multi-axis controller or mounted on hydraulic drives.
                              The palm grip has a highly flexible single wire (0,1qmm, 450mm long).
                              The mounting piece for the drive rod can be supplied with a tapped hole 12mm (standard) or 10mm.

                              Technical data
                              Operation temperature -40°C till +60°C
                              Degree of protection IP65
                              Contact complement 1,5A 24V DC13

                          • DC-contact

                                • DC-Contact SO / SS

                                • The DC contact block is used for signaling and annunciation applications.
                                  The snap-action mechanism prevents slow contact opening when the plunger is operated slowly. Quenching of the arc that occurs with DC is supported by two-capacity permanent magnets.

                                  These are arranged so that the polarity can be ignored when connecting +/- cabling. However, the polarity of the quenching magnets must be noted when installing the contact blocks to prevent the magnets adversely affecting each other. Contact blocks in four different colours are available for polarity identification of the magnets when fitted.

                                  The contact blocks may only be installed on non-magnetically materials with screw, etc. made of
                                  non-ferrous metal.

                                  The self-cleaning silver contacts are designed for low switching frequency, low currents and voltages. Gold coated contacts can be supplied (approx 0,2µ), less than 42 Volt required. The screw connection M3.5 at the side is suitable for 2 conductors max. 2,5mm².
                                  The plug-in connection at the top 4.8 x 0.8mm DIN 46247.

                                  Several contact blocks can be plugged on the top of each other and operated jointly. The plug-type terminals are then only accessible on the top unit. The contact blocks can be provided with shock protection to DIN VDE 0106 Part 100.

                                  Switching capacity NC NO Time constant
                                  250V DC 2A 1A 20ms
                                  125V DC 4A 3A 20ms
                                  50V DC 6A 6A 20ms
                                  30V DC 10A 10A 20ms
                                  250V AC 15 6A 6A

                                  Technical data

                                  Mechanical life 2 million operating cycles
                                  Electrical service life 50.000 operating cycles (at 2A 250VDC L/R 20ms)
                                  Operation temperature -40°C till +60°C
                                  Degree of protection IP40

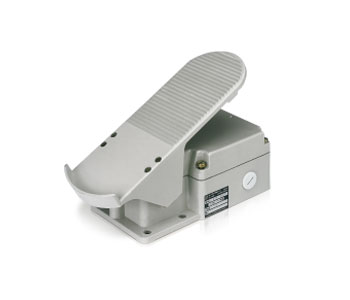

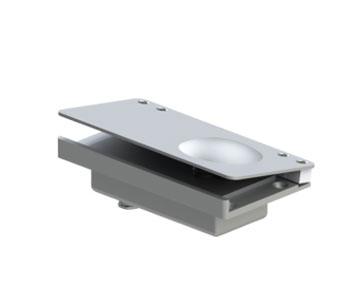

                            • Pedal-controller

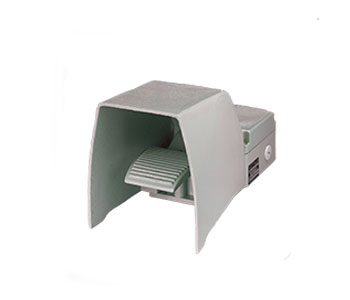

                                • Pedal-controller P10/P11/P12

                                • The pedal-controller P10/P11/P12 is a rugged switching device for electro-hydraulic.
                                  The modular design enables the switching device to be used universally.
                                  The P10/P11/P12 is resistant to oil, maritime, climate, ozone and UV radiation.

                                  Technical data
                                  Mechanical life P10 8 million operating cycles
                                  Operation temperature -40° C till +60° C
                                  Degree of protection P10  IP54



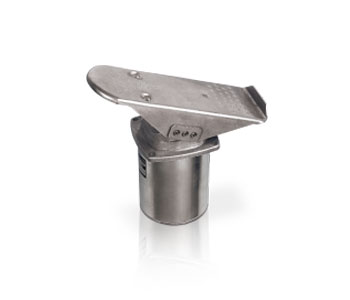

                                • Pedal-controller P7

                                • The pedal-controller P7 and PP7 is a rugged switching devices for footing applications.
                                  The pedal-controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                  Technical data
                                  Mechanical life P7 6 million operating cycles
                                  Mechanical life P77 10 million operating cycles
                                  Operation temperature -40°C till +60°C
                                  Degree of protection P7 IP54
                                  Degree of protection PP7 IP63
                                  Colour RAL 7032 pebble-grey

                                • Pedal-controller P8 / PP8

                                • The pedal-controller P8 and PP8 is a rugged switching devices for footing applications.
                                  The pedal-controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                  Technical data
                                  Mechanical life P8 6 million operating cycles
                                  Mechanical life PP8 10 million operating cycles
                                  Operation temperature -40°C till +60°C
                                  Degree of protection P8 IP54
                                  Degree of protection PP8 IP65
                                  Colour RAL 7032 pebble-grey

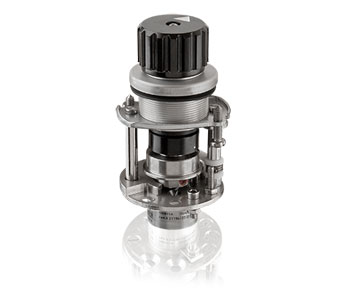

                              • Signal-cam controller

                                    • Signal-cam controller NU 1

                                    • The cam controller NU 1 is used as a signal and annunciation switch in HV systems.
                                      This rugged switching device has cam disks made of insulation material that can be set at 10° intervals.
                                      The DC contact blocks are designed to permit series assembly, which can be operated simultaneously.

                                      Technical data
                                      Mechanical life NU1 2  million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection P10 IP40 / IP65 with aluminium housing



                                      Switching capacity NC NO Time constant
                                      250V DC 2A 1A 20ms
                                      125V DC 4A 3A 20ms
                                      50V DC 6A 6A 20ms
                                      30V DC 10A 10A 20ms
                                      250V DC 15 6A 6A 20ms

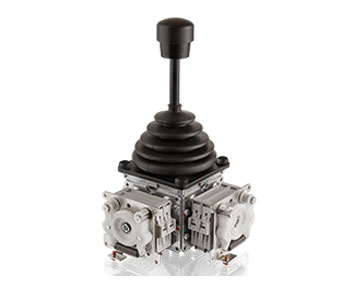

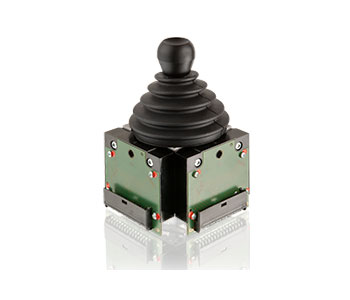

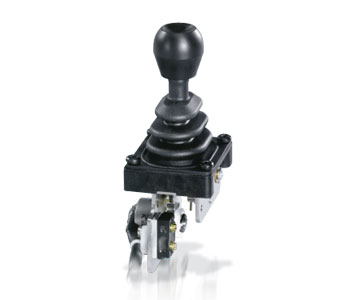

                                • Single-axis controller

                                    • Single-axis controller S1

                                    • The single-axis controller S1 is a robust switching device for remote control and electro-hydraulic applications.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S1 6  million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP65

                                    • Single-axis controller S11

                                    • The single-axis controller S11 is a hall sensor switching device designed for electro-hydraulic and remote controlled hydraulic.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S11 6  million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP65

                                    • Single-axis controller S14

                                    • The single-axis controller S14 is a designed hall sensor switching device for
                                      electro-hydraulic and remote controlled hydraulic.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S14 6  million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP65

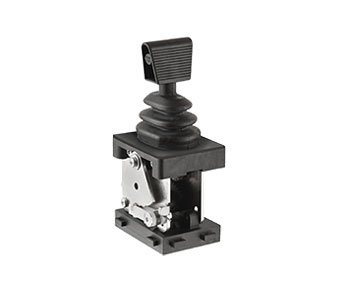

                                    • Single-axis controller S2 / SS2 / S21

                                    • The single-axis controller S2/SS2 is a robust switching device for remote controlled and electro hydraulic applications.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S2 / S21 6 million operating cycles
                                      Mechanical life SS2 10 million operating cycles
                                      Operation temperature -40°C till +60°C
                                      Degree of protection IP54

                                    • Single-axis controller S22 / SS22

                                    • The single-axis controller S2/SS2 is a robust switching device for remote controlled and electro hydraulic applications.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S22 6 million operating cycles
                                      Mechanical life SS22 10 million operating cycles
                                      Operation temperature -40°C till +60°C
                                      Degree of protection IP54

                                    • Single-axis controller S23

                                    • The single-axis controller S23 is a robust swithing device for shipbuilding and electro hydraulic applications. The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S23 6 million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP65




                                    • Single-axis controller S26

                                    • The single-axis controller S26 is a hall sensor switching device designed for electro-hydraulic and remote controlled hydraulic.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S26 6 million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP54



                                    • Single-axis controller S27

                                    • The single-axis controller S27 is a hall sensor switching device designed for electro-hydraulic and remote controlled hydraulic.
                                      The modular design of the switching device is universally applicable.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S27 6 million operating cycles
                                      Operation temperature -40° C till +60° C
                                      Degree of protection IP65

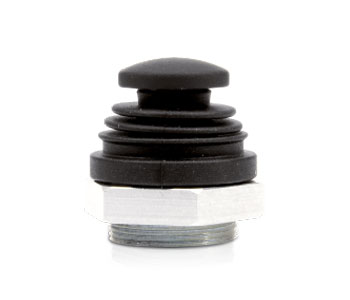

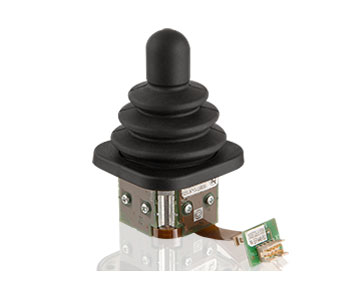

                                    • Single-axis controller S9

                                    • The single-axis controller S9 is a hall sensor switching device designed for electro- hydraulic applications.
                                      Due to its small size, the S9 is particularly suitable for installation in our ball handles.
                                      The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                      Technical data
                                      Mechanical life S9 5 million operating cycles
                                      Operating force 1,6 till 3,5N
                                      Supply voltage 5 VDC stabilized
                                      Operation temperature -40°C till +60°C
                                      Degree of protection IP67

                                  • Railway Vehicles

                                      • Railway locomotive

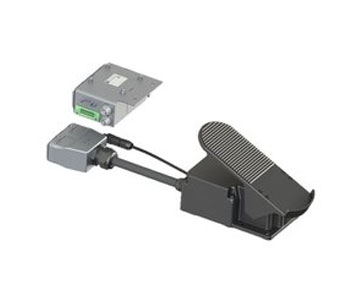

                                          • Foot operated pedal P15

                                          • Gessmann’s foot operated pedal P15 is specially designed for usage in railway applications.
                                            Their robust design which is based on the relevant standards EN-60077 and EN-50155 guarantees low life cycle costs and a maintainability over period of 35 years.

                                            Technical data
                                            Ambient temperature outside vehicle -40°C to +50°C -> EN 50 155 Class T1, T2, T3, TX
                                            Shock and vibration According to EN 61373
                                            Isolation and High voltage test According to EN 50155
                                            Pollution degree PD 3 according to EN 60077-1 (others on demand)
                                            Fire and smoke Compliant to EN 45545 (others on demand)
                                            Mechanical endurance 10 million operating cycles
                                            Electrical endurance Minimum operating cycle class C3/A3
                                            according to EN 60077-2




                                          • Foot operated pedal PP7

                                          • Gessmann’s foot operated pedal PP7 is specially designed for usage in railway applications.
                                            Their robust design which is based on the relevant standards EN-60077 and EN-50155 guarantees low life cycle costs and a maintainability for a period of 35 years.

                                            Technical data
                                            Ambient temperature outside vehicle -40°C to +50°C -> EN 50 155 Class T1, T2, T3, TX
                                            Nominal supply voltages 24VDC with variations according to EN 50155
                                            Shock and vibration According to EN 61373
                                            Electromagnetic compatibility (EMC) According to EN 50121-3-2
                                            Isolation and High voltage test According to EN 50155
                                            Pollution degree PD 3 according to EN 60077-1 (others on demand)
                                            Fire and smoke Compliant to EN 45545 (others on demand)
                                            Mechanical endurance 10 million operating cycles
                                            Electrical endurance Minimum operating cycle class C3/A3 according to EN 60077-2

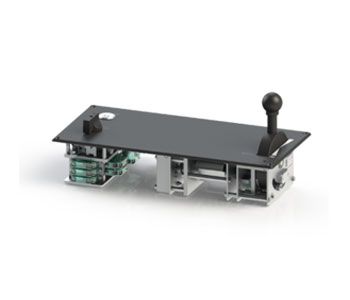

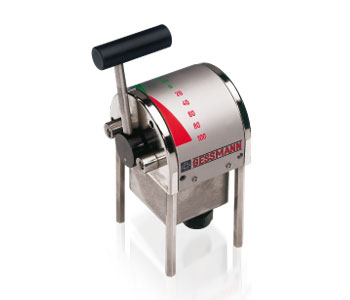

                                          • Modular Master Controller System U1

                                          • Gessmann’s master controller system U1 is specially designed for usage in railway
                                            applications. Their robust design which is based on the relevant standards EN-60077,
                                            UIC 612 and EN-50155 guarantees low life cycle costs and a maintainability over a period of 35 years.

                                            Technical data
                                            Ambient temperature outside vehicle -40°C to +50°C->EN 50155 Class T1, T2, T3, TX
                                            Nominal supply voltages 24VDC with variations according to EN 50155
                                            Shock and vibration According to EN 61373
                                            Electromagnetic compatibility (EMC) According to EN 50121-3-2
                                            Isolation and High voltage test According to EN 50155
                                            Pollution degree PD 3 according to EN 60077-1 (others on demand)
                                            Fire and smoke Compliant to EN 45545, (HL3) (others on demand)
                                            Mechanical endurance 10 million operating cycles
                                            Electrical endurance Minimum operating cycle class C3/A3 according to EN 60077-2

                                          • Single-axis controller S22 / SS22

                                          • The single-axis controller S2/SS2 is a robust switching device for remote controlled
                                            and electro hydraulic applications.
                                            The modular design of the switching device is universally applicable.
                                            The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                            Technical data
                                            Mechanical life S22 6 million operating cycles
                                            Mechanical life SS22 10 million operating cycles
                                            Operation temperature -40°C till +60°C
                                            Degree of protection IP54

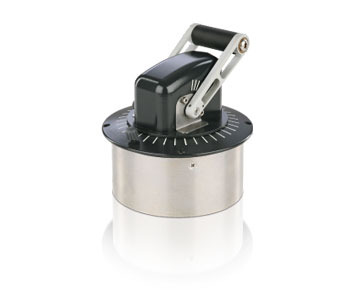

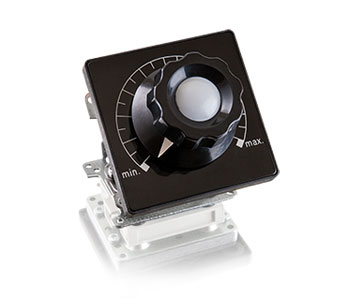

                                        • Regional Train

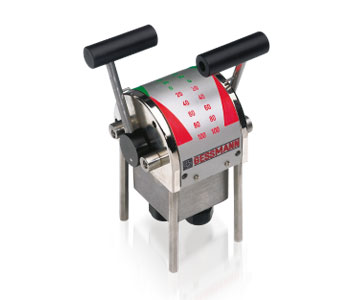

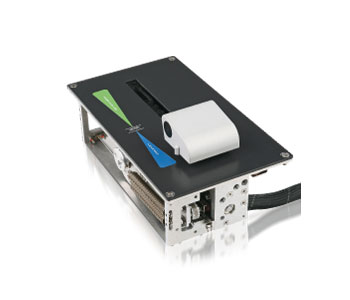

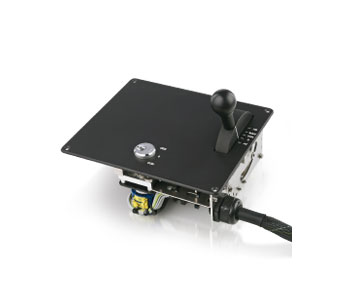

                                            • Master Control Unit

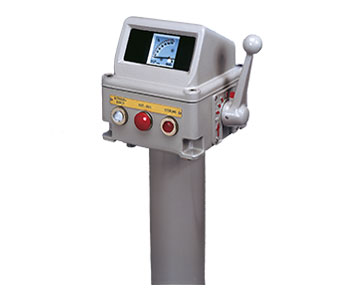

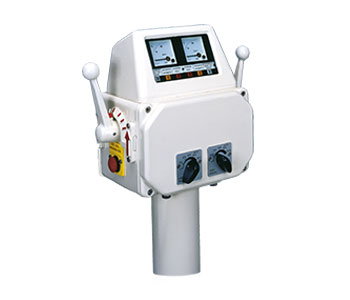

                                            • The pictured master controller is used as a instruction element in railway vehicles. It can be divided into three main components.

                                              1. Master / Brake controller
                                              Setpoint setting in the driving Power- /Brakearea with integrated deadman function by pushing down of the grab handle.

                                              2. Selector switch
                                              Choose of the operating condition “R” / “O”/ “*” / “V” / “N”

                                              3. Key switch
                                              Approval of the master controller. Operating states: setting “0” and “1”

                                              General, technical data:
                                              Measurement according to scale drawing M4043
                                              Mechanical life 10 Mio. Switching operations
                                              Weight approx. 9,5kg
                                              Storage temperature -30°C to + 70°C
                                              Operation temperature -25°C to + 70 °C
                                              Degree of protection (front)  IP40
                                              Degree of protection (in housing) IP00

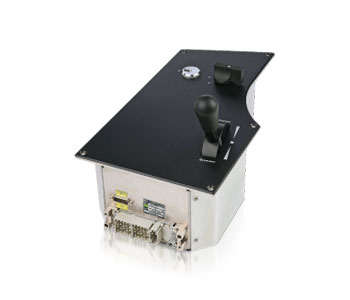

                                            • Master Control Unit MC 01

                                            • Gessmann’s master controller system MC 01 is specially designed for usage in railway
                                              applications. Their robust design which is based on the relevant standards EN-60077,
                                              UIC 612 and EN-50155 guarantees low life cycle costs and a maintainability over a period
                                              of 35 years.

                                              Technical data
                                              Ambient temperature outside vehicle  -40°C to +50°C->EN 50155 Class T1, T2, T3, TX
                                              Nominal supply voltages 4/ 48/ 72/ 96/ or 110VDC with variations according to EN 50155
                                              Shock and vibration According to EN 61373
                                              Electromagnetic compatibility (EMC) According to EN 50121-3-2
                                              Isolation and High voltage test According to EN 50155
                                              Pollution degree PD 3 according to EN 60077-1 (others on demand)
                                              Fire and smoke Compliant to EN 45545, (HL3) (others on demand)
                                              Mechanical endurance 10 million operating cycles
                                              Electrical endurance Minimum operating cycle class C3/A3 according to EN 60077-2

                                          • Tram

                                                • Traktion Brake Controller

                                                • The Master Controller represented in Figure 1 is installed in a driver’s cab of a tram. It is designed for right hand manipulation and provides the man-machine-interface to control the traction, service braking and emergency braking operation of the vehicle.

                                                  Furthermore the handle of the Master Controller includes a pushbutton used for automatic vigilance control (dead-man function).

                                                  Technical data

                                                  Overall unit
                                                  Mechanical durability 10 Mio. Switching operations
                                                  Weight 5kg
                                                  Storage temperature range - -25 to +70°C
                                                  Operation temperature -25°C to + 70 °C
                                                  Protection class front side  IP40
                                                  Protection class mounting side IP00

                                            • Underground

                                                • Linear Power-Brake Switch

                                                • The whole Master Control unit is installed in the driver’s console .

                                                  The picture shows the component arrangement and dimensions of the power- /brake control unit which is to be operated by means of a customer specified grip. This grip consists of blank aluminum without any surface treatment.
                                                  As enlightens from these documents all snap action switches are wired up to a connector that is located at the end of flexible connecting cable. A strain relief makes sure that the connecting cable is properly fixed to the power- / brake control unit. The length of the flexible connecting cable can be adapted according to the project specific requirements. The appropriate mating connector is included in the scope of delivery.

                                                  A special connecting cable provides the electrical connection between the capacitive sensor, the potentiometers (which are part of the power- / brake controller) and the interface module that incorporates the following functions:

                                                  A 72V to 24V DC/DC converter Two independent 4 – 20mA output devices. The output device of the capacitive sensor which is used for automatic vigilance control (deadman system) Technical data Power- / brake control unit



                                                  mechanical durability 5 Mio. operating cycles
                                                  weight approx 10Kg
                                                  operating temperature range -25°C to +70°C
                                                  maximum humidity during operation 95%
                                                  Type tested according to EN 50155

                                                  Including

                                                  • Shock- and vibration test according to IEC 61373
                                                  • EMC test according to EN 50 121-3-2

                                                • Preselector Switch

                                                • Application
                                                  The reverser switch is included in a customized Master Control Unit according to specification no. 618585, which is used to control the traction and brake effort of a rail vehicle.

                                                  This Mode selector switch has a flexible connecting element, serving for the mechanical interlocking between the Power-/ Brake Controller and the Mode selector Switch in this Unit.

                                                  General Description Mode- /selector switch
                                                  The separate Mode-/ selector switch module is located at the left hand side of the Power-/ brake controller. It includes a control lever to select the driving direction and/ or driving mode. It also includes a key switch to activate the whole Master control unit. All binary signals (switches) are wired up to a connector that is located at the end of a breakout cable.

                                                  Interlocking mechanism
                                                  Between the mode selector handle, the key switch and the power-/ brake controller a mechanical interlocking system is installed. This interlocking mechanism serves the purpose of avoiding erroneous operation of these components. Whether or not a component is interlocked depends on the position of the other components.

                                                  To provide the mechanical interlocking between the separated Power-/ Brake controller and Mode selector switch a flexible connecting element (called Flexball) is used.



                                                  operating temperature range -5°C to +40°C
                                                  maximum humidity during operation 95%
                                                  power supply voltage 110 V DC (+25% / -30%)

                                                  Including:

                                                  • Shock- and vibration test according to IEC 61373
                                                  • EMC test according to EN 50 121-3-2
                                                  • Voltage withstand test acc. to EN 50155 §12.2.9.2 – 50 Hz, 1kV, 1min

                                              • Offshore and Ship Controllers

                                                  • Control pedestal for offshore

                                                      • Control pedestal for offshore U22 / 32

                                                      • The control pedestal U22 / 32 accomodates the devices necessary for control and
                                                        monitoring.
                                                        Ready wired, it can be quickly and easily installed on the sea deck.
                                                        The housing (pedestal head) is made of seawater-resistant aluminium.

                                                        Surface treatment
                                                        Priming and structure-finishing paint
                                                        Standard colour RAL 7032 pepple-grey

                                                        Technical data
                                                        Operation temperature -40° C till +60° C
                                                        Degree of protection IP66

                                                      • Control pedestal for offshore U23 / 23

                                                      • The control pedestal U23 / 23 accomodates the devices necessary for control and
                                                        monitoring.
                                                        Ready wired, it can be quickly and easily installed on the sea deck. The housing
                                                        (pedalstel head) is made of seawater-resistant aluminium.

                                                        Surface treatment
                                                        Priming and structur-finishing paint
                                                        Standard colour RAL 7032 pepple-grey

                                                        Technical data
                                                        Operation temperature -40° C till +60° C
                                                        Degree of protection IP66

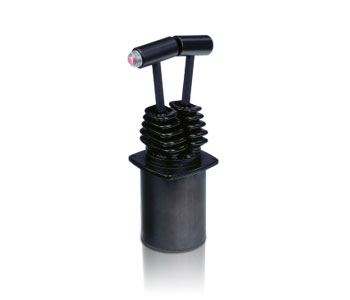

                                                    • Double-handle controller

                                                          • Double-handle controller D3

                                                          • The double-handle controller D3 is a robust switching device for nautical navigation applications.
                                                            The modular design enables the switching device to be used universally.
                                                            The double-handle controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                                            Technical data
                                                            Mechanical life D3 12 million operating cycles
                                                            Operation temperature -40° C till +60° C
                                                            Degree of protection IP66 front

                                                      • Naval cruise controller

                                                            • Naval Cruise controller AZ1

                                                            • The naval cruise controller AZ1 is a rugged switching device.
                                                              The modular design enables the switching device to be used universally.

                                                              The design includes
                                                              The mechanical control-system for the engine speed 0-max. rpm. switching angle 60 degrees with pressure print at 7 degrees and friction brake direction 0-2.
                                                              The mechanical control-system for the steering left/right direction 13-14, 360 degrees with pressure points 4x90 degrees and friction brake.

                                                              The AZ1 is resistant to oil, maritime climate, ozone and UV radiation.

                                                              Technical data
                                                              Mechanical life AZ 1 12 million operating cycles
                                                              Operation temperature -40° C till +60° C
                                                              Degree of protection IP66

                                                        • Single-axis controller

                                                              • Single-axis controller S3

                                                              • The single-axis control S3 is a rugged switching device for hoisting applications.
                                                                The modular design enables the switching device to be used universally.
                                                                The single-axis controller is resistant to oil, maritime conditions e.g. offshore /vessels, UV radiation typically from the sun.

                                                                Technical data
                                                                Mechanical life S3 12 million operating cycles
                                                                Operation temperature -40° C till +60° C
                                                                Degree of protection IP66 front
