  • Offer Profile

  • MetrologyWorks specializes in all things related to portable CMM’s, including portable arms, laser trackers, laser scanners, and more. If you need replacement accessories for your FARO Arm, Hexagon/Romer Arm, Laser Tracker, or portable laser scanning system, you have come to the right place.

Product Portfolio

  • Calibration and Certification

    • MetrologyWorks offers a variety of calibration artifacts for Portable CMM Arms, Laser Trackers, and Scanners, including scale bars, ball bars, reference spheres, and relocations devices such as leap cones and leap spheres. Many of these artifacts include calibration certificates. Certification is available as an add-on for items that aren’t certified by default.

            • Certified Laser Tracker Scale Bars

            • MetrologyWorks certified laser tracker scale bars are offered in multiple material types, including carbon fiber, steel, and aluminum. All options include stainless steel 1.5″ SMR seats, and they’re certified by an independent A2LA Accredited Lab.

              Different variants available.

            • Certified Ball Bars

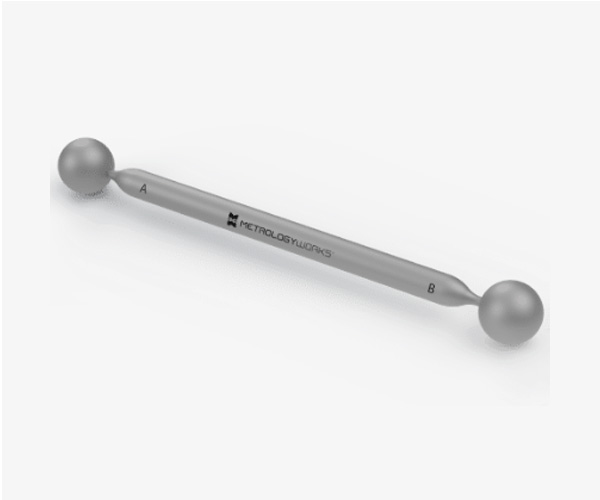

            • MetrologyWorks certified invar ball bars offer excellent thermal stability. They are available with an optional matte finish to support a variety of laser scanner systems.

              Different variants available.

            • Portable CMM Calibration and Relocation Artifacts

            • Different variants available.

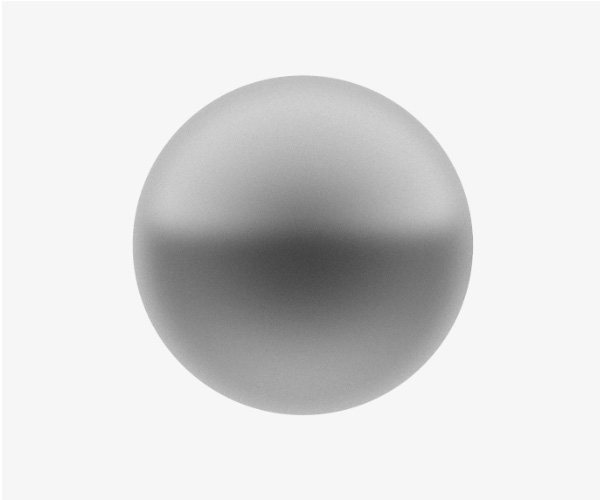

            • Reference Spheres

              • Optional Matte Surface is Ideal for Scanning
              • Rugged 440C Stainless Steel Ball
              • Magnetic
              • Fits in Standard Monument

              Different variants available.

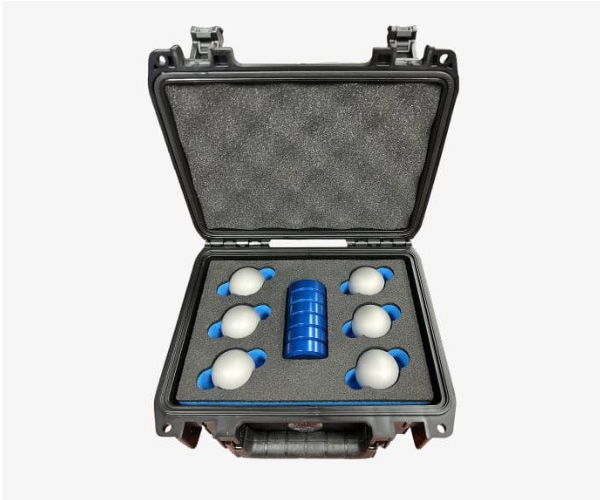

            • Matte Laser Scanner Sphere Kits

            • Kit includes:

              • (6) Anodized Aluminum Monuments
              • (6) Reference Spheres – Matte Finish
              • (1) Hard Case and Foam to Hold Contents of Kit

              Different variants available.

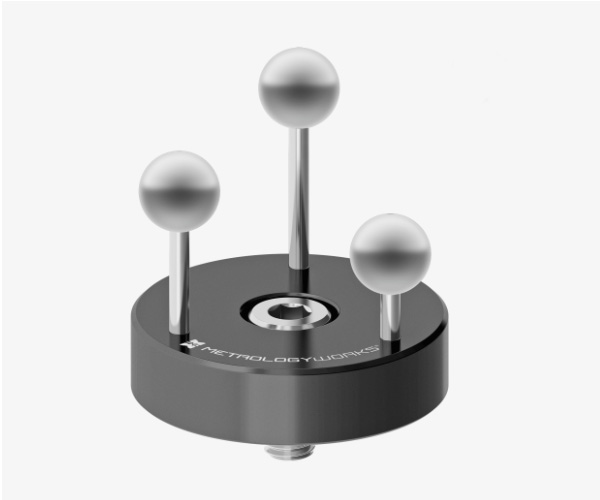

            • Certified Scanning Artifacts

              • Matte 0.5″ Stainless Steel Spheres Mounted at Different Heights
              • Countersunk Center Hole for M8 Socket Head Cap Screw
              •  Black Hard-Coat Anodized Aluminum Base
              • Includes 17025 Calibration Certificate from Independent A2LA Accredited Lab

              Different variants available.

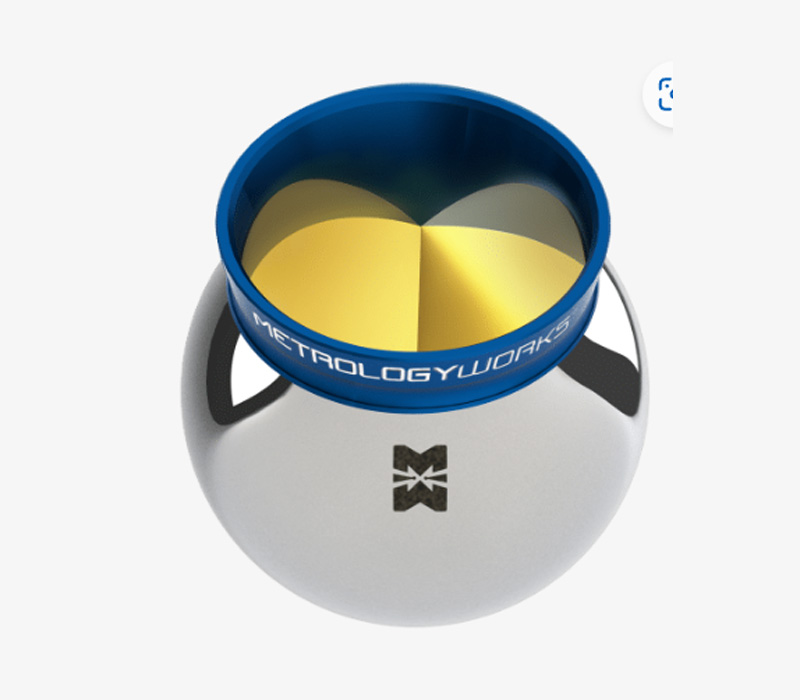

          • Laser Tracker SMR and Reflectors

            • Each MetrologyWorks Laser Tracker SMR is compatible with all major OEM Laser Tracker brands, including FARO, API, and Hexagon (Leica). We offer three different SMR styles, all of which are available in 1.5”, 0.875”, and 0.5” sizes with multiple centering accuracies so you can choose the exact SMR that best suits your application and budget. Also, nearly all of our SMR options are always in stock and available for overnight shipment. We understand that unexpected accidents can happen with SMR’s, and we are here to support you with overnight shipping to your critical laser tracker projects.

                • SMR's

                • MetrologyWorks 1.5″ Laser Tracker SMR’s are offered in a variety of styles. Most Options are In Stock and Available for Quick Shipment. Made in the USA.

                  • Glass Optic
                  • Break Resistant
                  • Solid

                  Different sizes/variants available.

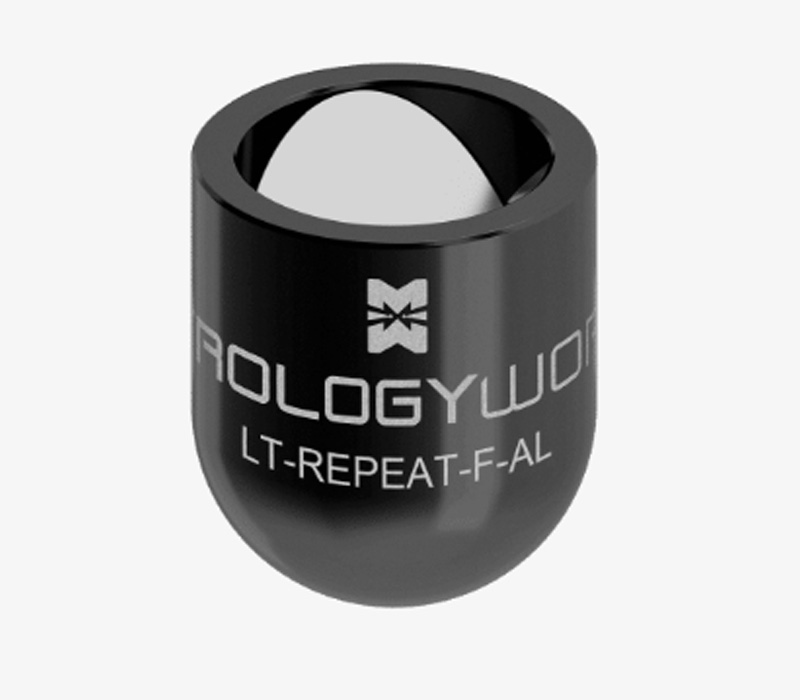

                • Repeatability Targets

                  • Anodized Aluminum Housing – Easily Glued into Place
                  • Easy-to-Clean Optic with Clear Protective Overcoat
                  • Excellent, Cost Effective Option for Drift Checks

                  Different variants available.

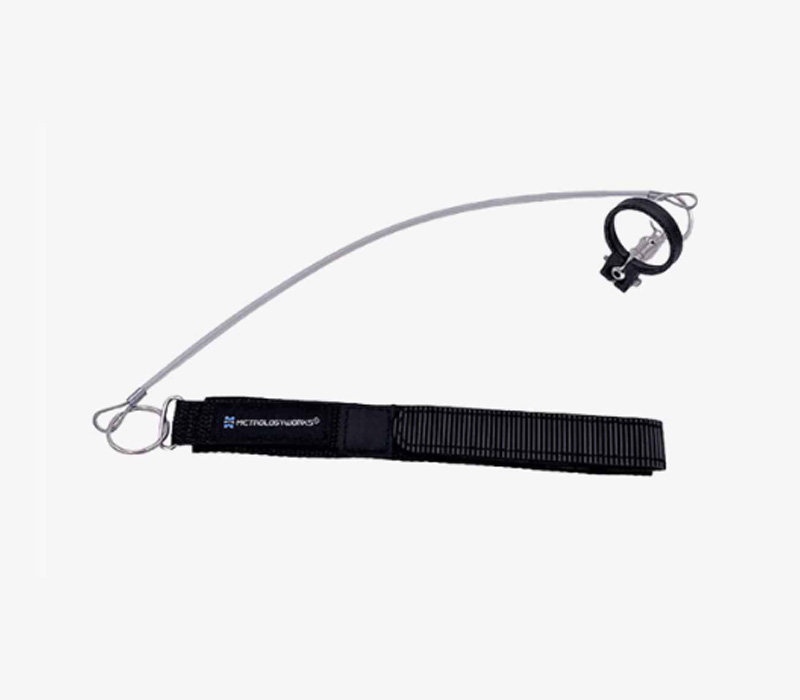

                • SMR Lanyard Kits

                • Different variants available.

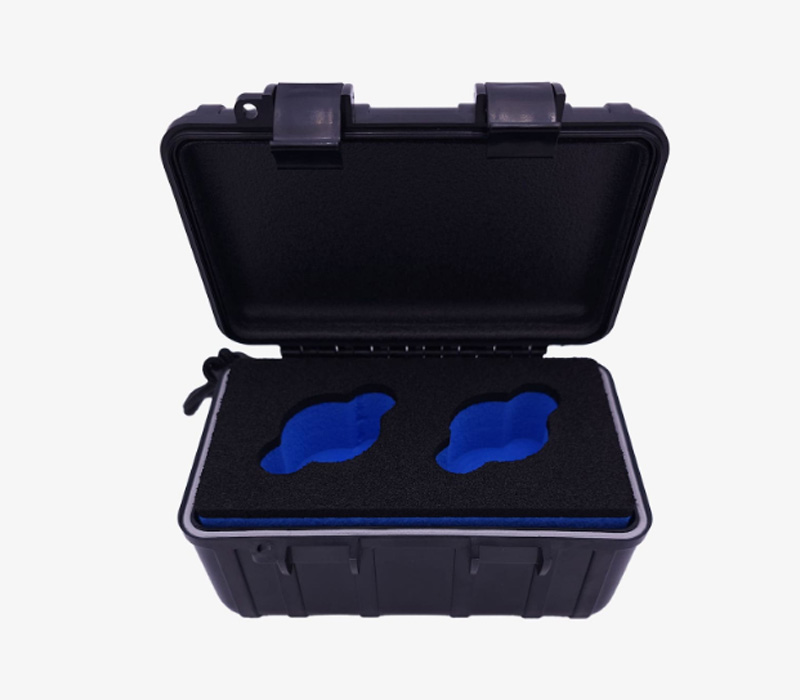

                • SMR Cases and Accessories

                • Protective cases and caps for SMR's

                  Different variants available.

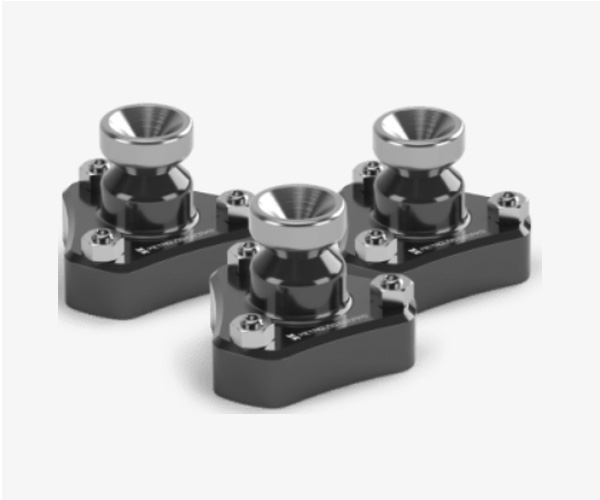

              • Laser-Tracker Tooling and SMR Nests

                • MetrologyWorks’ extensive line of laser tracker tooling ensures that you have the correct adapter to fit any laser tracker application. We stock a wide variety of standard laser tracker SMR nests, including drift nests, pin nests, flat nests, and other common adapters along with several options for tracker tooling kits. Our tracker tooling kits can be customized to match your requirements, and we can also produce many custom nests to support your SMR’s as well. Our Bullseye Laser Tracker Tooling is compatible with all OEM Laser Trackers.

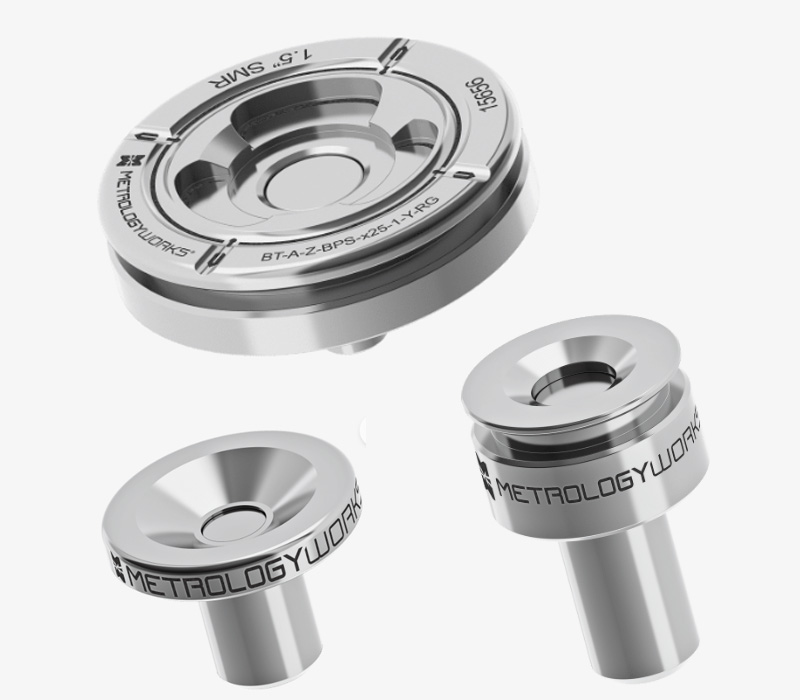

                    • SMR Nests

                      • 1.5"
                      • 0.875"
                      • 0.5"

                      Different sizes/variants available.

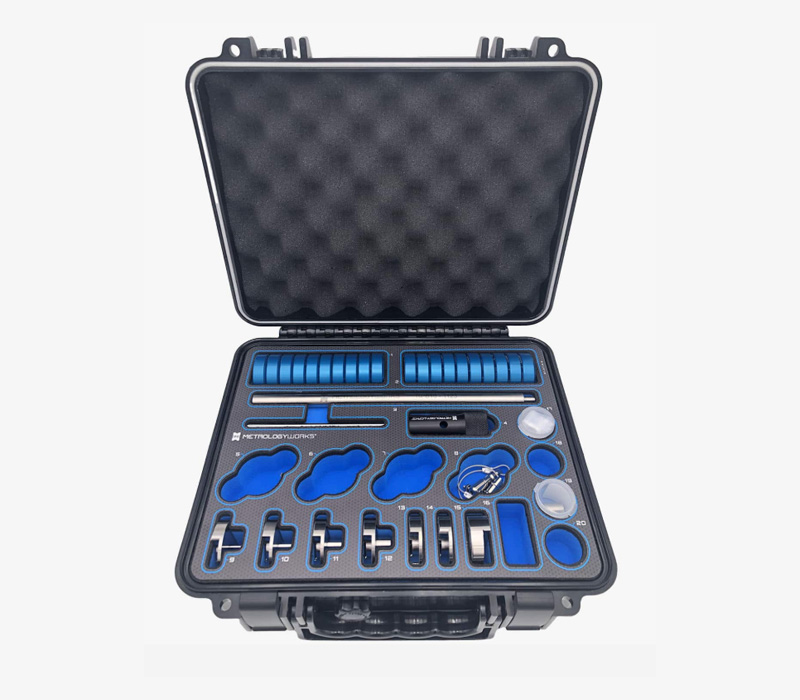

                    • Laser Tracking Tooling Kits

                    • Kit includes:

                      •  (20) Anodized Aluminum Monuments
                      • (1)Probe Seat with 1/8″ pin – 1″ Offset
                      •  (1) Probe Seat with 1/4″ pin – 1″ Offset
                      • (1) Probe Seat with 3/8″ pin – 1″ Offset
                      • (1) Probe Seat with 1/2″ pin – 1″ Offset
                      •  (1) Flat Probe Seat – 1″ Offset
                      • (1) Center Punch Seat – 1″ Offset (Includes Punch Rod)
                      • (1) Edge Probe Seat – 1″ Offset
                      • (1) 10″ Remote Point Bar
                      •  (1) Sharp Point
                      •  (1) Cone
                      • (1) Pole Adapter
                      • (1) Hard-Sided Carrying Case with Foam Insert to Hold All Pieces

                      Different variants available.

                    • Miscellaneous Laser Tracker Tooling Accessories and Adapters

                    • 1.5" ball probe seat adapters:These sphere adapters allow a 0.5″ or 0.875″ SMR to be used in a 1.5″ SMR nest.

                      Different variants available.

                    • Retroprobe Styli

                    • Compatible with FARO RetroProbe 100 and 400 Handheld Devices – for Use with FARO Laser Trackers

                      Different variants available.

                  • Portable CMM Probes and Styli

                    • MetrologyWorks can provide significant savings on your next portable CMM probe. When it comes to unique probes and accessories, we offer the largest selection of ball probes and styli for portable CMM arms on the market. This selection includes standard length rigid probe configurations as well as extended length styli with multiple ball material options, including Stainless Steel, Zircon (Zirconia), and Silicon Nitride. We stock dozens of our most popular probe options and can offer quick shipment, including Next Day Air.

                      We specialize in unique extended length, angled, and curved probe geometries to help solve your unique measurement challenges. Standard and Metric sphere sizes range from .0625” up to 1.5”, with many options in between. We also have components on hand to build hundreds of unique probe configurations within 1-2 days or quicker. If you’re unsure which probe configuration to choose for your application, our helpful, knowledgeable sales staff will assist you in identifying the best probes to enhance your measurement capabilities.

                            • Portable CMM Arm Probes

                            • Probes for FARO arms and Hexagon/Romer arms.

                              • Straight shank probes
                              • Angled probes
                              • Curved shank probes

                              Different variants available.

                            • Retroprobe Styli

                            • Compatible with FARO RetroProbe 100 and 400 Handheld Devices – for Use with FARO Laser Trackers

                              Different variants available.

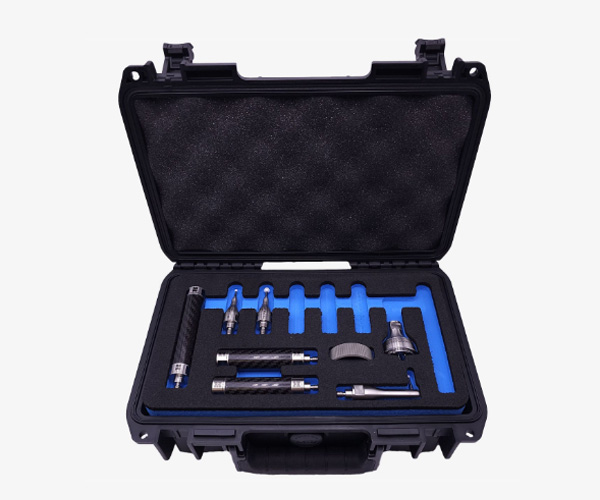

                            • FARO Arm Probe Kits

                            • Carbon Fiber Extension Kit for FARO USB Arms and Quantum arms.

                               Kit includes for FARO USB Arms:

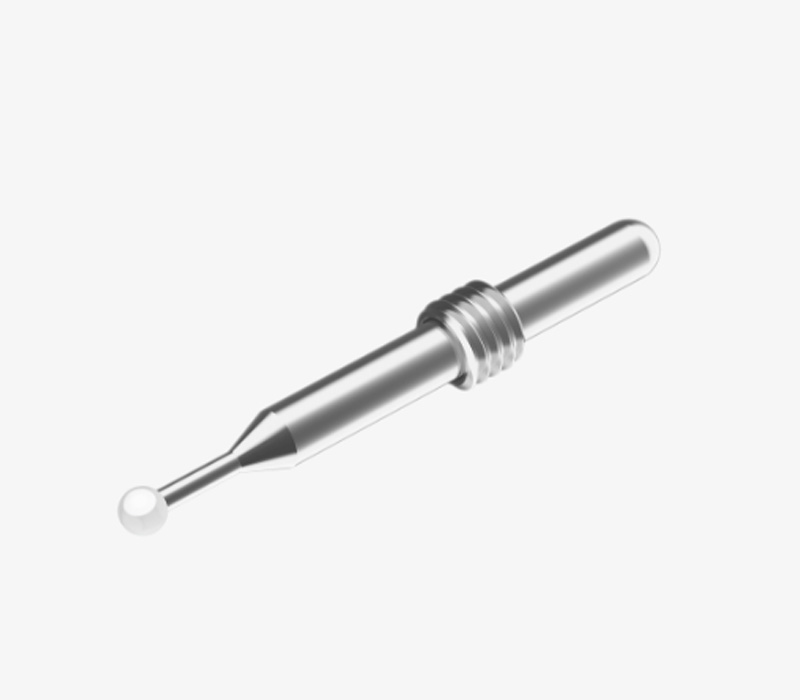

                              • (1) 3mm zircon Ball Probe (6MM Thread)
                              • (1) 90 degree 3mm zircon Ball Probe (6MM Thread)
                              • (1) 6MM Zircon Ball Probe (6MM Thread)
                              • (1) 3 Inch Carbon Fiber Extension (6mm Thread)
                              • (1) 4 Inch Carbon Fiber Extension (6mm Thread)
                              • (1) 6 Inch Carbon Fiber Extension (6mm Thread)
                              • (1) 1-1/4 to 6MM Adapter
                              • (1) Hard-Sided Case with Custom Cut Foam Insert

                              Different variants available.

                            • Probe Extensions

                            • Different variants available.

                            • Portable CMM Arm Probe Adapters

                            • Different variants available.

                          • Portable Metrology Mounting Solutions

                            • MetrologyWorks produces a comprehensive line of portable metrology mount options, which support portable arms (FARO, Hexagon/Romer, Kreon, RPS, and more), laser trackers (FARO, API, and Leica), Laser Radar (Nikon), and other Large Volume Scanners.

                              Our line of portable metrology tripods ranges from slimmer, lightweight, more budget friendly options to our ultra heavy-duty Pro Series TensionMAX models. Our Standard and Extra Tall Pro Series Tripods feature our patented TensionMAX design, which holds the tripod legs in tension and prevents the tripods from relaxing or moving once they’re set in place. Optional hard-sided wheeled cases are available for all lightweight metrology tripod models to ease transport and help protect your tripod while travelling. Our tripod models with carbon fiber integrated into the leg structure provide better vibration dampening when used with laser trackers.

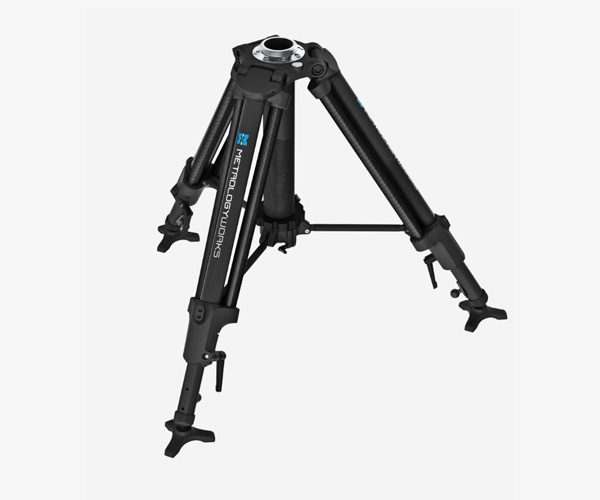

                                    • Portable Metrology Tripods

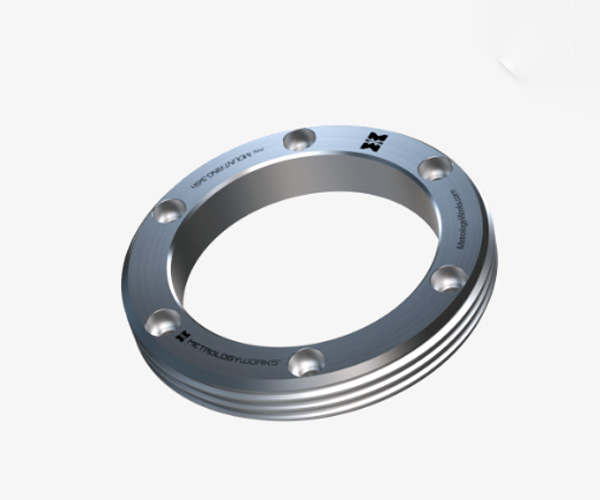

                                      • Universal 3-1/2″-8 Stainless Steel Mounting Ring
                                      • Ultra Rigid and Stable
                                      • Patented TensionMAX Design with Shoulder Hard Stops and QuickSlide Tension Nut Prevents Legs from Relaxing While in Use and Eliminates Slack or Drift
                                      • Carbon Fiber, Tri-Braced Legs Provide Rigidity and Vibration Dampening
                                      • CF-Lok Design Ensures that Carbon Fiber Will Never Separate at Shoulder or Knee Joints. This Eliminates Joint Glue Fatigue Failures Seen in Competitive Tripods
                                      • Weight: 48 lbs
                                      • Working Height Range: 29″-45″
                                      • Unique Claw/Tri-Feet Provide Stability on Rough or Uneven Surfaces
                                      • Integrated Bubble Level in Top Plate
                                      • Ships with Protective Rubber Mount Ring Cap
                                      • Optional Hard-Sided Carrying Case Available

                                      Different variants available.

                                    • Heavy - Duty Rolling Metrology Stands

                                      • Universal 3-1/2″-8 Mounting Ring
                                      • Extended Double-Locking Top Casting Provides Greater Surface Area Around Moveable Column for Added Stability
                                      • Next Generation Air Cylinder Seal Design
                                      • Removeable Top Casting and Center Column for Easy Maintenance
                                      • Foot Pedal Lock Prevents Stand from Slamming Down and Jarring Equipment While Rolling
                                      • Integrated Mount for Laptop Support Arm (sold separately)
                                      • Center Column Receiver in Base Casting for Added Rigidity, Weight, and Stability
                                      • Large 3/4″ Studs with Extended Boss to Reduce Deflection

                                      Different variants available, including extra tall stands.

                                    • Pedestal Metrology Stands

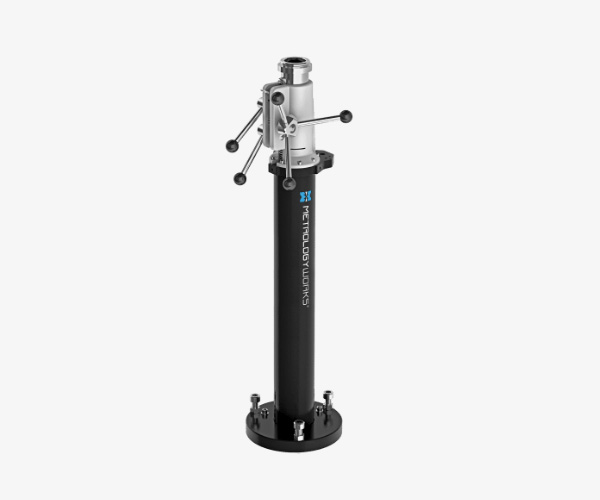

                                    • Adjustable Height Rhino Series Heavy Duty Pedestal Stands

                                      • Universal 3-1/2″-8 Mounting Ring
                                      • Extended Double-Locking Top Casting Provides Greater Surface Area Around Moveable Column for Added Stability
                                      • Next Generation Air Cylinder Seal Design
                                      • Removeable Top Casting and Center Column for Easy Maintenance
                                      • Integrated Mount for Optional Lifting Hook
                                      • Bolt-On, Rigid Base with Leveling Bolts

                                      Different variants available.

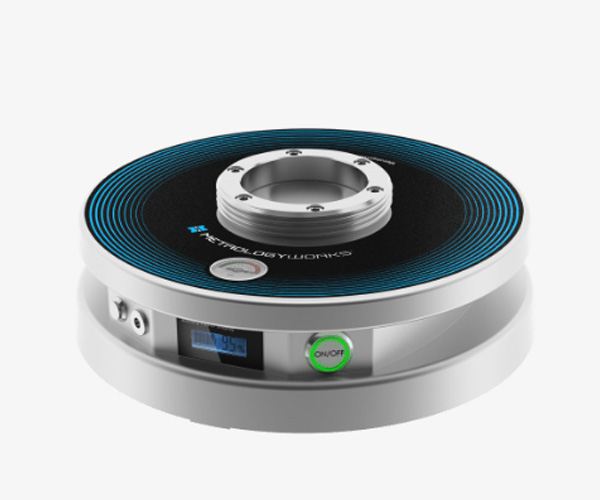

                                    • Magnetic Mounts

                                    • Magnetic and economic magnetic mounts for Portable CMM.

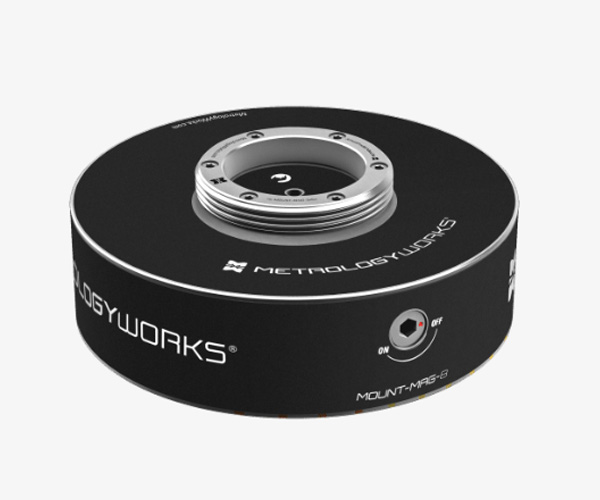

                                      8″ Magnetic Mount for Portable CMM with 3-1/2″ Threaded Ring:

                                      • Universal 3-1/2″-8 Stainless Steel Mount Ring
                                      • Smooth Ground Mount Surface on Bottom
                                      • Activated with On/Off Mechanism Using Allen Wrench (Included)
                                      • Weight: 31 lbs
                                      • Tested Vertical Pull Force: 2028 lbs
                                      • Tested Shear Pull Force: 540 lbs Protective Wrap on Top and Side Surfaces Prevents Corrosion and Rusting
                                      • Includes Hard-Sided Carrying Case with Foam Insert

                                      Different variants available.

                                    • Rolling Granite Carts and Granite Fixture Plates

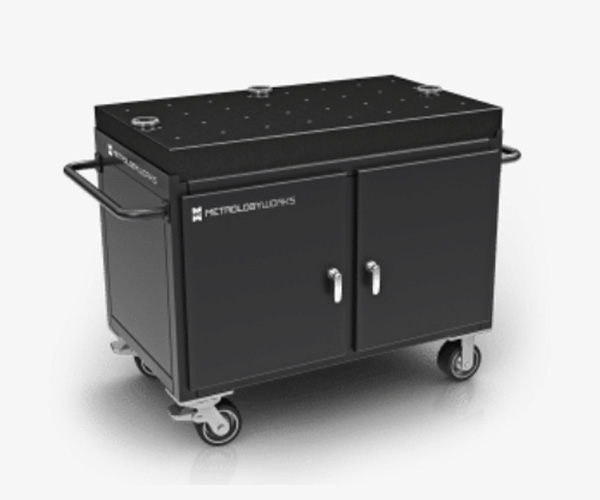

                                    • Heavy Duty Rolling Granite Cart:

                                      • 3.9″ Thick Granite Plate with M8 Threaded Inserts Spaced 150mm OC
                                      • Includes Preinstalled 3-1/2″-8 Stainless Steel Mount Rings
                                      • Black Finish on Frame, Cabinet, and Handles
                                      • Lockable Cabinet for Safe Storage of Accessories
                                      • Laptop Arm Compatible
                                      • Includes 58-Piece M8 Clamping Kit
                                      • (2) Locking Swivel Casters for Added Stability

                                      Granite Plate with M8 Threaded Inserts:

                                      • 3.9″ Thick Granite Plate with M8 Threaded Inserts Spaced 150mm OC
                                      • Includes Preinstalled 3-1/2″-8 Stainless Steel Mount Rings

                                      Different variants available.

                                    • Precisionmax Heavy Duty Steel Inspection Tables

                                      • 3/4″ Heavy Duty Precision Ground Steel Top Plate with M8 Threaded Holes – 150mm OC
                                      • Includes (2) Preinstalled 3-1/2″-8 Mount Rings
                                      • Black Powdercoat Finish on Frame
                                      • Leveling Feet Included
                                      • Laptop Arm Compatible
                                      • Compatible with Optional Magnetic Mounts and M8 Fixture Kits

                                      Different variants available.

                                    • Specialty Mounts


                                      • 90 degree mounts
                                      • Wall mounts
                                      • low profile mount base plates
                                      • Vacuum mounts

                                      Different variants available.

                                    • Tripod and Stand Extensions

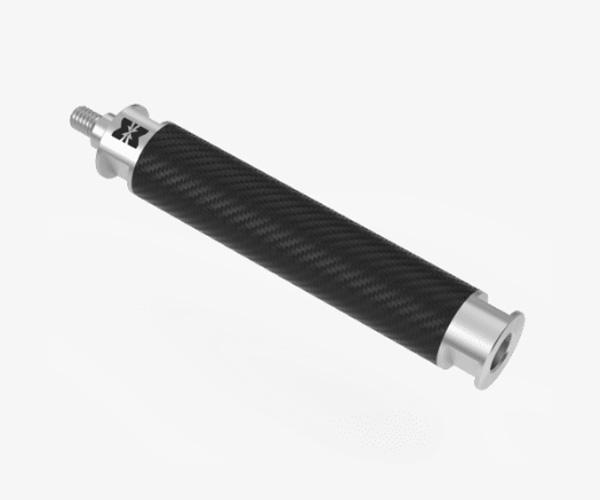

                                    • Aluminum Extension:

                                      Compatible with Portable Tripods, Rolling and Pedestal Stands, Magnetic Mounts, Rolling Granite Carts, Steel Inspection Tables, and Specialty Mounts

                                      •  Lightweight, Economical Alternative to Heavy, Cumbersome Steel Extensions
                                      • Durable Stainless Steel 3-1/2″-8 Threaded Ends (Male and Female) – Improved One-Piece Design for Male End
                                      • Through Hole in Aluminum Body for Tightening
                                      • Available Standard Lengths Range from 5″ to 72″

                                      Different variants available.

                                    • Adapters and Accessories

                                    • Adapter plates, Mount rings, and Laptop Support arms.

                                      Different variants available.

                                  • CMM Fixture Plates and Kits

                                    • In addition to our many portable CMM arm accessories, MetrologyWorks offers unique fixture plate and fixture kit options to support fixed CMM’s as well. Our fixture plates and fixturing kits are available in ¼”-20, M6, and M8 sizes. All of our fixture plates are hard coat anodized for durability and longevity. We also offer fixture kits compatible with any fixture plate brands, including MetrologyWorks.

                                      Our patented MegaLok modular fixture plates feature an exclusive, modular design to save you time and money with fixture set ups. Unlike other rail-based fixture systems, the MegaLok docking rail-based system does not limit where you are able to dock your fixture plate against the rail. The adjustable hard stops allow the MegaLok plates to be docked along the entire length of the rail, and the keystones enable multiple plates to be positioned in a wide variety of arrays that are specific to your unique parts and applications.

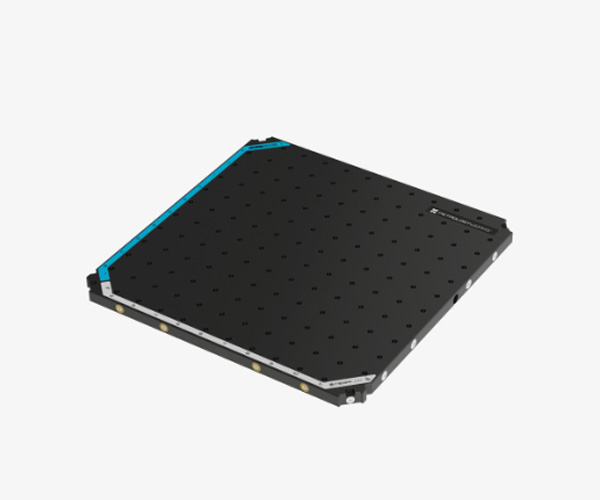

                                            • Megalok Fixture Plates

                                              • Patented Rail-Based Fixture Plate System Saves Time and Money
                                              • Hard-Coat Anodized for Durability
                                              • XLF Coating to Reduce Friction
                                              • Precision Grind Provides Excellent Finish and Flatness
                                              • Bolt-In Side Magnets Firmly Hold Plates Against Lightning Rail and Other MegaLok Plate
                                              • Adjustable Hard Stop Design Allows Plate to be Positioned Along Entire Length of Rail, Providing Greater Flexibility Than Other Rail-Based Fixture Plate Systems
                                              • Able to Be Arrayed in Various Configurations for Ultimate Customization
                                              • Keystone Allow Multiple Plates to be Arranged in L and T configurations

                                              Different variants available.

                                            • Fixture Grid Plates and Accessories

                                              • Provides Modular and Flexible Fixturing Options
                                              • Multiple Grid Plates May Be Connected Using Joint Plates
                                              • Hard-Coat Anodized for Durability
                                              • XLF Coating to Reduce Friction
                                              • Precision Grind Provides Excellent Finish and Flatness
                                              • Firmly Bolt to Mount Surface Using Retainer Plates (Not Included)


                                              Different variants available, including extra tall stands.

                                            • Fixture Plate Docking Rails

                                            • Compatible with Standard MegaLok and SpeedSwap Fixture Plates

                                              Different variants available.

                                            • Docking Rail and Fixture Plate Accessories

                                            • Different variants and accessories available.

                                            • CMM Fixture Kits

                                            • 1/4"-20 threaded fixture plate
                                              M6 threaded fixture plate
                                              M8 threaded fixture plate

                                              Clamping Kit - 124 piece

                                              Different variants available.

                                          • 3D Laser Scanner Reflective Targets, Spheres, and Tripods

                                            • MetrologyWorks is proud to introduce the ScanMAX scanning sphere system for use with large volume scanners. This unique offering provides cross platform compatibility to allow users of both large volume scanners and laser trackers to correlate their measurement data between both hardware systems. The ScanMAX base monuments allow either single bolt or three bolt mounting to the measurement surface, and their strong magnet securely holds the scanning sphere or SMR adapters in place. When used with the ScanMax Monuments, the 146.1mm diameter scanning spheres with threaded mount provide a 140mm.

                                              When used with the ScanMax Monuments, the 146.1mm diameter scanning spheres with threaded mount provide a 140mm offset from the mounting surface to the center of the sphere. The SMR adapter also provides a 140mm offset to the center of any 1.5” SMR when used with the ScanMAX monuments. This system is available for purchase individually or as a kit, which includes a hard-sided case with foam insert to protect the ScanMAX components and provide easier transport from site to site.


                                                    • 3D Laser Reflective Targets

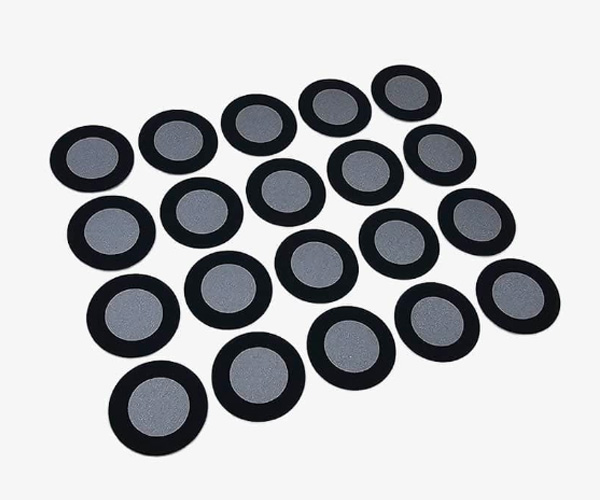

                                                    • 12MM and 6MM scanning reference Targets

                                                      3D Highly Reflective Targets With Black Mask And High Strength Adhesive – 1,000 Targets

                                                      Different variants available.

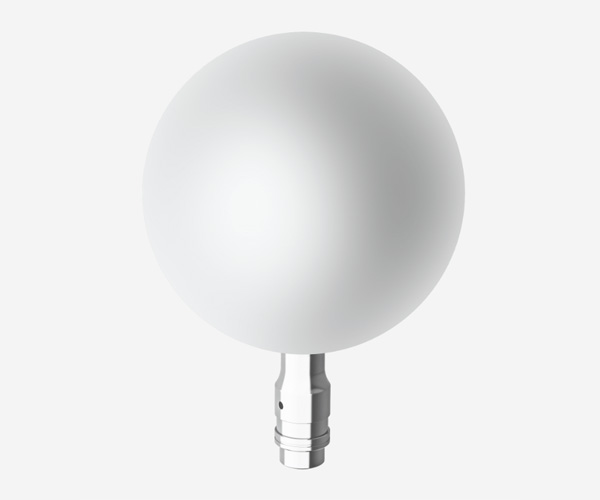

                                                    • Large Volume Scanner Reference Spheres

                                                    • ScanMAX 146.1mm Laser Scanning Reference Sphere Kit

                                                      Kit Includes:

                                                      • (6) 146.1MM (5.75″) Diameter Scanning Spheres with Stainless Steel Mounting Studs
                                                      • (6) ScanMAX Monuments – Anodized Aluminum Magnetic Receivers for ScanMAX Reference Spheres and Adapters
                                                      • (1) Hard-Sided Carrying Case with Foam Insert
                                                      • Room for Optional SMR Mount Adapter (Sold Separately)


                                                      Different variants available.

                                                    • Carbon Fiber Tripods for Laser Scanners

                                                    • Includes Mount and Soft Carrying Case

                                                      Different variants available.

                                                  • Tools and Miscellaneous

                                                    • MetrologyWorks stocks a number of support accessories for various portable CMM Arms and laser trackers. This includes power accessories such as FARO Arm batteries and power supplies and data cables for the USB family of FARO Arms as well as tools for connecting and tightening previous generation probes for FARO and Hexagon/Romer Arms.
