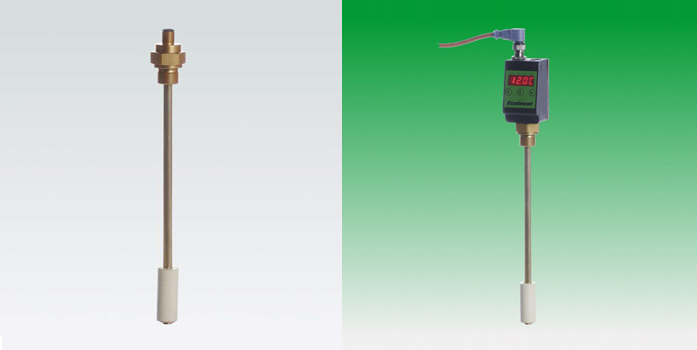

  • Ecolevel,
    a new price effective solution for the monitoring of liquid level and temperature in small oil reservoirs


Product Portfolio

  • Float switches

  • A dependable surveillance of liquid level and temperature in small power packs and oil reservoirs has been regularly considered neglectable because of too high investment cost. Particularly essential temperature measurement has been left to imprecise mechanical controllers available in the lower price segments.

    The development of the new Ecolevel series has particularly been targeted on this range of applications with the goal for an advanced technical solution at an attractive low price. This was achieved by a highly standardised design and the focus on an application specific operation frame.

    The ED version of the Ecolevel provides a modern electronic controller with digital LED display of the oil temperature. The readings can be set in °C or F. Two outputs channels can be programmed. They can be configurated either as PNP switch or as continuous frequency signal 1-100 Hz plus one PNP switch. This allows for very price effective solutions even in connection with Plc’s.

    high quality for little money, why should you care for less?

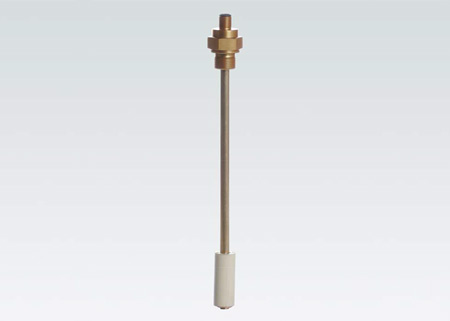

    • Ecolevel

    • Float switches
      Float switches with two fixed, bi-stable level contacts for either max/ min or low/ low surveillance. Suitable for reservoir sizes NG 10 to 60 or similar dimensions.

      • Rugged design
      • Unsinkable float made from hard PU
      • Bi-stable level contacts
      • Elastic gasket
      • Rugged metal M12 connector socket

      Immersion body
      max. operating pressure 1 bar
      operating temperature 0° C bis +80° C
      gravity of fluid ≥ 0,8 kg/dm³
      Material
      screw-in body aluminium anodized
      immersion pipe brass
      float PU (Polyurethane)
      gasket NBR
      Level contacts
      type K40
      operating pressure max. 36 V
      current max. 0.5 A
      contact load max. 5 VA
      Connector
      type M12x1
      no. of poles 4
      protection class IP67 (with appropriate connector head)
      Weight approx. 70 g at L=215mm

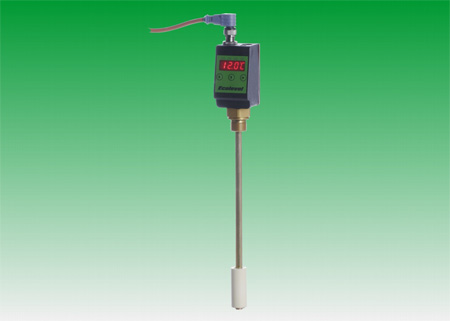

    • Ecolevel ED

    • Float switches combined with electronic Temperature controller
      Float switch with two fixed bi-stable level contacts in either max/ min or low/ low configuration with attached temperature controller. Digital LED display settable either °C or °F, two programmable output channels.

      The integrated microprocessor allows the setting of additional functions like max/ min memory, window and log book. Particularly useful is the possibility to programme one output channel as continuous frequency output 1 to 100 Hz plus one PNP or NPN switch. This allows the very economic use of the Ecolevel ED in connection with a PLC system.
      • Rugged design, glas fiber reinforced capsule
      • Digital LED display for good visibility
      • Bi-stable level contacts
      • Elastic gasket
      • Unsinkable float made from hard PU
      • Rugged metal M12 connector socket
      Immersion body
      max. operating pressure 1 bar
      operating temperature -20° C bis +80° C
      gravity of fluid ≥ 0,8 kg/dm³
      Material
      screw-in body PA
      immersion pipe aluminium anodized
      float brass
      gasket PU (Polyurethane)
      Display
      temperature display range -20°C to +120 °C (4 °F to 248 °F)
      alarm setting range 0°C to 100°C (32 °F to 212 °F)
      accuracy 1%
      resolution 0,5 °C (1 °F)
      display 4-digit 7-segment LED display
      Level contacts (Connector A)
      model 2 x PNP transistor output, free programmable
      operating voltage max. 0.5 A
      Level contacts (Connector B)
      type K40
      operating voltage max. 36 V
      current max. 0,5 A
      contact load max. 5 VA
      Connector
      type M12x1
      no. of poles 4
      protection class  IP 67
      Weight approx. 170g at L=215 m
