Product Portfolio
  • Cutting systems

      • Waterjet cutting

          • Watersonic

          • Technical Specifications:

            • X-axis 1002 mm - 6002 mm
            • Y-axis 2002 mm
            • Z-axis 200 mm
            • Max. table load 600 kg/m2
            • Positioning accuracy +/- 0.1 mm
            • Repeatability +/- 0.5 mm

            Watersonic- modern waterjet cutting systems for flexiblesingle-part and series production

            This separation process is an extremely efficient alternativeto milling and EDM processing. The method enables material and time-saving nesting of several operations with better cutting performance. Very complex shapes can be manufactured with high precision and clean cut edges without material or surfaces being deformed. Whether single or series production, this cold cutting process guarantees a low cost production with maximum precision and minimum tolerances. Cold cutting is especially important for the increasing need for production of miniaturized components. Using precision, micro waterjet technology intricate work pieces can be cut in many materials with a positioning accuracy of 0.0025 mm and within the tolerance range of + / - 0.01 mm.

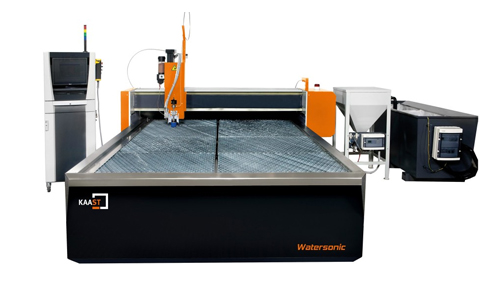

            Watersonic - The waterjet cutting system

            • Welded, corrosion-resistant aluminum frame with gantry
            • Guideways and drive systems are reliably protected against water and abrasive dust
            • Brushless servo motors
            • Stainless steel tank with adjustable water level
            • Segmented cutting supports
            • Full High-Pressure piping up to 12 meters between the high pressure pump and cutting table
            • Protection of the work area by light barriers according to the EU-Directive

            A wide range of materials can beprocessed

            • Steel / stainless steel, alloyed and non alloyed, heat resistant alloys, titanium, aluminum, copper, bronze
            • All kinds of stone: granite, marble, ceramic, concrete
            • Glass, acrylic, bullet proof glass, security glass and plexiglass
            • Art and foams
            • Carbon, carbon fiber and glass fiber
            • Gaskets, rubber, fabric, leather
            • Wood, cardboard, etc.

            Advantages of the abrasive water jet Cutting Technology:

            • Environmentally friendly technology, no toxic cutting gases
            • “Cold Cut” - no work hardening and microstructural changes
            • No mechanical loading / torsion on the workpiece
            • Cutting complex contours possible
            • High-precision machining for excellent cutting results
            • Quick setup of the workpiece
            • Low noise levels
            • Optimal use of the material
            • Flexible and economical production of individual parts and series

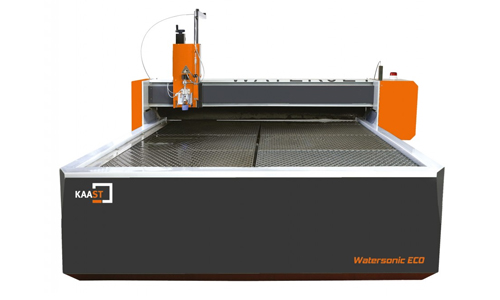

          • Watersonic ECO

          • Technical Specifications Watersonic ECO:

            • X-axis 1002 mm - 3002 mm
            • Y-axis (bridge) 1002 - 1502 mm
            • Z-axis 200 mm
            • Max. table load 600 kg/m2
            • Positioning accuracy ± 0.2 mm
            • Repeatability mm ± 0.15

            Watersonic is state-of-the-art waterjet cutting.
            • Our Waterjet is ideal for short-run production, just-in-time manufacturing, tooling, and prototype part development. It requires no tool changes or complex fixturing, so you can reduce setup times by at least 50%
            • The high edge quality often eliminates the need for secondary machining but when required, the lack of heat affected zone speeds processing. As a result, waterjet cutting system can dramatically increase your profitability
            • A solid and rust-free construction of aluminium and stainless-steel, coupled with first-class components, ensures long-lasting low maintenance production
            • Virtually any material can be cut with this high pressure 4000 bar (58,000 psi) waterjet technology

            Advantages of waterjet cutting

            • Eco-friendly cutting, no toxic gases or vapours
            • "Cold" cut - no heat affected zone
            • No mechanical stresses or distortions
            • High cutting quality and precision
            • Ideal for complicated contours
            • Rapid set-up, no tool changes are required
            • No burrs
            • Efficient use of material
            • Flexible and economic production of components and prototypes

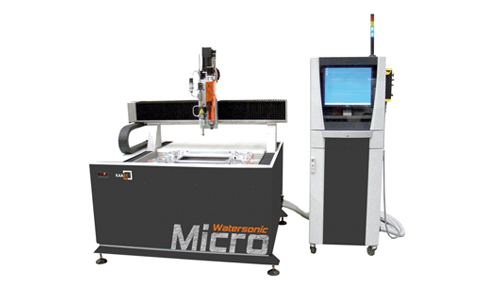

          • Watersonic Micro

          • Technical Specifications Micro 0705:

            • X-axis 700 mm
            • Y-axis 500 mm
            • Z-axis 150 mm
            • Max.Rapid feed 10 m/min
            • Repeatability ± 0.01 mm

            A compact water jet cutting system, which is suitable for micro-jet cutting and thus for the production of very small components. Ideal for limited floor space and the need for maximum precision with minimal noise and pollution.

            Ball screw spindles ensure high precision and perfect cutting results, which speak for themselves.
        • Plasma cutting

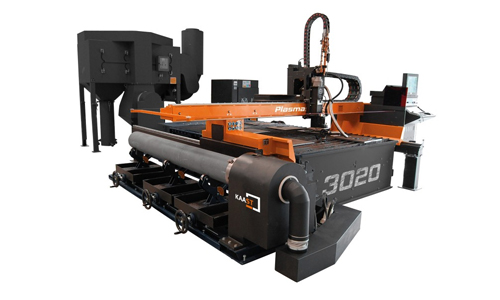

              • Plasmasonic

              • Technical Specifications:

                • Table length 3000 mm - 12000 mm
                • Table width 2000 mm - 3000 mm
                • Cutting speed 7500 mm/min 9800 mm/min
                • Positioning speed 15000 mm/min
                • Repeatability ± 0.05 mm

                Cut, write, mark and perforate - all with one machine

                Plasmasonic series meets the highest standards of productivity, reliability and automation.

                Through advanced CNC control, with automatic tool addressing the parameter database, various technologies, such as Plasma or flame cutting / gas cutting in conjunction with pipe cutting and weld preparation are combined.

                • The design of the system ensures its smooth operation, even under tough conditions
                • Magnetic holder of the cutting head allows rapid change and in the case of collision avoids damage to the cutting head.
                • Multiple head-operation of plasma cutting units and oxy-acetylene cutting heads optional. The controller allows the use of up to 4 cutting head-carriers (plasma and oxy-acetylene cutting heads with independent height adjustment), in any combination
                • Dual AC servo motors precisely drive the bridge double-sided, which means no lag error
                • User-friendly control panel allows not only the engine but also its source of power, suction and filtration system to be monitored centrally
                • Plasma cutting machines, which are equipped with our precision fine beam plasma generators are able to combine the highest cutting quality with low wearing parts. The fine-beam generators PP (Precision Plasma) ensure a very fast piercing and high cutting speeds, in an unusually clean and almost rectangular cutting edge
                • Our plasma cutting machines are equipped with an automatic CNC-controlled gas mixing console (PP 130 and PP 260), marking (PP 130 and PP 260), cutting table equipped with sectional suction, suction unit and particulate filter system
                • Furthermore, the flat bed machines are combined with a pipe cutting device
                • Optional bevel cutting unit for 5th axis operation to produce quick and accurate welding grooves
          • Laser cutting

              • Fiberlaser 3015G

              • Technical Specification Fiberlaser 3015G:
                • Cutting range (X-axis, Y-axis) 3020 mm x 1510 mm
                • X/Y/Z-axis stroke 3020 mm / 1510 mm / 240 mm
                • Positioning accuracy of the X/Y-axis ±0.03 mm/m
                • X/Y-axis worktable with repeated positioning accuracy ±0.02 mm/m
                • Max. traversing speed 169 m/min
                • Max. impulse 2.0 g
                • Weight 8.8 t

                Features
                • Rexroth/Aventics brand, best quality and stability
                • Honeycomb structure machine tool
                • Intelligent dust exhaust system
                • Raytools cutting head
                • Servo motor system with excellent performance, easy operation, and long life span
                • Gear and Rack
                • Fluid Chiller
                • Automatic lubrication system

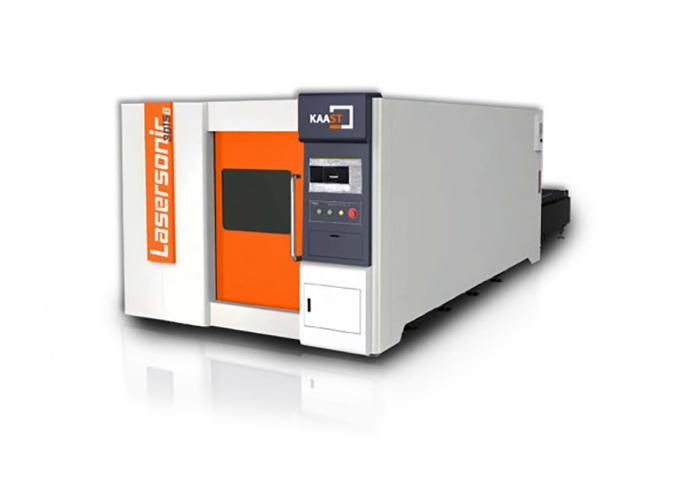

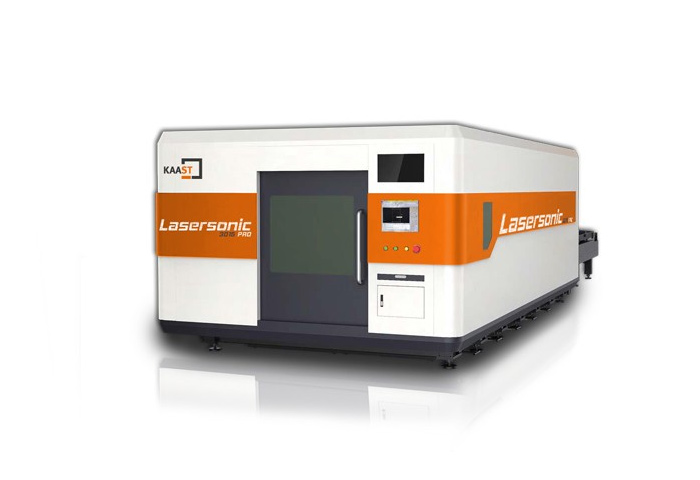

              • Lasersonic

              • Technical Specifications: Lasersonic 1010 2512 3015:

                • X 1000 mm 2550 mm 3050 mm
                • Y 1000 mm 1275 mm 1525 mm
                • Z 80 mm 80 mm 80 mm
                • Max. work feed 20 m/min
                • Max. positioning speed 60 m/min
                • Positioning accuracy 0.05 mm (per 500 mm)
                • Repeatability ±0.025 mm

                Lasersonic

                • Extremely sturdy and heavy machine construction in a flying bridge design
                • Robust rack and pinion drive
                • A two mirror beam control system provides constant beampower over the entire operating range
                • Integrated material database for various materials, such asfilm-coated stainless steel, MDF, acrylic, etc.
                • Adjustable laser power - Automatic height control of the Z-axis with capacitive Precitec sensor
                • HP-cutterhead: Presitec Type HP 1.5°
                • Optimal line speed, even for fine contours and tight radius
                • The work area is protected according to CE safety standards
                • CNC controlled multi-chamber exhaust system
                • Reliable Siemens 840D CNC control
                • The pressurized beam guidance system prevents the absorption of CO2 and dust by the laser beam

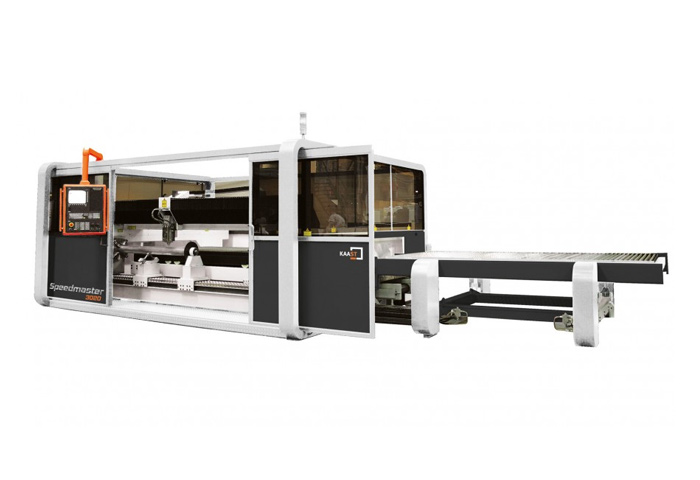

              • Speedmaster

              • Technical Specifications Speedmaster 2512 3015 3020 4020
                • X 1250 mm - 2000 mm
                • Y 2500 mm - 4000 mm
                • Z 80 mm - 80 mm
                • A endless - (optional axis of rotation 360°)
                • Max. work feed 40 m/min
                • Max. positioning speed 150 m/min
                • Max. speeding up 15 m/sec2
                • Positioning accuracy ± 0.005 mm
                • Repeatability ± 0.025 mm

                Traversing speed 150 m/min! high cutting accuracy and smooth contours combined with modern linear motors

                • Modular construction with small, highly functional footprint
                • Cutting of various metallic materials such as steel alloys, carbon steels, titanium and bronze
                • Integrated laser power control
                • CO ² slab laser technology combines reduced gas consumptation with low maintenance
                • Beam guidance via two mirrors provides stable cutting operation over the entire operating range
                • High traveling speed -150 m / min
                • Оptional: RTX - pipe cutting device. This can be placed lateral to the workstation. This allows cutting tubes and profiles in the diameter range from 20 to 250 mm. Machining length: Ø20-105 mm - 6 m, Ø105 -250 mm - 3 m
                • High-performance Siemens 840D CNC control
                • Non-contact cutting head Precitec HP 1.5 "
                • Easy accessibility to the work area of the system for maintenance
                • Progressive lens cooling system
                • Complete protection from scattered radiation by sealed beam guide ways
                • High machining precision and traversing the cutting of any 2-D contours
                • Hydraulic pallet clamping fixtures
                • Partial CNC extraction of fumes
                • Possible integration of welding work
                • Optional pallet-shuttle system
                • Low energy consumption
                • Easy maintenance
                • Lower service costs
              • Tubemaster

              • Technical Specifications Tubemaster 110 DC015:

                • X 7000 mm (optional: 13000 mm)
                • Y 350 mm
                • Z 120 mm
                • A1 360°
                • A2 360°
                • Max. positioning speed: X 120 m/min - Z 60 m/min
                • A1, A2 0-120 rpm
                • Working height ±1000 mm
                • Max. load capacity 30 kg/m
                • Workpiece length 3500-7000 mm (optional: 13000 mm)
                • Positioning accuracy in X, Z axes ± 0.01 mm
                • Positioning accuracy in Y-axis ± 0.05 mm
                • Repeatability ± 0.025 mm

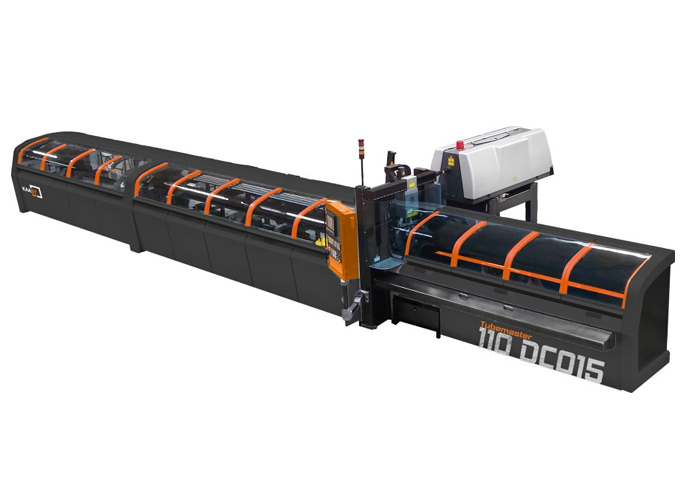

                Tubemaster

                • Machine frame is a compact, stress-relieved weldment
                • The system is designed specifically for 3 or 4 axis laser tube processing. The system allows pipes up to 110mm, square profiles to 80x80mm, with a max length of 7000 mm (optional up to 13000 mm). Automatic loading, positioning and cutting
                • Machining of tube profiles of different cross-sections (round, square, rectangular, oval, etc.)
                • Processing of tubes with a wall thickness of 1 to 5 mm and a diameter range of 20 to 110 mm
                • Max tube diameter - 600 mm
                • The machine axes are driven by Siemens servo motors and preloaded ball screws. The drive of the tube linear transport is a rack and pinion with helical teeth
                • 5 lifting areas with lifting belt
                • Pneumatic tube lifter
                • Tube loading magazine


                150-fold your savings of CO2 slab laser with the conventional laser technology!

                • CO2 Slab laser makes conventional gas circulation systems, such as Roots pumps and turbines, superfluous. The built-in laser head premix gas bottle is enough for about 12-18 months of continuous use. Consumption only 0.2l / h instead of the previous 30 l / h
                • Energy savings due to no blowers
            • Milling

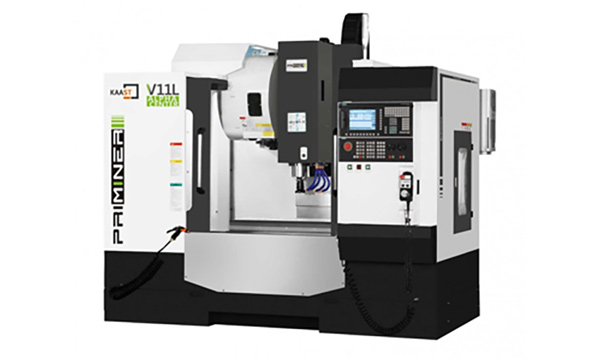

                • CNC vertical machining center

                    • Alpha-Center CC

                    • Technical specifications Alpha-Center CC 800 - 2000:

                      • X-axis travel 815 mm - 2060 mm
                      • Y-axis travel 540 mm - 850 mm
                      • Z-axis travel 560 mm - 815 mm
                      • Distance spindle-table 75-635 mm 100-915 mm
                      • Positioning accuracy ±0.005 mm
                      • Repeatability ±0.003 mm

                      Flexible all-rounder with an unbeatable price-performance ratio

                      In the Alpha Center CC series are vertical machining centers which are designed on the basis of the Alpha Center HP. Within a certain range, relative to the spindle speed, 3D machining can even be carried out.

                      THK NR type linear guides for heavy processing, high axial load capacity and rapid movement

                      High-precision guides, ideal for fast speeds and high positioning accuracy and repeatability

                      The ideal dynamic properties of the type NR and resistance to vibrations and shock loads are the preferred parameters for use in machine tools. Compared to roller bearing guides the static load ratings are higher, although the type NR has a more compact design

                      The high-quality MEEHANITE cast
                      ensures a long-lasting stability and accuracy. Each Alpha Center cast frame has been tested in the production of authorized Meehanite foundries and logged
                    • Alpha-Center HD

                    • Technical specifications Alpha-Center HD 1400 - 3000:

                      • X-axis travel mm 1400 - 3050
                      • Y-axis travel mm 720 - 1060
                      • Z-axis travel mm 650 - 990
                      • Positioning accuracy mm ±0.005
                      • Repeatability mm ±0.003

                      Heavy cast iron design, precise guideways, high-performance gear designed for heavy machining

                      Machinery construction

                      All guideways are precision ground and hardened. The Y-axis has a 4 guideways. The ball screw mounts, as well as the axis motor flanges are an integral part of the casting which ensures an extremely rigid and precise axle movement, even for workpieces weighing up to 4.5 t

                      2-speed gears

                      The 2-speed gearbox is controlled by M-function. A headstock temperature control system guarantees no expansion of the main spindle unit, even after intensive heavy machining.
                    • Alpha-Center HP

                    • Technical specifications Alpha-Center HP 760 - 2060:
                      • CNC controller M 70
                      • X-axis travel mm 762 - 2060
                      • Y-axis travel mm 435 - 850
                      • Z-axis travel mm 520 - 815
                      • Positioning accuracy mm ±0.005
                      • Repeatability mm ±0.003

                      Thermal stability by 3 separate cooling circuits

                      The high-performance cooling system ensures optimum temperature stability of the main spindle (cooling circuit 1 & 2) and in parallel with circuit 3, it prevents a heat transfer of the main motor to the spindle. This innovative system ensures constant temperature conditions and high-precision milling.

                      KTR coupplings

                      In all machines of the new Alpha Center series quality ROTEX ® GS KTR couplings are used.

                      Coupling description

                      ROTEX ® GS is a three-part, free of play under pretension, axial plug coupling. For critical applications they offer backlash-free torque transmission with rigidity and vibration damping.

                      All machining centers measured by VDI DGQ 3441 and compensated Even a QC 10-circle shape is done
                    • Alpha-Center Junior

                    • Technical specification Alpha-Center Junior 550 - 760:
                      • CNC M 70
                      • X-axis travel mm 550 - 762
                      • Y-axis travel mm 410
                      • Z-axis travel mm 460
                      • Positioning accuracy mm ±0.005
                      • Repeatability mm ±0.002 - ±0.003

                      Compact, strong and economical

                      • The Alpha-Center Junior Series is a full-fledged entry level model, for dimensionally smaller work pieces
                      • Complete with a Mitsubishi M70 control. Based on performance and spindle speed, 3D models can be produced
                      • All axes are linear ball guided. Also operation of NC rotary tables or 4 - 5 axes is possible

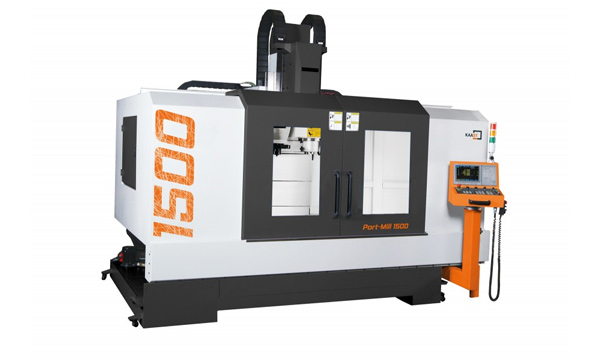

                    • Port-Mill 550 · 700 · 1000 · 1500 · 1800 · 2200

                    • Technical specification Port-Mill 550 700 1000 1500 1800 2200:

                      • X-axis travel mm 550 - 2200
                      • Y1-axis travel mm 600 - 1300
                      • Z-axis travel mm 500 - 600
                      • Distance spindle nose-table mm 145-645 235-735 200-700 150-750
                      • Table dimensions mm 700x600 850x600 1700x800 1800x1200 2200x1200
                      • Spindle taper BT 40/HKS-A 63
                      • Spindle speed rpm 10.000 (optional 15-24.000)

                      Milling centers with extremely heavy gantry design for high quality milling, even when processing difficult materials

                      Innovative closed bridge construction

                      High stability, even under heavy milling loads


                      The closed bridge construction combined with extra strong linear guides, ensures high stability throughout the entire milling process. This results in high accuracy of the machined work pieces.

                      Targeted for extra heavy cutting roller linear guides from SCHNEEBERGER on the X-, Y- and Z-axis offer capacity 3.5-6 times higher than conventional guideways

                      Spiral chip conveyor on both sides of the machine

                      Two spiral chip conveyors located on both sides of the machine bed, transport the chips to the front of the machine to a chain chip conveyor

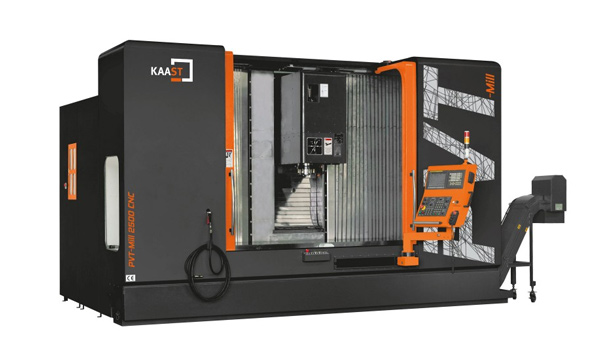

                    • PVT-Mill 2500 • 3500 CNC

                    • Technical specifications PVT-Mill 2500 CNC - PVT-Mill 3500 CNC:

                      • X-axis travel 2200 mm - 3200 mm
                      • Y-axis travel 620 mm - 720 mm
                      • Z-axis travel 620 mm - 620 mm
                      • Spindle speed BT40: 75–10000 rpm (optional: BT 50: 75–6000 rpm)
                      • Table load capacity 1800 kg - 2500 kg
                      • Motor-spindle power BT 40: 11 / 15 kW (optional: BT 50: 15 / 18.5 kW
                      • Positioning accuracy ±0.005 mm
                      • Positioning repeatability ±0.002 mm

                      PVT-Mill

                      • Machine with highly rigid bed made of Meehanite GA 350 cast iron and bed-type fixed-position table. Heat-treated and stabilized crystal structure of the castiron.
                      • Fixed-position table length of 2500 mm and heavy-duty supporting structure. The max. load capacity of the table is1800 kg. Machine's working envelope length is 2200 mm.
                      • Movable column with high-precision linear guideways in 3 axes ensuring rapid traverse speeds up to 32 m/min.
                      • It can also be equipped with optical linear scales for better positioning accuracy and contouring, up to 0.005 mm.
                      • The machine is equipped with an automatic tool changer installed on the column side. The tool magazine is located in the X-axis, thus lying outside of the table working envelope. Such an arrangement prevents the tool system from colliding with large-workpieces.
                      • The machine can be fitted with through-spindle coolant (20 bar) for machining deep holes, improved surface machining and better accuracy.
                      • The standard machine configuration includes a 32-pos. tool magazine. Additionally, it can be equipped with a 40-pos. tool magazine (optional).
                      • High-precision spindle with 8000 rpm.
                      • It is also possible to equip the machine with a spindle running on P4 Class high-precision ceramic bearings with 10.000 or 12.000 rpm. This makes the machine ideally suited for 3D machining of molding and press tools.
                      • The coolant filtration system with filter mesh size of 0.02 mm. It serves to prevent the high-pressure pump from dirt ingress and clogging.
                      • Around-spindle coolant supply system: 6 adjustable supply nozzles around the main spindle.
                      • The machine is equipped with a coolant gun and an air pistol for rinsing and air-purging of the working area.
                      • Automatic lubrication system with level warning and failure alarm.

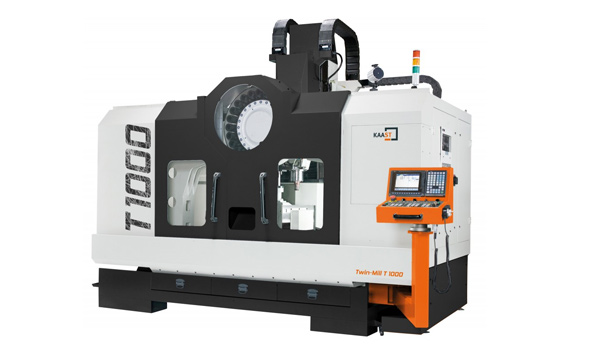

                    • Twin-Mill T 500 • 700 • 1000

                    • Technical specifications Twin-Mill T 500 - T 1000:
                      • X-axis travel mm 500 - 1000
                      • Y1-axis travel mm 600
                      • Y2-axis travel mm 600
                      • Z-axis travel mm 500
                      • Distance spindle-table mm 150-650 200-700 200-700
                      • Table dimensions mm (700x600)x2 (850x600)x2 (1200x600)x2
                      • T-slots mm 30x12x18
                      • Spindle taper BT 40
                      • Spindle speed rpm 8000

                      Machining centers, in massive gantry design, with two separate desks for simultaneous loading during machining

                      Machine frame made ​​from high-grade Meehanite cast iron for many years of superior processing, accuracy and reliability.
                      High speeds additional accessories for further automated, will increase your productivity

                    • VF-Mill ECO 1000

                    • Technical specifikations VF-Mill ECO 1000:

                      • CNC Siemens 828D Basic
                      • Table size mm 1100 x 500
                      • T-slot (width x number x distance) mm 18 x 5 x 100
                      • Max. table load kg 600
                      • X/Y/Z travel mm 1020 / 520 / 550
                      • Max. tool diameter (without adjacent tool) mm 80 / 120 (next release)
                      • Max. tool length mm 300
                      • Max. tool weight kg 8
                      • Rapid traverse m/min 30 (opt. 48)
                      • Positioning accuracy mm ±0.005 / 300
                      • Repeatability mm ±0.005
                      • Dimension mm 2850 x 2175 x 2850
                      • Weight kg 5500

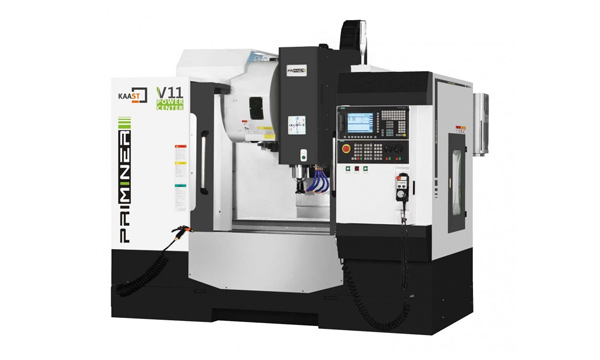

                    • VF-Mill ECO 1100

                    • Technical specifications VF-Mill ECO 1100:

                      • CNC control Siemens 828D Basic inkl. Shopmill
                      • Table size mm 1200 x 550
                      • T-slot ( width x number x distance) mm 18 x 5 x 100
                      • Max. table load kg 800
                      • X/Y/Z Travel mm 1100 / 550 (600 opt.) / 600
                      • Max. tool weight kg 8
                      • Rapid traverse m/min 36
                      • Working feed mm/min 1-12.000
                      • Positioning accuracy mm ±0.005 / 300
                      • Repeatablillity mm ±0.005
                      • Dimension mm 2700 x 2310 x 2900
                      • Weight kg 6800

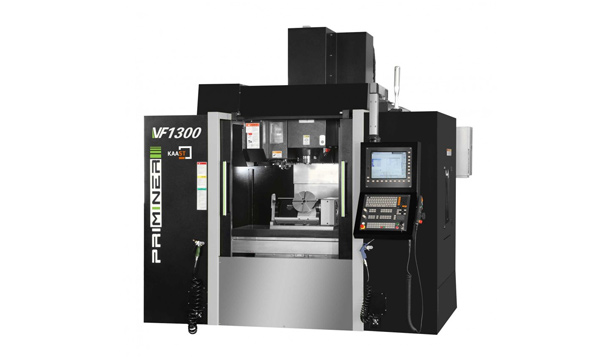

                    • VF-Mill ECO 1300

                    • Technical spicifications VF-Mill ECO 1300:

                      • Max. table load kg 1000
                      • X/Y/Z Travel mm 1300 / 600 / 600
                      • Spindle-to-table distance mm 130 - 730
                      • Max. tool weight kg 8
                      • Rapid traverse m/min 24
                      • Working feed mm/min 1-12.000
                      • Positioning accuracy mm ±0.005 / 300
                      • Repeatablity mm ±0.005
                      • Dimension mm 3000 x 2310 x 2950
                      • Weight kg 7200

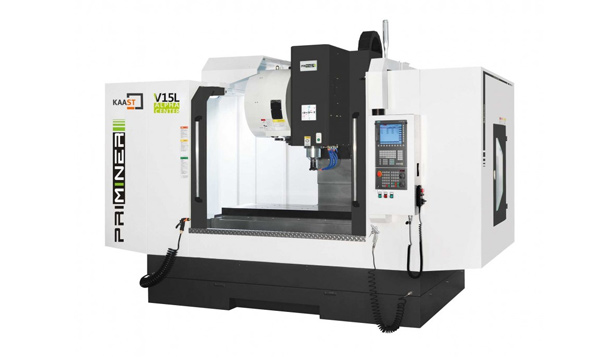

                    • VF-Mill ECO 1500

                    • Technical specifications VF-Mill ECO 1500:

                      • Max. table load kg 1200
                      • X/Y/Z Travel mm 1500 / 760 / 670
                      • Spindle-to-table distance mm 100 - 770
                      • Max. tool weight kg 8
                      • Rapid traverse m/min 24
                      • Working feed mm/min 1-12.000
                      • Positioning accuracy mm ±0.005/300
                      • Repeatability mm ±0.004
                      • Dimension mm 5455 x 2640 x 3100
                      • Weight kg 8500

                      VF-Mill ECO

                      • High-quality HWIN linear guide in all axes
                      • (roller version)
                      • Heavy Mehanitee cast body for optimal
                      • vibration damping
                      • Ball screw drive of precision class 3
                      • Powerful main spindle, 10,000 rpm BT or ISO 40

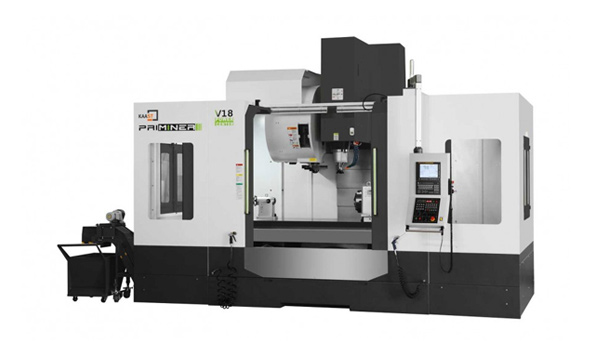

                    • VF-Mill ECO 1580 Strong • 1890 Strong

                    • Technical Specifications VF-Mill 1580 - 1890:


                      • Table size mm 1700 x 800 1900 x 900
                      • T-slot (width x numberl x distance) mm
                      • 22 x 5 x 135 18 x 7 x 120
                      • Max. table load kg 2000 3000
                      • X/Y/Z Travel mm 1500/800/700 - 1800/900/700
                      • Max. tool diameter mm 120 / 250
                      • Max. tool weight kg 15
                      • Positioning accuracy mm +/- 0.005 / 300
                      • Repeatability mm 0.005
                      • Weight kg 13500 71500
                    • VF-Mill ECO 600

                    • Technical spicifications VF-Mill ECO 600:

                      • Table size 750x400 mm
                      • Max. table load 350 kg
                      • X/Y/Z travel 600 / 400 / 450 mm
                      • Spindle-to-table distance 80-530 mm
                      • Spindle-to-column distance 434 mm
                      • Spindle motor 7 / 15 kW
                      • Spindle speed 10.000 rpm
                      • Possitioning accuracy ± 0.005/300
                      • Repeatability ± 0.004 mm
                    • VF-Mill ECO 850 Strong • 1155 Strong

                    • Technical specifiations VF-Mill ECO 850 - 1155:

                      • Table size mm 900 x 500 1200 x 550
                      • T-slot (width x number x distance) mm 18 x 5 x 100
                      • Max. table load kg 600 800
                      • X/Y/Z Travel mm 800 / 500 / 550 1150 / 550 / 520
                      • Max. tool weight kg 8
                      • Positioning accuracy mm +/- 0.005 / 300
                      • Repeatability mm 0.005
                      • Weight kg 5000 7000

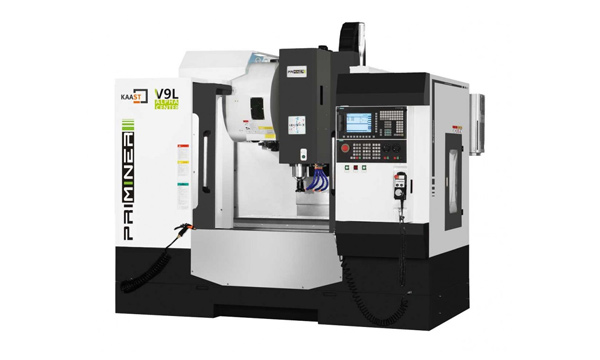

                    • VF-Mill ECO 900

                    • Technical specifications VF-Mill ECO 900:

                      • CNC control Siemens 828D Basic inkl. Shopmill
                      • Table size mm 1000 x 500
                      • T-slot (width x number x distance) mm 18 x 5 x 100
                      • Max. table load kg 650
                      • X/Y/Z Travel mm 900 / 550 / 600
                      • Max. tool diameter mm 78 / 120
                      • Max. weight kg 8
                      • Rapid traverse m/min 36
                      • Cutting speed mm/min 1-12.000
                      • Positioning accuracy mm ±0.004 / 300
                      • Repeatabilility mm ±0.003
                      • Weight kg 6000

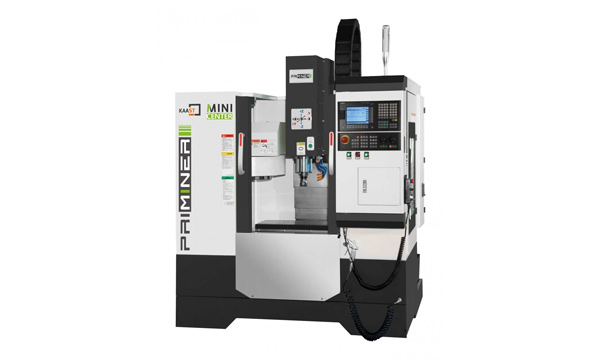

                    • VF-Mill ECO Mini

                    • Technical specifications VF-Mill ECO Mini:

                      • Table size mm 650x300
                      • T-slot (Width x number x distance) mm 14x3x100
                      • Max. table load kg 200
                      • Travel X/Y/Z mm 500/300/400
                      • X/Y/Z motor power and torque kw/Nm X/Y:1.4/6 Z:1.9/7.7
                      • Positioning accuracy ± 0.008/300
                      • Repetability ± 0.007
                      • Weight kg 1800
                    • VF-Mill HP 760 • 1165 • 1365

                    • Technical specifications VF-Mill HP 760 - HP 1365:

                      • Table size mm 900 x 420 1300 x 600 1500 x 650
                      • T-slot (width x number x distance) mm 14 x 3 x 125 18 x 5 x 100
                      • Max. table load kg 350 800 1000
                      • X/Y/Z Travel mm 762 / 450 / 520 1100 / 650 / 600 1300 / 650 / 600
                      • Cutting speed mm/min 12.000
                      • Positioning accuracy mm ±0.003 / 300
                      • Positioning repetability mm 0.003

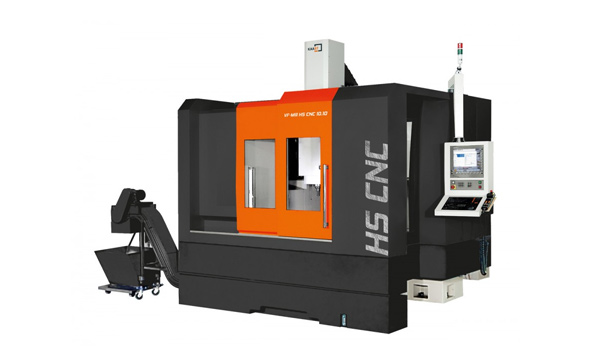

                    • VF-Mill HS CNC

                    • Technical spcifications VF-Mill 6.3 HS CNC - 10.10 HS CNC:
                      • X-axis travel mm 560 600 1000
                      • Y-axis travel mm 350 600 1000
                      • Z-axis travel mm 370 350 600
                      • Positioning accuracy mm ±0.005
                      • Positioning repeatability mm ±0.003
                      • Max. tool weight kg 7 7 7
                      • Spindle taper CAT/DIN/BT/HSK CAT/DIN/BT/HSK CAT/DIN/BT/HSK
                      • Rotation speed rpm 24000 30000 30000
                      • Weight kg 3100 5200 10000


                      Milling and engraving in the high-end segment with up to 60,000 rpm

                      • Every single VF Mill HS CNC milling machine is subjected to an exacting quality control process. Our goal is to ensure optimal machine performance
                      • The machine design guarantees a maximum of accuracy, speed and cutting ability
                      • The spindle oil cooling provides efficient heat removal and ensures long-lasting durability and precision of the spindle unit
                      • The use of automatic workpiece measurement system guarantees extremely high accuracy of work piece referencing and thereby shorter setup times
                      • The use of the optional laser tool inspection system ensures high machining and repetition accuracy. The automatic tool measurement further automates your manufacturing
                      • Optionally, the spindle with coolant function, improves tool life and allows high-speed machining
                      • Central lubrication
                      • Schneeberger Linear guidance systems
                      • Machines with dynamic gantry construction (from 6.6 models)
                    • VF-Rapid Tap 48.12

                    • Technical specifications VF-Rapid Tap 48.12:

                      • Table size mm 700 x 420
                      • T-slot (Width x number x distance) mm 14x3x125
                      • Max. load kg 350
                      • Travel X/Y/Z mm 600/400/300
                      • Positioning accuracy mm ± 0.003/300
                      • Repetability mm ± 0.003
                  • CNC 5-axis machining center

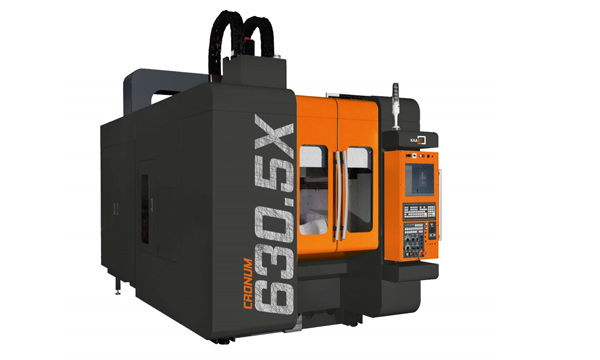

                      • CRONUM 630.5X

                      • Technical speci fications CRONUM 600.5X:
                        • Size mm Ø 630
                        • Max. loading capacity Kg 500 (Opt. 850)
                        • Height mm 880
                        • Max. workpiece dimension(diameter x height) mm Ø 800x500
                        • A/C axis min. indexingincrement °0.001
                        • Taper SK 40
                        • Speed rpm Fanuc: Built-in type 14.000 (opt.20.000) Heidenhain: Built-in type 14.000 (opt.20.000)
                        • X-/Y-/Z-axis mm 760/820/560

                        3D Interference Protection System


                        • Supports the operator with setup of tools, workpieces, and clamping device as a clear 3D model. Uses 3D simulation to check spindle, tool, workpiece, and clamping device in interaction for possible collisions
                        • In operating mode, the activated system stops the feed before collision
                        • With online milling function simulation

                        Automatic workpiece position detection

                        • Mutual correction of the axis center
                        • Tool length measuring
                        • Tool breakage detection

                        Intelligent spindle design

                        • Spindle bearing temperature monitoring and compensation
                        • Spindle vibration monitoring

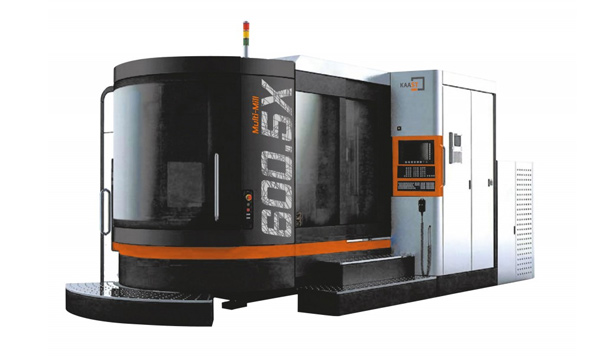

                      • Multi Mill 600.5 X

                      • Technical specifications Multi-Mill 600.5X CNC:
                        • X-axis travel 600 mm
                        • Y-axis travel 700 mm
                        • Z-axis travel 600 mm
                        • Diameter 630 mm
                        • Max. load 700 kg
                        • Weight 12.000 kg

                        5-axis simultaneous high performance milling

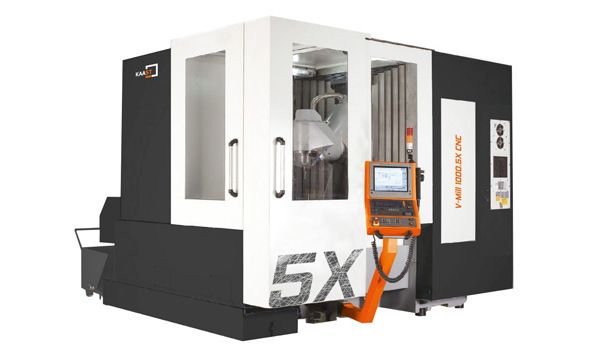

                      • V-Mill 1000.5X CNC

                      • Technical specifications V-Mill 1000.5X CNC:

                        • Axis travel: X 1000 mm/ Y 800 mm/Z 700 mm
                        • Table dimensions 1000x800 mm
                        • Max. table load capacity 1500 kg
                        • Working feed rate 10 m/min
                        • Max. spindle speed 15000 rpm
                        • Spindle taper BT 40
                        • Max. tool weight 7 kg
                        • Weight 15000 kg

                        V-Mill
                        • Massive machine bed made ​​of high quality cast iron for better vibration damping
                        • Rigid gantry frame construction consisting of base, double racks and stable crossbeam ensuring high rigidity and cutting performance
                        • Powerful spindle: 16000 rpm, 15/22.5 kW (48/72 Nm), BT 40 spindle taper
                        • 40 station tool magazine
                        • High-strength, precision ground guides and high-quality ball screws ensure high-precision machining
                        • Large work table 1000x800 mm, max. table load 1500 kg
                      • V-Mill 600.5X CNC

                      • Technical specifications V-Mill 1000.5X CNC:

                        • Axis travel: X 830 mm/ Y 720 mm/Z 500 mm
                        • Table diameter Ø600 mm
                        • Table bore diameter Ø50 mm H7
                        • Working feed rate 20 m/min
                        • Max. spindle speed 15000 rpm
                        • Spindle taper BT 40
                        • Max. tool diameter Ø75 mm
                        • Max. tool length 300 mm
                        • Max. tool weight 7 kg
                        • Weight 15000 kg


                        • Massive gantry structure consisting of base frame, double racks and stable crossbeam ensuring high rigidity and cutting performance
                        • Cooled ballscrews combined with high quality linear roller guides
                        • Optional pallet changer helps avoiding downtime due to the loading
                        • Generously sized worktable with a diameter of Ø600 mm, max. table load - 400 kg
                        • Powerful, high-speed spindle with ceramic bearings for superior milling surface
                        • 30 tool magazine for flexible milling and drilling applications
                        • Ground ball screws with minimum backlash
                    • CNC horizontal machining center

                        • H-Mill 2P 5.5 CNC

                        • Technical specifications H-Mill 2P 5.5 CNC:

                          • X-axis 610 mm
                          • X-axis 610 mm
                          • Z-axis 610 mm
                          • Max. table load capacity 450 kg
                          • Max. tool weight 8 kg
                          • Rapid traverse in X/Y/Z axes 32 m/min
                          • Repeatability in X, Y, Z axes ±0.003 mm
                          • Overall dimensions 3145х2552х3890 mm
                          • Weight 9230 kg

                          • Automatic pallet changer (2 pallets) as standard to optimize your production process
                          • Linear guideways in X and Y axes as well as precision highspeed guideways in Z-axis
                          • Tool magazine with automatic tool changer - for time saving and increased performance

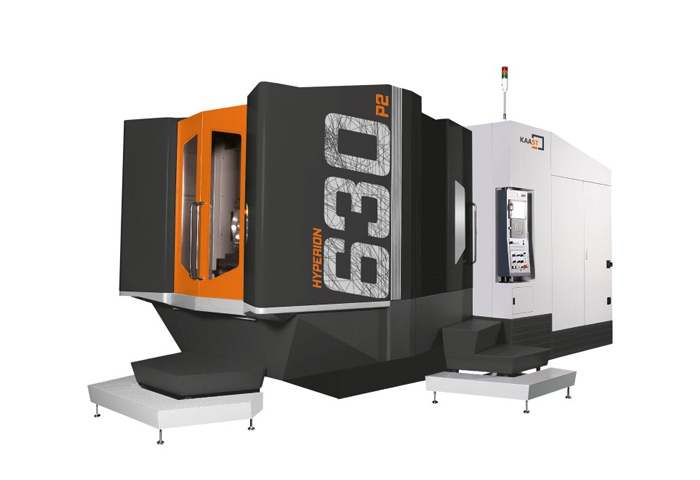

                        • HYPERION 630 P2 · 800 P2

                        • Technical speci fications HYPERION 630 P2 - 800 P2:

                          • X-axis mm 1050 - 1200
                          • Y-axis mm 850 - 1000
                          • Z-axis mm 970 - 1000
                          • Spindle nose to table center mm 100 - 1200
                          • Spindle center to tablesurface mm 100 - 1100
                          • Max. load kg 1200x2 - 1800x2
                          • Steps 2 Stufen, elektr.
                          • Taper BT 40 / ISO 40


                          The development of this machine focused on flexibility of application and reduction of the tooling and downtimes. This ensures that max. output is always guaranteed in the fast-paced cutting industry of today.

                          The machine frame optimized by FEA has outstanding dynamics, paired with high rapid traverse speeds and simultaneous effective vibration absorption with any milling application.

                        • STRATOM 400 P2 · 500 P2

                        • Technical specifications STRATOM 400 P2 - 500 P2:
                          • X-axis mm 610 - 710
                          • Y-axis mm 580 - 680
                          • Z-axis mm 580 - 680
                          • Speed rpm 12000
                          • Feed m/min. 60
                          • Cutting feedrate mm/min. 1-20.000
                          • Tool shank BT 40
                          • Number of positions pc. 60
                          • Max. tool lenght mm 410 410
                          • Max. tool weight Kg 12

                          Space-saving machine concept


                          • Designed for low space requirement
                          • Powerful main spindle, S2 = 25 kW (35 Hp) with double speed reduction for a high torque up to max. 235 Nm
                          • Ideal for flexible cutting of numerous different material classes because of the speed band width up to max. 12000rpm.
                          • Tool measuring system for easy and safe work
                          • Chip flushing system for cleaning of the machining area
                          • Clamping of the B-axis is done by hydraulic conical dowels generating a clampingforce of 17 tons. This ensures exact positioning and clamping even with heavy cutting.
                          • The standard double table change device even permits loading of max. 400/500 kg and this offers sufficient provision for workpiece and clamping device.
                          • Because of their innovative design, the machines in this series have an extremely heavy machine bed in 3-point design with constant high dynamic in the main spindle and the feed axes of up to 0.9 G acceleration
                          • All axes are equipped with high-quality roller linear guides
                      • CNC gantry-type milling center

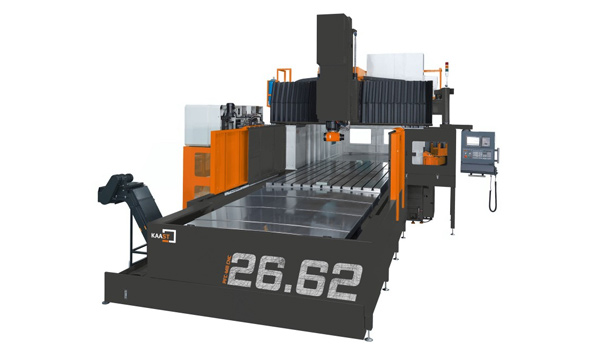

                          • PFC-Mill CNC

                          • Technical specifications PFC – Mill CNC 15.23 - 30.62:

                            • Column to column distance mm 1850 - 3650
                            • Max. load capacity of table kg 12000 - 26000
                            • X-axis mm 2200 - 6000
                            • Y-axis mm 1800 - 3600
                            • Z-axis mm 800
                            • Spindle taper BT 50
                            • Cutting feed rate mm/min 5-8000
                            • Positioning accuracy mm ±0.005/300
                            • Repeatability mm ±0.003/300

                            • Extremely robust and solid base frame provides great rigidity, stability and vibration-free work even with heavy duty cutting
                            • Rigid frame structure consisting of a solid machine bed with a large gantry
                            • Work piece movement in the x-axis is carried out by table movement on triple V and flat guideways
                          • Port-Max 1300 • 1600

                          • Technical specifications Port-Max 1300 - 1600:

                            • X-axis travel 2000 - 30000 mm
                            • Y-axis travel 1300 mm 1600 mm
                            • Z-axis travel 800 mm (opt. 1100 mm)
                            • Distance between columns 1300 mm - 1600 mm
                            • Table length 2000 ~ 30000 mm
                            • Table width 1100 - 1400
                            • Spindlenose - table 320 ~ 1120 mm
                            • Spindle taper BT50


                            • The Port-Max series are particularly suitable for large and heavy workpieces. The portals realize feed in all axes, thus avoiding movement of the components by the machine. The rigid machine table supports loads up to 2000 kg/² andthus offers sufficient provision for very large workpieces.
                            • The guidance concept uses high-load roller linear guides that avoid the slip-stick effect and ensure permanent precision over many years, even with the most heavy duty demands in hard every day production. The accuracy of the machine is thus truly remarkable in regard to the feed length in interaction with the high resolution digital drives and accordingly always delivers parts with accurate dimensions to your customers.
                            • Standard tool changer with 24 positions, ZF Duoplan transmission for main spindle withmax. 660 Nm (487 ftlb) torque, automatic lubrication, and double chip conveyor provide for a effective basic model in this series, ideal for numerous milling applications.
                            • Flexibility in the choice of CNC controls, Mitsubishi, Siemens,Fanuc, or Heidenhain, together with options like IKZ, various milling heads, glass scales, etc., enable optimum conformance with customer requirements.

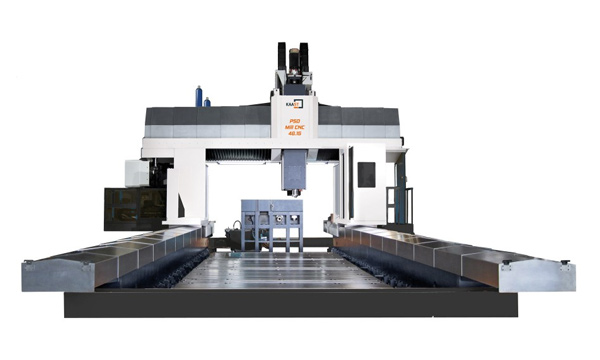

                          • PSD-Mill CNC

                          • Technical specifications 20.6-36 - 46.6-36:

                            • Distance between columns mm 2450 - 5450
                            • X-axis mm from 6m to 36m in 1m increments
                            • Y-axis mm 2400 - 5400
                            • Z-axis mm 1100 (optional 1400)
                            • W-axis (optional) mm 1000 (optional 1500 to 2500)
                            • Spindle taper BT 50
                            • Spindle speed rpm 6000
                            • Work feed mm/min 5–8000
                            • Positioning accuracy mm ±0.005 / 300
                            • Repeatability mm ±0.003 / 300


                            • Extremely robust and solid base frame provides great rigidity, stability and vibration-free work even with heavy duty cutting
                            • Rigid frame structure consisting of a massive machine bed, two movable uprights and a strong crossbeam, ensures excellent positioning stability and high cutting efficiency

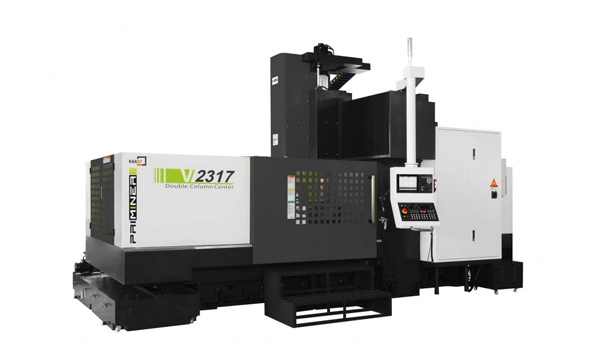

                          • VF-Mill 2015 Duo • 3317 • 3025 • 4025

                          • Technical specifications VF-Mill 2015 Duao 2017 - 4025:

                            • Max. table load kg 8000 - 10000
                            • X-axis mm 2300- 4000
                            • Y-axis mm 1600 - 2500
                            • Z-axis mm 800 - 1000
                            • Distance spindle center to Z-axis coverage mm 1700 - 2500
                            • Spindle taper BT 50
                            • Spindle speed rpm 6.000
                            • Positioning accuracy mm +/- 0.005 / 300
                            • Repeatability mm 0.005

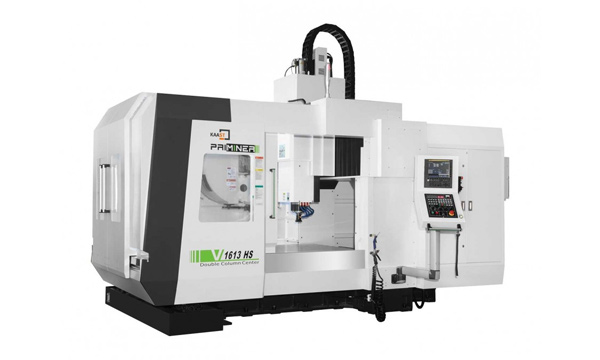

                          • VF-Mill HS 1200 Duo • 1600

                          • Technical specifications VF-Mill HS 1200 - 1600:

                            • Max. table load kg 2000 - 800
                            • X-axis mm 1200- 1150
                            • Y-axis mm 1000 - 550
                            • Z-axis mm 600 - 520
                            • Distance spindle center to Z-axis coverage mm 1000 - 600
                            • Spindle taper BT 40
                            • Spindle speed rpm 12.000-20.000
                            • Positioning accuracy mm +/- 0.003 / 300
                            • Repeatability mm 0.003

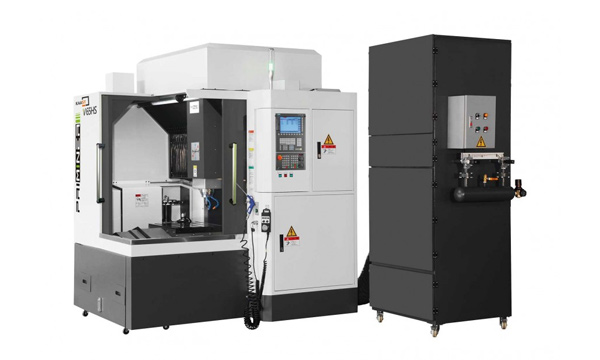

                          • VF-Mill HS 650 Duo

                          • Techncal Specifikations VF-Mill HS 650 Duo:

                            • Table size mm 600 x 500
                            • Max. table load kg 300
                            • X/Y/Z Travel mm 600 / 500 / 250
                            • Spindle-to-table distance mm 80 - 330
                            • Spindle taper BT 30
                            • Spinde speed rpm 24.000
                            • Rapid traverse X/Y/Z mm/min 15
                            • Max. tool gewicht kg 3
                            • Positioning accuracy mm ±0.003 / 300
                            • Repeatability mm 0.003
                        • CNC milling & tapping center

                            • Alpha-Speed 160.5X CNC • 250.5X CNC

                            • Technical specifications 160.5X CNC - 250.5X CNC
                              • Drilling capacity Ø15 mm
                              • Taping capacity M 14
                              • Max. tap speed 4000 rpm - 6000 rpm
                              • Tilt speed 75 rpm
                              • Acceleration to max. speed 0.45 Sec. - 1.5 Sec.
                              • Max. tool weight 2.5 kg - 4.5 kg



                              • Compact machining center for 5-axis machining with 96 m / min rapid traverse in Z
                              • High Quality Spindle
                              • Internal jacket cooling system
                              • The heat loss and cooling takes place right there where it is generated.
                              • Absolute direct drive
                              • Premium construction for maximum efficiency

                            • Alpha-Speed 460 plus

                            • Technical specifications Alpha-Speed 460 plus:
                              • X-axis travel mm/inch 460 / 18.1
                              • Y-axis travel mm/inch 320 /12.6
                              • Z-axis travel mm/inch 300 / 11.8
                              • Rapid feed Х / Y / Z m/min/rpm 60 /60 / 60
                              • Max. acceleration Х / Y / Z G 1.2 / 1.2 / 1.0
                              • Working area Table size mm/inch 520x320/ 20.47x12.6
                              • Max. loading kg/lbs 250/551

                              Feature

                              • Spindle output max. torque 84.3 Nm
                              • Easy operation, user friendly 64bit Mi 745 controller (FANUC G code compatible)
                              • Assures permanent rigidity by high quality casting iron
                              • Steady rigidity with golden triangle frame in optimum span of base
                              • High speed and reliable servo magazine 21T (Option.)
                              • Flexible application, allow add 4th-axis rotary table and fixture
                              • Suitable: Delicate 3D cut, automotive industry and die & mold job

                              Cutting Capacity

                              • Hard material: S45C Mild steel (JIS), 100 mm x 100 mm x 25 mm
                              • Spindle speed: 12.000 rpm
                              • Feed rate: 10.000 mm/min.
                              • Depth: 14 mm (Pocketing), 16 mm (Contouring)
                              • Cycle time: 10 Min. 20 Sec.
                            • Alpha-Speed 460 · 700

                            • Technical specifications Alpha-Speed 460 - 700:
                              • X-axis travel mm 460 - 700
                              • Y-axis travel mm 320 - 320
                              • Z-axis travel mm 300 - 300
                              • Dimensions (W x L) mm 1200 x 2300 - 1200 x 2300
                              • Weight kg 2000 2400


                              Small footprint, top performance

                              • Compact and highly dynamic drilling / milling center
                              • Solid machine bed made of high-quality Meehanite gray cast iron for optimal absorption of vibrations
                              • Highly dynamic drive concept with up to 1.5 G acceleration and max. 60 m/min rapid traverse
                              • Short tool change times for maximum productivity
                              • Modern control technology from Mitsubishi or Fanuc
                            • Alpha-Speed 500 P2 CNC · 700 P2 CNC

                            • Technical speci fications TC 500 P2 CNC - TC 700 P2 CNC

                              • Drilling capacity Ø15 mm
                              • Tapping capacity M 14
                              • Max. spindle speed 6000 rpm
                              • Max. pallet load 100 kg - 160 kg
                              • Working feed in X, Y and Z axes 1–10000 mm/min
                              • Spindle speed range 15–15000 rpm - 12-12000 rpm
                              • Max. tool weight 2.5 kg - 4.5 kg

                              Highly dynamic, for series production with pallet changer


                              • Through the use of roller bearings, in linear guides, high precision can be maintained, even at high travel speed, supplemented by smooth running and stability
                              • The spindle blowout device contributes significantly during tool changes to process safely
                              • Pallet changer to increase efficiency and minimize non-productive time
                              • Coolant lubricant system with two high-pressure pumps provides good chip removal and optimal tool cooling (optional cooling through the spindle)
                          • CNC high precision mashining

                                • UHP-Center 600 · 1000 devil

                                • Technical Specifications UHP Center 600 devil 1000 devil

                                  • Travel X-axis mm 600 - 1000
                                  • Travel Y-axis mm 600 - 1000
                                  • Travel Z-axis mm 300 400
                                  • Max. table load kg 300 - 1500
                                  • Tool places pc. 16
                                  • Max.tool weight kg 5
                                  • Weight kg 6400 - 12000

                                  Highest dynamics for perfect milling results in the high end sector


                                  • For the production of high precision components
                                  • High process reliability
                                  • Optional automation solution for efficient mass production
                                  • Suitable for microfinish and mirror milling
                                  • Wide range of tasks in the field of HSC milling
                                  • Dynamic with linear drives the last generation
                                  • Precise contour accuracy and high dimensional accuracy
                            • Tool- & universal milling machine

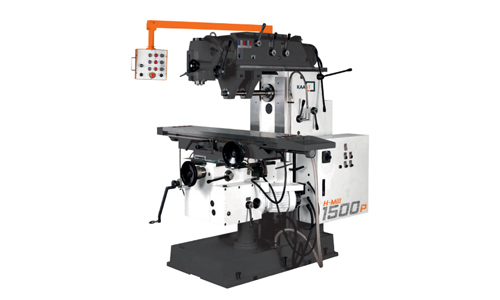

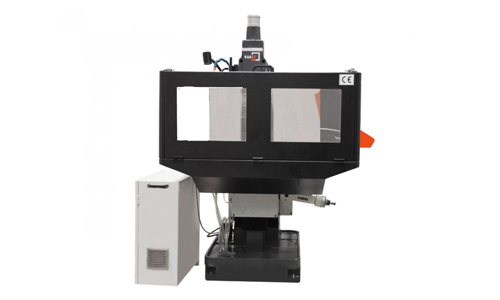

                                • H-Mill 1500 U • P • T / H-Mill 1330

                                • Technical specifications H-Mill 1500U 1500P - 1330:

                                  • T-slots (distance) mm 60 - 70
                                  • Swivel range table l/r deg. 45
                                  • X-axis travel mm 1150 - 950
                                  • Y-axis travel mm 400 - 380
                                  • Z-axis travel mm 500 - 450
                                  • Max. table load kg 700 - 500

                                  Infinitely variable feed speed in all axes

                                • TW-Mill 2 • 5

                                • Technical specifications Unit TW-Mill 2 - TW-Mill 5:

                                  • Table dimensions mm 320x750 - 500x900
                                  • Vertical table dimensions mm 250x880 - 250x1200
                                  • X-axis (Manual/Auto) mm 400/385 - 600/585
                                  • Y-axis (Manual/Auto) mm 200/185 - 480/465
                                  • Spindle nose ISO 40
                                  • Weight kg 1180 - 1450

                                  • Slideways are hardened and precision ground on the column and vertical table surface
                                  • Quill stroke is 100 mm, to work the handle located on right side of head stock
                                  • TW-Mill 5: The X and Y-axes are dovetail way, Z-axis is square way
                                  • TW-Mill 2: The X-, Y- and Z-axes are dovetail way
                                  • The X- and Y-axes are transmitted by precision ball screw (Z-axis ball screw type as option)
                                  • The operating control panel is equipped with a swivel arm type, wich will be more convenient and comfort for operator to work the machine at right side
                                  • Outer arbor support for horizontal milling
                                  • Can be installed with air power drawbar system, DRO system and automatic lubrication system as option
                                  • Automatically feeding travel on X-, Y- and Z-axes by inverter driven
                                • U-Mill 10 • 12 B • 15 B

                                • Technical specifications U-Mill 10 - U-Mill 15 B:

                                  • Table dimensions (LxW) 1235x460 mm - 2000x500 mm
                                  • T-slots (number/width/spacing) 5/18/80 mm
                                  • Max. load capacity 800 kg - 1800 kg
                                  • X 900 mm - 1500 mm
                                  • Y 450 mm - 500 mm
                                  • Z 650 mm
                                  • Weight 3000 kg - 5500 kg

                                  Infinitely variable feed speed in all axes


                                  • Servo drives of the X-, Y- and Z-axes
                                  • Simultaneous movement of several axes
                                  • Rapid traverse in all axes
                                  • A special mechanism prevents switching the feed function, if the table or the upper arm is clamped
                                  • Universal milling head can be set to any angle in the range of 360 °
                                  • The guideways are equipped with Turсitе-В
                                  • Automatic lubrication
                                  • Movable hanging panel for optimum operating comfort
                                  • Spindle brake
                              • bed-type milling machine

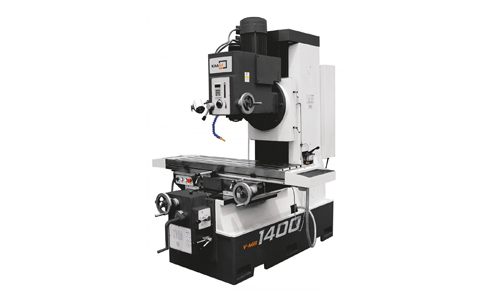

                                  • V-Mill 1400

                                  • Technical specifications V-Mill 1400:
                                    • Table dimensions 1400x400 mm
                                    • T-slots (number x width x spacing) 3x18x100 mm
                                    • X-axis travel 800 mm
                                    • Y-axis travel 400 mm
                                    • Z-axis travel 500 mm
                                    • Weight 3860 kg

                                    Machine for machining large and heavy parts


                                    • Large sturdy box construction and ribbed frame to reduce vibration
                                    • Large flat guides, hardened and ground, guarantee stability, even under heavy milling loads
                                    • Manual quill stroke, service is effected via a handwheel
                                    • Infinitely adjustable speed range (20-1800 rpm) with high torque and spindle brake
                                    • High table load capacity due to massive Meehanite cast iron construction

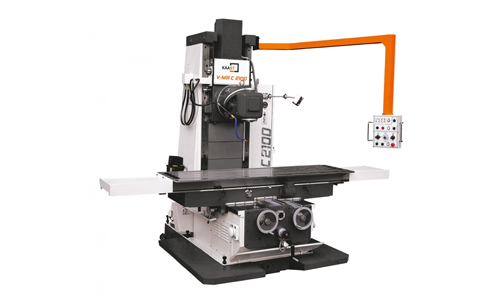

                                  • V-Mill C 2100

                                  • Technical specifications V-Mill C 2100:
                                    • X-axis travel 1500 mm
                                    • Y-axis travel 670 mm
                                    • Z-axis travel 0-670 mm
                                    • Table dimensions 2100x500 mm
                                    • Max. table load capacity 2000 kg
                                    • Weight 7300 kg

                                    Solid cast iron frame, powerful drive and massive guideways - perfect for heavy-duty machining


                                    • Generous flat guides, hardened and ground to ensure stability and precision even with extremely high table loads
                                    • Spindle speed of 40 - 1600 rmin
                                    • Universal milling head, can be swiveled to any angle, as well as horizontally to ensure flexible milling
                                    • Infinitely variable length and crosswise feed
                                    • Heavy construction for optimum vibration damping permits heavy-duty high-quality perfect milling

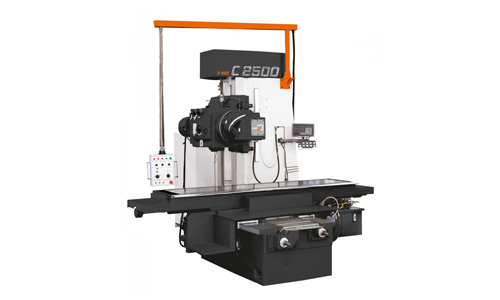

                                  • V-Mill C 2500

                                  • Technical specifications V-Mill C 2500:
                                    • X-axis travel 1800 mm
                                    • Y-axis travel 600 mm
                                    • Z-axis travel 700 mm
                                    • Table dimensions 2500x575 mm
                                    • Max. table load capacity 3000 kg
                                    • Weight 10000 kg

                                    10.000 kg machine weight for heavy-duty cutting


                                    • The universal milling head can be adjusted to any 360° angle including horizontal
                                    • The sturdy cast iron construction with a weight of 10.000 kg allows a maximum table load capacity of up to 3.000 kg
                                    • Servo drives on all axes, the automatic feed rates are infinitely variable in the X- and Y-axis
                                    • Simultaneous movement of several axes
                                    • Rapid traverse in all axes
                                    • Automatic central lubrication
                                    • Hanging panel for optimum operating comfort
                                    • Powerful hydraulic clamping in X-, Y-and Z-axis
                                    • Good accessibility to the machine table and the cutter head facilitate the loading and unloading as well as work on the milling head
                                    • A wide array of uses are possible with this machine through optional special accessories (eg. dividing head, rotary table, tailstock)
                                • Lathes

                                    • CNC Ultra High Precision

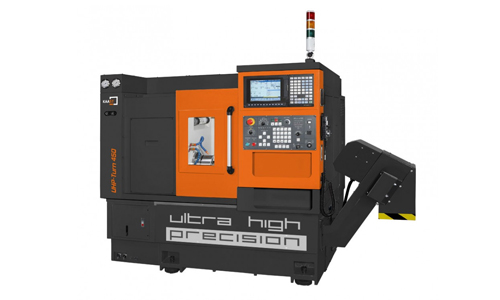

                                          • UHP-Turn 450

                                          • Technical specifications UHP-Turn 450:
                                            • Max. Turning diameter over bed mm 450
                                            • Max. Turning diameter over slide mm 280
                                            • Max. workpiece diameter mm 280
                                            • Max. workpiece length mm 330
                                            • Chuck size mm 150/175
                                            • Spindle bore mm 45
                                            • Spindle speed rpm 6000
                                            • Power (peak) kW 11
                                            • Spindle nose A2-5
                                            • Travel X-axis mm 150+10
                                            • Travel Z-axis mm 350

                                            High precision spindle rotation of = <0.8 µm

                                            Special characteristics of the linear guideway series RG

                                            The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree contact angle. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.

                                      • CNC slant bed lathes

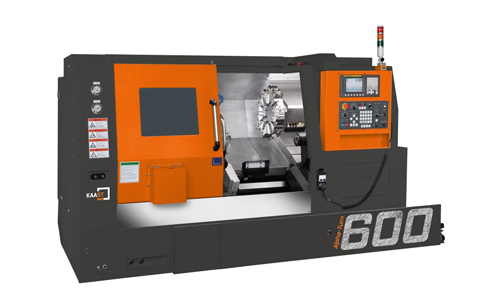

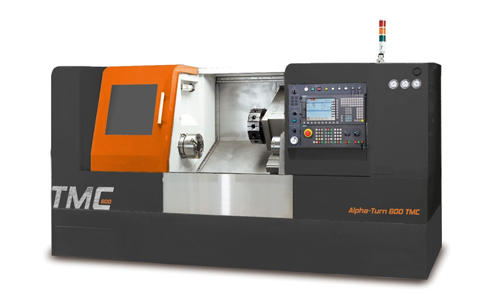

                                          • Alpha-Turn

                                          • Technical specifications Alpha-Turn 400 - 750:
                                            • Max. workpiece diameter mm Ø250 - Ø550
                                            • Max. workpiece length mm 200 - 950
                                            • Spindle bore mm Ø42 - Ø103
                                            • Spindle speed rpm 6000 - 2500
                                            • Power (peak) kW 7.4 - 30
                                            • X-axis mm 420 150+10 150+10 195+15 220+20 235+20 285+25
                                            • Z-axis mm 220 220 350 435 610/1010 630/1025 975/1525
                                            • Positioning accuracy mm ±0,004
                                            • Repeatability mm ±0,002
                                            • Tank capacity l 100 - 300

                                            Improved machine utilization - increased profits!

                                            Serial production with our automation solutions. The “gantry loader“ - individual, tireless and efficient We will be happy to work with you on your individual offer. KAAST. Your Production Partner.

                                            The high quality MEEHANITE cast iron

                                            ensuring long-lasting accuracy and stability. Each Alphaturn cast iron frame has been tested in the production of authorized Meehanite foundries.

                                            Level bed with two guide planes

                                            The alpha-turn cast iron bed has a 2-step guidance system in order to guarantee constant stability, especially in heavy-duty machining. The occurring forces, during machining will be better distributed on dual rails. For the user this means larger infeed, faster in two levels working feeds and a perfect image rotation in conjunction with the powerful main spindle.

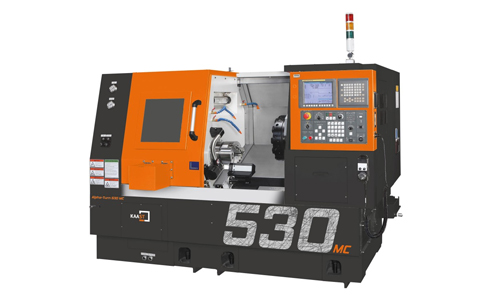

                                          • Alpha-Turn MC

                                          • Technical specifications Alpha-Turn 530 MC - 650 MC:
                                            • Max. turning diameter over bed mm Ø530 - Ø650
                                            • Main spindle chuck size mm Ø200 - Ø300 opt.
                                            • Spindle bore mm Ø52 - Ø78
                                            • Spindle speed rpm 5000 - 3500
                                            • Power (peak) kW 15 - 30
                                            • Travel X-axis mm 195+10 220+20 235+20
                                            • Travel Z-axis mm 355 550/950 550/950
                                            • Positioning accuracy mm ±0.004
                                            • Repeatability mm ±0.002
                                            • Tank capacity l 200 - 250
                                            • Weight kg 4100 5400 - 5800

                                            Driven attachment with C-axis


                                            The C-axis has an extremely high resolution and thus enables production of extremely precise true to size work pieces. The tool turret from Sauter is standard with VDI tool holders. The high torque of the rotary tool allows powerful metal cutting in the alpha-turn lathes.

                                            THK – NR Type

                                            Linear guides for heavy processing · High axial load capacity and rapid feed. The minimal coefficient of friction and backlash-free preloaded linear guideways allow for fast processing, high repeatability and high positioning accuracy. In order to achieve a fast rapid feed and a high load capacity, large guideways from THK have been used.
                                          • Alpha-Turn T • MCY • TMC • TMCY

                                          • Technical specifications Alpha-Turn 600 T - 650 TMCY:
                                            • Spindle speed rpm 3500 - 3500
                                            • Spindle speed rpm 6000 - 4500
                                            • Power (peak) kW 15 - 18.5
                                            • Travel X-axis mm 225+25 250+25 225+25 250+25 225+25 250+25 225+25 250+25
                                            • Travel Y-axis mm 100 - 120
                                            • Travel Z-axis mm 600 std./1000 opt. 600 std./1000 opt.
                                            • Travel B-axis mm 600 std./1000 opt. 600 std./1000 opt.
                                            • Positioning accuracy mm ±0,004
                                            • Repeatability mm ±0,002


                                            Multi-axis machining options

                                            The Y-axis (MCY / TMCY models), combined with C-axis spindle orientation and driven tools, allows complex turning and milling operations of the work pieces.

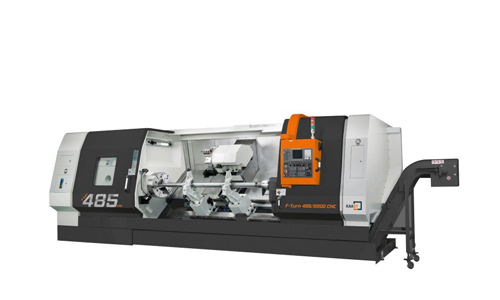

                                          • F-Turn 330 • 485 CNC

                                          • Technical specifications F-Turn CNC 330/820  - 485/3200:

                                            • Swing over bed mm Ø660 Ø970
                                            • Swing over carriage mm Ø480 - Ø720
                                            • Max. workpiece diameter mm Ø500 - Ø850
                                            • Center-to-center distance mm 820 - 3200
                                            • Work feeds mm/min 0,001-500


                                            • F-turn 330 CNC machines are equipped with heavy-dutyspindle and 2‑step ZF-gearbox
                                            • F-turn 485 CNC machines are equipped with 3‑stepgearbox
                                            • F-turn 485 CNC machines are fitted with heavy-dutyhydraulic-driven 12‑pos. tool turret ensuringhigh positioning accuracy
                                            • F-turn 330 CNC machines are fitted with heavy-dutyhydraulic-driven 10‑pos. tool turret ensuring highpositioning accuracy
                                            • 12‑pos. hydraulic tool turret with live tools available onF-turn 330 CNC
                                            • Hydraulic pump to control 3-jaw chuck and tool turretoperation
                                            • F-turn 330 CNC machines can be equipped with steadyrest for machining of long parts
                                            • Spindle oil cooling - for efficient heat removal and spindleand gearbox temperature control (F-turn 485 CNC)
                                            • Programmable hydraulic tailstock motion driven byservodrive. The system is controlled by CNC М-codes(F-turn 485 CNC)

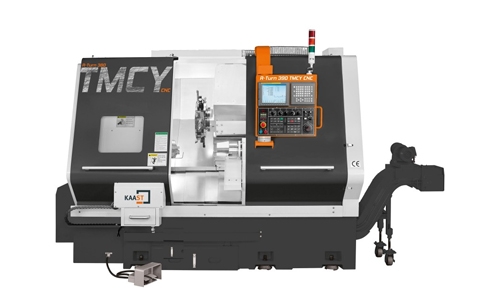

                                          • F-Turn 390 TMCY CNC


                                          • Technical specifications F-Turn TMCY CNC 390/260 - 390/470:
                                            • Swing over bed mm Ø780
                                            • Max. workpiece diameter mm Ø300 - Ø230
                                            • Max. turning length mm 260 - 470
                                            • X-axis mm 185 185 150
                                            • Z-axis mm 310 560 540
                                            • Y-axis mm ±40 ±40 ±50
                                            • E-axis (Spindle/ Counterspindle rechuck) mm 260 - 470
                                            • Hydraulic motor kW 1.5
                                            • Volume hydraulic tank l 60


                                            Slant (45°) bed machine. Rigid bed of Meehanite cast iron ensuring high load capability


                                            • «T»-versions are equipped with 2 C-axes
                                            • 45° inclined slant-type bed with significant reinforcement ribs made of Meehanite cast iron
                                            • Roller-bearing linear guideways X, Z, Y-axis
                                            • 12-pos. tool turret DUPLOMATIC SMBR with servodrives for live tools from Fanuc. Quick tool changing and superior positioning accuracy 0.001 mm
                                            • Synchronized high-precision spindle and sub-spindle (P4 accuracy grade)
                                            • Hydraulic tool turret and turning chuck
                                            • Optional automatic tool setting system

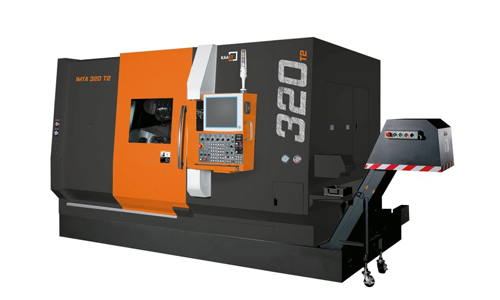

                                          • IMTA 320 T2 · 320 T3

                                          • Technical specifications IMTA 320 T2 - IMTA 320 T3:
                                            • Max. turning dia. over bed mm Ø 720
                                            • Max. turning dia. over slide mm BMT-65 (opt. VDI-40)310 Ø 310
                                            • Max turning diameter mm Ø 320
                                            • Max. turning length mm 600
                                            • Spindle speed rpm 4500 (opt. 6000)
                                            • Tool shankBMT-65 (opt. VDI-40)

                                            Interaction Milling Turning Application


                                            • The consistent 75° steep bed design allows the near rectangulararrangement of X-, Y-, and Z-axes to each other,which has a positive effect on stability and accuracy.
                                            • Good accessibility, particularly for loading of the machine,and the ideal chip flow are other highlights of this design.

                                            3D Interference Protection

                                            Multi-axes machining places considerable demands on the user. To prevent expensive downtime, the IMTA 320 has 3D interference protection simulation software as standard. This avoids collisions when new programs are inserted and thus ensures max. availability of your investment.

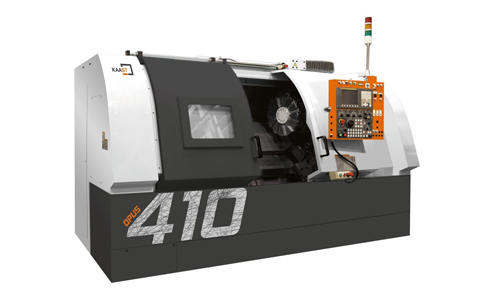

                                          • OPUS 410 · 530

                                          • Technical specifications 410/975 - 530/1975:

                                            • Max. turning diameter over bed mm Ø 620 (opt. Ø 1000/ Ø 1200)
                                            • Bar capacity mm Ø 75 - Ø 90
                                            • X/Z- axis travel
                                            • mm 245/1000 - 245/2000
                                            • Tank capacity l 200 (opt.240/280)
                                            • Weight kg 6500 7000 - 8200

                                            • Solid, polished, and hardened flat guides in combinationwith a powerful drive system of the main spindle and onthe feed axes provide for always sufficient reserve withdifficult cutting. The rigid spindles are provided withgenerous bearings and always provide sufficient torque tothe optional transmission
                                            • Optional C-axis and tool changer with driven tools (max.5.5 kW (7.4 Hp) at 4500 rpm) for milling and boring work
                                            • Programmable tailstock
                                            • Optional hydraulic steady rest for support of longerworkpieces

                                            Tailstock

                                            The programmable tailstock is fed together withthe tool changer. The hydraulic clamping providesfor maximum positional accuracy even with heavyworkpieces

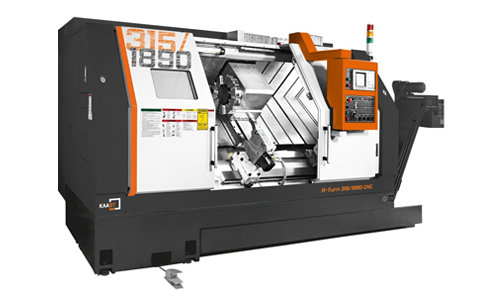

                                          • R-Turn 315/1890 CNC

                                          • Technical specifications R-Turn 315/1890 CNC:

                                            • X-axis travel mm 290
                                            • Z-axis travel mm 1590
                                            • C-axis travel degr 360º (0.001º)
                                            • Overall dimensions (LxWxH) mm 5325х1950х2200
                                            • Weight kg 9770

                                            • Linear guides for increased speeds
                                            • Massive cast iron bed ensures high machine stability, absorption of vibrations and long-lasting machine accuracy
                                            • 2-step gear transmission with automatic engagement
                                            • Optional live tooling and C-axis provides various tool capacities and fast tool positioning
                                            • Optional steady rest maintains high precision for long work pieces
                                            • Siemens controller is available

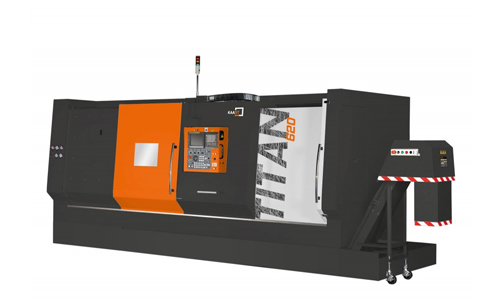

                                          • TITAN 620

                                          • Technical specifications TITAN 620 - 620XL:

                                            • Bar capacity mm Ø 90 (opt. Ø 116)
                                            • X/Z-axis travel mm 365/1200 - 365/3000
                                            • Tank capacity mm 990/150 - 2790/150
                                            • Hydraulik Tank Kapazität l 40
                                            • Tankvolumen l 240 - 400
                                            • LxWxH mm 4350x2100x2280- 6500x2150x2280
                                            • Weight kg 8500 - 17000


                                            • 45° mono-block, Meehanite cast machine bed is extremely heavy for max. absorption of vibrations and taking up ofcutting forces.
                                            • Amply dimensioned, induction-hardened, and precision-ground square guides provides precise turning results over many years even with the heavy use in hard daily production.
                                            • The main spindle is provided as standard with 30/37 kW (40/50 Hp) and max. 1479 Nm (1090 ftlb) torque. If required, it can be upgraded with a Ø 180 mm (7”) spindle bearing, dual transmission, and a 37/45 kW (50/60Hp) drive. A max. torque of more than 2,200 Nm is then available.
                                            • Baruffaldi BMT-75 tool changer with driven 11/15 kW (15/20 Hp) milling tools
                                            • Hydraulically clamped and programmable tailstock

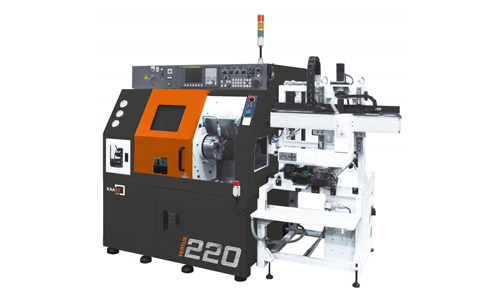

                                          • VERTUS 220 · 220 MC

                                          • Technical specifications VERTUS 220 - VERTUS 220 MC
                                            • Bar capacity mm Ø 26 (opt. Ø 44/ Ø 51)
                                            • Travels X/Y axis mm 155/220
                                            • Hydrl. tank capacity l 30
                                            • LxWxH mm 1410x1450x1730
                                            • Weight kg 2350

                                            In compact design for manufacturing of short standard parts


                                            The optional loading robot completes theloading/unloading process in just 4.8 seconds.This clearly reduces down times and makeseffective unmanned operation possible.

                                            • Compact design, even with driven tools and optional automationof loading and unloading
                                            • C-axis and driven tools for expanded applications (Vertus 220 MC)
                                            • Dynamic spindle acceleration/deceleration for reduction ofdowntimes
                                            • Turned parts up to 220 mm (8.6”) diameter and 200 mm (7.9”)length can be machined extremely precisely and quickly
                                            • Integrated chip conveyor
                                            • The robust cast bed provides for high stability of the machine
                                            • Large ball screws and flat guide
                                        • CNC heavy duty lathes

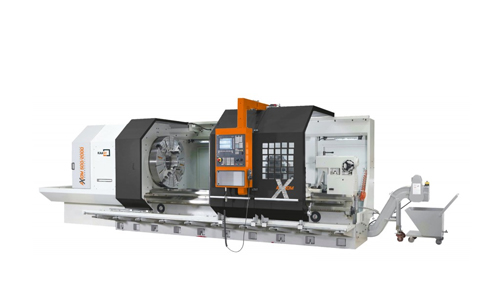

                                              • AXIOM 330 • 430 • 500 • 600 • 700 • 800 • 1000 • 1200 • 1300

                                              • Technical specifications AXIOM 330 - 1300:
                                                • Width of bed mm 558 - 1400
                                                • X-axis travel mm 330 - 1300
                                                • Z-axis travel as peak width is reduced by 350 mm - 650 mm
                                                • Tailstock travel mm 300 - 600
                                                • For extremely heavy workpieces and machining lengths up to 30
                                                • Large ballscrews ensure long-lasting precision
                                                • The standard telescopic enclosure can be moved for loadingand unloading of the machine, to provide good accessibilityto the most important areas
                                                • For the machines of the AXIOM Series, only componentsfrom leading manufacturers were used so as to ensuremaximum machine availability
                                                • The impressively high workpiece weights for this class ofmachines can be significantly increased by steady-restsfrom SMW-Autoblok
                                                • Powerful spindle motors with high torque for efficientprocessing even in difficult to cut materials
                                                • The machine bed impresses with extremely high stiffness,due to the heavily ribbed casting
                                                • Large bed widths from 585 to 1400 mm
                                          • CNC cycle lathes

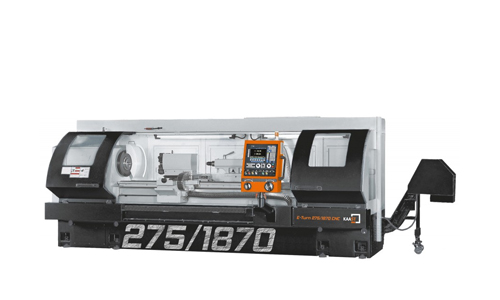

                                              • E-Turn 275 CNC

                                              • Technical specifications E-Turn CNC 275/87 - 275/2870:

                                                • Turning capacity mm Ø550
                                                • X-axis travel mm 300
                                                • Z-axis travel mm 780 - 2780
                                                • X-axis rapid traverse m/min 7.5
                                                • Z-axis rapid traverse m/min 10
                                                • Coolant tank Liter 60 - 240
                                                • Overall dimensions (LxWxH) mm 3200х2300х2230 - 5200х2300х2230
                                                • Weight kg 4050 - 5300


                                                • 2-step transmission ensuring high rotation torque
                                                • Manual handwheel controlled operation
                                                • Programmable turning cycles
                                                • Auto-switch pneumatically changes the gear speeds

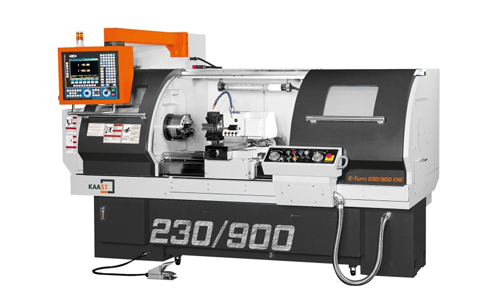

                                              • E-Turn G 205 • G 230 CNC

                                              • Technical speci fications E-Turn G CNC 205/890 - 230/1400:

                                                • Turning capacity mm Ø410 - Ø460
                                                • Travel X-axis mm 205 - 230
                                                • Travel Z-axis mm 815 - 1350
                                                • X-axis rapid traverse m/min 7.5 7.5
                                                • Z-axis rapid traverse m/min 10 10
                                                • Overall dimensions (LxWxH) mm 2470х2030х2200 - 3360х2115х2340
                                                • Weight kg 2150 - 2600


                                                • 2-step transmission ensuring high rotation torque
                                                • Manual handwheel controlled operation
                                                • Programmable turning cycles
                                                • Auto-switch pneumatically changes the gear speeds
                                              • TLG 220/1000 • 220/1500 • 220/2000

                                              • Technical specifications TLG 220/1000 - 220/2000:

                                                • Max. workpiece length 1000 mm - 2000 mm
                                                • Width of bed 2000 mm - 3020 mm
                                                • Travel X-axis 280 mm
                                                • Travel Z-axis 920 mm - 1940 mm
                                                • Feed X-/Z-axis 6 m/min / 8 m/min
                                                • Weight 1800 kg - 2300 kg


                                                • Interactive, graphically supported programming cycles forvolume and single part production
                                                • High productivity due the 4-way automatic tool changer
                                                • Solid and heavy construction
                                                • Triple support precision bearings for main spindle
                                                • Optimal results with stepless speed adjustment
                                                • 2 electronic handwheels enable manual operation
                                                • High precision recirculating ball screws
                                                • Programming of complex work pieces, even without DINprogrammingknowledge
                                                • Implemented cycles for facing and plain turning, cone,radius, thread, plunge-cut and complete contouring
                                                • Wide, hardened and ground prism guides ensure excellentstability of the lathe’s bed, even with large centre distances(>HB 400)
                                                • Automatic central lubrication
                                                • Automatic gearbox ensures a high torque

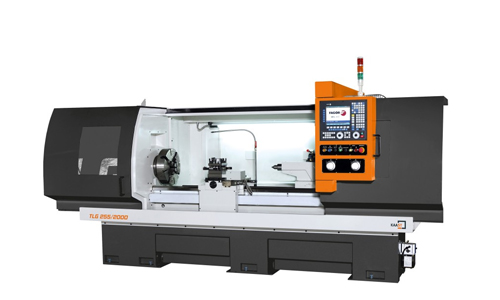

                                              • TLG 255/1000 • 255/1500 • 255/2000

                                              • Technical specifications TLG 255/1000 - 255/2000:

                                                • Max. workpiece length 1000 mm - 2000 mm
                                                • Width of bed 2000 mm - 3020 mm
                                                • Travel X-axis 280 mm
                                                • Travel Z-axis 920 mm - 1940 mm
                                                • Feed X-/Z-axis 6 m/min / 8 m/min
                                                • Weight 2100 kg - 2600 kg


                                                • Interactive, graphically supported programming cycles forvolume and single part production
                                                • High productivity due the 4-way automatic tool changer
                                                • Solid and heavy construction
                                                • Triple support precision bearings for main spindle
                                                • Optimal results with stepless speed adjustment
                                                • 2 electronic handwheels enable manual operation
                                                • High precision recirculating ball screws
                                                • Programming of complex work pieces, even without DINprogrammingknowledge
                                                • Implemented cycles for facing and plain turning, cone,radius, thread, plunge-cut and complete contouring
                                                • Wide, hardened and ground prism guides ensure excellentstability of the lathe’s bed, even with large centre distances(>HB 400)
                                                • Automatic central lubrication
                                                • Automatic gearbox ensures a high torque
                                            • CNC swiss-type lathes

                                                • S-Turn 20 TМСY CNC

                                                • Technical specifications S-Turn 20 TМСY CNC:

                                                  • Drilling capacity mm Ø10
                                                  • Toolholder dimensions mm 12х12х90
                                                  • X/Y/Z-axis rapid traverse m/min 24
                                                  • Overall dimensions mm 2365х1075х1800
                                                  • Weight kg 2400


                                                  • Modular design of the tool carrier with independent guides
                                                  • Spindle with gripping and bar feed function
                                                  • Main spindle C1 axis
                                                  • Turning, milling, drilling, threading through the use of driven tools
                                                  • Synchronous run of the main spindle with the counter spindle
                                                  • Counter spindle C2 axis
                                                  • High positioning accuracy
                                                • S-Turn 26 CNC

                                                • Technical specifications S-Turn 26 МС CNC:

                                                  • Drilling capacity mm Ø13
                                                  • Toolholder dimensions mm 16х16х95-155
                                                  • X/Y/Z-axis rapid traverse m/min 24
                                                  • Overall dimensions mm 1790х1330х1835
                                                  • Weight kg 2500


                                                  • Economical CNC swiss-type lathe
                                                  • Machine with servo-motor and modular arrangement of tool carriages having independent guideways
                                                  • Spindle with gripping and barstock feeding functions
                                                  • High positioning accuracy
                                                  • Hermetically sealed working area
                                                  • A wide range of optional accessories are available to upgrade the operational functions of S-Turn 26 MC CNC (Please see S-Turn 32 MC CNC as reference)
                                                • S-Turn 26 TМСY CNC

                                                • Technical speci fications S-Turn 26 TMC Y CNC:

                                                  • Drilling capacity mm Ø13
                                                  • Toolholder dimensions mm 16х16х95-155
                                                  • X/Y/Z-axis rapid traverse m/min 24
                                                  • Overall dimensions mm 2270 x1450 x1835 mm
                                                  • Weight kg 3100


                                                  • Machine with servo-motor and modular arrangement of tool carriages having independent guideways.
                                                  • Spindle with gripping and bar-stock feeding functions.
                                                  • Main spindle & counter spindle with C-axis.
                                                  • Possible milling, turning, thread-cutting and drilling operations through use of live tools.
                                                  • Synchronous motion and rotation of the main spindle and the counter-spindle.
                                                  • High positioning accuracy.
                                                  • Hermetically sealed working area.
                                                • S-Turn 42 TМСY CNC

                                                • Technical specifications S-Turn 42 TMCY CNC:

                                                  • Drilling capacity mm Ø10
                                                  • Toolholder dimensions mm 20х20хL95-155
                                                  • X/Y/Z-axis rapid traverse m/min 24
                                                  • Lubricant tank capacity | 2
                                                  • Coolant tank capacity | 480
                                                  • Overall dimensions mm 2270 x1450 x1835 mm
                                                  • Weight kg 3100


                                                  • The movable headstock is synchronized with the guide bushing - thereby higher accuracy and vibration-free turning is achieved
                                                  • Tooling system for a total of 26 toolchanger positions (6 turning tools, 4 drilling, 4 drilling tools for reverse side machining, 6 driven radial tools, 3 driven axial tools, 3 driven axial tools for machining the reverse side)
                                                  • Parts catcher and Cut-Off detector are standard equipment and provide for greater optimization of the processing times
                                              • CNC vertical lathes

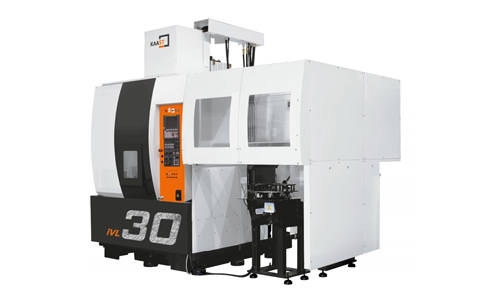

                                                  • iVL 20 • 25 • 30

                                                  • Technical specifications iVL 20 twin - iVL30.

                                                    • Feed X/Z-axis m/min 36/36 - 30/30
                                                    • Travel X/Z-axis mm 180+560/260 - 300+1660/600
                                                    • Capacity l 30 - 40
                                                    • Volume system l 120 - 220
                                                    • Overall dimensions (LxWxH) mm 1680x1830x2405 - 3640x2850x3330
                                                    • Weight kg 3600 - 9700



                                                    • X- and Y-axis have a linear drive guaranteeing feed rates of60/40 m/min (2360/1575”/min) and the highest precision
                                                    • Constant temperature by spindle cooling system
                                                    • The ideal chip drop guarantees trouble-free work and longtool life
                                                    • The machine has good accessibility, and the servicingpoints are easily accessible

                                                    Spindle pick-up principle

                                                    The rotating spindle moves in the vertical as well as in thehorizontal plane and thus is able to pick up workpieces autonomously from the workpiece pool and to deposit the magain after machining. This simple automation concept provides for extremely high availability and productivity withmodest investment costs.

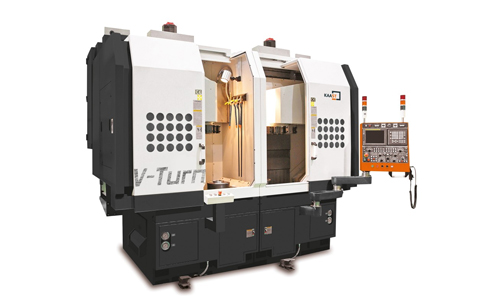

                                                  • V-Turn A 560 • 800 • 1000 • 1320 CNC

                                                  • Technical specifications V-Turn A 560 CNC - 1320 CNC
                                                    • X/Z-axis rapid traverse mm/min 20/20
                                                    • X-axis travel mm 275 - 625
                                                    • Z-axis travel mm 460 - 1000
                                                    • Overall dimensions mm 1700х3100х2855 - 2700х4000х4050
                                                    • Weight kg 6500 - 21000

                                                    For high-speed turning of large capacity work pieces

                                                    • Turning of work pieces up to Ø1100 mm (43”)
                                                    • 12-position tool turret standard
                                                    • High machine rigidity ensures long-lasting process accuracy
                                                    • Functional and easy-to-operate Fanuc CNC 0i-TD as standard
                                                    • High machine reliability due to use of high-quality components manufactured by renowned manufacturers

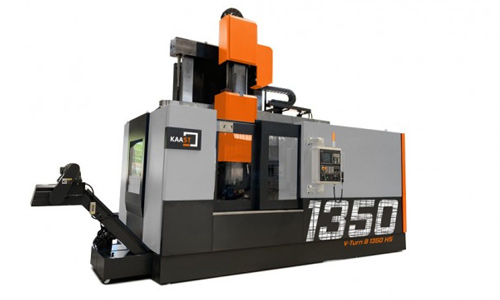

                                                  • V-Turn B CNC

                                                  • Technical specifications V-Turn B 1250 CNC - 10000-D CNC:
                                                    • Max. workpiece diameter mm 1250 - 10000
                                                    • Table diameter mm 1000 - 7200
                                                    • Max. workpiece heigth mm 1000 - 5000
                                                    • Max. workpiece weight kg 3500 - 40000
                                                    • Weight kg 9000 -310000

                                                    Flexible, optional driven tools and tool changer


                                                    • High machine rigidity as a result of quality casting HT300
                                                    • Heavy ribbed pillar with wide flat guides ensuresmaximum stability with very good damping properties
                                                    • Precision ballscrew for x and y-axis
                                                    • Hydraulic compensation cylinder instead of acounterweight for the tool
                                                    • Asymmetrical work pieces can be easily clampedusing the 4-jaw faceplate chuck
                                                    • Good accessibility of the working area makes tooling,set up and unloading easier
                                                    • Machine suitable for internal and external turning, optionally for boring and millingapplications
                                                    • Hydraulic clamping of the cross member
                                                    • All guideways are supplied with lubricant by centralized lubrication
                                                    • Quadruple tool revolver as basic equipment
                                                    • Main spindle drive up to max. 90 kW (120 Hp)
                                                    • Gearing for sufficient torque at any time
                                                    • Machine for machining of large and heavy workpieces
                                                    • All castings are annealed to minimize stress, guideways are counter laminatedwith Turcite B
                                                    • The entire machine frame has beendesigned, calculated, and optimizedwith FEM technology
                                                    • Digital drive package of Siemensor Fanuc
                                                    • Ball screw drive from THK / Japan

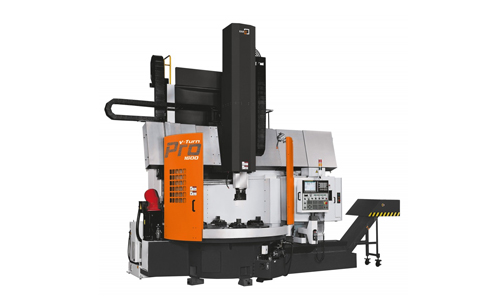

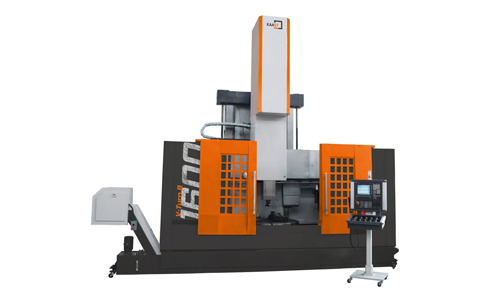

                                                  • V-Turn Pro CNC • V-Turn Proplus CNC

                                                  • Technical specifications V-Turn Pro • V-Turn Pro plus 1600 CNC - 3000 CNC:
                                                    • Table diameter mm 1250 - 2500
                                                    • Max. Turning diameter mm 1600 - 3000
                                                    • Max. workpiece diameter mm 1500 - 3000
                                                    • Max. working height mm 1250 - 1600
                                                    • Max. weight of workpiece kg 6000 - 15000
                                                    • Machine dimensions mm 5900x3800x5360 - 7900x6100x6300
                                                    • Weight kg 20500 - 51000

                                                    For high-speed turning of large work pieces


                                                    With turning diameters of up to 3,000 mm and more, with a maximum work piece weight of up to 21,000 kg. The V-Turn Pro Series impresses by excellent processing results. The optional driven milling tools with integrated C-axis and automatic tool changer, offer the possibility of complex complete machining in one setup.

                                                    Patented octagon tool bar design

                                                    The unique structure guarantees the highest precision and controlled thermal expansion. The special octagonal structure provides superior mechanical properties and thus exhibits a higher stiffness than conventional, square tool carriers.

                                                • heavy duty lathes

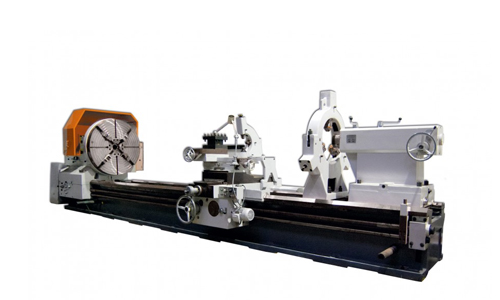

                                                    • D-Turn F 700/5000

                                                    • Technical specifications D-Turn F 700/5000
                                                      • Swing Ø over bed Ø1600 mm
                                                      • Swing Ø over toolholder Ø1250 mm
                                                      • Max. weight of workpieces 12 t
                                                      • Max. length of workpieces 5000 mm
                                                      • Width of machine bed 970 mm
                                                      • Tool shank dimensions 45x45 mm
                                                      • Spindle Ø Ø 200 mm
                                                      • Taper hole of spindle 1:20
                                                      • Spindle bore Ø Ø 100 mm
                                                      • Stroke of top toolholder 300 mm
                                                      • Stroke of tailstock sleeve 250 mm

                                                      The Heavy-Duty-Allrounder

                                                      The D-Turn F heavy duty lathe belongs to the Multi-function lathes, with an impressvie maximum workpiece machining of 12 tons.

                                                      With their high precision, high reliability, high rigidity, precise production, elegant appearance and the comfortable maintenance is the D-Turn F for almost all tasks, like rough-or finish cutting of metal-and non-metal workpieces suitable.

                                                    • D-Turn Giant

                                                    • Technical specifications D-Turn Giant 1600 - 1800:
                                                      • Center height mm 800- 900
                                                      • Max. turning diameter over bed mm Ø1600 Ø1800
                                                      • Max. turning diameter over slide mm Ø1230 Ø1430
                                                      • Max. turning diameter over gap mm Ø1900x750 Ø2100x750
                                                      • Width of bed mm 888

                                                      Technical specifications D-Turn Giant 2000 - 2300:

                                                      • Center height mm 1000 - 1150
                                                      • Max. turning diameter over bed mm Ø2000 Ø2300
                                                      • Max. turning diameter over slide mm Ø1630 Ø1700
                                                      • Max. turning diameter ober gap mm Ø2300x750
                                                      • Width of bed mm 888 - 1400

                                                      For workpieces with extremely high weight and very long length. A very robust lathe!


                                                      • Heavy FC-30-cast machine bed with strong ribbing helps to minimize vibrations
                                                      • Case hardened and ground machine bed guideways
                                                      • Transmission gears and shafts made of hardened and ground high alloy steel running in oil bath
                                                      • Robust multi-plate clutch for driving main spindle
                                                      • X and Z-axis coated with Turcite B

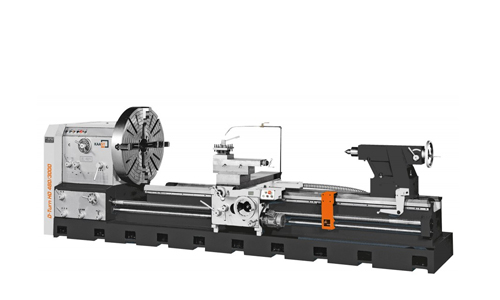

                                                    • D-Turn HD

                                                    • Technical speci fications D-Turn HD 480:
                                                      • Center-to-center distance 2000 mm - 8000 mm
                                                      • Turning capacity Ø960 mm
                                                      • X-Axis600 mm
                                                      • Z-Axis 2000 mm - 8000 mm
                                                      • Z-Axis 370 mm
                                                      • Weight 8800 kg - 15400

                                                      Technical speci fications D-Turn HD 560:

                                                      • Center-to-center distance 2000 mm - 8000 mm
                                                      • Turning capacity Ø1120 mm
                                                      • X 600 mm
                                                      • Z 2000 mm - 8000 mm
                                                      • Z 370 mm
                                                      • Weight 8300 kg - 14300

                                                      For machining large diameter and long work pieces. They feature extremely rigid structure and superior precision in rough and finish machining


                                                      • Heavy FC-30 cast machine bed with strong ribbing helps to minimize vibrations
                                                      • Transmission gears and shafts made of hardened and ground high alloy steel running in oil bath
                                                      • Robust multi-plate clutch for driving main spindle
                                                      • Case hardened and ground machine bed guideways to ensure precision for years
                                                      • X and Z-axis coated with Turcite B

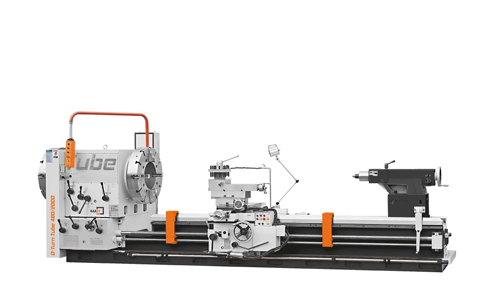

                                                    • D-Turn Tube 480

                                                    • Technical specifications D-Turn Tube 480:
                                                      • Center height 480 mm
                                                      • Swing over bed Ø960 mm
                                                      • Center-to-center distance 1500 mm - 9000 mm
                                                      • X-Axis (feeds) (48) 0.065–0.96 mm/rev
                                                      • Z-Axis (feeds) (48) 0.13–1.92 mm/rev
                                                      • X-Axis 540 mm
                                                      • Z1– overslide 300 mm

                                                      Suitable for use in oil, gas and heavy-duty industries


                                                      • Very large spindle bore
                                                      • Main spindle bearings ensure high machining accuracy, even when machining long work pieces
                                                      • Two turning chucks for safe and reliable clamping of pipes (option)
                                                    • D-Turn Tube 600 • 800

                                                    • Technical specifications D-Turn Tube 600 D-Turn Tube 800:
                                                      • Center height mm 600 - 800
                                                      • Swing over bed mm Ø1200 - Ø1600
                                                      • Swing over carriage mm Ø830 - Ø1230
                                                      • Swing over gap mm Ø1750 Ø2150
                                                      • Gap Width mm 600
                                                      • Machine bed width mm 800

                                                      Suitable for use in oil, gas and heavy industrie


                                                      • Very large spindle bore - max. Ø535 mm
                                                      • Main spindle bearings ensure high machining accuracy even when machining long work pieces
                                                      • Two turning chucks for safe and reliable clamping of pipes (option)
                                                      • Various options available to increase flexibility
                                                  • universal lathes

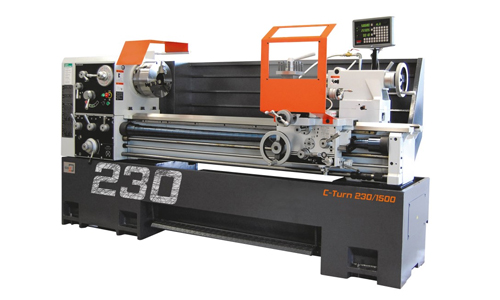

                                                      • C-Turn 230 • 270

                                                      • Technical specifications C-Turn 230 C-Turn 270:

                                                        • Center height 230 mm 270 mm
                                                        • Swing over bed Ø460 mm Ø540 mm
                                                        • X-axis travel 280 mm - 330 mm
                                                        • Toolholder travel Z1 130 mm 150 mm
                                                        • Weight net 2000 kg - 3200 kg


                                                        • Guideways are hardened and precision-ground
                                                        • Exceptionally low noise
                                                        • Universal type gearbox allowing for cutting metric, Whitworth, module and diametral threads with no need to change gears
                                                        • The feed handwheel can be ordered (left or right) in accordance to the needs of the operator
                                                      • C-Turn 315 · 385 · 420

                                                      • Technical specifications C-Turn 315:
                                                        • Center height 315 mm- 420 mm
                                                        • X-axis travel 330 mm - 450 mm
                                                        • Toolholder travel Z1 120 mm - 250 mm
                                                        • Weight 2550 - 3550 kg/3350 kg - 5700 kg/3650 kg - 5800 kg

                                                        Optional with extra large spindle hole


                                                        Max. Spindle diameter: 155 mm, 230 mm, 255 mm, 305 mm, 355 mm

                                                        Lathes from KAAST meet the highest quality standards

                                                        It is our aim to offer the best possible lathes to our customers. In order to fulfill this promise, we ourselves have set the very highest demands and apply strict quality control during the entire manufacturing process. Before delivery, each machine is subjected to intensive inspections and tests with regard to accuracy, performance and reliability

                                                        Characteristics of the V-models

                                                        • 3 transmissions with variable spindle speeds
                                                        • Electronic control for automatic speed control
                                                        • The spindle speed is shown in the LED display
                                                        • Stepless speed setting by frequency converter
                                                        • Constant cutting speed by automatic speed regulation with different workpiece diameters
                                                      • E-Turn A 230 • 270

                                                      • Technical specifications E-Turn A 230 E-Turn A 270:
                                                        • Center height 230 mm 270 mm
                                                        • Turning capacity Ø460 mm Ø533 mm
                                                        • Swing over gap Ø710 mm Ø790 mm
                                                        • X-axis travel 272 mm
                                                        • Weight net 2000 kg - 3700kg

                                                        Handwheel can be located either on the right or left hand side of the carriage upon customer's request

                                                        • Mechanical gearbox
                                                        • Exceptionally low noise
                                                        • Foot-operated brake
                                                        • Possibility of cutting metric, whitworth, module and diametral threads with no need to change gears
                                                        • Plastic gear wheel for overload protection of feed gears
                                                        • Feed screw safety pin
                                                        • Feed screw overload slip clutch
                                                    • vertical lathes

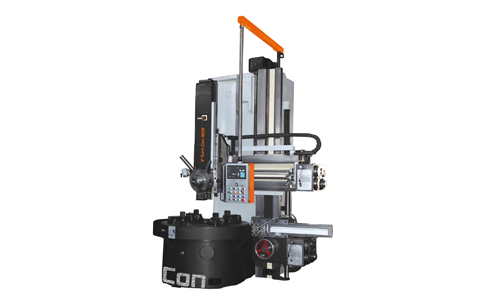

                                                          • V-Turn Con • V-Turn Con D

                                                          • Technical specifications V-Turn Con 1250- 4000 D:
                                                            • Max. workpiece diameter mm 1250 - 4000
                                                            • Table diameter mm 1000 - 2830
                                                            • Max. workpiece height mm 1000 - 2000
                                                            • Max. workpiece weight kg 3200 - 10000
                                                            • Weight kg 8000 - 50000

                                                            For turning of extremely large work pieces


                                                            • Turning of work pieces with diameters up to Ø 4000 mm (157”)
                                                            • Manual tool turret as standard
                                                            • P5 Precision table bearing
                                                            • High quality HT300 cast iron
                                                            • Rigid machine design ensures long-lasting accuracy
                                                      • Eroding

                                                          • Electric Discharge

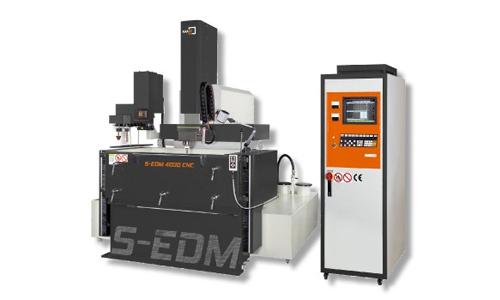

                                                              • S-EDM CNC / Z-EDM CNC

                                                              • Technical Specification S-EDM CNC / Z-EDM 3025 - 5040:

                                                                • Axis travel X/Y S-EDM mm 280 x 230 - 480 x 380
                                                                • Axis travel X/Y Z-EDM mm 300 x 250 - 500 x 400
                                                                • Dimensions mm 600 x 300 - 850 x 450
                                                                • Working tank volume l 190 - 350
                                                                • Weight kg 1700 - 450

                                                                CNC sinker EDM

                                                                • Technical parameters can be accessed and edited during the erosion process
                                                                • Programming parallel to operation
                                                                • Compact design
                                                                • 3D-simulation
                                                                • Automatic calculation of the cutting parameters
                                                                • PC based control
                                                              • Z-EDM BL

                                                              • Technical Specification Z-EDM 300 BL 30 - Z-EDM 750 BL 60:
                                                                • Table size mm 550 x 300 - 1200 x 650
                                                                • Axis travel X / Y / Z: mm 320 x 220 x 250 - 700 x 500 x Z-350+W-350
                                                                • Max. table load capacity kg 400 - 2000
                                                                • Dimensions mm 1200 x 1200 x 2100 - 4000 x 1800 x 2300
                                                                • Dielectrical tank volume l 450 - 800
                                                                • Weight kg 1500 - 3000

                                                                Mechanical features

                                                                • Cast iron machine body of highest stability
                                                                • Z-axis adapts to the lienar guide travel and the Sanyo servo motor
                                                                • Pedrollo oil pump
                                                                • Central lubrication system
                                                                • Precision linear guides
                                                                • Precision ball screws
                                                            • Wire Discharge

                                                                • W-EDM CNC

                                                                • Technical specifications W-EDM (coaxial flushing) 325 CNC - 1270 CNC:
                                                                  • Max. workpiece dimensions mm 800x550x200 - 1600x1000x350
                                                                  • Max. table load capacity kg 350 - 1500
                                                                  • X / Y mm 350/250 - 1200/700
                                                                  • U / V mm 50/50 - 150/150
                                                                  • Z mm 200 - 350
                                                                  • Dimensions mm 3100x2400x2400 - 3100x4500x2300
                                                                  • Weight kg 1800 - 6500
                                                                  • Tank capacity l 420 - 580


                                                                  Highly effective with coaxial wire EDM flushing

                                                                  High-performance wire EDM machine for the production of high-precision molds and electrodes

                                                                  • Very good surface quality with modern cutting technology
                                                                  • Copy, turn, flip, scale, rotate
                                                                  • Automatic dielectric monitoring in the W-S EDM machines
                                                                  • Automatic adjustment of the dielectric filling level corresponding to the height of the work piece
                                                                  • High-precision direct drive ball screws (class C1) and linear guideways in all axes
                                                                  • Travel dependent automatic lubrication of the X and Y-axis guides
                                                                  • Work table and dielectric tank made ​​of stainless steel
                                                                  • Fast underwater cutting of work pieces with a thickness of up to 450 mm (W-EDM S series)
                                                                  • Substantial saving of working time through the use of automatic wire control system (AWT) (Option)
                                                                  • High-quality, automatic wire threading (copper wire Ø 0.15 - 0.3 mm) with a water jet of 1 mm diameter
                                                                  • Key components imported from Japan and Switzerland

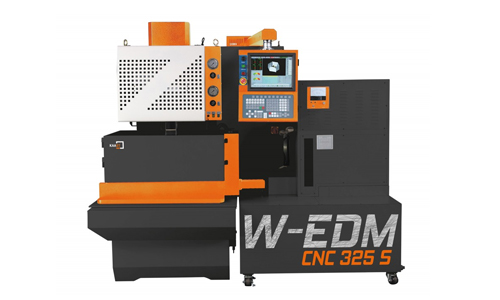

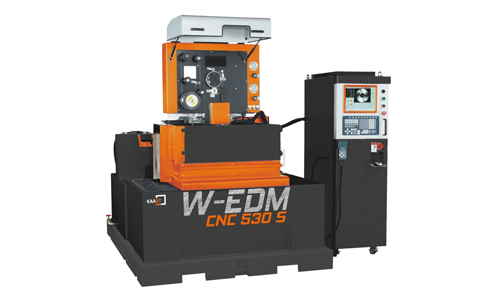

                                                                • W-EDM S CNC

                                                                • Technical specifications: W-EDM (Waterbath) 325 S CNC - 1270 S CNC.
                                                                  • Max. workpiece dimensions mm 700x450x180 - 1600x1000x310
                                                                  • Max. table load capacity kg 350 - 1500
                                                                  • X / Y mm 350/250 - 1200/700
                                                                  • U / V mm 50/50 - 150/150
                                                                  • Z mm 200 - 350
                                                                  • Dimensions mm 2800x2800x2400 - 5300x5000x2800
                                                                  • Weight kg 2000 - 7000
                                                                  • Tank capacity l 630 - 4800


                                                                  Highly effective wire with water bath


                                                                  High-performance wire EDM machine for the production of high-precision molds parts and electrodes

                                                                  • Very good surface quality with modern cutting technology
                                                                  • Copy, rotate, flip, scale, rotate
                                                                  • Automatic dielectric monitoring at the W-S EDM machines
                                                                  • Automatic adjustment of the dielectric filling level corresponding to the height of the work piece
                                                                  • High-precision direct drive ball screws (class C1) and linear guidesway in all axes
                                                                  • Travel dependent automatic lubrication of the X-and Y-axis guides
                                                                  • Work table and dielectric tank made ​​of stainless steel
                                                                  • Fast underwater cutting of work pieces with a thickness of up to 450 mm (W-EDM S series)
                                                                  • Substantial saving of working time through the use of automatic wire control system (AWT) (Option)
                                                                  • High-quality, automatic wire threading (copper wire Ø 0,15 - 0.3 mm) with a water jet of 1 mm diameter
                                                                  • Key components imported from Japan and Switzerland

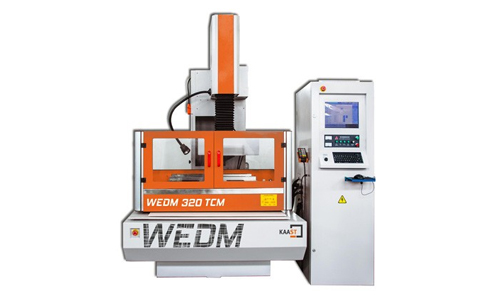

                                                                • W-EDM TCM

                                                                • Technical specificationsn W-EDM 250 TCM - W-EDM 500 TCM:

                                                                  • Table size mm 570x350 - 950x600
                                                                  • Dimensions mm 1300x1800x2100 - 1600x2300x2500
                                                                  • Max. table load kg 500 - 1500
                                                                  • Trave X / Y Axes mm 320x250 - 700x500
                                                                  • Cutting accuracy mm ≦ 0.008
                                                                  • Weight kg 1500 - 3000


                                                                  • THK ( Japan ) High-precision linear guides
                                                                  • Double nut with play compensaion function
                                                                  • AC servo drives for X and Y-axis
                                                                  • Bi-directional wire tension device
                                                                  • Frequency converter for wire roller, stepless adjustable
                                                                  • Noise and maintenance arm
                                                                  • Industrial PC with CNC software based on Windows XP
                                                                  • Programming and parameter changes possible during processing
                                                                  • In-house CAD / CAM application directly on the machine
                                                                  • Import of DXF/DWG files possible
                                                                  • Constant wire tension mechanism
                                                                  • Workpiece surface roughness between 0,8 ~ 1,0 Ra possible, with a stable cutting efficiency of 40-60 mm²/min
                                                                  • Maximum cutting speed of up to180 mm²/min at an angle of maximum 15° and a height of 60 mm möglich
                                                                  • Cutting accuracy 0,008 mm
                                                                  • Enclosed enclosure of the work area prevets splash water leakage and guarantees safety
                                                                  • Integrated central lubrication
                                                                  • Tension-free annealed gray cast iron frame in T-construction (extra stable, with low center of gravity)
                                                                  • Handheld terminal
                                                                  • Molybdenum wire with high tensile and abrasion resistance, guarantees a long service life
                                                              • Drilling

                                                                  • CNC Drills

                                                                      • HBW

                                                                      • Technical specifications HBW 2020/110 - 4225/130:
                                                                        • Table size mm 1600x1400x0.001° 2000x1800x0.001°
                                                                        • X-axis mm 2000 - 4200
                                                                        • Y-axis mm 2000 (2500) - (2000) 2500 (3000)
                                                                        • Z-axis mm 1700 - 2000
                                                                        • W-axis mm 550 - 700 (900)
                                                                        • Coolant tank volume L 400

                                                                        Z-axis as mobile column construction, worktable as B-axis


                                                                        • Moving column design
                                                                        • Main spindle with powerful ZF transmission
                                                                        • Resolution of 0.001° in the rotary table
                                                                        • Glass scales in X-, Y-, Z-axis
                                                                        • 40-piece tool changer/chain magazine
                                                                        • FANUC Oi-MD CNC control

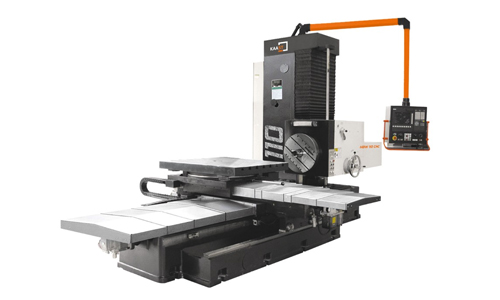

                                                                      • HBW 110 CNC

                                                                      • Technical specifications HBW 110 CNC:
                                                                        • Max. table load capacity 5000 kg
                                                                        • Transverse axis 1200 mm
                                                                        • Positioning accuracy
                                                                        • X 0.04; Y 0.32; Z 0.04 mm
                                                                        • Repeatability in X-, Y-, Z-axes 0.015 mm
                                                                        • Dimensions (LxWxH) 5347x3098x2889 mm
                                                                        • Weight 12000 kg

                                                                        Heavy boring machine with Siemens 802D CNC for machining of large and heavy work pieces


                                                                        • Optimum cutting performance through variable speed control of main spindle and facing slide
                                                                        • 3-axis control by means of proven Siemens or Fanuc controls
                                                                        • Robust and highly accurate, even for high work piece loads and dimensions, thanks to a wide machine bed with 4 stable hardened and precision-ground square guides
                                                                        • Cylindrical roller bearings for centering table offer exceptional accuracy
                                                                        • Precise operation of drill spindle with up to 1100 rev / min
                                                                        • Effective protection of the bed rails by telescopic steel covers

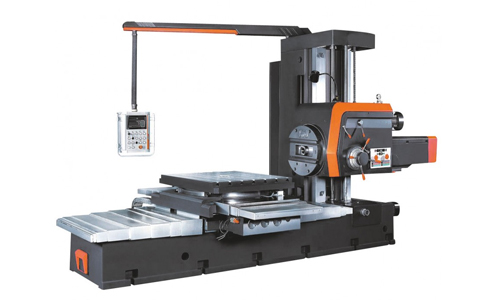

                                                                      • HBW 110 • 130

                                                                      • Technical specifications HBW 110 - HBW 130:

                                                                        • Table dimensions 1100x960 mm 1800x1600 mm
                                                                        • Max. table load 5000 kg 10000 kg
                                                                        • x-axis 900 mm 2000 mm
                                                                        • z-axis 1400 mm 2000 mm
                                                                        • Dimensions (LxWxH)
                                                                        • 4910x2454x2750 mm 7030x4665x3800 mm
                                                                        • Weight 11500 kg 29300 kg


                                                                        • Solid construction with hardened and ground guideways for long-lasting precision results
                                                                        • Mechanical interlocking of functions for safety
                                                                        • Slip clutches protect the headstock, and the feed gear from damage caused by overload
                                                                        • Standard tapping unit ensures quick and convenient work
                                                                        • Individual selection of spindle speed and facing head allows always suitable speeds even for difficult applications
                                                                        • High flexibility due to full table rotation through 360°
                                                                        • Effective protection of the bed guidways through telescopic steel covers
                                                                      • HBW 110R CNC • 135TR CNC

                                                                      • Technical specifications: HBW 110R CNC 110R2 CNC - 135TR4 CNC:

                                                                        • X-axis (table travel) mm 1500 - 4000
                                                                        • Y-axis (spindle vertical travel) mm 1500 - 2800
                                                                        • Z-axis (head vertical travel) mm 1100 - 1700
                                                                        • Table dimensions mm 1400x 1250 - 1800x2000
                                                                        • Dimensions mm 4650x 6200x 3800 - 7780x7550x5320
                                                                        • Weight kg 22800 - 43700


                                                                        • Horizontal boring mill with large travels and high intrinsic weight for the machining of heavy and large workpieces
                                                                        • The Spindle cooling ensures a constant temperature for long-lasting accurate results
                                                                        • Both the hardened HRC62-68 spindle and the housing are made of high quality steel alloys which combined with the two-stage automatic gearbox allows high cutting rates
                                                                        • The hardened HRC 43-47, rectangular guides, on a huge rigid machine bed, are coated with Turcite B and precision ground, so smooth operation is achieved even for small movements at low speed
                                                                        • The TR and TR2 also have two external guides which allow high workpiece weight and ensure the accuracy of the Z axis
                                                                        • Pendant control panel - for best user performance
                                                                        • The HBW 135 CNC machines can be equipped with a vertical or universal milling head
                                                                      • HBW-F

                                                                      • Technical specifications: HBW-F 630 - HBW-F 800:
                                                                        • Table size mm 630x630 - 800x800
                                                                        • X-axis mm 1500 (1600) - 2000
                                                                        • Y-axis mm 1200 - 1400 (1700)
                                                                        • Z-axis mm 1000 (1100) - 1400 (1600)
                                                                        • Dimensions mm 6100x4400x3500 - 6200x4700x3900
                                                                        • Weight kg 11.000 - 14.500

                                                                        Fixed spindle quill with indexing table


                                                                        • Fixed column construction
                                                                        • Fixed spindle
                                                                        • 5°/72 indexing rotary table is standard of HBW-F 630
                                                                        • 1°/360 indexing rotary table is standard of HBW-F 800
                                                                        • Spindle is driven by a gearbox
                                                                        • Linear scales on X, Y, Z-axis
                                                                        • 40 tools chain type magazine
                                                                        • FANUC OiMD CNC control

                                                                        Heavy duty construction helps to boost stability

                                                                        • Linear guide way on X, Z-axis
                                                                        • Four linear ways on the base provide stable support for heavy Ioad
                                                                        • Box ways on Y-axis allow for heavy cutting with great stability
                                                                        • X, Y, Z-axes are equipped with linear scales to assure the highest positioningaccuracy

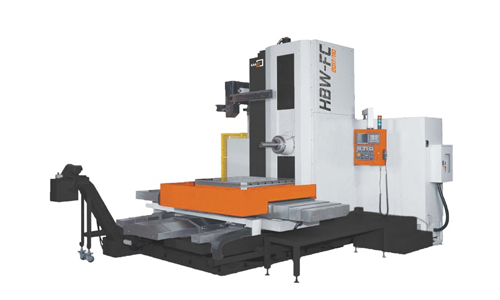

                                                                      • HBW-FC

                                                                      • Technical specifications: HBW-FC 2017/110:

                                                                        • Table size mm 1250x1250x0.001°
                                                                        • X-axis mm 2000
                                                                        • Y-axis mm 1700
                                                                        • Z-axis mm 1400
                                                                        • W-axis mm 400 (500)
                                                                        • Max. load kg 5000
                                                                        • Weight kg 26000


                                                                        • Fixed column construction
                                                                        • Main spindle with powerful ZF transmission
                                                                        • Resolution of 0.001° in the rotary table
                                                                        • Glass scales on X, Y, Z-axis
                                                                        • 40 piece tool changer / chain magazin
                                                                        • FANUC OiMD CNC control

                                                                        Max. stability through robust design

                                                                        • Solid floor design offers solid support for very heavy workpieces
                                                                        • The solid column optimally supports the spindle head and provides for max. stability with heavy duty cutting
                                                                        • Machine design of strongly ribbed high-quality Mehanitee cast iron
                                                                        • X-, Y-, Z-axes by default equipped with glass scales to ensure maximum precision
                                                                        • X- and Z-axis as square guides
                                                                        • Quadruple linear guides in heavy-duty design in the Z-axis
                                                                    • Drills

                                                                        • RD

                                                                        • Technical specification RD RD 32 S - RD 80:

                                                                          • Drilling capacity mm Ø 32 - Ø 80
                                                                          • Drilling capacity steel cast iron mm Ø 50 - Ø 100
                                                                          • Weight kg 1120 - 13000
                                                                          • Dimensions mm 1680x826x2160 - 4000x1600x3850


                                                                          • The Radial Drill Arm adopts IC Timer with the advantage of one button press,it can automatically release up, vertical down, stop, and automatically clampfor easy operate. The spindle can still maintain in original set after the tools change.
                                                                          • Exclusive oil pump is furnished to cool off precise gears inside gear box, and minimize excessive wear on gears to lowest extent.
                                                                          • Friction type disc clutch to absorb impact force caused by vertical movement of spindle, and effectively protect all transmission units inside gear box. With the function of quick spindle return, this clutch will also help to speed up the tapping operation.
                                                                          • Special arm elevating safety device is provided to prevent arm from falling down abruptly even after years of usage.
                                                                          • Gear box adopts precision high-speed gears, mechanical shift simple manipulation and is high-efficiency withlow-noise.

                                                                          Specially for RD 80:

                                                                          • The Column, arm, and gear box with advantage of clamping/unclampingautomatically or manually
                                                                          • Free speed preselection, speed change is actuated hydraulically. Fast and veryeasy to operate.
                                                                        • RDS 40 A

                                                                        • Technical specifications RDS 40 A:
                                                                          • Drilling capacity Ø40 mm
                                                                          • Tapping capacity M 30
                                                                          • Dimensions (LxWxH) 1720x1200x2250 mm
                                                                          • Weight 2740 kg


                                                                          Universal Radial Drill with 2 workspaces

                                                                          • High operating convenience through digital spindle speed display and stepless speed control
                                                                          • Automatic quill feed
                                                                          • Thread cutting function
                                                                          • Versatile swivel ranges of 180° at the drill head and 90° at the back table
                                                                        • VDS 16 • 16 V • 25 • 25 V

                                                                        • Technical speci fications VDS 16 - VDS 25 V:
                                                                          • Drilling capacity Ø16 mm - Ø25 mm
                                                                          • Base dimensions 250x250 mm - 330x320 mm
                                                                          • Dimensions 680x390x1050 mm - 840x459x1760 mm
                                                                          • Weight 108 kg 260 kg

                                                                          V models with automatic spindle feed

                                                                          Vertical drilling machine with swiveling and tiltable work table

                                                                          • Automatic spindle feed (VDS 16V and VDSL 25 V)
                                                                          • Coolant system (VDS 25 V)
                                                                          • Quiet belt drive
                                                                          • High-precision spindle bearing
                                                                          • Feed rate of the work table via crank handle and gear rack
                                                                          • Adjustable depth stop
                                                                          • Long quill stroke
                                                                          • Thick walled column
                                                                      • Grinding

                                                                          • Cylindrical Grinder

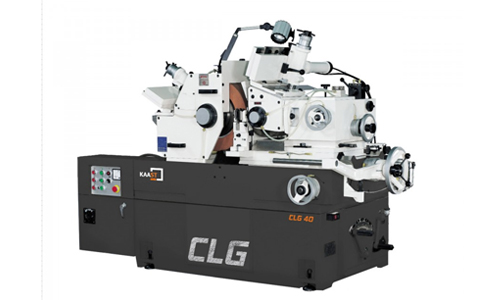

                                                                              • CLG

                                                                              • Technical specifications CLG 40 - S 100255:

                                                                                • Grinding capacity mm Ø1-40 - Ø1-100
                                                                                • Grinding wheel dimensions mm Ø305x150xØ120 - Ø610x305xØ356
                                                                                • Regulating wheel dimensions mm Ø205x150xØ90 - Ø330x305xØ127
                                                                                • Dimensions mm 1750x1050x1400 - 2810x2100x1650
                                                                                • Weight kg 1650 - 6000



                                                                                • A heavy Meehanite cast frame, heat treated and relaxed, provides a solid foundation for the CLG centerless cylindrical grinder
                                                                                • All guideways are hardened and precision ground to ensure consistent accuracy and wear resistance
                                                                                • The grinding and regulating spindle is made ​​of high quality steel and SNCM-220 after deep hardening (HRC62) and grinding process particularly suited for years of tough production conditions
                                                                                • The spindles are made of SNCM-4 material and provides specially designed spindle feed rate accuracies of the highest quality
                                                                                • A wide range of options are available for your special application needs upon request

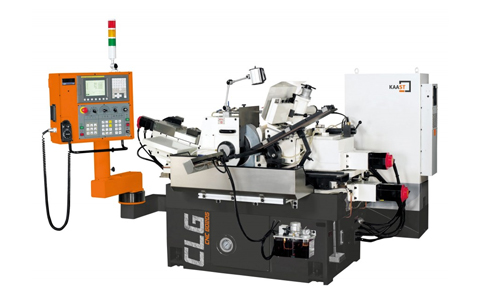

                                                                              • CLG CNC

                                                                              • Technical specifications CLG CNC 40150 - 100305:
                                                                                • Max. Grinding capacity mm Ø1-40 mm - Ø 1-100
                                                                                • Capacity increases with special arrangement mm Ø 30-60 - Ø 40-150
                                                                                • Grinding wheel Dimensions mm Ø 305 x 150 xØ 120 - Ø 610 x 305 xØ 355.6
                                                                                • Regular wheel Dimensions mm Ø 205 x 150 xØ 90 - Ø 330 x 205 xØ 127
                                                                                • Weight kg 1700 - 5000

                                                                                with Fanuc controller


                                                                                • Equipped with a modern Fanuc Oi-MateTD controller
                                                                                • Digital drive package from Fanuc (drives,axis servos)
                                                                                • Drive concept with up to 6 CNC axes (X-,Y-, Z-, A-, B-, C-axis)
                                                                                • Easy size adjustment. Easy to learn and understand
                                                                                • PLC/controlled oil temperaturemonitoring
                                                                                • Feed accurately programmable by servo drives
                                                                                • Variable speed for the regulating wheel

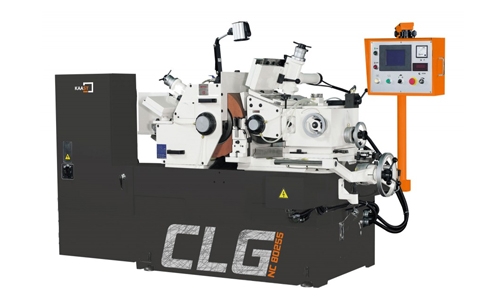

                                                                              • CLG NC

                                                                              • Technical specifications CLG NC 40150 - 80305:

                                                                                • Max. Grinding capacity mm Ø1-40 mm - Ø 1-80
                                                                                • Capacity increases with special arrangement mm Ø 30-60 - Ø 40-150
                                                                                • Grinding wheel Dimensions mm Ø 305 x 150 x Ø 120 - Ø455 x 305 x Ø 228.6
                                                                                • Regular wheel Dimensions mm
                                                                                • Ø 205 x 150 x Ø 90 Ø - Ø 255 x 305 x Ø 111.2
                                                                                • General Dimensions 1750x1050x1400 - 2350x1950x1530
                                                                                • Weight kg 1700 - 3500



                                                                                • Equipped with SIEMENS-S7 controller for grooving and feed movement
                                                                                • The guideways are hardened and ground
                                                                                • Grinding and control spindle are hardened and have friction bearings
                                                                                • Frequency-controlled regulating wheel drive by OS motor
                                                                                • Hydraulically driven dressing devices for grinding and regulating wheel

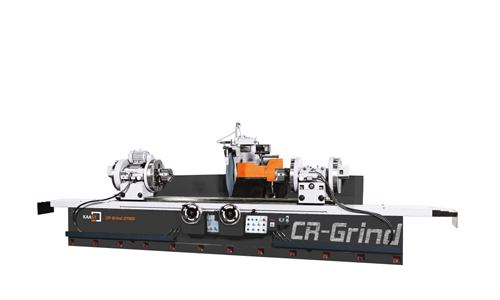

                                                                              • CR-Grind

                                                                              • Technical speci fications CR-Grind 27160 - 35300:

                                                                                • Grinding capacity over bed mm Ø550 - Ø800
                                                                                • Center height mm 275 - 350
                                                                                • Grinding wheel dimensions mm 710x 19(38)x 203 - 915x 22(38)x 305
                                                                                • Weight kg 5200 - 11000



                                                                                • The heavy-duty model with massive stiffened machine bed, allows accurate results with excellent grinding, even with heavy components
                                                                                • The aerostatic spindle and tailstock storage ensures minimal operating vibration even for long workpieces
                                                                                • The automatic lubrication system
                                                                                • Infinitely adjustable feed rate with hydraulic drive
                                                                                • The automatic "soft stop" significantly reduces the stresses in all components and allows for long term operation

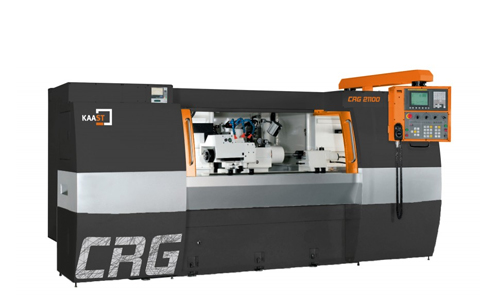

                                                                              • CRG CNC

                                                                              • Technical specifications CRG 1040 - 21100:
                                                                                • Grinding capacity mm 180 - 400
                                                                                • Max. workpiece weight kg 60 - 150
                                                                                • Grinding wheel dimensions mm Ø305x38x127 mm - Ø405x50x152 mm
                                                                                • Weight kg 2250 - 5500


                                                                                For grinding in the sub-micron range


                                                                                • Advanced machine concept, innovative design andcutting-edge components from reputable manufacturersare key elements which characterize these CNC cylindricalgrinding machines
                                                                                • Exceptional accuracy
                                                                                • Standard grinding cycles include dressing of the wheel, aswell as grinding cycles of concave and convex surfaces
                                                                                • Specially designed fine feeds allow grinding results withmirrored surfaces, to an accuracy of 0.1 micron
                                                                                • A heavy Meehanite cast frame, heat treated and stressrelieved,provides a solid foundation for the CRG CNCcylindrical grinding machines
                                                                                • All guideways are hardened and precision ground toensure permanent accuracy and wear resistance. Anotherhighlight of this series is the special table design, whichuses a hydrostatic system for extremely smooth motionand precision
                                                                                • The grinding spindle is made of high quality steel
                                                                                • The grinding spindle uses a high-precision hydrostaticspindle bearing that excludes metal-to-metal contact andthus guarantees a true running accuracy of 0.5 microns
                                                                                • A wide range of options for your special applications areavailable on request

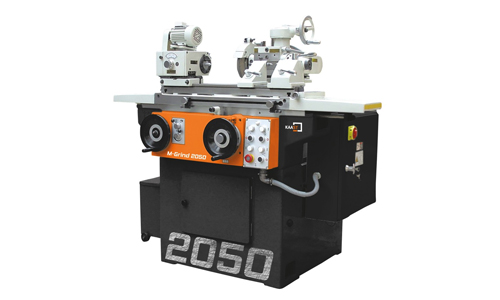

                                                                              • M-Grind 2050

                                                                              • Technical specifications M-Grind 2050:

                                                                                • Max. workpiece diameter Ø200 mm
                                                                                • Max. workpiece length 500 mm
                                                                                • Max. workpiece weight 10 kg
                                                                                • Grinding wheel dimensions 200x20x75 mm
                                                                                • Machine dimensions 11520x1130x1117 mm
                                                                                • Weight 1300 kg


                                                                                The M-Grind universal grinder is highly functional allowing external, internal, and tapered grinding. The M-Grind also allows easy tool grinding (sharpening knives, reamers and turning tools) and is suitable for light surface grinding

                                                                                Three point bearing

                                                                                The custom-made three-point mounting of the grinding spindle ensures minimum temperature influence and high quality grinding results

                                                                                Feed drives

                                                                                Hydraulic table feed (in the longitudinal direction) with automatic direction change

                                                                                Grinding spindle

                                                                                The special design of the grinding spindle head allows the simultaneous use of two different grinding wheels. The grinding spindle can be adjusted in the transverse direction, as well as in height. Further, a pivoting around the vertical-axis is possible

                                                                                Speeds

                                                                                The headstock has three different speeds (110, 200, 300 rpm), which are selectable by an easy to use gear unit

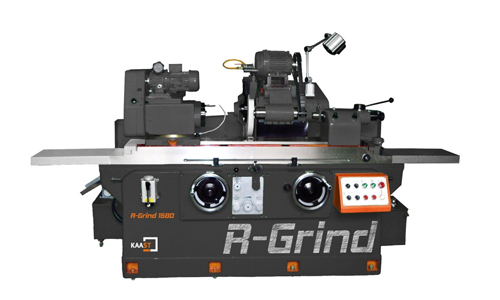

                                                                              • R-Grind

                                                                              • Technical speci fications R-Grind 1565 - 20150:

                                                                                • Grinding capacity Ø300 mm - Ø400 mm
                                                                                • Max. workpiece weight 120 kg - 250 kg
                                                                                • Grinding wheel dimensions 355 x38x 127 mm - 406x38x127 mm
                                                                                • Weight 2100 kg - 3400 kg


                                                                                • Generously sized machine bed minimizes both twisting,and vibrations, thus achieving high quality grindingwith the best dimensional stability
                                                                                • Low maintenance due to automatic slide and headstocklubrication
                                                                                • 8-way graded belt drive in the headstock for broadrange of speed control
                                                                                • Infinitely variable table feed by hydraulic drive with“soft-stop” at the end of traverse
                                                                                • Rapid traverse for the spindle

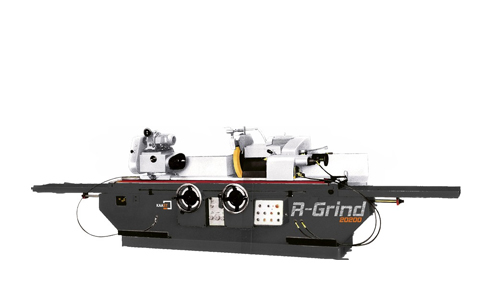

                                                                              • R-Grind 20160 - 25400

                                                                              • Technical specifications: R-Grind 20160 - 25400:

                                                                                • Grinding capacity mm Ø400 - Ø600
                                                                                • Max. workpiece weight kg 350 - 1500
                                                                                • Grinding wheel dimensions mm 508х38х203 - 660x63x204
                                                                                • Weight
                                                                                • kg 3800 - 13500


                                                                                • The massive machine bed design with stable ribbing assures that even heavy components will have optimal results for surface roughness and dimensional accuracy
                                                                                • The hydrostatic bearing spindle and tailstock allow for extremely good isolation of machine vibrations and therefore provide excellent surface finish
                                                                                • V-guide-ways allow precise adjustment of alignment spindle and tailstock
                                                                                • Belt-driven headstock with variable speed
                                                                                • Automatically lubricated grinding spindle with electronic overload protection
                                                                                • "Soft stop" function on the feed
                                                                                • Feed is via infinitely adjustable hydraulics

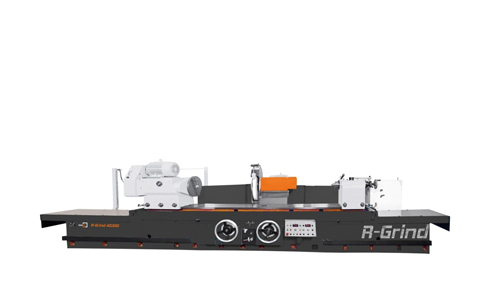

                                                                              • R-Grind HD

                                                                              • Technical speci fications R-Grind HD 40300 - 40400:

                                                                                • Grinding capacity mm Ø800
                                                                                • Max. workpiece weight kg 2000
                                                                                • Grinding wheel dimensions mm 812 x76x304
                                                                                • Weight kg 18500 - 25000


                                                                                • High-performance grinding for accurate production of large-work pieces such as car axles, hydraulik cylinders, etc.
                                                                                • High-quality Meehanite cast iron with heavy ribbing ensures high overall stiffness, even with heavy workpieces
                                                                                • A precision grinding spindle bearing ensures the highest accuracy
                                                                                • The belt-driven spindle stock with adjustable speed ensures continuous optimal conditions for grinding
                                                                                • Automatic lubrication of the headstock
                                                                                • Hydraulically driven table feed with soft-stop at the end of the movement
                                                                                • All feed rates are infinitely variable ensuring a high quality surface finish
                                                                                • Rapid approach / withdrawal of the grinding wheel
                                                                                • Hydrostatic bearing of the spindle and tailstock

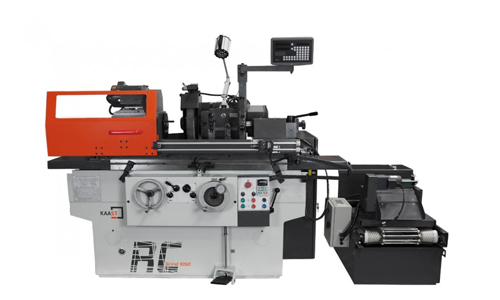

                                                                              • RC-Grind 1050

                                                                              • Technical specifications RC-Grind 1050:
                                                                                • Max. grinding length 500 mm
                                                                                • Max. griding capacity ø 200 mm
                                                                                • Max. griding capacity with steady rest ø 60 mm
                                                                                • Grinding wheels dimensions 400x50x203 mm
                                                                                • Overall dimensions 2.500x1.600x1.500 mm
                                                                                • Weight 2.500 kg

                                                                                For external and internal grinding of cylindrical and tapered surfaces

                                                                                • Hydraulic table feed, infinitely adjustable
                                                                                • Machine table and spindle swivel for tapered grinding
                                                                                • Swivel grinding head with Internal grinding unit
                                                                                • Lever actuated tailstock
                                                                                • Cross feed of the grinding wheel is carried out hydraulically or manually
                                                                                • Grinding headstock can be rotated by 180° to change from the outside to inside grinding
                                                                                • The hydraulic tailstock is actuated using the foot pedal

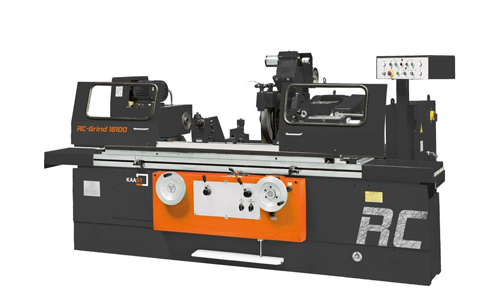

                                                                              • RC-Grind 18100

                                                                              • Technical speci fications RC-Grind 18100:

                                                                                • Grinding capacity Ø320 mm
                                                                                • Min. grinding diameter Ø8 mm
                                                                                • Max. grinding length 1000 mm
                                                                                • Max. workpiece weight between centers 150 kg
                                                                                • Dimensions (LxWxH) 3605x1810x1515 mm
                                                                                • Weight 3700 kg


                                                                                • Grinding spindle mounted on both sides in adjustable 3-segment surfaces bearings
                                                                                • The hydrostatic bearing of the main spindle produces a film of oil between the bearing and the spindle. This eliminates vibration and provides high precision and surface quality, increasing the service life of the spindle
                                                                                • Precisely aligned spindle head and a sturdy table for best work results in different applications
                                                                                • Machine table swivel in 2 directions
                                                                                • Table movement is carried out manually by hand wheel or automatically via the hydraulic feeder in the longitudinal direction
                                                                                • Table feed rate is infinitely adjustable
                                                                                • A delay can be adjusted into the end of the table movement
                                                                                • Accuracy according by ISO for cylindrical grinding machines
                                                                                • With internal grinding unit
                                                                                • Rapid traverse can be hydraulically or manually actuated
                                                                            • Surface Grinder

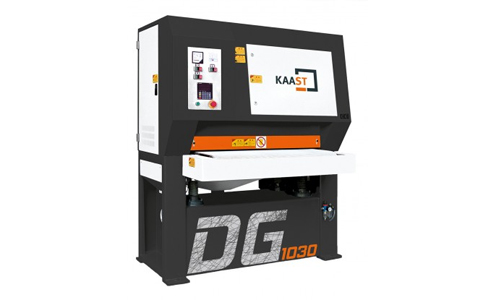

                                                                                • DG 350 • 630 • 1030 • 1300

                                                                                • Technical specifications DG 350 - 1300:

                                                                                  • Grinding width mm 320 - 1280
                                                                                  • Workpiece length mm 200 - 300
                                                                                  • Workpiece thickness mm 1-80 - 0.5-20
                                                                                  • Abrasive belt dimensions mm 350x1520 - 2200x1300
                                                                                  • Dimensions mm 1250x1500x1750 - 2000x2650x2250
                                                                                  • Weight kg 1100 - 4000


                                                                                  The DG drum grinding machines of DG series are suitable for grinding, deburring and polishing surfaces of all steels and non-ferrous metals. The conveyor belt speed is infinitely variable to obtain optimum grinding results.

                                                                                  It is possible to grind debur and polish large surfaces quickly and effectively. Wet grinding is also an option.

                                                                                  Other options expand the automation of these systems, such as automatic front and rear table feeding, PLC unit for monitoring the grinding parameters and automatic height adjustment. Also, several systems are connected in series in order to obtain a complete production line.

                                                                                  Please contact us for your customized quote.
                                                                                • F-Grind A

                                                                                • Technical specifications F-Grind 50100 A - F-Grind 70200 A:

                                                                                  • Table dimensions 500x1000 mm - 700x2000 mm
                                                                                  • Distance spindle center-table 600 mm (Option: 800 mm, 1000 mm)
                                                                                  • Grinding wheel dimensions Ø406x50xØ127 mm
                                                                                  • Weight 6000 kg - 9000 kg


                                                                                  • The grinding spindle runs in preloaded precision angular contact ball bearings
                                                                                  • Automatic transverse and longitudinal feed
                                                                                  • High positioning accuracy of the vertical axis by AC servomotor in conjunction with recirculating ball screw
                                                                                  • Delivery of the vertical axis manually via handwheel
                                                                                  • Rapid traverse to the desired working height
                                                                                  • Roughing and finishing parameters are adjustable
                                                                                  • Hydraulic table movement in the longitudinal axis
                                                                                  • Precision linear guides for the vertical axis
                                                                                  • Double V guides for the transverse axis
                                                                                  • Combined flat and V guides for the longitudinal axis
                                                                                  • High table load capacity for heavy work pieces
                                                                                  • Table guideways are hardened, ground and PTFE (polytetrafluoroethylene) coated for very high wear resistance

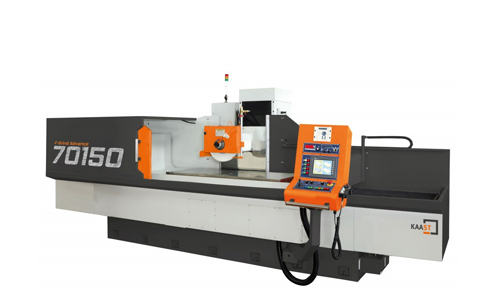

                                                                                • F-Grind Advance

                                                                                • Technical specifications 2045 - 70200:
                                                                                  • Tabledimensions mm 200x450 - 700x2000
                                                                                  • Distance spindle center-table mm 500 - 600
                                                                                  • Grinding wheel dimensions mm 180x13x31.75 - 405x50x127
                                                                                  • Weight kg 1950 - 9670
                                                                                  • Dimensions (LxWxH) mm 2680x2350x2000 - 6200x2700x2040

                                                                                  High quality NC-controlled surface grinding machine with automatic dressing

                                                                                  • The precision-ground guideways, coated with TURCITE B,have a low-friction surface.
                                                                                  • Stick-slip is reduced drastically between the two precision surfaces.
                                                                                  • Furthermore, the surfaces allow for very quiet motion andare highly resistant against wear. Lubrication
                                                                                  • The spindles have special sealed bearings and are lubricated for the service life, that ensuring minimal servicing.
                                                                                  • The guideways are automatically supplied with oil straight after activation of the hydraulic system. Lack of oil is thus never a problem.
                                                                                  • In addition, an automatic alarm system warns the operatorin case of a low oil level.


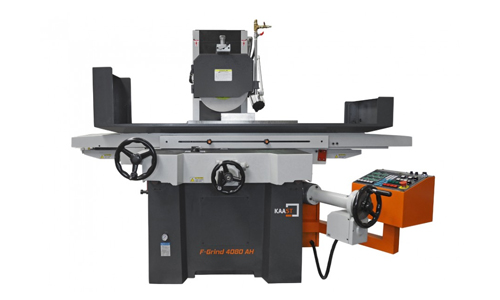

                                                                                • F-Grind AH


                                                                                • Technical speci fications F-Grind 1545 AH - 4080 AH:

                                                                                  • Table dimensions 150x450 mm - 400x800 mm
                                                                                  • Max. workpiece dimensions 150x450 mm - 400x800 mm
                                                                                  • Grinding wheel dimensionsOD/bore/width (standard) 180x 13xØ31.75 mm - Ø405x50x Ø127 mm
                                                                                  • Dimensions 1820x 1280x 1950 mm - 3450 x2050 x2250 mm
                                                                                  • Weight 900 kg - 3250 kg


                                                                                  • The spindle runs on preloaded precision angular ball bearings
                                                                                  • Automatic transverse and longitudinal feed
                                                                                  • Rapid traverse to the desired working height
                                                                                  • Roughing and finishing parameters are adjustable
                                                                                  • Hydraulic table movement in the longitudinal axis
                                                                                  • Combined flat and V guides for the longitudinal movement of the table
                                                                                  • Double V guide for transverse movement of the table
                                                                                  • Table guideways are hardened, ground and PTFE (polytetrafluoroethylene) coated for very high wear resistance
                                                                                  • Automatic lubrication

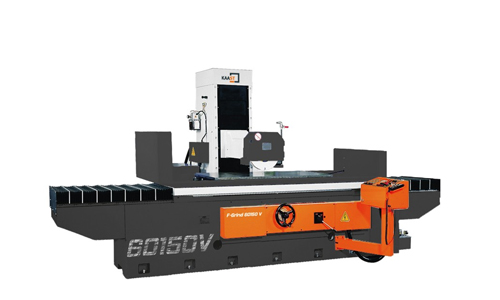

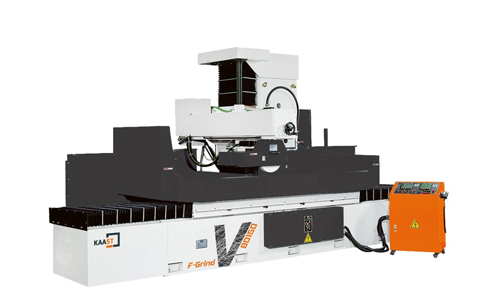

                                                                                • F-Grind V


                                                                                • Technical specifications F-Grind 80150 V - F-Grind 100300 V:

                                                                                  • Table dimensions 800x1500 mm - 1000x3000 mm
                                                                                  • Distance spindle center-table 800 mm (Option: 1000 mm)
                                                                                  • Grinding wheel dimensions Ø406x50xØ127 mm (Option: Ø406x76xØ127 mm)
                                                                                  • Weight 12800kg - 18300


                                                                                  • The grinding spindle runs in heavy-duty, preloaded angular contact ball bearings
                                                                                  • Automatic feed in X, Y & Z
                                                                                  • High positioning accuracy of the vertical axis by AC servo motor in conjunction with recirculating ball screw
                                                                                  • Programmable feed of the vertical axis (AD5)
                                                                                  • Rpid traverse to the desired working height
                                                                                  • Rough and finish parameters are adjustable
                                                                                  • Hydraulic table movement in the longitudinal axis
                                                                                  • Double V guides for the cross travel
                                                                                  • Table guideways are hardened, ground and PTFE (polytetrafluoroethylene) coated for very high wear resistance
                                                                                  • Combination of flat and V-guides for the table longitudinal feed
                                                                                  • High table load capacity for heavy workpieces
                                                                              • Sawing

                                                                                  • semi-automatic bandsaw

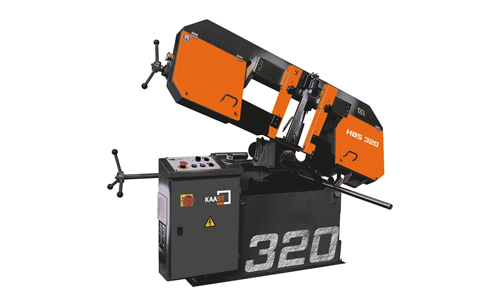

                                                                                      • HBS 230 • 270 • 280 • 280G • 320 • 320G

                                                                                      • Technical specifications HBS 230 - HBS 320 G:

                                                                                        • Saw blade dimensions 2720x 27x 0.9 mm - 3660 x27 x0.9 mm
                                                                                        • Working height 760 mm - 740 mm
                                                                                        • Dimensions 1350 x900 x1300 mm - 1900x1200x1350 mm
                                                                                        • Weight 410 kg - 960 kg



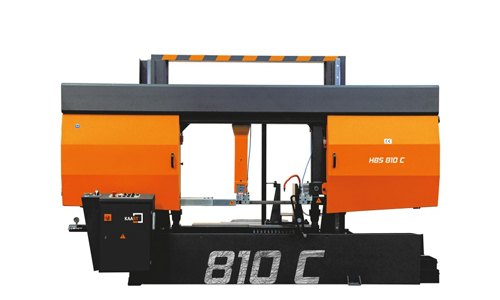

                                                                                      • HBS 325 C • 380 С • 460 С • 560 С • 810 С • 1100 С

                                                                                      • Technical specifications HBS 325 C - HBS 1100 C:
                                                                                        • Saw blade dimensions 4160x34x1.1 mm - 10500x67x1.6 mm
                                                                                        • Working height 580 mm - 545 mm
                                                                                        • Dimensions 2150x860x1500 mm - 4800x1500x2975 mm
                                                                                        • Weight 900 kg - 10.000 kg

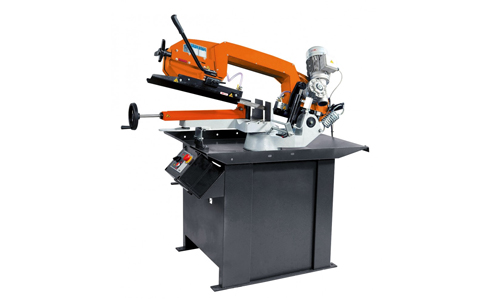

                                                                                      • MAB 220 DG • 250 DG • 250 • 300

                                                                                      • Technical specifications MAB 220 DG - 300:
                                                                                        • Saw blade dimensions 2600x27x0.9 mm - 3110x27x0.9 mm
                                                                                        • Blade speed 40/80 m/min - 37/75 m/min
                                                                                        • Motor 400V / 1.5 kW - 400V / 2.3 kW
                                                                                        • Dimensions 1400x660x1400 mm - 1600x650x1600 mm
                                                                                        • Weight 270 kg - 440 kg

                                                                                        Cost-effective entry models


                                                                                        • Machine frame in solid welded steel design for many yearsof precision sawing work
                                                                                        • Saw band speed can be switched in 2 steps
                                                                                        • Ergonomically installed controls
                                                                                        • The motor drives the drive wheel form-fitting via wormgears
                                                                                        • Easy handling, powerful and secure clamping vice
                                                                                        • Automatic raising of the saw bow at the end of the cut(only for MAB 250 and 300)
                                                                                        • Adjustable cementedcarbide guides for optimalsaw band guidance
                                                                                        • Standard cooling equipmentprotects the saw blade andprovides for chip removal
                                                                                        • Band break checking is doneautomatically by limit switch
                                                                                    • full-automatic bandsaw

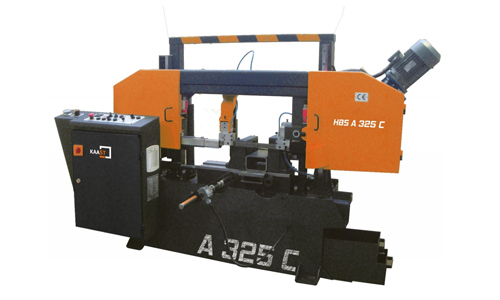

                                                                                        • HBS A 230 • 280 • 325 С

                                                                                        • Technical specification HBS A 230 - HBS A 325 C:

                                                                                          • Saw blade dimensions 2730 x27x 0.9 mm - 4160x34x1.1 mm
                                                                                          • Working height 590 mm - 580 mm
                                                                                          • Dimensions 1700x 1100x 1500 mm- 2450x900x1500 mm
                                                                                          • Weight 500 kg - 880 kg

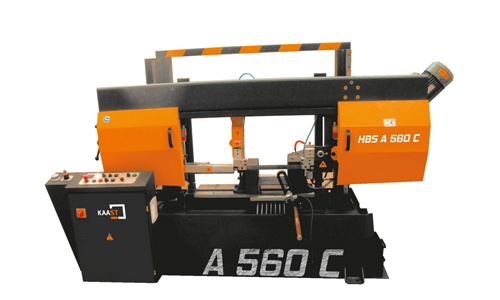

                                                                                        • HBS A 325 C • 380 C • 460 С • 560 С

                                                                                        • Technical specifications HBS A 325 C - HBS A 560 C:

                                                                                          • Saw blade dimensions
                                                                                          • 4160x34x1.1 mm - 6000x41x1.3 mm
                                                                                          • Working height 580 mm - 590 mm
                                                                                          • Dimensions 2450x900x1500 mm - 3500x1050x2050 mm
                                                                                          • Weight 960 kg - 2115 kg


                                                                                          • Rapid down to cut height with automatic transition to the sawing feed rate (light sensor)
                                                                                          • Powered chip brush, reliably provides clean saw teeth
                                                                                          • Robust blade guides and wear-resistant carbide guides
                                                                                          • Desired quantity and length of the workpieces selected by using the control panel in automatic-mode
                                                                                          • Perfect for processing of profiles, tubes and bar stock
                                                                                          • Automatic material feed
                                                                                        • KBS 250 CNC • 300 CNC • 330 CNC

                                                                                        • Technical specifications KBS 250 CNC - KBS 330 CNC:
                                                                                          • Saw blade dimensions 2710x27x0.9 mm - 3870x34x1.1 mm
                                                                                          • Blade speed 15-90 m/min - 15-90 m/min
                                                                                          • Motor 400V / 3 kW - 400V / 4.7 kW
                                                                                          • Dimensions 2100x1500x1450 mm - 2450x1800x1680 mm
                                                                                          • Weight 740 kg - 1320 kg

                                                                                          Fully automatic CNC miter band saw


                                                                                          • Steplessly controllable saw band speed for adjustment ofthe optimal cutting speed
                                                                                          • Solid gray cast iron saw bow in monoblock design
                                                                                          • Material feed system by quick and highly precise servodrives
                                                                                          • 500 mm (19.7“) material feed travel in one stroke
                                                                                          • Clear touchscreen 7.5“
                                                                                          • The machine can be operated in manual, semi-automaticand fully automatic mode
                                                                                      • Fabrication Equipment

                                                                                          • Swing-Beam Shears

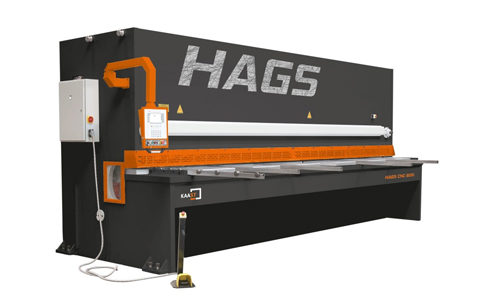

                                                                                              • HAGS

                                                                                              • Technical specifications HAGS CNC 3006 - 6016:

                                                                                                • Capacity of cut (mild steel) mm 6 - 16
                                                                                                • Table height mm 775 - 1240
                                                                                                • Machine length mm 3800 - 8650
                                                                                                • Machine height mm 2010 - 3200
                                                                                                • Machine width mm 2350 - 3250
                                                                                                • Hydraulic tank l 140 - 430
                                                                                                • Weight kg 6000 - 34000



                                                                                                • Cutting length adjustment is made at the panel, which guarantees efficient processing
                                                                                                • Machinery components and parts from reputable manufacturers: Bosch Rexroth, Hoerbiger, Cybelec, Delem, Elgo, Telemecanique, Siemens, Wila,Wilson, Unimec
                                                                                                • The pistons of the hydraulic cylinders are made of high grade steel, hardened and precision polished
                                                                                                • The pivot bearings are grease and oil-free, which prevents dirt and dust contamination and thereby extends theservice life

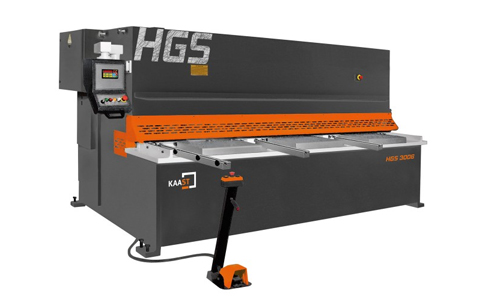

                                                                                              • HGS

                                                                                              • Technical specifications HGS 3006 - 4016:

                                                                                                • Capacity of cut (mild steel) mm 6 - 16
                                                                                                • Table height mm 850 - 900
                                                                                                • Machine length mm 4300 - 5480
                                                                                                • Machine height mm 1650 - 2420
                                                                                                • Hydraulic tank l 160 - 370
                                                                                                • Weight kg 6000 - 23000



                                                                                                • Hydraulic swing-beam shear with fixed rake angle is intended for high-quality cutting of various sheet materials at high-speeds; it is a powerful and convenient metal working tool.
                                                                                                • The machine's cylinder rods are manufactured by Koyahan - one of the most renowned European hydraulics companies. They are made of a special ground alloy steel.

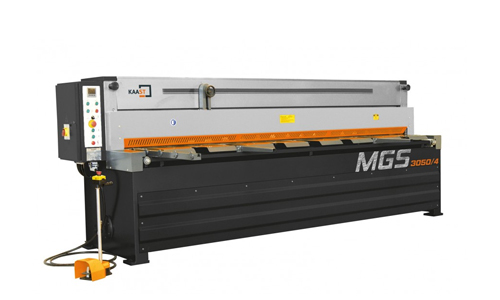

                                                                                              • MGS

                                                                                              • Technical specifications MGS 1350/3 - 3050/4:

                                                                                                • Max. cutting length mm 1350 - 3050
                                                                                                • Backgauge mm 560 - 750
                                                                                                • Dimensions (LxWxH) mm 1900х1400х1250 - 3700х1800х1400
                                                                                                • Weight kg 1300 - 4000


                                                                                                • Heavy welded structure for better machine rigidity
                                                                                                • Low-noise drive
                                                                                                • Parallel guided, high-strength alloy steel blades, hardened and ground
                                                                                            • Ironworkers

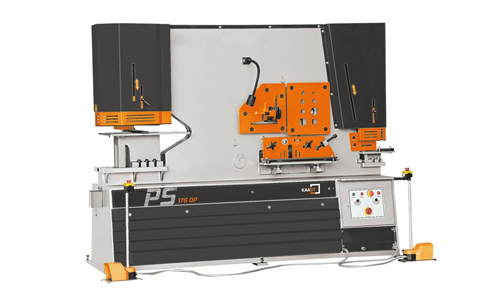

                                                                                                  • PS • PS DP

                                                                                                  • Technical specifications PS 45 - PS 175 DP:
                                                                                                    • Max. capacity (diameter x thick) mm Ø22x15, Ø100x3 - Ø40x32, Ø125x5
                                                                                                    • Hydraulic performance l/min 11 - 22
                                                                                                    • Pressing force t 45 - 175
                                                                                                    • Dimensions mm 1430x950x1680 - 2730x1150x2280
                                                                                                    • Weight kg 1180 - 6000

                                                                                                    Multi-purpose machine with 5 work stations for punching, shearing and notching



                                                                                                    DP two-cylinder version allows parallel work on the punch as well as a second workstation

                                                                                                    • Includes electric trigger switch up to 1000 mm for quick workflow of repetitiv work
                                                                                                    • Jog-mode for each work station for precise tool and work piece positioning
                                                                                                    • Also available with CNC-controlled material feed stock for punch, with 6m or 4m material table and pneumatic holding device
                                                                                              • Press Brakes

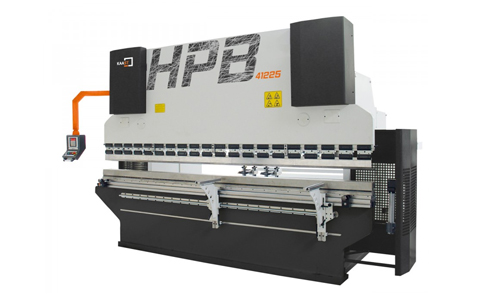

                                                                                                  • HPB

                                                                                                  • Technical specifications HPB 3190 - 61400:

                                                                                                    • Bending tonnage t 90 - 400
                                                                                                    • Bending length mm 3100 - 6100
                                                                                                    • Length mm 4750 - 8050
                                                                                                    • Height mm 2300 - 3650
                                                                                                    • Width mm 2200 - 3050
                                                                                                    • Weight kg 6500 - 40000


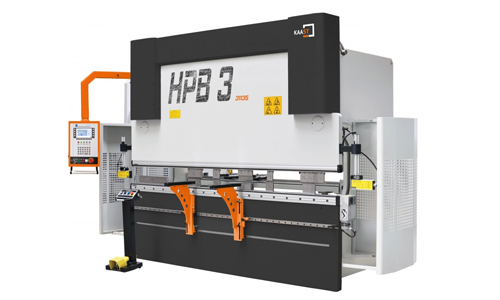

                                                                                                  • HPB 3

                                                                                                  • Technical specifications HPB 3 2660 - 61400:

                                                                                                    • Capacity t 60 - 400
                                                                                                    • Working length mm 2600 - 6100
                                                                                                    • Machine length mm 4150 - 8050
                                                                                                    • Machine height mm 2400 - 3650
                                                                                                    • Machine width mm 2150 - 3050
                                                                                                    • Weigth kg 5300 - 34500

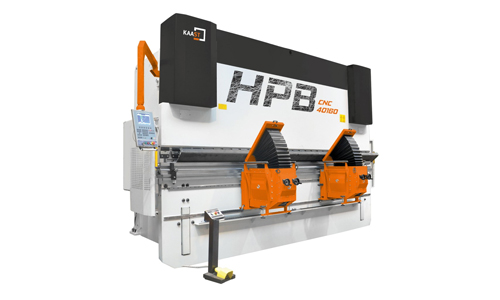

                                                                                                  • HPB CNC

                                                                                                  • Technical specifications HPB CNC 1240 - 37220:

                                                                                                    • Tonnage t 40 - 220
                                                                                                    • Working length mm 1250 - 3700
                                                                                                    • Length, mm 2750 - 5450
                                                                                                    • Height, mm 2500 - 3000
                                                                                                    • Width, mm 2200 - 2900
                                                                                                    • Weight kg 3450 - 12400

                                                                                                    Automatic pressure force calculation, taking into account quality of material, thickness, length of labor and the die V-opening. With the optional motorized lower crowning this is adjusted automatically according to the instructions of the controller.
                                                                                                • Hydraulic Presses

                                                                                                      • HPF 40 • 70 • 100 • 150 • 200 • 300 • 400

                                                                                                      • Technical specifications HPF 40 - HPF 400:
                                                                                                        • Tonnage t 40 - 400
                                                                                                        • Cylinder stroke mm 500
                                                                                                        • Table dimensions mm 700x500 - 1400x1000
                                                                                                        • Distance ram-to-table mm 500
                                                                                                        • Weight kg 1050 - 8500

                                                                                                        Hydraulic press for bending, punching and compression molding


                                                                                                        • The machine can be used for material testing
                                                                                                        • Ram plate with T-slots for tool fastening
                                                                                                  • Eccentric Presses

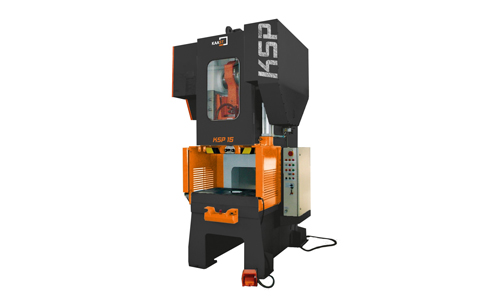

                                                                                                        • KSP 15 • 30

                                                                                                        • Technical specifications KSP 15 - KSP 30:

                                                                                                          • Tonnage t 15 - 30
                                                                                                          • Table dimensions mm 320x490 - 400x600
                                                                                                          • Table bore diameter mm Ø130 - Ø150
                                                                                                          • Dimensions mm 964x724x1726 - 790x1025x1965
                                                                                                          • Weight kg 740 - 1600


                                                                                                          • Compact, powerful single column eccentric press with 10 to 30 tons of pressure
                                                                                                          • Selection switch for single stroke / continuous
                                                                                                          • Two-hand or foot switch
                                                                                                          • Ram guides made of bronze for longer life
