  • Offer Profile

  • Walter Maschinenbau GmbH with headquartes in Tubingen produces CNC machines for grinding and eroding as well as laser processing metal, wood and PCD tools as well as rotationally symmetrical production parts.

    The production program is complemented by optical CNC measuring machines for non-contact complete measurement of complex precision tools and rotationally symmetrical parts with logged accuracy in one clamping.

    Our know-how is incorporated in the development of our own software. Comprehensive service offers round off our range of products. Together with EWAG, we are a system and solution provider for tool machining and form a technology group within UNITED MACHINING SOLUTIONS.

Product Portfolio

  • Grinding Machines

  • Grinding with precision

    WALTER tool grinding machines are used to produce and re-sharpen tools. Our machine tools can handle complex tool geometries and allow you to re-sharpen tools. Our CNC grinding machines are world-class tool grinders for production and re-sharpening, from entry-level model to high-end solution.

      • HELITRONIC RAPID

      • The new entry-level machine

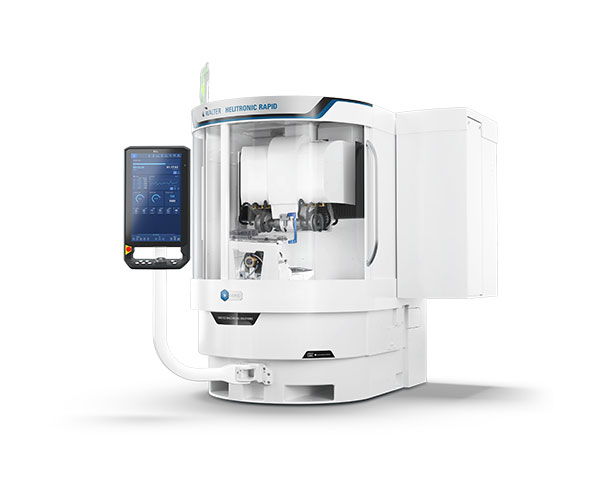

        The HELITRONIC RAPID tool grinding machine with C.O.R.E. technology is a tool grinding machine with 5 CNC-controlled axes specially designed for the resharpening and production of milling cutters, drills, step drills, step tools, woodworking tools, profile knives and profile tools.

        Diameter range 1 to 16 mm for production and 3 to 100 mm for resharpening, machining length up to 255 mm, unit weight up to 30 kg.

        Optionally with

        • Top loader
        • Glass scales
        • A-axis torque motor

      • HELITRONIC G 200

      • COMPACT - ACCURATE - RELIABLE

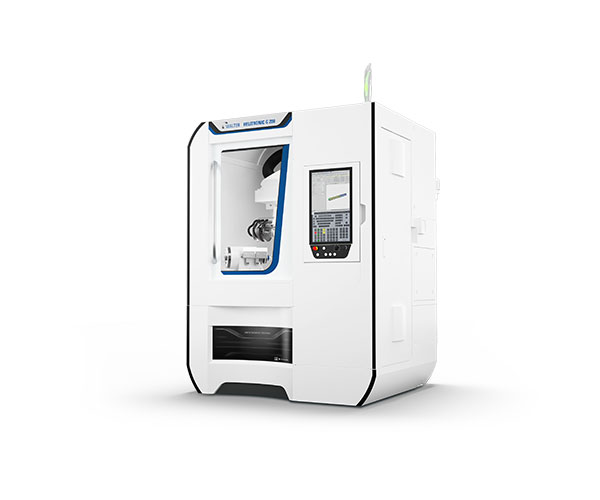

        The HELITRONIC G 200 tool grinding machine impresses with an innovative machine concept with a footprint of less than 2,3 sqm. The machine offers tool grinding at its best: Production and re-sharpening of rotationally symmetrical tools in the diameter range of 1 to 125 mm, with a maximum tool length of 235 mm and a tool weight up to 12 kg. Maximum grinding wheel diameter is 150 mm.



      • HELITRONIC MINI PLUS

      • Flexible configurable tool grinding machine for small and medium diameters

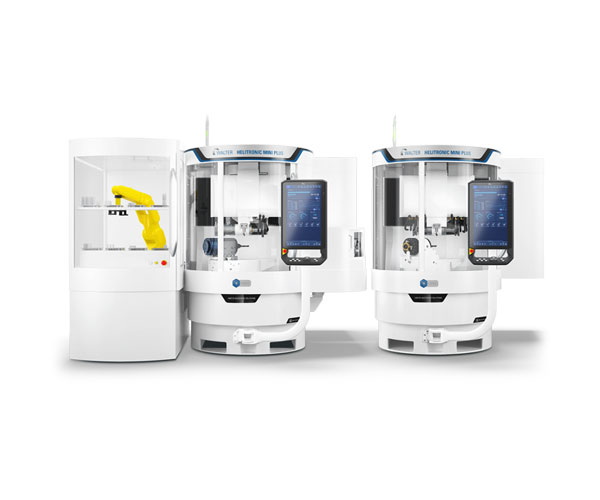

        The HELITRONIC MINI PLUSwith C.O.R.E.-Technology is our new tool grinding machine for flexible production and resharpening of small and medium tool diameters. Various loading systems and efficiency options allow the machine to be configured to fit current and future applications. The compact design offers optimal utilisation of floor space in production.

      • HELITRONIC RAPTOR

      • The reasonably allrounder for producing and regrinding tools

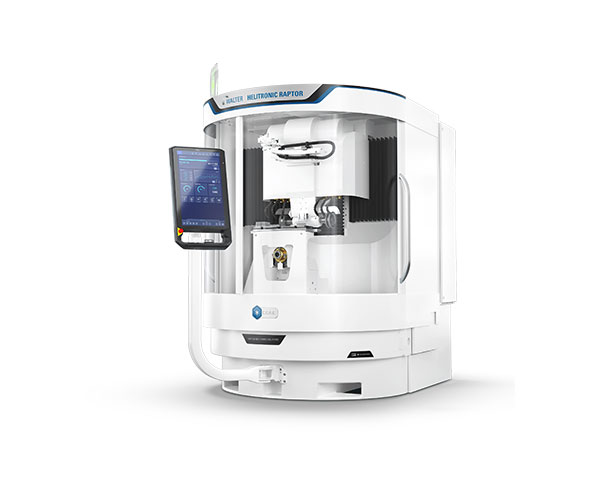

        The grinding machine HELITRONIC RAPTOR is the ideal entry-level machine for efficient grinding and regrinding of rotationally symmetrical tools with a small footprint. The machine grinds tools with diameters of 3 to 320 mm, a tool length including End Face Operation up to 280 mm and weight up to 50 kg.

      • HELITRONIC POWER 400

      • For maximum flexibility in volume production


        The tool grinding machine HELITRONIC POWER 400 with C.O.R.E.-Technology is powerful with maximum flexibility for medium to large series.

        It stands for top quality worldwide in the production and resharpening of rotationally symmetrical tools. It grinds tools in the diameter range from 3 to 315 mm, a machining length up to 520 mm and a piece weight up to 50 kg.

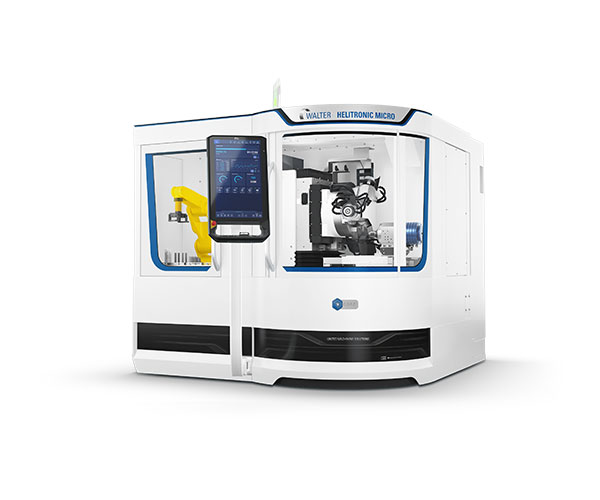

      • HELITRONIC MICRO

      • High-end for smaller Tool diameter

        The tool grinding machine HELITRONIC MICRO with C.O.R.E.-Technology produces and sharpens rotationally symmetrical tools and production parts with smaller diameters. It grinds tools from a diameter of  0.1 mm in production and in re-sharpening operation from a diameter of 3 mm. The maximum diameter is 12.7 mm, the tool length isup to 220 mm and the piece weight is up to 12 kg.

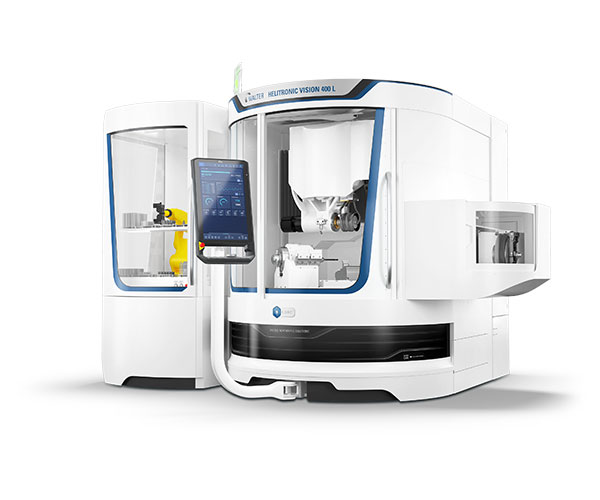

      • HELITRONIC VISION 400 L

      • High-end for highest quality requirements

        The tool grinding machine HELITRONIC VISION 400 L with C.O.R.E.-Technology produces rotationally symmetrical tools and production parts of complex geometries in high-precision production. It handles tools with a diameter of 3 to 315 mm, a tool length up to 420 mm and a piece weight of up to 50 kg.

    • Eroding Machines

    • Since 20 years: Eroding and grinding in ONE machine

      WALTER tool eroding machines can erode tools made of PCD and CBN and grind tools made of carbide and high speed steel, all in one alternating stream. The combined processing of complex geometries in one clamping saves time and increases accuracy.

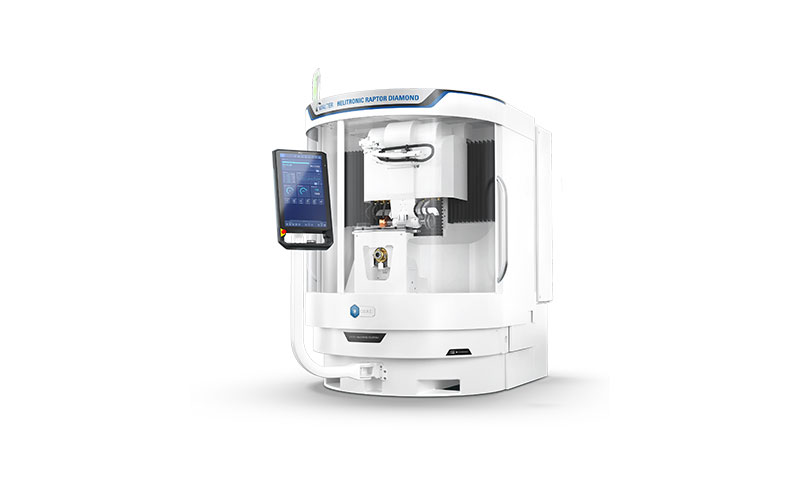

        • HELITRONIC RAPTOR DIAMOND

        • Flexible “Two-in-One” erosion and grinding entry-level machine

          The tool eroding machine HELITRONIC RAPTOR DIAMOND is the cost-effective and performance efficient entry-level solution within our erosion portfolio when it comes to eroding PCD and CBN tools and grinding HSS and carbide tools in a single clamping cycle, on a small footprint, as well as for large tool diameters! The machine erodes tools with a diameters of 3 to 400 mm, a tool length including End Face Operation up to 270 mm and a weight up to 50 kg.

        • HELITRONIC DIAMOND EVOLUTION

        • The efficient eroding and grinding machine

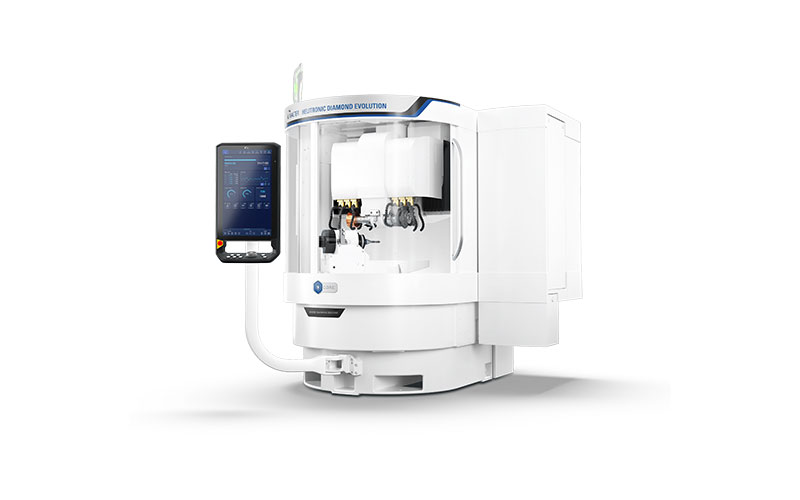

          The HELITRONIC DIAMOND EVOLUTION  tool eroding machine with C.O.R.E. technology can erode and grind tools  in one setting. The machine is a highly efficient solution when it comes to the eroding of PKD/CBN material tools and the grinding of high speed steel/carbide tools in one single clamping cycle on a minimal footprint. It handles tools with a diameter of 1 to 165 mm, a tool length up to 185 (255) mm and a piece weight of up to 30 kg.

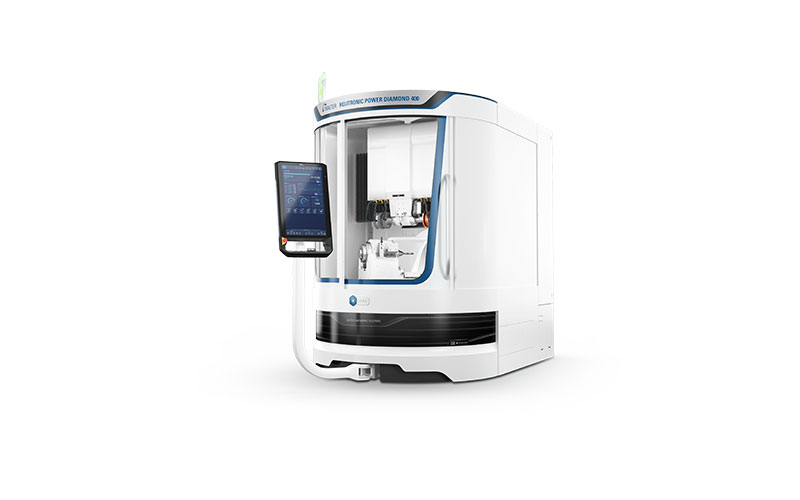

        • HELITRONIC POWER DIAMOND 400

        • The flexible eroding and grinding machine


          The tool eroding machine HELITRONIC POWER DIAMOND 400 with C.O.R.E.-Technology can erode tools made of PCD/CBN material and grind tools made of high-speed steel/carbide.

          It can produce tools with a diameter of 3 to 380 mm, a machining length of up to 520 mm and a piece weight of up to 50 kg.

        • HELITRONIC VISION DIAMOND 400 L

        • The high-end eroding and grinding machine

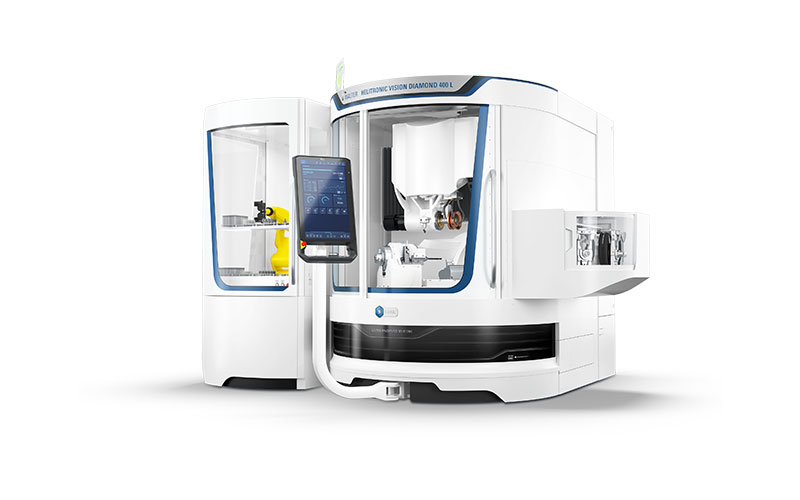

          The high-end HELITRONIC VISION DIAMOND 400 L with C.O.R.E.-Technology can erode tools made of PCD/CBN material and grind tools made of high-speed steel/carbide. It handles tools with a diameter of 3 to 315 mm, with a tool length up to 420 mm and a piece weight up to 50 kg.

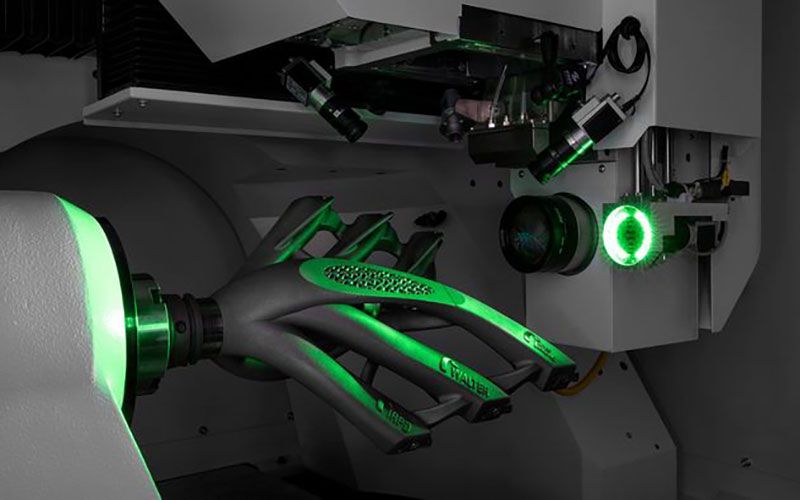

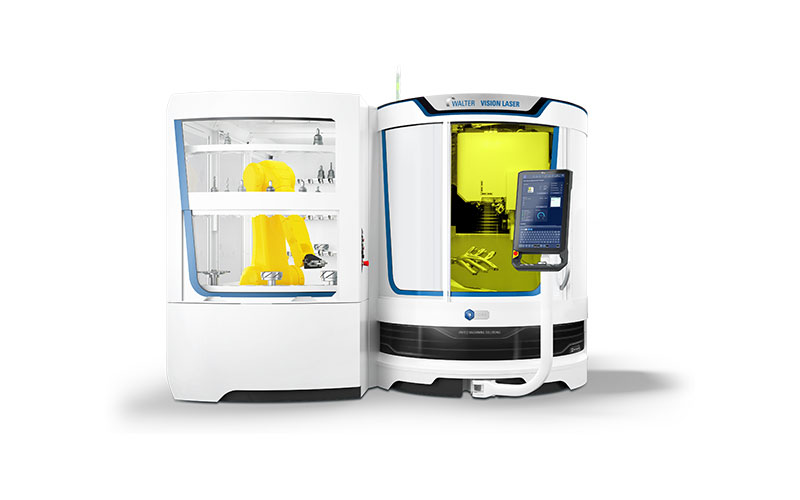

      • VISION LASER

      • VISION LASER offers state-of-the-art laser processing for brazed diamond tools – developed for maximum precision and efficiency in tool production. Based on the proven HELITRONIC VISION, the machine combines decades of experience with pioneering laser technology.

        Thanks to the innovative C.O.R.E. operating system, you benefit from intuitive operation, seamlessly integrated system applications and a fully digital workflow – standardised on all machines from the UNITED GRINDING Group.

          • VISION LASER

          • Features:

            • Mineral casting portal design
            • Linear and torque drives
            • Automatic calibration
            • Software integration and user-friendly operation
            • Automation with Robot Loader 25 (optional)

        • GRINDING SOFTWARE

            • THE INTELLIGENT SOLUTION FOR TOOL MACHINING

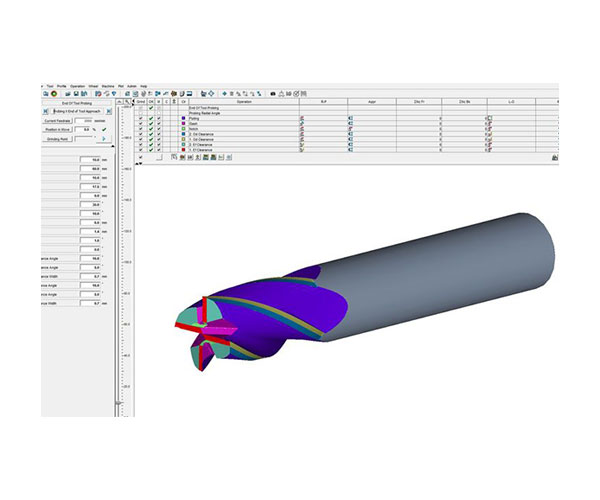

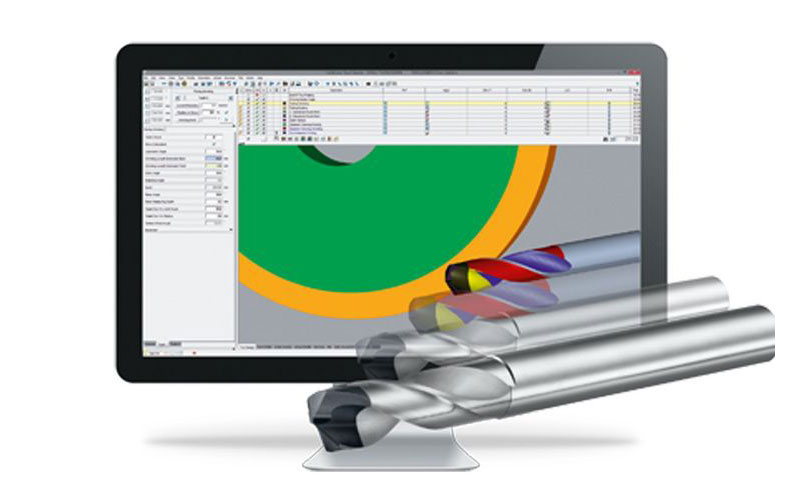

            • Our HELITRONIC TOOL STUDIO grinding software is the proven CAD/CAM software for current and future tool industry market needs. It allows for all tool parameters from design to production to be edited.

            • USES

              • Design, programming, simulation and production of rotationally symmetrical tools and production parts
              • Grinding of complex tool geometries in one clamping
              • Re-sharpening of complex tool geometries in one clamping
              • Economic from lot size of 1 to large series

            • SOFTWARE

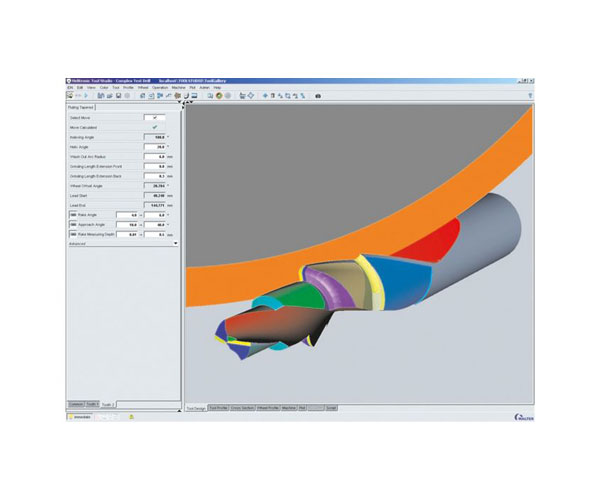

              • HELITRONIC TOOL STUDIO with integrated wizard technology (WALTER knowledge base)
              • Standard license for production and re-grinding of rotationally symmetrical tools and production parts
              • Advanced license with advanced capabilities for the production of demanding tools and the design of user-defined tools without Wizard support
              • Numerous options and extensions for more skills and special applications

          • ERODING SOFTWARE

          • Eroding at the press of a button

            Through its "Walter Window Mode" eroding software and "HELITRONIC TOOL STUDIO" grinding software, WALTER covers the full range of rotationally symmetric PCD/HM tools, enabling the user-friendly programming of these tools.

            To sum up the benefits of HELITRONIC TOOL STUDIO for eroding in one sentence, it would be: “If it can be ground, it can also be eroded"

                • Eroding at the press of a button

                  • Time savings through clear and easy operation
                  • Simulation of grinding and/or erosion operations directly on the machine or at the PC workstation
                  • Highly precise integrated 3D live simulation – real-time display of all parameter changes
                  • Click & Edit – easy selection of operations by clicking on the simulation model
                  • Flexible modular system – freely combinable and expandable operations for future development

            • TOOLS

            • On our website you will find an overview of tools that can be ground, eroded, and lasered using a WALTER tool processing machine. This list is not exhaustive and is constantly being expanded.

              Your area of application is not listed? We would be happy to clarify for you whether and with which WALTER tool grinding, tool eroding, or laser machining machine your tool can be machined.
