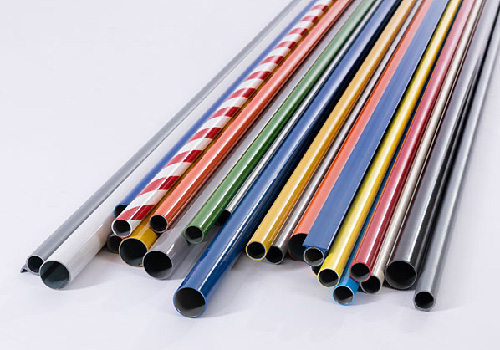

The standard pipe H-4000 has an outer diameter of Ø 28mm. The wall consists of 0.7mm thick cold-rolled steel. Extremely light and high stability characterise this pipe.
The sheathing for ASA thermoplast is available in different colours. The length of the pipe is 4000mm and the inside of the pipe is coated with a corrosion protector.
In addition to the standard Ø28mm pipe CREFORM offers two more outer diameters. Ø42mm for structures with high loads and long dimensions. Ø32mm for skate tracks and to extend the Ø28mm pipe for vertical adjustments.
Moreover CREFORM offers many other pipe types, which let you resolve almost any task and problem in your manufacture.
The possible load of the Ø28mm standard pipe is pictured in the chart. The values in the chart represent maximum proportional limits. Exceeding these values leads to permanent deformation of the pipe. Higher load values are resolved simply and easily by using a double pipe to double or respectively triple the load values.
This picture shows the test arrangement, in which the results of the above chart are ascertained. This testing takes place before and after each production charge of the pipe to guarantee constant quality. CREFORMs principle is to keep your equipment lean and demand-oriented as well as easy to modify and without oversized and unnecessary investments.
Electrostatic discharge (ESD) describes the procedures and effects at the clearing of electrical charges between two differently charged materials. When these touch, positive and negative charges are exchanged.
Important for electronic manufacture with ESD protection zones! Of course CREFORM also offers ESD capable components, which let you use the required structures in ESD protection zones as well. The ESD capability has been confirmed by a testing institute; we will gladly send you the test report.

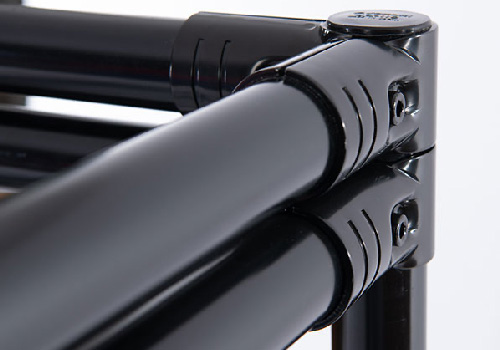

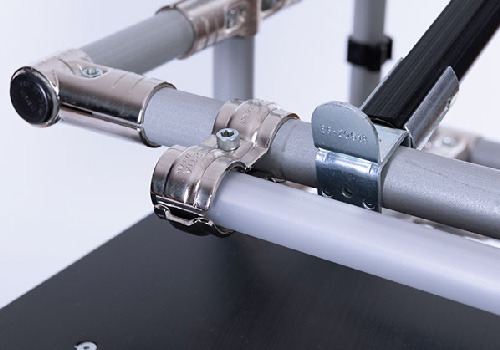

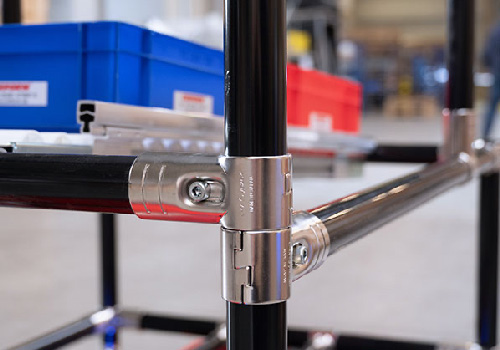

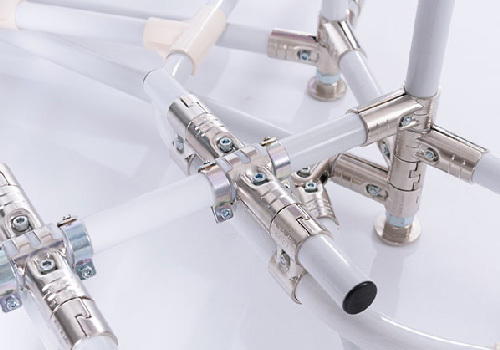

CREFORM metal connectors are made from cold-rolled steel and go through surface treatment to prevent corrosion. They consist of two or more components, which are secured with special nuts and bolts. Through deep-drawn interlinking a robust connection between the pipe and the metal connector is created.
CREFORM standard joints

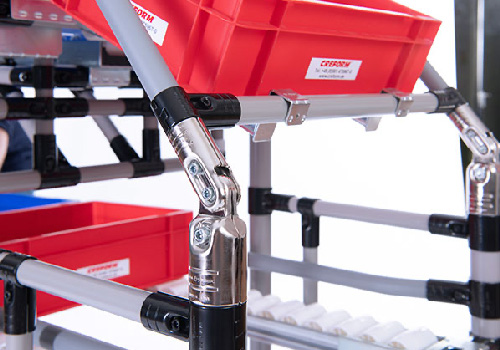

Connectors are the base components of all CREFORM structures. The CREFORM pipes are connected through them. Depending on the application, metal or plastic connectors are used. Both types have the same stability but different applications:
- Suitable for most applications
- Large choice of joint types
- Standard bolt size (5mm hex head)
- High strength, long-durability steel
- Coated for corrosion resistance
- Nickel-plated version for ESD structures
- Special stainless steel connectors available
- Ø 28mm, Ø32mm and Ø42mm connectors available
- Numerous options; more than 90 to choose from
- Easy to glue
- Durably firm
- Different colours
- UV and moisture resistant

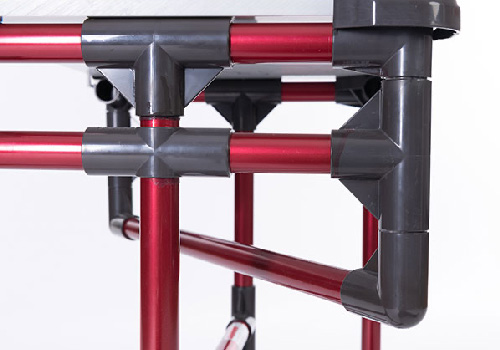

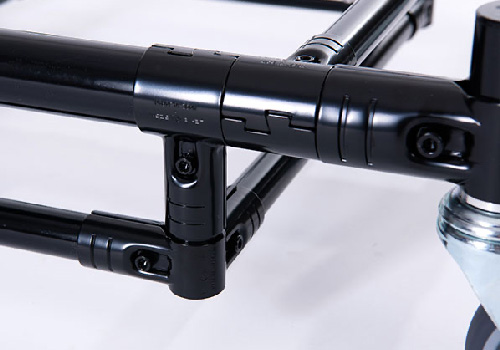

CREFORM plastic connectors consist of high-quality thermoplast ASA plastic. Plastic connectors are economical, light and intended for permanent connections. This permanent and durable connection is achieved through gluing the pipe and plastic connector.

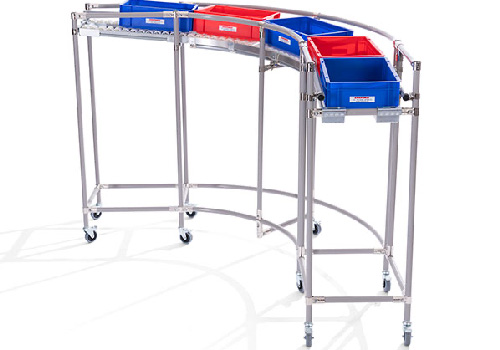

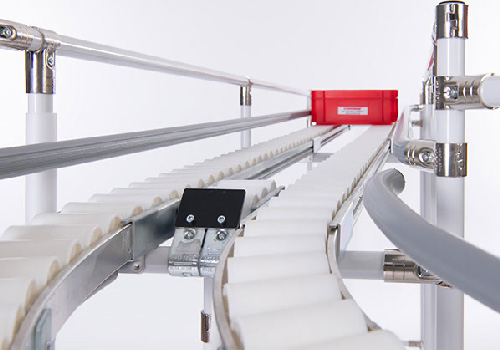

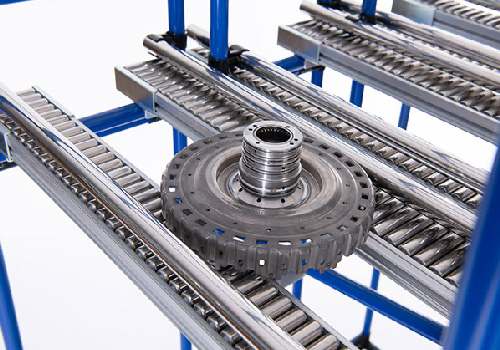

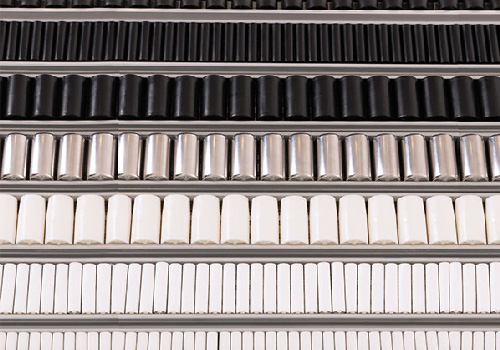

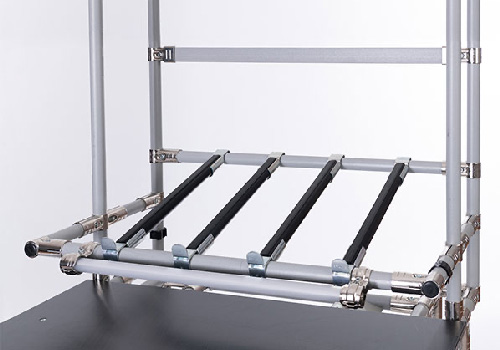

With different skate wheel conveyors you can transport almost any imaginable container shape in their transport structure. For every application there is a different railway bracket with stop and surrender function.
In the event of damaged castors, every single part of our CREFORM skate wheel conveyors can be exchanged separately.

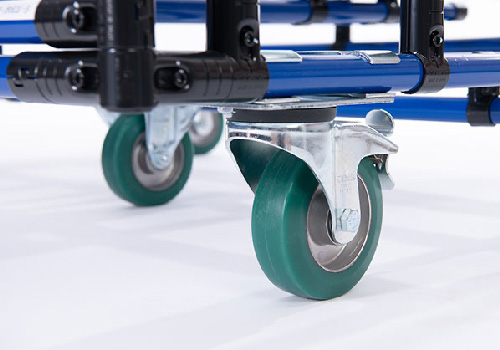

A broad spectrum of castors and roles with different diameters, running coatings and installation possibilities also form part of CREFORM accessories.
Our technical advisors are more than happy to assist you with the right choice of castors and roles.

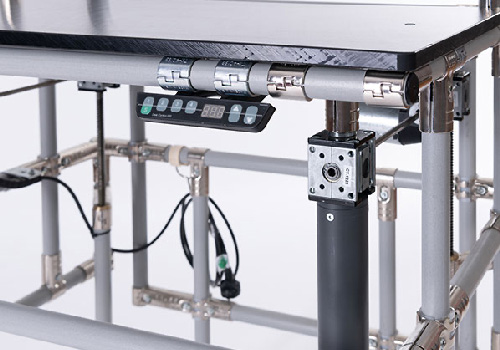

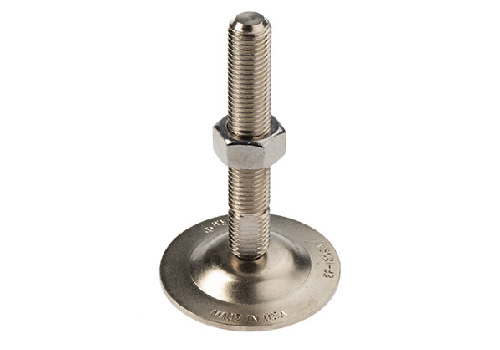

CREFORM offers different floor elements for static structures, which are chosen according to your manufacturing requirements.
Also applicable is: light elements for light structures and not vice versa! No unnecessary waste of material. With CREFORM you can always modify.

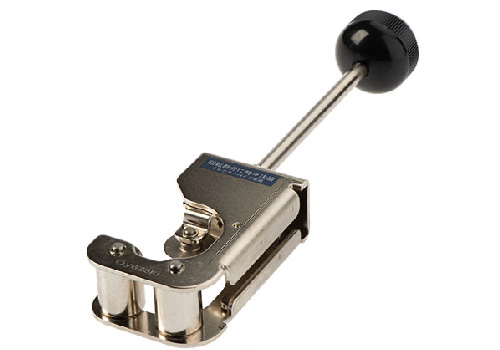

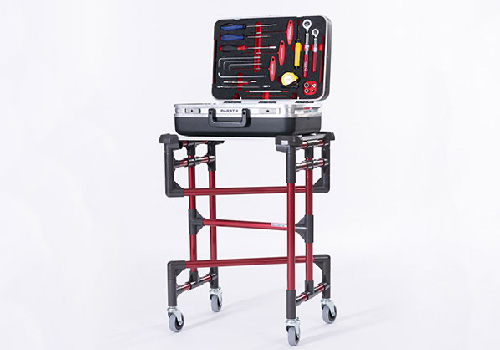

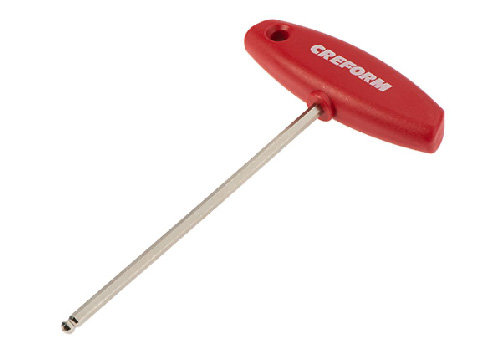

A pipe cutter to modify structures, hexagon socket wrench, ratchet to fix nuts and bolts, tape ruler, inside and outside deburrer for pipes and a hammer to drive in the legs – only these few tools are needed to integrate your equipment with CREFORM.
We recommend a simple commercially available vertical band saw to cut larger quantities of pipes. The pipes are very easy to cut because of the adequate wall thickness.
