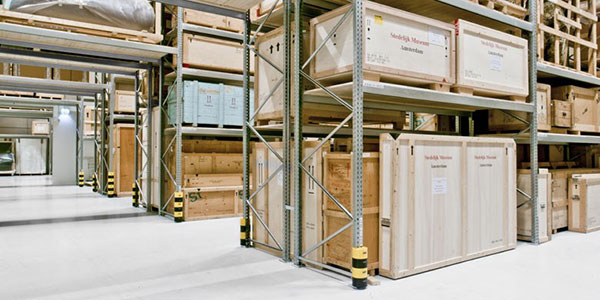

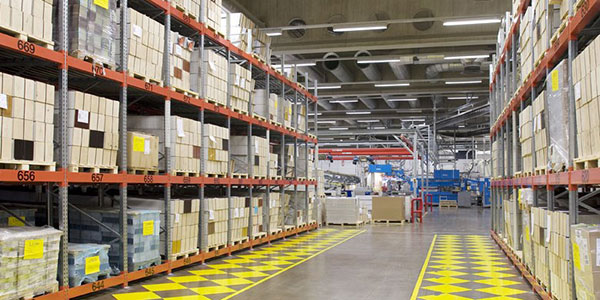

P90 Standard Wide Aisle Pallet Racking provides your warehousing teams with unrestricted access to all your pallets at all times. The system delivers versatility and assembly as single- or double-depth racks.

P90 Pallet Racking easily adapts to your specific warehouse and storage requirements, thanks to a variety of widths, depths and heights. In fact, P90 Racking will fit into any space available, and is suited to all kinds of pallets – whether they be Euro, Chep, disposable or captive pallets, mesh boxes or bins. The modular, future-proof system adapts perfectly to your particular needs – thanks to different beams, angle supports and shelves and extensive accessories range.

P90 Standard Wide-Aisle Racking offers the following features and benefits as standard:

• Free and unrestricted access at all times
• Optimum adaption for the full range of pallets
• High stability and high-quality workmanship
• Rack heights of up to 30 metres and maximum bay loads of more than 30 tons
• P90 components are permanently protected against corrosion
• Comprehensive range of accessories and complementary features

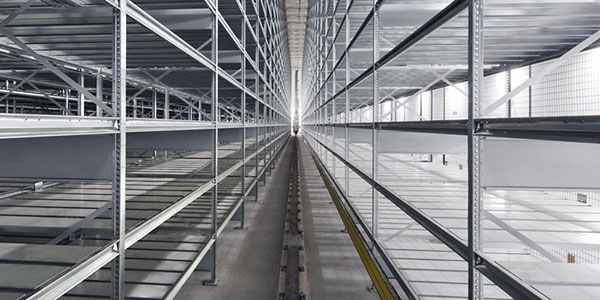

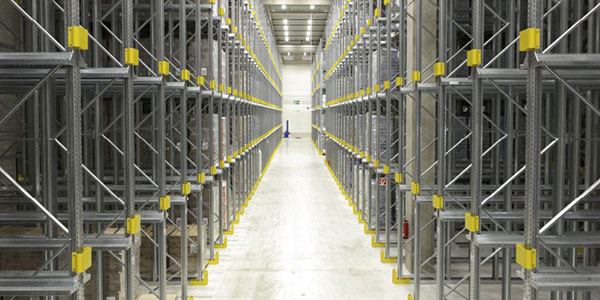

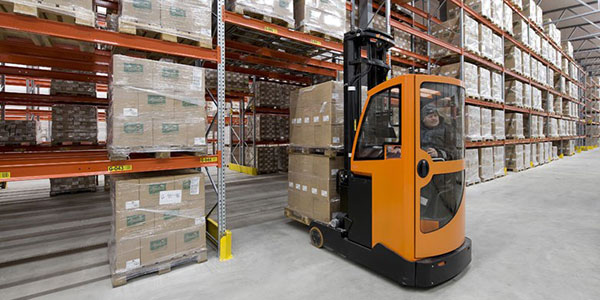

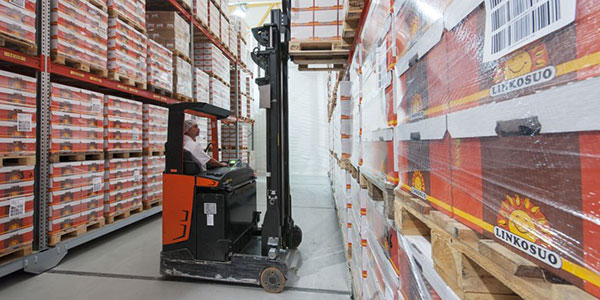

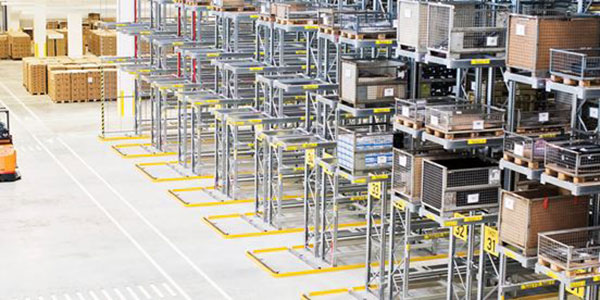

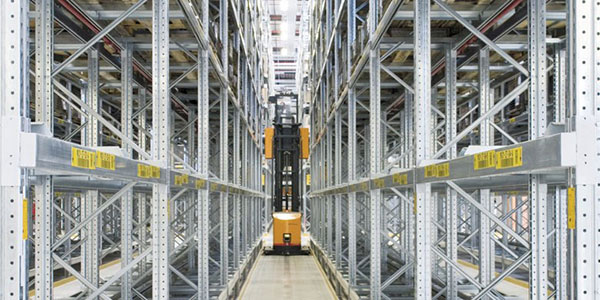

Narrow Aisle Pallet Racking is your ultimate space-saving option if your warehousing or storage floor space is limited. It gives your teams maximum storage capacity, and allows for quick order-picking and fast accessibility to every pallet.

Narrow Aisle Pallet Racking combines a wealth of features to enable the best possible use of space, and fast order-picking. Compact and efficient, it's a construction set-up used in a wide variety of industries where warehousing space is limited. Varying shelving heights and depths, together with height-adjustable supporting beams assure maximum flexibility with man-down, high-lift stackers, or man-up-order-picking stackers. It's a system perfectly suited for convenient pallet storage and retrieval or for fast order-picking straight from the pallet. Handling equipment is often highly automated, and guided by wire or rail.

Narrow Aisle Pallet Racking offers the following features and benefits as standard:

• Total and unrestricted accessibility to individual pallets
• Optimum configuration for maximum storage, density and efficiency
• Any additional costs offset by added value of improved space

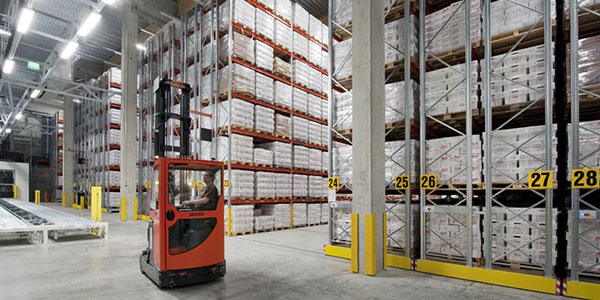

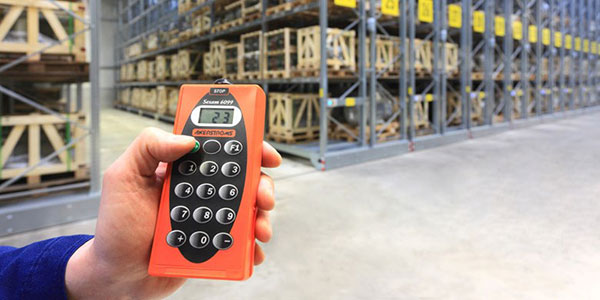

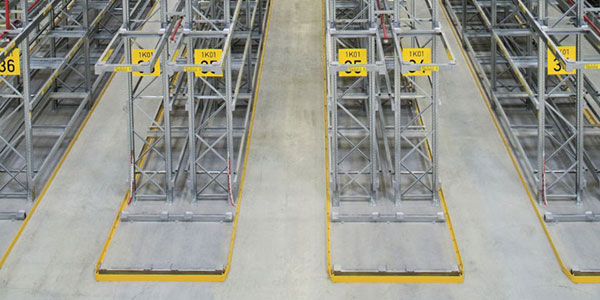

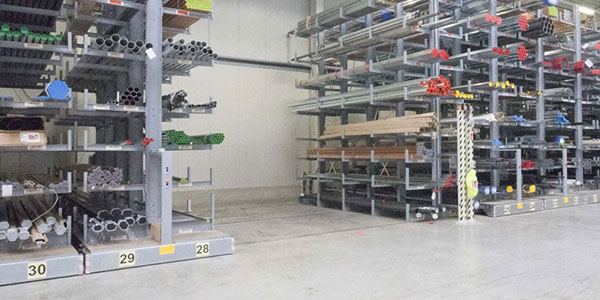

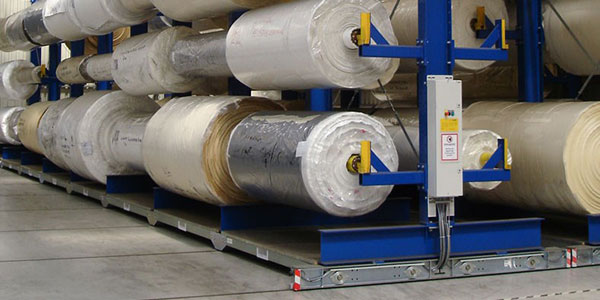

Mobile Racking (MOVO) is a dynamic solution providing up to double the storage capacity in the same area, of conventional pallet racking. Offering technical superiority and total flexibility, MOVO is suitable for every kind of stored goods, and has a wide range of accessories.

The electronically controlled MOVO high-load racking system runs on in-ground rails and can carry bay loads of up to 24 tons at racking heights of up to 12 meters. While state-of-the-art sensor technology and variable control options ensure ease of operation and absolute safety.

MOVO offers the following benefits as standard:

• Save up to 50% of the space required by conventional pallet racking, and increase storage capacity by up to 80%
• Cuts energy, operating and cleaning costs; allowing for a good ROI
• 100% individual pallet access
• Wide variety of accessories
• Suitable for any kind of warehouse goods
• Guaranteed operational safety of -30° C; ideal for use in cold-storage rooms
• Latest PLC-technology for perfect support of optional functions, plus touch screen with clear graphical display for optimum visibility
• Designed in accordance with the European Directive 2006/42/EG and DIN EN 15095

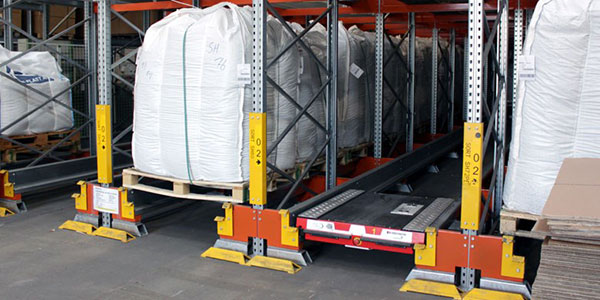

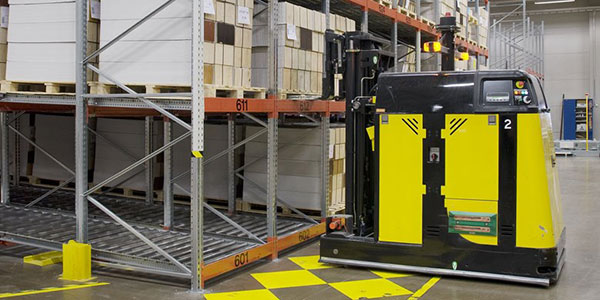

The Pallet Shuttle system is a semi-automated, high-density storage solution for the handling of goods inside channels similar to a drive-in or pallet-flow setup. Cost-effective and time-saving, it removes the need for forklift trucks to enter the aisles.

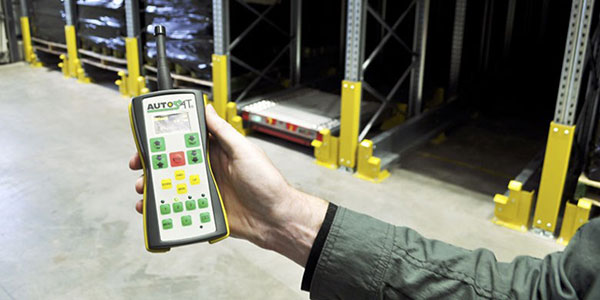

The remotely controlled Pallet Shuttle is a highly efficient alternative to live storage and drive-in racking. The Pallet Shuttle system works either as First in, First out (FIFO) or as Last in, First out (LIFO) for situations such as cold storage, food and beverage production, and meat processing.

Using the Pallet Shuttle system offers the following benefits as standard:

• Cost effective and time-saving; not requiring the use of special forklifts
• Low level of risks or damage to the equipment and operating staff
• Fast and sustainable; automatically handles pallet picking and retrieval
• Offers more effective, high-density storage
• Can pick up, deposit and re-organize pallets with great precision
• Operating temperature ST: 0°C to +45°C / BZ: -1°C to -30°C / Hybrid model can be used in both temperature ranges
• Available in different models designed for various pallet configurations
• Designed in accordance with the European Directive 2006/42/EG and DIN EN 15095

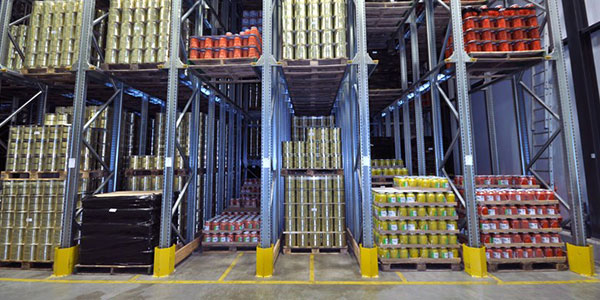

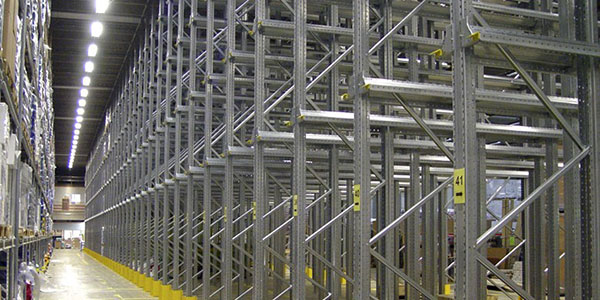

If you're storing large quantities of similar or identical goods, the P90 Drive-in Pallet Racking can free-up as much as 90% of existing floor space, compared to conventional pallet storage.

P90 Drive-in Pallet Racking creates efficiencies by reducing aisle loading and unloading times, yet allowing greater access compared to block-stacking. Positioning pallets on front-to-back rails allows rows to be stacked next to each other safely and efficiently; crucial for items regarded as fragile or unstable.

The P90 Drive-in Pallet Racking offers the following features and benefits as standard:

• More storage per cubic metre than any other storage system
• High density storage - maximising floor and storage space
• Limited stock rotation – ideal for seasonal goods and chilled storage
• Accessible by the FILO principle
• Smooth pallet rails – for safe, snag-free load-bearing
• Brightly coloured pallets help drivers position loads quickly and accurately

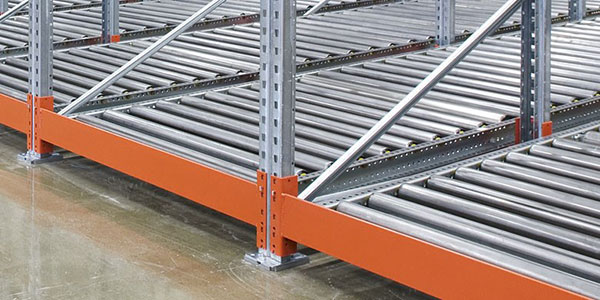

Pallet Flow Racking, or 'Pallet Live Storage' is ideal if you operate a First-in, First-out (FIFO) goods storage setup. With this system you can use up to 60% less space than if you were to use conventional pallet racking.

Our Pallet Flow system offers a dynamic storage solution with integrated conveyor modules to suit most pallet types and sizes. It's well-suited for the drinks industry or as a buffer storage facility in manufacturing.

Pallet Flow Racking offers the following features and benefits as standard:

• Dedicated load and retrieval means only two forklift truck aisles are required
• Uses up to 60% less floor space than conventional pallet racking
• FIFO operation – for automatic stock rotation
• Faster, more efficient warehouse picking speeds

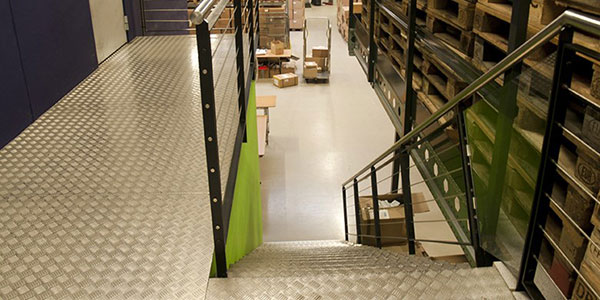

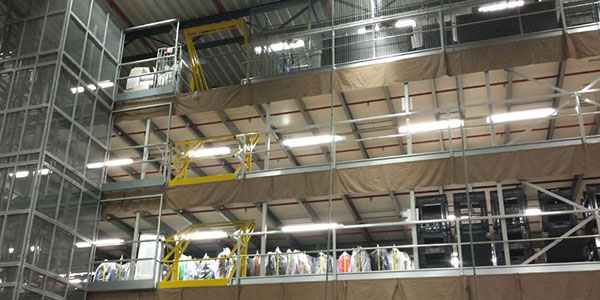

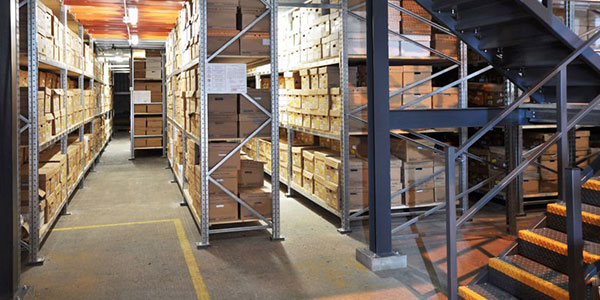

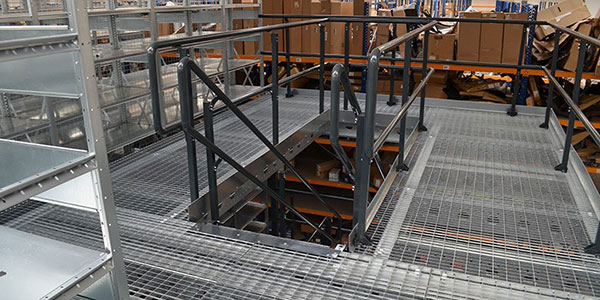

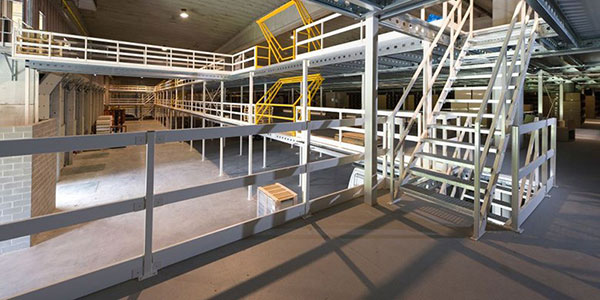

With Multi-tier Pallet Racking from Dexion, you can create manual pick-lanes for your teams at various levels, by providing walkways built into the pallet racking structure.

Our Multi-tier Pallet Racking offers optimum use of space over that of traditional mezzanine flooring structures and layouts. This type of pallet racking structure creates a number of levels and walkways for storing and collecting goods – everything from cartons and boxes, to garment storage on hangers.

Multi-tier Pallet Racking offers the following features and benefits as standard:

• Combines wooden, mesh, grating or steel shelves depending on requirements
• Increased number of picking levels
• Maximises use of the full height of the building
• Optimises floor space
• Allows order-picking on multiple levels
• Can combine pallet storage and small goods storage
• Removes the need for a mezzanine floor
• Easily incorporates fire sprinkler and lighting systems
• Extensive range of stairs, handrails and pallet gates

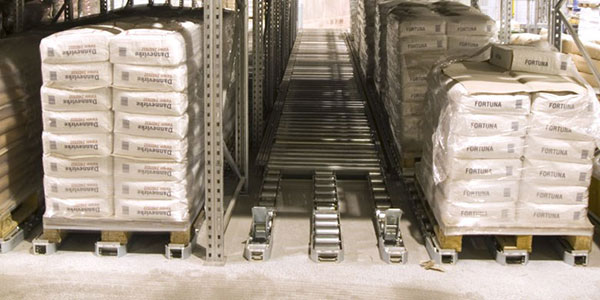

Push-back Rollers – a dynamic storage solution based on the P90 Pallet Racking System and including wheel/roller conveyors. Ideal if you're storing bulk goods on pallets according to the Last-in, First-out (LIFO) principle.

Once a pallet is picked from the pick-face, the rest roll forward automatically under a controlled speed. Up to 9 pallets can be stacked in this way. Push-back Rollers can also be used to provide additional storage space in otherwise unusable areas, such as above cross-aisles or around dock-levellers.

Our Push-back Rollers offer the following features and benefits as standard:

• Up to 75% increase in storage capacity compared to conventional storage
• Operations reduced to a minimum
• Quick and easy access to all channels
• Maximise floor space
• Ideal for bulk storage and cold store
• Accessible by LIFO principle
• Very high occupancy rates compared to Drive-in Racking or Block-stacking.

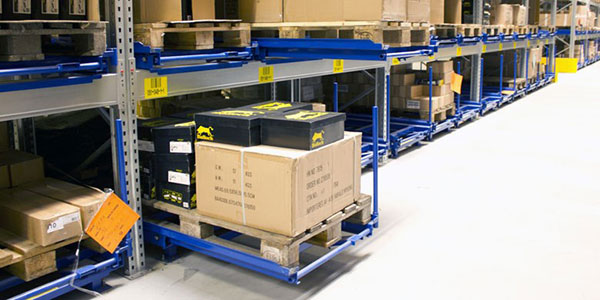

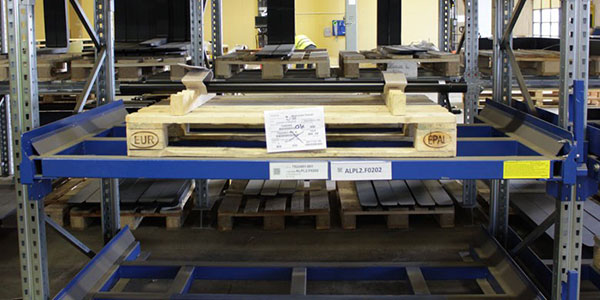

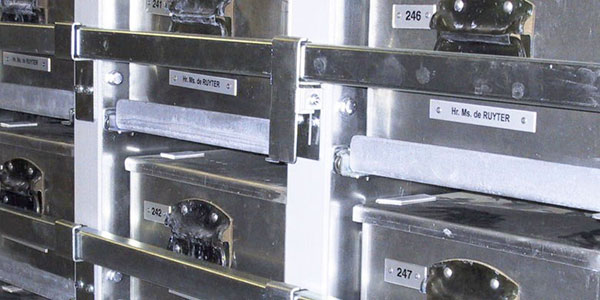

Our Pallet Pull-Out Units let your teams move pallets back and forth like drawers, even with a full load up to 1000kg. With such efficient storage, they can free up the excessive clearance distance needed above pallets.

The Pallet Pull-Out Unit saves both time and space to ensure an efficient working environment and ergonomic picking. By installing pull-out units in your pallet racking, the number of pallet and picking locations can be increased, while still taking up the same space as before. What's more, shorter operation distances allow for faster and more efficient picking, while at the same time freeing up valuable floor space.

Our Pallet Pull-out Units offer the following features and benefits as standard:

• Increase storage capacity
• Create space
• Allow easy access
• Increase picking rates

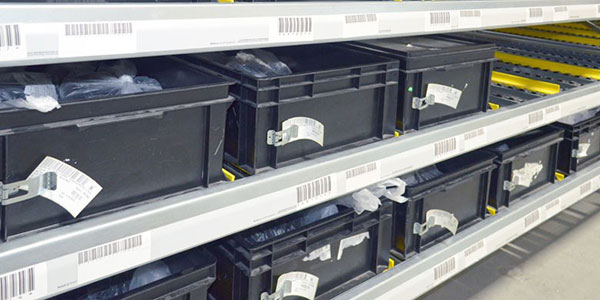

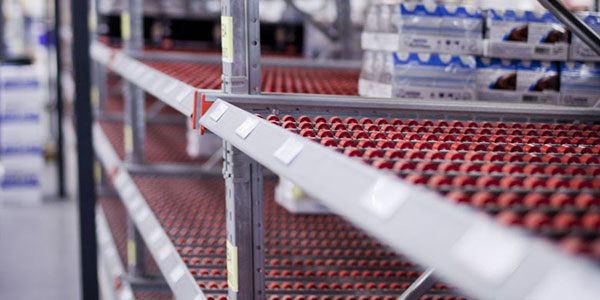

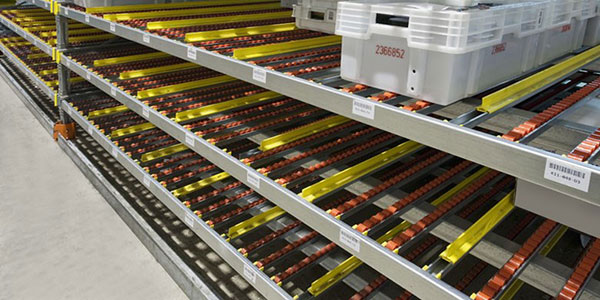

The Carton Flow Picking Unit system is a fast and flexible solution for you to transport components to assembly stations without interruption. You can also easily adjust the shelves and wheels to ensure efficient movement of various sized packages. The Carton Flow Picking Unit system is flexible enough to allow for changing and evolving warehouse layouts, thanks to the fact that it can be built as a stationary unit, or supplied with lockable wheels.

The Carton Flow Picking Unit system offers the following benefits as standard:

• Adjustable, ergonomic racks – for ultimate handler efficiency
• Separate loading and unloading – so picking can be carried out uninterrupted on either side
• High packing-density for carton storage – meaning more floor space
• Reduces travel distances and picking times
• Simple, fast installation
• Straightforward, modular system

Speedlock P90+ Pallet Racking - a versatile solution for static and dynamic pallet storage. Designed for maximum storage capacity and fast availability, it ensures unrestricted access at all times.

Speedlock P90+ Pallet Racking is the most advanced adjustable pallet racking system on the market. Available up to 30 metres and in variable widths and depths, it meets European requirements and provides efficient, flexible solutions for every need.

Speedlock P90+ pallet racking offers the following benefits as standard:

• Optimum customisation – thanks to a range of widths, depths and heights.
• High stability – with rack heights of up to 30 meters and maximum bay loads of more than 30 tons.
• Extensive accessory range – with beams, angle supports and shelf bases, and a large number of safety features.
• Future proofed – modular construction and variable bay sizes to meet changing requirements.

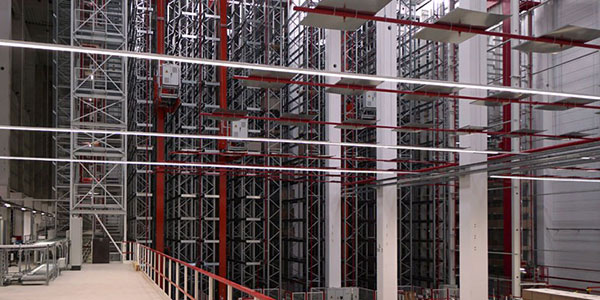

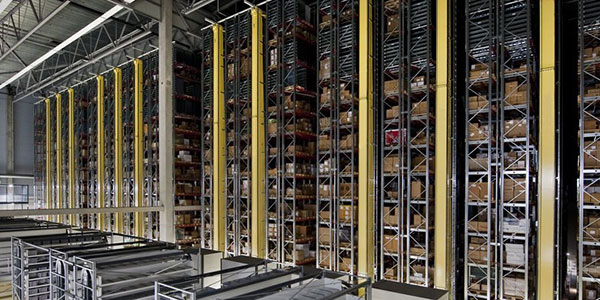

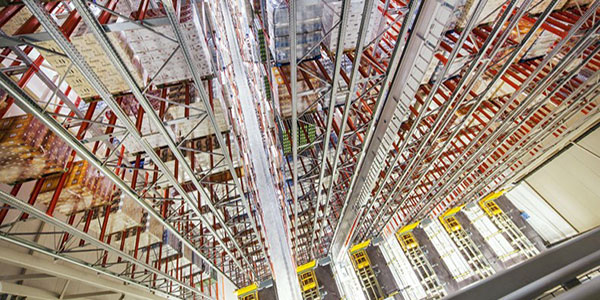

Crane Racking is a fully automated storage system, ideal for storing pallets and large items. Designed to work within very narrow aisles and at a height of more than 30 metres, crane racking is an efficient, optimised storage solution.

Guided by a management software system, the crane travels along the aisles of the warehouse, where it enters, positions and extracts the goods.

For multi-deep configurations, crane racking is equipped with a shuttle which retrieves the pallet and delivers it directly to the front – ensuring maximum accessibility. Crane Racking is designed to offer complete flexibility, from load capacity and building height, to cycle times and temperature control. The system adapts easily to the needs of each warehouse making it a highly effective storage solution for a vast range of applications.
