ACTURA - Cost Effective and Highly Flexible

Our system ACTURA  is an attractive solution for manual measuring and marking-out tasks: This includes the measurement of large single parts, the marking of workpieces and clay design models as well as the dimensional inspection of devices and parts.

Our ACTURA machines are fully compatible with older measuring plates "system B" or ACTURA. It is also possible to set up ACTURA machines on existing VENTURA guiding systems. For former "Stenzel" machines we also offer an exchange concept. Thus you can equip your existing measuring plate with a new ACTURA manual machine without having to make any changes on the plate or on the floor.

Further advantages:

• Flexible sizes
• very smooth movement in all axes
• Measuring with or without inspection software
• Variable accessories and equipment options

FUTURA Measuring Machines:
Manual, motorised or CNC operation.

The measuring machine FUTURA is featured by the X-axis guiding system which is screwed to the side of the measuring plate. Available in many variations, FUTURA machines are real "allrounders" for any metrology tasks.

FUTURA measuring machines are available in manual, motorised or CNC version, with disengageable drives for combined manual / CNC operation, as one-column or duplex solution.

Advantages

• Excellent value for money
• High-quality machine construction
• Made to last

VENTURA Horizontal Arm Machines:
Our Flagship CMMs

With the measuring machines family VENTURA and VENTURA CNC you get to know the flagships of our measuring machine programme:

Robust, high-precision horizontal-arm measuring machines, insensitive to dirt, with an X-axis guideway which is integrated in the measuring plate.

VENTURA measuring machines are available in manual, motorised or CNC controlled versions, as singlecolumn or multi-column machines.

As a standard we equip our machines with a very robust and dirt resistant magnetic measuring system. Renishaw incident light measuring systems are available on request.

Special Features:

• Single-column / multi-column machines with guidance of X-axis in the plate
• Total measuring plate accessible by foot or by vehicles
• Concealed X-axis guidance, therefore robust and insensitive to dirt

Available as Manual/motorised and CNC

The manual and motorised VENTURA CMMs are perfectly suited for continuous use in workshop conditions. The X axis guides and the measuring system are both concealed and thus protected against dust and dirt.

Our flush-with-floor system VENTURA CNC is perfectly fitted for permanent use under tough working conditions. Only permanent use guarantees efficiency and productivity – and ensures a profitable return of investment.

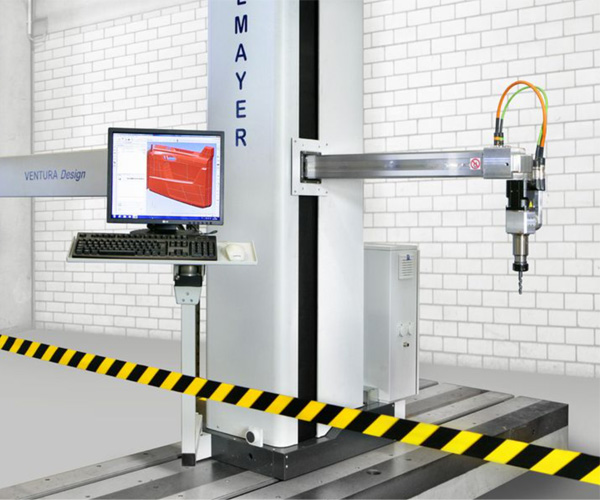

VENTURA DESIGN Horizontal Arm Machine:
Marking. Measuring. Milling.

Beside inventiveness, imagination, experience and craftsmanship, the modelling and design process also requires an efficient technical equipment - to implement objectives quickly and to make ideas come true.

Thus, with VENTURA DESIGN we complement our well-proven manual measuring  and lay-out technology by a CNC milling option - in a single machine.

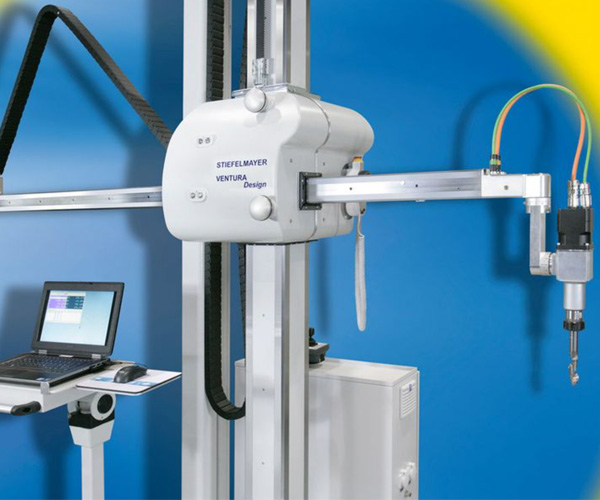

The VENTURA DESIGN features an exchangeable measuring head which is attached to the traversing arm and enables the quick change between measuring and milling operation.

If you do not want to make the decision for a combination machine with milling head yet, but want to keep the option open for the future – no problem.

In line with our concept of modular retrofitting we will equip you with a basic machine which you can have retrofitted as combination milling machine directly at your site at any time.

Further features at a glance:

• Switchable to manual mode at any time
  (Y axis and Z axis with hand wheels, X axis with electronic hand wheel)
• Powerful on-board control unit, accommodated in the machine footplate
  (no external control cabinet necessary)
• Coherent dirt protection concept
• Wireless control panel
• Adapted software concept ClayMILL/Polyworks

MILLING RETROFIT:
INCREASE PERFORMANCE AND VALUE

You have a proven measuring machine in your studio and would like to enhance its range of functions?

We offer retrofits on existing CMMs (Stiefelmayer/Zeiss and selected other brands) for expansion to clay milling functionality.

This includes
* retrofit of controller and software
* complete overhaul of all drives
* new cabling of the entire machine
* additional mechanical stabilization of the CMM.

The result are machines as good as new, with enhanced functions and a technology upgrade to get them fit for the future.

Laser Scanning with STIEFELMAYER

Proven Combination:
Stiefelmayer Mechanics - Nikon Scanner - PolyWorks® Software

STIEFELMAYER offers you a fully integrated solution for the optical measurement of your workpieces:

• Stiefelmayer CNC horizontal arm measuring machine - reliable, robust and variable.

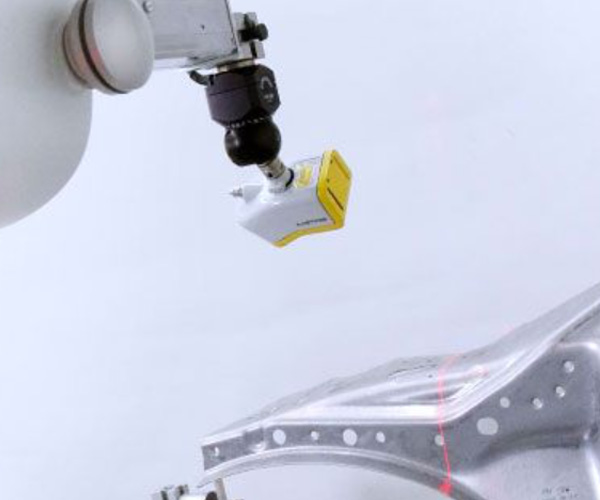

• Nikon laser scanner - fully integrated, direct interface to Stiefelmayer controller and PolyWorks® software, various scanner types depending on the application.
• PolyWorks® - powerful and universal measuring software with excellent point cloud processing.
• Optional supplement - tactile probing - for exact alignments and measuring of features with difficult access.

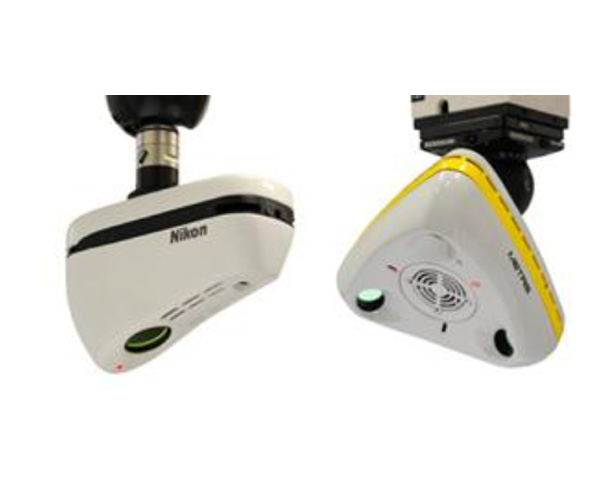

NIKON laser scanner - for all requirements

• L100: premium line scanner for very fast and highly accurate data collection
• XC65Dx: multi-laser cross scanner for excellent capturing of 3D features.
