  • Offer Profile
  • Adept has consistently led the industry in the development of innovative and powerful products for manufacturing and factory automation. We pioneered direct-drive robots, flexible feeding, database-driven applications software, integrated vision and conveyor tracking, digital servo control networks, and other products and technologies critical to the flexible automation industry.

    Our industrial robot line includes SCARA robots, six-axis (articulated) robots, and linear modules, designed for a wide variety of applications and manufacturing environments.
Product Portfolio
  • Industrial Robots (SCARA, Six-Axis, Parallel, Linear Modules)

  • For 30 years, Adept has been an industry leader in the development of innovative and powerful industrial robots for high-speed, precision manufacturing, packaging, and factory automation. Adept's industrial robot innovations continue with its expansive line of Cobra SCARA robots, Viper six-axis (articulated) robots, Quattro parallel robots, and Python linear modules (Cartesian robots).

      • Omron's Adept Cobra robot deliver performance unmatched in the industry.
        High-performance SCARA robot system for mechanical assembly, material handling, packaging, machine tending, screw driving, and other applications that require fast and precise automation. Omron Adept Cobra Series robots deliver performance unmatched in the industry with the included SmartController™ motion controller.
        • ACE software deploys your applications through a user-friendly interface
        • High-resolution, absolute encoders give you high accuracy, superior slow-speed following, and easy calibration
        • High-efficiency, low-inertia Harmonic Drives and a lightweight arm deliver maximum acceleration
        • 8 kHz servo update rate improves path following and control
        • Integrated 10/100 Base-T Ethernet TCP/IP to control the robot through a PC, PLC, or controller
        • Available options for cleanrooms and ESD to prevent static electricity during operation
      • eCobra SCARA ROBOTS

      • eCobra SCARA Robot Series offers a compact system footprint, saving valuable floor space while minimizing installation costs and complexity
        Omron's Adept eCobra 600/800 SCARA robot series features 600 or 800-mm reach and is available in three performance tiers, each designed to address different application complexity and throughput requirements. eCobra offers a compact footprint, saving valuable floor space while minimizing installation costs and complexity. This unique family ensures that users receive the highest quality, most durable robots at every performance level.
        • All amplifiers and controls are fully embedded into the robot to maximize valuable floor space and reduce installation costs (cables, control cabinets, labor, etc)
        • Three performance levels (Lite, Standard, and Pro) based on a common hardware platform. Maximizes value by only paying for the performance required for the application, without sacrificing hardware quality
        • Upgrade performance with a software license download. Easily upgrade your robot to increase production throughput with a simple software upgrade
        • Advanced features such as direct PLC programming are included in Standard and Pro performance tiers- minimize training and deployment time using familiar ladder logic programming languages of existing PLC
        • Adept ACE™ provides an effective way to deploy applications, without lengthy, overly-complicated programming
        • Includes a powerful 3D emulator that allows complete system configuration and testing in a virtual environment

      • The speed and precision of Adept Viper six-axis robots make them ideal for operations requiring fast and precise automation.
        The Adept Viper™ six-axis robot is a high-performance articulated robot ideal for assembly, material handling, packaging, machine tending, and many other operations requiring speed and accuracy in a 650mm or 850mm reach.
        • Rapid deployment using familiar ladder logic programming languages of existing PLC (IEC 61131-3)
        • Diagnostics display enables faster trouble shooting
        • Ethernet TCP/IP capability to control the robot through a PC, PLC, or robot controller
        • High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration
        • High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration
        • Maximum payload 5 kg

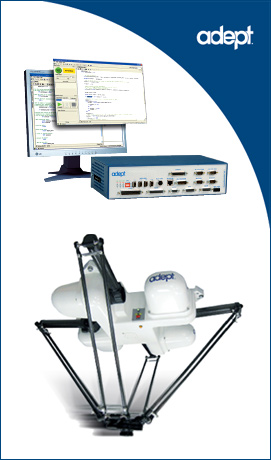

      • The Omron Adept Quattro robot is the only parallel robot in the world with patented features and USDA-accepted for meat and poultry processing.
        The Quattro™ Parallel robot excels at high-speed applications in packaging, manufacturing, assembly, and material handling. It is the only parallel robot (or "delta robot") in the world with our patented four-arm rotational platform, delivering maximum speed, maximum acceleration and exceptional performance across the entire work envelope. Ultra-compact controls and embedded amplifiers improve footprint efficiency while simplifying installation.

        The high speed, precision and overhead-mount features of the Quattro robot make it the perfect choice for flexible and fast packaging, material handling, kitting, and assembly.
        • Patented four-arm design
        • Robust components and design
        • High-resolution, absolute encoders
        • High-efficiency, low-inertia drives and lightweight arms
        • 8 kHz servo update rate yields high accuracy, superior slow-speed following, and easy calibration
        • Integrated temperature sensors monitor heat in servo motors to prevent damage
        • Diagnostic display on robot enables faster troubleshooting
        • Quattro S650HS model is USDA accepted for primary food handling

      • Designed for Primary and Secondary Food Packaging
        The Hornet 565 is a parallel robot for high-speed picking and packaging applications. The powerful controls are fully embedded into the base of the robot, saving valuable floor space and reducing installation costs and complexity. It features a hygienic design that minimizes contamination risks, including a standard IP65 rated work area and corrosion resistant materials for easy wash down.

        The Hornet includes a complete robot packaging solution that includes integrated high-speed conveyor tracking, powerful vision guidance, and easy-to-use application software created specifically for the packaging market. The robot can be programmed directly from a PLC, minimizing training and deployment time by using familiar ladder logic programming languages.
        • Hornet 565 requires no external control electronics, with all amplifiers and controls fully embedded into the robot
        • Extended vertical reach allows for a 0.36 m3 (12.7 ft3) workspace, enabling a wider variety of packages to be used.
        • 0.32 s cycle time enables higher product throughput and reduces cost per pick
        • Industry-leading conveyor tracking capabilities allow for <5mm repeatability at all coveyor speeds (pending)

      • The fastest picking system integrated in the Sysmac platform
        The Delta solution can achieve up to 200 cycles per minute and can be synchronised with multiple conveyors to perform on-the-fly Pick & Place operations. There are 3 types of Delta robot arms available as Washdown, Delta and Mini Delta robot. The NJ controller offers a response time of 2 ms when controlling 8 Delta robots or 1 ms when controlling 4 robots.
        • Control of up to 8 robots by one controller
        • Degrees of freedom: 3 + 1 (rotational axis optional)
        • Up to 200 cycle per minute
        • Model range from 450 to 1600 mm working range
        • Payload range: 1 to 8 kg
        • IP class range: IP65, IP67, IP69K
    • Robot and Motion Controls

    • With over 30,000 systems installed, Adept sets the standard for industrial robot and motion control. From simple single-robot to sophisticated multi-robot with vision-guidance control applications, our robot and motion controls provide the extensive functionality and superior motion-control performance that enable seamless integration and unmatched reliability. Adept's portfolio of motion controllers is lead by the Adept SmartController CX, an ultra-compact and powerful robot controller.

        • Adept is the industry leader in motion control. Our motion control technology can be used as an addition to an existing robot or as a stand-alone system. The distributed control architecture designed into all Adept motion control products make them ideal for the broadest range of automation applications.
      • Identification & Vision

      • Adept has consistently led the industry in the development of innovative and powerful products for vision guidance and vision-based inspection. Adept pioneered vision-guidance capabilities for robots over 30 years ago, and the company remains the performance leader today. Our state-of-the-art vision systems provide seamless integration of vision with motion control to create the most robust, scalable, and flexible automation systems available.

          • Adept vision-guidance systems allow you to easily add out-of-the box vision capabilities to your automation workcells. Our vision guidance solutions will help you deal with smaller parts and tighter tolerances, and improve product quality, without the need for complex programming or additional development tools.

          • Adept vision inspection systems provide a self-contained, powerful vision solution for your product-inspection applications. Our vision inspection software provides an easy-to-use graphical interface, which supports quick program development and deployment, to help you improve your product quality and throughput.
        • Industrial Automation Software (for the PC, Controller and PLC)

        • 30 years ago, Adept established itself as the technology leader in the robotics industry with the invention of V+, a perfectly-adapted programming language that quickly became the industry standard for motion-control software. Our latest powerful software solutions for the PC, controller, and PLC, focus on an open architecture and standards-based tools that facilitate efficient and robust application development.
            • PC SOFTWARE

            • Adept PC-based software provides additional access and programming possibilities.
              From simple controller-interface programs to full development environments, such as Adept ACE, our PC software enhances the usability of Adept products.

            • Adept controller software sets the standard for motion control.
              This industry-proven software will solve your toughest application challenges, from simple pick-place to vision-guided conveyor tracking.
            • PLC SOFTWARE

            • Adept PLC software allows you to seamlessly control Adept robots through your PLC network.
              The familiar programming environment of the PLC, combined with its attractive price, makes this one of the most affordable and easy-to-integrate control solutions in the industry.
          • Application Products (Packaging Automation Cells, and Flexible and Intelligent Part Feeders)

          • Adept's application products compliment your existing workcell and factory automation applications. Our new packaging automation cell provides a prefabricated platform for primary packaging applications. Our flexible feeders and intelligent feeders provide your application with the ability to handle a wide array of parts that no conventional part feeder can match. Both products incorporate best-in-class products, deliver faster integration and make part changeovers quick and easy.
                • AnyFeeder™

                • The Adept AnyFeeder™ provides an economical alternative to well-known, conventional part-feeding techniques. When combined with an Adept robot and Adept vision guidance, the Adept AnyFeeder provides flexible part-feeding that exceeds the capability of hard-tooled bowl feeders. Its flexibility in feeding small parts of various size, shape and material allow for fast line changeover and significantly reduced tooling costs, to give you a crucial competitive advantage.
            • Adept Mobile Products (Motivity Core, Mobile Platforms, and Mobile Software)

            • Adept Mobile products provide the logistical productivity and intelligence currently unrealized through conventional conveyance, transport, and AGV systems. Robots powered by Motivity are people aware and work in existing facilities with minimal to no retrofits. Companies utilizing Motivity experience lower total cost of ownership and significant improvements in the areas of productivity, intelligence, and system start-up.

                • Adept Enterprise Manager is a fleet management system used to optimize the operation of up to 100 Adept mobile robots per instance. It provides job allocation to designate requests across a fleet within a work environment, traffic control for vehicle routing and system optimization and systems networking for interfacing with external systems.
                • ADEPT MOBILE PLATFORMS

                • Adept Mobile Platforms combine a high payload Autonomous Indoor Vehicle (AIV) with onboard computer, Motivity controller, and software for automatic map generation and guidance. Within a defined workspace, the platforms know exactly where they are in reference to that area, and can navigate autonomously and safely through any accessible space.

                • Adept Mobile Transporters safely and easily deliver goods and materials within dynamic environments. They reduce manual transport tasks, shorten turnaround time, and increases operational efficiency by re-applying expensive labor from moving goods to higher-value tasks.
                • ADEPT MOBILE SOFTWARE

                • Adept Mobile Software products are PC-based software tools for managing an entire system of mobile robot applications. The software acts as an eye for the mobile robot to create maps capturing all its natural features, display actual navigation on the map with location-tracking, and communicate with the base station wirelessly.
                • ADEPT MOBILE OPTIONS

                • Adept Mobile Options provide additional capability to both the Lynx platform and Lynx transporters. The options include color human machine interface, call buttons and improved localization of the vehicle.
